Extensor Tendon Reconstruction

Operative SurgeryHand & Wrist
Hand & WristIntermediate

Extensor Tendon Reconstruction

Comprehensive guide to extensor tendon reconstruction including zone-specific techniques, tendon transfers, grafting options, and rehabilitation protocols for chronic extensor deficiency.

Procedure console
35 min
Read
0
Sections
intermediate
Level
Peer-reviewed · 2025-12-25
High-yield overview

Tendon Transfers | Grafts | Chronic Deficiency

3-6mWait for reconstruction
EIP→EPLClassic thumb transfer
Passive ROMEssential prerequisite
90-95%EIP transfer success

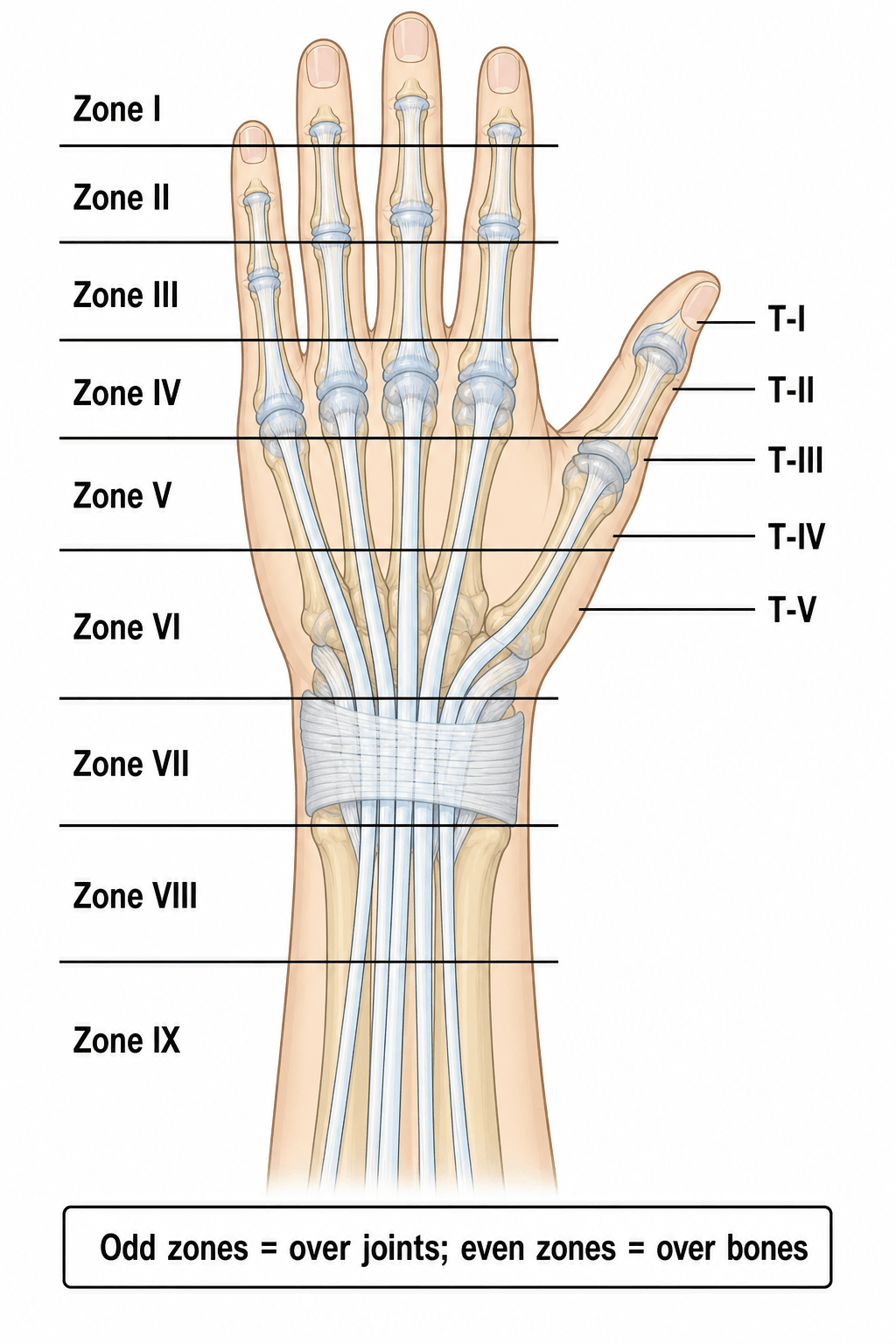

Extensor Zones (Kleinert-Verdan)
Zone I
PatternDIP joint level - mallet deformity pattern
Treatment
Zone II
PatternMiddle phalanx - central slip injuries
Treatment
Zone III
PatternPIP joint - boutonniere deformity risk
Treatment
Zone IV
PatternProximal phalanx - extensor mechanism
Treatment
Zone V
PatternMCP joint - sagittal band disruption
Treatment
Zone VI
PatternMetacarpal - subcutaneous location
Treatment
Zone VII
PatternWrist/retinaculum - EPL rupture site
Treatment
Zone VIII
PatternDistal forearm - muscle-tendon junction
Treatment
Critical Must-Knows
  • Full passive ROM is mandatory before any reconstruction attempt.
  • EIP to EPL transfer is the gold standard for isolated EPL rupture.
  • Timing: 3-6 months post-injury for scar maturation before reconstruction.
  • Palmaris longus is the first-choice donor for free tendon grafts.
  • Pulvertaft weave (3-4 weaves) is the standard tendon attachment technique.
  • Vaughan-Jackson syndrome: Sequential ulnar-to-radial extensor ruptures in rheumatoid arthritis.
Clinical Pearls
  • “
    Always assess passive ROM before planning reconstruction
  • “
    Two-stage reconstruction for severe scarring/adhesions
  • “
    Rheumatoid cases require DRUJ synovectomy to prevent recurrence
  • “
    Set tension with wrist neutral, MCP 45 degrees flexion
Critical Extensor Reconstruction Concepts
Passive ROM Prerequisite

Reconstruction fails if joints are stiff. Must achieve full passive ROM at all joints before attempting any extensor reconstruction. Release contractures first, reconstruct tendons second.

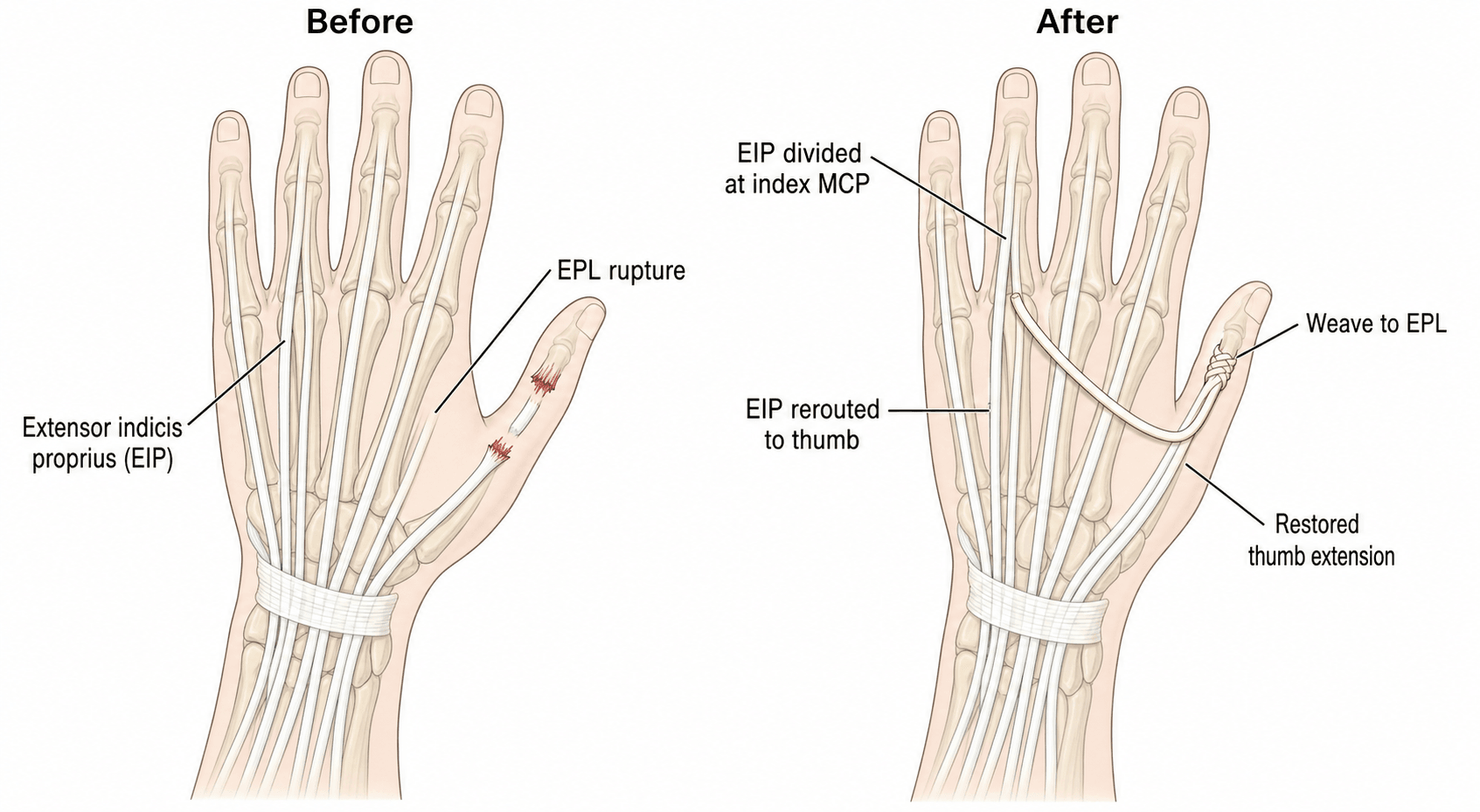

EIP to EPL Transfer

Gold standard for EPL rupture. EIP is expendable (EDC maintains index extension), has similar excursion to EPL, and provides 90-95% success rate for thumb extension restoration.

Tendon Graft Selection

Palmaris longus first choice. Present in 85%, provides 12-15cm length, minimal donor morbidity. Alternatives: plantaris (30cm), toe extensors, or ECRL slip.

Two-Stage Technique

For severe scarring. Stage 1: Silicone rod creates pseudosheath (3 months). Stage 2: Replace rod with tendon graft. Success rate 70-80% in difficult cases.

At a Glance


Extensor tendon reconstruction addresses chronic deficiency after failed primary repair or delayed presentation, with full passive ROM as an absolute prerequisite - stiff joints guarantee failure. EIP to EPL transfer is the gold standard for isolated EPL rupture (90-95% success rate), while palmaris longus is the first-choice free graft donor (present in 85%, 12-15cm length). Timing is 3-6 months post-injury for scar maturation. For severe scarring, two-stage reconstruction using a silicone rod to create a pseudosheath yields 70-80% success. In rheumatoid cases (Vaughan-Jackson syndrome), DRUJ synovectomy is mandatory to prevent recurrent ruptures.

Mnemonic

DIP-MID-PIP-PROX-MCP-META-WRIST-FOREARMExtensor Zones of the Hand

D
DIP
Zone I - DIP joint (mallet finger)
M
Middle
Zone II - Middle phalanx
P
PIP
Zone III - PIP joint (boutonniere)
P
Proximal
Zone IV - Proximal phalanx
M
MCP
Zone V - MCP joint
M
Metacarpal
Zone VI - Metacarpal dorsum
W
Wrist
Zone VII - Wrist/retinaculum
F
Forearm
Zone VIII - Distal forearm

Hook:Start at the fingertip (DIP) and work proximally to remember extensor zones!

Mnemonic

EIP BESTTendon Transfer Donors

E
EIP
Extensor indicis proprius - for EPL reconstruction
I
Independent
Independent wrist extensors (ECRB) to EDC
P
Peripheral
Peripheral EDC slips for side-to-side
B
Brachioradialis
BR to ECRB (for wrist extension)
E
EDM
Extensor digiti minimi to small finger
S
Supernumerary
Supernumerary extensors if present
T
Tendon grafts
Palmaris, plantaris when transfers inadequate

Hook:EIP BEST = the best expendable donors for extensor reconstruction!

Mnemonic

SMARTReconstruction Prerequisites

S
Supple
Supple joints with full passive ROM
M
Mature
Mature scar tissue (3-6 months post-injury)
A
Adequate
Adequate soft tissue coverage
R
Realistic
Realistic patient expectations
T
Therapy
Therapy commitment essential for success

Hook:Be SMART before reconstruction - assess all prerequisites carefully!

Overview and Epidemiology


Definition

Extensor tendon reconstruction addresses chronic extensor deficiency through tendon transfers (rerouting expendable donors) or tendon grafts (bridging gaps with free tissue). Success depends on preserved passive joint mobility, appropriate donor selection, proper surgical technique, and intensive hand therapy.

Epidemiology

Chronic Extensor Deficiency:

  • Failed primary repairs: 10-15% of acute extensor repairs develop chronic lag
  • Delayed presentations: 20-30% of extensor injuries present beyond acute repair window
  • Rheumatoid ruptures: Affect 10-15% of RA patients with wrist synovitis
  • EPL ruptures post-Colles: 0.5-3% incidence, typically 4-12 weeks post-fracture

Demographics:

  • Age distribution: Bimodal - young adults (traumatic), older adults (rheumatoid/atraumatic)
  • Gender: Males greater than females for traumatic (3:1), females greater than males for rheumatoid (3:1)
  • Occupation: Manual laborers, machinery operators at higher risk for trauma

Common Scenarios Requiring Reconstruction:

EPL rupture post-Colles
Typical Presentation
Loss of thumb IP extension 4-12 weeks post-fracture
Preferred Technique
EIP to EPL transfer
Rheumatoid sequential ruptures
Typical Presentation
Progressive loss of finger extension (ulnar to radial)
Preferred Technique
Side-to-side transfers, ECRB to EDC
Failed Zone V-VII repair
Typical Presentation
Chronic extensor lag after laceration repair
Preferred Technique
Free tendon graft or two-stage
Segmental tendon loss
Typical Presentation
Trauma with tissue loss
Preferred Technique
Free tendon graft (palmaris longus)
Post-burn contracture
Typical Presentation
Adherent extensors, MCP hyperextension
Preferred Technique
Tenolysis vs two-stage reconstruction
EtiologyTypical PresentationPreferred Technique
EPL rupture post-CollesLoss of thumb IP extension 4-12 weeks post-fractureEIP to EPL transfer
Rheumatoid sequential rupturesProgressive loss of finger extension (ulnar to radial)Side-to-side transfers, ECRB to EDC
Failed Zone V-VII repairChronic extensor lag after laceration repairFree tendon graft or two-stage
Segmental tendon lossTrauma with tissue lossFree tendon graft (palmaris longus)
Post-burn contractureAdherent extensors, MCP hyperextensionTenolysis vs two-stage reconstruction

Natural History Without Reconstruction

Functional Deficit Patterns:

  • Thumb EPL loss: Inability to extend IP joint, weak pinch, difficulty with precision tasks
  • Finger EDC loss: Extensor lag at MCP, compensatory hyperextension at IP joints
  • Wrist extensor loss: Wrist drop, severe functional impairment

Adaptive Mechanisms:

  • Adjacent tendon hypertrophy: Partial compensation from neighboring extensors
  • Intrinsic muscle compensation: Limited MCP extension via intrinsics (inadequate)
  • Functional adaptation: Activity modification, assistive devices

Pathophysiology and Surgical Anatomy


Passive ROM is Non-Negotiable

Cannot reconstruct active extension if passive range is limited. Stiff joints from arthritis, contracture, or adhesions must be addressed first through contracture release, joint mobilization, or arthrodesis. No tendon reconstruction will overcome fixed joint stiffness.

Extensor Anatomy

Thumb Extensors:

  • EPL (Extensor Pollicis Longus): Extends thumb IP and MCP joints, radial deviates wrist

    • Origin: Ulna mid-shaft, interosseous membrane
    • Course: Third dorsal compartment around Lister's tubercle
    • Insertion: Distal phalanx base (dorsal)
    • Excursion: 5-7cm
  • EPB (Extensor Pollicis Brevis): Extends thumb MCP joint

    • First dorsal compartment with APL
    • Insertion: Proximal phalanx base
  • APL (Abductor Pollicis Longus): Abducts and extends CMC joint

    • First dorsal compartment
    • Multiple insertions common

Finger Extensors:

  • EDC (Extensor Digitorum Communis): Common extensor to all four fingers

    • Fourth dorsal compartment
    • Interconnections via juncturae tendinum
    • Independent MCP extension capability
  • EIP (Extensor Indicis Proprius): Independent index extensor

    • Fifth dorsal compartment (with EDM)
    • Lies ulnar to EDC index at MCP level
    • Expendable donor - EDC provides adequate index extension
  • EDM (Extensor Digiti Minimi): Independent small finger extensor

    • Fifth dorsal compartment
    • Often duplicated
    • Partially expendable

Extensor Hood Mechanism:

  • Central slip inserts on middle phalanx base (PIP extension)
  • Lateral bands join terminal tendon at DIP (DIP extension)
  • Sagittal bands stabilize extensor at MCP (prevent subluxation)
  • Intrinsics contribute via lateral bands

Expendable Donor Tendons

EIP
Function Lost
Independent index extension
Compensation
EDC extends index adequately
Limitations
None - ideal donor
Palmaris longus
Function Lost
Weak wrist flexion
Compensation
FCR/FCU maintain flexion
Limitations
Absent in 15%
EDM
Function Lost
Independent small extension
Compensation
EDC extends small finger
Limitations
Weakens small finger extension
ECRL slip
Function Lost
Slight wrist extension loss
Compensation
ECRB/ECU maintain extension
Limitations
Limited length
Plantaris
Function Lost
Trivial plantar flexion loss
Compensation
Gastrocnemius/soleus maintain function
Limitations
Requires foot incision
DonorFunction LostCompensationLimitations
EIPIndependent index extensionEDC extends index adequatelyNone - ideal donor
Palmaris longusWeak wrist flexionFCR/FCU maintain flexionAbsent in 15%
EDMIndependent small extensionEDC extends small fingerWeakens small finger extension
ECRL slipSlight wrist extension lossECRB/ECU maintain extensionLimited length
PlantarisTrivial plantar flexion lossGastrocnemius/soleus maintain functionRequires foot incision

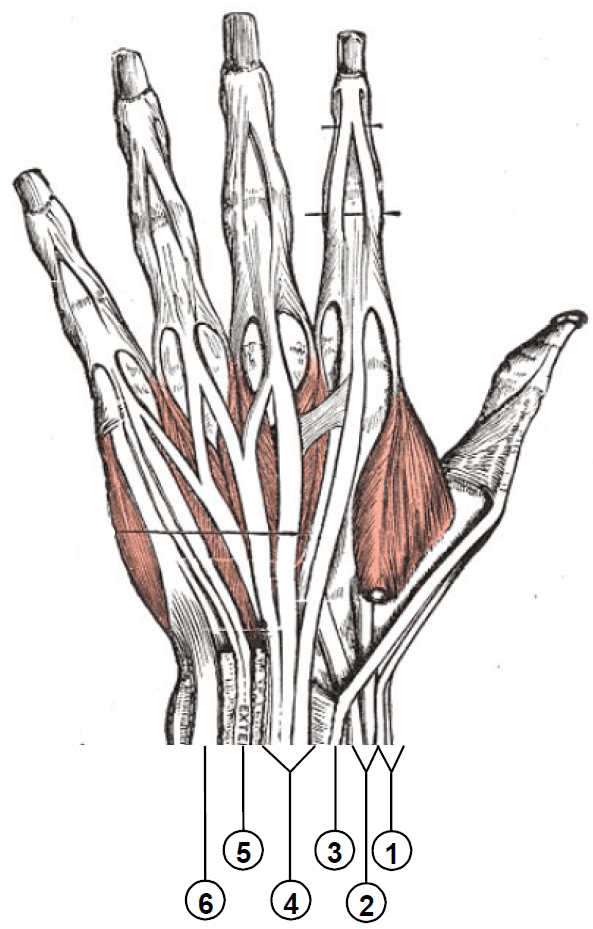

Diagram showing the six extensor compartments at the wrist with numbered labels
The six extensor compartments at the wrist. Understanding these compartments is essential for extensor reconstruction: (1) APL/EPB, (2) ECRL/ECRB, (3) EPL at Lister's tubercle - common rupture site, (4) EDC/EIP, (5) EDM, (6) ECU.Credit: Wikimedia Commons. CC BY-SA 3.0

Pathophysiology of Extensor Failure

Traumatic Extensor Loss

Mechanisms:

  1. Laceration injuries: Clean division allowing primary repair
  2. Crush/avulsion: Segmental loss requiring grafting
  3. Degloving: Extensive soft tissue damage, compromised healing
  4. Closed rupture: Forceful flexion against resistance (Zone V-VII)

Failed Primary Repair:

  • Gap formation: Inadequate repair strength, excessive tension
  • Adhesion formation: Insufficient early mobilization, excessive scarring
  • Re-rupture: Premature rehabilitation, weak repair construct
  • Tendon necrosis: Vascular compromise, infection

Chronic Presentation:

  • Retraction: Proximal tendon retracts to muscle-tendon junction
  • Muscle contracture: Myostatic contracture after 3-6 months
  • Distal stump fibrosis: Scar tissue replaces distal tendon
  • Joint stiffness: Secondary contractures from prolonged immobility

This pathophysiology necessitates reconstruction rather than delayed primary repair.

Rheumatoid Extensor Ruptures

Vaughan-Jackson Syndrome:

  • Sequential extensor tendon ruptures from distal DRUJ synovitis
  • Mechanism: Chronic synovitis erodes tendons over bony prominences
  • Caput ulnae syndrome: Dorsal DRUJ prominence with ECU subluxation

Rupture Sequence (Ulnar to Radial):

  1. EDM (small finger) - first to rupture
  2. EDC ring finger - second
  3. EDC middle finger - third
  4. EDC index finger - fourth
  5. EPL at Lister's tubercle (Mannerfelt lesion)

Pathology:

  • Attrition rupture: Tendon fraying over distal ulna
  • Inflammatory rupture: Synovitis invades tendon substance
  • Ischemic rupture: Vascular compromise from inflammation

Clinical Recognition:

  • Progressive finger drop: Sequential loss of MCP extension
  • Palpable tendon absence: No cord with attempted extension
  • Differentiate from synovitis: Weak extension (synovitis) vs absent extension (rupture)

Reconstruction must address both ruptured tendons and underlying DRUJ pathology.

Atraumatic Extensor Ruptures

EPL Rupture Post-Colles Fracture:

  • Incidence: 0.5-3% of distal radius fractures
  • Timing: Typically 4-12 weeks post-fracture (delayed presentation)
  • Mechanism: Ischemic necrosis within tight third dorsal compartment at Lister's tubercle
  • Risk factors: Greater displacement, longer immobilization, smoking

Other Atraumatic Causes:

  • Distal radius malunion: Chronic EPL attrition over dorsal prominence
  • Steroid injections: Tendon degeneration from local corticosteroid
  • Fluoroquinolone use: Quinolone-associated tendinopathy
  • Inflammatory arthropathies: Psoriatic, reactive arthritis
  • Chronic overuse: Repetitive wrist extension (rare)

Clinical Pearl: EPL rupture presents as sudden inability to extend thumb IP joint without preceding trauma - pathognomonic for atraumatic rupture.

These patients have excellent soft tissue and typically achieve best reconstruction outcomes.

Biomechanical Principles

Tendon Excursion Requirements:

  • Finger extensors (EDC): 5-6cm excursion for full MCP-IP motion
  • Thumb extensors (EPL): 5-7cm excursion for full MCP-IP motion
  • Wrist extensors: 3-4cm excursion for wrist motion

Donor-Recipient Matching:

  • Match excursion requirements (EIP and EPL both 5-7cm - perfect match)
  • Match direction of pull (straight line reduces friction)
  • Match muscle strength (adequate motor power)

Tension Setting Principles:

  • Wrist position: Neutral (0 degrees flexion-extension)
  • MCP position: 45 degrees flexion for fingers, extended for thumb
  • Test intraoperatively: Passive wrist motion should produce reciprocal finger motion (tenodesis effect)
  • Avoid over-tensioning: Causes swan-neck deformity, joint stiffness
  • Avoid under-tensioning: Results in extensor lag

Classification Systems


Verdan extensor tendon zones of the hand and wrist, Zones I to IX and thumb zones T-I to T-V
Extensor tendon zones (Kleinert–Verdan). The dorsum of the hand and forearm is divided into nine zones, and the thumb into five (T-I to T-V). The scheme is easy to remember because ODD-numbered zones lie over joints (I = DIP, III = PIP, V = MCP, VII = wrist/retinaculum) and EVEN-numbered zones lie over bones (II = middle phalanx, IV = proximal phalanx, VI = metacarpals, VIII = distal forearm), with Zone IX over the proximal forearm muscle bellies. The zone determines both the injury pattern and the reconstruction strategy — for example, the extensor mechanism over the PIP (Zone III) and DIP (Zone I) gives boutonnière and mallet deformities, while proximal (Zone VII–IX) losses are the ones reconstructed by tendon transfer or graft.Credit: OrthoVellum illustration

Extensor reconstruction is organised by anatomical zone (Kleinert-Verdan, eight zones from DIP to forearm) and by reconstruction strategy. The success-rate ranges below are series-level estimates; the head-to-head Level I comparison of the two commonest strategies (EIP transfer vs free graft for EPL) found equivalent good/very-good outcomes of ~82% and ~88% respectively (Keating et al, ANZ J Surg 2026, PMID 41797307).

Reconstruction Type Classification

Tendon Transfer
Technique
Reroute expendable donor to deficient extensor
Indications
Isolated loss, good vascularity, supple joints
Success Rate
85-95%
Free Tendon Graft
Technique
Bridge gap with palmaris/plantaris
Indications
Segmental loss, clean wound
Success Rate
75-85%
Side-to-Side Transfer
Technique
Connect adjacent EDC slips
Indications
Single EDC rupture with intact neighbors
Success Rate
85-90%
Two-Stage Reconstruction
Technique
Stage 1: rod; Stage 2: graft
Indications
Severe scarring, adhesions, failed prior surgery
Success Rate
70-80%
TypeTechniqueIndicationsSuccess Rate
Tendon TransferReroute expendable donor to deficient extensorIsolated loss, good vascularity, supple joints85-95%
Free Tendon GraftBridge gap with palmaris/plantarisSegmental loss, clean wound75-85%
Side-to-Side TransferConnect adjacent EDC slipsSingle EDC rupture with intact neighbors85-90%
Two-Stage ReconstructionStage 1: rod; Stage 2: graftSevere scarring, adhesions, failed prior surgery70-80%

Decision Algorithm by Clinical Scenario

For Isolated EPL Rupture:

  1. First choice: EIP to EPL transfer (good/very good in ~82%, PMID 41797307)
  2. If EIP unavailable: ECRB to EPL transfer
  3. If both unavailable: Free palmaris longus graft (good/very good in ~88%, PMID 41797307)

For Single EDC Rupture:

  1. Adjacent tendon intact: Side-to-side transfer
  2. Border digits: EIP (index) or EDM (small) to ruptured EDC
  3. Central digits: Free graft if side-to-side inadequate

For Multiple EDC Ruptures (Rheumatoid):

  1. Two ruptures: EIP to ulnar-most, side-to-side for radial
  2. Three ruptures: ECRB to all EDC tendons with free grafts
  3. Four or more: ECRB to EDC plus EIP to EPL if involved

For Severe Scarring/Failed Prior Surgery:

  • Two-stage reconstruction: Silicone rod (stage 1) then graft (stage 2) - good/excellent in ~82% in the established series (PMID 12877856)

Zone-Specific Considerations

I (DIP)
Injury Pattern
Mallet deformity
Reconstruction Option
Terminal tendon advancement, free graft, fusion
Special Considerations
Fusion often preferred if chronic
II-III (Middle phalanx, PIP)
Injury Pattern
Boutonniere deformity
Reconstruction Option
Central slip reconstruction, lateral band rerouting
Special Considerations
Complex - may need staged approach
IV-V (Proximal phalanx, MCP)
Injury Pattern
Extensor lag
Reconstruction Option
Direct repair if acute, free graft if chronic
Special Considerations
Good prognosis zone
VI (Metacarpal)
Injury Pattern
Clean laceration
Reconstruction Option
Primary repair usually successful
Special Considerations
Reconstruction rarely needed
VII (Wrist)
Injury Pattern
EPL rupture classic site
Reconstruction Option
EIP to EPL transfer
Special Considerations
Excellent outcomes
VIII (Forearm)
Injury Pattern
Muscle-tendon disruption
Reconstruction Option
Direct repair vs free graft
Special Considerations
Long immobilization needed
ZoneInjury PatternReconstruction OptionSpecial Considerations
I (DIP)Mallet deformityTerminal tendon advancement, free graft, fusionFusion often preferred if chronic
II-III (Middle phalanx, PIP)Boutonniere deformityCentral slip reconstruction, lateral band reroutingComplex - may need staged approach
IV-V (Proximal phalanx, MCP)Extensor lagDirect repair if acute, free graft if chronicGood prognosis zone
VI (Metacarpal)Clean lacerationPrimary repair usually successfulReconstruction rarely needed
VII (Wrist)EPL rupture classic siteEIP to EPL transferExcellent outcomes
VIII (Forearm)Muscle-tendon disruptionDirect repair vs free graftLong immobilization needed

Boyes Preoperative Grading (Candidacy for Staged Reconstruction)


The two-stage evidence selects "Boyes grade 2-5" digits (PMID 12877856), but the grading itself is never explained. Boyes' classification is the classic preoperative prognostic grading for the digit being considered for tendon-graft / staged reconstruction. It grades the quality of the tissues the graft must heal into and glide through, and so directly predicts outcome and drives the one-stage-versus-two-stage decision and patient counselling.

1 - Good
State of the digit
Minimal scar, supple mobile joints, healthy supple skin, well-vascularised bed
Implication for reconstruction
Most favourable - single-stage free graft reasonable; best prognosis
2 - Cicatrix (scar)
State of the digit
Heavy skin scarring / multiple prior incisions, scarred tendon bed
Implication for reconstruction
Hostile gliding bed - favour two-stage (rod-induced pseudosheath) over single-stage graft
3 - Joint damage
State of the digit
Reduced passive joint motion / contracture
Implication for reconstruction
Restore full passive ROM first; reconstruction will fail over a stiff joint; guarded prognosis
4 - Nerve damage
State of the digit
Associated digital nerve injury / insensate digit
Implication for reconstruction
Poorer functional return; address sensation and counsel realistically
5 - Multiple digits
State of the digit
Several digits involved
Implication for reconstruction
Greater complexity and worse overall prognosis; stage and prioritise
Boyes Preoperative Classification
GradeState of the digitImplication for reconstruction
1 - GoodMinimal scar, supple mobile joints, healthy supple skin, well-vascularised bedMost favourable - single-stage free graft reasonable; best prognosis
2 - Cicatrix (scar)Heavy skin scarring / multiple prior incisions, scarred tendon bedHostile gliding bed - favour two-stage (rod-induced pseudosheath) over single-stage graft
3 - Joint damageReduced passive joint motion / contractureRestore full passive ROM first; reconstruction will fail over a stiff joint; guarded prognosis
4 - Nerve damageAssociated digital nerve injury / insensate digitPoorer functional return; address sensation and counsel realistically
5 - Multiple digitsSeveral digits involvedGreater complexity and worse overall prognosis; stage and prioritise

Boyes' grading was devised for flexor reconstruction candidacy, but the same prognostic logic governs extensor staged reconstruction: the worse the grade (especially scar [2] and joint damage [3]), the stronger the case for a two-stage approach and the more guarded the counselling. This is exactly why the established two-stage series enrolled the poor-prognosis grade 2-5 digits - the favourable grade-1 digit usually does not need a rod.

Grade the bed before you graft

Before offering a free graft, grade the digit (Boyes): a clean grade-1 bed tolerates a single-stage graft, whereas heavy scar (grade 2) or a stiff joint (grade 3) predicts failure - restore passive ROM first and favour a two-stage rod-then-graft reconstruction. Nerve injury (4) and multiple-digit involvement (5) further worsen prognosis and demand realistic counselling.

Clinical Presentation


History

Chief Complaint:

  • Inability to extend specific digit(s) or thumb
  • Extensor lag: Incomplete extension despite effort
  • Triggering/catching: Suggests adhesions rather than rupture
  • Progressive weakness: Rheumatoid pattern

Timeline:

  • Acute onset: Laceration, closed rupture (recent trauma)
  • Subacute (weeks): Post-Colles EPL rupture (4-12 weeks)
  • Progressive (months): Rheumatoid sequential ruptures
  • Chronic (greater than 6 months): Failed repairs, late presentation

Functional Impact:

  • Thumb EPL loss: Difficulty with precision pinch, turning keys, opening jars
  • Finger EDC loss: Inability to release objects, weak grip, compensatory IP hyperextension
  • Multiple digit involvement: Severe hand dysfunction, inability to work

Previous Interventions:

  • Prior surgery: Number of procedures, types, outcomes
  • Splinting history: Response to dynamic extension splints
  • Therapy compliance: Intensive therapy required for success

Physical Examination

Inspection:

  • Resting posture: Affected digit(s) in relative flexion
  • Surgical scars: Indicate prior attempts, scar quality
  • Skin quality: Thin, scarred skin suggests difficult reconstruction
  • Muscle wasting: Thenar atrophy (EPL loss), forearm atrophy (long-standing)

Palpation:

  • Tendon continuity: Palpate extensor mass during attempted extension
    • Present: Thickened cord suggests intact but adherent tendon
    • Absent: Gap or no palpable structure confirms rupture
  • Distal DRUJ: Dorsal prominence, synovitis (rheumatoid)
  • Muscle contraction: Palpable forearm muscle contraction despite no distal motion confirms rupture

Range of Motion:

Critical Assessment - PASSIVE ROM FIRST:

  1. PIPJ passive flexion-extension: Must be full (0-100 degrees)
  2. DIPJ passive flexion-extension: Must be full (0-80 degrees)
  3. MCP passive flexion-extension: Must be full (0-90 degrees)
  4. Thumb IP/MCP passive motion: Must be full
  5. Wrist passive motion: Should be functional (30-60 degrees flexion-extension)

If passive ROM limited - STOP. Address joint stiffness before any tendon work.

Active ROM:

  • Isolated tendon testing:
    • EPL: Extend thumb IP with hand flat on table (positive test = cannot lift thumb)
    • EIP: Extend index finger with others flexed and held
    • EDC: Extend each finger independently
  • Extensor lag measurement: Degrees from full passive extension to active extension
  • Compensatory patterns: IP hyperextension, intrinsic recruitment

Special Tests:

EPL Rupture Test:

  • Hand flat on table, palm down
  • Patient attempts to lift thumb off table
  • Positive: Thumb remains flat (EPL ruptured)
  • Negative: Thumb lifts easily (EPL intact)

Juncturae Tendinum Test:

  • Immobilize middle, ring fingers in flexion
  • Attempt index or small finger extension independently
  • Limited extension: Dependent on juncturae (true independent extensor lost)

Intrinsic Tightness Test:

  • Passively extend MCP joint, attempt PIP flexion
  • Limited PIP flexion with MCP extended: Intrinsic tightness present
  • Differentiate from extensor tightness (limits PIP flexion with MCP flexed)

Differential Diagnosis

The cardinal presentation is loss of active digital extension. The reconstruction plan changes completely depending on which of the following is responsible, so this differential must be worked through systematically before any tendon surgery is offered.

Extensor tendon rupture (traumatic/attritional)
Key Distinguishing Feature
Forearm muscle contracts but no distal extension; gap on palpation; tenodesis effect lost
Pattern of Loss
Specific tendon(s) - EPL after distal radius fracture, ulnar-to-radial in rheumatoid
Implication for Reconstruction
Transfer or graft if passive ROM full
Posterior interosseous nerve (PIN) palsy
Key Distinguishing Feature
Affects ALL digit/thumb extensors plus EDM; radial wrist extension (ECRL) spared so wrist extends in radial deviation; no sensory loss
Pattern of Loss
Multiple digits, no palpable gap, passive tenodesis intact
Implication for Reconstruction
Treat the nerve first; tendon transfer (e.g. for radial nerve palsy) only if no recovery
Sagittal band rupture / extensor subluxation
Key Distinguishing Feature
Extensor slips ulnarly into the valley with MCP flexion; can hold extension if passively centralised; usually middle finger, radial band
Pattern of Loss
Single MCP, dynamic
Implication for Reconstruction
Sagittal band repair/reconstruction, not tendon transfer
MCP joint pathology (rheumatoid subluxation, arthritis)
Key Distinguishing Feature
Fixed volar subluxation, pain and crepitus, radiographic joint changes
Pattern of Loss
MCP-level, often multiple
Implication for Reconstruction
Address joint (synovectomy/arthroplasty); tendon rebalancing secondary
Adhesions / partial rupture
Key Distinguishing Feature
Passive ROM exceeds active ROM; triggering or thickened cord palpable
Pattern of Loss
Tendon present but not gliding
Implication for Reconstruction
Tenolysis rather than reconstruction
Fixed joint contracture
Key Distinguishing Feature
Passive extension itself limited (not just active)
Pattern of Loss
Joint-level, fixed
Implication for Reconstruction
Release/arthrodesis before any tendon work - reconstruction will fail
Differential Diagnosis of Lost Active Extension
DiagnosisKey Distinguishing FeaturePattern of LossImplication for Reconstruction
Extensor tendon rupture (traumatic/attritional)Forearm muscle contracts but no distal extension; gap on palpation; tenodesis effect lostSpecific tendon(s) - EPL after distal radius fracture, ulnar-to-radial in rheumatoidTransfer or graft if passive ROM full
Posterior interosseous nerve (PIN) palsyAffects ALL digit/thumb extensors plus EDM; radial wrist extension (ECRL) spared so wrist extends in radial deviation; no sensory lossMultiple digits, no palpable gap, passive tenodesis intactTreat the nerve first; tendon transfer (e.g. for radial nerve palsy) only if no recovery
Sagittal band rupture / extensor subluxationExtensor slips ulnarly into the valley with MCP flexion; can hold extension if passively centralised; usually middle finger, radial bandSingle MCP, dynamicSagittal band repair/reconstruction, not tendon transfer
MCP joint pathology (rheumatoid subluxation, arthritis)Fixed volar subluxation, pain and crepitus, radiographic joint changesMCP-level, often multipleAddress joint (synovectomy/arthroplasty); tendon rebalancing secondary
Adhesions / partial rupturePassive ROM exceeds active ROM; triggering or thickened cord palpableTendon present but not glidingTenolysis rather than reconstruction
Fixed joint contracturePassive extension itself limited (not just active)Joint-level, fixedRelease/arthrodesis before any tendon work - reconstruction will fail

The sagittal band cause is well characterised: Hong et al found that direct sagittal-band repair restored full ROM and normalised DASH scores in chronic MCP extensor subluxation, confirming it is a distinct entity that should not be treated as a tendon rupture (J Hand Surg / Orthopade 2017, PMID 28721447).

Investigations


Imaging

Radiographs (AP, Lateral, Oblique):

Indications: All chronic extensor deficiency cases

Findings to assess:

  • Bony prominences: Distal ulna (Vaughan-Jackson), Lister's tubercle (EPL rupture site)
  • Malunion: Distal radius dorsal angulation causing tendon attrition
  • Hardware: Prominent screws/plates causing mechanical attrition
  • Arthritis: DRUJ, wrist, finger joints affecting reconstruction candidacy
  • Fracture healing: Confirm union before reconstruction (Colles cases)

Ultrasound:

Indications:

  • Confirm rupture vs adhesions
  • Locate retracted tendon ends
  • Assess tendon quality

Technique: High-frequency linear probe (greater than 10 MHz), dynamic assessment

Findings:

  • Complete rupture: Tendon discontinuity, retracted stumps, gap
  • Partial rupture: Thinned tendon, partial continuity
  • Adhesions: Intact tendon with limited excursion
  • Synovitis: Hypoechoic fluid around tendons (rheumatoid)

Advantages: Real-time, dynamic assessment, low cost, no radiation

MRI (T1, T2, STIR sequences):

Indications:

  • Uncertain diagnosis
  • Pre-operative planning for complex cases
  • Assessment of muscle quality (atrophy, fatty infiltration)
  • Evaluation of joint pathology

Findings:

  • Tendon rupture: Signal discontinuity, tendon retraction, fluid in sheath
  • Tendon quality: Thickened (chronic inflammation), thinned (attrition)
  • Muscle atrophy: Reduced muscle bulk, T1 hyperintensity (fatty infiltration)
  • Synovitis: T2/STIR hyperintensity around DRUJ, wrist
  • Scar tissue: T1/T2 hypointensity in tendon bed

Limitations: Expensive, time-consuming, claustrophobia

Electrodiagnostic Studies (EMG/NCS):

Indications: Suspected nerve injury (PIN palsy) masquerading as tendon rupture

Findings:

  • PIN palsy: Denervation in all finger/thumb extensors, wrist extensors (ECRB) spared
  • Tendon rupture: Normal motor units, voluntary recruitment present

Useful to differentiate neurologic from tendon pathology.

Laboratory Studies

Rheumatoid Cases:

  • Inflammatory markers: ESR, CRP (assess disease activity)
  • Rheumatoid factor: Confirm RA diagnosis
  • Anti-CCP antibodies: More specific for RA

Infection workup (if concerned):

  • CBC: Leukocytosis suggests infection
  • Blood cultures: If systemic signs
  • Wound cultures: If draining sinus

Preoperative Assessment

Passive ROM Documentation:

  • Critical: Measure and document passive ROM all joints
  • Photography: Consider photos documenting passive motion
  • Consent discussion: If passive ROM limited, discuss joint surgery first

Donor Availability:

  • Palmaris longus test: Oppose thumb to small finger, flex wrist - look for central cord
    • Present: 85% of population
    • Absent: Consider plantaris or ECRL
  • EIP presence: Should be present in all patients (very rare congenital absence)

Soft Tissue Assessment:

  • Skin quality: Thin/scarred skin may require flap coverage
  • Previous incisions: Plan incisions to avoid skin necrosis
  • Infection history: Delay reconstruction if recent infection

Patient Factors:

  • Occupation: Return to work expectations, timeline
  • Hand dominance: Dominant hand may justify more aggressive reconstruction
  • Therapy access: Access to certified hand therapist essential
  • Compliance: Realistic assessment of ability to follow complex protocol

Management


Timing is Critical

Do NOT reconstruct before 3 months post-injury - scar tissue must mature. Do NOT delay beyond 6-12 months - muscle contracture and joint stiffness worsen outcomes. Optimal window: 3-6 months.

Non-Operative Management

Indications:

  • Minimal functional deficit (patient acceptance)
  • Severe medical comorbidities prohibiting surgery
  • Inadequate passive ROM with refusal of joint surgery
  • Very elderly/low-demand patients

Options:

Dynamic Extension Splinting:

  • Relative indication: Recent rupture (less than 3 months), partial ruptures
  • Mechanism: Outrigger provides passive extension force
  • Duration: 6-12 weeks continuous wear
  • Success: Low for complete ruptures (less than 20%), better for adhesions

Activity Modification:

  • Adaptive equipment (built-up handles, key turners)
  • Occupational therapy for compensatory strategies
  • Acceptable for low-demand patients

Outcomes: Persistent functional deficit, progressive joint contracture, patient dissatisfaction common

Surgical Reconstruction

Patient Selection Criteria

Essential Prerequisites (SMART):

  1. Supple joints - Full passive ROM at all involved joints
  2. Mature scar - Minimum 3 months since injury/prior surgery
  3. Adequate soft tissue - Healthy skin coverage, no active infection
  4. Realistic expectations - Understanding of limitations, therapy commitment
  5. Therapy access - Access to certified hand therapist

Contraindications:

  • Absolute: Active infection, inadequate passive ROM, unrealistic expectations
  • Relative: Severe medical comorbidities, poor soft tissue, smoking (cessation 4 weeks pre-op)

Reconstruction Techniques

EIP to EPL Transfer Technique

Diagram of the EIP-to-EPL tendon transfer: the extensor indicis proprius is divided at the index MCP, rerouted to the thumb and woven into the ruptured EPL
EIP-to-EPL tendon transfer — the gold standard for a ruptured extensor pollicis longus (classically after a distal radius/Colles fracture or in rheumatoid disease). Before: the EPL is ruptured and retracted at the thumb, while the extensor indicis proprius (EIP) — the accessory extensor lying ulnar to the index EDC slip — is intact and expendable (the EDC maintains index extension). After: the EIP is divided at the index MCP joint, retrieved proximally, rerouted subcutaneously around the radial wrist to mimic the EPL course, and woven into the distal EPL stump with a Pulvertaft weave to restore thumb (IP-joint) extension. EIP is chosen because it is expendable, has a similar excursion to EPL, and gives roughly 90% restoration of thumb extension.Credit: OrthoVellum illustration

Gold Standard for EPL Rupture

Indications:

  • Chronic EPL rupture (post-Colles, rheumatoid, idiopathic)
  • Failed EPL primary repair
  • EPL loss from trauma

Advantages:

  • EIP expendable (EDC provides adequate index extension)
  • Similar excursion to EPL (5-7cm)
  • Direct line of pull after rerouting
  • Excellent success rate (90-95%)

Patient Positioning:

  • Supine, arm on hand table
  • Tourniquet on upper arm (250 mmHg)
  • Hand pronated

Surgical Approach - Three Incisions:

Incision 1 - Dorsal Index MCP (2cm longitudinal):

  • Identify EIP tendon (ulnar to EDC at MCP level)
  • Typically both tendons visible to index - EIP is ulnar
  • Tag EIP with marking suture
  • Divide EIP as distally as possible (at extensor hood)
  • Retrieve EIP proximally with traction

Incision 2 - Dorsal Wrist/Distal Forearm (4-5cm):

  • Center over Lister's tubercle
  • Extend 4cm proximally over EPL muscle belly
  • Identify third dorsal compartment (EPL)
  • Open compartment - find EPL distal stump (may be attenuated)
  • Trace EPL muscle belly proximally - excise degenerated tendon
  • Create subcutaneous tunnel from wrist incision to thumb (radial side)

Incision 3 - Thumb Dorsal IP Joint (1.5cm):

  • Longitudinal over IP joint dorsum
  • Identify EPL insertion on distal phalanx base
  • Prepare EPL stump by freshening if adequate tissue
  • If no distal stump: create bone tunnel in distal phalanx

Transfer Procedure:

  1. Retrieve EIP from index incision into wrist incision
  2. Pass EIP subcutaneously around radial wrist (mimic EPL course)
  3. Thread EIP through subcutaneous tunnel to thumb incision
  4. Weave EIP to EPL stump using Pulvertaft weave:
    • Create 4-6mm longitudinal slit in EPL stump
    • Pass EIP through slit
    • Create second slit 5mm distal, pass EIP through again
    • Repeat for 3-4 total weaves
    • Suture each weave with 4-0 Ethibond/FiberWire
  5. Set tension: Wrist neutral, thumb MCP/IP joints extended (can passively flex to neutral)
  6. Intraoperative test: Passive wrist flexion extends thumb; wrist extension allows thumb flexion
  7. Trim excess EIP tendon

If no EPL distal stump available:

  • Drill 2mm bone tunnel from dorsal to volar distal phalanx base
  • Pass EIP through tunnel
  • Suture to periosteum or button over volar pulp

Closure:

  • Skin only (5-0 nylon or subcuticular)
  • Avoid deep sutures (restrict glide)

Immobilization:

  • Thumb spica splint
  • Wrist 30 degrees extension
  • Thumb CMC, MCP, IP extended
  • Duration: 4 weeks

This technique provides excellent thumb extension restoration with minimal donor morbidity.

Free Tendon Graft Technique

Indications:

  • Segmental tendon loss (trauma, infection)
  • Insufficient local tissue for transfer
  • Multiple tendon ruptures requiring grafts

Graft Donor Selection:

Palmaris Longus (First Choice):

  • Availability: Present in 85%
  • Length: 12-15cm
  • Diameter: 3-4mm (suitable for extensors)
  • Harvest morbidity: Minimal (no functional deficit)

Plantaris (Second Choice):

  • Availability: Present in greater than 90%
  • Length: 25-30cm (excellent for multiple grafts)
  • Diameter: 2-3mm
  • Harvest morbidity: Requires foot incision, minimal functional deficit

Toe Extensors - EHL/EDL (Third Choice):

  • Availability: Always present
  • Length: 8-12cm each
  • Harvest morbidity: Moderate (requires foot surgery, possible toe extension weakness)

Palmaris Longus Harvest Technique:

  1. Confirm presence: Oppose thumb-small finger, flex wrist → palpate central cord
  2. Incision: 2cm transverse at wrist flexion crease (just ulnar to midline)
  3. Identify PL: Between FCR (radial) and FCU (ulnar)
  4. Divide distally: At wrist crease level
  5. Harvest: Use tendon stripper OR make second 1cm incision mid-forearm, divide proximally, extract
  6. Length: Typically 12-15cm obtained
  7. Store: Keep moist in saline-soaked gauze, tag both ends
  8. Closure: Simple skin closure

Graft Weaving Technique (Pulvertaft Weave):

At Distal Attachment (to recipient tendon stump):

  1. Prepare distal extensor stump (freshen if degenerative)
  2. Create 4-6mm longitudinal slit in stump
  3. Pass graft through slit from dorsal to volar
  4. Create second slit 5mm distal to first
  5. Pass graft through second slit (volar to dorsal)
  6. Repeat for total of 3-4 weaves
  7. Suture each weave with 4-0 Ethibond (non-absorbable)
  8. Final weave ends dorsally

At Proximal Attachment (to motor tendon):

  • Same Pulvertaft weave technique
  • Pass graft through motor tendon (EDC or ECRB)
  • 3-4 weaves with sutures
  • Set tension BEFORE final sutures:
    • Wrist neutral position
    • MCP joints 45 degrees flexion (for fingers)
    • Thumb extended (for EPL)
    • Test passive wrist motion → reciprocal finger motion
  • Trim excess graft, taper end

Critical Technical Points:

  • Adequate weave number: 3 weaves minimum, 4 weaves typical - more passes increase juncture strength but add bulk; balance security against gliding resistance
  • Avoid excessive bulk: Smooth tapered juncture (reduces catching/adhesions)
  • Tension setting: Most critical step - determines final function
  • Secure suturing: Non-absorbable sutures (Ethibond, FiberWire) prevent unraveling

Immobilization:

  • Dorsal blocking splint
  • Wrist 30 degrees extension
  • MCP 0 degrees extension
  • IP joints free
  • Duration: 4 weeks

Outcomes: 75-85% good-excellent results (lower than transfers due to avascularity of graft requiring healing).

Two-Stage Tendon Reconstruction

Indications:

  • Severe scarring/adhesions from multiple prior surgeries
  • Failed single-stage graft (adhesions)
  • Post-burn reconstruction with contracted skin
  • Infected wound bed (after infection cleared)

Principle: Create gliding pseudosheath around silicone rod (stage 1), then replace rod with tendon graft through pseudosheath (stage 2).

Stage 1 - Silicone Rod Insertion:

Timing: Minimum 3 months after injury/prior surgery (scar maturation)

Technique:

  1. Expose distal insertion site: Identify or prepare attachment point
  2. Expose proximal motor unit: Identify EDC, ECRB, or other motor tendon
  3. Pass silicone Hunter rod:
    • Size 3 or 4mm diameter (match extensor size)
    • Thread rod from distal to proximal through scarred bed
    • Use curved hemostat, infant feeding tube, or similar instrument to guide
    • Avoid creating false passages
  4. Anchor rod distally:
    • Suture to distal stump or bone (prevents migration)
    • Use non-absorbable 3-0 suture
  5. Anchor rod proximally:
    • Suture to muscle-tendon junction of motor
    • Leave adequate length for stage 2 retrieval
  6. Closure: Routine skin closure
  7. Immobilization: Protective splint for 2 weeks

Post-Stage 1 Management:

  • Protective splinting for 2 weeks
  • Begin gentle passive ROM weeks 2-12 (forms pseudosheath)
  • Wait 3 months minimum before stage 2 (allow pseudosheath formation)

Stage 2 - Rod Removal and Graft Insertion:

Timing: 3-6 months after stage 1 (pseudosheath fully formed)

Pre-operative Assessment:

  • Confirm passive ROM adequate (critical)
  • Palpate rod course (should glide smoothly)
  • Harvest graft donor (palmaris, plantaris)

Technique:

  1. Expose distal rod end: Through small incision at original distal site
  2. Expose proximal rod end: Through incision over motor unit
  3. Attach graft to distal rod end:
    • Suture graft to rod tip with heavy suture (0 or 2-0)
    • Use locking whipstitch for security
  4. Pull rod proximally:
    • Grasp rod at proximal incision
    • Gently pull rod through pseudosheath (drawing graft distally)
    • Rod emerges proximally with graft following
  5. Weave graft distally:
    • Pulvertaft weave to distal insertion (3-4 weaves)
    • Or anchor to bone if no stump
  6. Weave graft proximally:
    • Pulvertaft weave to motor unit
    • Set tension carefully: Wrist neutral, MCP 45 degrees flexion
    • Test passive motion before final sutures
  7. Closure: Routine

Immobilization: Same as single-stage graft (4 weeks splinting)

Advantages of Two-Stage:

  • Creates optimal gliding surface in scarred bed
  • Allows assessment of pseudosheath before committing graft
  • Better outcomes than single-stage in scarred cases

Disadvantages:

  • Two operations, longer recovery
  • Rod migration risk (prevent with secure fixation)
  • Pseudosheath formation not guaranteed
  • Lower success than primary reconstruction (70-80% vs 85-95%)

This technique is reserved for difficult cases where single-stage likely to fail.

Side-to-Side Extensor Transfers

Indications:

  • Single EDC rupture with intact adjacent tendons
  • Rheumatoid sequential ruptures (early intervention)
  • Segmental EDC loss where graft not feasible

Principle: Connect ruptured extensor to adjacent intact extensor via juncturae tendinum or direct suture - allows coupled extension.

Advantages:

  • Simple technique, minimal dissection
  • No donor tendon sacrifice
  • Preserves some independent extension via juncturae
  • Good success rate (85-90%)

Disadvantages:

  • Loss of independent finger extension
  • Requires intact adjacent tendon
  • May create extension lag if tension inadequate

Technique for Single EDC Rupture:

  1. Incision: Transverse or longitudinal over dorsal MCP joints

  2. Identify ruptured tendon: Palpate during extension attempt - gap/absence

  3. Identify intact adjacent tendons: Typically one or both neighbors intact

  4. Prepare ruptured stump:

    • Freshen proximal and distal stumps
    • If distal stump absent: expose extensor hood
  5. Side-to-side transfer options:

    Option A - Direct suture to adjacent tendon:

    • Place affected finger in extension alongside intact neighbor
    • Suture ruptured proximal stump to side of adjacent intact EDC
    • Use 3-0 or 4-0 Ethibond, multiple horizontal mattress sutures
    • Set tension: Affected finger extends to same level as donor

    Option B - Juncturae reinforcement:

    • Identify juncturae tendinum between affected and adjacent tendon
    • Incise juncturae partially, create longer bridge
    • Suture ruptured stump to juncturae
    • Suture juncturae to distal stump

    Option C - Weave technique (most secure):

    • Create slit in adjacent intact EDC
    • Pass ruptured proximal stump through slit (Pulvertaft-style)
    • Weave 2-3 times
    • Suture each weave
  6. Tension setting:

    • Wrist neutral
    • Affected MCP joint extended to same level as donor digit
    • Test passive motion intraoperatively
  7. Closure: Routine

Immobilization:

  • Dorsal blocking splint
  • Wrist 30 degrees extension, MCPs 0 degrees
  • Affected and donor digits taped together (buddy tape)
  • Duration: 3-4 weeks

Rheumatoid Multiple Ruptures - Combined Technique:

For 2-3 ruptures (typical Vaughan-Jackson):

  • EDM to EDC ring (side-to-side)
  • EIP to EDC middle (transfer)
  • Perform DRUJ synovectomy + Darrach/Sauve-Kapandji (prevent recurrence)

This approach restores extension while addressing underlying pathology.

Addressing Underlying Pathology

Rheumatoid Cases - MUST ADDRESS DRUJ:

  • DRUJ synovectomy: Remove inflammatory synovium
  • Darrach procedure: Distal ulna excision (most common)
  • Sauve-Kapandji: DRUJ fusion with proximal pseudarthrosis (preserves stability)
  • Failure to address DRUJ: High re-rupture rate (up to 30%)

Post-Traumatic Cases:

  • Remove prominent hardware: Screws, plates causing mechanical attrition
  • Correct malunion: Osteotomy if severe dorsal angulation causing attrition
  • Release scar/adhesions: Tenolysis of surrounding structures

Post-Burn Cases:

  • Z-plasties: Lengthen contracted skin
  • Skin grafts: Provide adequate soft tissue coverage
  • Flap coverage: If deep structures exposed

Free Graft Biology and Why Transfers Beat Grafts


A free tendon graft is transplanted avascular and must be incorporated by the recipient. It heals in a sequence: an early ischaemic phase with partial central necrosis and loss of tenocytes, then revascularisation and cellular repopulation from the surrounding bed (extrinsic) and from synovial-fluid diffusion (intrinsic) over roughly the first 4-6 weeks, followed by remodelling of collagen over months. The graft is weakest during the avascular and early-revascularisation phase, which is why grafts are protected longer and progress more slowly than a transfer.

Why a tendon transfer is more reliable than a free graft:

  • A transfer keeps its own blood supply and intact musculotendinous unit - it only has to heal at its juncture(s), so it is stronger earlier and does not depend on revascularisation. This is the biological reason EIP-to-EPL transfer (~90-95%) outperforms free grafting and is the default for irreparable EPL rupture.
  • A free graft depends entirely on the recipient bed for revascularisation and gliding. A healthy vascular bed supports incorporation; a densely scarred, avascular bed both starves the graft and binds it in adhesions, which is why single-stage grafting fails in scarred fields.

Why the two-stage (Hunter rod) technique works: the silicone rod provokes a smooth, vascularised pseudosheath over ~3 months, so the stage-2 graft is delivered into a gliding, perfusable channel rather than dense scar - converting a hostile (Boyes grade 2) bed into one a graft can survive and glide in.

Practical consequences the topic already relies on:

  • Graft stretch / creep (~10-15%) during remodelling - so set tension slightly tighter than desired and expect possible late extensor lag.
  • Adhesions are the price of extrinsic (bed-dependent) healing - hence early protected motion to balance graft protection against adhesion formation.
Vascularity explains the hierarchy

A tendon transfer keeps its blood supply and heals only at the juncture, so it is stronger early and more reliable; a free graft is avascular and must revascularise from the recipient bed over 4-6 weeks, making it weaker early and utterly dependent on bed quality. That single fact explains transfer-over-graft preference, why a scarred bed needs a two-stage rod-induced pseudosheath, the graft's 10-15% stretch, and its higher adhesion/lag rate.

Surgical Pearls and Pitfalls


Technical Pearls

Pulvertaft Weave Optimization:

  • Three weaves minimum: Standard secure juncture
  • Four weaves typical: Added strength at the cost of more bulk - optimise balance of security vs gliding resistance
  • Suture technique: Horizontal mattress preferred over simple sutures (better purchase)
  • Taper final end: Smooth transition reduces catching sensation

Tension Setting Mastery:

  • Critical determinant of outcome: Over-tension (swan-neck), under-tension (lag)
  • Standard position: Wrist neutral, MCP 45 degrees flexion
  • Intraoperative test: Passive wrist flexion should extend fingers reciprocally
  • Allowance for stretch: Set slightly tighter than desired (grafts stretch 10-15% over 3 months)

Donor Tendon Harvest:

  • Palmaris identification: Resist thumb opposition against resistance - central cord most prominent
  • Tendon stripper use: Requires experience - can transect tendon if improper technique
  • Tag orientation: Mark proximal vs distal end (maintain correct orientation during weaving)

Incision Planning:

  • Avoid perpendicular scars: Zigzag or S-incisions prevent contracture
  • Respect previous scars: Incorporate when possible, maintain blood supply
  • Minimize skin trauma: Careful handling prevents wound complications

Common Pitfalls and Avoidance

Attempting Reconstruction with Stiff Joints:

  • Error: Proceeding despite limited passive ROM
  • Consequence: Reconstruction fails, wasted surgery
  • Avoidance: Mandatory passive ROM documentation pre-op; release contractures first

Inadequate Scar Maturation:

  • Error: Reconstruction less than 3 months post-injury
  • Consequence: Excessive adhesions, poor glide, re-rupture
  • Avoidance: Wait 3-6 months unless soft tissues pristine

Improper Tension Setting:

  • Over-tensioning:
    • Consequence: Swan-neck deformity, joint stiffness, pain
    • Avoidance: Set with MCP 45 degrees flexion, allow passive finger flexion intraoperatively
  • Under-tensioning:
    • Consequence: Persistent extensor lag, weak extension
    • Avoidance: Set tension slightly tighter than desired (accounts for stretch)

Inadequate Weave Security:

  • Error: Only 1-2 weaves, or inadequate suturing
  • Consequence: Juncture failure, gap formation, rupture
  • Avoidance: Minimum 3 weaves, horizontal mattress sutures each weave

Choosing Wrong Reconstruction Type:

  • Error: Single-stage graft in severely scarred bed
  • Consequence: Massive adhesions, non-functional result
  • Avoidance: Two-stage for severe scarring; transfer over graft when possible

Neglecting Underlying Pathology (Rheumatoid):

  • Error: Reconstructing tendons without addressing DRUJ synovitis
  • Consequence: Re-rupture rate up to 30%
  • Avoidance: ALWAYS perform DRUJ synovectomy + Darrach/S-K in rheumatoid cases

Excessive Bulk at Juncture:

  • Error: Too many weaves, bunching of sutures
  • Consequence: Adhesions, catching sensation, limited ROM
  • Avoidance: Taper final end, trim excess, smooth juncture

Troubleshooting Intraoperative Issues

Cannot Pass Tendon Through Scarred Bed:

  • Use infant feeding tube as guide
  • Create new subcutaneous tunnel if old bed too scarred
  • Consider two-stage approach

Insufficient Graft Length:

  • Use plantaris (longer than palmaris)
  • Use two palmaris grafts end-to-end
  • Consider ECRL slip as augmentation

EIP Not Identifiable:

  • Rare but possible (congenital absence)
  • Use EDC slip to index finger as alternative
  • Consider ECRB to EPL if no alternatives

Weak Distal Stump (Cannot Weave):

  • Anchor graft directly to bone (drill tunnel)
  • Use bone anchor or suture anchor
  • Button technique over volar pulp

Postoperative Management and Rehabilitation


Extensor Reconstruction Rehabilitation Protocol

Weeks 0-4Immobilization Phase

Splint Type: Dorsal blocking splint or thumb spica (EPL cases)

Position:

  • Wrist 30 degrees extension
  • MCP 0 degrees extension (fingers) or thumb extended (EPL)
  • IP joints free (allow gentle passive motion)

Activity:

  • No active extension (protected healing)
  • Passive IP/DIP flexion allowed (prevents stiffness)
  • Edema control: Elevation, Coban wrapping

Purpose: Protect juncture healing (Pulvertaft weave or bone insertion).

Weeks 4-6Protected Active Motion Phase

Remove splint for exercises, reapply between sessions

Exercises:

  • Place-and-hold: Passively extend digit, actively hold position (10 sec x 10 reps)
  • Active extension: Gentle active extension within comfortable range
  • Blocking exercises: Isolate MCP extension (hold PIP/DIP in slight flexion)
  • Tendon gliding: Hook fist → straight fist → full extension sequence

Activity:

  • Light ADLs (eating, grooming)
  • NO gripping, NO lifting greater than 500g

Therapist supervision: Essential - prevent over-aggressive motion, monitor for complications.

Weeks 6-8Strengthening Phase

Discontinue splint (except nighttime if extensor lag present)

Exercises:

  • Progressive strengthening: Putty (soft → medium → firm progression)
  • Resistance bands: Gentle resistance to extension
  • Grip strengthening: Begin gentle grip exercises
  • Functional activities: Light work simulation

Activity:

  • Return to light work (sedentary jobs)
  • Avoid heavy lifting (still less than 5kg)

Monitor: Extensor lag (if increasing, decrease activity intensity).

Weeks 8-12Full Activity Phase

Unrestricted activity by 10-12 weeks

Goals:

  • Full ROM restoration (0-90 degrees MCP, 0-100 degrees PIP)
  • Strength 80-90% of contralateral
  • No extensor lag (or less than 10 degrees acceptable)

Activity:

  • Return to full work duties
  • Return to sport (contact sports week 12)
  • Heavy lifting permitted

Long-term: Continue strengthening if weakness persists; dynamic splinting if extensor lag greater than 20 degrees.

Protocol Modifications by Reconstruction Type

EIP to EPL Transfer:

  • Thumb spica splint (wrist, thumb extended)
  • Emphasize IP joint motion early (prevent stiffness)
  • Begin pinch strengthening week 6

Free Tendon Graft:

  • More conservative progression (graft weaker than transfer initially)
  • Extend immobilization to 5 weeks if concerned about healing
  • Slower strengthening progression

Two-Stage Reconstruction:

  • Same as free graft protocol
  • Higher vigilance for adhesions (aggressive therapy if motion plateaus)
  • Consider early tenolysis (6 months) if severe adhesions

Side-to-Side Transfer:

  • Can be slightly more aggressive (less tension on repair)
  • Buddy tape affected and donor digits weeks 4-8
  • Independent finger exercises less critical (coupled motion expected)

Monitoring for Complications

Extensor Lag:

  • Acceptable: Less than 10 degrees (functional outcome)
  • Concerning: 10-20 degrees (may improve with therapy)
  • Unacceptable: Greater than 20 degrees (consider revision if persists beyond 3 months)

Adhesions:

  • Clinical sign: Passive ROM greater than active ROM (discrepancy greater than 20 degrees)
  • Management: Intensive hand therapy, dynamic splinting
  • Surgical: Tenolysis at 6 months if failed conservative management

Swan-Neck Deformity:

  • Cause: Over-tensioned reconstruction → MCP hyperextension, PIP flexion
  • Prevention: Proper tension setting intraoperatively
  • Management: PIP extension splinting; if severe, may need reconstruction release

Joint Stiffness:

  • Prevention: Early passive IP motion during immobilization phase
  • Management: Aggressive therapy, dynamic splinting, manipulation under anesthesia if refractory

Complications and Salvage


Adhesions limiting glide
Incidence
15-25%
Prevention
Early passive motion, minimize trauma
Management
Intensive therapy, tenolysis at 6+ months
Rupture of transfer/graft
Incidence
5-10%
Prevention
Adequate immobilization, proper tension
Management
Revision reconstruction vs salvage
Persistent extensor lag
Incidence
10-20%
Prevention
Proper tension setting, compliant therapy
Management
Dynamic splinting, revision if greater than 30 degrees
Joint stiffness (IP/MCP)
Incidence
15-25%
Prevention
Early passive IP motion
Management
Aggressive therapy, manipulation, possible release
Swan-neck deformity
Incidence
5%
Prevention
Avoid over-tensioning
Management
PIP extension splinting, release if severe
Donor site morbidity
Incidence
Less than 5%
Prevention
Careful harvest technique
Management
Usually resolves spontaneously
Infection
Incidence
2-3%
Prevention
Sterile technique, prophylactic antibiotics
Management
Antibiotics, possible debridement
Quadriga effect
Incidence
Rare
Prevention
Proper tension setting, avoid over-lengthening
Management
Revision to adjust length
Complications of Extensor Tendon Reconstruction
ComplicationIncidencePreventionManagement
Adhesions limiting glide15-25%Early passive motion, minimize traumaIntensive therapy, tenolysis at 6+ months
Rupture of transfer/graft5-10%Adequate immobilization, proper tensionRevision reconstruction vs salvage
Persistent extensor lag10-20%Proper tension setting, compliant therapyDynamic splinting, revision if greater than 30 degrees
Joint stiffness (IP/MCP)15-25%Early passive IP motionAggressive therapy, manipulation, possible release
Swan-neck deformity5%Avoid over-tensioningPIP extension splinting, release if severe
Donor site morbidityLess than 5%Careful harvest techniqueUsually resolves spontaneously
Infection2-3%Sterile technique, prophylactic antibioticsAntibiotics, possible debridement
Quadriga effectRareProper tension setting, avoid over-lengtheningRevision to adjust length

Tendon Adhesions

Most common complication (15-25% incidence)

Clinical Presentation:

  • Limited active extension with full passive extension
  • Discrepancy between active and passive ROM (greater than 20 degrees)
  • Palpable thickening/triggering along tendon course
  • Plateau in ROM improvement despite therapy

Management:

  • Conservative (first-line):

    • Intensive hand therapy (work-hardening protocol)
    • Dynamic extension splinting (low-load prolonged stress)
    • Tendon gliding exercises, massage, ultrasound therapy
    • Duration: 3-6 months trial
  • Surgical Tenolysis:

    • Timing: Minimum 6 months post-reconstruction (allow scar maturation)
    • Technique: Release adhesions circumferentially around tendon, preserve juncture
    • Post-op: Immediate active motion (regional anesthesia catheter for pain control)
    • Outcomes: 60-75% improvement in ROM (some recurrent adhesion expected)

Rupture of Transfer/Graft

Incidence: 5-10% (higher in two-stage, rheumatoid cases)

Timing:

  • Early (less than 6 weeks): Inadequate immobilization, poor healing, premature therapy
  • Late (greater than 3 months): Attrition over prominence, re-injury

Clinical Presentation:

  • Sudden loss of extension (may feel/hear pop)
  • Return to pre-operative extensor lag or worse
  • Palpable gap or absence of tendon on attempted extension

Management:

Acute Rupture (less than 3 weeks):

  • Revision reconstruction: Re-explore, assess juncture
    • If clean separation: Re-weave with additional passes
    • If tissue poor: Use new graft, alternative donor
  • Success: 60-70% (lower than primary)

Chronic Rupture (greater than 3 months):

  • Tendons retracted, scarred, muscle contracted
  • Options:
    1. Alternative reconstruction: Different donor, two-stage if not previously done
    2. Arthrodesis: MCP or IP fusion (salvage for thumb, less acceptable for fingers)
    3. Acceptance: If minimal functional deficit

Rheumatoid re-rupture: Address underlying disease (biologics), repeat DRUJ surgery

Persistent Extensor Lag

Incidence: 10-20%

Etiology:

  • Under-tensioning at initial surgery (most common)
  • Graft stretch: 10-15% elongation over months
  • Adhesions: Limited glide mimics lag
  • Weak donor: Inadequate motor power
  • Joint contracture: Secondary joint stiffness

Assessment:

  • Measure lag: Degrees from full passive to full active extension
  • Passive ROM: Confirms joints supple (rules out contracture)
  • Tendon excursion: Palpate during active extension

Management:

Lag less than 10 degrees:

  • Acceptable functional outcome
  • Continue strengthening
  • No further intervention

Lag 10-20 degrees:

  • Trial of intensive therapy (3 months)
  • Dynamic extension splinting
  • Consider revision if no improvement

Lag greater than 20 degrees:

  • Non-functional lag - revision indicated
  • Options:
    • Re-tension reconstruction (shorten transfer/graft)
    • Alternative donor if original weak
    • Arthrodesis if joints arthritic

Salvage Options for Failed Reconstruction

Second Reconstruction Attempt:

  • Use alternative donor (if EIP failed, try ECRB to EPL)
  • Two-stage if single-stage failed
  • Address adhesions (tenolysis), correct tension

Arthrodesis:

  • Indications: Multiple failed reconstructions, arthritic joints, patient acceptance
  • Thumb IP arthrodesis: Excellent option (most IP motion occurs at MCP anyway)
  • Finger MCP arthrodesis: Less acceptable (loses critical motion)
  • Position: Thumb IP 10-15 degrees flexion, finger MCP 25-35 degrees flexion

Acceptance:

  • Patient education regarding realistic outcomes
  • Occupational therapy for adaptive strategies
  • Acceptable if lag less than 30 degrees, functional use preserved

Outcomes and Evidence Base


Expected Outcomes by Reconstruction Type

EIP to EPL transfer
Success Rate
90-95%
Return to Function
3-4 months
Complication Rate
Less than 10%
Free tendon graft (single-stage)
Success Rate
75-85%
Return to Function
4-6 months
Complication Rate
15-20%
Two-stage reconstruction
Success Rate
70-80%
Return to Function
6-9 months
Complication Rate
20-30%
Side-to-side transfer
Success Rate
85-90%
Return to Function
3-4 months
Complication Rate
10-15%
Rheumatoid reconstructions
Success Rate
60-80%
Return to Function
4-6 months
Complication Rate
20-30%
Reconstruction TypeSuccess RateReturn to FunctionComplication Rate
EIP to EPL transfer90-95%3-4 monthsLess than 10%
Free tendon graft (single-stage)75-85%4-6 months15-20%
Two-stage reconstruction70-80%6-9 months20-30%
Side-to-side transfer85-90%3-4 months10-15%
Rheumatoid reconstructions60-80%4-6 months20-30%

Prognostic Factors

Positive Prognostic Factors:

  • Full passive ROM pre-operatively (most critical)
  • Clean, well-vascularized soft tissues (traumatic greater than rheumatoid)
  • Single tendon reconstruction (multiple tendons worse)
  • Transfer over graft (vascularized tissue heals better)
  • Patient compliance with therapy (essential)
  • Non-smoker (smoking impairs tendon healing)
  • Younger age (better healing potential)

Negative Prognostic Factors:

  • Limited passive ROM pre-op (poor outcomes despite surgery)
  • Multiple prior surgeries (scarring, adhesions)
  • Rheumatoid arthritis (disease progression)
  • Smoking (nicotine impairs healing)
  • Diabetes (impaired healing)
  • Poor compliance (inadequate therapy)
Evidence

Keating et al - EI Transfer vs Tendon Graft for EPL Reconstruction (Systematic Review & Meta-Analysis)

Level I (Systematic Review and Meta-Analysis)
Key Findings:
  • Pooled analysis of 9 studies comparing extensor indicis transfer versus free tendon graft for EPL ruptures not amenable to primary repair
  • Good or very good Geldmacher scores in 81.8% after extensor indicis transfer
  • Good or very good Geldmacher scores in 87.5% after free tendon grafting
  • The two techniques gave a practically equivalent return to postoperative function
  • Extensor indicis favoured as the more reliable option on theoretical and clinical grounds (no graft donor-bed dependence)
Clinical implication: Both extensor indicis transfer and free graft restore thumb extension with comparable, good outcomes; extensor indicis transfer is the more reliable default for irreparable EPL rupture.
Source: ANZ J Surg. 2026;96(4):836-843
Verify on PubMed (PMID 41797307)
Evidence

Adams et al - EIP to EPL Transfer After Distal Radius Fracture: Long-Term Outcomes

Level IV (Retrospective Case Series)
Key Findings:
  • Seven patients followed long-term after extensor indicis proprius to EPL tendon transfer for fracture-related EPL rupture
  • Isolated active index MCP extension preserved in 7/7 (100%) - confirms EIP is expendable
  • 6/7 (86%) could extend index MCP and thumb IP against resistance
  • Mean thumb IP extension lag only -5 degrees; mean index MCP extension 1 degree
  • Mean QuickDASH 16, indicating good patient-reported function
Clinical implication: EIP-to-EPL transfer gives durable thumb extension with preserved independent index extension and low residual disability.
Source: J Hand Ther. 2024;37(4):529-533
Verify on PubMed (PMID 38490877)
Evidence

McIntyre, Stirling & McEachan - Outcomes of Surgical Treatment of Vaughan-Jackson Syndrome

Level IV (Retrospective Case Series)
Key Findings:
  • Twelve cases of Vaughan-Jackson syndrome treated with distal ulna excision (Darrach) plus extensor tendon transfer
  • Attritional extensor rupture from distal radioulnar joint arthritis/inflammation - underlying DRUJ pathology addressed in every case
  • At mean 53 months: mean PRWHE 34.5, mean QuickDASH 28.2
  • Ten of 12 patients satisfied; Net Promoter Score 42 despite residual functional deficit
  • Only 2 patients required further surgery (total wrist arthrodesis)
Clinical implication: In Vaughan-Jackson syndrome, combining tendon transfer with distal ulna excision gives high satisfaction and low reintervention, but a measurable functional deficit persists - counsel accordingly.
Source: J Wrist Surg. 2024;13(4):328-332
Verify on PubMed (PMID 39027023)
Evidence

Beris et al - Two-Stage Tendon Reconstruction with a Silicone Rod

Level IV (Prospective Case Series)
Key Findings:
  • Two-stage reconstruction in 20 patients (22 digits) with poor-prognosis (Boyes grade 2-5) injuries
  • Stage 1 silicone (Hunter) rod creates a gliding pseudosheath; stage 2 passes the graft through that pseudosheath
  • Good/excellent results in 82% (Buck-Gramcko) and 73% (modified Strickland) at mean 50-month follow-up
  • Results compared favourably with classic Hunter two-stage free-graft reconstruction
  • Low rates of post-reconstruction rupture and tenolysis
Clinical implication: The silicone-rod two-stage strategy is the established salvage for severely scarred tendon beds where single-stage grafting would fail.
Source: J Hand Surg Am. 2003;28(4):652-660
Verify on PubMed (PMID 12877856)
Evidence

Brown et al - Side-to-Side vs Pulvertaft Weave: Mechanical Strength

Level V (Cadaveric Biomechanical Study)
Key Findings:
  • Cadaveric comparison of side-to-side cross-stitch repair versus a Pulvertaft (3-incision) weave
  • Load at first failure, ultimate load and stiffness were all significantly higher for the side-to-side repair
  • Pulvertaft repairs failed by suture knot slipping/pull-through then donor pulling through recipient
  • Side-to-side repairs failed by intrasubstance fibre shearing of the donor tendon
  • Stronger, stiffer junctures may permit earlier active mobilisation and fewer adhesions
Clinical implication: Despite the Pulvertaft weave's traditional status, biomechanical data show side-to-side coaptation is at least as strong, supporting earlier active motion after transfer.
Source: J Hand Surg Am. 2010;35(4):540-545
Verify on PubMed (PMID 20223604)

Long-Term Outcomes

Function at 2 Years:

  • EIP to EPL: 95% maintain functional thumb extension
  • Free grafts: 80% maintain functional extension (some stretch/lag)
  • Rheumatoid: 70% maintain function (disease progression affects outcome)

Patient Satisfaction:

  • High (greater than 85%) for traumatic cases with successful reconstruction
  • Moderate (60-70%) for rheumatoid cases (expectation management critical)
  • Low (less than 50%) for failed reconstructions

Return to Work:

  • Sedentary work: 3-4 months typical
  • Manual labor: 4-6 months, may need job modification
  • High demand athletes: 6-9 months, some permanent limitation

Evidence Base


Key Evidence for Extensor Tendon Reconstruction

Evidence

Gillis, Athens & Rhee - Biomechanical Comparison of Tendon Coaptation Methods

Level V (Cadaveric Biomechanical Study)
Key Findings:
  • 100 cadaveric tendons used to compare Pulvertaft weave versus single-pass side-to-side coaptation
  • Side-to-side constructs had significantly higher peak load and stiffness than Pulvertaft weave constructs
  • Coaptation bulk did not differ between Pulvertaft and side-to-side constructs
  • Side-to-side coaptations showed higher peak gliding resistance through tissue planes
  • Mesh versus braided suture made no difference to strength, bulk or gliding within a construct group
Clinical implication: Side-to-side coaptation is biomechanically stronger and stiffer than the Pulvertaft weave; weave choice should weigh strength, gliding resistance and surgeon familiarity rather than assume Pulvertaft superiority.
Source: J Hand Surg Am. 2020;46(4):343.e1-343.e10
Verify on PubMed (PMID 33279324)
Evidence

Kunes et al - Extensor Tendon Injury After Volar Locking Plating: Systematic Review

Level III (Systematic Review)
Key Findings:
  • Ninety studies reviewed on extensor tendon injury after volar locking plate fixation of distal radius fractures
  • Incidence of extensor tendon rupture ranged from 0% to 12.5%
  • The extensor pollicis longus is the most commonly ruptured extensor tendon
  • Dorsal screw prominence and dorsal fracture fragments are key, partly preventable risk factors
  • Hardware removal plus tendon transfer or reconstruction may be required to restore extension
Clinical implication: Iatrogenic extensor (especially EPL) rupture is a recognised and partly preventable complication of volar plating; intra-operative dorsal screw-length checks reduce risk.
Source: Hand (N Y). 2022;17(1_suppl):87S-94S
Verify on PubMed (PMID 35168382)
Evidence

Kizilay & Turan - EIP Transfer for EPL Rupture with Distal Radius Fracture

Level V (Case Report)
Key Findings:
  • Bilateral EPL ruptures occurring at the time of bilateral displaced distal radius fractures
  • Both fractures fixed via volar Henry approach with bilateral volar plating
  • Both EPL ruptures reconstructed with extensor indicis proprius tendon transfer
  • Satisfactory thumb extension restored with no reported complications
  • Demonstrates EPL rupture can occur acutely at injury, not only as the classic delayed (4-12 week) attritional rupture
Clinical implication: Clinicians should examine thumb extension at presentation of displaced distal radius fractures; acute EPL rupture is reconstructible with EIP transfer alongside fracture fixation.
Source: Acta Orthop Traumatol Turc. 2023;57(1):46-49
Verify on PubMed (PMID 36939365)

Exam Viva Scenarios

Practise clinical reasoning and management decisions out loud

Viva scenarioStandard
Scenario 1: EPL Rupture Post-Colles Fracture
Clinical prompt

“A 62-year-old woman presents 8 weeks after successful closed reduction and casting of a displaced distal radius fracture. She has sudden onset inability to extend her thumb IP joint that occurred 2 days ago without trauma. Fracture is healed on x-ray. Examination shows inability to actively extend thumb IP joint, but full passive motion. She can palpate EPL muscle contraction in forearm. What is your diagnosis and management?”

Viva scenarioChallenging
Scenario 2: Rheumatoid Sequential Extensor Ruptures
Clinical prompt

“A 58-year-old woman with long-standing rheumatoid arthritis presents with progressive inability to extend her small and ring fingers at the MCP joints over the past 2 months. She has prominent distal ulna dorsally and synovial thickening at the wrist. Examination shows inability to actively extend small and ring finger MCPs, but passive extension is full. Middle finger extension is weak. What is your diagnosis and surgical management?”

Viva scenarioChallenging
Scenario 3: Failed Extensor Repair with Severe Scarring
Clinical prompt

“A 35-year-old carpenter had EDC lacerations to index and middle fingers repaired primarily 8 months ago. Despite intensive hand therapy, he has 50 degrees extensor lag at both MCPs. The dorsum has thick, adherent scarring from multiple prior tenolysis procedures. Passive ROM at all joints is full (confirmed 0-90 degrees MCP, 0-100 degrees PIP). He is highly motivated to regain function. What is your management?”

MCQ Practice Points


Clinical Pearl

Q: What are the zones of extensor tendon injury in the hand and their significance?

A: Odd zones over joints, even zones between: Zone I (DIP) - mallet finger, Zone III (PIP) - boutonnière, Zone V (MCP) - fight bite location, Zone VII (wrist) - under retinaculum. Zone III injuries risk boutonnière deformity if central slip disrupted. Zone V requires thorough washout for human bite injuries.

Clinical Pearl

Q: What is the EIP to EPL transfer used for?

A: Extensor indicis proprius (EIP) transfer reconstructs extensor pollicis longus (EPL) rupture. Common indication: EPL rupture after distal radius fracture (Lister's tubercle attrition). EIP expendable as EDC provides index extension. Transfer rerouted subcutaneously to EPL insertion. Alternative: palmaris longus graft.

Clinical Pearl

Q: What tendon grafts are available for extensor tendon reconstruction?

A: Palmaris longus (absent in 15%): Ideal length, easy harvest. Plantaris: Longer, useful for multi-digit reconstruction. Toe extensors: EDL to lesser toes. Fascia lata: For larger defects. Graft length should be 10% longer than defect to allow tensioning. Two-stage reconstruction if significant scarring.

Clinical Pearl

Q: What is the mechanism and treatment of sagittal band injury?

A: Sagittal band rupture (usually radial side of middle finger) causes extensor tendon subluxation ulnarly with MCP flexion. Acute injuries: Splinting MCP in extension 4-6 weeks. Chronic injuries: Surgical repair or reconstruction using extensor slip, juncturae tendinum, or capsular flap. Often seen in rheumatoid arthritis.

Clinical Pearl

Q: What is a two-stage tendon reconstruction and when is it indicated?

A: Stage 1: Insert silicone rod to create pseudosheath in scarred bed, allow soft tissue equilibration (2-3 months). Stage 2: Replace rod with tendon graft through formed sheath. Indicated when severe scarring, absent sheath, or poor soft tissue bed precludes primary reconstruction. Maintains gliding channel.

Guidelines, Registries & Global Practice


Extensor reconstruction is a technique-driven field without large randomised trials or dedicated joint-registry data; the global standard rests on systematic reviews, case series and biomechanical work. The picture below summarises the worldwide evidence and where regional practice genuinely differs.

Global Epidemiology

EPL rupture after distal radius fracture (conservatively treated)
Figure
~3.5% in one matched cohort ('hook'-shaped Lister tubercle a risk factor)
Source
Ogata et al, J Hand Surg Asian Pac Vol 2022 (PMID 36178420)
Extensor tendon rupture after volar locking plating
Figure
0% to 12.5% across studies; EPL most commonly affected
Source
Kunes et al, Hand (N Y) 2022 (PMID 35168382)
Palmaris longus absence (graft availability)
Figure
~25% bilateral absence in the overall series; unilateral absence commoner on the non-dominant hand
Source
Eric et al, Surg Radiol Anat 2010 (PMID 21107568)
Vaughan-Jackson syndrome
Figure
Attritional extensor rupture from DRUJ arthritis/inflammation; persistent functional deficit after surgery despite high satisfaction
Source
McIntyre et al, J Wrist Surg 2024 (PMID 39027023)
MeasureFigureSource
EPL rupture after distal radius fracture (conservatively treated)~3.5% in one matched cohort ('hook'-shaped Lister tubercle a risk factor)Ogata et al, J Hand Surg Asian Pac Vol 2022 (PMID 36178420)
Extensor tendon rupture after volar locking plating0% to 12.5% across studies; EPL most commonly affectedKunes et al, Hand (N Y) 2022 (PMID 35168382)
Palmaris longus absence (graft availability)~25% bilateral absence in the overall series; unilateral absence commoner on the non-dominant handEric et al, Surg Radiol Anat 2010 (PMID 21107568)
Vaughan-Jackson syndromeAttritional extensor rupture from DRUJ arthritis/inflammation; persistent functional deficit after surgery despite high satisfactionMcIntyre et al, J Wrist Surg 2024 (PMID 39027023)

Manual occupations (construction, agriculture, machinery) drive traumatic injury worldwide, while inflammatory arthropathy drives atraumatic and attritional rupture. Rheumatoid arthritis prevalence is broadly 0.5-1% globally, so rheumatoid extensor rupture is a comparable problem across health systems.

Guidance and Standard of Care, Side by Side

No society publishes a dedicated extensor-reconstruction guideline; recommendations are extrapolated from hand-surgery consensus and distal-radius-fracture guidance.

AAOS (distal radius fracture CPG)
Relevant position
Recognises EPL rupture as a complication of both non-operative and operative treatment; supports surgical reconstruction (commonly EIP transfer)
Evidence basis
Consensus / limited evidence
BOA / BSSH (UK)
Relevant position
Tendon transfer or graft for irreparable extensor loss with supple joints; certified hand-therapy access central to outcome
Evidence basis
Expert consensus
Systematic review / meta-analysis
Relevant position
EIP transfer and free graft give equivalent functional return for EPL rupture (good/very good in ~82% vs ~88%)
Evidence basis
Level I (PMID 41797307)
Biomechanical evidence
Relevant position
Side-to-side coaptation is at least as strong/stiff as the Pulvertaft weave, supporting earlier active motion
Evidence basis
Level V cadaveric (PMID 20223604, 33279324)
Body / sourceRelevant positionEvidence basis
AAOS (distal radius fracture CPG)Recognises EPL rupture as a complication of both non-operative and operative treatment; supports surgical reconstruction (commonly EIP transfer)Consensus / limited evidence
BOA / BSSH (UK)Tendon transfer or graft for irreparable extensor loss with supple joints; certified hand-therapy access central to outcomeExpert consensus
Systematic review / meta-analysisEIP transfer and free graft give equivalent functional return for EPL rupture (good/very good in ~82% vs ~88%)Level I (PMID 41797307)
Biomechanical evidenceSide-to-side coaptation is at least as strong/stiff as the Pulvertaft weave, supporting earlier active motionLevel V cadaveric (PMID 20223604, 33279324)

Points of genuine agreement: full passive ROM is a mandatory prerequisite; EIP-to-EPL transfer is the default for irreparable EPL rupture; severe scarring is managed in two stages; rheumatoid cases must address the DRUJ to prevent re-rupture.

Registry Evidence

There is no implant or joint registry for soft-tissue extensor reconstruction (no prosthesis is implanted), so registry-level survival data do not exist. The best comparative evidence is the Level I systematic review above plus pooled case series, not registry output - a key honesty point for the exam.

Global Practice Variation

  • High- vs limited-resource settings: outcome depends heavily on access to a certified hand therapist; where structured therapy is unavailable, surgeons favour simpler, more robust constructs and may accept earlier arthrodesis for salvage.
  • Graft vs transfer preference: equivalent outcomes mean choice is driven by local training and donor availability (palmaris longus absent in roughly a quarter of patients) rather than by superiority of one technique.
  • Inflammatory disease: peri-operative immunosuppression is managed with the treating rheumatologist following the prevailing national perioperative guidance (e.g. ACR/EULAR-aligned recommendations), individualised to infection and flare risk; dedicated drug names and hold intervals vary by region and are deliberately not prescribed here.

Across all health systems, the strongest outcomes follow early referral to specialist hand-surgery services and coordinated multidisciplinary care — hand surgeon, certified hand therapist, and rheumatology where relevant.

Exam day cheat sheet
EXTENSOR TENDON RECONSTRUCTION

Extensor Zones (Kleinert-Verdan)

  • Zone I: DIP joint (mallet)
  • Zone II: Middle phalanx
  • Zone III: PIP joint (boutonniere)
  • Zone IV: Proximal phalanx
  • Zone V: MCP joint
  • Zone VI: Metacarpal
  • Zone VII: Wrist/retinaculum (EPL rupture site)
  • Zone VIII: Distal forearm

Reconstruction Prerequisites (SMART)

  • Supple joints - full passive ROM mandatory
  • Mature scar - wait 3-6 months post-injury
  • Adequate soft tissue coverage
  • Realistic patient expectations
  • Therapy access and commitment

Reconstruction Options

  • Tendon transfer: EIP to EPL (90-95% success)
  • Free graft: Palmaris longus (75-85%)
  • Side-to-side: Adjacent EDC (85-90%)
  • Two-stage: Rod then graft for scarring (70-80%)

EIP to EPL Transfer

  • Gold standard for EPL rupture
  • EIP expendable (EDC extends index)
  • Three incisions: index MCP, wrist, thumb IP
  • Reroute EIP around radial wrist to EPL
  • Pulvertaft weave 3-4 passes
  • Tension: wrist neutral, thumb extended
  • Splint 4 weeks, success 90-95%

Tendon Graft Donors

  • Palmaris longus: 1st choice (12-15cm, 85% present)
  • Plantaris: 2nd choice (25-30cm from foot)
  • Toe extensors: 3rd choice (8-12cm)
  • ECRL slip: Alternative (8-10cm)

Pulvertaft Weave

  • Gold standard tendon attachment
  • 3 weaves = secure minimum
  • 4 weaves = added strength, more bulk
  • Horizontal mattress sutures each weave
  • Taper final end (reduce bulk)

EPL Rupture Post-Colles

  • Incidence: 0.5-3% of distal radius fractures
  • Timing: 4-12 weeks post-fracture (delayed)
  • Mechanism: Ischemic necrosis at Lister's tubercle
  • Presentation: Cannot extend thumb IP, no trauma
  • Treatment: EIP to EPL transfer
  • Success: 90-95%

Vaughan-Jackson Syndrome

  • Sequential extensor ruptures in rheumatoid arthritis
  • Sequence: EDM → ring → middle → index → EPL
  • Mechanism: Attrition over distal ulna prominence
  • Reconstruction: Side-to-side, EIP/EDM transfers, ECRB to EDC
  • MUST do DRUJ synovectomy + Darrach/Sauve-Kapandji
  • Success: 60-80% (disease progression affects outcome)

Two-Stage Reconstruction

  • Indication: Severe scarring/adhesions
  • Stage 1: Silicone rod creates pseudosheath
  • Wait 3 months minimum (pseudosheath formation)
  • Stage 2: Replace rod with tendon graft
  • Success: 70-80% (vs 40% single-stage in scar)

Tension Setting

  • Most critical technical factor
  • Wrist neutral position
  • MCP 45 degrees flexion (fingers)
  • Thumb extended (EPL reconstruction)
  • Test: Passive wrist flexion → finger extension
  • Over-tension: Swan-neck deformity
  • Under-tension: Extensor lag

Rehabilitation Protocol

  • Weeks 0-4: Immobilization (splint)
  • Weeks 4-6: Protected active motion
  • Weeks 6-8: Strengthening
  • Weeks 8-12: Full activity
  • Early passive IP motion (prevent stiffness)

Complications

  • Adhesions: 15-25% (most common)
  • Rupture: 5-10% (revision vs salvage)
  • Extensor lag: 10-20% (revise if greater than 30 degrees)
  • Swan-neck: 5% (over-tensioning)
  • Joint stiffness: 15-25% (aggressive therapy)

Exam High-Yield Facts

  • Passive ROM is mandatory prerequisite
  • EIP to EPL for isolated EPL rupture
  • Palmaris longus first choice graft (85% present)
  • Two-stage for severe scarring
  • Rheumatoid: Address DRUJ pathology
  • Pulvertaft weave: 3-4 passes standard
Editorially reviewed — transparent references and correction processPublished by OrthoVellum Medical Education TeamEditorial boardMethodologyReview policy
Educational disclosure

Educational content is reviewed for source visibility, editorial coherence, and correction readiness.

No individual clinician credential is claimed unless a named person is shown.

Verify before clinical use; this is not medical advice or a substitute for local guidance.

Procedure console
35 min
Read
0
Sections
intermediate
Level
Peer-reviewed · 2025-12-25
Procedure info
Level
intermediate
Updated
2025-12-25
Browse all procedures
