C1-C2 Posterior Fusion (Harms/Goel-Harms Technique)

Patient Position: Prone on radiolucent Jackson table or chest rolls. Mayfield 3-pin head fixation: Two pins posterolateral above ears (avoid temporalis muscle), one pin anterior midline above eyebrow (avoid frontal sinus). Pin pressure 60-80 lbs in normal bone, 40-60 lbs in osteoporotic elderly patients or children. Arms tucked at sides. Shoulders taped inferiorly with traction tape for C3 visualization on lateral fluoroscopy.

Reduction Maneuver: Neck position NEUTRAL to SLIGHT FLEXION (5-10°). This reduces most atlantoaxial subluxations - C1 translates posteriorly relative to C2 in flexion closing the ADI. Avoid extension which worsens anterior subluxation. Gardner-Wells tong traction optional (5-10 lbs) for additional reduction. Confirm reduction on lateral C-arm before draping: ADI (distance from posterior cortex of anterior arch C1 to anterior cortex of odontoid) should be less than 3mm normal, must be less than 5mm. If ADI greater than 5mm unreduced: Consider anterior transoral odontoidectomy first, or occiput-C2 fusion.

Neuromonitoring: SSEPs (upper and lower extremity) and MEPs throughout case. Baseline after positioning. Alert for changes during C1-C2 manipulation, drilling, screw insertion. 50% SSEP amplitude decrease or MEP loss requires immediate investigation (check reduction, screw position).

C-Arm Positioning: Biplanar fluoroscopy ESSENTIAL. Lateral C-arm must show occiput to C3 clearly (shoulders taped down). AP C-arm centered on C1-C2. Save positioning fluoroscopy images showing reduction before draping. Frequent fluoroscopy throughout case (do NOT limit radiation concern - safety more important).

Reverse Trendelenburg: 15-20° reverse Trendelenburg position reduces venous congestion and bleeding at craniovertebral junction. Improves surgical field visualization.

Step 1: Preoperative Planning & CTA Review

Preoperative Planning & CTA Review: MANDATORY preoperative CT angiogram (CTA) of cervical spine from skull base to C7. Measure on multiplanar reconstructions: C2 pedicle width at narrowest point (need at least 3mm for safe 3.5mm screw placement), C2 pedicle height, C2 pedicle medial angle (typically 20-30° toward midline), C2 pedicle cephalad angle (typically 15-25° parallel to superior endplate). Identify vertebral artery course and anomalies: High-riding VA passing through C2 pedicle 18-20% (CONTRAINDICATION to C2 pedicle screw - use translaminar instead), VA fenestration (double VA) 2-3%, persistent first intersegmental artery 1-2%, dominant VA with contralateral less than 2mm diameter 10%. Review MRI for reducibility: Flexion-extension MRI or dynamic fluoroscopy shows if atlantoaxial subluxation reduces with positioning. Check for pannus (RA - T2 hyperintense soft tissue compressing cord), tumor, infection, fracture anatomy. DECISION TREE: If C2 pedicle less than 3mm OR high-riding VA anomaly = plan C2 translaminar screws 30-35mm crossing lamina instead of pedicle screws. If irreducible dislocation greater than 5mm ADI = may need anterior transoral odontoidectomy or occiput-C2 fusion. Counsel patient preoperatively: Loss of 50% cervical rotation permanent, occipital numbness likely from C2 nerve sacrifice, collar 8-12 weeks.

Step 2: Positioning in Mayfield & Reduction

Positioning in Mayfield & Reduction: Apply Mayfield 3-pin clamp with patient supine initially (easier application than prone). Pin placement: Two pins posterolateral above ears in temporoparietal region (avoid temporalis muscle anteriorly - causes jaw pain), one pin anterior midline 1-2cm above eyebrow on forehead (avoid frontal sinus, avoid midline sagittal sinus). Pin pressure: 60-80 lbs standard adult (check manufacturer specifications for specific Mayfield model), reduce to 40-60 lbs in osteoporotic elderly or children (prevent skull penetration). Turn patient prone onto Jackson table or chest rolls. Position head in Mayfield: Neck NEUTRAL to SLIGHT FLEXION (5-10°) - this is the REDUCTION MANEUVER for atlantoaxial subluxation. Flexion causes C1 to translate posteriorly relative to C2, closing anterior ADI gap. Avoid extension (worsens subluxation). Tape shoulders inferiorly with wide traction tape for C3 visualization on lateral fluoroscopy. Apply reverse Trendelenburg 15-20° to reduce venous congestion. CONFIRM REDUCTION with lateral C-arm before draping: Measure ADI (posterior cortex anterior arch C1 to anterior cortex odontoid) - should be less than 3mm ideal, must be less than 5mm acceptable. If ADI greater than 5mm: Apply additional reduction with Gardner-Wells tongs (5-10 lbs traction), manipulate head position (more flexion, slight distraction), or accept incomplete reduction and consider occiput-C2 fusion or anterior decompression. Obtain baseline SSEPs and MEPs after positioning.

Step 3: Midline Incision & Exposure C1-C2

Midline Incision & Exposure C1-C2: Palpate landmarks: Occiput and inion superiorly, C2 spinous process (large, bifid, prominent at base of neck). Mark midline from inion to C3 spinous process. Infiltrate with local anesthetic and epinephrine 1:200,000 (vasoconstriction reduces bleeding). Midline incision approximately 8-10cm from just below inion to C3. Incise skin, subcutaneous tissue. Identify ligamentum nuchae (dense white fibrous tissue in midline). Incise ligamentum nuchae in avascular midline plane - this is key to minimizing bleeding. SUBPERIOSTEAL DISSECTION: Use Cobb elevator to strip muscles laterally off posterior cervical spinous processes and lamina, staying directly ON BONE. Self-retaining retractor (Taylor or Caspar). Expose superiorly: C1 POSTERIOR ARCH - thin arc of bone without spinous process, only posterior tubercle in midline (small bump). Expose inferiorly: C2 lamina and large bifid C2 spinous process. Expose laterally: C1 LATERAL MASSES bilaterally - rectangular thickening at junction of C1 posterior arch and lateral mass, 15-20mm lateral from midline. C2 pars/pedicle region superior to C2 lamina. Use monopolar bovie for hemostasis. VENOUS PLEXUS: Expect significant bleeding from dense suboccipital venous plexus overlying C1 arch and C1-C2 facets. Control with bipolar cautery, Gelfoam soaked in thrombin, patience. Pack with cottonoids soaked in thrombin-epinephrine. Adequate hemostasis essential for visibility - this exposure takes time.

Step 4: C2 Nerve Root Decision

C2 Nerve Root Decision: C2 nerve root DILEMMA: Large C2 ganglion (size of pea, 8-10mm diameter) sits directly on SUPERIOR surface of C2 pedicle/pars, obscuring screw entry point. OPTIONS for managing C2 nerve: (1) RETRACT nerve superiorly using nerve hooks - allows preservation but difficult exposure, nerve under tension, traction injury risk 30-40%, still causes dysesthesias. (2) SACRIFICE nerve UNILATERALLY (right or left side) - excellent exposure on sacrificed side, opposite side preserve or sacrifice based on visualization needs. (3) SACRIFICE nerve BILATERALLY - maximum exposure both sides, safest for drilling. CONSEQUENCES of C2 nerve sacrifice: Ipsilateral posterior scalp numbness in greater occipital nerve distribution (parietal and occipital region behind ear to vertex), NO motor deficit (sensory nerve only), 20-30% temporary dysesthesias (burning, tingling first 3-6 months), less than 5% chronic significant pain requiring treatment, 92% patient satisfaction (numbness acceptable trade for fusion and pain relief). MY DECISION ALGORITHM: Bilateral pedicle screws needed AND complex anatomy (rheumatoid, tumor, revision) = sacrifice bilateral C2 nerves. Standard case = sacrifice unilateral C2 nerve (typically right). Simple case with excellent exposure = attempt retraction, but low threshold to sacrifice if visualization inadequate. I COUNSEL patient preoperatively about likely occipital numbness. TECHNIQUE for sacrifice: Coagulate C2 nerve with bipolar, divide sharply with scissors or knife, remove ganglion to clearly expose pedicle entry point.

Step 5: C1 Lateral Mass Screw - Entry Point

C1 Lateral Mass Screw - Entry Point: C1 lateral mass ANATOMY: Junction of C1 posterior arch and lateral mass is the THICKEST portion of C1 (15-20mm thick in anteroposterior dimension) - this is screw target. Lateral mass is rectangular structure 12-18mm wide mediolaterally, 8-12mm high superoinferiorly. ENTRY POINT identification: Palpate with Penfield dissector to define lateral mass borders. Entry is at MIDPOINT of junction between posterior arch and lateral mass, approximately 1-2mm MEDIAL to lateral edge of lateral mass (to avoid VA groove on superior C1 arch which is more lateral). Distance from midline: 15-20mm lateral. Use high-speed burr (cutting burr or diamond) to remove soft tissue and clearly define bony landmarks. Burr away venous plexus overlying lateral mass. Mark entry point with burr creating small starter divot 2-3mm diameter, 2-3mm deep in bone. Confirm entry position by palpation: Solid bone medially (toward posterior arch), solid bone laterally (lateral mass edge), solid bone superiorly and inferiorly. CRITICAL: Entry must NOT be on superior surface of C1 arch (that is VA groove - VA 2-3mm lateral). Entry is on POSTERIOR surface at arch-lateral mass junction.

Step 6: C1 Lateral Mass Screw - Trajectory & Drilling

C1 Lateral Mass Screw - Trajectory & Drilling: C1 screw TRAJECTORY: 10-15° MEDIAL toward midline (target is anterior tubercle of C1 on midline), 0-10° CEPHALAD (slight upward angle). Visualize trajectory on LATERAL FLUOROSCOPY: Aim toward C1 ANTERIOR TUBERCLE which appears as anterior bump on C1 ring on lateral view. Screw should parallel superior surface of C1 lateral mass. Use 2.5mm or 3.0mm drill bit with DEPTH STOP set at 28mm (prevents excessive anterior penetration toward internal carotid). Hand-held drill (preferred for tactile feedback) or power drill on slow speed. Drill trajectory 10-15° medial under lateral fluoroscopy guidance. On lateral fluoro, drill bit should advance parallel to C1 superior surface toward anterior tubercle. DEPTH: 20-28mm to reach anterior cortex (measure on preoperative CT for each patient - C1 size varies). FEEL for anterior cortex resistance (hard stop). After drilling to depth, PROBE 4 walls with ball-tip probe: LATERAL wall (MOST critical - breach here is VA 2-3mm lateral), medial wall (breach into C1 canal less critical - wide canal 16-20mm), superior wall, inferior wall. CRITICAL CHECK: Any soft tissue felt laterally indicates VA breach - ABORT screw on that side and consider alternative fixation (contralateral C1 screw plus C2 bilateral, or occiput-C2 fusion).

Step 7: C1 Lateral Mass Screw Insertion

C1 Lateral Mass Screw Insertion: Select screw size: Diameter 3.5mm (standard) or 4.0mm (if large lateral mass greater than 18mm wide). Length 24-30mm based on probing depth and preoperative CT measurement (typically 26-28mm). Thread screw TYPE: Fully threaded preferred for bicortical purchase. Insert C1 lateral mass screw by HAND initially to feel cortical engagement - should feel resistance at posterior cortex (entry), then smooth passage through cancellous bone of lateral mass, then second resistance at anterior cortex (bicortical purchase). Hand-tighten until screw head is FLUSH or slightly recessed (1mm) into posterior arch surface. Avoid screw head proud (elevated) which makes rod placement difficult. Use screwdriver with tactile feedback. Confirm on BIPLANAR FLUOROSCOPY: (1) LATERAL view: Screw parallels C1 superior surface, tip at or just beyond anterior cortex of lateral mass, screw aimed toward anterior tubercle. (2) AP view: Screw converges medially from entry point, tip medial to entry. Repeat for CONTRALATERAL C1 screw. Final fluoroscopy both C1 screws: AP shows bilateral symmetric screws converging medially (due to 10-15° medial trajectory), lateral shows both screws parallel to C1 ring. Save images to PACS.

Step 8: C2 Pedicle Screw - Entry Point

C2 Pedicle Screw - Entry Point: C2 pedicle (also called pars or isthmus - same structure anatomically) ENTRY POINT: MEDIAL and HIGH on C2 superior articular facet. THREE LANDMARKS: (1) 3-5mm from midline (medial to C2 lateral mass), (2) 3mm superior to inferior border of C2 lamina, (3) Medial-superior QUADRANT of junction between C2 superior articular process and lamina. Palpate C2 superior articular facet (ridge of bone). Entry is where lamina meets superior facet medially and superiorly. C2 nerve ganglion must be retracted or sacrificed (usually sacrificed as per Step 4) to clearly visualize entry. Use high-speed burr to remove soft tissue and create starter hole 2-3mm deep at entry point. Confirm entry with ball-tip probe - should palpate solid bone medially (lamina), laterally (pedicle), inferiorly (lamina), superiorly (pars). On LATERAL FLUOROSCOPY, entry point should be at junction of C2 lamina and superior articular process (SAP) when viewing C2 from side. Entry too lateral misses pedicle and goes into C2 lateral mass (weak purchase). Entry too medial is direct into spinal canal. Preoperative CT reviewed again: C2 pedicle width (need at least 3mm for safe 3.5mm screw), pedicle medial angle (typically 20-30°), pedicle cephalad angle (15-25°).

Step 9: C2 Pedicle Screw - Trajectory & Drilling

C2 Pedicle Screw - Trajectory & Drilling: C2 pedicle TRAJECTORY: 20-30° MEDIAL toward tip of odontoid (dens), 15-25° CEPHALAD parallel to C2 superior endplate. This trajectory keeps screw in narrow pedicle corridor (4-8mm wide) between spinal canal medially and VA transverse foramen laterally. Use 2.5mm or 3.0mm drill bit with depth stop at 28mm. Drill under BIPLANAR FLUOROSCOPY (AP and lateral SIMULTANEOUSLY) - this is critical for C2 pedicle. On LATERAL fluoro: Screw should parallel C2 SUPERIOR ENDPLATE (15-25° cephalad), heading anteriorly into C2 body. On AP fluoro: Screw should converge MEDIALLY toward MIDLINE ODONTOID TIP. Watch both views continuously during drilling. TECHNIQUE: Start drill at entry, aim medially 20-30° and cephalad 15-25°, advance slowly (1-2mm increments) checking biplanar fluoro after each advance. Drill should stay centered in pedicle on AP view (between medial and lateral cortex). Depth 20-28mm reaches C2 body for bicortical purchase. FEEL for resistance: Hard cortical bone at entry, softer cancellous in pedicle and body, then hard anterior cortex if bicortical. After drilling, PROBE 4 walls: MEDIAL wall (most important - breach is spinal canal), LATERAL wall (breach is VA), superior and inferior walls. Gentle probing - if any soft tissue or no bone, indicates breach.

Step 10: C2 Pedicle Screw Insertion (or Translaminar Alternative)

C2 Pedicle Screw Insertion (or Translaminar Alternative): C2 PEDICLE SCREW insertion: Select screw 3.5mm diameter (standard) or 4.0mm (if pedicle greater than 6mm wide), length 22-28mm based on drilling depth. Fully threaded screw preferred. Insert by hand initially to feel cortical engagement. Should feel resistance at posterior cortex (entry), smooth passage through pedicle and into C2 body, then resistance at anterior cortex if bicortical. Hand-tighten until screw head flush. Confirm on BIPLANAR fluoroscopy: (1) AP view: Screw converges medially toward odontoid, tip medial to entry, screw entirely within pedicle-body shadow (not breached laterally into facet or medially into canal). (2) LATERAL view: Screw parallels C2 superior endplate, tip in anterior C2 body or at anterior cortex. Repeat for contralateral C2 pedicle screw. ALTERNATIVE if C2 pedicle less than 3mm or VA anomaly: C2 TRANSLAMINAR SCREWS (Wright technique). Entry lateral on C2 lamina 5-8mm from midline on one side. Trajectory 15-20° across midline, courses within C2 lamina substance, exits contralateral lamina. Parallel to C2 inferior endplate on lateral fluoro. Screw 3.5mm diameter, 30-35mm length crosses lamina. Advantage: Completely avoids VA (lateral to lamina) and pedicle. Biomechanics equivalent to pedicle screws for C1-C2 fusion stability. Requires intact C2 lamina.

Step 11: Reduction Verification & Rod Contouring

Reduction Verification & Rod Contouring: VERIFY C1-C2 REDUCTION on lateral fluoroscopy before rod placement. Measure ADI (should be less than 3mm reduced). If subluxation persists (ADI greater than 3mm): Use screw heads as JOYSTICKS to manipulate C1-C2 into reduction. Can compress C1-C2 (push C1 posterior or C2 anterior), distract slightly, translate. Screw-rod technique advantage over transarticular or wiring: Reduction AFTER screw placement using screws as handles. Provisional reduction achieved, proceed to rods. MEASURE rod length: Distance from C1 screw tulip to C2 screw tulip (typically 25-35mm depending on patient size and C1-C2 height). Select 3.5mm diameter cervical rod (standard) or 4.0mm rod (if 4.0mm screws used). CONTOUR rod to match C1-C2 anatomy: Slight LORDOSIS (C1 anterior to C2 on lateral view - natural cervical lordosis). Gentle curve without sharp bends (stress riser). Use rod bender to create smooth curve. Rod should lie naturally against both screw tulip heads without excessive force. Pre-contour BEFORE insertion - difficult to bend rod once inserted.

Step 12: Rod Placement & Compression

Rod Placement & Compression: Insert pre-contoured rod into C1 screw tulip (superior) first using rod holder. Maneuver rod down into C2 screw tulip (inferior) using rod holder and persuader (pusher). May require slight manipulation of screw tulip positions using reduction tabs or towers. Provisionally tighten set screws at both C1 and C2 screws (finger-tight, not final torque) to hold rod in place. Repeat for contralateral rod. Once bilateral rods provisionally placed, apply COMPRESSION across C1-C2 using compression instrument on rod. Compression closes C1-C2 FACET JOINT (lateral atlantoaxial joint) improving fusion surface contact. Compress 3-5mm watching lateral fluoroscopy - ADI should decrease, C1-C2 facets should approximate. Compression also reduces any residual subluxation. CRITICAL for fusion: Compression brings posterior elements together and closes facet joints where fusion occurs. After compression applied and held, FINAL tighten all set screws (C1 bilateral, C2 bilateral = 4 set screws total) to manufacturer specified torque (typically 4-6 Nm for cervical systems using torque-limiting screwdriver). Check construct stability manually by gently stressing - should feel RIGID with no motion. Final fluoroscopy AP and lateral: C1-C2 reduced, screws in good position, rods connect smoothly.

Step 13: Decortication & Bone Grafting C1-C2

Decortication & Bone Grafting C1-C2: FUSION is essential goal - hardware provides stability but BONE fusion is needed for long-term success. Hardware alone without fusion will eventually fail (fatigue fracture). DECORTICATION C1-C2 posterior elements: (1) C1-C2 FACET JOINTS (lateral atlantoaxial joints): This is PRIMARY fusion site. Use small curette and burr to completely remove articular cartilage from both C1 inferior facet and C2 superior facet. Expose bleeding cancellous bone. May need to cut facet capsule and distract joint slightly to visualize cartilage. Remove all cartilage completely. (2) C1 POSTERIOR ARCH: Use burr to roughen (decorticate) posterior surface of C1 arch creating bleeding bone. Do not thin arch excessively (already thin 3-5mm). (3) C2 LAMINA: Burr to decorticate posterior surface of C2 lamina. Can remove C2 spinous process for autograft (if not needed for instrumentation). All surfaces should be bleeding cancellous bone after decortication. BONE GRAFT: Pack morselized graft into C1-C2 facet joints bilaterally (most important site). Pack over C1 posterior arch and C2 lamina. Graft options: (1) Local AUTOGRAFT from C2 spinous process (morselized), (2) ALLOGRAFT morselized cancellous chips, (3) Iliac crest autograft (stronger but donor site morbidity). Pack generously - use 10-15cc total graft. Some surgeons place structural graft (corticocancellous) wired between C1 arch and C2 spinous process (Gallie technique supplement). BMP (recombinant bone morphogenetic protein) OFF-LABEL at C1-C2 - some use, but risk of soft tissue swelling causing dysphagia or airway compromise at craniovertebral junction - most avoid BMP here.

Step 14: Final Imaging & Hemostasis

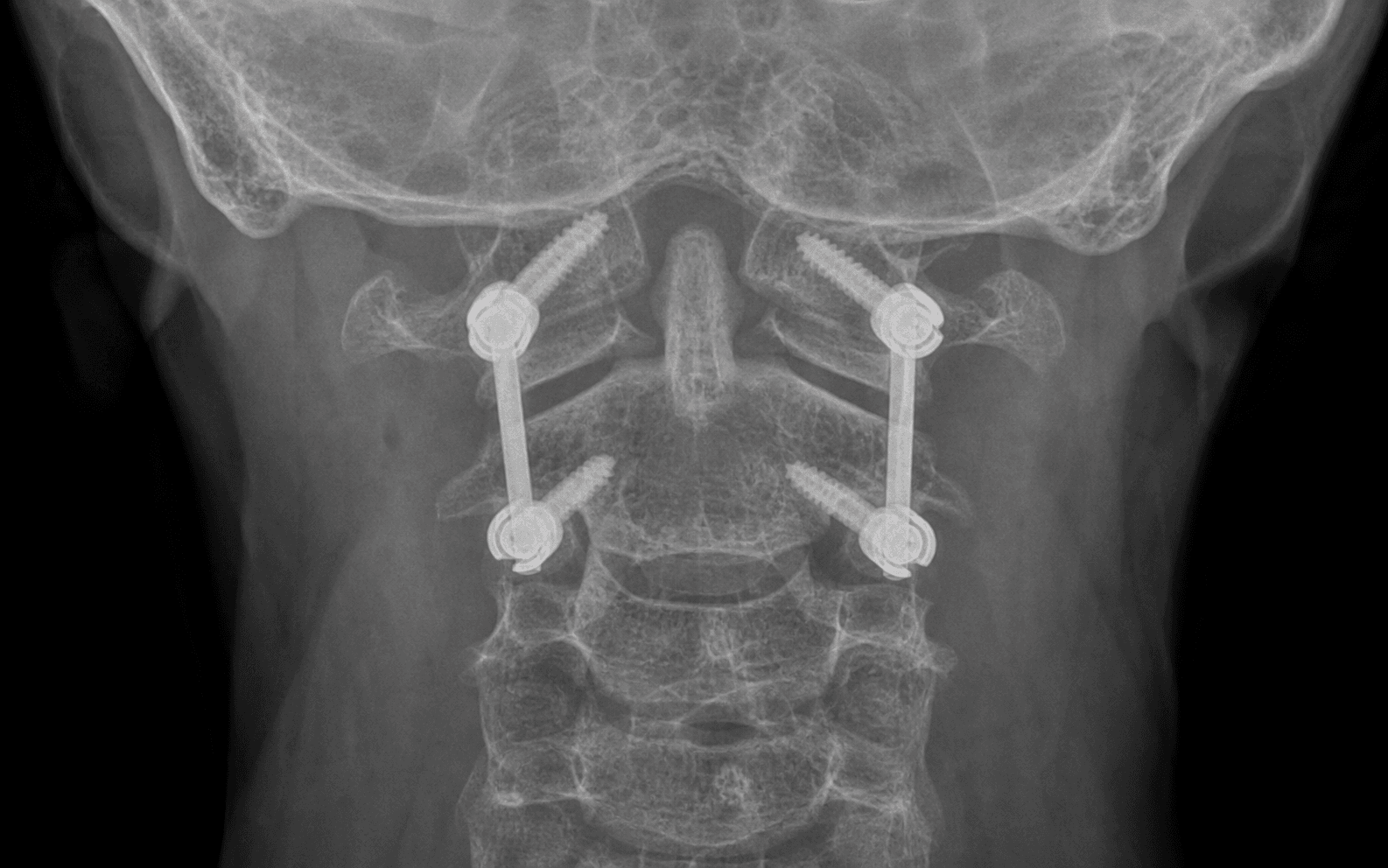

Final Imaging & Hemostasis: Obtain final biplanar fluoroscopy images before closure. VERIFICATION on AP fluoroscopy: (1) Bilateral C1 lateral mass screws symmetric, converging medially as expected from 10-15° medial trajectory. (2) Bilateral C2 pedicle or translaminar screws converging toward midline odontoid (if pedicle) or crossing midline within lamina (if translaminar). (3) No obvious cortical breaches (though fluoro only 60-70% sensitive - postop CT more sensitive). VERIFICATION on LATERAL fluoroscopy: (1) ADI less than 3mm (reduced and maintained). (2) C1 screws parallel to C1 superior surface, not in VA groove superiorly. (3) C2 screws parallel to C2 superior endplate if pedicle screws. (4) Rods connect C1-C2 smoothly with slight lordosis. (5) Bone graft visible over posterior elements. Save all images to PACS with labels (AP C1-C2, lateral C1-C2). HEMOSTASIS: Critical step - cervical hematoma causes airway obstruction. Copious irrigation with normal saline or antibiotic solution. Bipolar cautery for all bleeding points. Venous plexus oozing controlled with thrombin-soaked Gelfoam packing over C1-C2. Bone wax for bony ooze if needed (though avoid excessive wax which inhibits fusion). Achieve meticulous hemostasis - take time. Place Valsalva maneuver (increase ventilator pressure to 30-40cm H2O for 10-15 seconds) to identify venous bleeding. Release Mayfield and check pin sites for scalp bleeding - control with Raney clips or sutures.

Step 15: Closure & Postoperative Care

Closure & Postoperative Care: Place subfascial drain (10-12Fr Blake or Jackson-Pratt) in deep layer over hardware. Secure drain to skin and connect to bulb suction. Drain prevents hematoma accumulation. Exit drain laterally through separate stab incision (not through main wound). Close in layers: (1) LIGAMENTUM NUCHAE and midline raphe with 0 or 1 absorbable suture (Vicryl or PDS) - this is key structural layer reapproximating paraspinal muscles. (2) Deep subcutaneous layer with 2-0 absorbable interrupted or running. (3) Superficial subcutaneous layer with 3-0 absorbable. (4) Skin: Staples (faster, easier removal) or subcuticular 3-0 or 4-0 absorbable suture (better cosmesis). Apply sterile dressing (Tegaderm or gauze with tape). Hard cervical collar (Philadelphia or Miami-J) applied BEFORE moving patient from prone to supine (maintain neck stability during transfer). POSTOPERATIVE immediate: Transfer to ICU or monitored bed. Watch for AIRWAY SWELLING first 24 hours - C1-C2 has higher risk than subaxial due to proximity to pharynx. Monitor for stridor, dyspnea, dysphagia. Lower threshold to intubate or reopen wound if hematoma. Neuromonitoring: Immediate wake-up neurological exam in OR - all four extremities motor and sensory, cranial nerves. Repeat neuro checks every 2 hours first 24 hours. Drain management: Remove when output less than 30mL per 24 hours (typically day 1-2). Do not leave drain more than 48 hours. Collar: Continuous wear 24/7 for 8-12 weeks. Mobilize day 1-2 with physical therapy. DVT prophylaxis (enoxaparin or sequential compression devices). Discharge day 2-4 when pain controlled, ambulating, drain removed.

Immediate (0-24 hours): ICU or monitored bed for airway monitoring (C1-C2 hematoma higher risk than subaxial). Subfascial drain to bulb suction, remove when less than 30mL per 24 hours (day 1-2). Neurological examination immediate wake-up (all four extremities, cranial nerves) and every 2 hours first 24 hours. Watch for stridor, dyspnea (airway obstruction), posterior circulation stroke symptoms (ataxia, vertigo, diplopia from VA injury). Hard cervical collar (Philadelphia or Miami-J) continuously. Pain control multimodal (acetaminophen, opioids PRN, muscle relaxants).

Early Mobilization (Days 1-7): Mobilize day 1 out of bed to chair, ambulation day 1-2 with physical therapy and collar on. Soft diet initially (dysphagia risk 10-20% transient). DVT prophylaxis (enoxaparin 40mg subcutaneous daily or hospital protocol, sequential compression devices). Wound care (transparent dressing, remove day 2-3, keep clean and dry). Discharge day 2-4 when pain controlled, ambulating, drain removed.

Outpatient Follow-Up: Week 2 (wound check, remove staples/sutures, assess collar compliance, neurological exam), Week 6 (upright lateral X-ray in collar, assess pain and stability), Week 8-12 (flexion-extension X-rays to assess fusion progress, wean collar if stable), Month 3-4 (flexion-extension X-rays off collar for motion less than 2mm translation or less than 5° rotation), Month 6-12 (CT confirms fusion with bridging bone across C1-C2 facets bilaterally).

Return to Activities: Desk work 6-8 weeks (typing possible in collar), driving after collar discontinued 8-12 weeks AND fusion stable (counsel about permanent 50% rotation loss affecting blind spot checking), physical labor after fusion confirmed on CT 6-12 months, contact sports controversial (most recommend permanent discontinuation).

Collar Protocol: Hard collar continuously 24/7 for 8-12 weeks (longer than subaxial 6 weeks due to high biomechanical stress at C1-C2). Remove only for wound care first 2 weeks, then for showering if stable. Wean gradually over 1-2 weeks at 8-12 weeks if flexion-extension films stable.

References

1. Harms J, Melcher RP. Posterior C1-C2 fusion with polyaxial screw and rod fixation. Spine (Phila Pa 1976). 2001;26(22):2467-2471. Original description of Harms technique with 100% fusion rate in 37 patients, zero VA injuries

2. Goel A, Laheri V. Plate and screw fixation for atlanto-axial subluxation. Acta Neurochir (Wien). 1994;129(1-2):47-53. Independent description of identical technique to Harms, 160 patients with 98% fusion rate

3. Wright NM. Posterior C2 fixation using bilateral, crossing C2 laminar screws: case series and technical note. J Spinal Disord Tech. 2004;17(2):158-162. Translaminar screw technique avoiding VA completely, 0% VA injury versus 4% with pedicle screws

4. Ma XY, Yin QS, Wu ZH, et al. C1 pedicle screws versus C1 lateral mass screws: comparisons of pullout strengths and biomechanical stabilities. Spine (Phila Pa 1976). 2009;34(4):371-377. Biomechanical study: C1 lateral mass bicortical 300-400N versus unicortical 200N pullout strength

5. Yeom JS, Buchowski JM, Park KW, et al. Undetected vertebral artery groove and foramen violations during C1 lateral mass and C2 pedicle screw placement. Spine (Phila Pa 1976). 2008;33(25):E942-E949. Postoperative CT analysis: 5-15% cortical breaches, less than 3% symptomatic; fluoroscopy only 60-70% sensitive

6. Elliott RE, Tanweer O. The prevalence of high-riding vertebral arteries and other anatomical variants that pose a surgical challenge in C1-C2 fixation: a radiographic study in a multicenter cohort of 1,101 patients. J Neurosurg Spine. 2014;21(6):897-906. VA anomalies in 18-20%: high-riding VA, fenestration, persistent first intersegmental artery contraindicate pedicle screws

7. Hott JS, Deshmukh VR, Klopfenstein JD, et al. Intraoperative Iso-C C-arm navigation in craniospinal surgery: the first 60 cases. Neurosurgery. 2004;54(5):1131-1136. C2 nerve sacrifice outcomes: 20-30% temporary dysesthesias, less than 5% chronic significant pain, 92% patient satisfaction

8. Madawi AA, Casey AT, Solanki GA, et al. Radiological and anatomical evaluation of the atlantoaxial transarticular screw fixation technique. J Neurosurg. 1997;86(6):961-968. Transarticular screws: 4-8% VA injury rate versus 2-4% with Harms technique; 20% cannot have bilateral screws due to VA anatomy

9. Gorek J, Acaroglu E, Berven S, et al. Constructs incorporating intralaminar C2 screws provide rigid stability for atlantoaxial fixation. Spine (Phila Pa 1976). 2005;30(13):1513-1518. Biomechanics: Translaminar screws 550-700N pullout equivalent to pedicle 600-800N, superior to wiring 150-250N

10. Ma XY, Yin QS, Wu ZH, et al. Anatomic considerations for the pedicle screw placement in the first cervical vertebra. Spine (Phila Pa 1976). 2005;30(13):1519-1523. C1 lateral mass anatomy: 15-20mm thick at arch-lateral mass junction, VA 2-3mm lateral, safe corridor 10-15° medial trajectory
