High-yield overview

Open reduction and internal fixation of the proximal tibial articular surface | advanced

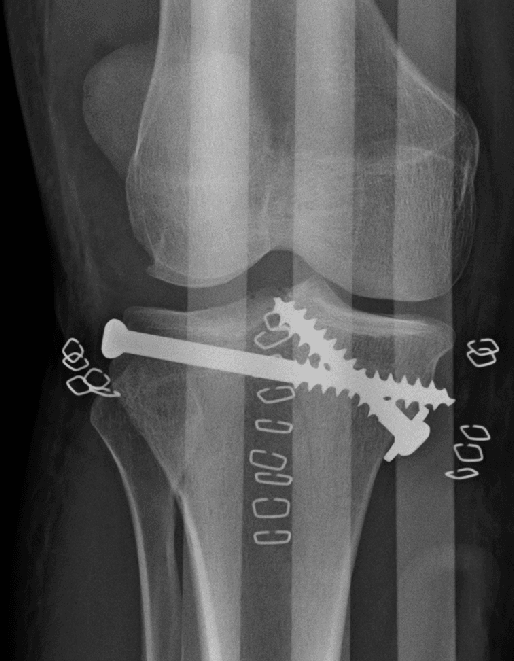

Surgical Imaging

Critical Danger Structures and Exam Traps

Schatzker IV — The Dangerous Medial Plateau

Why different: A medial plateau fracture results from a high-energy varus force and is a knee-dislocation-equivalent. It carries the highest risk of popliteal arterial injury, common peroneal nerve palsy and compartment syndrome of all the Schatzker types.

The fix: Treat every Schatzker IV as a vascular emergency until proven otherwise — palpate and Doppler the foot pulses, calculate the ABPI, examine the peroneal nerve, and obtain CT-angiography for any pulse or ABPI abnormality. Monitor the compartments.

Acute Compartment Syndrome

Risk: Highest in high-energy IV, V and VI patterns and in dislocation-equivalents. Pain out of proportion and pain on passive stretch are the earliest reliable signs; pulselessness is late.

The fix: Serial examination is mandatory; have a low threshold for compartment pressure measurement (delta-p less than 30 mmHg = fasciotomy). A regional block or an obtunded patient does not excuse you from monitoring — measure pressures.

Soft-Tissue Envelope — Fix-Through-Blister Trap

The trap: Rushing to definitive plating of a swollen, blistered high-energy knee. Wound dehiscence and deep infection over subcutaneous proximal tibia are devastating and may end in amputation.

The fix: Stage with a spanning external fixator. Wait for the skin to wrinkle and blisters to epithelialise (typically 7-21 days) before definitive ORIF. Plan incisions to respect a minimum 7 cm skin bridge when dual incisions are used.

Posterior Column — The Plain-Film Blind Spot

The trap: A posteromedial or posterolateral shear fragment is easily missed on AP/lateral radiographs and is not controlled by a lateral plate alone — it subluxates posteriorly under load and the construct fails.

The fix: Obtain CT for any displaced plateau fracture. Address a posterior-column fragment with a dedicated posteromedial buttress plate (a lateral raft does not capture it).

Lateral Meniscus & Ligament Injuries

Association: Lateral meniscal tears accompany many split-depression (Schatzker II) fractures and are often peripheral/repairable; ACL, collateral and peroneal nerve injuries cluster with high-energy and medial patterns.

The fix: Approach the lateral plateau through a SUBMENISCAL arthrotomy (incise the coronary/meniscotibial ligament, lift the meniscus) to inspect and repair the meniscus and visualise the joint — do not detach the meniscus from its body.

Varus Collapse of the Medial Column

The trap: In bicondylar fractures, fixing only the lateral side with a single lateral locking plate can allow the medial/posteromedial fragment to collapse into varus — a recognised mode of late failure and malalignment.

The fix: An unstable medial or posteromedial fragment needs its own antiglide/buttress plate (dual plating or a dedicated posteromedial plate). Do not rely on a lateral locking plate to hold a vertical medial fragment.

Mnemonic

P.L.A.T.E.A.UPLATEAU — Operative Principles of Tibial Plateau ORIF

Mnemonic

V.A.S.C.U.L.A.RVASCULAR — Assessing the High-Energy Plateau

Epidemiology and Burden

Tibial plateau fractures account for roughly 1% of all fractures and around 8% of fractures in the elderly, with a recognised bimodal distribution
Young patients: high-energy mechanisms (road traffic, falls from height, sport) — more often bicondylar (Schatzker V/VI), comminuted, and accompanied by soft-tissue and neurovascular injury
Older patients: low-energy falls onto osteoporotic bone — typically lateral split-depression or pure depression (Schatzker II/III)
The proximal tibia is largely subcutaneous, so soft-tissue compromise is a defining problem of the higher-energy injuries and drives the staged-management philosophy

Classification — Two Complementary Systems

Schatzker Classification (plain-film, energy and pattern)

The Schatzker system describes six patterns on plain radiographs and broadly tracks injury energy. Types I-III are lower-energy lateral injuries; IV-VI are higher-energy.

Type	Description	Key Features
I	Lateral split (wedge)	Pure cleavage, no depression; younger dense bone; often needs only lag/buttress
II	Lateral split-depression	Split PLUS articular depression — the most common operative pattern; lateral meniscal tears common
III	Pure lateral depression	Central articular depression, intact rim; older osteoporotic bone; elevate + raft + graft
IV	Medial plateau	High-energy, knee-dislocation-equivalent — highest vascular/peroneal nerve/compartment risk; THE dangerous type
V	Bicondylar	Both condyles, metaphysis intact to shaft; high-energy, soft-tissue at risk
VI	Metaphyseal-diaphyseal dissociation	Plateau separated from the shaft; staging and dual fixation usually required; nonunion risk

Key teaching: Schatzker IV is the trap. Despite being "only" a medial fracture, the varus/dislocation mechanism puts the popliteal vessels, common peroneal nerve and compartments at the greatest risk of all types.

Three-Column Concept (Luo, CT-based)

Luo divided the proximal tibia into LATERAL, MEDIAL and POSTERIOR columns on axial CT. A "column" is involved when a separate articular fragment exists within it. The posterior column (especially the posteromedial corner) is the one plain films miss and a lateral plate cannot control.

Lateral column — anterolateral approach, lateral plate/raft
Medial column — medial/posteromedial approach, antiglide/buttress plate
Posterior column — posteromedial (inverted-L) approach, posterior buttress plate; a posterior shear fragment fails under axial load if only a lateral plate is used
Clinical value: column-specific fixation gives good functional and radiological outcomes in complex (Schatzker V/VI) fractures and reframes the operative plan around the posterior fragment

Imaging

Plain radiographs: AP, lateral, and oblique (internal/external) views; a 10-15 degree caudal "plateau" view assesses articular depression and the posterior slope
CT with 2D and 3D reconstruction: ESSENTIAL for any displaced fracture — quantifies depression, defines fragment number and the posterior column, and plans approaches/plates
CT-angiography: mandatory for a medial (Schatzker IV) fracture or any abnormal pulse/ABPI — the knee-dislocation-equivalent mechanism threatens the popliteal artery
MRI: not routine acutely; defines meniscal and ligamentous injury when relevant, but should not delay surgery

Systematic Patient Assessment

Vascular: foot pulses, capillary refill, ABPI; CT-angiography if ABPI less than 0.9 or any asymmetry
Compartment syndrome: serial assessment; pain on passive stretch and pain out of proportion are earliest; measure pressures with any doubt (delta-p less than 30 mmHg = fasciotomy)
Neurological: document the common peroneal nerve specifically (foot drop, first web-space sensation)
Soft tissues: blisters, abrasions, degloving (Morel-Lavallee lesion), open wounds — these decide staging
Associated injuries: lateral meniscus (split-depression), ACL/collaterals (high-energy), and screen for the dislocation-equivalent injury complex

Key Evidence

Three-column fixation for complex tibial plateau fractures

Level III

Luo CF, Sun H, Zhang B, Zeng BF • J Orthop Trauma

Clinical Implication: Introduced the CT-based three-column concept. A posterior-column (especially posteromedial) fragment is not controlled by a lateral plate and needs a dedicated posterior buttress — plan approaches and plate position around the columns, not just the Schatzker type.

Verify on PubMed (PMID 20881634)

Staged management of high-energy proximal tibia fractures (OTA type 41): a prospective standardized protocol

Level II

Egol KA, Tejwani NC, Capla EL, Wolinsky PL, Koval KJ • J Orthop Trauma

Clinical Implication: Supports the staged philosophy: temporise the high-energy knee with a spanning external fixator and delay definitive ORIF until the soft-tissue envelope recovers. Fixing through a swollen/blistered envelope is the leading cause of catastrophic wound breakdown.

Verify on PubMed (PMID 16056075)

Column specific fixation for complex tibial plateau fractures — midterm prospective study in a South-Indian population

Level II

Selvaraj V, Devadoss S, Jayakumar S, Gururagavendra P, Devadoss A • Injury

Clinical Implication: Validates column-specific fixation in a large prospective cohort — addressing each involved column (including the posteromedial corner) gives excellent/good outcomes in around 96% of complex multi-column fractures.

Verify on PubMed (PMID 31703964)

Tibial plateau fracture repairs augmented with calcium phosphate cement have higher in situ fatigue strength than those with autograft

Level V

McDonald E, Chu T, Tufaga M, Marmor M, Matityahu A, Buckley JM, McClellan RT • J Orthop Trauma

Clinical Implication: Provides the biomechanical basis for preferring calcium phosphate cement over autograft to fill the metaphyseal void beneath an elevated articular segment — greater compressive strength and less subsidence may permit earlier loading.

Verify on PubMed (PMID 21245711)

Articular step-off and risk of post-traumatic osteoarthritis: evidence today

Level III

Giannoudis PV, Tzioupis C, Papathanassopoulos A, Obakponovwe O, Roberts C • Injury

Clinical Implication: Restoring mechanical axis, joint stability and the meniscus is at least as important as achieving a perfect articular surface. This justifies prioritising alignment, a buttress construct and meniscal preservation, not just chasing the last millimetre of stepoff.

Verify on PubMed (PMID 20728882)

Arthroscopic-assisted reduction of tibial plateau fractures

Level V

Chase R, Usmani K, Shahi A, Graf K, Mashru R • Orthop Clin North Am

Clinical Implication: ARIF is a valid option for simple split-depression (Schatzker I-III) patterns with minimal comminution, but is not appropriate for high-energy comminuted fractures; remain alert to fluid extravasation and iatrogenic compartment syndrome.

Verify on PubMed (PMID 31084832)

Clinical Decision Scenarios

Use these scenarios to practise clinical reasoning and management decisions

CLINICAL SCENARIOAdvanced

CLINICAL PROMPT

"A 32-year-old motorcyclist arrives with an isolated, closed, displaced MEDIAL tibial plateau fracture (Schatzker IV). The skin is intact but swollen. Walk me through your assessment and early management."

PRACTICAL APPROACH

A Schatzker IV medial plateau fracture is the dangerous pattern — it is a high-energy, knee-dislocation-equivalent injury, so my first priority is the limb, not the bone. **Immediate assessment**: I would manage this within an ATLS framework, then focus on the limb. I specifically examine and DOCUMENT the vascular status — palpate the foot pulses, assess capillary refill and calculate the ankle-brachial pressure index (ABPI). Because the medial plateau mechanism is a dislocation-equivalent, the popliteal artery is at real risk, and an ABPI less than 0.9 or any pulse asymmetry mandates urgent CT-angiography and vascular surgical review. I examine the common peroneal nerve (foot drop, first web-space sensation) and document it. **Compartment syndrome**: This patient is at high risk. I assess pain out of proportion and pain on passive stretch, palpate all four compartments, and have a low threshold to measure compartment pressures — a delta-p less than 30 mmHg means emergent four-compartment fasciotomy. I am not reassured by a normal pulse, which is a late sign. **Imaging**: AP, lateral and plateau radiographs, then CT with 2D and 3D reconstruction to define the columns (I expect a medial and possibly posterior column fragment), and CT-angiography given the medial pattern. **Early management**: With swelling present, I would not rush to definitive plating. I would apply a knee-spanning external fixator to restore length and alignment and to let the soft tissues recover, plan definitive ORIF for when the skin wrinkles (typically 7-21 days), and continue compartment monitoring throughout. **Definitive plan**: A medial/posteromedial buttress plate through a posteromedial approach to capture and antiglide the medial column, with column-specific fixation guided by the CT. A lateral plate alone would let the medial fragment collapse into varus.

CLINICAL SCENARIOAdvanced

CLINICAL PROMPT

"A 45-year-old has a closed Schatzker II split-depression fracture of the lateral plateau with 6 mm of articular depression. The soft tissues are acceptable. Describe how you would reconstruct the joint and why each step matters."

PRACTICAL APPROACH

My goals are to restore articular congruity, restore the condylar width and mechanical axis, and create a buttress construct that prevents re-depression — and to address the lateral meniscus, which is frequently torn in this pattern. **Approach**: An anterolateral approach with a lazy-S incision over Gerdy's tubercle. I perform a submeniscal arthrotomy — incising the coronary (meniscotibial) ligament and lifting the lateral meniscus on a stay suture — so I can see the articular surface directly and inspect/repair the meniscus, rather than relying on fluoroscopy alone. **Reduction**: I hinge open the lateral split fragment like a book to expose the depressed central segment, then elevate that osteochondral segment en bloc from below with a bone tamp through a metaphyseal window, restoring the joint line and the posterior slope. I judge the reduction directly against the meniscus and confirm on the image intensifier, aiming for less than 2 mm of stepoff. **Support the joint**: I fill the metaphyseal void created beneath the elevated segment. I prefer calcium phosphate cement because it resists axial compression better than autograft or allograft and is associated with less subsidence. I then place a row of subchondral raft screws immediately beneath the articular surface to hold the elevated segment. **Stabilise the split**: I close the split fragment over the supported articular block and apply a lateral buttress (or locking) plate that resists the shear of the vertical split, restoring condylar width and axis. A locking construct helps if the bone is osteoporotic. **Verify**: I confirm articular congruity, restored width, axis and posterior slope on fluoroscopy, repair the submeniscal arthrotomy and meniscus, close meticulously, and re-check the compartments. **Rehab**: Early knee range of motion because the fixation is stable, but protected/non-weight-bearing for around 6-12 weeks to protect the articular reduction from re-depression.

CLINICAL SCENARIOAdvanced

CLINICAL PROMPT

"A 55-year-old sustains a high-energy closed Schatzker VI fracture (metaphyseal-diaphyseal dissociation) with marked swelling and fracture blisters at 8 hours post-injury. How do you plan management from now to definitive surgery?"

PRACTICAL APPROACH

This is a high-energy bicondylar injury with a hostile soft-tissue envelope, so I would manage it with a staged protocol — the single most important principle here is to NOT fix through compromised skin. **Assessment**: ATLS first, then the limb. I assess and document the vascular status (pulses, ABPI), the common peroneal nerve, and the compartments — high-energy V/VI patterns carry a significant compartment syndrome risk, and I have a low threshold to measure pressures and perform fasciotomy. I assess the blisters and degloving (including a Morel-Lavallee lesion). I obtain AP/lateral/plateau radiographs and a CT with 2D/3D reconstruction to plan the columns. **Stage 1 — temporise**: I apply a knee-spanning external fixator on the day of injury, with femoral and tibial pins placed away from the zone of injury and away from my planned definitive incisions, restoring length and alignment. This stabilises the bone, decompresses and protects the soft tissues, and lets me re-examine the limb. The evidence (Egol et al.) shows this staged approach gives relatively low wound-complication and infection rates in these complex injuries. **Interval**: I wait for the soft tissues to recover — blisters to epithelialise and the skin to wrinkle — typically 7-21 days, and I plan definitive surgery from the CT using the three-column concept. **Stage 2 — definitive ORIF**: Column-specific fixation. I address the posteromedial column first through a posteromedial (inverted-L) approach with a buttress plate, then the lateral column through a separate anterolateral approach, maintaining a minimum 7 cm skin bridge. I restore the articular surface (elevation, raft screws, void filler) and the metaphyseal-diaphyseal continuity, anticipating nonunion risk at that junction. **Rehab**: Stable fixation to allow early ROM, but deliberately delayed weight-bearing given the bicondylar metaphyseal pattern.
