Calcaneal Tuberosity Fractures

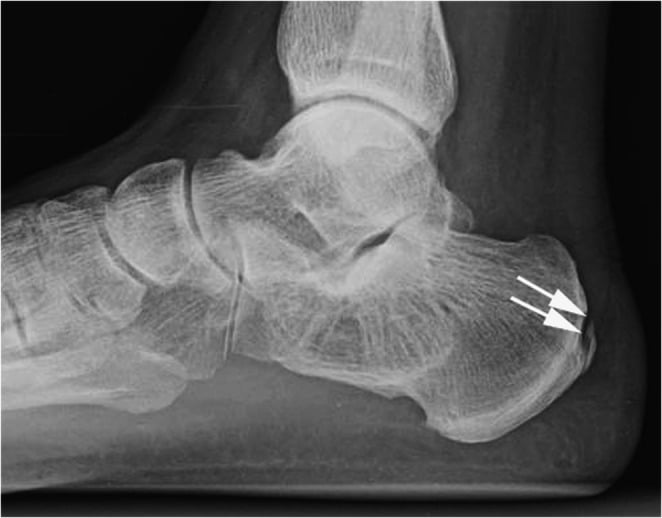

Calcaneal tuberosity fractures are rare but important injuries involving the posterior tuberosity of the calcaneus, which serves as the insertion site for the Achilles tendon. These fractures represent avulsion injuries and require ORIF if displaced to prevent loss of plantarflexion power and equinus contracture.

Definition

Calcaneal tuberosity fracture: Fracture of the posterior tuberosity of the calcaneus, which:

• Serves as insertion site for Achilles tendon
• Represents avulsion injury
• Causes loss of plantarflexion power

Achilles tendon insertion:

• Location: Posterior tuberosity of calcaneus
• Function: Plantarflexion and push-off
• Avulsion: Excessive tension causes avulsion with bone fragment

Epidemiology

• Incidence: Rare - approximately 1.3-2.7% of all calcaneal fractures (Lee 2012 found 20/764 = 2.6%)
• Age: Typically older adults; Carnero-Martin series mean age 57 years
• Gender: Female predominance (around 62% in Carnero-Martin), reflecting post-menopausal osteoporosis
• Comorbidity: Diabetes in roughly 1 in 5 (19% in Carnero-Martin); many are insufficiency or Charcot-related avulsions
• Mechanism: 71% low-energy (trip/fall) in Carnero-Martin; less commonly direct blow (Lee type II) or high-energy
• Associated injuries: Ipsilateral foot/ankle fractures; assess the whole hindfoot

Calcaneal Tuberosity Anatomy

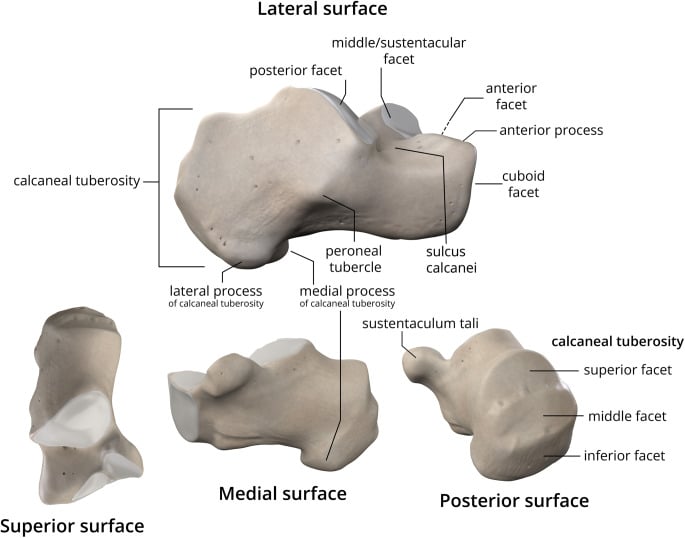

Posterior tuberosity of calcaneus:

• Location: Posterior aspect of calcaneus
• Function: Insertion site for Achilles tendon
• Size: Large, prominent posterior projection
• Blood supply: Branches from posterior tibial artery

Achilles tendon insertion:

• Location: Posterior tuberosity of calcaneus
• Function: Plantarflexion and push-off
• Width: 1.5-2cm at insertion
• Avulsion: Excessive tension causes avulsion with bone fragment

Sural nerve:

• Location: 1-2cm posterior to lateral malleolus
• Function: Sensory to lateral foot
• Risk: At risk in posterior approach

Pathophysiology

Injury mechanism:

• Sudden plantarflexion: Eccentric contraction of gastrocnemius-soleus
• Excessive tension: Achilles tendon experiences excessive tension
• Avulsion: Tendon avulses from tuberosity with bone fragment
• Low-energy / insufficiency: Often in osteoporotic or diabetic (Charcot) bone where minor force avulses a weakened tuberosity

Why displacement matters:

• Loss of function: Displacement causes loss of plantarflexion power
• Equinus contracture: Proximal migration causes equinus
• Push-off weakness: Inability to push off affects gait

Why ORIF required:

• Restore function: Anatomic reduction restores plantarflexion
• Prevent contracture: Prevents equinus contracture
• Early motion: Stable fixation allows early motion

History

Symptoms:

• Posterior heel pain: Pain in posterior heel
• Loss of plantarflexion: Unable to push off
• Swelling: Localised to posterior heel
• Difficulty walking: Pain with weight bearing

Mechanism:

• Sudden plantarflexion
• Fall
• Direct trauma to heel

Physical Examination

Inspection:

• Swelling in posterior heel
• Ecchymosis (may be delayed)
• Deformity (proximal migration of fragment)

Palpation:

• Tenderness over calcaneal tuberosity
• Gap at fracture site (if displaced)
• Achilles tendon continuity (may be disrupted)

Range of Motion:

• Loss of active plantarflexion
• Passive plantarflexion may be limited
• Equinus deformity (if displaced)

Special tests:

• Active plantarflexion: Unable to perform (loss of power)
• Thompson test: May be positive (Achilles dysfunction)
• Straight leg raise: May be limited (pain)

Differential Diagnosis

Sural Nerve Injury

5-10% incidence:

• Cause: Posterior approach, nerve at risk
• Prevention: Identify and protect sural nerve (1-2cm posterior to lateral malleolus)
• Management: Neuroma excision if symptomatic

Equinus Contracture

10-15% incidence (if untreated):

• Cause: Proximal migration of fragment, delayed treatment
• Prevention: Early ORIF, adequate fixation
• Management: Stretching, serial casting, or surgical release

Immediate Postoperative

• Immobilisation: Short leg cast or boot
• Weight bearing: Non-weight bearing initially (2-4 weeks)
• ROM: Ankle ROM exercises early (if stable fixation)
• PT: Plantarflexion strengthening

Rehabilitation Protocol

Weeks 0-2:

• Short leg cast, non-weight bearing
• Elevation to reduce swelling
• Ankle ROM exercises (if stable)

Weeks 2-4:

• Transition to walking boot
• Progressive weight bearing (if stable)
• Plantarflexion strengthening

Weeks 4-8:

• Full weight bearing
• Progressive activity
• Return to sport (3-4 months)

Overall Outcomes

ORIF (tension band wiring):

• Success rate: 80-90% (union, pain relief)
• Functional outcomes: 75-85% return to pre-injury level
• Plantarflexion: 80-90% restore normal strength

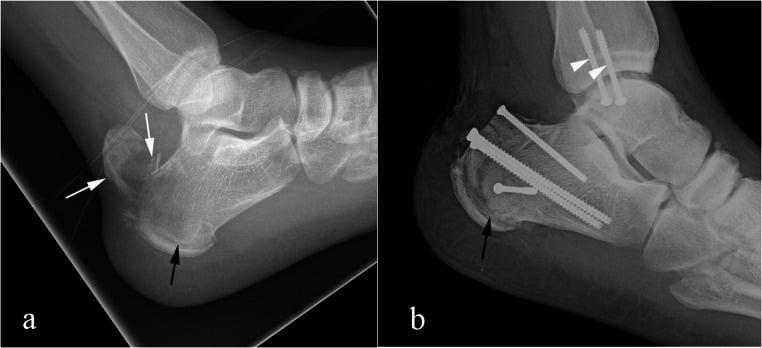

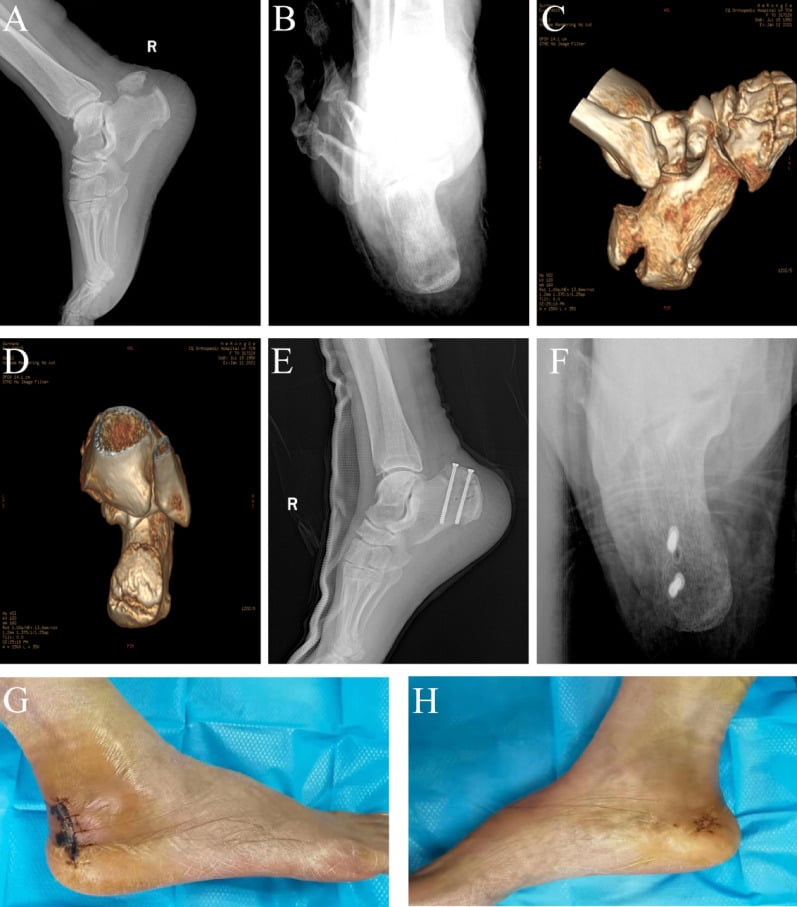

ORIF (screw fixation):

• Success rate: 75-85% (union, pain relief)
• Functional outcomes: 70-80% return to pre-injury level
• Plantarflexion: 75-85% restore normal strength

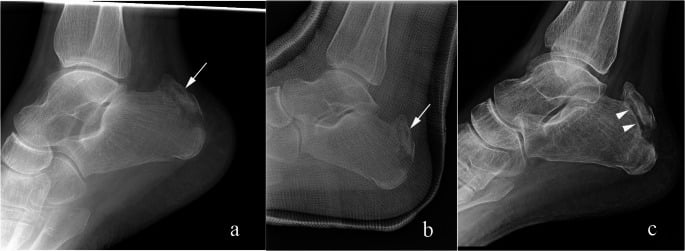

Conservative (non-displaced, rare):

• Success rate: 85-90% (union, pain relief)
• Functional outcomes: 80-85% return to pre-injury level
• Plantarflexion: 85-90% restore normal strength

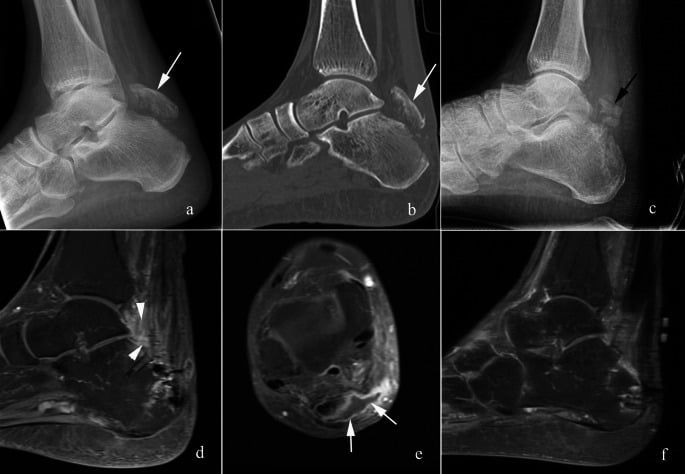

Long-Term Prognosis

Plantarflexion recovery:

• With proper treatment: 80-90% restore normal strength
• Without treatment: 20-30% develop permanent weakness
• Risk factors: Displacement, delayed treatment, inadequate fixation

Global Epidemiology

• Rare injury: roughly 1.3-2.7% of all calcaneal fractures across published series
• Bimodal pattern: low-energy insufficiency avulsions in elderly osteoporotic women (Lee type I) and higher-energy or direct-blow patterns in younger men
• Strong association with osteoporosis and diabetes/Charcot neuroarthropathy; diabetic prevalence around 19% in surgical series

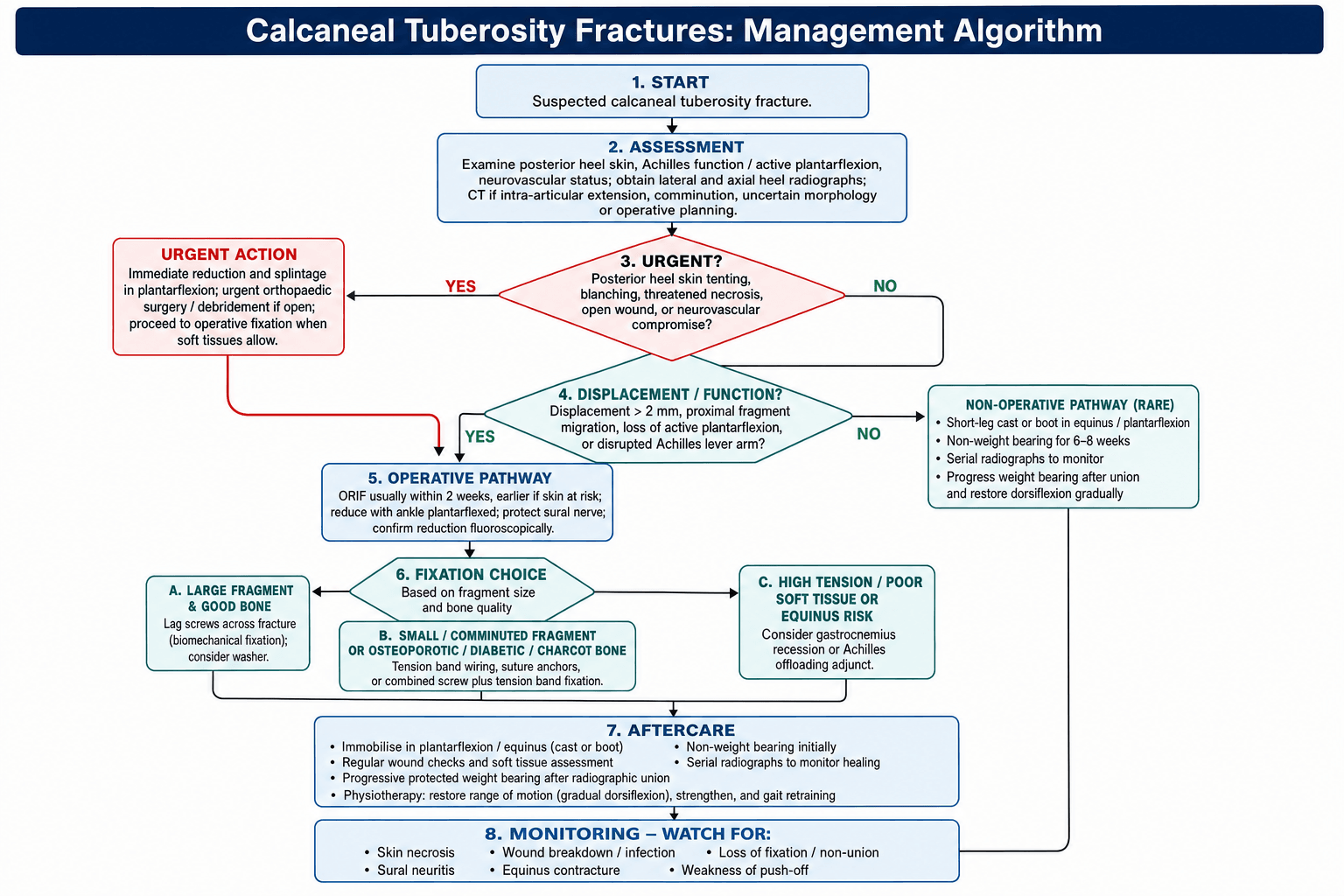

Society Guidance and Practice Points (Side by Side)

Registry and Resource-Setting Notes

• No arthroplasty registry applies; evidence is from institutional series, so practice variation is wide and surgeon-dependent.
• High-resource settings: ready access to CT/MRI, multiple implant options (tension band, cannulated screws, suture anchors) and combined ortho-plastic cover for threatened skin.
• Limited-resource settings: reliance on radiographs alone, K-wire and cerclage-based tension band constructs (low cost, effective), and a lower threshold for fragment excision and Achilles reattachment when implants or soft-tissue cover are unavailable. Urgent reduction to save skin remains universal and equipment-independent.

The evidence base for these fractures is limited to small retrospective series and case reports, so several questions remain genuinely unsettled:

• Which classification to use - Morphological schemes (Lee, Beavis) describe the fracture but Carnero-Martin showed they do not predict outcome. A displacement-based prognostic classification is proposed but not yet validated in larger cohorts.

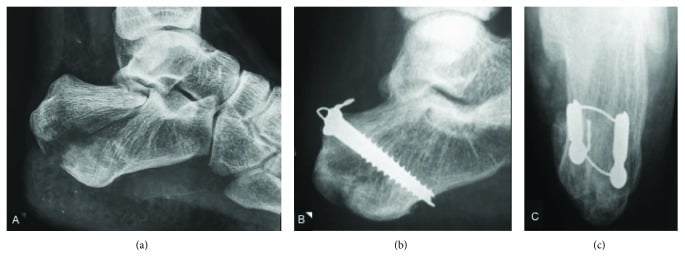

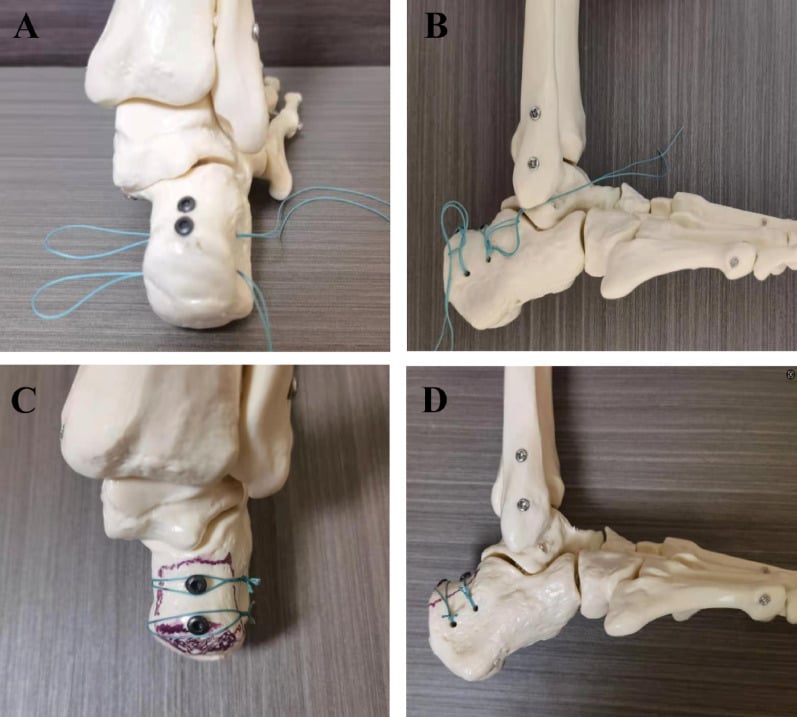

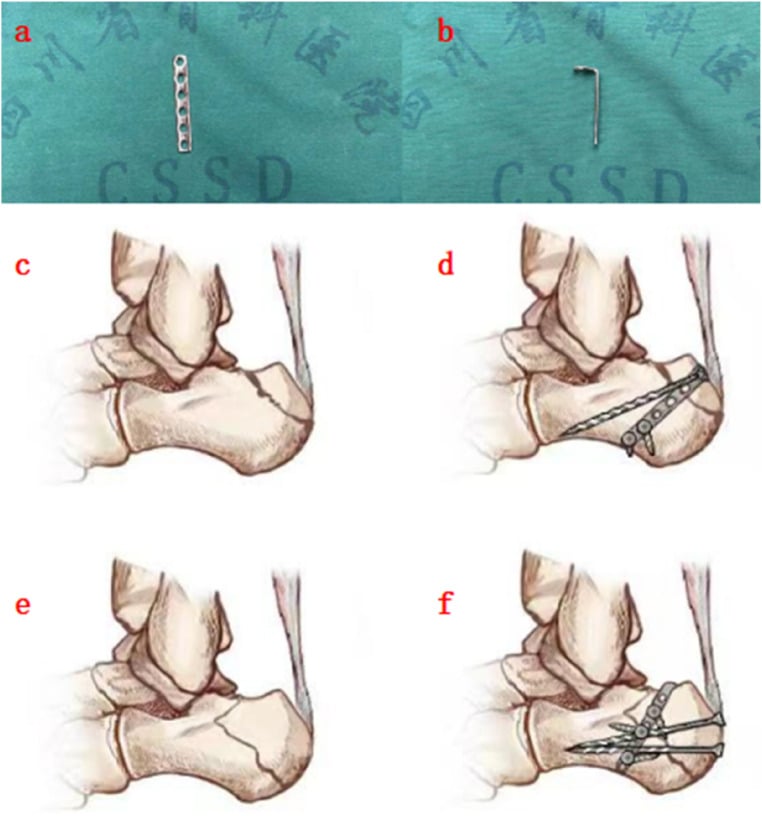

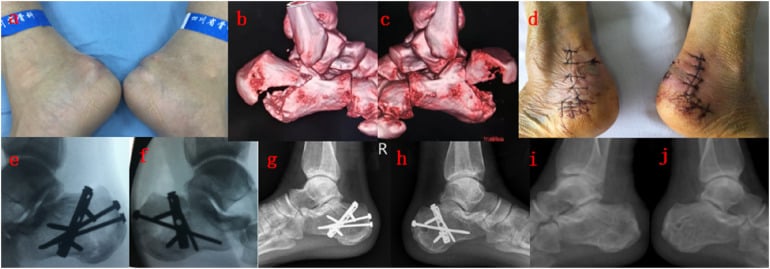

• Fixation construct - Tension band wiring, large cannulated lag screws, plate fixation and suture anchors are all described; no comparative trial establishes superiority. Choice is driven by fragment size, bone quality and surgeon preference rather than high-level evidence.
• Fragment excision versus fixation - In small fragments or very poor (neuropathic/osteoporotic) bone, some advocate excision with Achilles reattachment plus gastrocnemius recession rather than struggling to fix unfixable bone.
• Urgency threshold - There is consensus that threatened skin demands urgent reduction, but the exact displacement or skin-tenting threshold that mandates emergency surgery is not precisely defined.
• Role of gastrocnemius lengthening - Whether to routinely address gastroc-soleus tightness at index surgery to reduce re-displacement is advocated by some (Banerjee) but not standardised.
• Hardware removal - Tension band wires are frequently prominent in this subcutaneous location; rates and timing of elective removal vary widely.

The topic repeatedly flags an "insufficiency" or "Charcot" avulsion and labels it "Brodsky 3B" (in the One-Pager, the InfoCard grid, the Greenhagen evidence card and viva scenario 3) without defining the entity. The calcaneal insufficiency avulsion (CIA) fracture is a distinct sub-group that every candidate should be able to separate from an ordinary traumatic avulsion.

What CIA means

• Definition - a posterior tuberosity avulsion occurring through pathologically weak bone with little or no trauma. Greenhagen (already cited) notes that CIA fractures make up part of the 1.3-2.7% of calcaneal fractures attributed to reduced bone mineral density, and that in a person with diabetes the avulsion most likely represents a Charcot neuroarthropathy event rather than a simple mechanical failure.
• Where "Brodsky 3B" fits - the Brodsky anatomic classification locates Charcot neuroarthropathy by region: midfoot (type 1, the commonest), hindfoot (type 2) and ankle (type 3A) are developed in the dedicated Charcot topic. Type 3B denotes the posterior calcaneus - a pathologic avulsion of the tuberosity (os calcis). Labelling a tuberosity avulsion "Brodsky 3B" therefore signals a neuropathic, insufficiency mechanism, not a high-energy injury.

Why it changes management

• Neuropathic/osteoporotic bone gives poor screw purchase, so conventional lag-screw ORIF frequently fails or loses reduction.

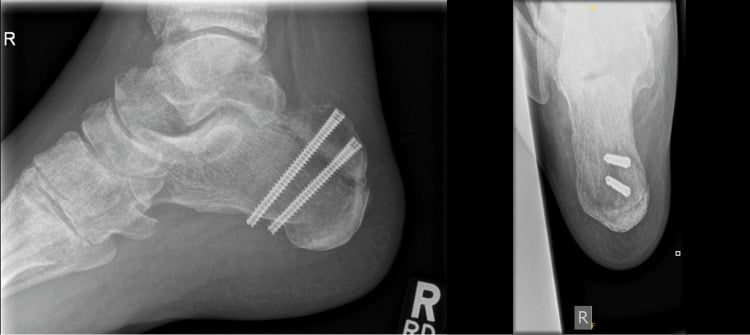

• Greenhagen's described answer was fragment excision, gastrocnemius recession, and double-row suture-anchor Achilles reattachment (rearfoot AOFAS improved from 27 to 88 at one year) rather than struggling to fix unfixable bone.
• Suspect CIA when the avulsion is spontaneous or follows trivial force, when the patient is diabetic or neuropathic, and always screen for previously undiagnosed diabetes and peripheral neuropathy and assess bone quality before planning fixation.

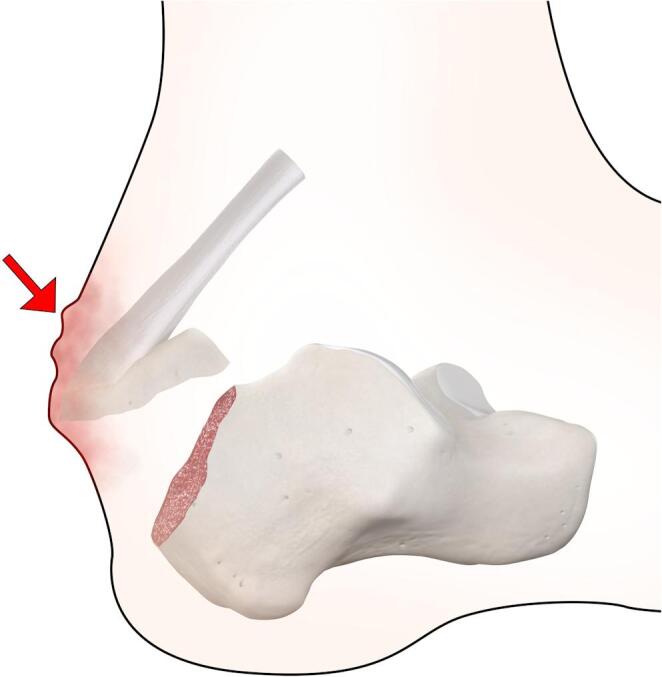

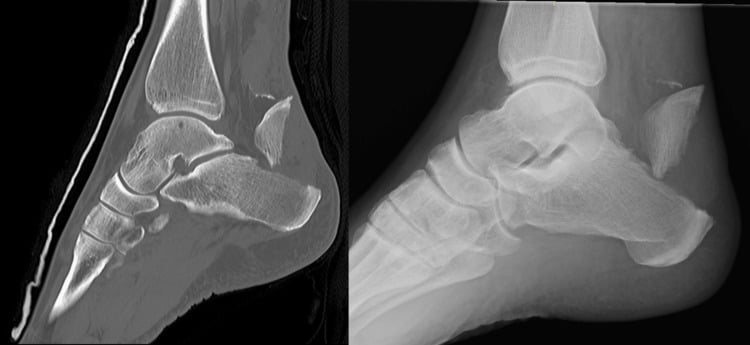

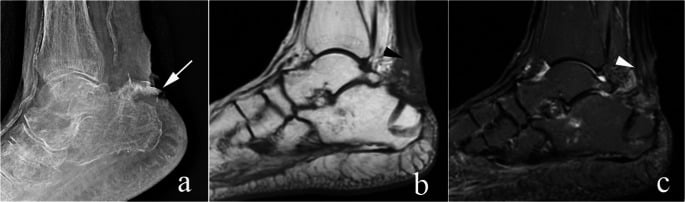

The topic's single loudest message is that the skin, not the bone, is the emergency, yet the actual skin-saving maneuver is never described. When the proximally migrated fragment tents or blanches the posterior heel skin, provisional reduction should be attempted urgently - ideally within hours - before pressure necrosis develops.

The maneuver

• Relax the deforming force first - flex the knee and hold the ankle in plantarflexion (equinus) to slacken the gastrocnemius-soleus-Achilles complex that is pulling the fragment proximally.
• Reduce and decompress - with the muscle relaxed, apply direct manual pressure over the displaced fragment to push it back down onto the tuberosity bed, relieving the skin.
• Hold and reassess - immobilise in a well-padded plantarflexion (equinus) splint or backslab, then confirm that skin colour, blanching and capillary refill improve.

When closed reduction is enough, and when to open

• Closed reduction is a temporising measure to protect the soft-tissue envelope; it rarely gives a stable definitive result because the strong Achilles pull re-displaces the fragment, so definitive fixation still follows once soft tissues allow.
• If plantarflexing the ankle and manual pressure fail to relieve skin tenting or blanching, this converts to an emergency open reduction to decompress the skin directly - do not wait for an elective list when the heel skin is white.
