ANTERIOR PROCESS CALCANEUS FRACTURES
Bifurcate Ligament Avulsion | Lateral Foot Pain | Usually Conservative
FRACTURE PATTERNS
Critical Must-Knows
- Anterior process calcaneus fracture = bifurcate ligament avulsion injury (calcaneonavicular and calcaneocuboid ligaments)
- Conservative management effective
Examiner's Pearls
- "Bifurcate ligament avulsion = calcaneonavicular and calcaneocuboid ligaments
- "Usually conservative treatment - most heal with immobilization
- "Often misdiagnosed as ankle sprain - look carefully on lateral X-ray
- "Excision for small symptomatic fragments if conservative fails
Clinical Imaging
Imaging Gallery
Critical Anterior Process Calcaneus Fracture Exam Points
Bifurcate Ligament
Bifurcate ligament avulsion - Anterior process is attachment site for bifurcate ligament (calcaneonavicular and calcaneocuboid ligaments). Forced inversion and plantarflexion causes avulsion.
Usually Conservative
Most heal with conservative treatment - Immobilization with cast or boot, non-weight bearing for 4-6 weeks. Surgery rarely needed. Excision for small symptomatic fragments if conservative fails.
Often Missed
Often misdiagnosed as ankle sprain - Similar mechanism and symptoms. High index of suspicion needed for lateral foot pain. Look carefully on lateral X-ray.
Rarely Surgical
Surgery rarely needed - Only if large displaced fragment or persistent symptomatic nonunion. ORIF for large fragments, excision for small symptomatic fragments.
Anterior Process Calcaneus Fractures - Quick Decision Guide
| Pattern | Displacement | Treatment | Outcome |
|---|---|---|---|
| Type I | Non-displaced, small | Conservative (cast) | 85-90% good results |
| Type II | Displaced, larger | Conservative or ORIF | 80-85% good results |
| Type III | Comminuted, symptomatic | Excision if needed | 75-80% good results |
BIFURCATEAnterior Process Features
Memory Hook:BIFURCATE: Bifurcate ligament avulsion, Inversion mechanism, Foot pain, Usually conservative, Rarely surgical, Calcaneus anterior process, Avulsion injury, Treatment conservative, Excision if needed!
CONSERVATIVETreatment Decision
Memory Hook:CONSERVATIVE: Conservative first-line, Often heals, Non-weight bearing, Small fragments excision, Excision if needed, Rarely surgical, Very rare indication, Avulsion injury, Treatment conservative, Immobilization, Very good outcomes, Excellent prognosis!
MISSDiagnosis
Memory Hook:MISS: Misdiagnosed as ankle sprain, Inversion mechanism, Suspicion needed, Sprain-like symptoms!
Overview and Epidemiology
Anterior process calcaneus fractures are rare injuries involving the anterior process of the calcaneus, which serves as the attachment site for the bifurcate ligament. These fractures are usually treated conservatively and are often misdiagnosed as ankle sprains.
Definition
Anterior process calcaneus fracture: Fracture of the anterior process of the calcaneus, which:
- Serves as attachment site for bifurcate ligament
- Forms part of calcaneocuboid joint
- Rare but important injury
Bifurcate ligament:
- Calcaneonavicular ligament: From anterior process to navicular
- Calcaneocuboid ligament: From anterior process to cuboid
- Function: Stabilises midfoot
- Avulsion: Forced inversion and plantarflexion causes avulsion
Epidemiology
- Incidence: Less than 1% of calcaneus fractures
- Age: Peak 20-40 years (sports, trauma)
- Gender: No clear predominance
- Mechanism: Forced inversion and plantarflexion (similar to ankle sprain)
- Associated injuries: Ankle sprains, other foot injuries
Bifurcate Ligament
Bifurcate ligament avulsion - Anterior process is attachment site for bifurcate ligament (calcaneonavicular and calcaneocuboid ligaments). Forced inversion and plantarflexion causes avulsion. Usually treated conservatively.
Anatomy and Pathophysiology
Anterior Process Anatomy

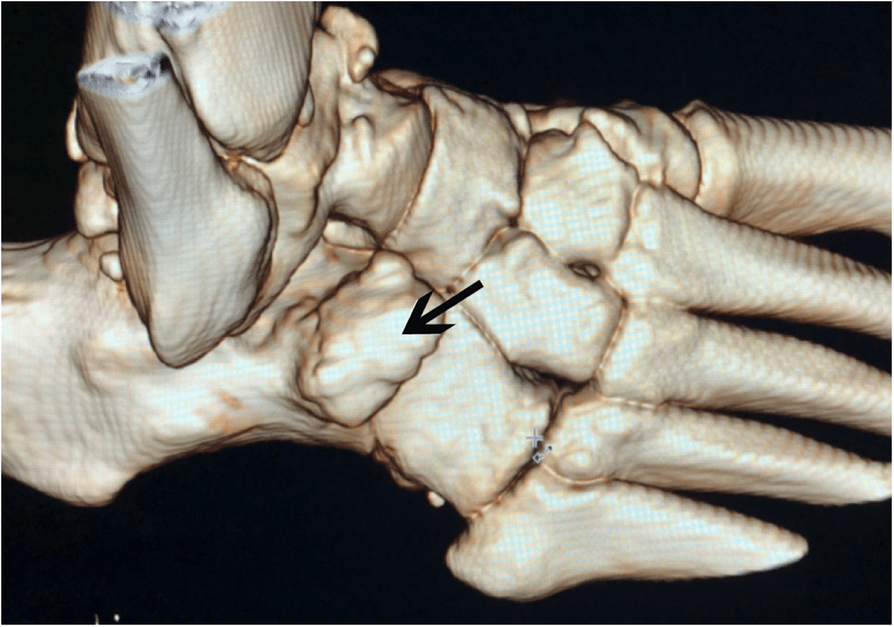

Anterior process of calcaneus:
- Location: Anterior aspect of calcaneus
- Function: Attachment site for bifurcate ligament
- Articulation: Forms part of calcaneocuboid joint
- Size: Variable, typically 1-2cm
Bifurcate ligament:
- Calcaneonavicular ligament: From anterior process to navicular
- Calcaneocuboid ligament: From anterior process to cuboid
- Function: Stabilises midfoot, prevents excessive motion
- Avulsion: Forced inversion and plantarflexion causes avulsion
Calcaneocuboid joint:
- Articulation: Calcaneus and cuboid
- Anterior process: Part of joint
- Function: Lateral column stability
Pathophysiology

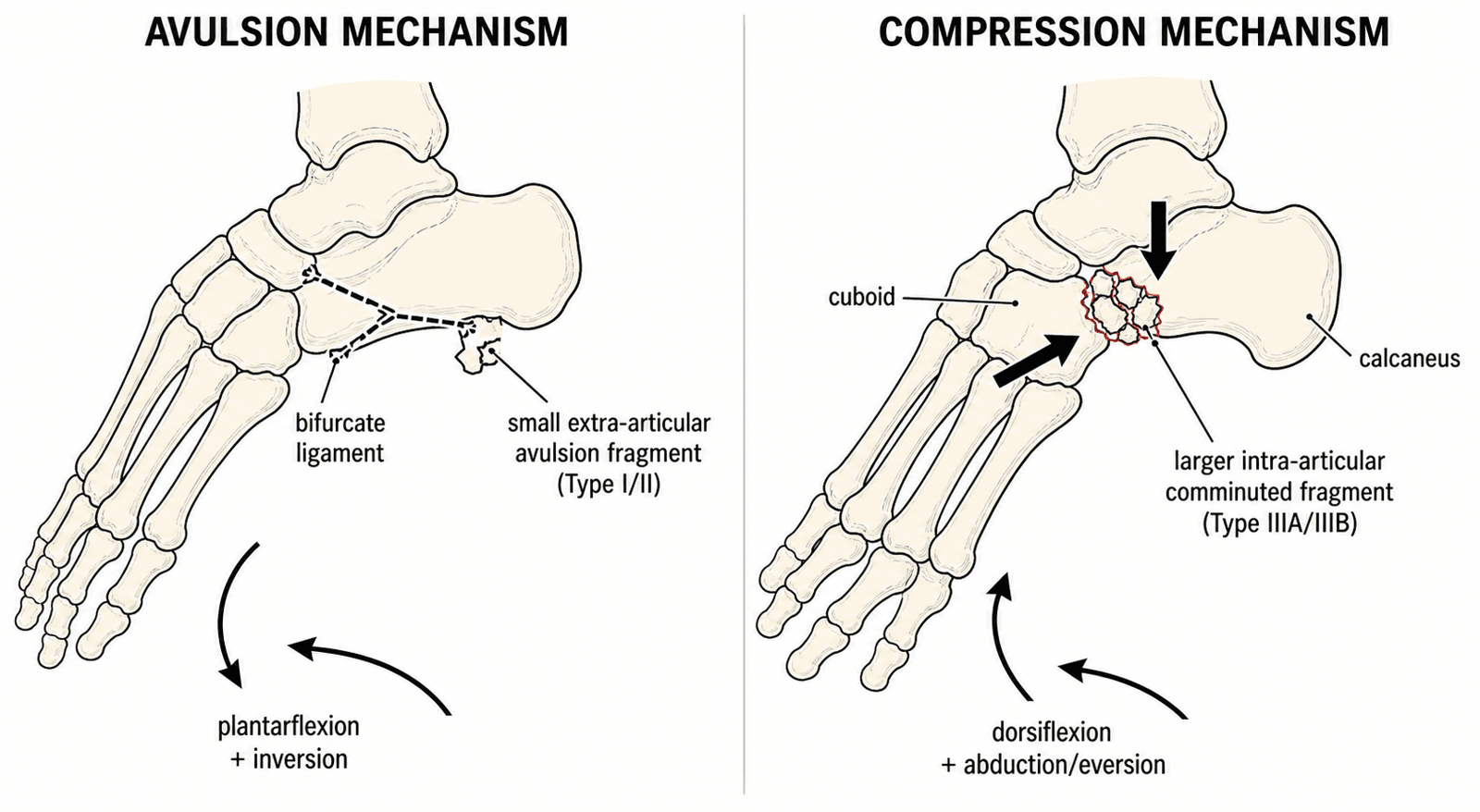

Injury mechanism:
- Forced inversion and plantarflexion: Classic mechanism (similar to ankle sprain)
- Bifurcate ligament tension: Excessive tension on bifurcate ligament
- Avulsion: Ligament avulses from anterior process with bone fragment
Why often missed:
- Similar to ankle sprain: Same mechanism and symptoms
- Subtle on X-ray: May be obscured or overlooked
- Misdiagnosis: Often diagnosed as ankle sprain
Why usually conservative:
- Small fragment: Usually small, non-displaced
- Good healing: Most heal with immobilization
- Low demand: Anterior process has low functional demand

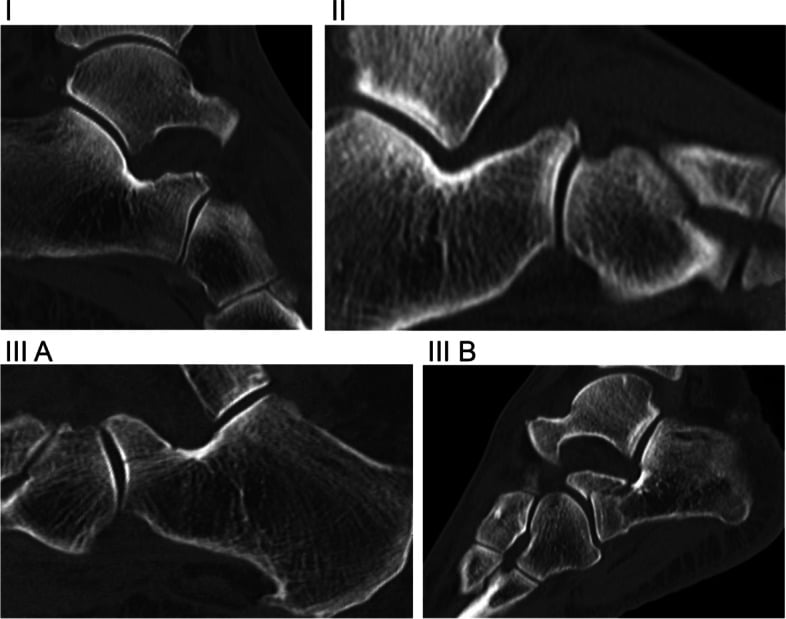

Classification Systems

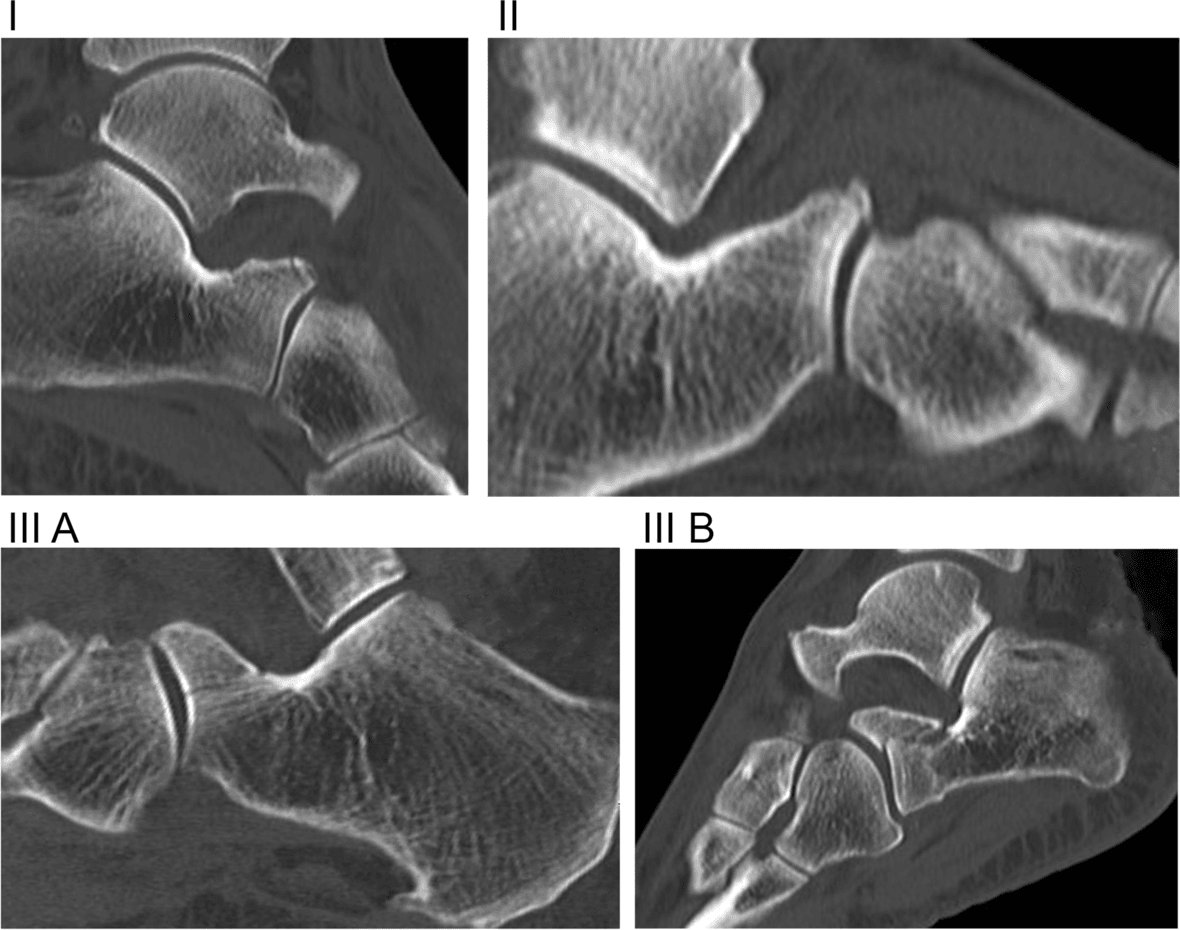

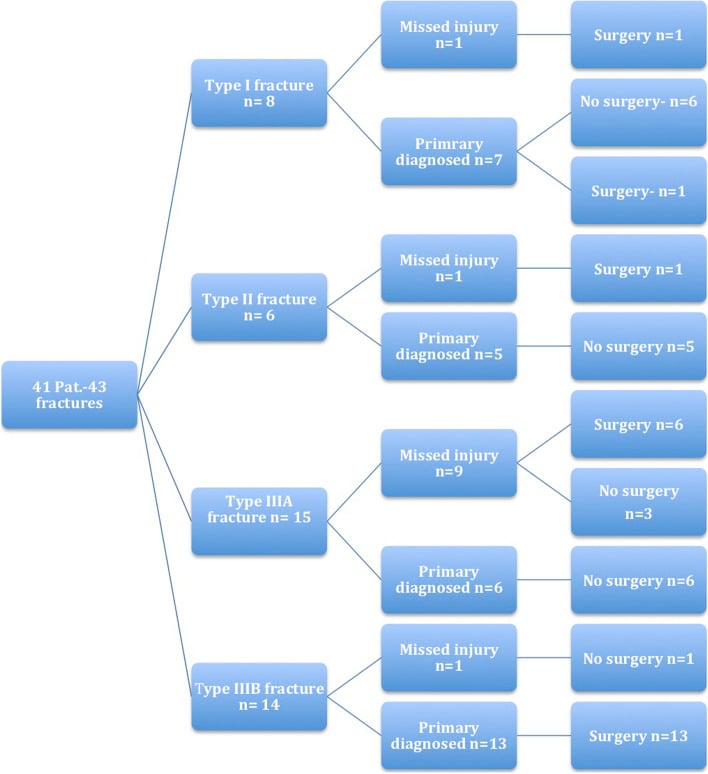

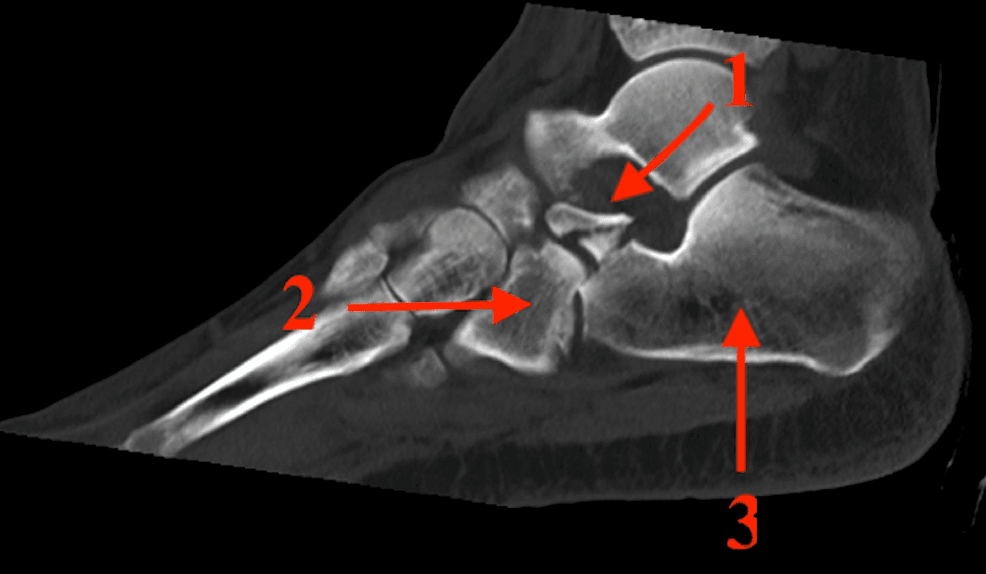

Pattern-Based Classification
Type I (Non-displaced, small fragment):
- Small fragment, non-displaced
- Treatment: Conservative (cast, non-weight bearing)
- Outcome: 85-90% good results
Type II (Displaced, larger fragment):
- Larger fragment, displaced
- Treatment: Conservative or ORIF
- Outcome: 80-85% good results

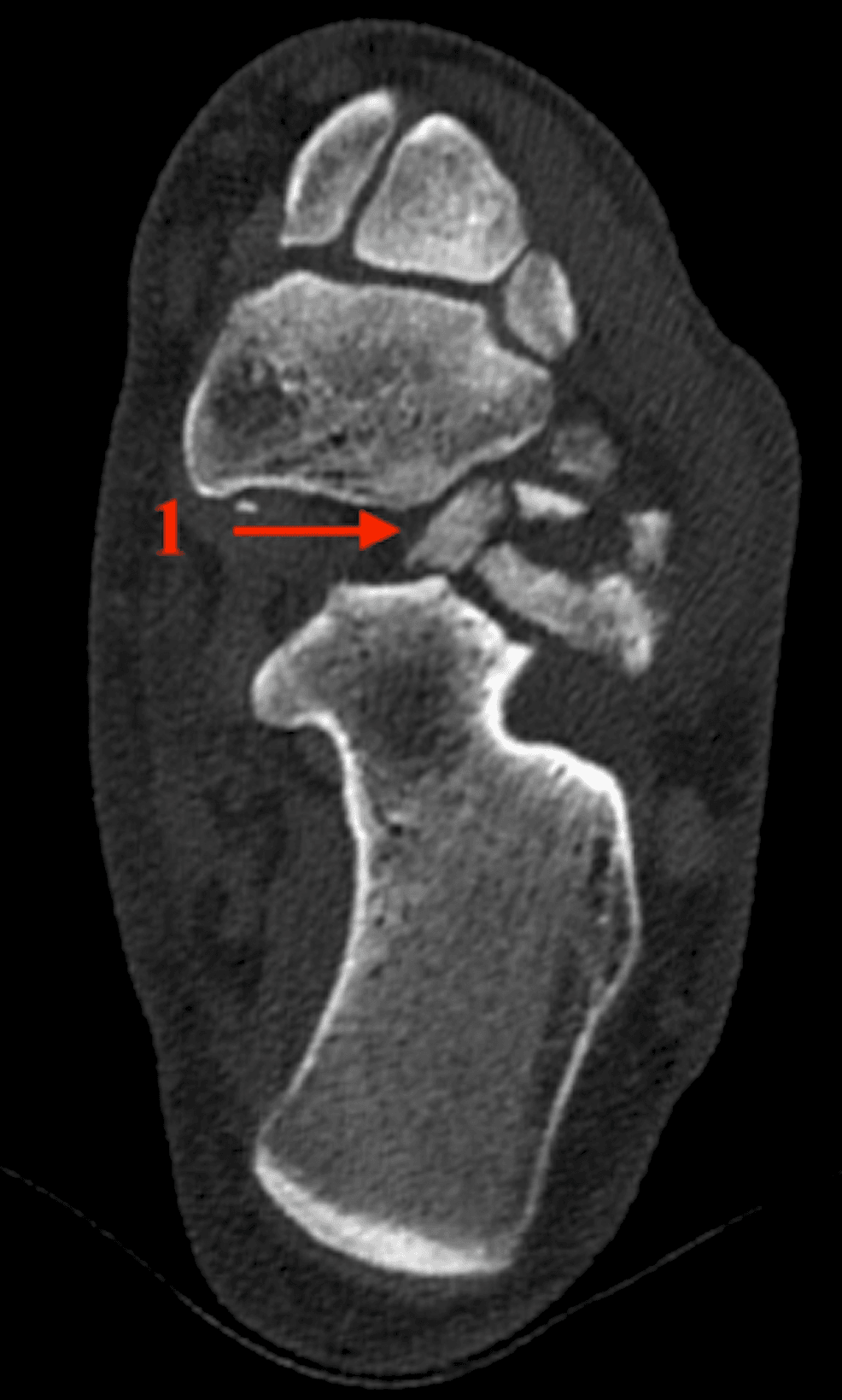

Type III (Comminuted, symptomatic):
- Comminuted, symptomatic
- Treatment: Excision if symptomatic
- Outcome: 75-80% good results
Pattern guides treatment approach.
Clinical Assessment
History
Symptoms:
- Lateral foot pain: Pain on lateral side of foot
- Swelling: Localised to lateral foot
- Difficulty weight bearing: Pain with weight bearing
- Mechanism: Forced inversion and plantarflexion (similar to ankle sprain)
Risk factors:
- Sports with inversion injuries
- High-energy trauma
- Ankle sprain mechanism
Physical Examination
Inspection:
- Swelling on lateral foot
- Ecchymosis (may be delayed)
- Deformity (rare)
Palpation:

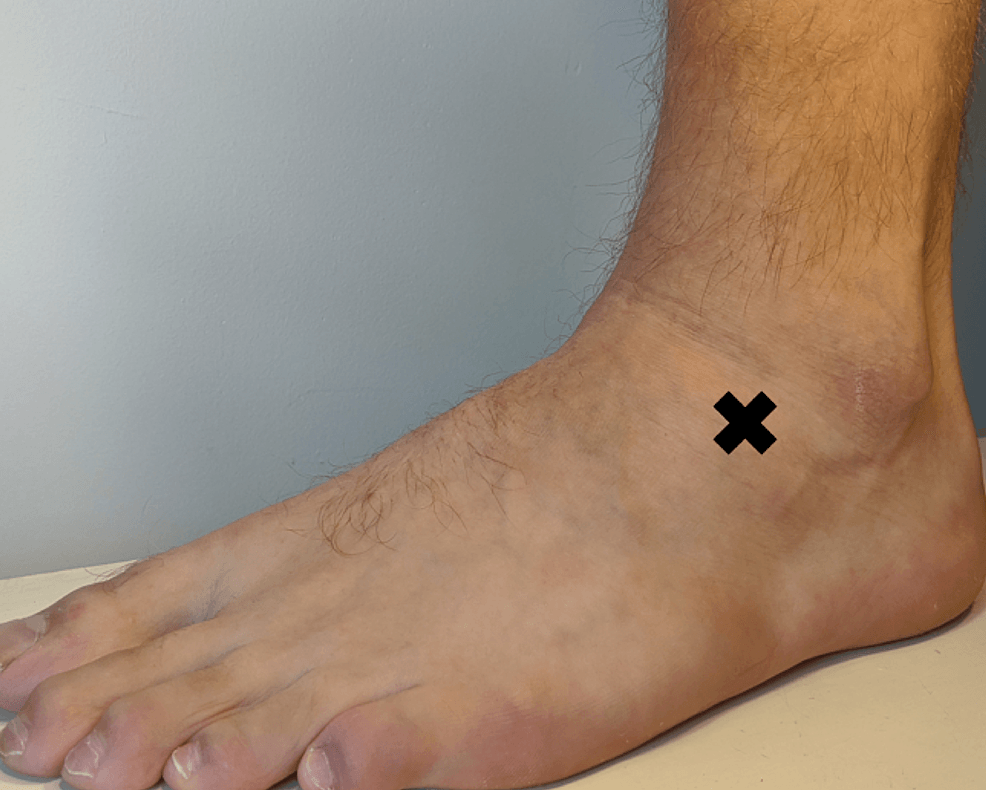

- Tenderness over anterior process (anterior to lateral malleolus)
- Calcaneocuboid joint tenderness
- Ankle joint usually not tender
Range of Motion:
- Ankle ROM may be limited
- Midfoot ROM may be limited
- Inversion/eversion painful
Special tests:
- Anterior process palpation: Tenderness over anterior process
- Calcaneocuboid joint stress: Pain with stress
Clinical Examination Key Point
High index of suspicion needed - Anterior process fractures are often misdiagnosed as ankle sprains. Look carefully on lateral X-ray. Tenderness over anterior process (anterior to lateral malleolus) is key finding.
Investigations
Standard X-ray Protocol

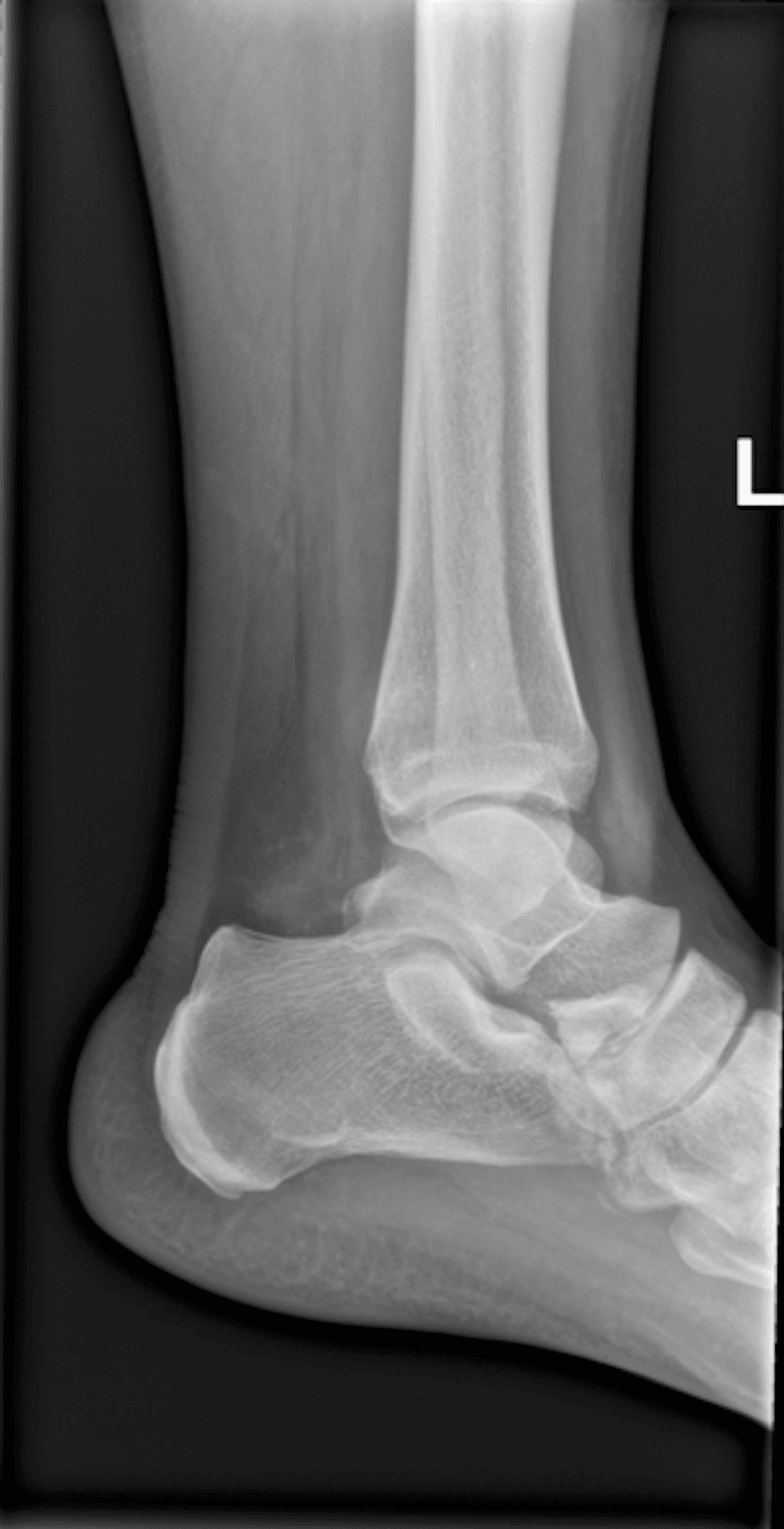

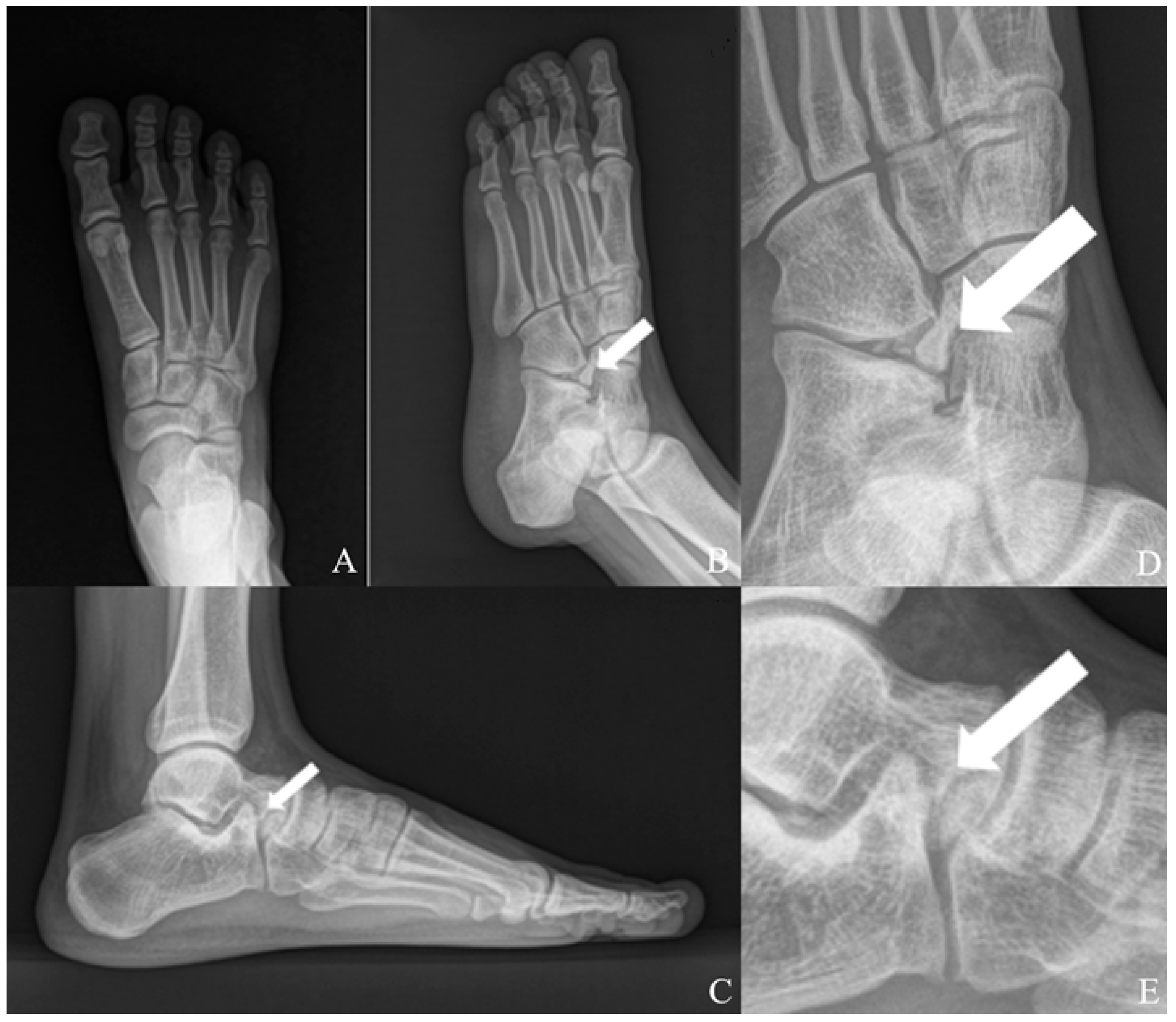

Lateral view (best view):
- Shows anterior process
- Look carefully - often subtle
- May be obscured by overlapping structures
Oblique view:
- May show fracture better
- Calcaneocuboid joint view
AP view:
- May show fracture
- Less reliable than lateral

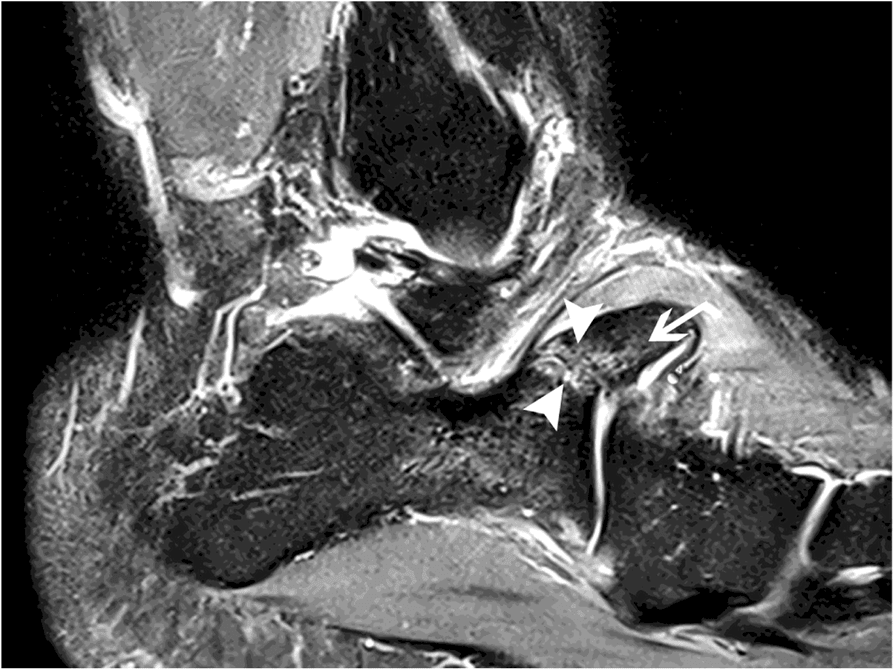

Key point: Often missed on initial X-rays - high index of suspicion needed.

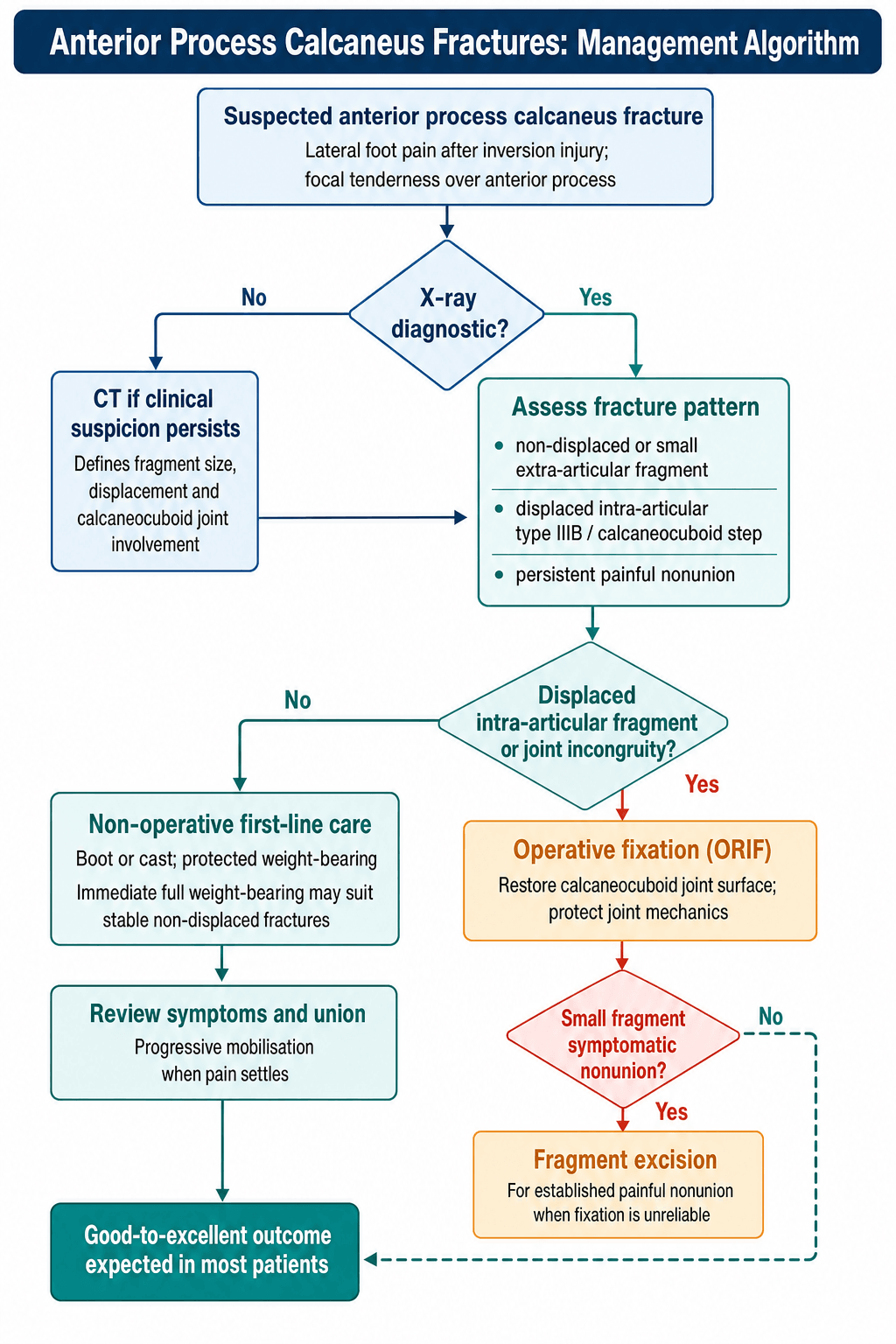

Management Algorithm
Management Pathway
Anterior Process Calcaneus Fracture Management

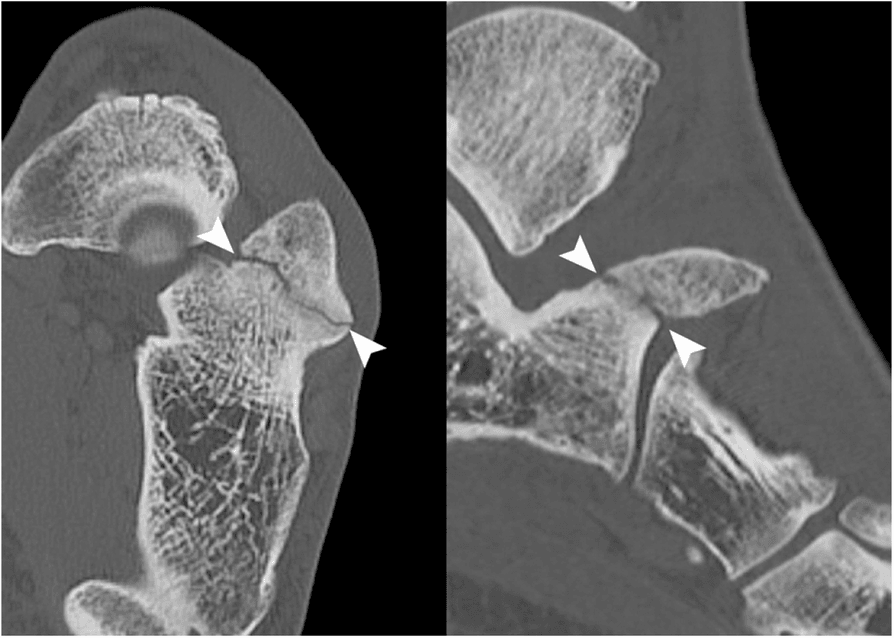

Often misdiagnosed as ankle sprain - look carefully on lateral X-ray. CT recommended if suspected clinically but X-ray negative. Tenderness over anterior process is key finding.
Most fractures heal with conservative treatment - Immobilization with cast or boot, non-weight bearing for 4-6 weeks. Success rate 85-90%.
Surgery rarely needed - Only if large displaced fragment (ORIF) or persistent symptomatic nonunion (excision). Success rate 75-85%.
If small fragment causing persistent pain after healing, excision acceptable. Relieves symptoms, better than persistent pain. Success rate 75-80%.
Surgical Technique

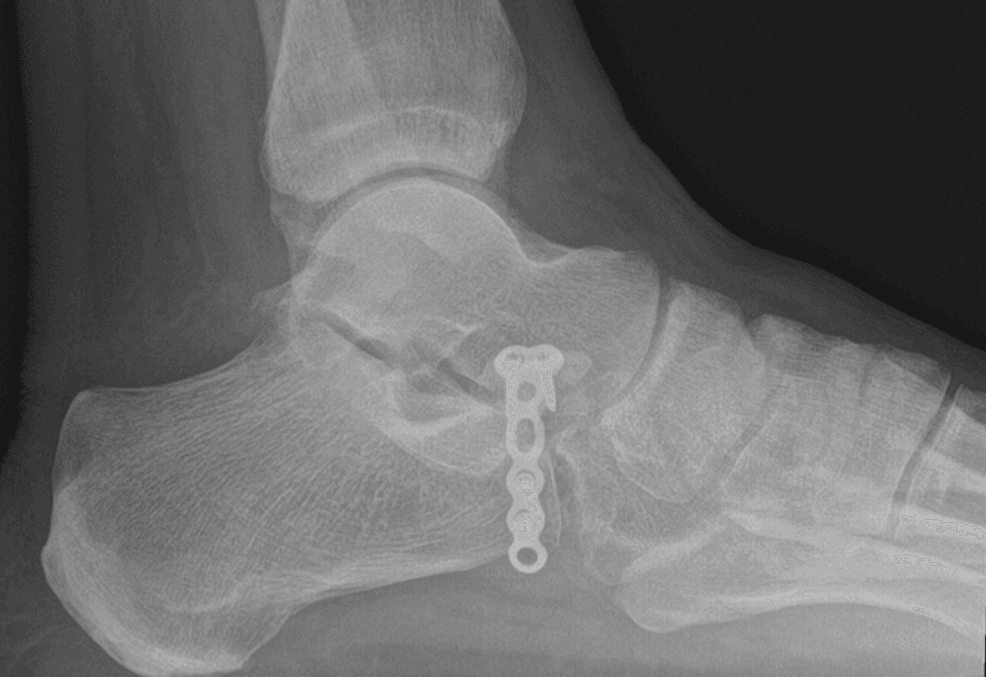

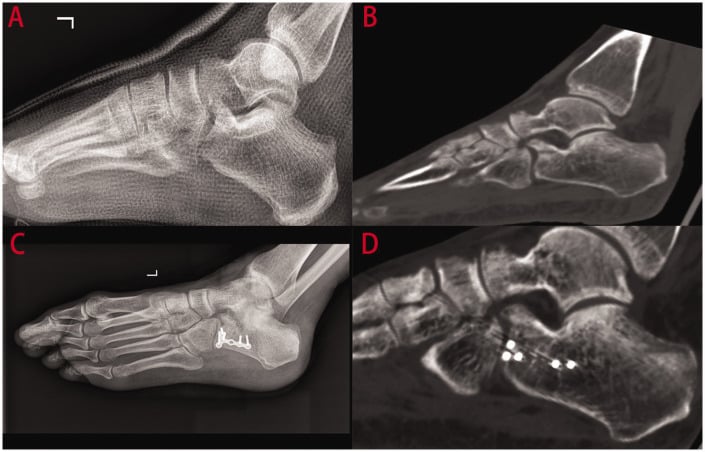

ORIF Technique (For Large Fragments)
Indications:

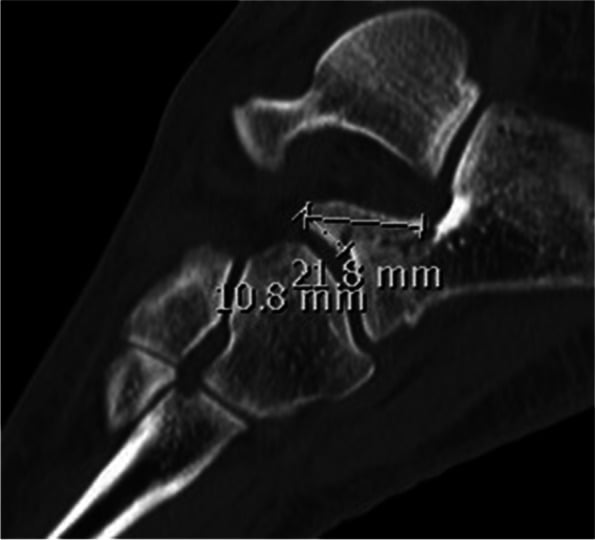

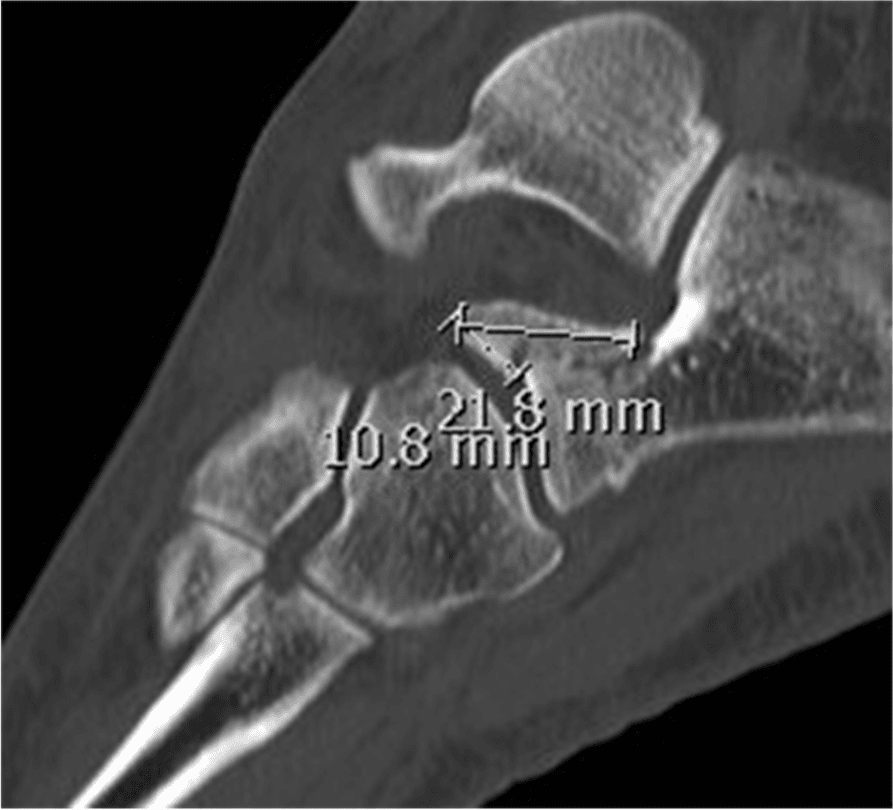

- Large fragment (over 25% of process)
- Displaced (greater than 2mm)
- Calcaneocuboid joint instability
Approach:
- Lateral approach to anterior process
- Expose fragment
- Protect peroneal tendons

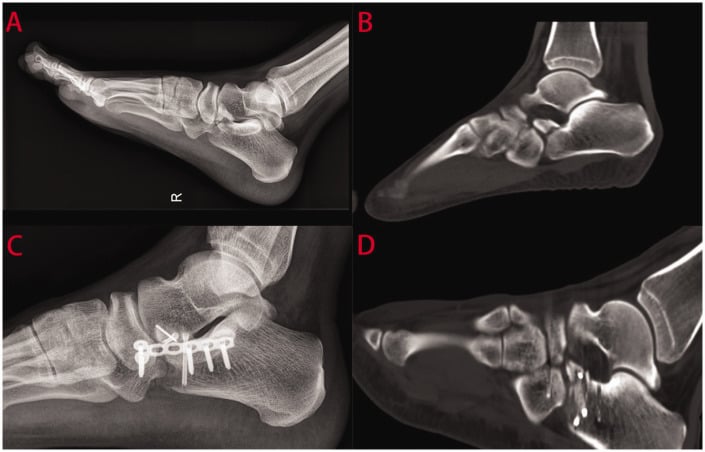

Technique:
- Exposure: Lateral approach to anterior process
- Reduction: Anatomic reduction of fragment
- Fixation: Lag screws (2.0-2.7mm) or mini-fragment screws

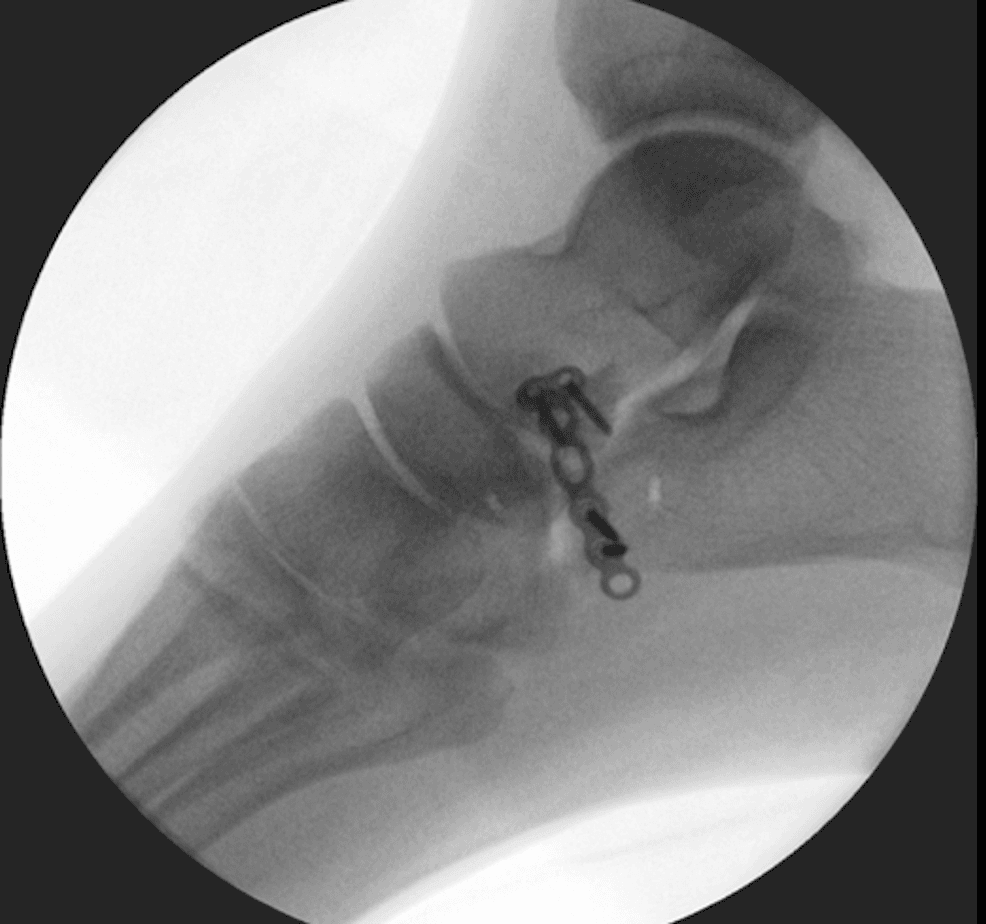

- Verification: Confirm reduction and hardware position fluoroscopically
Advantages:
- Preserves calcaneocuboid joint
- Prevents nonunion
- Better outcomes than excision for large fragments
ORIF for large displaced fragments.
Complications
| Complication | Incidence | Risk Factors | Prevention/Management |
|---|---|---|---|
| Nonunion | 5-10% | Displacement, inadequate immobilization | Adequate immobilization, ORIF if needed |
| Persistent pain | 10-15% | Nonunion, fragment size | Excision if symptomatic |
| Missed diagnosis | 30-40% | Similar to ankle sprain | High index of suspicion, CT if needed |
| Calcaneocuboid arthritis | 5-10% | Malunion, joint involvement | Anatomic reduction |
Nonunion
5-10% incidence:
- Cause: Displacement, inadequate immobilization
- Prevention: Adequate immobilization, ORIF if needed
- Management: Excision if symptomatic, ORIF if large fragment
Persistent Pain
10-15% incidence:
- Cause: Nonunion, fragment size, joint involvement
- Prevention: Adequate treatment, anatomic reduction
- Management: Excision if symptomatic, activity modification
Postoperative Care
Immediate Postoperative
- Immobilisation: Short leg cast or boot
- Weight bearing: Non-weight bearing (4-6 weeks)
- ROM: Ankle ROM after cast removal
- PT: Midfoot ROM and strengthening
Rehabilitation Protocol
Weeks 0-4:
- Short leg cast, non-weight bearing
- Elevation to reduce swelling
- Ankle ROM exercises (if stable)
Weeks 4-6:
- Cast removal
- Transition to walking boot
- Progressive weight bearing
Weeks 6-12:
- Full weight bearing
- Progressive activity
- Return to sport (3-4 months)
Outcomes and Prognosis
Overall Outcomes
Conservative treatment:
- Success rate: 85-90% (union, pain relief)
- Functional outcomes: 80-85% return to pre-injury level
- Complications: 10-15% persistent pain
ORIF (large fragments):
- Success rate: 80-85% (union, pain relief)
- Functional outcomes: 75-80% return to pre-injury level
- Complications: 10-15% persistent pain
Excision (small fragments):
- Success rate: 75-80% (pain relief)
- Functional outcomes: 70-75% return to pre-injury level
- Complications: 15-20% persistent pain
Long-Term Prognosis
Pain resolution:
- With proper treatment: 85-90% pain relief
- Without treatment: 20-30% develop chronic pain
- Risk factors: Displacement, delayed treatment, fragment size
Evidence Base
Anterior Process Fractures
- Bifurcate ligament avulsion mechanism
- Conservative treatment usually successful
Bifurcate Ligament
- Bifurcate ligament = calcaneonavicular + calcaneocuboid
- Attaches to anterior process
- Stabilises midfoot
- Avulsion causes fracture
Treatment Outcomes
- Conservative: 85-90% good results
- ORIF: 80-85% good results
- Excision: 75-80% good results
- Most heal with immobilization
Missed Diagnosis
- Conservative: 90% good results
Calcaneocuboid Joint
- Anterior process part of calcaneocuboid joint
- Large fragments may require ORIF
- Small fragments can be excised
- Joint stability preserved with ORIF
Exam Viva Scenarios
Practice these scenarios to excel in your viva examination
Scenario 1: Lateral Foot Pain After Inversion Injury
"A 28-year-old athlete presents with lateral foot pain after forced inversion and plantarflexion injury. Initial diagnosis was ankle sprain, but pain persists 3 weeks later. Clinical examination shows tenderness over anterior process of calcaneus (anterior to lateral malleolus). Lateral X-ray shows small fracture of anterior process. CT shows non-displaced fracture."
Scenario 2: Persistent Pain After Conservative Treatment
"A 30-year-old patient presents with persistent lateral foot pain 3 months after anterior process calcaneus fracture treated conservatively. X-rays show nonunion of small fragment (under 25% of process). The fragment is causing persistent pain and calcaneocuboid joint irritation."
MCQ Practice Points
Bifurcate Ligament
Q: What is the bifurcate ligament and how does it relate to anterior process calcaneus fractures? A: Bifurcate ligament consists of calcaneonavicular and calcaneocuboid ligaments - Attaches to anterior process of calcaneus. Forced inversion and plantarflexion causes avulsion, resulting in anterior process fracture. Usually treated conservatively.
Treatment
Q: What is the treatment approach for anterior process calcaneus fractures? A: Usually conservative treatment - Immobilization with cast or boot, non-weight bearing for 4-6 weeks. Success rate 85-90%. Surgery rarely needed - only for large displaced fragments (ORIF) or persistent symptomatic nonunion (excision).
Missed Diagnosis
Q: Why are anterior process calcaneus fractures often missed initially? A: Similar mechanism and symptoms to ankle sprain - 30-40% are missed initially. High index of suspicion needed, especially with lateral foot pain after inversion injury. CT recommended if suspected clinically but X-ray negative.
Surgical Indications
Q: When is surgery indicated for anterior process calcaneus fractures? A: Rarely needed - Only for large displaced fragments (over 25% of process, ORIF) or persistent symptomatic nonunion (excision). Most fractures heal with conservative treatment (85-90% good results).
Excision
Q: When is excision appropriate for anterior process calcaneus fractures? A: Small symptomatic fragments (under 25% of process) with persistent pain or nonunion - Excision relieves symptoms and is better than attempting ORIF on small fragments. Success rate 75-80%.
Australian Context
Clinical Practice
- Anterior process fractures rare but important
- Often misdiagnosed as ankle sprain
- Usually conservative treatment
- Excision for small symptomatic fragments
Healthcare System
- Public hospitals handle most cases
- Private insurance covers procedures
- Sports injuries common
- Outpatient management typical for conservative cases
Orthopaedic Exam Relevance
Anterior process calcaneus fractures are a common viva topic. Know that bifurcate ligament avulsion mechanism, usually conservative treatment (85-90% good results), surgery rarely needed (only for large displaced fragments or persistent symptomatic nonunion), excision acceptable for small symptomatic fragments (75-80% good results), and often misdiagnosed as ankle sprain (30-40%). Be prepared to discuss the mechanism and treatment decision (conservative vs surgical).
ANTERIOR PROCESS CALCANEUS FRACTURES
High-Yield Exam Summary
Key Concepts
- •Bifurcate ligament avulsion = calcaneonavicular + calcaneocuboid ligaments
- •Anterior process is attachment site for bifurcate ligament
- •Forced inversion and plantarflexion mechanism
- •Usually conservative treatment (85-90% good results)
Classification
- •Type I: Non-displaced, small - conservative (85-90% good results)
- •Type II: Displaced, larger - conservative or ORIF (80-85% good results)
- •Type III: Comminuted, symptomatic - excision if needed (75-80% good results)
- •Displacement Threshold: Greater than 2mm or greater than 25% joint surface
Treatment
- •Most fractures: Conservative (cast or boot, NWB 4-6 weeks)
- •Large displaced fragment: ORIF (preserves joint)
- •Small symptomatic fragment: Excision (relieves pain)
- •Surgery rarely needed - only for specific indications
Surgical Technique
- •ORIF: Lateral approach, anatomic reduction, lag screws (2.0-2.7mm)
- •Excision: Same approach, remove fragment, smooth edges
- •Preserve calcaneocuboid joint stability
- •Verify reduction fluoroscopically
Complications
- •Nonunion: 5-10% (prevent with adequate immobilization)
- •Persistent pain: 10-15% (excision if symptomatic)
- •Missed diagnosis: 30-40% initially missed
- •Calcaneocuboid arthritis: 5-10% (prevent with anatomic reduction)
