High-yield overview
Disc Degeneration and Lower Back Pain
37%Asymptomatic 20-year-olds with disc degeneration
96%Asymptomatic 80-year-olds with disc degeneration
63% vs 29%Rated better after fusion vs non-operative care at 2 years
36%Symptomatic adjacent segment disease by 10 years
Critical Must-Knows
- Discogenic pain: axial, deep, worse with flexion and loading, better lying down
- Degeneration is normal ageing - 37% of asymptomatic 20-year-olds and 96% of asymptomatic 80-year-olds have it, so imaging never makes the diagnosis on its own
- Modic type I (oedema) is the endplate change that tracks with active pain; type II is fat and type III is sclerosis
- Kirkaldy-Willis cascade: dysfunction to instability to stabilisation - and pain often falls as the segment stiffens
- Conservative care for 6-12 months first; fusion buys a partial improvement, not a cure, and NICE advises against it for axial back pain outside a trial
Clinical Pearls
- “Modic I indicates active inflammation and is the change linked to pain
- “A dark disc is not a diagnosis - correlate with concordant symptoms or you will operate on normal ageing
- “Discography is not a prerequisite for surgery, and it accelerates degeneration in the discs it punctures
- “Quote fusion outcomes as the trial reported them: 63% much better or better versus 29% with non-operative care
Exam Warning
MRI is not the diagnosis
Disc degeneration is present in 37% of asymptomatic 20-year-olds and 96% of asymptomatic 80-year-olds (Brinjikji, 3,110 people). A dark disc alone is not an indication for surgery — it is the expected finding for the patient's age.
Clinical Correlation
Pathology must correlate with concordant pain. Treating an MRI report rather than a patient is the commonest route to a failed fusion, and psychosocial yellow flags predict disability better than any imaging grade.
Overview and Epidemiology
Degenerative Disc Disease (DDD) is a clinical syndrome characterized by pain and dysfunction stemming from the natural aging process of the intervertebral disc. It represents a continuum from physiological aging to pathological condition. The distinction between "aging" and "disease" is defined by the presence of symptoms, disproportionate loss of function, and quality of life impact.
Epidemiology
Prevalence
- Degeneration is ubiquitous with age. It is present in:
- 37% of asymptomatic 20-year-olds
- 80% of asymptomatic 50-year-olds
- 96% of asymptomatic 80-year-olds
- Symptomatic DDD is less common but is a leading cause of disability worldwide. Back pain is the single leading cause of disability globally.
- Genetic Influence: Genetics is the strongest predictor (70% heritability) of disc degeneration, far outweighing occupational factors. Key genes include Vitamin D receptor, Aggrecan, and Collagen IX polymorphisms.
Risk Factors
- Non-Modifiable: Genetics (Twin studies show strong concordance), Age.
- Modifiable:
- Smoking: Critically important. Nicotine inhibits chondrocyte proliferation and causes vasoconstriction of the subchondral vascular network, starving the disc.
- Obesity: Increases mechanical load and creates a systemic pro-inflammatory state.
- Occupation: Long-term whole-body vibration (truck driving) and heavy lifting.
- Diabetes: Microvascular disease impairs endplate nutrition.
Natural History
- The condition typically runs a relapsing-remitting course.
- There is a tendency for pain to improve over decades as the spine proceeds to the "Stabilization" phase (stiffening/restabilization).
- Exam Pearl: Elderly patients often have less back pain but signs of stenosis (neurogenic claudication) due to osteophytes.
Pathophysiology

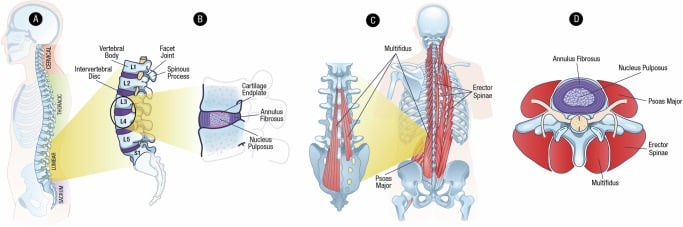

Anatomy of the Disc
The intervertebral disc is the largest avascular structure in the body, relying on diffusion for nutrition.
- Nucleus Pulposus (NP):
- Central, gelatinous core.
- Composed of Type II Collagen and Proteoglycans (Aggrecan).
- Aggrecan is highly hydrophilic. The high water content (80% in youth) creates hydrostatic pressure to resist axial compression and distribute load.
- Annulus Fibrosus (AF):
- Peripheral, tough outer ring arranged in lamellar sheets.
- Type I Collagen dominates (tensile strength).
- Contains the nucleus and attaches to vertebral endplates via Sharpey's fibers.
- Vertebral Endplate:
- Hyaline cartilage interface between disc and bone.
- Critical for nutrition: Glucose and oxygen diffuse from vertebral body marrow capillaries through the endplate to the disc cells. Sclerosis of the endplate blocks this supply.
- Nutritional Failure: This is the 'Final Common Pathway' of degeneration. Factors impeding marrow diffusion include atherosclerosis, smoking (vasoconstriction), and vibration.

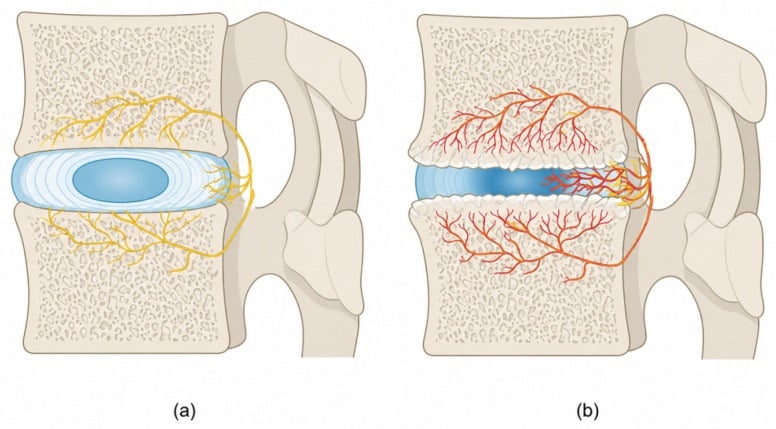

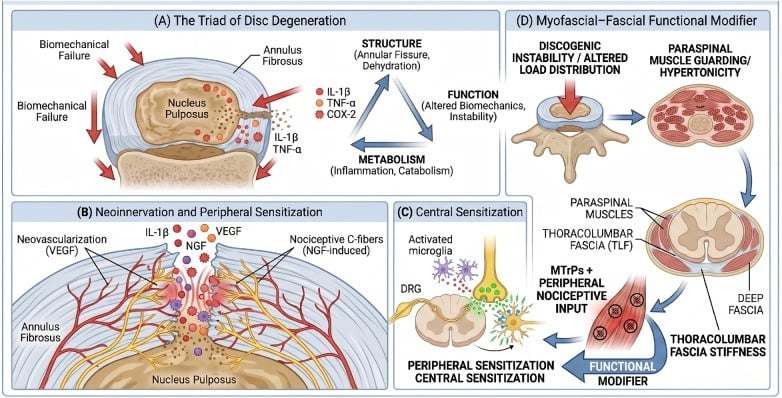

Disc Innervation
The sinuvertebral nerve (recurrent meningeal nerve) supplies the posterior longitudinal ligament and the outer 1/3 of the annulus fibrosus.
- Neoneurogenesis: In healthy discs, the inner annulus and nucleus are aneural. In painful DDD, nerve fibers accompanied by blood vessels (neovascularization) grow deep into the nucleus.
- Mechanism: This ingrowth is driven by Neurotrophins (NGF, BDNF) expressed by degenerative chondrocytes. This explains how a deeper structure can become the source of significant pain.

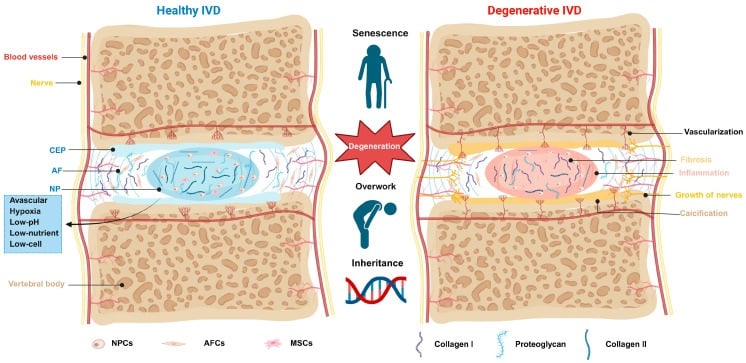

Biochemical Changes
Degeneration involves a shift from anabolic (building) to catabolic (breaking) metabolism:
- Proteoglycan Loss: Decreased aggrecan synthesis and fragmentation leads to reduced water-binding capacity. The nucleus loses turgor and height.
- Collagen Switch: Shift from Type II (cartilage-like) to Type I (fibrotic) collagen in the nucleus. The distinction between nucleus and annulus blurs.
- Enzymatic Degradation: Upregulation of MMPs (Matrix Metalloproteinases) and ADAMTS enzymes digests the matrix.
- Inflammation: Release of pro-inflammatory cytokines (TNF-alpha, IL-1beta, IL-6) from the degenerating nucleus can sensitize nerve endings (sinuvertebral nerve) in the outer annulus, causing pain even without compression.
The Kirkaldy-Willis Cascade
A classic three-stage model of spinal degeneration:
1. Dysfunction
- Pathophysiology
- Circumferential annular tears, endplate separation, synovitis.
- Clinical Features
- Intermittent axial pain, "acute back strains".
- Imaging
- Normal X-ray, MRI showing "black disc" (desiccation).
2. Instability
- Pathophysiology
- Resorption of disc, loss of height, facet capsule laxity.
- Clinical Features
- Catching pain, giving way, severe episodes.
- Imaging
- Traction spurs, vacuum phenomenon, dynamic instability (translation).
3. Stabilization
- Pathophysiology
- Osteophyte formation, fibrosis, stiffening.
- Clinical Features
- Reduced back pain, developing stenosis symptoms from hypertrophy.
- Imaging
- Bridging osteophytes, severe disc collapse, foraminal stenosis.
Classification
Pfirrmann Classification (MRI T2 Weighting) Used to grade the degree of disc degeneration based on structure and signal intensity.
I
- Structure
- Homogeneous
- Signal Intensity
- Hyperintense (Bright)
- Disc Height
- Normal
- Description
- Juvenile/Normal
II
- Structure
- Heterogeneous (Streak)
- Signal Intensity
- Hyperintense
- Disc Height
- Normal
- Description
- Early Adult
III
- Structure
- Heterogeneous
- Signal Intensity
- Intermediate (Grey)
- Disc Height
- Normal/Slight loss
- Description
- Degenerative
IV
- Structure
- Heterogeneous
- Signal Intensity
- Hypointense (Dark)
- Disc Height
- Moderate loss
- Description
- "Black Disc"
V
- Structure
- Collapsed
- Signal Intensity
- Hypointense (Black)
- Disc Height
- Collapsed
- Description
- End-stage
Clinical Presentation
History
Cardinal Feature: Axial Low Back Pain (Midline).
- Nature: Deep, aching, dull. Quality can be severe ("toothache in the back"). Contrast this with sharp, electric radicular pain.
- Aggravating Factors (Loading):
- Flexion: Sitting and bending forward. Nachemson's in-vivo pressure measurements set standing at 100%: supine is roughly 25%, standing 100%, unsupported sitting about 140%, and standing while leaning forward with a weight higher still. This is the measured reason a discogenic patient prefers to stand or lie and dreads a long drive.
- Axial Load: Lifting, standing static for long periods.
- Valsalva: Coughing/sneezing (increases intrathecal pressure - caution: also herniation feature).
- Relieving Factors (Unloading):
- Extension, lying supine, walking.
- Pattern:
- Often intermittent "flare-ups" lasting weeks, settling to baseline.
- Stiffness in mornings (gel phenomenon) lasting minutes.
- Biopsychosocial Factors: Screen for "Yellow Flags" (fear avoidance, catastrophizing, depression) as these are stronger predictors of disability than MRI findings.
Red Flags (Rule Out):
- Weight loss, night pain, history of cancer (Malignancy).
- Fever, IVDU, immunosuppression (Infection).
- Significant trauma (Fracture).
- Saddle anaesthesia, bladder dysfunction (Cauda Equina Syndrome).
Physical Examination
Findings in pure DDD are often non-specific. The exam is used to rule out other pathology (hips, roots).
- Inspection: Loss of lordosis (flat back) due to muscle spasm/guarding. Lateral shift (list).
- Palpation: Midline tenderness (spinous processes/interspinous). Paraspinal muscle spasm ("washboarding").
- Range of Motion:
- Flexion often limited and painful ("fingertip to floor" distance).
- Extension may be preserved (unless Facet Arthropathy present).
- Catching or "painful arc" during return from flexion suggests instability.
- Neurology:
- Usually normal in isolated DDD.
- Check for concordant radiculopathy (requires nerve root compression).
- Provocative Tests:
- Disc Loading: Axial compression may reproduce back pain.
- Straight Leg Raise: Usually negative in pure discogenic pain (unless HNP present).
Investigations
Imaging
1. Plain Radiographs (X-ray)
- AP/Lateral: Assess alignment (Scoliosis, Lordosis).
- Findings:
- Loss of disc height.
- Endplate sclerosis.
- Vacuum phenomenon (nitrogen gas within the disc cleft) - a marker of advanced degeneration, and it argues against infection, where the disc space fills with fluid rather than gas.
- Osteophytes (traction spurs).

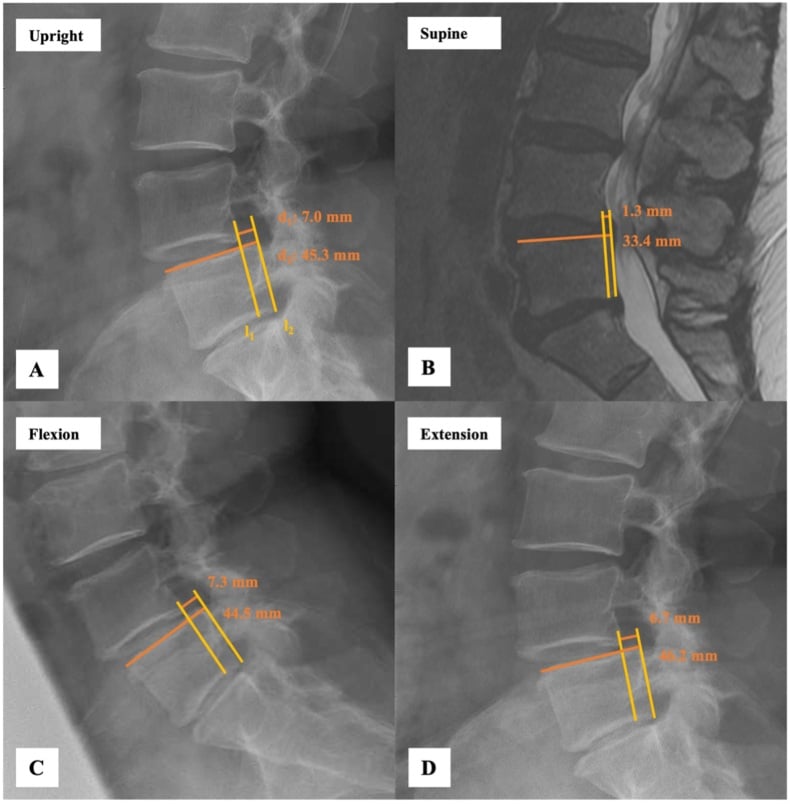

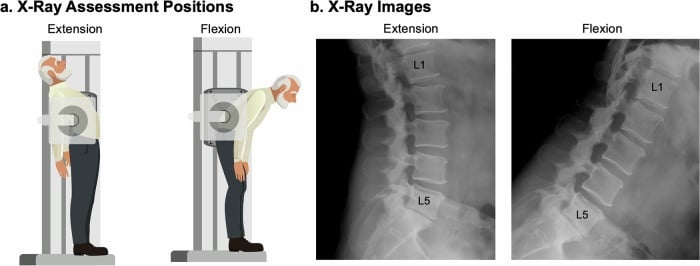

- Flexion/Extension Views: Critical to rule out instability (Spondylolisthesis) prior to fusion surgery. (translation greater than 3mm or angulation greater than 10 degrees).
2. MRI (Gold Standard)
- T2 Sagittal: Best for hydration status (Pfirrmann grade).
- High Intensity Zone (HIZ): Bright spot in posterior annulus on T2. Correlates with annular tear. High specificity for discogenic pain (but controversial).

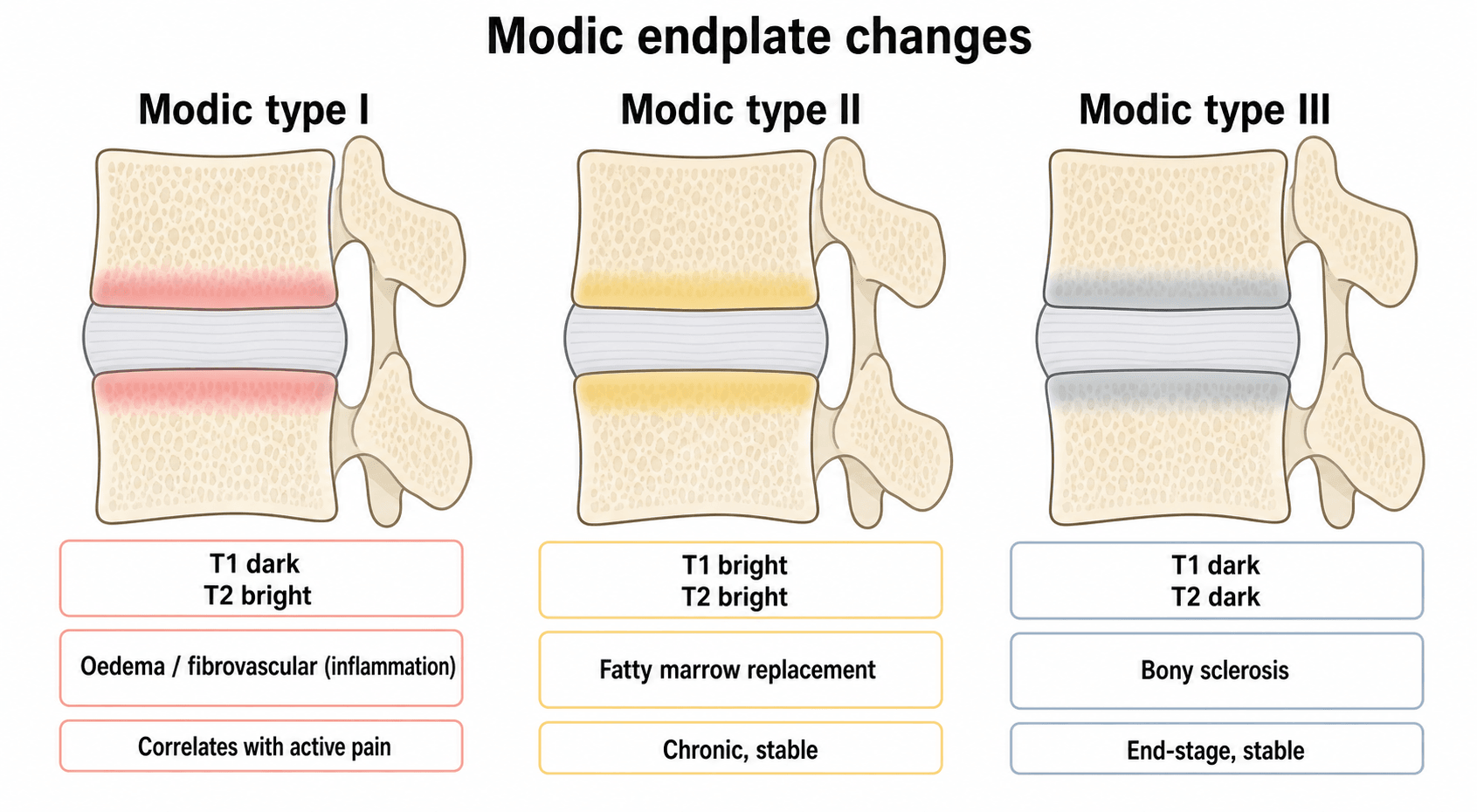

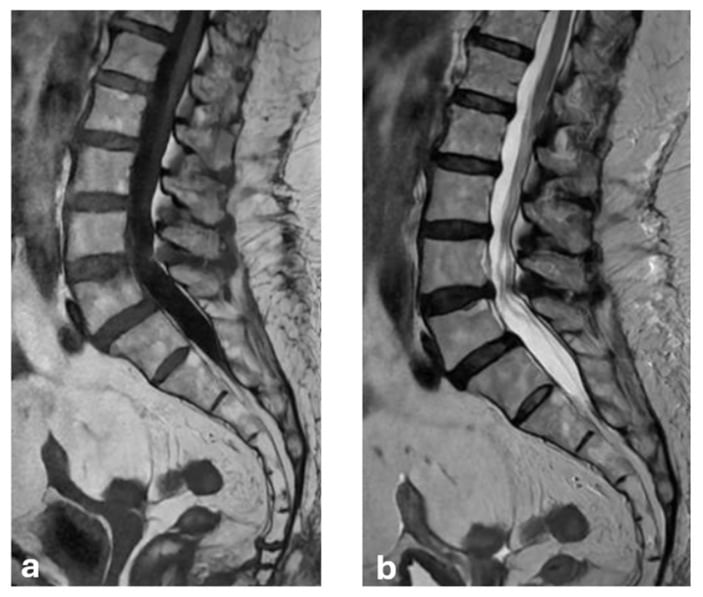

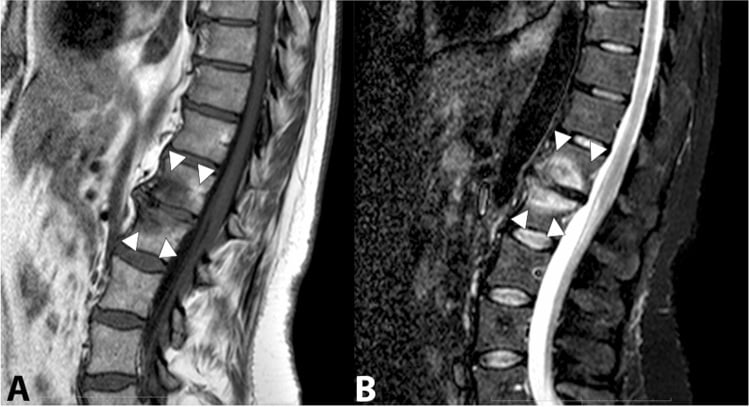

- Modic Changes: Endplate signal abnormalities.
- Features: "Black Disc", loss of height, bulging, nerve root compression.

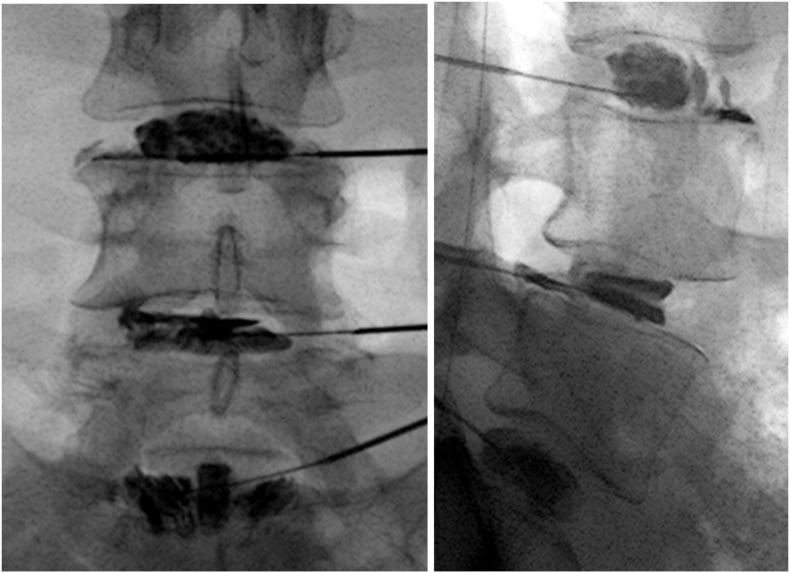

3. Discography (Provocative)
- Injection of contrast or saline into the disc nucleus under fluoroscopy.
- Positive test: reproduction of the patient's exact familiar pain (concordant pain), plus morphological degeneration, plus a negative control level — the control disc is what separates a test from a suggestion.
- Why it has fallen out of favour, with the numbers. Carragee's 10-year matched cohort (50 discography subjects, 52 matched controls) found that the punctured discs did worse on every parameter measured: progression of degeneration in 35% versus 14% of discs (P=0.03), 55 new herniations versus 22 (P=0.0003), with new herniations falling disproportionately on the side of the annular puncture (P=0.0006), plus greater loss of disc height (P=0.05) and signal (P=0.001). This used modern small-gauge, low-pressure technique. False-positive rates are also high in people with psychological distress or chronic pain elsewhere.
- Where that leaves it: a test that injures the disc it examines, in a condition where the operation it selects for has only a modest advantage. It is not a prerequisite for surgery, and it should be reserved for the genuinely indeterminate multi-level case after the risk has been discussed.
4. Other modalities

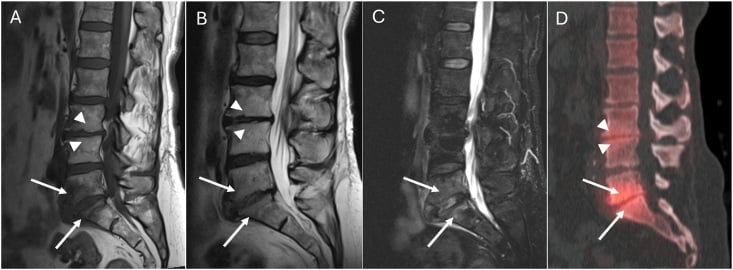

- SPECT-CT may show "hot" uptake at an active degenerative level and can help localise when plain MRI shows several equally degenerate discs.

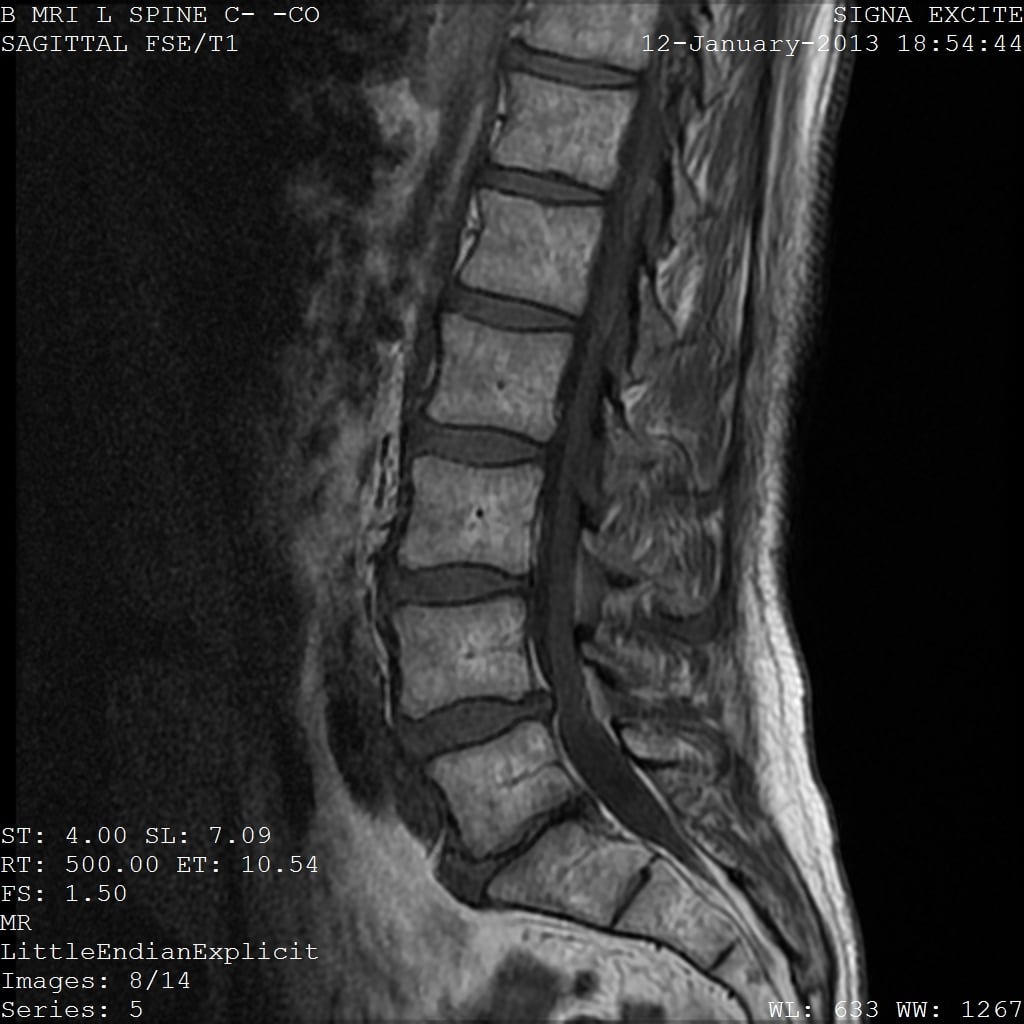

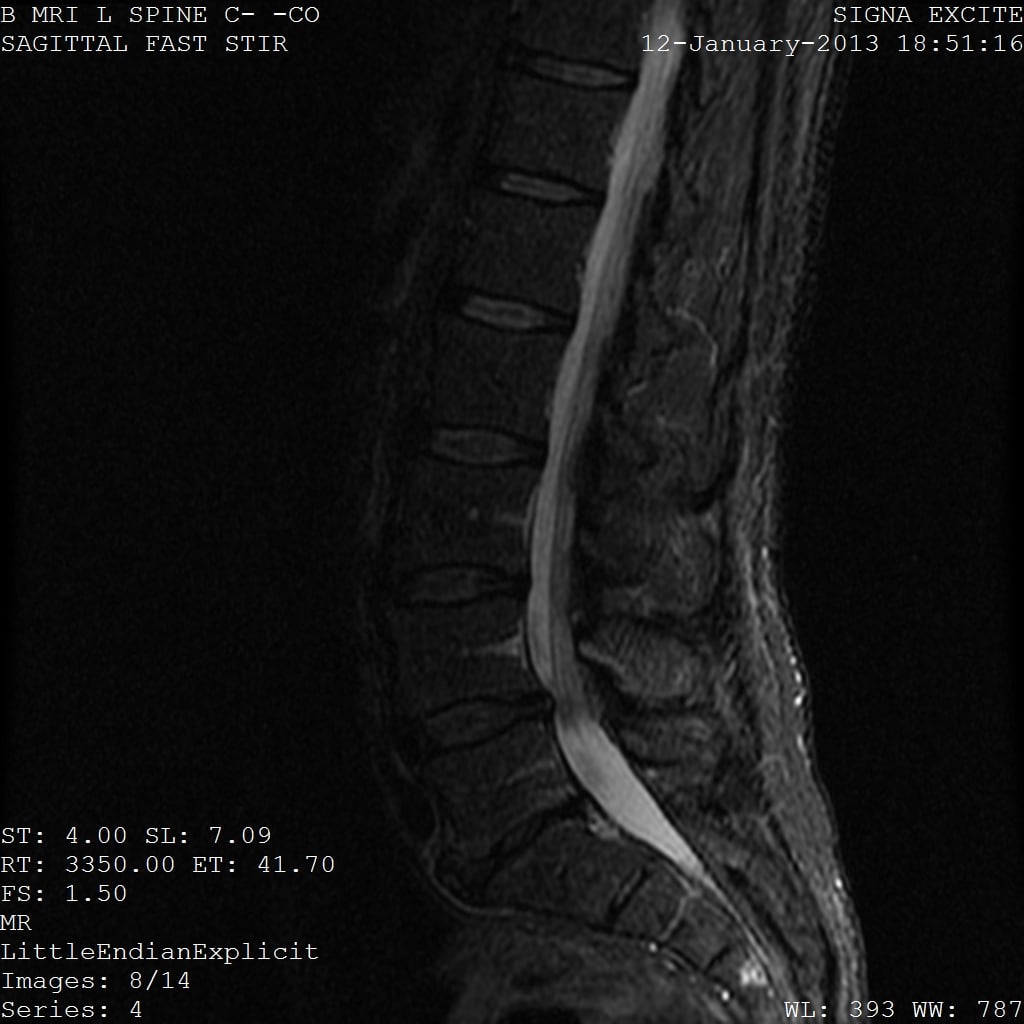

Imaging Examples
Differential Diagnosis
Back pain is a symptom with many causes. Differentiating "Mechanical" from "Non-Mechanical" is key.
1. Mechanical Back Pain
- Facet Joint Arthropathy: Worse with extension/rotation. Paramedian tenderness.
- Spondylolisthesis: Instability pain, "step-off" on exam.
- Lumbar Strain: Acute muscle injury, self-limiting.
- Sacroiliac Joint Dysfunction: Pain below L5, Fortin's finger test positive, Patrick's FABER test.
2. Non-Mechanical Assessment
- Tumour: Multiple Myeloma, Metastases (Breast, Lung, Prostate, Kidney, Thyroid). Night pain.
- Infection: Discitis/Osteomyelitis. Fever, unremitting pain. Modic I changes can mimic infection.
- Inflammatory: Axial spondyloarthritis / ankylosing spondylitis. Insidious onset before age 45, morning stiffness greater than 30 minutes, pain that improves with exercise and NOT with rest, night pain waking in the second half of the night, and a good response to NSAIDs. Do not use "young man" as the filter - axial spondyloarthritis is close to evenly distributed between the sexes, and the male stereotype is a documented cause of years of diagnostic delay in women.
3. Visceral Referral
- AAA: Pulsatile mass, cardiovascular risk factors.
- Renal: Kidney stones (colic), Pyelonephritis (fever/CVA tenderness).
- Pancreatitis: Penetrating back pain.

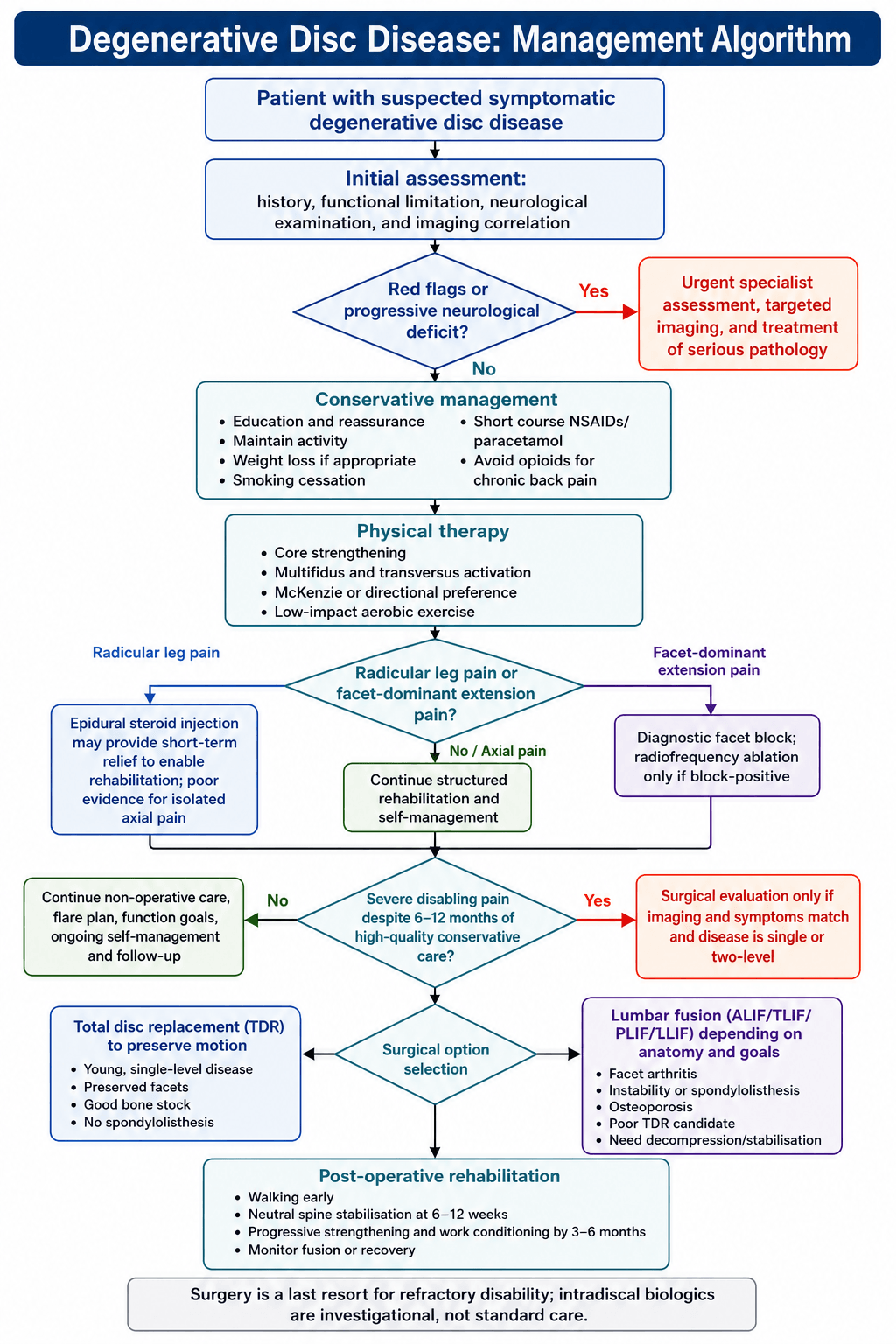

Management
Vertebrogenic Pain and Basivertebral Nerve Ablation
A distinct, increasingly recognised source of chronic axial low back pain is the vertebral endplate itself — vertebrogenic pain — which is mechanistically separate from discogenic pain even though the two overlap.

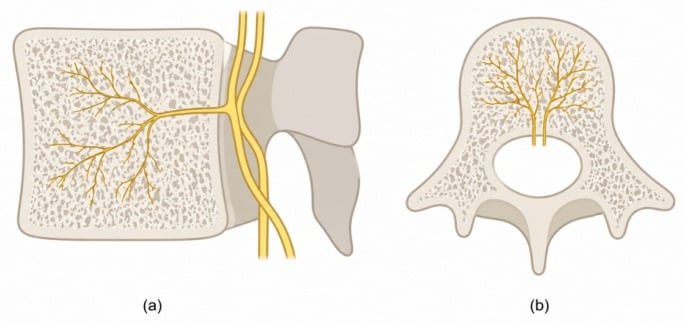

- The damaged endplate is innervated by the basivertebral nerve (BVN), a branch of the sinuvertebral nerve that enters the posterior vertebral body through the basivertebral foramen and ramifies centrally near the endplates.
- Endplate damage with Modic type I or type II changes is the imaging signature of vertebrogenic pain. The same signal change therefore carries two meanings: it marks which disc level is painful, and it marks the endplate itself as a pain generator in its own right.

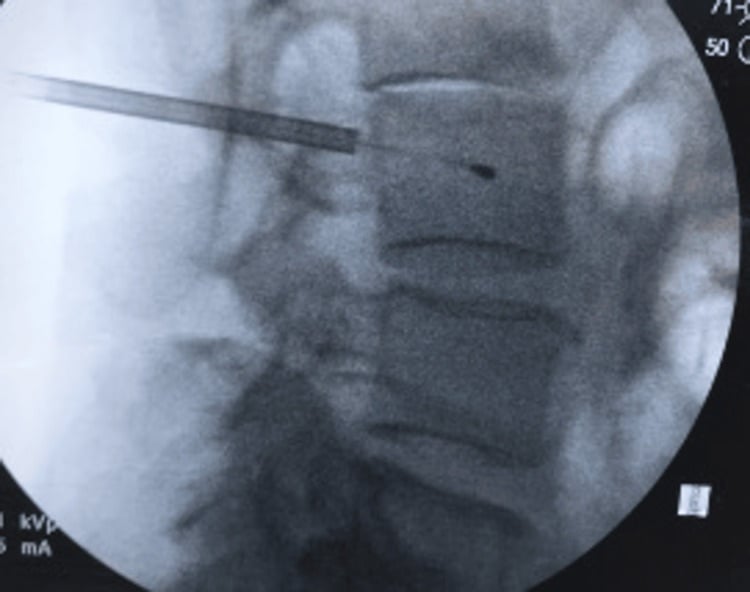

Basivertebral nerve ablation (BVNA, the Intracept procedure):

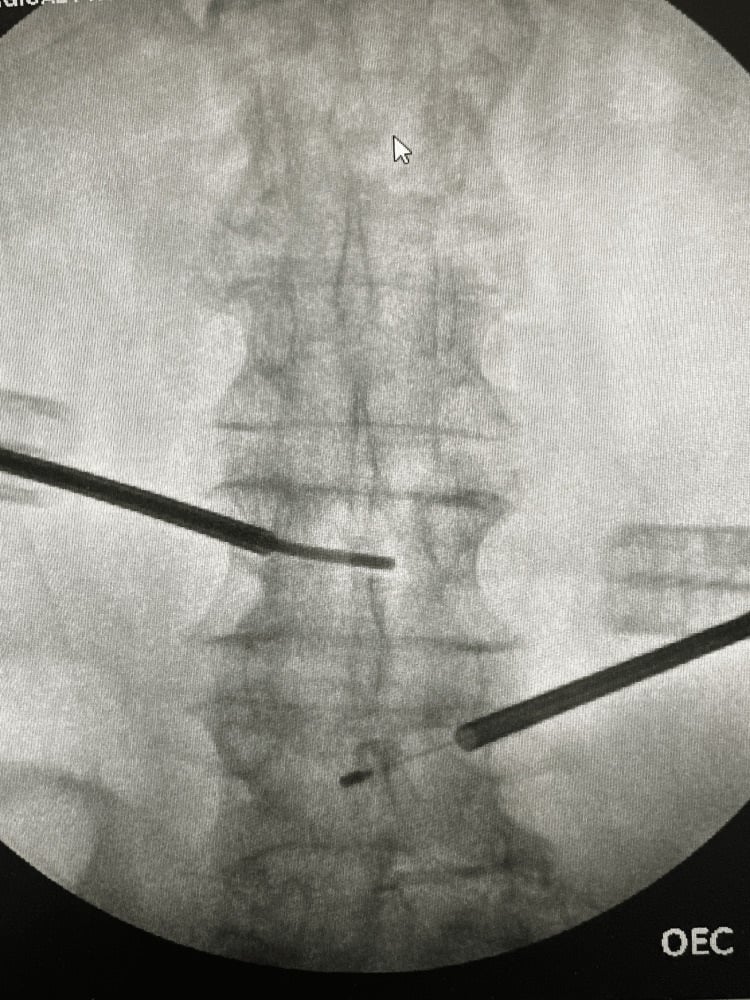

- A minimally invasive, transpedicular radiofrequency ablation of the BVN within the vertebral body, denervating the endplate.
- Typical candidates: chronic (greater than 6 months) axial low back pain, Modic type I or II changes at L3-S1, refractory to conservative care, without a dominant radicular or instability picture.
- A sham-controlled randomised trial (the SMART trial) and subsequent studies reported significant, durable improvements in disability and pain, and it now features in some chronic-low-back-pain pathways.
A second axial pain generator
Not all axial back pain is discogenic. Vertebrogenic pain arises from the endplate (signalled by Modic I/II change) and is carried by the basivertebral nerve. In selected refractory patients with Modic I/II at L3-S1, basivertebral nerve radiofrequency ablation (Intracept) — supported by a sham-controlled RCT — is a motion-preserving alternative to fusion.
Are Modic Changes an Infection? The Antibiotic Question
Patients arrive having read that back pain is caused by a low-grade disc infection with Cutibacterium acnes and curable with antibiotics. It is a fair question with a specific answer, and it turns on two trials that reached opposite conclusions.
The proposition. Anaerobic organisms, chiefly C. acnes, seed a disc through the neovascularisation that follows a herniation, and the resulting low-grade infection produces the endplate oedema seen as Modic type I change. If so, antibiotics should treat it.
Albert's 2013 trial supported it, dramatically. 162 patients with chronic back pain after a previous herniation and Modic I change, randomised to 100 days of amoxicillin-clavulanate or placebo. Disability (RMDQ) fell from 15 to 5.7 in the antibiotic arm and from 15 to 14 on placebo, with improvement continuing after treatment stopped and a suggestion of dose-response.
The AIM trial did not replicate it. 180 patients, six Norwegian hospitals, double-blind, three months of amoxicillin 750 mg three times daily versus placebo, with the minimal clinically important RMDQ difference predefined at 4 points. The observed difference at one year was -1.6 (95% CI -3.1 to 0.0) — statistically borderline and well below the predefined clinical threshold. In the type I subgroup it was -2.3, still short of 4; in type II it was -0.1. Meanwhile 56% of the antibiotic group had a drug-related adverse event versus 34% on placebo.
Where that leaves you. The larger, independent, prospectively powered trial that set its clinical threshold in advance did not find a clinically important benefit, and found more harm. Antibiotics are not indicated for chronic low back pain with Modic changes outside a trial. The exam-relevant discipline here is the difference between a statistically significant difference and a clinically important one — AIM's primary result had a P value of 0.04 and is still a negative trial, because the effect was smaller than the difference the investigators had declared in advance to be worth having.
P less than 0.05 is not the same as a benefit worth having
AIM reported a mean RMDQ difference of -1.6 with P=0.04 against a predefined minimal clinically important difference of 4. A candidate who quotes the P value and concludes that antibiotics work has misread the trial. Always ask what difference the investigators declared in advance to be clinically meaningful, and whether the confidence interval excludes it — here the entire interval, -3.1 to 0.0, sits below the threshold.
Spinopelvic Alignment and Sagittal Balance
Whenever a level is fused for DDD, restoring lordosis is as important as achieving union. Getting the union and losing the alignment is a technically successful operation that leaves the patient worse.

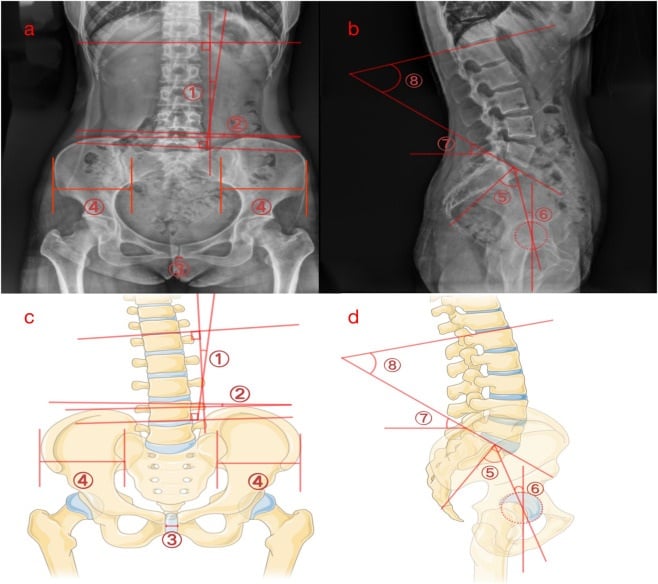

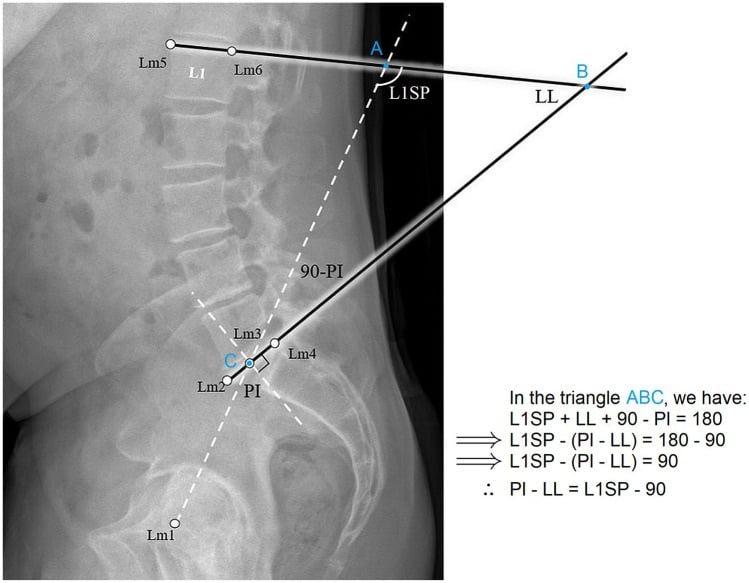

The key spinopelvic parameters
- Pelvic incidence (PI) — a fixed, morphological parameter, equal to pelvic tilt (PT) + sacral slope (SS). It sets how much lumbar lordosis a given pelvis "needs."
- Pelvic tilt (PT) and sacral slope (SS) — positional parameters that change as the pelvis rotates.
- Lumbar lordosis (LL) — should approximately match the pelvic incidence; the goal is a PI-LL mismatch of less than about 10 degrees.
Why it matters in DDD surgery
- Fusing a segment in insufficient lordosis (or a generalised flat lumbar spine) produces iatrogenic flatback and a PI-LL mismatch, which correlates strongly with pain and disability.
- The body compensates with pelvic retroversion (increased PT), hip extension and knee flexion to stay upright, which is energy-costly and unsustainable.
- Malalignment also increases shear and stress at adjacent levels, which accelerates adjacent segment disease.

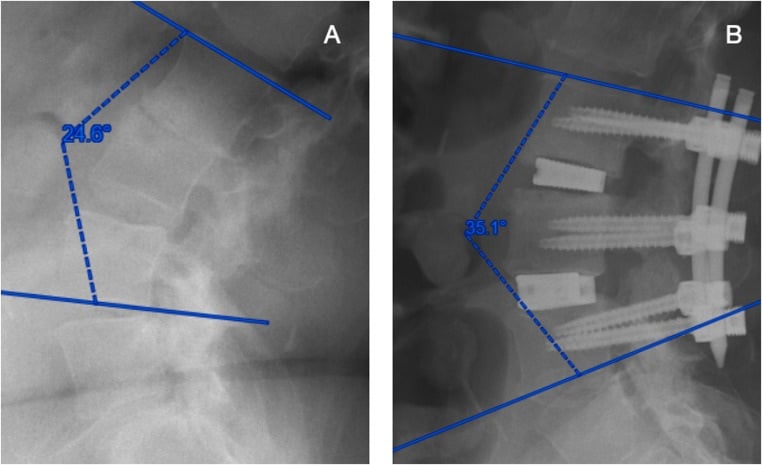

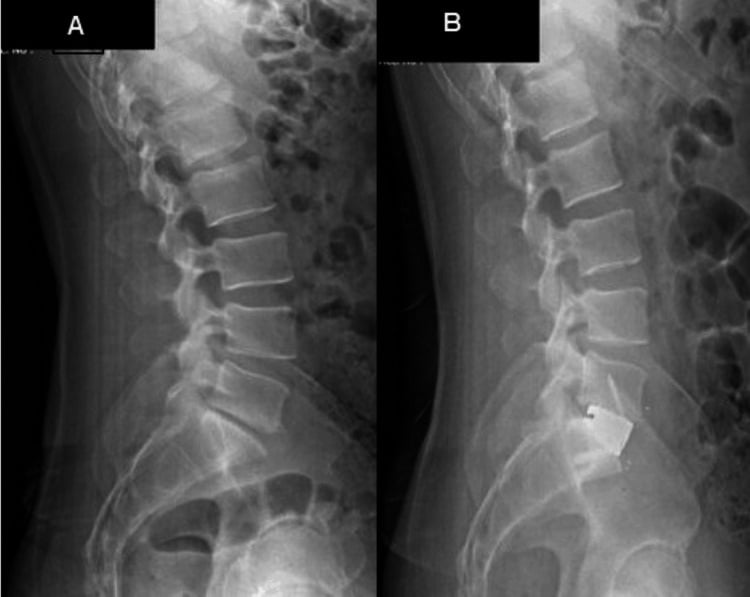

- This is why anterior-column techniques (ALIF/LLIF with lordotic cages) that restore segmental lordosis are favoured when alignment must be corrected, rather than posterior-only fusion in situ.
Match lordosis to the pelvis
PI = PT + SS, and lumbar lordosis should match the pelvic incidence (aim PI-LL mismatch under ~10°). Fusing in too little lordosis creates iatrogenic flatback, forces compensatory pelvic retroversion, and accelerates adjacent segment disease — so plan segmental lordosis, don't just "fuse the painful disc."
Complications
Surgical Complications
1. General Spinal Surgery risks:
- Infection (1-3%).
- Dural tear (CSF leak).
- Nerve root injury.
- DVT/PE.
2. Fusion Specific:

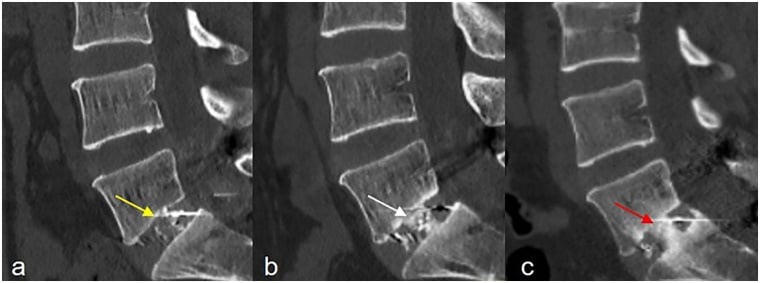

- Pseudarthrosis (Non-union): Failure of bone to fuse. Risk factors: Smoking, NSAIDs, Diabetes. Causes persistent pain leading to Revision.
- Adjacent Segment Disease (ASD): accelerated degeneration at the level above or below a fusion. Ghiselli's 215-patient series predicted symptomatic ASD requiring decompression or further fusion in 16.5% at 5 years and 36.1% at 10 years — about 2-3% per year, but quote the 10-year figure when counselling a young patient, because that is the one they will live to meet.
- Hardware Failure: Screw loosening, cage migration.
3. Arthroplasty Specific:

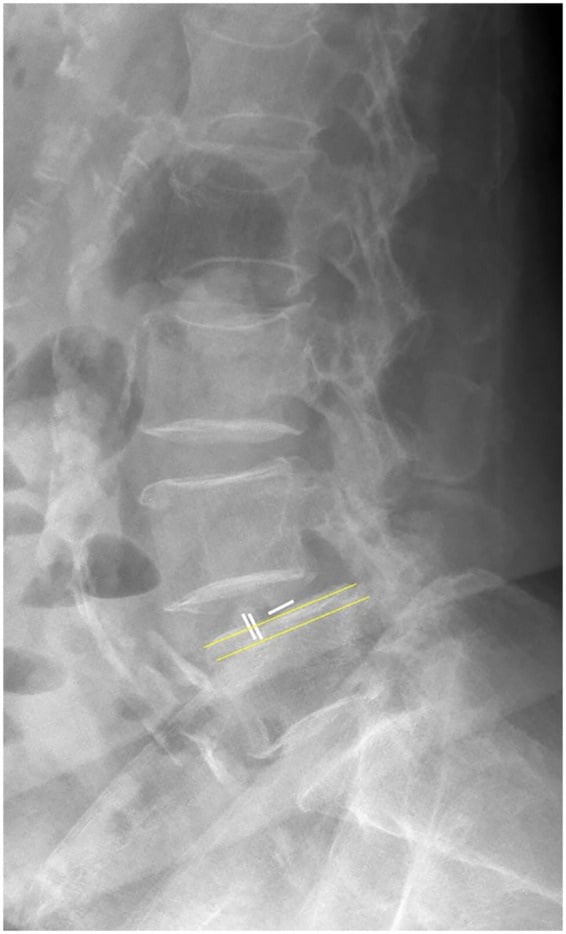

- Implant migration/subsidence.
- Heterotopic ossification (auto-fusion).
- Polyethylene wear debris (rare).
- Difficulty of revision (anterior approach scar tissue - "vascular disaster" risk on revision).

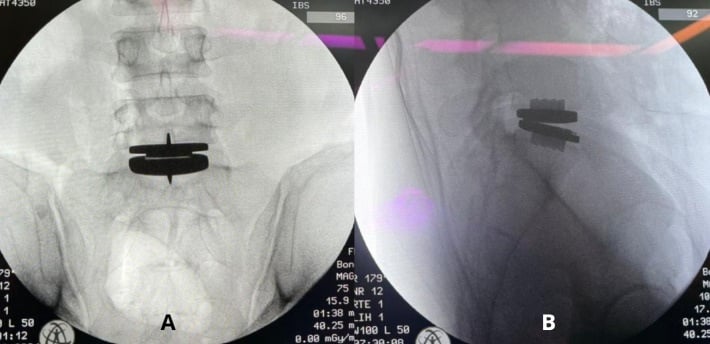

4. Anterior Approach Risks (ALIF/TDR):
- Vascular Injury: Iliac vein/artery (life-threatening).
- Retrograde Ejaculation: Injury to Superior Hypogastric Plexus (males). Rate 1-5%.
- Ureteral Injury: Rare.
Outcomes and Prognosis
- Natural History: favourable. Many patients settle as the segment stiffens into the stabilisation phase.
- Conservative Care: most people reach acceptable function without surgery, and this is where the great majority of the benefit in this condition is found.
- Fusion Results: use the trial numbers rather than a range — 63% much better or better at 2 years versus 29% non-operative, back pain reduced 33% versus 7%, net return to work 36% versus 13%, with a 17% early complication rate (Fritzell 2001). Improvement, not cure.
- Against structured rehabilitation rather than usual care, the advantage of fusion narrows to little or nothing — which is the comparison that matters when a modern multidisciplinary programme is available.
- Predictors of Poor Outcome:
- Psychosocial factors (Yellow flags, Workers Comp, Depression).
- Smoking.
- Obesity.
- Multi-level disease.
Guidelines, Registries & Global Practice
Global Epidemiology
- Low back pain is the single leading cause of years lived with disability worldwide (Global Burden of Disease).
- Disc degeneration on imaging rises with age (37% at 20 years to 96% at 80 years; Brinjikji 2015) and is largely asymptomatic - prevalence is similar across populations, so it is a global aging phenomenon rather than a regional disease.
- Genetics carries the strongest weight in heritability studies, outweighing occupational mechanical load.
Society Guidance (Side by Side)
NICE (UK)
- Position on Imaging
- Do not routinely offer imaging in non-specialist settings; reserve MRI for suspected serious pathology or when result changes management
- Position on Surgery for Axial DDD
- Do not offer spinal fusion for low back pain outside a randomised trial; emphasise exercise and combined physical/psychological programmes
NASS / AAOS (US)
- Position on Imaging
- MRI is the modality of choice when red flags or failed conservative care; degeneration alone is non-diagnostic
- Position on Surgery for Axial DDD
- Fusion reserved for carefully selected refractory single/two-level disease after failed structured non-operative care
EFORT / European consensus
- Position on Imaging
- Correlate imaging strictly with concordant symptoms; discography controversial
- Position on Surgery for Axial DDD
- Motion-preserving arthroplasty an option in young patients with intact facets and single-level disease
Consistent global message: at least 3-6 months (commonly up to 12) of structured non-operative care; never operate on imaging alone; document concordant clinical correlation before any fusion or arthroplasty.
Registry & Outcome Notes
- Spine procedures are tracked in national registries such as the British Spine Registry, Swespine (Sweden) and the Norwegian (NORspine) registry. Registry data consistently show smaller, more variable benefit for fusion in pure axial discogenic pain than for radiculopathy or deformity.
- Symptomatic adjacent segment disease requiring further surgery runs at roughly 2-3% per year, reaching 16.5% at 5 years and 36.1% at 10 years in long-term cohort follow-up (Ghiselli).
High- vs Limited-Resource Variation
- High-resource settings: ready MRI access (with attendant risk of over-imaging), multidisciplinary pain programmes, and access to arthroplasty implants.
- Limited-resource settings: emphasis on clinical diagnosis, exercise and analgesia; imaging and instrumented surgery rationed to red-flag or instability cases. Across all settings the core principle is unchanged: conservative-first, image only to change management, operate only on concordant refractory disease.
MCQ Practice Points
Discogenic Pain Localisation
Q: What MRI finding helps identify the symptomatic disc level in degenerative disc disease?
A: Modic Type I changes (bone marrow oedema appearing as T1 hypointense, T2 hyperintense) correlate most strongly with active inflammation and symptomatic disc degeneration. Type II (fatty replacement) and Type III (sclerosis) are less commonly associated with active symptoms.
Discography Role
Q: What is the role of provocative discography in degenerative disc disease?
A: Provocative discography identifies concordant pain (reproduction of typical symptoms) to localise the painful level before fusion. However, it has high false positive rates (up to 40% in asymptomatic individuals) and is controversial. Best used when imaging shows multi-level disease and clinical localisation is uncertain.
Fusion vs Non-Operative
Q: What does the evidence show for fusion surgery vs non-operative treatment in degenerative disc disease?
A: Evidence is mixed and the benefit is modest. The Swedish Lumbar Spine Study (Fritzell 2001) showed fusion reduced pain and disability more than unstructured non-operative care, but later RCTs comparing fusion with intensive structured/multidisciplinary rehabilitation found little or no clear advantage for fusion. (Note: the SPORT trials studied disc herniation, spinal stenosis and degenerative spondylolisthesis - not axial discogenic pain - so they do not address fusion for DDD.) Surgery is therefore reserved for patients with failed prolonged conservative treatment (greater than 6-12 months), confirmed single-level disease, and concordant clinical correlation.
Motion Preservation
Q: When is disc arthroplasty (artificial disc replacement) indicated over fusion?
A: Disc arthroplasty is indicated for single-level disease, intact facet joints, no significant instability, and younger patients (typically less than 60 years). Contraindications include: multi-level disease, facet arthropathy, instability, osteoporosis, or previous posterior surgery at that level.
Self-Assessment Quiz
At a Glance
Degenerative disc disease (DDD) is the ageing process of the intervertebral disc — proteoglycan loss, dehydration and annular tears — and becomes a disease only when it produces symptoms and disability. It presents as mechanical, flexion-aggravated axial back pain. MRI shows Modic changes (type I = oedema and the one linked to pain, type II = fatty, type III = sclerotic). The governing principle is that imaging must correlate with concordant clinical pain, because degeneration is near-universal with age. Conservative management for 6-12 months is first-line and is where almost all the benefit lies. Surgery — fusion or arthroplasty — is reserved for severe, disabling, concordant single-level or two-level disease after that has failed; it delivers partial improvement rather than cure, and discography is not a prerequisite for it.
Definition
- Key Information
- Ageing process of the disc with loss of hydration and structure; a disease only when symptomatic
Pain Pattern
- Key Information
- Axial, mechanical, flexion- and sitting-aggravated, eased by lying
Pathology
- Key Information
- Proteoglycan loss, dehydration, annular tears, nociceptive ingrowth
Key Sign
- Key Information
- Modic type I endplate change (oedema)
Imaging
- Key Information
- MRI is the modality of choice - high sensitivity, poor specificity, and abnormal in most asymptomatic adults
First Line
- Key Information
- Structured conservative care for 6-12 months, which is where most of the benefit lies
Surgical Indication
- Key Information
- Severe disabling concordant pain, single- or two-level disease, after failed structured non-operative care
Commonest Operation
- Key Information
- Interbody fusion (ALIF/TLIF) - the most-performed option, not a proven gold standard for axial pain
Alternative
- Key Information
- Disc arthroplasty in selected patients with intact facets
What NOT to do
- Key Information
- Do not operate on imaging alone, and do not require a positive discogram before offering surgery
Mnemonic
I-II-IIIModic Types
I
Inflammation
Edema: T1 Dark, T2 Bright (Water)
II
Fat
Fatty Marrow: T1 Bright, T2 Bright
III
Sclerosis
Bone Sclerosis: T1 Dark, T2 Dark
Hook:I=Inflammation, II=Fat (Two=Tu=Tub of lard), III=Scar (Sclerosis)
Mnemonic
DISKirkaldy-Willis Cascade
D
Dysfunction
Early tears, synovitis, minor herniation
I
Instability
Disc resorption, laxity, subluxation
S
Stabilization
Osteophytes, fibrosis, stiffening (less pain)
Hook:The disc goes DIS-functional
Mnemonic
SADDiscogenic Pain Flags
S
Sitting
Worse sitting - Nachemson measured lumbar intradiscal pressure rising from about 100% standing to 140% sitting, and higher again leaning forward
A
Axial
Central back pain, not legs
D
Deep
Deep, aching quality
Hook:Disc pain makes you SAD
Clinical Decision Scenarios
Practise clinical reasoning and management decisions out loud
Viva scenarioStandard
Chronic Low Back Pain assessment
Clinical prompt
“A 40-year-old labourer presents with 2 years of worsening mechanical back pain. MRI shows L5/S1 dark disc with Modic I changes. He wants a 'fusion' so he can return to heavy work.”
Viva scenarioStandard
Adjacent Segment Disease
Clinical prompt
“A 65-year-old female had an L4/5 fusion 10 years ago. She presents with recurrence of back pain and new L3 radiculopathy (pain radiating to anterior thigh/knee).”
Exam day cheat sheet
DEGENERATIVE DISC DISEASE
Pathology Facts
- Water Loss: Proteoglycan/Aggrecan loss leads to dehydration
- Collagen: Type II (nucleus) replaced by Type I (fibrosis)
- Kirkaldy-Willis: Dysfunction to Instability to Stabilization
Imaging & Signs
- Modic I: Edema (T1 Dark, T2 Bright) - Painful
- Modic II: Fat (Bright/Bright) - Stable
- Pfirrmann: MRI Grading I-V of disc height/signal
- HIZ: High Intensity Zone - Posterior annular tear
Management Rules
- First line: structured conservative care for 6-12 months - where most of the benefit lies
- Never operate on imaging alone - 37% of asymptomatic 20-year-olds and 96% of 80-year-olds have degeneration
- Commonest operation: interbody fusion (ALIF/TLIF) for concordant single-level refractory pain
- Alternative: disc arthroplasty in the young patient with intact facets
- Outcome: 63% much better or better at 2 years versus 29% non-operative (Fritzell). Improvement, not cure
- NICE advises against fusion for axial low back pain outside a randomised trial
- Discography is not required before surgery and accelerates degeneration in the discs it punctures
Evidence Base
Evidence
Swedish Lumbar Spine Study (2001 Volvo Award)
Fritzell P, Hagg O, Wessberg P, Nordwall A • Spine (2001)
Key Findings:
- RCT of 294 patients with severe chronic LBP and L4-S1 disc degeneration: fusion vs non-surgical care
- Back pain reduced 33% with fusion vs 7% non-surgical at 2 years (P=0.0002)
- 63% of surgical patients rated 'much better/better' vs 29% non-surgical (P less than 0.0001)
- Net back-to-work rate favoured surgery (36% vs 13%); early surgical complication rate 17%
Clinical implication: Fusion can outperform non-surgical care for severe refractory DDD, but improvement is partial and patient selection is critical.
Limitation: The most-cited fusion trial, and the most-overstated. The benefit is real but modest in absolute terms - 33% versus 7% pain reduction still leaves the average fused patient with substantial pain, and 17% had an early complication. The non-surgical arm received unstandardised 'usual care', so the trial compares fusion against a weak control rather than against structured rehabilitation, which the later cognitive-therapy trials suggested can narrow the gap. There was no blinding and the outcome is patient-rated, so expectation effects favour surgery. Long-term follow-up of this cohort showed the early advantage attenuates, which is the part to quote, not the two-year peak.
Evidence
ProDisc-L FDA IDE Trial
Zigler J, Delamarter R, Spivak JM, et al • Spine (2007)
Key Findings:
- RCT of 286 patients: ProDisc-L total disc replacement vs circumferential fusion for 1-level DDD (L3-S1)
- At 24 months ODI improvement in 91.8% of TDR vs 84.5% of fusion patients
- Neurological success and patient satisfaction superior in TDR group (P=0.034, P=0.015)
- Functional range of motion maintained in 93.7% of TDR patients (mean 7.7 degrees)
Clinical implication: In well-selected single-level disease with preserved facets, disc arthroplasty is a viable motion-preserving alternative to fusion.
Limitation: An industry-sponsored FDA IDE trial with a non-inferiority design, so the honest reading is 'not worse than fusion in this selected population', not 'better' - the superiority signals on secondary outcomes are not the primary endpoint and should not be quoted as such. The inclusion criteria excluded exactly the patients most likely to be offered surgery (facet arthrosis, instability, multi-level disease, osteoporosis), so the results apply to a narrow ideal candidate and do not transfer to the typical DDD patient. Two-year follow-up is short for a motion-preserving implant whose long-term failure mode - wear, subsidence, facet overload - declares later.
Evidence
MRI Degeneration in Asymptomatic Individuals
Brinjikji W, Luetmer PH, Comstock B, et al • AJNR Am J Neuroradiol (2015)
Key Findings:
- Systematic review of 33 studies, 3110 asymptomatic individuals
- Disc degeneration prevalence rose from 37% at age 20 to 96% at age 80
- Disc bulge prevalence rose from 30% at age 20 to 84% at age 80
- Degenerative imaging features are largely part of normal aging
Clinical implication: Do not operate on MRI findings alone - imaging must be interpreted against the clinical picture.
Limitation: The number every spine surgeon should know, with one caution: these are PREVALENCE figures in asymptomatic people, so they tell you degeneration is common with age, not that it is harmless in a patient with concordant symptoms - the same data are sometimes misused to dismiss genuine symptomatic disease. The age-specific estimates are modelled across 33 heterogeneous studies with different imaging protocols and reader criteria, so the point estimate for any single finding and decade carries uncertainty. What is robust is the direction and the steep age gradient, and that is the part to teach from.
Evidence
Modic Endplate Changes Classification
Modic MT, Steinberg PM, Ross JS, et al • Radiology (1988)
Key Findings:
- Defined Type I (T1 dark/T2 bright, edema-fibrovascular) and Type II (T1 bright, fatty marrow) endplate changes
- All endplate changes associated with degenerative disc disease at that level
- Type I converted to Type II over 14 months to 3 years in 5 of 6 patients followed
- Type II changes remained stable over 2-3 years
Clinical implication: Modic Type I (active edema) helps localise the symptomatic level; Type II reflects more stable chronic change.
Limitation: The 1988 descriptive series that DEFINED the types, so it is the source of the classification, not a validation of it - the conversion of Type I to Type II rests on just six patients followed serially, and five of six converting is a proportion with a confidence interval too wide to quote. The classification was made before the clinical-correlation literature existed, so the card's clinicalImplication about localising the symptomatic level is later interpretation, not something Modic measured. A Type III (sclerotic) category was added subsequently and is not in this paper. Treat the MRI-sign descriptions as the durable content and the natural-history numbers as preliminary.
Evidence
Kirkaldy-Willis Degenerative Cascade
Kirkaldy-Willis WH, Farfan HF • Clin Orthop Relat Res (1982)
Key Findings:
- Described the three-phase model of segmental spinal degeneration
- Dysfunction phase: annular tears, facet synovitis, minor instability
- Instability phase: disc resorption, height loss, capsular laxity and abnormal motion
- Stabilization phase: osteophytosis and fibrosis reduce motion and often reduce axial pain
Clinical implication: Frames why axial pain may settle over decades as the segment restabilises, while stenosis symptoms emerge.
Limitation: A conceptual model from clinical observation, not a study - there are no patients, no data and no quantitative testing behind it. Its authority is that it organises the natural history coherently and has been repeatedly corroborated by imaging and outcome studies since. Do not cite it as evidence; cite it as the framework. The phases are descriptive, not sharply bounded, and an individual patient does not move through them on a predictable timetable.
Evidence
Discography Accelerates the Degeneration It Measures (2009 ISSLS Prize)
Carragee EJ, Don AS, Hurwitz EL, et al • Spine (2009)
Key Findings:
- 10-year matched cohort: 50 subjects who underwent L3/4, L4/5 and L5/S1 discography in 1997 versus 52 matched controls, all re-imaged with a blinded protocol MRI
- Progression of disc degeneration in 54 discs (35%) after discography versus 21 (14%) in controls (P=0.03)
- 55 new disc herniations versus 22 in controls (P=0.0003), disproportionately on the side of the annular puncture (P=0.0006)
- Greater loss of disc height (P=0.05) and signal intensity (P=0.001), using modern small-gauge low-pressure technique
Clinical implication: Discography injures the discs it examines, so it is not a routine prerequisite to fusion and its risk must be discussed before it is offered.
Limitation: Prospective and matched with blinded MRI grading, which is as strong as this question can be answered, but the effect was demonstrated with the THREE-LEVEL discography these volunteers received - whether a single-level modern diagnostic puncture carries a proportionate risk is extrapolation, not something this study measured. The volunteers were without serious low-back-pain illness at baseline, so the harm shown here is in asymptomatic discs, and it does not follow that a disc already painful enough to consider fusing has the same margin to lose. Carragee's position on discography was well known before this paper; the blinding protects the measurement but not the framing.
Evidence
Adjacent Segment Disease After Lumbar Fusion - Long-Term Survivorship
Ghiselli G, Wang JC, Bhatia NN, Hsu WK, Dawson EG • J Bone Joint Surg Am (2004)
Key Findings:
- 215 posterior lumbar arthrodeses, mean follow-up 6.7 years, with adjacent-level surgery as the endpoint
- 59 patients (27.4%) developed adjacent-level degeneration and underwent further decompression (15) or arthrodesis (44)
- Kaplan-Meier predicted symptomatic adjacent segment disease in 16.5% at 5 years and 36.1% at 10 years
- No correlation with length of fusion or with the preoperative arthritic grade of the adjacent segment
Clinical implication: Gives the number to counsel a young patient with - roughly one in three will need further surgery at an adjacent level within a decade.
Limitation: Retrospective, single-unit, and the endpoint is adjacent-level SURGERY, not adjacent-level degeneration - the two are not interchangeable, because the decision to operate again reflects the surgeon's threshold as much as the radiograph. A 36% ten-year reoperation rate is a ceiling on what radiographic degeneration means clinically; the imaging-change rate would be higher. The counterfactual it cannot answer is the important one: how much of this is the fusion and how much is the natural history of a spine already degenerate enough to need one - there is no non-operated comparator, so the study measures an association, not that fusion caused it.
Evidence
Antibiotics for Modic Changes - the AIM Trial
Braten LCH, Rolfsen MP, Espeland A, et al • BMJ (2019)
Key Findings:
- 180 patients with chronic low back pain, previous disc herniation and type 1 (n=118) or type 2 (n=62) Modic changes, randomised to 3 months of amoxicillin 750 mg three times daily or placebo across six Norwegian hospitals
- Minimal clinically important between-group RMDQ difference predefined as 4 points
- Observed difference at 1 year was only -1.6 (95% CI -3.1 to 0.0, P=0.04); -2.3 in the type 1 subgroup and -0.1 in type 2
- Drug-related adverse events in 50 patients (56%) on amoxicillin versus 31 (34%) on placebo
Clinical implication: Does not support antibiotics for chronic low back pain with Modic changes - a statistically borderline result far below the predefined clinical threshold, with more harm.
Limitation: The one limitation that matters: the observed effect did not reach the trial's OWN predefined threshold for clinical importance (4 RMDQ points). The borderline p=0.04 is for a -1.6 point difference, and even the type 1 subgroup's -2.3 falls short - so a positive p-value must not be read as a positive trial. The drug was amoxicillin, not the amoxicillin-clavulanate used in the earlier proof-of-concept study, so this trial does not directly refute that agent. Selection was by a previous disc herniation with Modic change at that level, a specific phenotype; the result does not generalise to all chronic low back pain. And 56% of the antibiotic arm had a drug-related adverse event, so the risk side of the ledger was real.
References
- Fritzell P, Hagg O, Wessberg P, Nordwall A. 2001 Volvo Award Winner in Clinical Studies: Lumbar fusion versus nonsurgical treatment for chronic low back pain: a multicenter randomized controlled trial from the Swedish Lumbar Spine Study Group. Spine. 2001;26:2521-2532.
- Brinjikji W, Luetmer PH, Comstock B, et al. Systematic literature review of imaging features of spinal degeneration in asymptomatic populations. AJNR Am J Neuroradiol. 2015;36(4):811-6.
- Modic MT, Steinberg PM, Ross JS, et al. Degenerative disk disease: assessment of changes in vertebral body marrow with MR imaging. Radiology. 1988;166:193-199.
- Kirkaldy-Willis WH, Farfan HF. Instability of the lumbar spine. Clin Orthop Relat Res. 1982;(165):110-23.
- Zigler J, Delamarter R, Spivak JM, et al. Results of the prospective, randomized, multicenter Food and Drug Administration investigational device exemption study of the ProDisc-L total disc replacement versus circumferential fusion for the treatment of 1-level degenerative disc disease. Spine. 2007;32:1155-1162.
