The extensor digitorum longus (EDL) is a pennate muscle in the anterior compartment of the leg, innervated by the deep peroneal nerve (L5, S1). It originates from the lateral tibial condyle, anterior fibular surface, and interosseous membrane, then splits into four tendons inserting on the middle and distal phalanges of the lateral four toes via the extensor expansion. Key clinical relevance includes its role in anterior compartment syndrome (fasciotomy must release all fascial attachments) and as a potential tendon transfer donor for foot drop reconstruction.

Muscle Characteristics

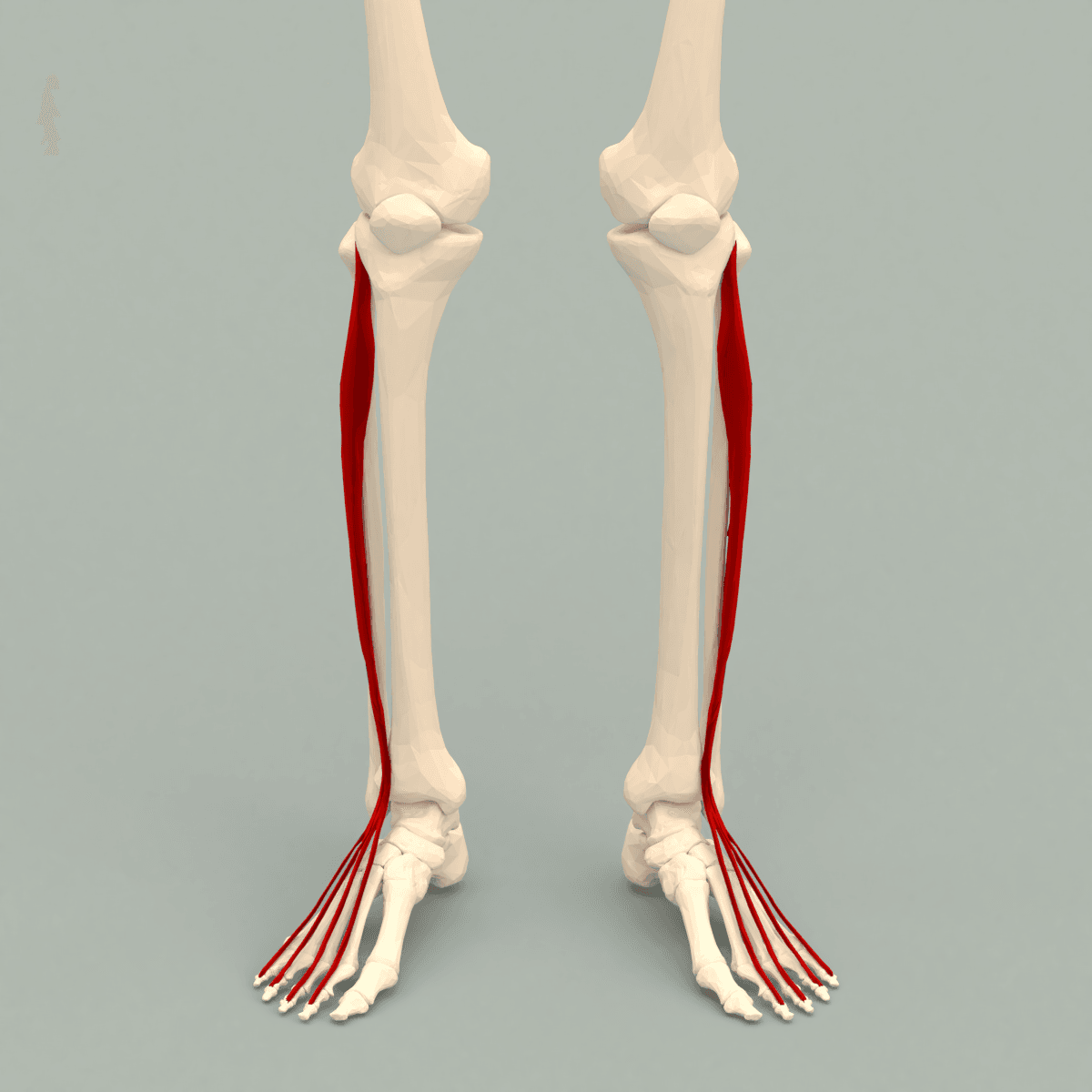

The extensor digitorum longus (EDL) is a pennate muscle located in the anterior compartment of the leg. It is the primary extensor of the lateral four toes and contributes to ankle dorsiflexion and foot eversion.

Click to expand

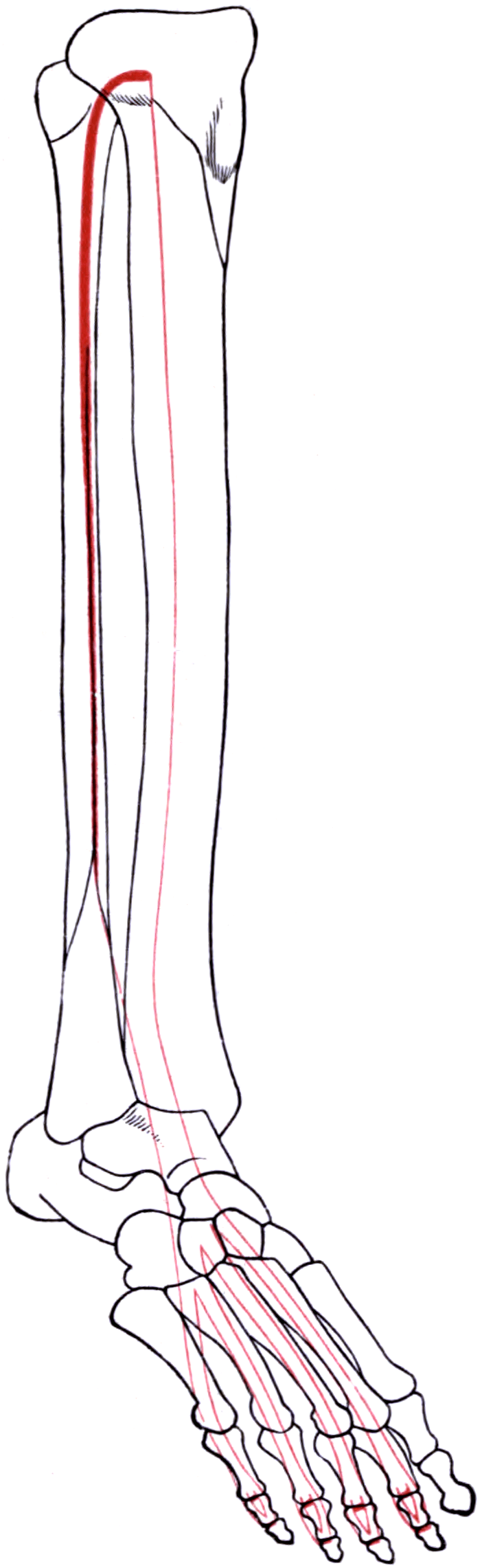

The EDL originates from a broad area including the lateral tibial condyle, anterior surface of the fibula, and interosseous membrane. It forms a central muscle belly that tapers distally, transitioning to four individual tendons in the distal third of the leg. These tendons pass deep to the superior and inferior extensor retinacula at the ankle.

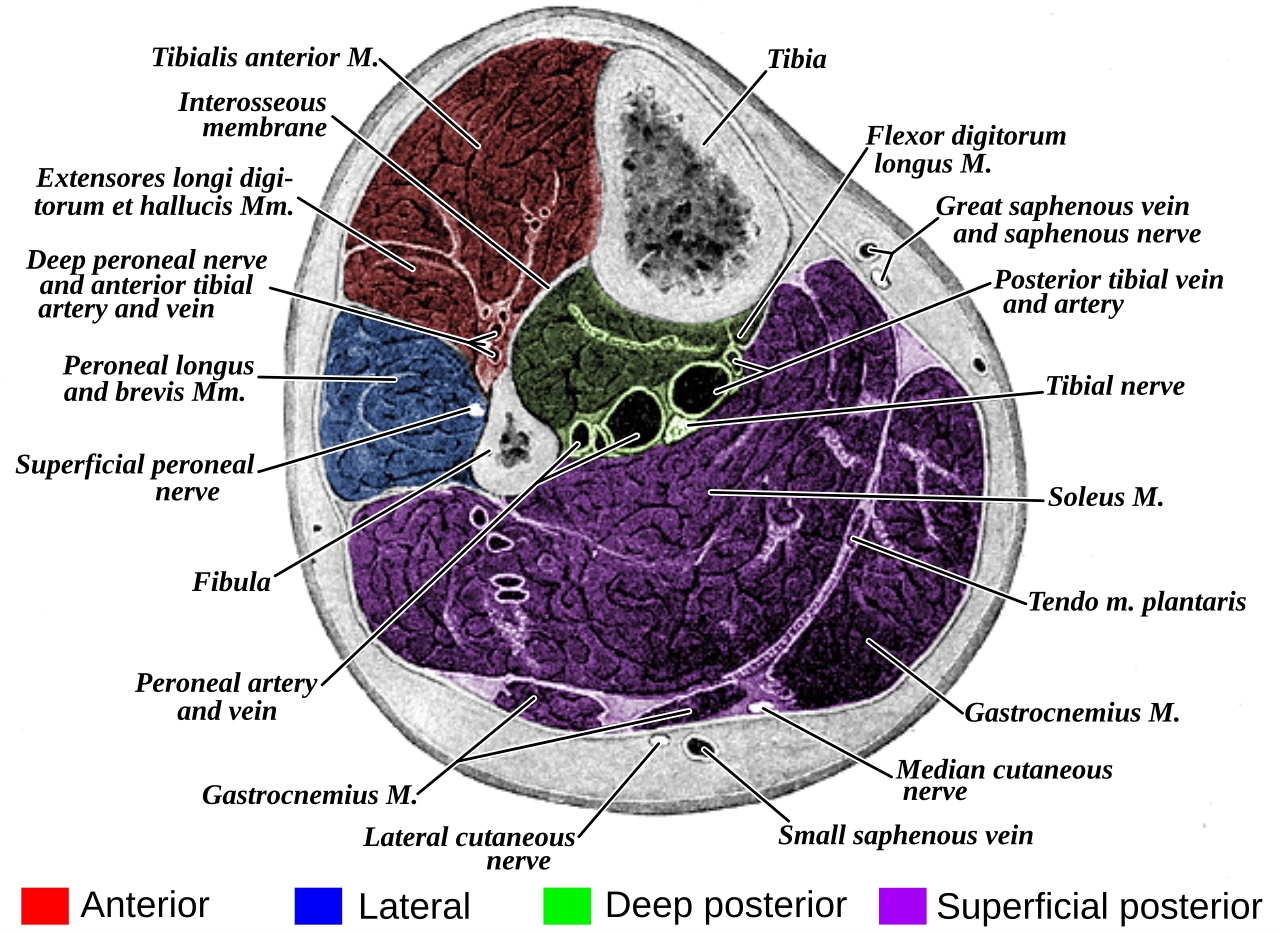

The muscle lies lateral to tibialis anterior and medial to peroneus tertius (when present). Posteriorly, it is bounded by the interosseous membrane separating it from the deep posterior compartment.

Origin

Muscle Belly and Architecture

The EDL demonstrates pennate muscle architecture with fibers inserting obliquely onto a central tendon. This architecture maximizes force production while maintaining adequate excursion for the large range of motion required at the toe joints.

Insertion and Tendon Structure

The muscle transitions to tendon in the distal third of the leg, typically 8-12 cm proximal to the ankle joint. The single tendon then divides into four slips, with division occurring at variable levels:

Division Pattern:

• Most common: Division at ankle level (60%)
• Early division: Distal leg (25%)
• Late division: Dorsal foot (15%)

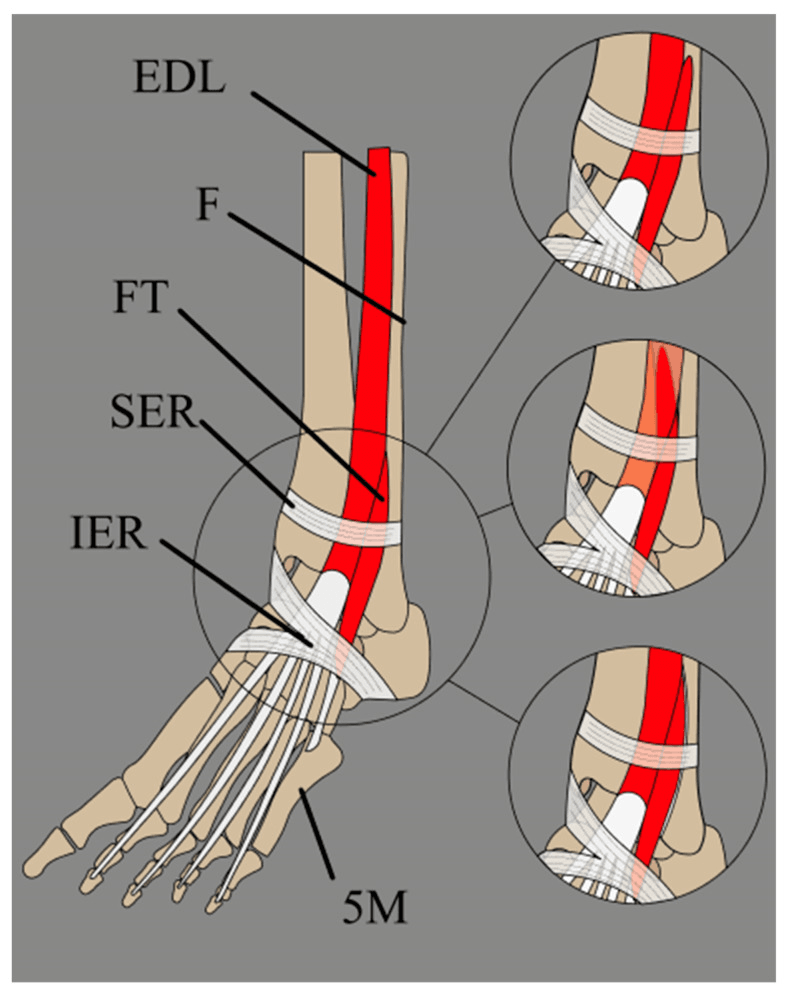

Each tendon passes through a separate compartment under the inferior extensor retinaculum. The tendons diverge over the dorsum of the foot toward their respective toes (2nd through 5th).

At the metatarsophalangeal joints, each tendon broadens to form the extensor expansion (dorsal hood), which provides insertion points for intrinsic muscles and creates a complex mechanism for toe extension.

Innervation

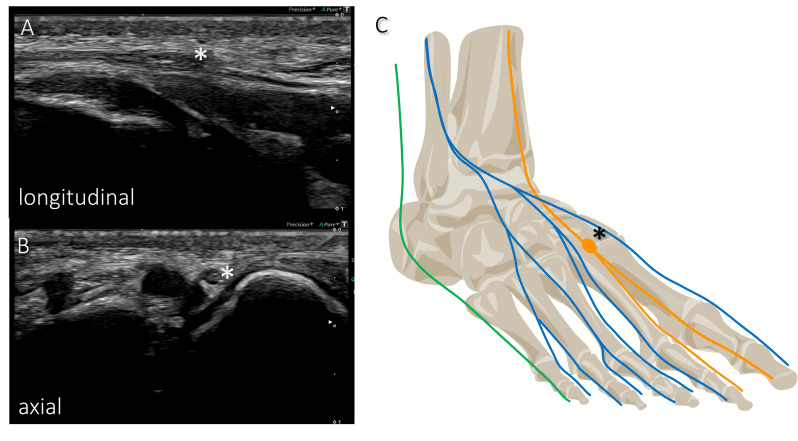

The EDL is innervated by the deep peroneal nerve (deep fibular nerve), a terminal branch of the common peroneal nerve:

Nerve Origin:

• Common peroneal nerve divides at fibular neck
• Deep peroneal nerve passes through anterior compartment
• Typically L5, S1 nerve roots (some contribution from L4)

Entry Point:

• Nerve enters EDL from posterior aspect
• Multiple motor branches in proximal third
• Average 3-4 motor entry points per muscle

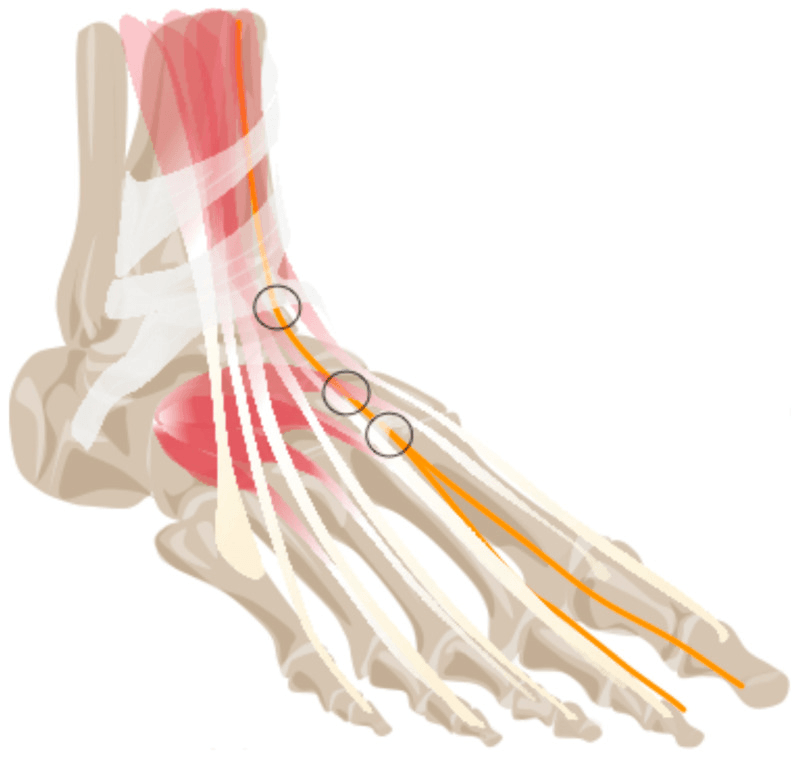

Course: The deep peroneal nerve descends between EDL and tibialis anterior, accompanying the anterior tibial artery. As it progresses distally, it provides sequential branches to EDL, EHL, tibialis anterior, and peroneus tertius.

Primary Actions

The EDL plays a crucial role during the gait cycle:

Swing Phase:

• Prevents toe drag during limb advancement
• Coordinates with tibialis anterior for foot clearance
• Activates maximally at mid-swing (60-75% of swing)
• Maintains toe extension throughout swing

Heel Strike:

• Eccentric contraction controls foot descent
• Prevents foot slap after heel contact
• Works with TA to decelerate plantar flexion
• Activity decreases rapidly after loading response

Stance Phase:

• Minimal activity during mid-stance
• Some activation during terminal stance (pre-swing preparation)
• Positions toes for push-off

Loss of EDL function results in toe drag during swing phase, manifested as a steppage gait or frequent toe stubbing. This is particularly noticeable when combined with tibialis anterior weakness in deep peroneal nerve palsy.

Anterior Compartment Syndrome

The EDL is the largest volume muscle in the anterior compartment (after tibialis anterior), making it a key structure in compartment syndrome:

Pathophysiology:

• Muscle swelling increases intracompartmental pressure
• Venous outflow obstruction occurs first (30 mmHg)
• Arterial inflow compromise at higher pressures (40-50 mmHg)
• Irreversible muscle damage begins at 6-8 hours

Clinical Presentation:

• Pain out of proportion (hallmark finding)
• Pain with passive toe plantarflexion (stretches EDL)
• Weakness of toe extension (late finding)
• Tense, swollen anterior compartment

Diagnosis:

• Clinical diagnosis primarily
• Compartment pressure monitoring if uncertain
• Delta P (diastolic BP - compartment pressure) less than 30 mmHg is indication for fasciotomy
• Continuous monitoring for at-risk patients

The EDL is the first muscle to show necrosis in untreated anterior compartment syndrome due to its central location and large volume.

Common Variations

Developmental Anatomy

The EDL develops from the dorsal muscle mass of the embryonic limb bud:

Timeline:

• Week 5: Limb bud appears
• Week 6: Dorsal muscle mass forms
• Week 7: EDL differentiates from common extensor mass
• Week 8: Individual tendons form
• Week 12: Mature muscle architecture established

Clinical Correlations: Developmental abnormalities can affect EDL:

• Absence of EDL (extremely rare, reported in less than 0.1%)
• Congenital tendon absence (more common, 0.5-1%)
• Associated with fibular hemimelia or tibial hemimelia
• Usually presents with toe extension weakness noted in childhood

Understanding the developmental origin explains the common variations seen in clinical practice, as the separation of EDL from EHL and peroneus tertius occurs late in development and is subject to individual variation.

Tendon Disorders

Inspection and Palpation

The EDL can be visualized and palpated during clinical examination:

Click to expand

Visible Landmarks:

• Muscle belly palpable in proximal-middle leg (lateral to tibial crest)
• Tendons visible on foot dorsum with active toe extension
• Most prominent with resisted extension
• Tendons stand out in thin individuals

Palpation Technique:

1. Patient seated with knee flexed 90°
2. Palpate muscle belly in anterior compartment (lateral half)
3. Follow tendon distally to ankle
4. Palpate four tendons over metatarsals
5. Feel for continuity, tenderness, masses

Abnormal Findings:

• Swelling (tendonitis, compartment syndrome)
• Tenderness (inflammatory conditions, overuse)
• Gaps (tendon rupture)
• Masses (ganglion, tumor)
• Bowstringing (retinacular insufficiency)

Systematic palpation is essential for diagnosing EDL pathology and should be compared to the contralateral side for subtle findings.

EDL testing is essential in deep peroneal nerve assessment:

Complete Deep Peroneal Palsy:

• Loss of ankle dorsiflexion (TA)
• Loss of great toe extension (EHL)
• Loss of lesser toe extension (EDL)
• Sensory loss to first web space
• Foot drop gait pattern

Partial Deep Peroneal Palsy:

• Selective muscle involvement possible
• Depends on level and nature of injury
• EDL often affected with TA
• Prognosis varies by injury type

Electrodiagnostic Studies:

• EMG shows denervation potentials (fibrillations, positive sharp waves)
• Reduced recruitment on volitional testing
• Nerve conduction studies confirm level
• Useful for prognosis and surgical planning

Recovery from deep peroneal nerve injury is variable and depends on the mechanism (traction, laceration, compression) and severity (neurapraxia, axonotmesis, neurotmesis). EDL recovery typically parallels TA recovery as they share innervation.

Practice in Australia

Anterior compartment syndrome is recognised as a time-critical orthopaedic emergency throughout Australia's trauma system. Fasciotomy for compartment syndrome can be performed at any hospital with adequate surgical facilities, but complex reconstructive procedures such as tendon transfers for posterior tibial tendon dysfunction are typically referred to tertiary centres with subspecialty foot and ankle surgeons.

The Australian Orthopaedic Association (AOA) training program includes compartment syndrome recognition and fasciotomy as core competencies for all orthopaedic trainees. Access to emergency fasciotomy is available across metropolitan and regional centres, with rural and remote areas requiring careful consideration of transfer times and threshold for intervention.

Tendon transfer procedures for conditions such as drop foot or PTTD are generally performed by surgeons with subspecialty interest in foot and ankle surgery. These procedures may be performed in public hospital settings with appropriate surgical teams or in private practice. Rehabilitation following these procedures typically involves multidisciplinary care including physiotherapy and orthotics services.

The extensor digitorum longus is a critical muscle of the anterior compartment with essential roles in toe extension and gait mechanics. Understanding its detailed anatomy - including origin from the lateral tibial condyle and anterior fibula, insertion via the extensor expansion, and neurovascular supply from the deep peroneal nerve and anterior tibial artery - is fundamental for orthopaedic practice.

Key clinical applications include recognition and treatment of anterior compartment syndrome, where EDL is the largest muscle volume and pain with passive toe plantarflexion is the most sensitive test. Surgical anatomy is essential for the anterolateral approach to the tibia, fasciotomy technique, and tendon transfer procedures for posterior tibial tendon dysfunction.

Common variations such as accessory slips to the hallux and juncturae tendinae affect clinical examination and must be considered when testing isolated EDL function. The muscle's relatively minor individual contribution to function means that isolated EDL loss is well-compensated, but its role in compartment syndrome and as a donor for tendon transfers makes it clinically significant.

For exam preparation, focus on the anatomical relationships in the anterior compartment, clinical diagnosis of compartment syndrome, fasciotomy technique, and tendon transfer applications. Understanding the biomechanics and functional anatomy allows for comprehensive management of pathology affecting this important structure.
