PMMA Bone Cement
PMMA BONE CEMENT
Polymethylmethacrylate Properties and Handling
Cement Variants
Critical Must-Knows
- Definition: Polymethylmethacrylate (PMMA) is an acrylic grout (not a true adhesive) used to fill the space between a prosthesis and bone, providing fixation via mechanical interlock
- Mechanism: Exothermic Polymerisation reaction between a Liquid Monomer and a Powder Polymer initiated by mixing
- Management: 4 Stages of Curing: Mixing → Sticky → Doughy (Working time) → Hard
Examiner's Pearls
- "Properties: Weak in Tension (20-30 MPa), Strong in Compression (70-100 MPa)
- "Young's Modulus: ~2-3 GPa (Between cortical and cancellous bone)
- "Failures occur due to: Aseptic Loosening (cement mantle fracture), Infection, or Bone Cement Implantation Syndrome (BCIS) intra-operatively
Exam Warning
PMMA is a GROUT, not a glue. It works by Mechanical Interlock into the pores of the bone (interdigitation). It does not chemically bond to bone. The reaction is Exothermic (releases heat ~80-100°C), which can cause thermal necrosis of bone. The Monomer (Liquid) is toxic and causes hypotension (BCIS) if it enters the bloodstream.
Composition
Components
Liquid (Monomer):
- Methylmethacrylate (MMA): The building block. Strong smell.
- DMPT: Accelerator (starts reaction when mixed with powder).
- Hydroquinone: Stabiliser (prevents premature polymerisation in storage).
Powder (Polymer):
- PMMA Beads: Pre-polymerised beads.
- Benzoyl Peroxide: Initiator.
- Zirconium Dioxide / Barium Sulphate: Radiopacifier (makes it white on X-ray).
- Antibiotics: (e.g., Gentamicin) - Optional.
At a Glance
PMMA (polymethylmethacrylate) is an acrylic grout—not adhesive—that provides prosthetic fixation through mechanical interlock into trabecular bone. It forms via exothermic polymerization (80-100°C) between liquid monomer (MMA + DMPT accelerator) and powder polymer (PMMA beads + benzoyl peroxide initiator), progressing through Mixing-Sticky-Doughy-Hard phases. Properties include high compression strength (70-100 MPa) but weak tensile strength. Vacuum mixing reduces porosity and improves fatigue life, while pressurization enhances bone interdigitation. Bone Cement Implantation Syndrome (BCIS) causes hypotension, hypoxia, and potential cardiac arrest from marrow/monomer embolization during femoral pressurization—risk factors include ASA III/IV patients and long stems.
M-S-D-HPhases of Curing
Memory Hook:Make Some Dough Hard
Properties
Mechanical Properties
- Compression: High strength (Matches cancellous bone). Good for loading.
- Tension: Very weak.
- Shear: Weak.
- Viscoelastic: Creeps under load (slight deformation over years).
Enhancing Strength:
- Vacuum Mixing: Removes air bubbles, reduces porosity, increases fatigue life.
- Centrifugation: Removes bubbles.
- Pressurisation: Forces cement deeper into bone pores (Micro-interlock).
Bone Cement Implantation Syndrome (BCIS)
Pathophysiology:
- Embolisation of marrow fat/cement contents into pulmonary circulation during pressurisation.
- Direct toxic effect of Monomer on myocardium? (Vasodilation).
- Clinical: Hypotension, Hypoxia, Loss of Consciousness to Cardiac Arrest.
Risk Factors:
- Patient: ASA III/IV, COPD, Pulmonary Hypertension.
- Surgery: Femoral component (Hip), Long stems, Metastatic disease.
Prevention:
- Lavage canal (remove fat).
- Venting the femur (drill hole?) - controversial.
- Maintain blood pressure (Anaesthetic alert).
Clinical Relevance
Cementing Techniques (Generations)
Evidence Base
Antibiotic Loaded Cement
- Norwegian Arthroplasty Register
- Systemic antibiotics + Antibiotic cement had lowest revision rates for infection compared to systemic alone
- Risk of allergic reaction or developing resistance is minimal at standard doses
MCQ Practice Points
Exam Pearl
Q: What is the composition of PMMA bone cement and how does polymerization occur?
A: Powder component: Pre-polymerized PMMA beads + benzoyl peroxide (initiator) + barium sulfate/ZrO2 (radio-opacifier). Liquid component: MMA monomer + N,N-dimethyl-p-toluidine (accelerator) + hydroquinone (stabilizer). Polymerization: free radical addition reaction triggered when benzoyl peroxide meets amine accelerator. Exothermic reaction reaches 80-100°C at cement-bone interface.
Exam Pearl
Q: What are the four phases of cement handling and their clinical implications?
A: (1) Mixing (1-2 min): Combine powder and liquid, vacuum mixing reduces porosity. (2) Waiting/Dough (2-3 min): Non-sticky, can be handled - ideal for insertion. (3) Working (3-5 min): Pressurization into canal, implant insertion. (4) Setting (5-8 min): Hardening, do NOT move implant. Total set time approximately 8-12 minutes. Cold saline lavage extends working time.
Exam Pearl
Q: What is "bone cement implantation syndrome" (BCIS) and how is it managed?
A: Cardiovascular collapse during cementation: hypotension, hypoxia, cardiac arrest. Risk factors: pathological fracture, revision surgery, reaming, pressurization. Mechanism: embolization of marrow fat/debris + histamine release + complement activation. Prevention: maintain euvolemia, 100% O2, careful reaming, low-pressure cementation. Grading: Type 1 (hypoxia/hypotension), Type 2 (requires vasopressors), Type 3 (cardiac arrest).
Exam Pearl
Q: What is the mechanism of cement fixation - does cement bond to bone?
A: No chemical bond. PMMA provides mechanical interlock through interdigitation with trabecular bone. Cement fills gaps between implant and bone, creating a "grout" or "space filler." Interface strength depends on: penetration depth (2-5mm optimal), pressurization technique, bone preparation (pulsatile lavage, drying). The cement mantle transfers load from implant to bone.
Exam Pearl
Q: What are the advantages and disadvantages of antibiotic-loaded bone cement (ALBC)?
A: Advantages: Local antibiotic concentrations 100-1000x systemic levels, reduced infection rates in primary arthroplasty (0.5% vs 1-2%), treatment of established infection. Disadvantages: Heat-stable antibiotics only (gentamicin, vancomycin - NOT beta-lactams), potential for antibiotic resistance, may weaken cement at high doses, increased cost. Routine use in primary THA/TKA debated - clearer benefit in revision/high-risk patients.
Australian Context
Australian Epidemiology and Practice
AOANJRR (Australian Orthopaedic Association National Joint Replacement Registry) Data:
- Cemented fixation remains the gold standard for THA in elderly patients with osteoporotic bone
- Registry data demonstrates lower revision rates for cemented hemiarthroplasty compared to uncemented in NOF fractures (particularly in patients over 75 years)
- Hybrid fixation (cemented femur, uncemented acetabulum) increasingly common for primary THA
- Registry tracks cement type and antibiotic loading as part of procedural data
RACS Orthopaedic Training Relevance:
- PMMA bone cement and BCIS are core FRACS Basic Science examination topics
- Viva scenarios commonly test understanding of polymerisation chemistry, mechanical properties, and BCIS management
- Key exam focus: monomer vs polymer distinction, generations of cementing technique, and BCIS risk factors
- Examiners expect knowledge of Australian-specific registry data on cementing outcomes
Antibiotic-Loaded Cement in Australia:
- Gentamicin-loaded cement is standard of care for primary arthroplasty in Australia
- Tobramycin and vancomycin preparations also available through Australian suppliers
- PBS restrictions apply to certain antibiotic preparations for cement mixing
- High-dose antibiotic cement used in two-stage revision for periprosthetic joint infection
eTG (Therapeutic Guidelines) Considerations:
- Antibiotic prophylaxis guidelines recommend cefazolin for most joint replacement procedures
- Gentamicin-loaded cement provides local antibiotic delivery complementing systemic prophylaxis
- Vancomycin cement considered for MRSA colonised patients or high-risk revision cases
BCIS Prevention and Management:
- Australian and New Zealand College of Anaesthetists (ANZCA) guidelines address BCIS management
- Team communication protocols emphasise "Cement going in" warning to anaesthetic team
- Third-generation cementing techniques (pulsatile lavage, vacuum mixing, pressurisation) are standard practice
Australian Implant and Cement Suppliers:
- Major suppliers: Stryker (Simplex), DePuy Synthes (CMW), Heraeus (Palacos)
- TGA registration required for all bone cements and antibiotic preparations
- Prostheses List determines private health insurance coverage for implants
Exam Viva Scenarios
Practice these scenarios to excel in your viva examination

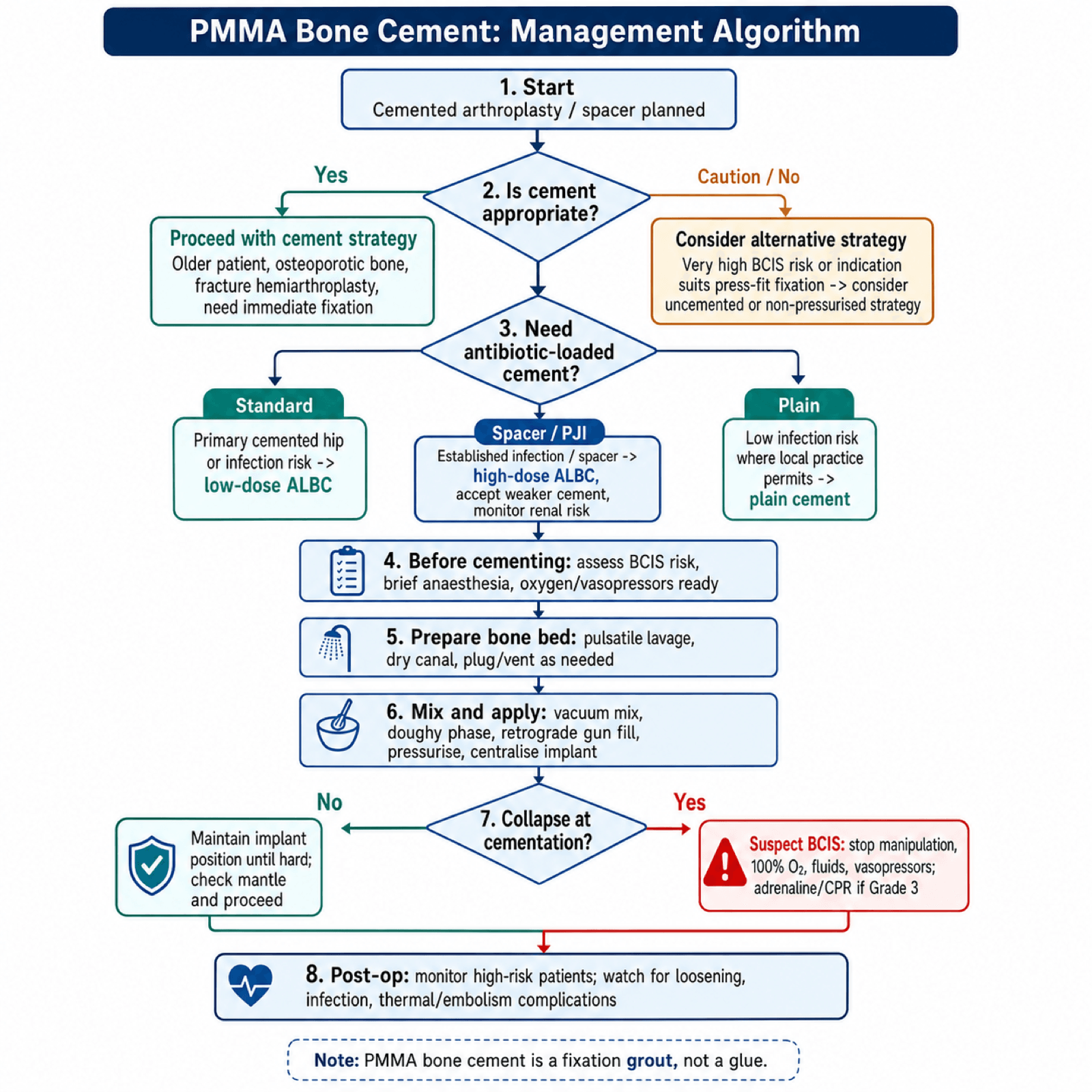

Management Algorithm

References
- Charnley J. Acrylic cement in orthopaedic surgery. 1970.
- Breusch SJ, et al. The effect of pulsatile lavage on the fixation strength of cemented hip replacement. J Arthroplasty. 2002.
PMMA Quick Facts
High-Yield Exam Summary
Science
- •Monomer (Liquid) + Polymer (Powder)
- •Exothermic Reaction
- •Volume shrinks 2-5% on curing
Properties
- •Strong in Compression
- •Weak in Tension
- •Grout (No Bond)
Generations
- •1: Hand mixed
- •2: Plug + Gun
- •3: Vacuum + Lavage + Pressurisation
