TENDON-BONE INTERFACE (ENTHESIS)
Fibrocartilaginous Insertion | Four-Zone Transition | Sharpey Fibers | Mechanically Graded
Four Zones of Fibrocartilaginous Enthesis
Critical Must-Knows
- Enthesis is specialized transition minimizing stress concentration at tendon-bone junction
- Four-zone structure: tendon → uncalcified FC → calcified FC → bone
- Sharpey fibers are collagen bundles inserting into bone at 10-15 degrees
- Fibrocartilaginous entheses at sites of high compression (rotator cuff)
- Healing never fully restores native four-zone architecture
Examiner's Pearls
- "Tidemark separates uncalcified from calcified fibrocartilage (like articular cartilage)
- "Direct insertions (fibrous) lack fibrocartilage (flexor tendons)
- "Mechanical loading essential for enthesis development and maintenance
- "Enthesopathies (spondyloarthropathies) target this specialized tissue
Critical Enthesis Exam Points
Graded Transition
Four zones minimize stress concentration: Tendon (soft, elastic) transitions through fibrocartilage zones to bone (stiff, rigid). Gradual change in mechanical properties distributes stress over distance.
Sharpey Fibers
Collagen fibers insert into bone at 10-15 degree angle. Mineralized within bone, creating strong mechanical interlock. Resist tensile forces without tearing out.
Fibrocartilage Function
Resists compression and shear at insertion sites. Collagen II and aggrecan appear in zones 2-3. Sites of high compressive load (rotator cuff, Achilles) have thick fibrocartilage.
Poor Healing
Healing forms scar tissue, not native four-zone structure. Takes 12-16 weeks minimum. Biomechanically inferior to native. High re-tear rates (rotator cuff 20-40%).
At a Glance
The enthesis is the specialized fibrocartilaginous junction where tendon inserts into bone, featuring a four-zone architecture that creates a graded transition in mechanical properties: tendon (Zone 1) → uncalcified fibrocartilage (Zone 2) → calcified fibrocartilage (Zone 3) → bone (Zone 4). This ~1mm transition zone minimizes stress concentration between soft tissue (modulus 0.5-1 GPa) and rigid bone (10-20 GPa). Sharpey fibers anchor collagen bundles into bone at 10-15 degrees. The tidemark separates calcified from uncalcified fibrocartilage. Critically, enthesis healing never restores native four-zone architecture, forming mechanically inferior scar tissue instead—explaining high re-tear rates (20-40%) after rotator cuff repair and the 12-16 week minimum protection period.
TUCBFour Zones of Fibrocartilaginous Enthesis
Memory Hook:TUCB - the Tough Universal Connection to Bone!
GRADSEnthesis Mechanical Properties
Memory Hook:The enthesis GRADS from soft to hard tissue!
Overview and Functional Anatomy
The enthesis is the specialized anatomical structure where tendon or ligament inserts into bone. This region represents a remarkable biological solution to the engineering challenge of attaching compliant soft tissue (tendon, elastic modulus 0.5-1 GPa) to rigid hard tissue (bone, elastic modulus 10-20 GPa).
Without a gradual transition, stress would concentrate at the interface causing failure at low loads. The four-zone architecture of fibrocartilaginous entheses creates a graded transition in mechanical properties, distributing stress over a larger area and preventing catastrophic failure.
Why Enthesis Anatomy Matters Clinically
Understanding enthesis structure explains: high failure rates at tendon-bone junctions (rotator cuff tears, Achilles ruptures); poor healing outcomes despite surgical repair (scar tissue not native architecture); enthesitis in spondyloarthropathies (immune targeting of this unique tissue); need for prolonged protection after repair (12-16 weeks minimum).
Two Types of Enthesis
Fibrocartilaginous: At sites of high compression (rotator cuff, Achilles)
- Four-zone structure
- Contains fibrocartilage transition
- Tidemark present
Fibrous (Direct): At sites without compression (flexor tendons)
- Collagen I continues directly into bone
- No fibrocartilage zones
- Sharpey fibers without intermediary
Mechanical Function
- Distributes stress over larger area
- Prevents stress concentration at interface
- Resists tensile, compressive, and shear forces
- Allows gradual modulus change (100-fold from tendon to bone)
Concepts and Four-Zone Architecture

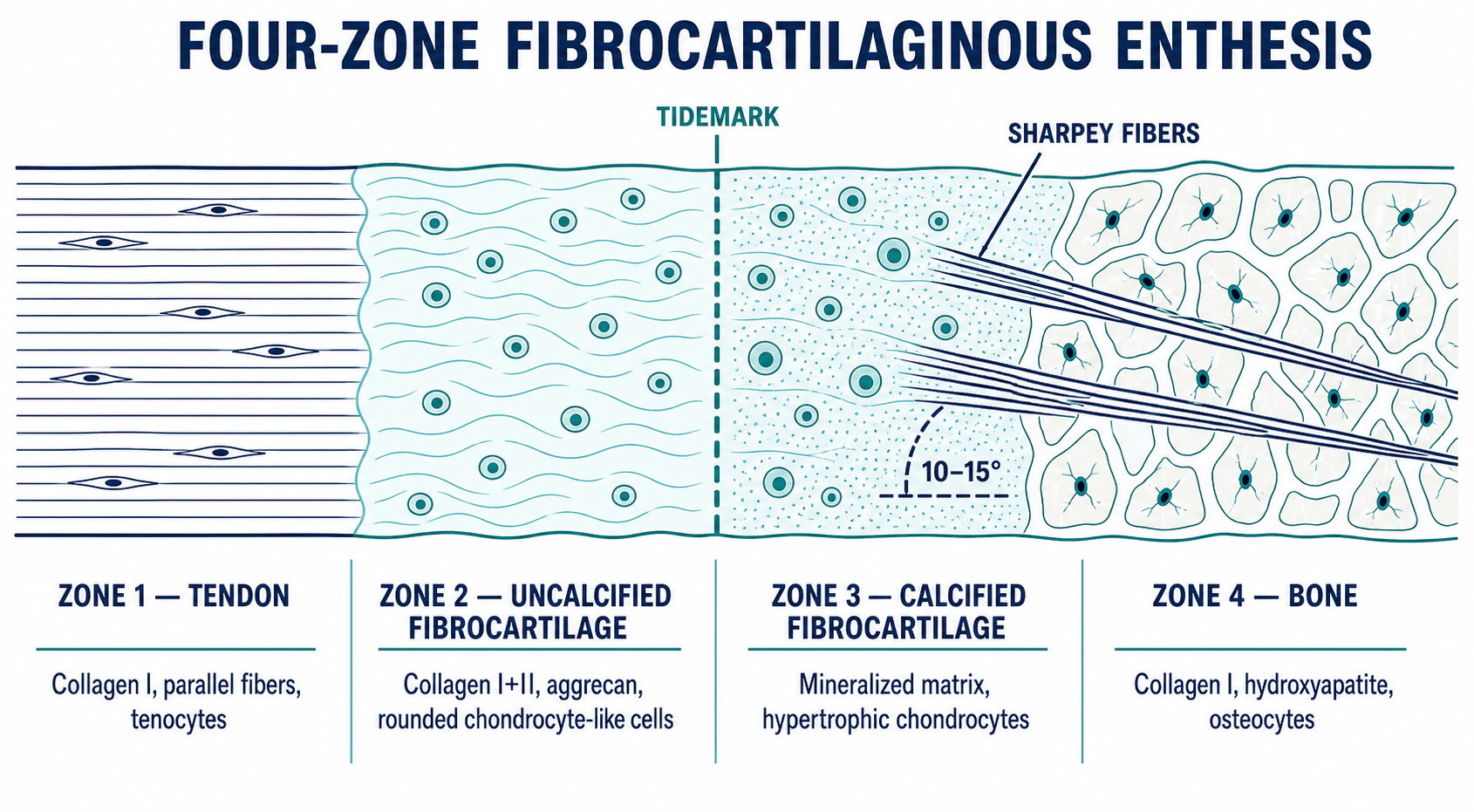

Zone-by-Zone Structure
| Zone | Matrix Composition | Cell Type | Mineralization |
|---|---|---|---|
| 1: Tendon | Collagen I (parallel), elastin | Tenocytes (spindle-shaped) | None |
| 2: Uncalcified FC | Collagen I + II, aggrecan | Chondrocyte-like (rounded) | None |
| 3: Calcified FC | Collagen II, aggrecan | Chondrocytes (hypertrophic) | Hydroxyapatite |
| 4: Bone | Collagen I, hydroxyapatite | Osteocytes | Dense mineral |
Tidemark:
- Basophilic line separating zones 2 and 3
- Similar to tidemark in articular cartilage
- Represents mineralization front
- Visible histologically (H&E stain)
Sharpey Fibers
Sharpey fibers are bundles of collagen that insert obliquely into bone, providing strong mechanical anchorage.
Characteristics:
- Angle of insertion: 10-15 degrees from tendon axis
- Diameter: 10-50 micrometers
- Length of insertion into bone: 200-400 micrometers
- Mineralized within bone for mechanical interlock
- Resist pull-out forces
Biomechanical Advantage:
- Angled insertion distributes tensile stress
- Longer insertion path increases contact area
- Mineralization prevents slippage
- Multiple fiber bundles provide redundancy
Surgical Implication
Angle of Sharpey fiber insertion explains why: Suture anchors should be placed at 45 degrees (deadman angle) for optimal pullout strength. Perpendicular insertion has lower resistance. Rotator cuff repairs often fail at bone-suture interface when angle is suboptimal.
Biomechanics and Mechanobiology
Stress Distribution
The four-zone architecture creates a functional gradient in mechanical properties that prevents stress concentration.
Material Property Gradient:
- Tendon elastic modulus: 0.5-1 GPa
- Uncalcified FC: 10-40 MPa (softer than tendon)
- Calcified FC: 0.5-5 GPa (intermediate)
- Bone: 10-20 GPa (stiffest)
The uncalcified fibrocartilage is actually softer than tendon, providing a "compliant layer" that absorbs some deformation and reduces stress concentration at the bone interface.
| Loading Type | Zone Bearing Most Stress | Mechanism | Clinical Failure |
|---|---|---|---|
| Tensile | Sharpey fiber insertion in bone | Pull-out resistance | Anchor failure, bone avulsion |
| Compressive | Uncalcified fibrocartilage | Aggrecan resists compression | Fibrocartilage degeneration |
| Shear | Tidemark interface | Weakest structural point | Delamination at tidemark |
Mechanical Loading Effects
Mechanical loading is essential for enthesis development, maintenance, and healing.
Loading Benefits:
- Promotes fibrocartilage zone development
- Increases Sharpey fiber density and length
- Enhances mineralization at calcified zone
- Maintains tidemark integrity
Immobilization Effects:
- Fibrocartilage zone atrophy
- Decreased Sharpey fiber insertion length
- Reduced ultimate failure load (30-50% decrease)
- Tidemark irregularity
This explains why early controlled loading after tendon repair improves outcomes compared to prolonged immobilization.
Healing and Repair
Healing Biology
Enthesis healing after injury or surgical repair proceeds through inflammatory, proliferative, and remodeling phases but never fully restores native architecture.
Enthesis Healing Timeline
Hematoma formation at tear site. Inflammatory cells infiltrate. Fibrin clot provides initial scaffold. Weak mechanical strength - protection essential.
Fibroblast proliferation. Collagen III (scar collagen) synthesis. Vascular ingrowth. Gradually increasing strength but still vulnerable.
Collagen III replaced by collagen I. Fiber alignment begins along stress lines. Strength reaches 30-50% of native. Gradual loading can commence.
Continued fiber realignment and cross-linking. Strength plateaus at 60-80% of native. Never regains four-zone architecture or native composition.
Key Differences from Native:
- Scar tissue forms, not organized four-zone structure
- Collagen remains more type III than native
- Fibrocartilage zones do not regenerate
- Biomechanical properties inferior (20-40% weaker)
- Higher risk of re-tear (rotator cuff 20-40% at 2 years)
Why Healing is Poor
Multiple factors limit enthesis healing:
- Hypovascular zone 2 (uncalcified FC) has poor nutrient supply
- Cell types needed (chondrocytes) don't migrate into healing site
- Mechanical environment prevents organized healing (micromotion)
- Genetic program for four-zone development not recapitulated in adults
- Result: Scar tissue bridge, not native enthesis
Surgical Repair Principles
Understanding enthesis biology guides surgical technique for tendon-to-bone repairs (rotator cuff, ACL, Achilles).
Augmentation Strategies:
- Bone marrow stimulation: Microfracture to recruit stem cells
- Biologic augmentation: PRP, bone graft, growth factors
- Mechanical optimization: Suture bridge, double-row constructs
- Protected loading: Controlled motion to stimulate healing without overload
Timing of Loading:
- Weeks 0-6: Passive motion only (prevent stiffness, avoid active loading)
- Weeks 6-12: Active-assisted motion, light loading
- Weeks 12-16: Progressive strengthening
- Months 4-6: Return to sport/full activity
Classification of Entheses
Two Types of Enthesis
Fibrocartilaginous Enthesis:
- Found at sites of high compression (rotator cuff, Achilles, patellar tendon)
- Four-zone structure with fibrocartilage transition
- Contains collagen types I, II, and III
- Has tidemark separating calcified from uncalcified zones
Fibrous (Direct) Enthesis:
- Found where tendons attach at obtuse angles
- No fibrocartilage zones - direct insertion
- Sharpey fibers insert directly into bone
- Examples: Deltoid to humerus, flexor tendons
Enthesis Types
| Feature | Fibrocartilaginous | Fibrous |
|---|---|---|
| Zones | Four zones | Two zones (tendon → bone) |
| Fibrocartilage | Present | Absent |
| Tidemark | Present | Absent |
| Typical location | High compression sites | Periosteal attachments |
Clinical Relevance
Enthesopathies
Enthesopathies are diseases targeting the enthesis, most commonly in spondyloarthropathies (ankylosing spondylitis, psoriatic arthritis, reactive arthritis).
Pathophysiology:
- Immune-mediated inflammation at enthesis
- IL-23/IL-17 pathway activation
- Erosive changes initially, then new bone formation
- Can lead to ossification and ankylosis
Common Sites:
- Achilles insertion to calcaneus
- Plantar fascia insertion
- Patellar tendon insertion (Osgood-Schlatter in juveniles)
- Spinal ligament entheses
Overuse Injuries
Repetitive loading can cause enthesopathy even without systemic disease.
Examples:
- Rotator cuff tendinopathy (supraspinatus insertion)
- Lateral epicondylitis (common extensor origin)
- Achilles tendinopathy (calcaneal insertion)
Mechanism: Repeated microtrauma exceeds healing capacity, leading to degenerative changes, fibrocartilage calcification, and eventual failure.

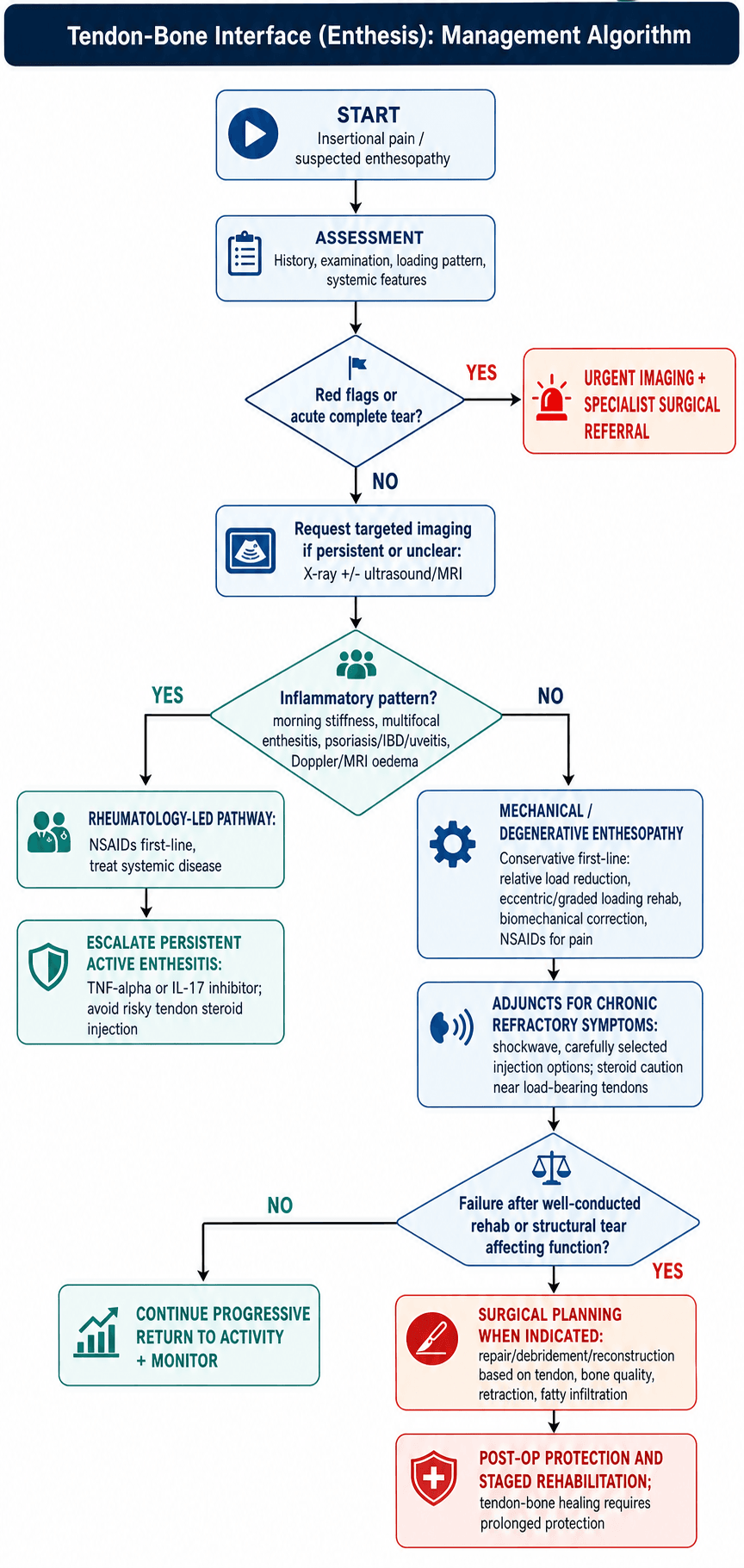

Investigations for Enthesopathy
Imaging Modalities
Plain Radiographs:
- Enthesophyte formation (chronic traction spurs)
- Calcification within tendon near insertion
- Cortical irregularity at insertion site
- Bone erosion in inflammatory enthesopathy
Ultrasound:
- First-line imaging for enthesopathy
- Thickening of tendon at insertion
- Hypoechogenicity (degeneration)
- Power Doppler: Neovascularity in inflammation
- Cortical irregularity, enthesophytes
Imaging Modalities
| Modality | Advantages | Findings |
|---|---|---|
| X-ray | Widely available, cheap | Enthesophytes, calcification |
| Ultrasound | Dynamic, no radiation | Thickening, Doppler signal |
| MRI | Best soft tissue detail | Bone marrow edema, tears |
Management of Enthesopathy
Conservative Management
Activity Modification:
- Relative rest from aggravating activities
- Cross-training with low-impact alternatives
- Gradual return to activity when symptoms improve
Physical Therapy:
- Eccentric loading programs (Achilles, patellar tendon)
- Stretching and flexibility
- Strengthening proximal and distal to insertion
- Biomechanical correction (orthotics, footwear)
Pharmacological:
- NSAIDs for pain and inflammation
- Corticosteroid injection (caution near weight-bearing tendons)
- PRP injection (emerging evidence)
Conservative Treatment Options
| Treatment | Indication | Evidence |
|---|---|---|
| Eccentric exercises | Achilles, patellar tendinopathy | Strong evidence |
| Shockwave therapy | Chronic enthesopathy | Moderate evidence |
| PRP injection | Refractory cases | Emerging evidence |
| Corticosteroid injection | Acute inflammation | Risk of tendon weakening |
Surgical Principles for Tendon-Bone Repair
Tendon-to-Bone Fixation Techniques
Transosseous Repair:
- Tunnels through bone for suture passage
- Good bone-tendon apposition
- Lower cost than anchors
Suture Anchor Repair:
- Anchors placed in bone at insertion footprint
- Single-row or double-row techniques
- Suture bridge constructs maximize footprint coverage
Double-Row Technique:
- Medial row anchors at articular margin
- Lateral row anchors for suture bridge compression
- Improved footprint contact and initial fixation
Fixation Techniques
| Technique | Advantages | Considerations |
|---|---|---|
| Transosseous | Low cost, good healing | Technically demanding |
| Single-row anchors | Simpler, faster | Smaller footprint contact |
| Double-row/bridge | Maximum footprint | Higher cost, more implants |
Complications of Enthesis Pathology
Degenerative Enthesopathy Complications
Progression to Complete Rupture:
- Chronic degeneration weakens tendon
- Eventual failure with minimal trauma
- Common at Achilles insertion, rotator cuff
Calcification:
- Calcium deposition in degenerative tissue
- May cause mechanical symptoms
- Calcific tendinitis (rotator cuff)
Complications of Enthesopathy
| Complication | Mechanism | Management |
|---|---|---|
| Complete rupture | Progressive weakening | Surgical repair |
| Calcification | Metaplasia | Needling, excision |
| Chronic pain | Failed healing | Multimodal treatment |
Postoperative Rehabilitation
Rehabilitation Phases
Phase 1: Protection (0-6 weeks):
- Immobilization or protected motion
- Passive ROM only
- Avoid active contraction of repaired muscle
- Protect healing interface
Phase 2: Early Motion (6-12 weeks):
- Active-assisted motion begins
- Light loading permitted
- Progressive ROM exercises
- Avoid heavy resistance
Rehabilitation Timeline
| Phase | Timeline | Activities |
|---|---|---|
| Protection | 0-6 weeks | Passive ROM only |
| Early motion | 6-12 weeks | Active-assisted, light loading |
| Strengthening | 12-16 weeks | Progressive resistance |
| Return to sport | 4-6 months | Sport-specific training |
Outcomes of Enthesis Healing
Healing Biology Outcomes
Native Architecture NOT Restored:
- Healing forms scar tissue at interface
- Fibrocartilage zones do not regenerate
- Collagen organization remains disorganized
- Biomechanical strength 60-80% of native
Clinical Outcomes:
- Pain relief: Generally good (80-90%)
- Functional improvement: Good
- Structural healing: Variable (60-80% intact at 2 years for rotator cuff)
Outcome Parameters
| Outcome | Rate | Comments |
|---|---|---|
| Pain relief | 80-90% | Good even with re-tear |
| Structural healing | 60-80% | Varies by tear size |
| Return to sport | 70-85% | Depends on sport demands |
Evidence Base
Fibrocartilaginous Enthesis Has Four-Zone Structure
- Histological characterization of rotator cuff and Achilles entheses
- Four distinct zones identified: tendon, uncalcified FC, calcified FC, bone
- Tidemark present between zones 2 and 3 (similar to articular cartilage)
- Uncalcified FC has lower modulus than tendon (compliant layer)
Healing Does Not Restore Four-Zone Architecture
- Rat rotator cuff repair model with serial sacrifice up to 16 weeks
- Scar tissue forms at tendon-bone interface, not organized enthesis
- Fibrocartilage zones do not regenerate
- Biomechanical strength reaches only 60% of native at 16 weeks
- Failure occurs at healing interface, not native tissue
Mechanical Loading Essential for Enthesis Maintenance
- Immobilization of rat Achilles reduces fibrocartilage zone thickness by 30%
- Sharpey fiber insertion length decreases with disuse
- Controlled loading during healing improves collagen organization
- Complete immobilization results in inferior biomechanical properties
Exam Viva Scenarios
Practice these scenarios to excel in your viva examination
Scenario 1: Enthesis Anatomy and Function
"Examiner asks: Describe the anatomy of a fibrocartilaginous enthesis and explain its functional significance."
Scenario 2: Rotator Cuff Repair Healing
"You repair a full-thickness rotator cuff tear. Three months postop the patient asks when the tendon will be 'back to normal'. Explain the healing process and why it never fully restores native tissue."
Key Exam Points and MCQ Practice
Four-Zone Question
Q: What are the four zones of a fibrocartilaginous enthesis from tendon to bone? A: Tendon → Uncalcified fibrocartilage → Calcified fibrocartilage → Bone. Separated by tidemark between zones 2 and 3. Sharpey fibers insert from zone 3 into zone 4.
Sharpey Fiber Question
Q: At what angle do Sharpey fibers insert into bone at the enthesis? A: 10-15 degrees from the tendon axis. This angled insertion distributes stress and provides superior pull-out resistance compared to perpendicular insertion.
Tidemark Question
Q: What does the tidemark represent in a fibrocartilaginous enthesis? A: The boundary between uncalcified (zone 2) and calcified (zone 3) fibrocartilage, representing the mineralization front. Similar to tidemark in articular cartilage.
Healing Outcome Question
Q: Does rotator cuff repair healing restore native four-zone enthesis architecture? A: No - Healing forms scar tissue predominantly collagen III, not organized enthesis. Fibrocartilage zones do not regenerate. Strength plateaus at 60-80% of native.
Mechanical Property Question
Q: Why is uncalcified fibrocartilage softer than tendon? A: Acts as compliant layer to absorb deformation and prevent stress concentration at the stiffer bone interface. Contains collagen II and aggrecan which are more compliant than parallel collagen I.
MCQ Practice Points
Exam Pearl
Q: What are the four zones of a fibrocartilaginous enthesis?
A: Fibrocartilaginous entheses (e.g., rotator cuff, Achilles, patellar tendon) have four distinct zones: Zone 1: Pure tendon (Type I collagen, tenocytes); Zone 2: Uncalcified fibrocartilage (Types I, II, III collagen, fibrocartilage cells); Zone 3: Calcified fibrocartilage (Type II collagen, hypertrophic chondrocytes); Zone 4: Bone (Type I collagen, osteocytes). The tidemark separates zones 2 and 3 (calcified from uncalcified). This gradual transition from soft tissue to bone dissipates stress concentration. These zones are not regenerated after surgical repair - heals with fibrous scar (Zone 1 directly to bone).
Exam Pearl
Q: What is the difference between fibrocartilaginous and fibrous entheses?
A: Fibrocartilaginous enthesis: Found where tendons attach at acute angles and experience compression as well as tension (rotator cuff, Achilles, patellar tendon, ACL). Has four zones with fibrocartilage transition. Fibrous enthesis: Found where tendons attach at obtuse angles (periosteal attachments like deltoid to humerus). Direct insertion of Sharpey fibers (collagen) into bone without fibrocartilage transition - only 2 zones (tendon and bone). Fibrous entheses are less prone to degeneration but also heal with fibrous scar after injury.
Exam Pearl
Q: Why is enthesis healing after surgical repair inferior to native tissue?
A: Native enthesis has four-zone graduated structure developed during skeletal maturation through endochondral ossification. After surgical repair: 1) Healing occurs through scar formation (fibrovascular tissue directly to bone) without fibrocartilage zones; 2) Collagen is disorganized (not aligned with direction of pull); 3) Higher stress concentration at repair site; 4) Lower ultimate tensile strength (50-70% of native). Strategies to improve healing include: biological augmentation (PRP, growth factors, stem cells), mechanical stimulation, optimizing surgical technique (footprint preparation, compression at interface).
Exam Pearl
Q: What is enthesopathy and what conditions affect the enthesis?
A: Enthesopathy refers to pathology at the tendon-bone interface. Degenerative enthesopathy: Chronic overload leads to microdamage, failed healing response, calcification within tendon (calcific tendinitis); common at rotator cuff, Achilles, lateral epicondyle. Inflammatory enthesopathy: Hallmark of seronegative spondyloarthropathies (ankylosing spondylitis, psoriatic arthritis, reactive arthritis) - inflammation at enthesis with eventual ossification; affects Achilles, plantar fascia, SI joints. Enthesophytes: Bony spurs at enthesis from chronic traction or inflammation. MRI shows bone marrow edema adjacent to enthesis in active enthesitis.
Exam Pearl
Q: What factors influence tendon-to-bone healing after surgical repair?
A: Biological factors: Growth factors (TGF-β, BMP, FGF promote healing), stem cells, vascularity at repair site, patient age (younger heals better), diabetes/smoking (impair healing). Mechanical factors: Tension at interface (some load beneficial for healing, excessive detrimental), motion (controlled early motion may improve healing), compression at footprint. Surgical factors: Footprint preparation (abrade to bleeding bone), fixation strength, contact area, number of anchor points. Time: Peak weakness at 3-6 weeks (inflammatory phase ending, remodeling not complete). Rehabilitation protocols balance protection with early motion.
Australian Context
Australian Practice
Common Enthesopathies Treated:
-
Rotator cuff tears (arthroscopic repair)
-
Achilles tendinopathy/rupture
-
Lateral epicondylitis
-
Plantar fasciitis
-
49218: Arthroscopic rotator cuff repair
-
46393: Achilles tendon repair
-
Related items for tendon surgery and reconstruction
Common Procedures
| Condition | Treatment | MBS Category |
|---|---|---|
| Rotator cuff tear | Arthroscopic repair | Shoulder arthroscopy items |
| Achilles rupture | Open/percutaneous repair | Foot/ankle items |
| Tennis elbow | Conservative, rarely surgery | Elbow items |
TENDON-BONE INTERFACE (ENTHESIS)
High-Yield Exam Summary
Four-Zone Structure
- •Zone 1: Tendon (collagen I, tenocytes)
- •Zone 2: Uncalcified FC (collagen I+II, aggrecan, chondrocytes)
- •Zone 3: Calcified FC (mineralized, tidemark boundary)
- •Zone 4: Bone (Sharpey fibers insert at 10-15 degrees)
Biomechanics
- •Graded modulus: tendon 0.5-1 GPa → bone 10-20 GPa (100x)
- •Uncalcified FC softer than tendon (compliant layer)
- •Sharpey fibers: 10-15 degree angle, 200-400 μm insertion
- •Stress distribution prevents concentration at interface
Types of Enthesis
- •Fibrocartilaginous: High compression sites (rotator cuff, Achilles)
- •Fibrous (direct): No compression (flexor tendons)
- •Fibrocartilaginous has four zones and tidemark
- •Fibrous is direct collagen I insertion to bone
Healing Timeline
- •Weeks 0-2: Inflammation (weak, protection essential)
- •Weeks 2-6: Proliferation (collagen III scar)
- •Weeks 6-12: Remodeling (30-50% strength)
- •Weeks 12-24+: Late remodeling (plateaus at 60-80% strength)
Healing Limitations
- •Scar tissue forms, NOT four-zone enthesis
- •Fibrocartilage zones do NOT regenerate
- •Collagen III > collagen I (inferior to native)
- •Re-tear rate 20-40% (rotator cuff)
- •Never regains native biomechanical properties
