Fat Embolism Syndrome

Fat Embolism Syndrome (FES) is a serious, life-threatening clinical manifestation of fat emboli entering the systemic circulation. It is characterized by a "multisystem dysfunction" primarily involving the lungs, brain, and skin. While the presence of fat in the circulation (fat embolism) is a common occurrence following long bone fractures (detected in over 90% of cases using transesophageal echocardiography), the development of the systemic inflammatory syndrome (FES) is much rarer, affecting only 1-5% of patients. [1,2]

Epidemiology

The incidence varies depending on the injury profile and management:

• Incidence:
  • Isolated long bone fractures: 0.5% to 2%. [3]
  • Polytrauma patients: 5% to 10%. [3]
  • Bilateral femoral fractures: Up to 33% in historical series without early fixation. [4]
• Demographics: Most common in young men (10-40 years) due to higher exposure to high-energy trauma (MVA, falls). It is less common in the elderly (despite hip fractures) and rare in children (due to different marrow composition - more hematopoietic, less fatty).

Risk Factors

• Injury Pattern: Multiple long bone fractures (femur, tibia, pelvis).
• Fixation Timing: Delayed stabilization (over 24 hours) is the single biggest modifiable risk factor.

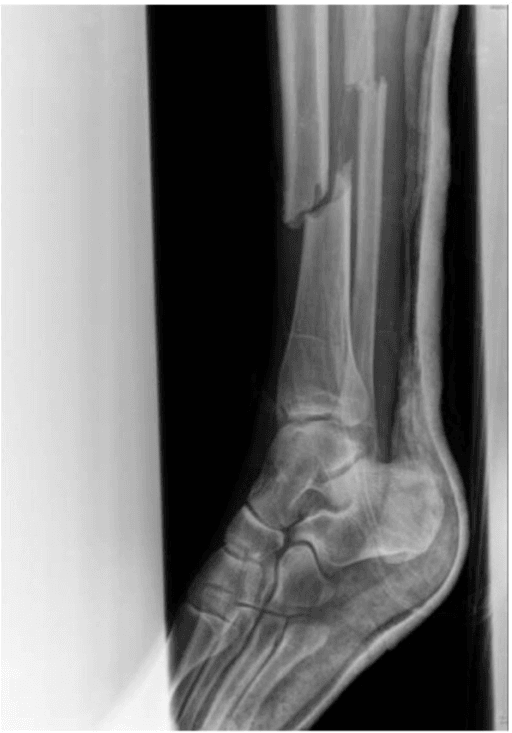

• Technique: Intramedullary reaming has been shown to causing transient showers of emboli, though its clinical significance in stable patients is debated.

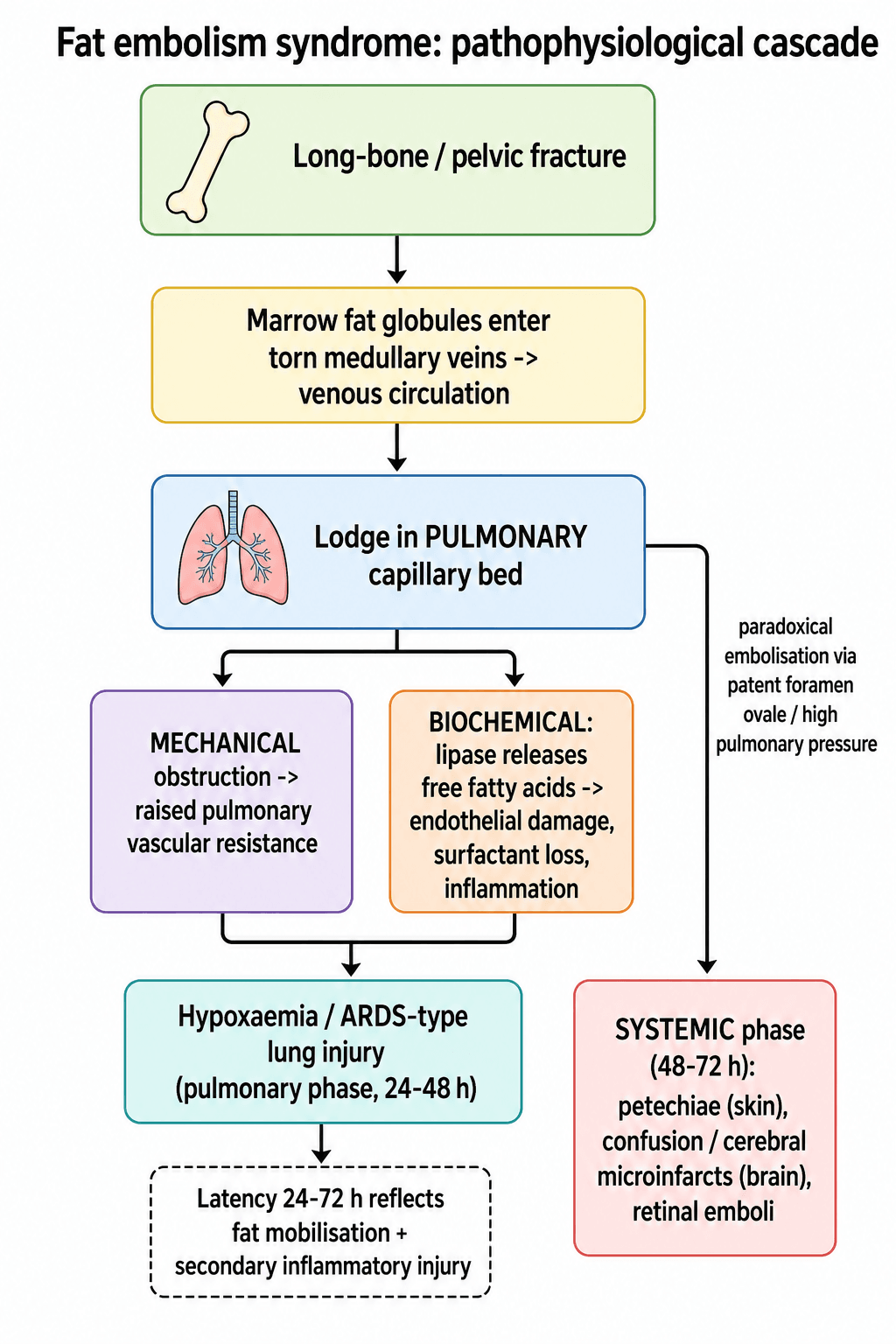

The exact mechanism is debated, but the "Two-Hit Theory" is widely accepted, combining mechanical obstruction with a delayed biochemical inflammatory storm.

1. Mechanical Theory (The First Hit)

Trauma disrupts venules in the marrow sinusoids. Elevated intramedullary pressure (often exceeding venous pressure) forces liquid fat, bone marrow debris, and inflammatory factors from the marrow into the venous circulation. These globules travel to the right heart and lodge in the pulmonary capillaries.

• Effect: Ventilation-perfusion (V/Q) mismatch and transient hypoxemia. This explains the early symptoms but not the delayed systemic syndrome (e.g., rash, confusion). Large emboli can cause acute cor pulmonale, but FES is usually micro-embolic. [5]

2. Biochemical Theory (The Second Hit)

This explains the latency (24-72 hours). Lodged fat globules are hydrolyzed by pneumocytes (producing lipase) into Free Fatty Acids (FFAs).

• Local Toxicity: FFAs are directly toxic to the pneumocytes and capillary endothelium, causing acute lung injury (ALI), vasogenic edema, hemorrhage, and inactivation of surfactant. This pathological picture closely resembles ARDS (Acute Respiratory Distress Syndrome).
• Systemic Inflammation: The release of inflammatory mediators (CRP, IL-6, TNF-alpha) causes a systemic inflammatory response syndrome (SIRS). This biochemical storm affects other organs, leading to the delayed systemic features (petechiae from capillary permiability, confusion from cerebral inflammation, and coagulopathy). [5,6]

Diagnosis is primarily clinical. There is no single "gold standard" test. Several criterion-based systems exist to increase diagnostic consistency.

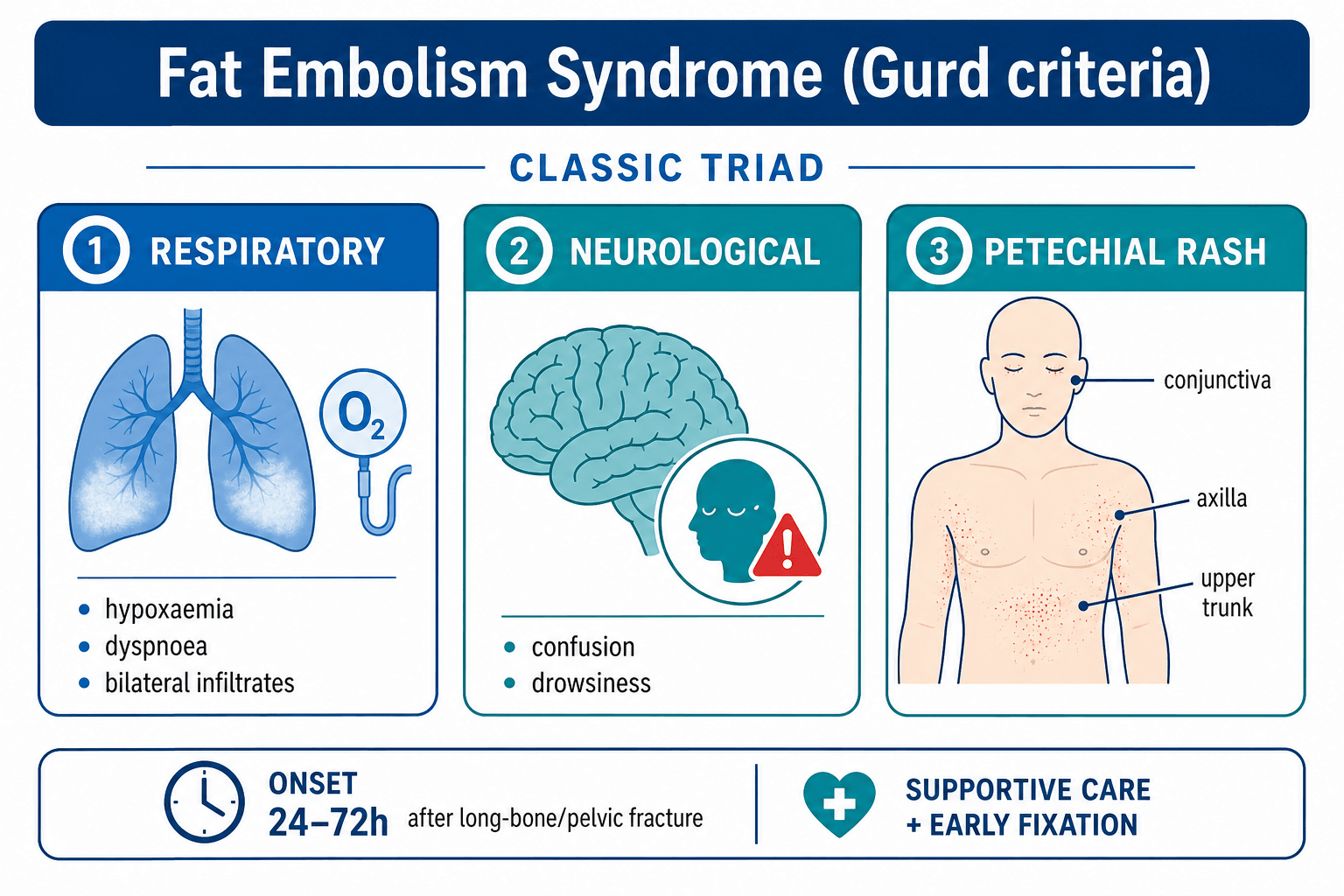

The clinical presentation is dynamic. The hallmark of FES is the Classical Triad, presenting typically 24 to 72 hours after injury (a "lucid interval"). Note that fulminant FES can present acutely on the table or in recovery.

History

• Mechanism: Recent long bone fracture (especially femur) or major polytrauma.
• Timing: Symptom onset usually 24-72 hours post-injury. Immediate collapse suggests massive Macro-embolism (mechanical block) rather than FES syndrome.
• Symptoms: Deteriorating respiratory status (shortness of breath) despite initial stability. New confusion, restlessness, or agitation (often misdiagnosed as alcohol withdrawal or head injury).

Physical Examination

1. Respiratory Insufficiency (96%):
   • Usually the earliest and most consistent sign.
   • Spectrum: Mild hypoxemia and tachypnea → Severe dyspnea → Frank respiratory failure (ARDS).
   • Exam: Tachypnea, dyspnea, cyanosis, accessory muscle use. Auscultation reveals crackles (pulmonary edema).
2. Cerebral Involvement (59%):
   • Ranges from mild disorientation, acute confusion, and drowsiness to seizures, rigid hemiplegia, and coma.
   • Why? Micro-emboli to the brain or toxic FFA effect crossing the blood-brain barrier.
   • Key Clue: Neurological deficit purely from FES is often reversible.
3. Petechial Rash (20-50%):
   • Pathognomonic feature. Usually appears on day 2 or 3 and resolves by day 5-7.
   • Location: Non-dependent areas → Anterior axillary folds, chest wall, lateral neck, and subconjunctiva (Head & Neck distribution).
   • Mechanism: Occlusion of dermal capillaries by fat emboli leading to extravasation of erythrocytes, compounded by thrombocytopenia. [8]

Workup aims to support the diagnosis (as no specific test exists) and rule out common differentials like Pulmonary Embolism (PE), Pneumothorax, and Pneumonia.

Laboratory

• ABG (Arterial Blood Gas): Hypoxia (PaO2 less than 60mmHg) with an increased A-a gradient. Respiratory alkalosis initially (due to tachypnea).
• FBC: Unexplained anemia (drop in Hb) and thrombocytopenia (platelets under 150k) occur in 37-67% of cases due to consumption coagulopathy and alveolar hemorrhage.
• Coagulation: may show disseminated intravascular coagulation (DIC) in severe cases.
• Biochemistry: Lipase may be elevated (non-specific, also rises in trauma).
• Urine: Fat globules may be seen (Lipuria) using Sudan staining. Historically emphasized but low sensitivity and specificity.
• Bronchoalveolar Lavage (BAL): If performed, lipid-laden macrophages (over 30%) are suggestive of FES.

Imaging

• Chest X-ray (CXR):

  • Often normal initially (lag period).
  • Progression to "Snowstorm appearance" (diffuse bilateral fluffy alveolar infiltrates) usually after 24-48 hours. Distinct from the wedge-shaped infarct of PE. [11]

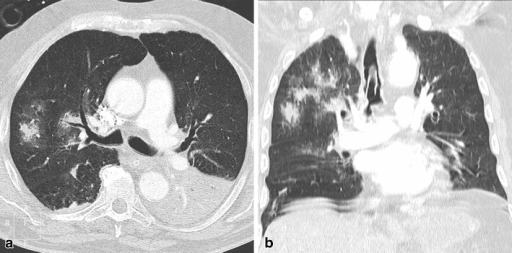

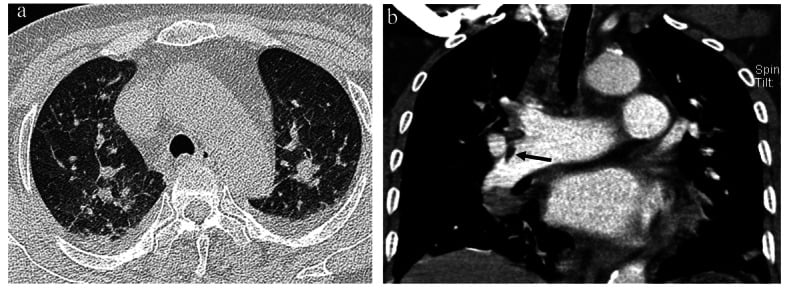

• CT Chest:

  • More sensitive than CXR. Shows ground-glass opacities, intralobular septal thickening ("crazy paving"), and patchy consolidation.
  • Main role is to rule out large central Pulmonary Embolism (PE). Note that FES itself produces micro-emboli not visible as filling defects on CTPA.

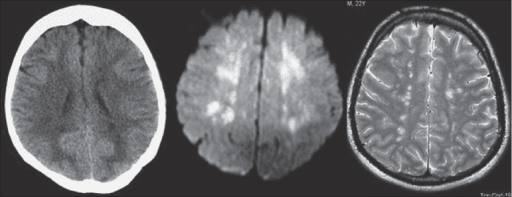

• MRI Brain:

  • Highly sensitive for cerebral FES (better than CT Brain, which is often normal).
  • Starfield pattern: Multiple punctate hyperintensities on T2-weighted and Diffusion-Weighted Imaging (DWI) sequences representing micro-infarcts in white matter (water-shed areas). [12]

• ARDS (Acute Respiratory Distress Syndrome): The major cause of morbidity and mortality. Requires prolonged ventilation and ICU stay.
• Cerebral deficits: Usually reversible as the edema and micro-infarcts resolve. Permanent neurological sequelae are rare but possible in severe cases.
• Right Heart Failure: Acute cor pulmonale can occur from massive mechanical blockage, leading to obstructive shock (rare, distinct from classic FES syndrome).
• Death: Usually from fulminant respiratory failure or refractory shock.

• Monitoring: Continuous pulse oximetry for at least 24-48 hours in all high-risk fracture patients.
• Hydration: Aggressive but balanced resuscitation to maintain preload and cardiac output.
• Vigilance: Frequent GCS checks to detect early cerebral involvement (e.g., confusion, restlessness).
• Thromboprophylaxis: Mechanical and chemical prophylaxis (once bleeding risk acceptable) to prevent superimposed VTE, which is hard to distinguish from FES.

• Mortality: Historically 10-20%, now estimated at 5-10% with modern intensive care support. [2]
• Resolution: Most cases are self-limiting. Clinical signs usually resolve spontaneously within 3-7 days with appropriate supportive care.
• Long-term: Respiratory function usually recovers fully. Rare minor cognitive deficits have been reported in severe cerebral FES.

• The early total care (ETC) vs damage control orthopaedics (DCO) debate is central to Australian trauma centers.
• Use of RIA (Reamer-Irrigator-Aspirator) is common in major Level 1 trauma centers (e.g., The Alfred, Royal Melbourne, Westmead) for femoral nailing in high-risk chest trauma patients to reduce embolic load.

1. Sevitt S, Gallagher N. Fat embolism and its clinical significance. Br J Surg. 1961;48:475-81.
2. Mellor A, Soni N. Fat embolism. Anaesthesia. 2001;56(2):145-54. doi:10.1046/j.1365-2044.2001.01717.x
3. Stein PD et al. Incidence and clinical characteristics of fat embolism syndrome. Am J Med Sci. 2008;336(6):472-7.
4. Talucci RC et al. Early intramedullary nailing of femoral shaft fractures: a cause of fat embolism syndrome. Am J Surg. 1983;146(1):107-11.
5. Eriksson EA et al. The pathophysiology of fat embolism syndrome. J Trauma Acute Care Surg. 2016.
6. Pape HC et al. The timing of fracture treatment in polytrauma patients: relevance of damage control orthopedics. Am J Surg. 2002.
7. Gupta A et al. Fat embolism syndrome: a review. Int J Crit Illn Inj Sci. 2011;1(2):148-51.
8. Adams CB. The retinal manifestations of fat embolism. Injury. 1971;2:221.
9. Gurd AR, Wilson RI. The fat embolism syndrome. J Bone Joint Surg Br. 1974;56B(3):408-16.
10. Schonfeld SA et al. Fat embolism prophylaxis with corticosteroids. Ann Intern Med. 1983;99(4):438-43.
11. Feldman F et al. The fat embolism syndrome. Radiology. 1975;114:635.
12. Butterworth JF et al. Morgan & Mikhail's Clinical Anesthesiology. 5th Ed. McGraw-Hill; 2013.
13. Bone LB et al. Early versus delayed stabilization of femoral fractures. J Bone Joint Surg Am. 1989;71(3):336-40.
14. Robinson CM. Current concepts of respiratory insufficiency following femoral shaft fractures. J Bone Joint Surg Br. 2001;83(6):785-91.
15. Bederman SS et al. Corticosteroids and the prevention of fat embolism syndrome. Can J Surg. 2009;52(6):E217-25.
