Real-Time Intraoperative Imaging for Orthopaedic Surgery
Continuous: Constant X-ray output — highest dose, smoothest image (rarely needed)
Pulsed: Intermittent X-ray pulses (1-30 per second) — significant dose reduction, adequate image quality
Last Image Hold: Stores the last frame for review — zero additional radiation
Screening (low-dose): Reduced tube output for positioning — image quality reduced but acceptably so
Cine acquisition: High-dose recording for documentation — minimal use in orthopaedics
Key: Pulsed fluoroscopy at low pulse rates with last image hold should be the default mode for all orthopaedic procedures
- Fluoroscopy is continuous or pulsed X-ray imaging providing real-time visualisation during procedures.
- The C-arm consists of an X-ray tube (below the patient) and an image receptor (above) connected by a C-shaped frame.
- Scatter radiation to the surgeon is greatest on the X-ray tube side — the surgeon should stand on the IMAGE RECEPTOR side.
- Pulsed fluoroscopy reduces radiation dose by up to 90% compared to continuous fluoroscopy.
- The inverse square law: doubling the distance from the X-ray source reduces dose to one-quarter.
- “The X-ray tube is the source of SCATTER radiation — always position it AWAY from the surgeon (usually under the table).
- “Last image hold (LIH) stores the last fluoroscopic frame, reducing the need for additional exposure.
- “Mini C-arm (extremity fluoroscopy) produces significantly lower radiation than a standard C-arm.
- “Magnification mode increases dose because the X-ray beam is collimated more tightly and tube output increases.
- “Lead thyroid shield reduces thyroid dose by 90% and is mandatory for all fluoroscopy-exposed personnel.
Fluoroscopy principles are examined extensively in both physics viva stations and clinical/operative scenarios. You must understand: the components and operation of a C-arm, scatter radiation and positioning (tube side vs detector side), dose reduction strategies (ALARA, pulsed mode, collimation, LIH), the inverse square law, magnification effect on dose, and the occupational dose limits for radiation workers. A classic trap is placing the surgeon on the X-ray tube side.
SAFEC-arm Positioning
Hook:SAFE positioning: Source Under, Away from tube, Face receptor, Entry below — protect yourself from scatter.
Overview
Fluoroscopy is the most commonly used intraoperative imaging modality in orthopaedic surgery. It provides real-time X-ray imaging that enables accurate fracture reduction, implant placement, joint assessment, and screw trajectory verification during surgical procedures. The mobile C-arm is a fundamental tool in every orthopaedic operating theatre.
Understanding the physics of fluoroscopy and the principles of radiation dose reduction is essential for safe practice. Orthopaedic surgeons are among the highest-exposed medical professionals to occupational radiation, and the cumulative effect of years of fluoroscopy exposure must be actively minimised through proper technique and protective equipment.

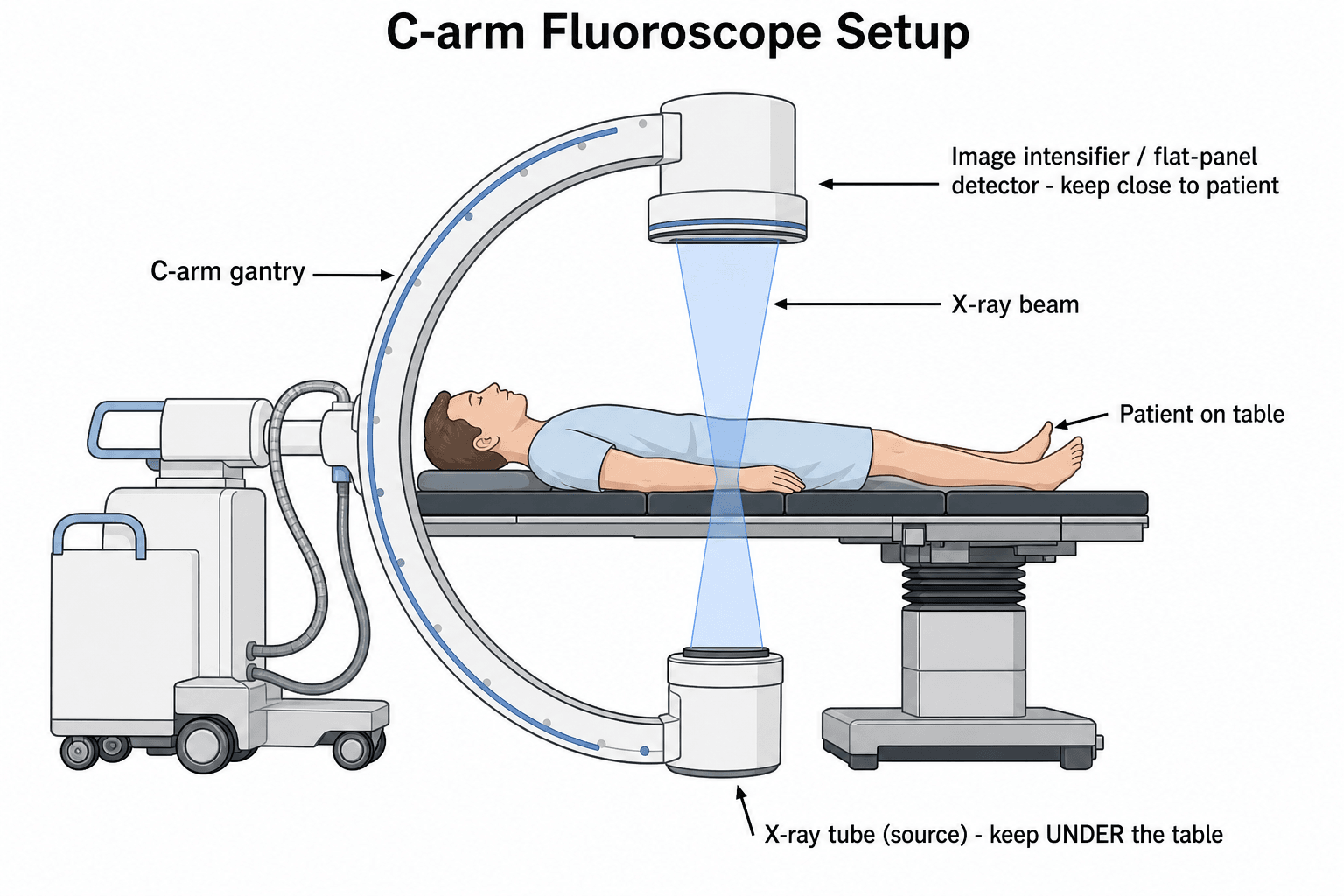

The C-arm consists of: (1) X-ray tube — generates the X-ray beam (cathode/anode system). (2) Image receptor — either an image intensifier (older) or flat-panel detector (newer). (3) C-shaped gantry — connects tube and receptor, allowing rotation in multiple planes. (4) Monitor — displays the real-time image. (5) Pedal controls — foot-operated for start/stop of exposure. (6) Collimator — adjustable shutters that narrow the beam. A flat-panel detector (FPD) C-arm provides better image quality, less dose, and less distortion compared to an image intensifier (II) C-arm.
ALARA (As Low As Reasonably Achievable) is the foundational principle of radiation protection. Every exposure should use the minimum dose necessary to achieve adequate image quality for the clinical task. This applies to both the patient and the operating team. Practical implementation: pulsed mode, collimation, distance, shielding, last image hold, minimising screening time.
Systematic Approach
Systematic Dose Reduction in the Operating Theatre
- Implementation
- Use lowest acceptable pulse rate (1-4 pulses/second for positioning; 8-15 for dynamic assessment)
- Expected Dose Reduction
- 50-90% reduction compared to continuous mode
- Implementation
- Review stored images instead of firing additional exposures
- Expected Dose Reduction
- Eliminates unnecessary repeat exposures — cumulative benefit
- Implementation
- Narrow the beam to the exact region of interest using the shutters
- Expected Dose Reduction
- Reduces irradiated volume AND scatter by 30-50%
- Implementation
- Step back from the beam when not actively operating; extend hands from beam path
- Expected Dose Reduction
- Doubling distance = 75% dose reduction (inverse square law)
- Implementation
- Use brief exposures (less than 2 sec each); release pedal between checks
- Expected Dose Reduction
- Direct proportional reduction — halving time halves dose
- Implementation
- Use magnification mode only when absolutely necessary for detail
- Expected Dose Reduction
- Eliminates 2-4x dose increase associated with magnification

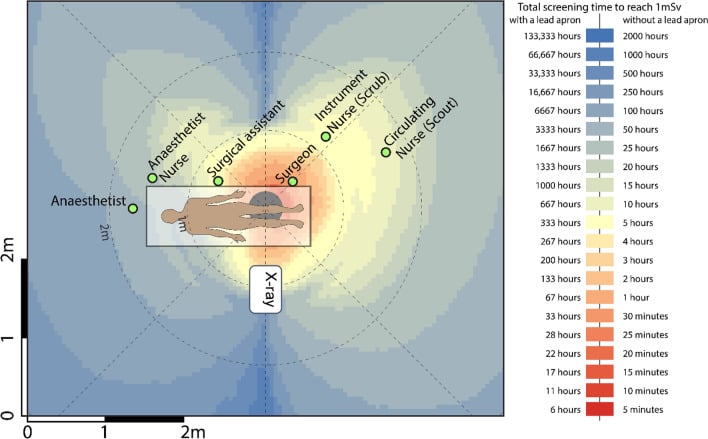

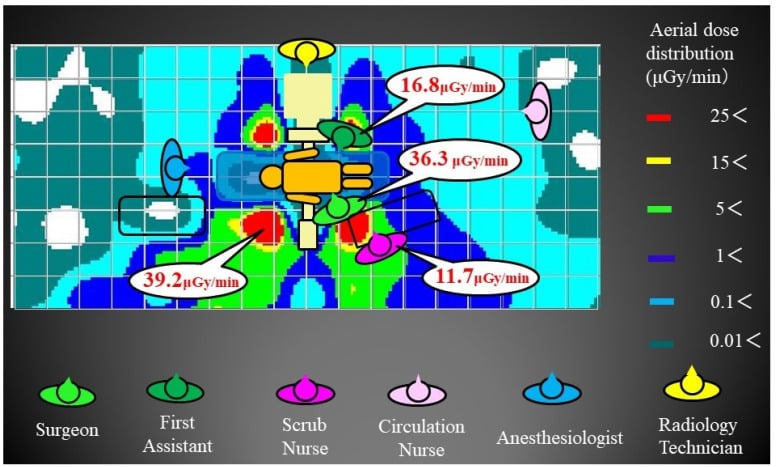

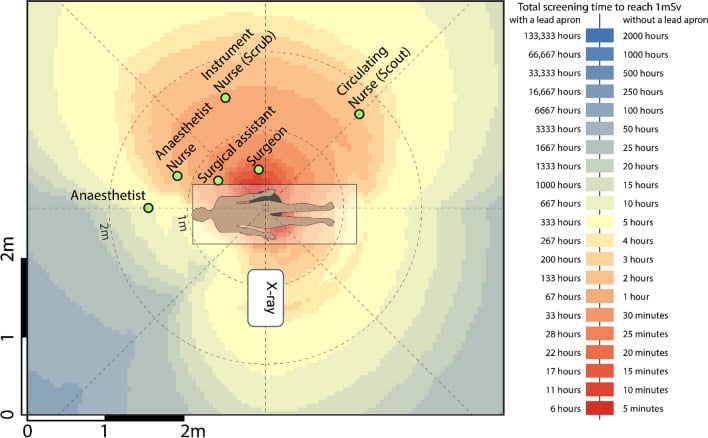

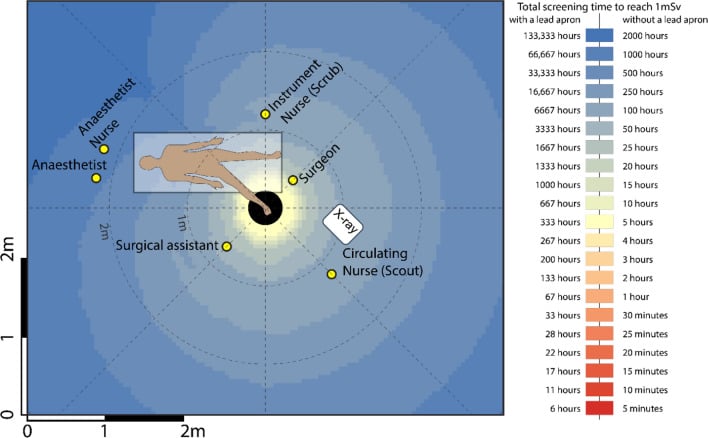

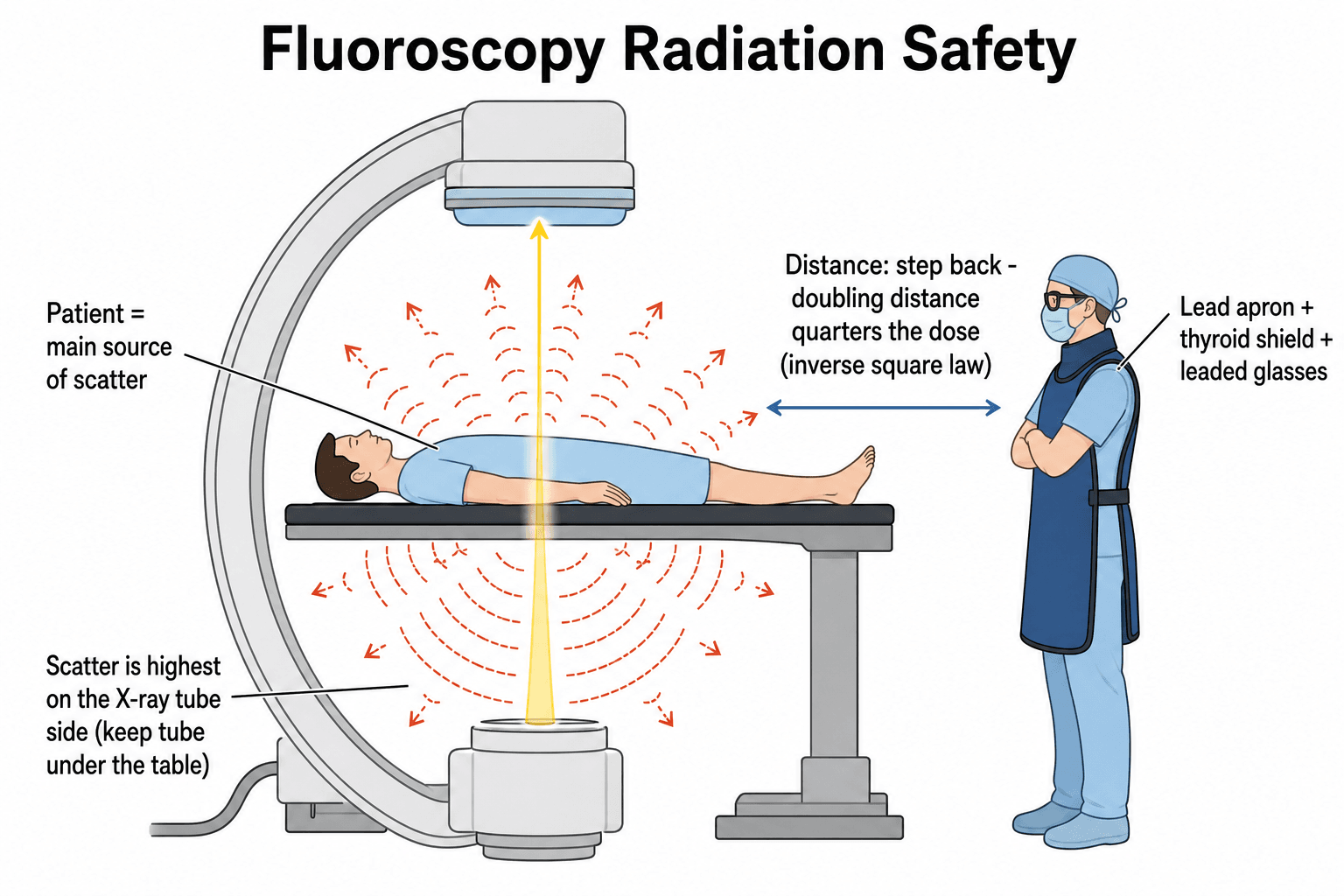

Scatter radiation is the PRIMARY source of occupational dose to the operating team. The X-ray tube is the main source of scatter — scatter is produced when the primary beam enters the patient. Therefore: (1) The surgeon should ALWAYS stand on the IMAGE RECEPTOR (detector) side, not the X-ray tube side. (2) With the standard C-arm orientation (tube below, receptor above), the surgeon stands on the side AWAY from under the table. (3) Scatter intensity decreases rapidly with distance from the patient (approximately inversely with the square of the distance). (4) Lead aprons attenuate approximately 90-95% of scatter radiation at orthopaedic energies.
Physics and Equipment
X-ray Production in Fluoroscopy
The X-ray tube contains a cathode (tungsten filament) heated by electrical current, which produces electrons by thermionic emission. These electrons are accelerated by a high voltage (kV) across a vacuum toward the anode (tungsten target). When the electrons strike the anode, approximately 99% of their kinetic energy is converted to heat and only 1% produces X-rays.
Two processes produce X-rays:
- Bremsstrahlung (braking) radiation: Electrons decelerated by the nuclear electric field of tungsten atoms produce a continuous spectrum of X-ray energies. This is the dominant process.
- Characteristic radiation: Electrons knock out inner-shell electrons from tungsten atoms; the resulting cascade produces X-rays at specific energies (characteristic of tungsten).
Key tube parameters:
- kV (kilovoltage): Controls the ENERGY (penetrating power) of the X-ray beam. Higher kV = more penetrating beam. Typical fluoroscopy: 60-120kV.
- mA (milliamperage): Controls the NUMBER of X-rays produced per unit time. Higher mA = more X-rays = brighter image but more dose.
- Automatic Brightness Control (ABC): The system automatically adjusts kV and mA to maintain consistent image brightness as patient thickness varies. This is why obese patients receive significantly more radiation — the system increases output to compensate for greater tissue attenuation.
Radiation Units and Dose Quantities
Dose figures are quoted throughout this topic in millisieverts; the examinable framework behind them is the hierarchy of radiation quantities.
- Unit
- Gray (Gy = 1 J/kg)
- What it measures
- Energy deposited per unit mass of tissue (replaces the old rad; 1 Gy = 100 rad)
- Unit
- Sievert (Sv)
- What it measures
- Absorbed dose times the radiation weighting factor; for X-rays the factor is 1, so 1 Gy gives 1 Sv
- Unit
- Sievert (Sv)
- What it measures
- Sum of equivalent doses weighted by tissue radiosensitivity; used for stochastic risk and the dose limits
- Unit
- Gy times cm squared
- What it measures
- Air kerma times beam area; a whole-procedure measure that tracks stochastic risk, displayed live on the C-arm
- Unit
- milligray (mGy)
- What it measures
- Cumulative air kerma at the reference point; a surrogate for peak skin dose and deterministic risk
Absorbed dose (Gray) is pure energy deposition; equivalent and effective dose (Sievert) add weighting for radiation type and tissue sensitivity, which is why dose limits and stochastic risk are quoted in sieverts. On the C-arm, two intraoperative numbers matter: the dose-area product (Gray times cm squared) reflects the total radiation delivered and stochastic risk, while the reference air kerma (mGy) tracks peak skin dose and warns of deterministic skin injury during prolonged screening.
CLAPTDRadiation Dose Reduction
Hook:CLAPTD to reduce dose: Collimate, Last image hold, ALARA, Pulsed mode, Time reduction, Distance.
MAGWhen Fluoroscopy Dose Increases
Hook:MAG causes dose to go up: Magnification, Automatic brightness control, and Greater patient thickness.
Intraoperative Applications
- Typical Views

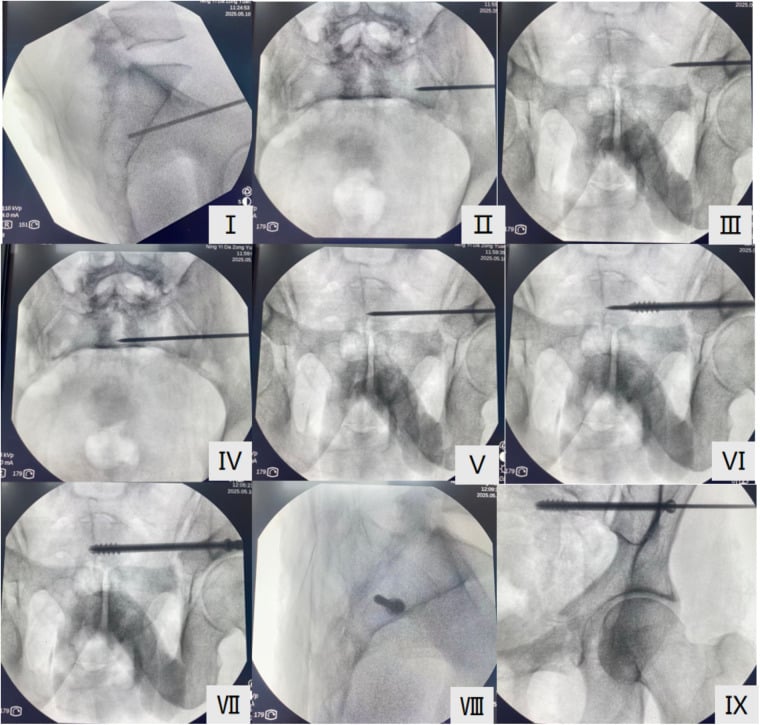

- AP and lateral of fracture site; inlet/outlet for pelvis
- Key Technical Points
- Verify reduction, alignment, and implant position. Use traction views for length assessment
- Typical Views
- AP and lateral at fracture and at proximal/distal locking sites
- Key Technical Points

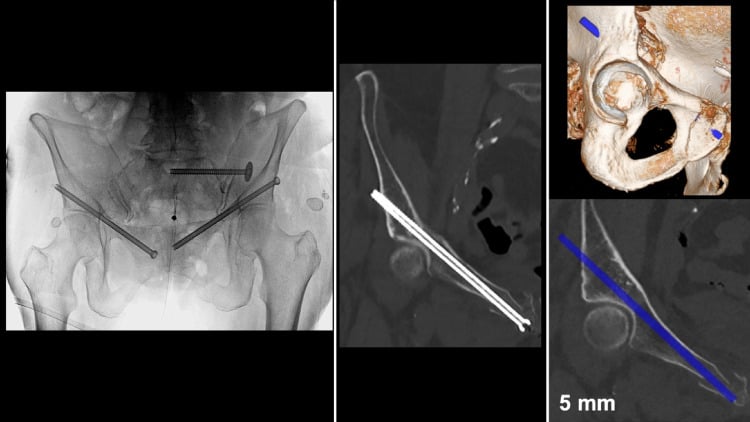

- Freehand interlocking screw technique relies on 'perfect circle' fluoroscopic alignment of the screw hole
- Typical Views

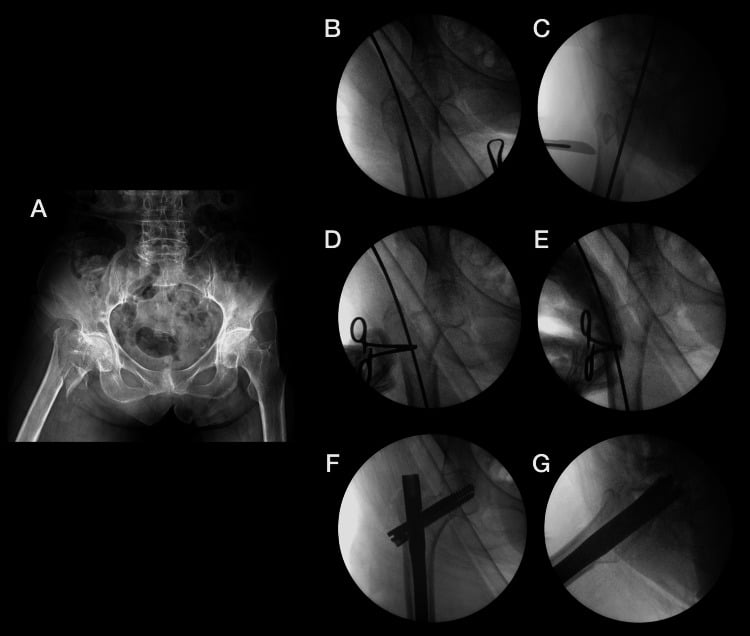

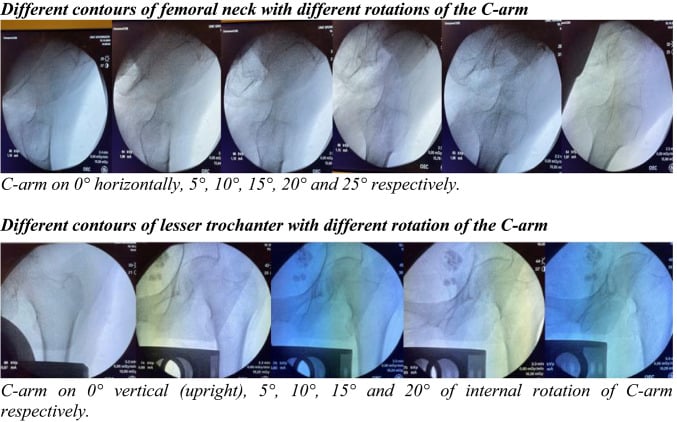

- AP and lateral hip views
- Key Technical Points
- Ensure tip-apex distance (TAD) is less than 25mm on combined AP and lateral views
- Typical Views

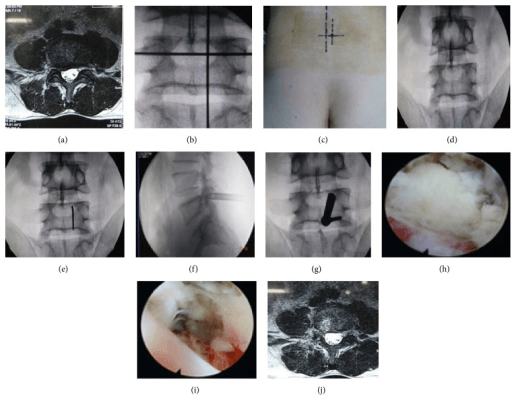

- AP, lateral, and oblique views of the spine
- Key Technical Points
- AP view confirms medial/lateral position; lateral confirms depth and angulation
- Typical Views
- AP and lateral views of the joint
- Key Technical Points
- Verify component position, alignment, and cement distribution in cemented arthroplasty
- Typical Views
- AP and lateral of the target area
- Key Technical Points
- Real-time guidance for percutaneous fixation. Use mini C-arm for distal extremity
For freehand interlocking screw placement in intramedullary nailing, the C-arm is rotated until the nail hole appears as a 'perfect circle' on the fluoroscopic image. This means the X-ray beam is perfectly aligned with the axis of the hole. A drill or screw inserted toward the centre of this circle will be perfectly aligned with the hole axis. This technique eliminates the need for jig-based targeting systems and reduces radiation exposure because it minimises the number of screening attempts needed.
Intraoperative 3D Imaging and Navigation

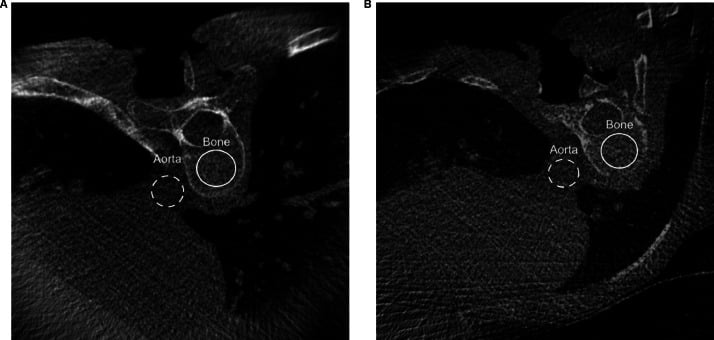

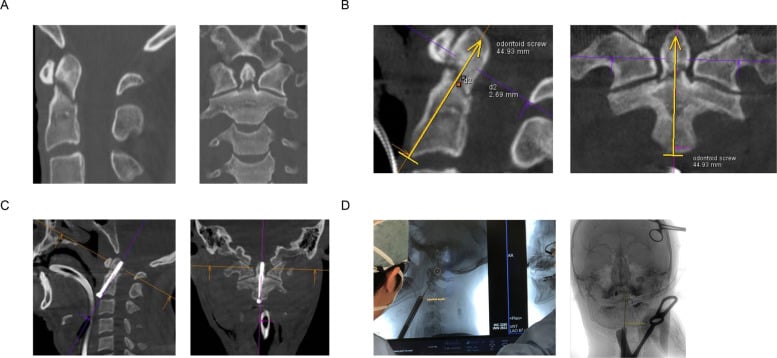

Beyond 2D screening, modern C-arms and dedicated units can rotate around the patient to acquire a cone-beam CT (CBCT) dataset, and this 3D volume can then drive surgical navigation.
- Conventional 2D fluoroscopy
- Single real-time projections
- Cone-beam CT / navigation
- An automated rotational spin (about 190 to 360 degrees) reconstructed into a CT-like volume (3D C-arm, O-arm)
- Conventional 2D fluoroscopy
- Reduction, implant position, interlocking screws
- Cone-beam CT / navigation
- Pedicle-screw verification and complex intra-articular fractures (tibial plateau, calcaneus, pilon, syndesmosis) and pelvis/acetabulum
- Conventional 2D fluoroscopy
- Operator-dependent 2D interpretation
- Cone-beam CT / navigation
- 3D confirmation of screw containment; navigation tracks instruments and reduces repeated live screening
- Conventional 2D fluoroscopy
- Low per image but cumulative with repeated shots
- Cone-beam CT / navigation
- A single spin is a substantial dose, but may replace many 2D shots and a postoperative CT
A cone-beam 3D acquisition is an unattended, high-output rotational scan that produces far more scatter than a single 2D shot - scatter is highest on the assistant's side and for pelvic spins. Non-essential staff should step behind shielding or leave the room during the spin, and a low-dose 3D protocol should be selected (Schuetze showed a dose-reduction protocol cut scatter by about two-thirds). The net dose advantage over 2D fluoroscopy depends on the protocol and on avoiding repeated spins.
Guidelines, Registries & Global Practice
Occupational radiation protection for fluoroscopy is harmonised worldwide around the ICRP (International Commission on Radiological Protection) 2007 recommendations, adopted into the IAEA Basic Safety Standards and into national law by individual radiation regulators. The figures below are essentially identical across the major jurisdictions because they derive from the same ICRP source — examiners expect you to quote the international limits, not a single country's.
- Limit
- 20 mSv/year averaged over 5 years; no single year over 50 mSv
- Notes
- Same limit in EU (EURATOM 2013/59), UK (IRR17), US (NRC, though US states a 50 mSv/year single-year figure), Australia (ARPANSA), India (AERB)
- Limit
- 20 mSv/year averaged over 5 years; no single year over 50 mSv
- Notes
- Reduced from 150 mSv following ICRP 2011 statement — adopted by EU/UK; US NRC retains 150 mSv/year
- Limit
- 500 mSv/year
- Notes
- Relevant to surgeons' hands near the beam
- Limit
- 1 mSv/year
- Notes
- Applies to visitors and unmonitored staff
- Focus
- Dose limits and principles
- Key Recommendation
- Justification, optimisation (ALARA), dose limitation; the source framework for all national rules
- Focus
- Surgeon protection
- Key Recommendation
- ALARA, personal dosimetry, lead 0.5mm Pb equivalent, thyroid shield, leaded glasses, distance and collimation
- Focus
- Employer duties
- Key Recommendation
- Designated controlled areas, local rules, radiation protection supervisor, mandatory monitoring
- Focus
- Training and limits
- Key Recommendation
- Mandatory radiation-protection training for operators; 20 mSv eye-lens limit
- Focus
- Clinical practice
- Key Recommendation
- Pulsed fluoroscopy as default, last image hold, physicist-led equipment QA
Global epidemiology of occupational exposure. Orthopaedic and trauma surgeons are among the most heavily fluoroscopy-exposed non-radiologist physicians. Typical effective dose per straightforward fracture procedure is low (often well under 0.1 mSv to the surgeon under the apron), but high-volume trauma and spine surgeons may approach meaningful annual extremity, eye-lens and (for women) breast doses, and chronic lens changes are demonstrable in heavily exposed interventional staff (RELID).
High-resource vs limited-resource practice variation. In well-resourced settings, flat-panel detectors, pulsed low-dose protocols, ceiling-suspended shields, leaded glasses, real-time dosimetry and intraoperative navigation/3D imaging are increasingly standard. In limited-resource settings, older image-intensifier C-arms predominate, dosimetry compliance and lead-apron testing are often inconsistent, and fixed/continuous-mode units may default to higher dose. The protective priorities that require no capital cost — collimation, brief intermittent screening, last image hold, maximising distance, correct C-arm orientation and standing on the detector side — therefore matter most where equipment is least advanced, and are the universally examinable answers.

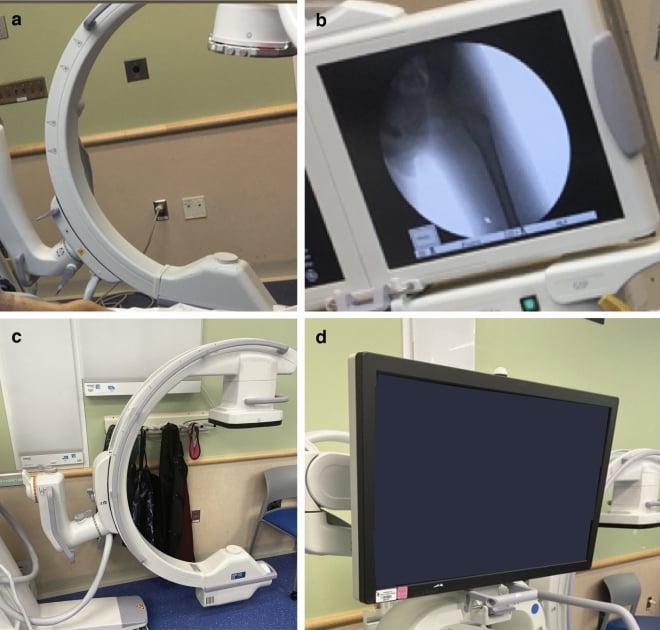

Equipment Comparison
- Image Intensifier (II)
- Pincushion and S-distortion, vignetting, veiling glare
- Flat-Panel Detector (FPD)
- No geometric distortion, better dynamic range and contrast
- Mini C-arm
- Adequate for distal extremity; small field of view
- Image Intensifier (II)
- Higher
- Flat-Panel Detector (FPD)
- Lower
- Mini C-arm
- Lowest (1-2 orders of magnitude below large C-arm)
- Image Intensifier (II)
- Large, good penetration
- Flat-Panel Detector (FPD)
- Large, good penetration
- Mini C-arm
- Small; limited penetration (hand/wrist/foot only)
- Image Intensifier (II)
- Bulky curved tube
- Flat-Panel Detector (FPD)
- Compact, lighter
- Mini C-arm
- Very compact, mobile
- Image Intensifier (II)
- Legacy units still in service
- Flat-Panel Detector (FPD)
- Modern standard for axial/long-bone work
- Mini C-arm
- Distal extremity surgery
Controversies & Areas of Uncertainty
Radiation protection limits and ALARA rest on the LNT model — that any dose carries proportional stochastic (cancer) risk with no safe threshold. LNT is extrapolated from high-dose atomic-bomb-survivor data; whether very low occupational doses carry genuine excess risk (versus hormesis or a practical threshold) is genuinely debated among radiobiologists. For exams, defend LNT as the prudent, regulator-endorsed working model while acknowledging the uncertainty at low doses.
Conventional 0.5mm Pb aprons are protective but heavy, and chronic wear is linked to spinal and shoulder disorders in surgeons. Lighter composite (antimony/bismuth/barium) and two-piece skirt-and-vest designs reduce load but may attenuate slightly less at some beam energies, and vendor-quoted attenuation often overstates real-world performance (a recognised regulatory gap). The trade-off between musculoskeletal protection and radiation attenuation is unresolved.
Per-procedure doses are low, but reports of elevated breast cancer in female orthopaedic surgeons and lens opacities in heavily exposed interventionalists keep the question of meaningful cumulative career risk open. Personal dosimetry compliance is poor in many settings, so true cumulative doses are uncertain and probably underestimated.
Computer navigation and intraoperative 3D (cone-beam) imaging can reduce repeated 2D screening and improve implant accuracy, but a single 3D spin delivers a substantial scatter dose, and the net dose balance versus conventional fluoroscopy depends on protocol, anatomy and how often staff leave the room during acquisition.
Clinical Decision Scenarios
Practise clinical reasoning and management decisions out loud
“An examiner asks: 'Where should you stand relative to the C-arm during fluoroscopy and why?'”
“You are performing an intramedullary nail for a tibial shaft fracture and need to place the distal interlocking screws using fluoroscopy.”
“An examiner asks you to discuss the physiological effects of ionising radiation and the annual dose limits for radiation workers.”
C-arm Basics
- X-ray tube below, image receptor (detector) above = standard orientation
- Stand on the IMAGE RECEPTOR side (away from the tube)

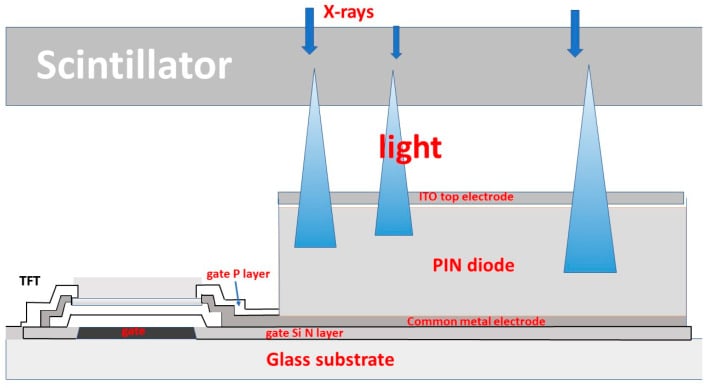

- Flat-panel detector (FPD) is superior to image intensifier (II) — less dose, no distortion
- Mini C-arm: approximately 1/10th dose of standard C-arm for extremity procedures
Dose Reduction (CLAPTD)
- Collimate — narrow beam to region of interest
- Last image hold — review stored frames, not new exposures
- ALARA — use minimum technique factors for adequate image quality
- Pulsed — 50-90% dose reduction vs continuous
- Time — brief exposures, release pedal between checks
- Distance — inverse square law: 2x distance = 1/4 dose
Radiation Safety
- Lead apron: 0.5mm Pb equivalent attenuates 90-95% of scatter
- Thyroid shield: 90% thyroid dose reduction — mandatory for all
- Lead glasses: 85-90% lens dose reduction
- Personal dosimetry badge is mandatory for radiation workers
Dose Limits (ICRP/IAEA - global)
- Occupational: 20 mSv/year averaged over 5 years (max 50 mSv any single year)
- Eye lens: 20 mSv/year (reduced from 150 mSv; US NRC still 150)
- Skin and extremities: 500 mSv/year
- General public: 1 mSv/year
Dose Increases With
- Magnification mode (2-4x increase — use sparingly)
- Continuous vs pulsed fluoroscopy
- Greater patient thickness (ABC compensates with higher output)
- Closer distance to the X-ray source
Evidence Base
Scatter Radiation Exposure with Mini C-arm Fluoroscopy
- Using a phantom upper extremity and 13 dosimeters, only the sensor placed directly in the imaging beam recorded substantial measurable radiation after 155 exposures (300 seconds of imaging).
- Outside the direct beam path, scatter dose to the surgical team during routine mini C-arm use was minimal.
- The principal hazard with the mini C-arm is the operator's hand or body entering the direct (primary) beam, not ambient scatter.
Fluoroscopy Dose Reduction Techniques
- Patient skin dose can be substantial during prolonged fluoroscopy and depends on examination type, patient size, equipment and technique.
- Effective dose reduction techniques include intermittent exposures, grid removal, last image hold, beam filtration, dose spreading and pulsed fluoroscopy.
- Operator training and understanding of the factors influencing dose are central to effective dose management.
Dose reduction strategies are well-supported by evidence.
