Plain Radiography Principles

Back to Topics
Contents
0%

Plain Radiography Principles

Comprehensive guide to plain radiography principles including X-ray production physics, image formation, systematic interpretation approaches, radiation safety, and quality optimisation for orthopaedic fellowship exam preparation.

Very High Yield
complete
Reviewed: 2026-03-11By OrthoVellum Medical Education Team

Reviewed by OrthoVellum Editorial Team

Orthopaedic clinicians and medical editors • Published by OrthoVellum Medical Education Team

Editorial boardMethodologyReview policyReport a correction
High Yield Overview

Plain Radiography Principles

X-Ray Physics for Orthopaedic Surgeons

55-80kVp for extremities
80-120kVp for spine/pelvis
1/d²Inverse Square Law
0.001-0.01mSv limb X-ray dose
80-90%beam is Bremsstrahlung
Z³Photoelectric effect āˆ atomic number cubed
95%Scatter attenuated by lead apron
2Minimum views at 90 degrees

Tissue Radiodensity Spectrum

Air (black, -1000 HU): No absorption

Fat (dark grey, -100 HU): Low absorption

Soft tissue/water (grey, 0-80 HU): Moderate absorption

Bone (white, +400-1000 HU): High absorption via photoelectric effect

Metal (bright white, +3000 HU): Near-complete absorption

Key: Differential absorption between tissues creates image contrast — this is the fundamental principle of radiographic imaging

Critical Must-Knows

  • X-rays are produced when high-energy electrons strike a tungsten anode, generating Bremsstrahlung (80-90%) and Characteristic radiation (10-20%).
  • kVp controls beam penetration (quality): higher kVp = more penetrating beam but lower contrast.
  • mAs controls photon quantity (exposure): higher mAs = more photons, higher dose, darker image.
  • Inverse Square Law: Intensity is proportional to 1/distance squared. Doubling distance quarters dose.
  • Bone appears white (radiopaque) due to high atomic number calcium absorbing more X-rays via the photoelectric effect.

Examiner's Pearls

  • "
    Bremsstrahlung = 'braking radiation' = electron deceleration near nucleus = continuous energy spectrum.
  • "
    Photoelectric effect dominates at lower kVp and high Z materials — responsible for bone vs soft tissue contrast.
  • "
    Compton scatter dominates at higher kVp — creates image fog and is the main source of staff radiation exposure.
  • "
    Lead apron attenuates approximately 95% of scatter radiation at diagnostic energies.
  • "
    Paediatric patients require LOWER dose settings due to increased radiosensitivity and longer remaining lifespan.

Exam Warning

Plain radiography physics is commonly examined in both written and viva formats. You must understand kVp vs mAs, the two mechanisms of X-ray production, the photoelectric effect vs Compton scatter distinction, and the inverse square law. Practical questions often focus on: why you choose specific views, how to optimise dose in pregnancy, and systematic interpretation to avoid missed fractures.

Mnemonic

BEAMX-Ray Exposure Parameters

B
Beam quality (kVp)
kVp determines penetration power and affects contrast — higher kVp = more penetration but lower contrast
E
Exposure quantity (mAs)
mAs = mA multiplied by time — controls number of photons and directly proportional to patient dose
A
Absorption differences
Photoelectric effect (proportional to Z cubed) creates bone-soft tissue contrast; Compton scatter creates fog
M
Minimise dose (ALARA)
Time, Distance, Shielding — the three cardinal principles of radiation protection

Memory Hook:BEAM: the physics of every radiograph you request starts with these four concepts.

Mnemonic

ABCSSystematic X-Ray Interpretation

A
Alignment
Joint congruity, subluxation, angular deformity, overall bone axis
B
Bone
Cortical integrity (fracture lines), trabecular pattern, bone density, focal lesions, periosteal reaction
C
Cartilage and joints
Joint space width and symmetry, subchondral sclerosis, osteophytes, loose bodies, erosions
S
Soft tissues
Swelling, effusion (fat pad signs), calcification, foreign bodies, gas in soft tissues

Memory Hook:Always Be Checking Systematically — satisfaction of search is the most dangerous error in radiograph interpretation.

Mnemonic

TDSRadiation Protection Principles

T
Time
Minimise exposure duration — use pulsed fluoroscopy, last-image-hold, avoid unnecessary repeat exposures
D
Distance
Maximise distance from the radiation source — inverse square law means doubling distance quarters the dose
S
Shielding
Use appropriate barriers — lead apron (0.25-0.5mm Pb equivalent), thyroid shield, lead glasses for eyes

Memory Hook:Time, Distance, Shielding — the three pillars of ALARA that every orthopaedic surgeon must practise in theatre.

Overview

Plain radiography remains the first-line imaging modality in orthopaedic practice because it is fast, inexpensive, widely available, and provides excellent spatial resolution for cortical bone. Despite the proliferation of advanced cross-sectional imaging, the plain radiograph is the starting point for the vast majority of orthopaedic consultations and remains the backbone of fracture diagnosis, arthritis assessment, alignment evaluation, and postoperative surveillance.

The clinical value of a radiograph depends on three linked factors: the physics of image generation (understanding what creates the image), the technical parameters chosen (ensuring diagnostic quality with minimum dose), and the interpretive framework used by the reader (systematic review to avoid missed pathology). All three are examined at fellowship level.

Strengths of Plain Radiography

Excellent cortical bone detail with high spatial resolution. Fast acquisition (seconds). Low cost globally. Gold standard for fracture diagnosis, alignment assessment, arthritis grading, and implant surveillance. Weight-bearing views provide functional information. Universally available in emergency departments and clinics.

Limitations of Plain Radiography

Superimposition of 3D anatomy onto a 2D projection. Limited soft tissue contrast (cannot reliably evaluate ligaments, tendons, or cartilage). Projection-dependent — a fracture may be invisible on one view and obvious on another. Low sensitivity for occult fractures (10-20% of scaphoid fractures initially radiograph-negative). Ionising radiation exposure, though dose is low for extremity imaging.

Clinical Imaging

Imaging Gallery

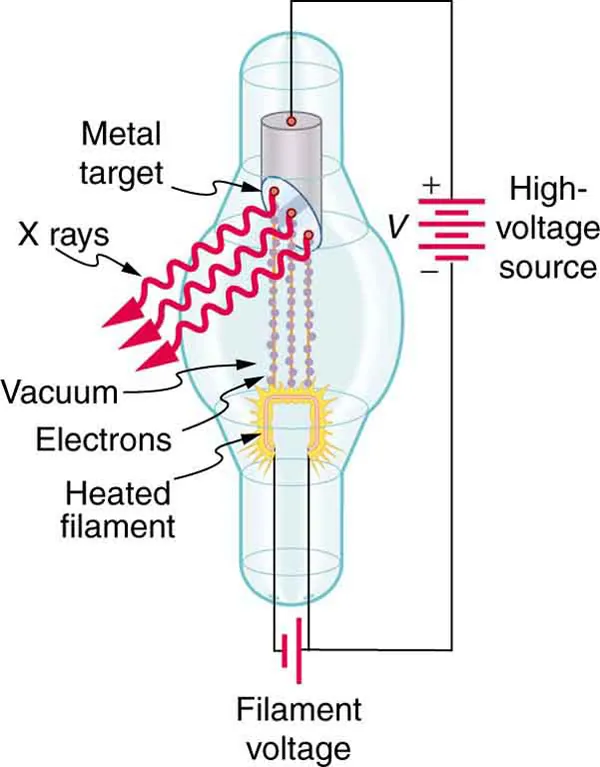

Annotated schematic of an X-ray tube showing cathode, anode, and beam generation
Click to expand
X-ray tube schematic demonstrating cathode (electron source via thermionic emission), rotating tungsten anode (target), high voltage acceleration, and the geometric foundations of projectional imaging. Understanding this basic design is essential for appreciating how kVp and mAs affect image quality.Credit: OpenStax College Physics 2e, CC BY 4.0

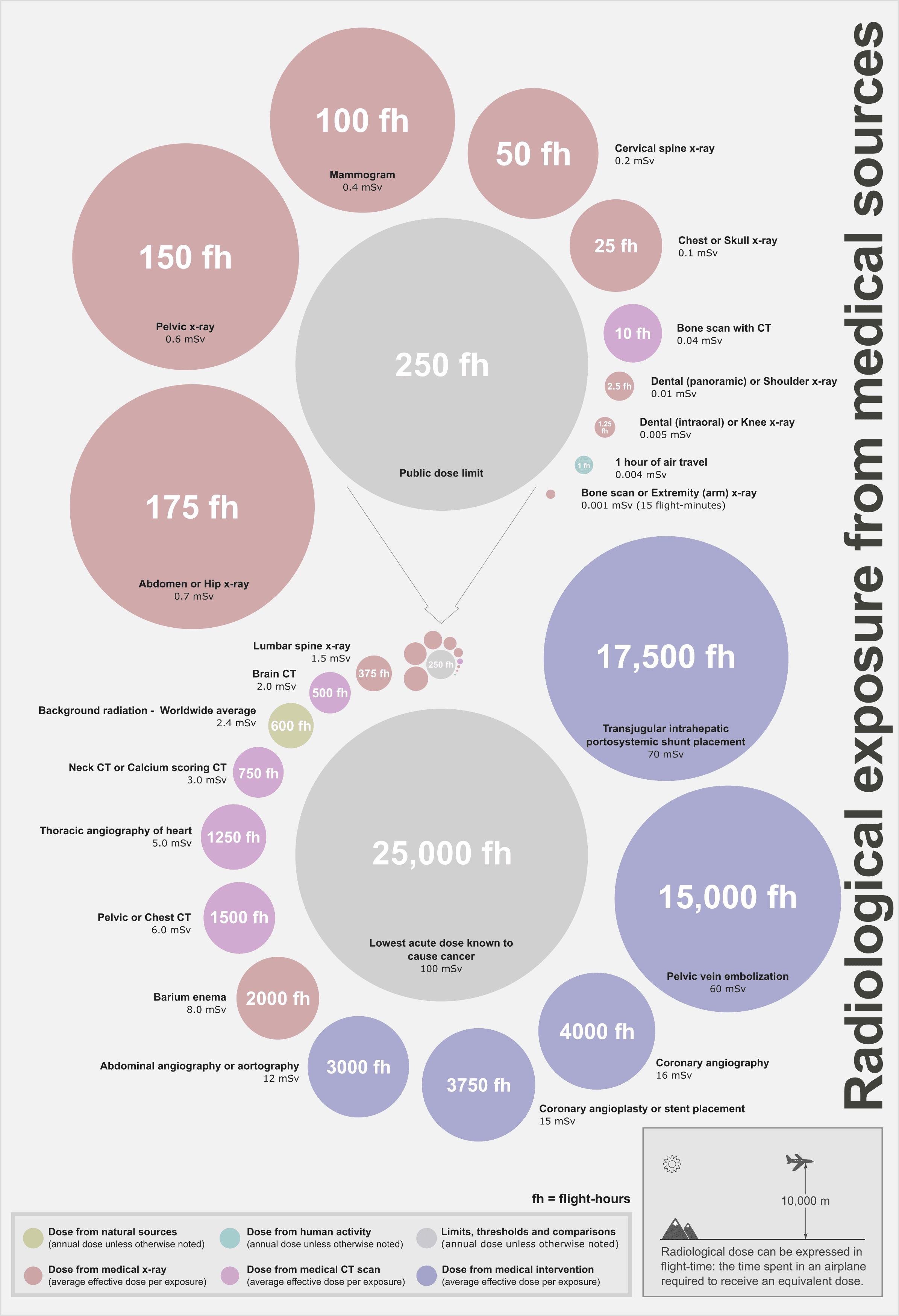

Comparison chart showing radiation doses from common medical imaging examinations
Click to expand
Radiation dose comparison chart for common imaging examinations. Note the vast difference between extremity radiographs (0.001-0.01 mSv) and CT scans (2-20 mSv). This chart is critical for informed consent discussions and illustrates why plain radiography remains the safest first-line imaging modality.Credit: Wikimedia Commons - Wolfpaw98, CC BY-SA 4.0

X-Ray Production Physics

X-rays are a form of electromagnetic radiation with wavelengths between 0.01 and 10 nanometres, placing them between ultraviolet light and gamma rays on the electromagnetic spectrum. In medical imaging, X-rays are produced artificially in an X-ray tube through the interaction of high-energy electrons with a metal target.

X-Ray Tube Components

The X-ray tube is a vacuum-sealed glass or metal envelope containing two electrodes. The cathode is a coiled tungsten filament that emits electrons when heated to high temperatures through thermionic emission. The anode is a large rotating tungsten disc (chosen for its high atomic number of 74 and extremely high melting point of 3422 degrees Celsius) that serves as the electron target. A high voltage potential difference (measured in kilovolts peak, kVp) is applied across the tube, accelerating the cathode electrons toward the anode at tremendous speed.

When these accelerated electrons strike the tungsten anode, their kinetic energy is converted into two forms: heat (over 99% of the energy) and X-ray photons (less than 1%). The X-ray photons exit through a window in the tube housing and form the imaging beam. This extreme inefficiency is why anode rotation and heat dissipation are critical engineering challenges.

Two Mechanisms of X-Ray Production

Bremsstrahlung vs Characteristic Radiation

FeatureBremsstrahlung (Braking)Characteristic
MechanismElectron decelerates near the nucleus of a target atom, losing energy as an X-ray photonElectron ejects an inner-shell electron from the target atom; outer-shell electron fills the vacancy, emitting a photon of specific energy
Energy spectrumContinuous spectrum — photons of all energies from zero up to the maximum keV (which equals the kVp)Discrete line spectrum — photons at specific energies determined by the binding energy differences between electron shells
Proportion of beam80-90% of the useful X-ray beam10-20% of the useful X-ray beam
Depends onAtomic number of the target and the kinetic energy of the incident electronBinding energies of the target atom electron shells (K-shell, L-shell)
Clinical relevanceProvides the majority of imaging photons across the diagnostic energy rangeContributes discrete peaks to the energy spectrum; tungsten K-edge characteristic X-rays have energies of 59 and 67 keV

Exam Pearl: Bremsstrahlung

The word Bremsstrahlung is German for 'braking radiation.' In a viva, explain it as: 'When a fast-moving electron passes close to a tungsten nucleus, the strong electrostatic attraction decelerates the electron. The kinetic energy lost during this deceleration is emitted as an X-ray photon. Because the electron can pass at varying distances from the nucleus, losing different amounts of energy each time, a continuous spectrum of X-ray energies is produced.'

Technical Parameters

The two most important operator-controlled parameters are kilovoltage peak (kVp) and milliampere-seconds (mAs). Understanding their distinct effects on the X-ray beam is fundamental.

Kilovoltage peak (kVp) controls beam quality — the penetrating ability of the X-ray beam.

Higher kVp accelerates electrons to greater speed before they strike the anode, producing higher-energy (shorter-wavelength) X-ray photons that penetrate tissue more easily. However, this comes at the cost of reduced radiographic contrast because more photons pass through both bone and soft tissue without being absorbed, creating a more uniformly grey image.

kVp Settings by Anatomical Region

RegionTypical kVpRationale
Fingers and toes50-55Thin structures need low kVp for maximum contrast
Hand, wrist, forearm55-65Moderate soft tissue with fine bony detail required
Elbow, knee, ankle60-70Larger joints need moderate penetration
Shoulder, hip70-80Thick soft tissue envelope requires higher penetration
Spine (AP)75-85Dense overlapping structures need good penetration
Pelvis80-90Large body habitus and dense bone
Chest110-120High kVp reduces rib contrast to visualise lungs

The key relationship is: increasing kVp by 15% has the same effect on image density as doubling the mAs, but with different contrast behaviour.

This is the answer expected in an exam context.

Milliampere-seconds (mAs) controls beam quantity — the number of X-ray photons produced.

mAs is the product of tube current (mA) and exposure time (seconds). A higher mA means a hotter cathode filament releasing more electrons per second; a longer exposure time means electrons flow for a greater duration. Both increase the total number of X-ray photons, producing a darker (more exposed) image.

The critical points for examination purposes are:

  • Doubling mAs doubles patient dose — this is a directly proportional relationship
  • mAs does not change beam energy or penetration — it only changes the number of photons
  • mAs primarily affects image noise — insufficient mAs produces a grainy (quantum mottle) image
  • Reciprocity law: 100 mA for 0.1s (10 mAs) produces an identical exposure to 200 mA for 0.05s (10 mAs)

In digital radiography, the automatic exposure control (AEC) system adjusts mAs in real time based on the detector signal, making manual mAs selection less common. However, understanding the principle remains essential.

This concept is foundational for radiation dose discussions.

Image Formation and Contrast

Radiographic image contrast arises from the differential absorption of X-ray photons as they pass through tissues of varying composition and density. Two physical interactions dominate at diagnostic X-ray energies.

Photoelectric Effect

The photoelectric effect is the complete absorption of an incoming X-ray photon by an inner-shell electron of an atom. The photon's energy is entirely transferred to the electron, which is ejected from the atom (becoming a photoelectron). The vacancy is then filled by an outer-shell electron, sometimes releasing a characteristic X-ray.

The probability of the photoelectric effect is proportional to Z³/E³ — the cube of the atomic number divided by the cube of the photon energy. This means:

  • High Z materials (bone, calcium Z=20) absorb dramatically more than low Z materials (soft tissue, water equivalent Z approximately 7.4)
  • Lower kVp increases photoelectric absorption, producing higher contrast
  • The photoelectric effect is responsible for the excellent bone-vs-soft tissue contrast in plain radiography

Compton Scatter

Compton scatter occurs when an X-ray photon interacts with a loosely bound outer-shell electron, transferring part of its energy and changing direction. The scattered photon continues in a different direction with reduced energy.

  • Dominates at higher kVp (above approximately 30 keV in soft tissue)
  • Independent of atomic number — depends only on electron density, which is relatively uniform across soft tissues
  • Creates image fog — scattered photons that reach the detector carry no useful spatial information and reduce contrast
  • Main source of occupational radiation — scattered photons travel in all directions, including toward staff

Photoelectric Effect vs Compton Scatter

PropertyPhotoelectric EffectCompton Scatter
Type of interactionComplete absorption of photonPartial absorption with scattered photon
Depends onZ cubed (atomic number) and 1/E cubed (photon energy)Electron density only (approximately constant in soft tissue)
Dominates whenLow kVp, high Z material (bone, contrast agents)Higher kVp, soft tissue (water-equivalent Z)
Effect on imageCreates useful contrast between tissuesCreates fog — degrades contrast
Effect on doseAll energy deposited locally in the patientPartial energy deposited; scattered photon continues
Staff radiationNo contribution (photon is fully absorbed)Main source of occupational radiation dose

Controlling Scatter

Several practical measures reduce the degradation of image quality by Compton scatter:

  • Collimation: Limiting the X-ray field to only the region of interest reduces the volume of tissue generating scatter. This also reduces patient dose.
  • Anti-scatter grid: A grid of thin lead strips placed between the patient and detector absorbs obliquely travelling scattered photons while allowing primary beam photons (travelling in a straight line) to pass through. Grids improve contrast but require an increase in mAs (typically 2-4 times), increasing patient dose.
  • Air gap technique: Increasing the distance between the patient and detector allows scattered photons to diverge and miss the detector. Used occasionally for lateral cervical spine and chest imaging.

Understanding this relationship is key for explaining why different technical settings are chosen for different body parts.

Systematic Interpretation

A systematic approach to radiograph interpretation is the single most important habit for avoiding missed pathology. Studies consistently show that an unsystematic 'gestalt' approach leads to satisfaction of search errors — where the discovery of one obvious abnormality causes the reader to stop looking for additional findings.

The ABCS Approach

ABCS Systematic Interpretation Framework

StepWhat to AssessCommon Findings
A — AlignmentOverall bone axis, joint congruity, angular deformity, subluxation, rotational malalignmentFracture displacement, joint dislocation, scoliosis, valgus or varus deformity
B — BoneCortical integrity (fracture lines), trabecular pattern, bone density (osteopenia), focal lytic or sclerotic lesions, periosteal reaction, bone size and shapeFractures, tumours, infections (Brodie abscess), metabolic bone disease, Paget disease
C — Cartilage and JointsJoint space width and symmetry, subchondral sclerosis, osteophytes, erosions, ankylosis, loose bodies, chondrocalcinosisOsteoarthritis (asymmetric joint space narrowing), inflammatory arthritis (erosions), CPPD (chondrocalcinosis)
S — Soft TissuesSwelling, effusion (fat pad signs), calcification, foreign bodies, gas (surgical emphysema), muscle wasting, soft tissue massLipohemarthrosis (fat-fluid level on horizontal beam), posterior fat pad sign (elbow), quadriceps or Achilles calcification

The Two-View Minimum

Orthopaedic Imaging Rule

Every long bone and joint requires a minimum of two views at 90 degrees to each other. A fracture that is invisible on an AP view may be obvious on a lateral view. The classic example is the lateral condyle fracture in children, which can appear as a subtle fleck on the AP view but shows a large displaced fragment on the lateral. A single-view radiograph is considered an incomplete study and should prompt a request for the orthogonal view before clinical decisions are made.

View Selection by Region

Standard Orthopaedic Radiographic Views

RegionStandard ViewsKey Additional Views
Hand/WristPA, True Lateral, ObliqueScaphoid views (4 projections), Carpal tunnel, Roberts (thumb CMC)
ElbowAP (full extension), True Lateral (90 degrees flexion)Radial head views, Obliques, Greenspan view (coronoid)
ShoulderAP (internal and external rotation), Axillary lateralScapular Y (outlet), West Point (anterior glenoid), Stryker notch (Hill-Sachs)
Cervical spineAP, Lateral, Open mouth (odontoid peg)Flexion/Extension (instability), Swimmer (C7-T1 junction)
Thoracolumbar spineAP, LateralCone-down lateral (pars), Obliques (scotty dog)
PelvisAP (standing if for arthritis)Inlet, Outlet (pelvic ring), Judet obliques (acetabulum)
HipAP Pelvis, Lateral (cross-table or frog)Dunn view (45 degrees for cam morphology), False profile (anterior coverage)
KneeAP (weight-bearing), True LateralRosenberg (45 degrees PA flexion weight-bearing), Sunrise/Merchant (patellofemoral), Long-leg alignment
AnkleAP, Mortise (15-20 degrees internal rotation), LateralWeight-bearing AP (syndesmosis), Stress views (talar tilt, anterior drawer if ligament injury suspected)
FootAP (weight-bearing), Lateral (weight-bearing), ObliqueSesamoid axial, Harris heel view (calcaneus), Meary angle assessment

Understanding which views to request and why provides a significant advantage in viva examinations.

Specific Radiographic Signs

Certain radiographic signs are pathognomonic or highly suggestive of specific diagnoses and are commonly tested at fellowship level.

Fat Pad Signs

Fat pads are radiolucent structures that become visible or displaced when adjacent joints develop effusions. Their recognition provides indirect evidence of occult pathology.

Elbow Fat Pads: The posterior fat pad of the elbow is normally hidden within the olecranon fossa. An effusion pushes it posteriorly, creating a visible lucent triangle behind the distal humerus on the lateral view. The anterior fat pad (sail sign) is normally a thin lucent stripe; when elevated and sail-shaped, it indicates an intra-articular effusion. In the context of trauma with no visible fracture, a positive fat pad sign indicates an occult fracture (most commonly a radial head fracture in adults) and warrants further evaluation or immobilisation and follow-up imaging.

Knee Lipohemarthrosis: A horizontal-beam lateral radiograph of the knee may show a fat-fluid level within the suprapatellar pouch. This lipohemarthrosis occurs when an intra-articular fracture releases marrow fat into the joint, which layers above the blood due to lower density. This sign indicates an occult intra-articular fracture (most commonly tibial plateau) even when no fracture line is visible on standard views.

These signs are frequently used as viva image stations.

Key Alignment Lines

Shenton Line: A smooth continuous arc drawn from the inferior border of the superior pubic ramus along the medial border of the femoral neck. Disruption of this arc indicates hip pathology — dislocation, fracture, or developmental dysplasia.

Anterior Humeral Line: A line drawn along the anterior cortex of the humerus on the lateral elbow view should pass through the middle third of the capitellum. If it passes through the anterior third, consider a posteriorly displaced supracondylar fracture.

Radiocapitellar Line: A line drawn along the long axis of the proximal radius should pass through the centre of the capitellum on ALL views. Failure indicates radial head dislocation (Monteggia equivalent).

Bohler Angle: The angle formed between the posterior facet and anterior process of the calcaneus on the lateral view. Normally 20-40 degrees; flattening (less than 20 degrees) suggests a calcaneal compression fracture.

These are essential viva knowledge.

Radiation Safety in Practice

Every orthopaedic surgeon who requests or supervises radiographic examinations has a legal and ethical obligation to understand radiation safety. The guiding framework is the ALARA principle: As Low As Reasonably Achievable.

Dose Reference Values

Typical Effective Doses for Common Orthopaedic Imaging

ExaminationEffective Dose (mSv)Equivalent Natural BackgroundContext
Extremity radiograph (hand, foot, ankle)0.001-0.01A few hoursNegligible dose — safe in virtually all circumstances including pregnancy
Chest radiograph (PA)0.022-3 daysVery low dose — the standard reference examination for dose comparison
Shoulder or elbow radiograph0.01-0.051-5 daysLow dose — no specific precautions needed
Hip or pelvis radiograph0.3-0.71-4 monthsModerate dose — relevant to gonadal shielding discussions
Lumbar spine series1.0-1.55-8 monthsHigher dose — justify indication and minimise repeat exposures
CT abdomen/pelvis6-202-7 yearsHigh dose — always require clear clinical justification

Protection Principles

Time

Minimise exposure duration. In fluoroscopy: use pulsed mode instead of continuous, use last-image-hold to review without ongoing radiation, and plan the procedure to minimise screening time. For plain radiography: avoid unnecessary repeat exposures by ensuring correct positioning before exposure.

Distance

Inverse Square Law: Doubling the distance from the radiation source reduces dose to one-quarter. Standing 2 metres from a fluoroscopy source instead of 1 metre reduces your exposure by 75%. In theatre, stand as far from the C-arm as practically possible during screening.

Shielding

Lead apron (minimum 0.25mm Pb equivalent, preferably 0.5mm for wrap-around) is mandatory during fluoroscopy. Thyroid shield is strongly recommended. Lead glasses (0.75mm Pb equivalent) should be worn for high-volume fluoroscopy users. Gonadal shielding for patients of reproductive age when the gonads are within or near the primary beam and shielding will not obscure relevant anatomy.

Pregnancy Considerations: Fetal dose should be kept below 1 mGy throughout pregnancy. Extremity radiographs pose negligible fetal risk because the beam is remote from the uterus. Pelvic and abdominal imaging requires careful justification and optimisation. Crucially, lead shielding of the abdomen does NOT fully protect the fetus from internal scatter radiation within the patient's body — the only reliable dose reduction is to reduce the primary beam parameters and field size.

Image Quality Optimisation

Diagnostic image quality is a balance between four parameters, all of which can be optimised by understanding the underlying physics.

Image Quality Parameters

ParameterDefinitionOptimised ByDegraded By
ContrastAbility to distinguish adjacent structures of different densityLower kVp (increases photoelectric absorption), collimation (reduces scatter), grid useHigher kVp (more Compton scatter), large field size, patient obesity
Spatial ResolutionAbility to resolve fine structural detailSmall focal spot, short exposure time (reduces motion blur), short object-to-detector distance (OID)Large focal spot, patient motion, magnification (long OID)
Noise (Quantum Mottle)Random statistical fluctuation creating a grainy appearanceAdequate mAs (sufficient photon count), slower detector readoutLow mAs (insufficient photons), fast detector readout, high receptor sensitivity settings
DistortionMagnification or shape change of the imaged structureLong source-to-image distance (SID, standard 100cm), short OID, perpendicular beam alignmentShort SID, long OID, angled beam (unless intentionally used for specific views)

Digital vs Film Radiography

Modern digital radiography systems (computed radiography using phosphor plates, or direct digital radiography using flat-panel detectors) have largely replaced film-screen systems. Digital systems offer several advantages: wider dynamic range (more forgiving of exposure errors), post-processing capability (window/level adjustment, edge enhancement), immediate image availability, and electronic storage and retrieval. However, the wider dynamic range can mask overexposure, potentially leading to 'dose creep' — a gradual increase in exposure settings because the image remains diagnostic even at unnecessarily high doses. Quality assurance programmes must monitor exposure indices to prevent this.

Understanding the difference is important for modern practice.

Special Considerations

Paediatric Radiography Principles

Children are more radiosensitive than adults due to their rapidly dividing cells and longer remaining lifespan over which stochastic effects (cancer) can develop. The ALARA principle is therefore even more important in paediatric imaging.

Key modifications for paediatric radiography:

  • Dose reduction: Use lower kVp and mAs settings. Modern protocols reduce paediatric extremity doses by 30-50% compared to adult settings.
  • Gonadal shielding: Particularly important in children when the gonads are near the primary beam (pelvis, hip imaging).
  • Immobilisation without restraint: Use positioning aids rather than manual holding by staff or parents where possible. If a parent must assist, they must wear full protective equipment and the exposed parent should ideally not be pregnant.
  • Comparison views: A contralateral comparison radiograph may be justified in children when the normal appearance of ossification centres makes it difficult to distinguish a fracture from a developing physis. However, routine comparison views should not be performed unless clinically indicated — each additional radiograph adds dose.
  • Growth plate awareness: Open physes can mimic fracture lines. Knowledge of age-dependent ossification centres (CRITOE for elbow) is essential to avoid misdiagnosis.

Paediatric imaging is always a balance between diagnostic need and radiation risk.

Imaging in Pregnancy

The key principles are:

  1. Risk is dose-dependent and gestational-age-dependent: The highest risk period for teratogenesis is organogenesis (2-8 weeks). Beyond 15 weeks, the threshold for major malformation is well above any diagnostic imaging dose. The stochastic risk (future cancer) is estimated at approximately 1 in 10,000 per mGy of fetal dose.

  2. Extremity radiographs are safe: The fetal dose from a hand, wrist, ankle, or knee radiograph is effectively zero because the beam is directed far from the uterus.

  3. Pelvic and abdominal imaging requires justification: A single AP pelvis radiograph delivers approximately 1 mGy to the uterus — well below the 100 mGy threshold for deterministic effects. However, repeated exposures and CT scanning can accumulate meaningful doses.

  4. MRI is preferred for non-urgent indications: MRI does not use ionising radiation and is considered safe in the second and third trimesters (avoid gadolinium if possible). Ultrasound is first-line for many soft tissue and periarticular questions.

  5. Lead shielding has limited benefit: Abdominal lead shielding does not protect the fetus from internal scatter, which accounts for most of the fetal dose during torso imaging. Field collimation and technique optimisation are more effective dose reduction strategies.

Never withhold clinically essential imaging in pregnancy, but always document the risk-benefit discussion.

Common Artefacts

Recognising radiographic artefacts prevents misdiagnosis and unnecessary further investigation.

Common Radiographic Artefacts

ArtefactCauseAppearanceSolution
Motion blurPatient or tube movement during exposureBlurred cortical margins, loss of fine detailShorter exposure time, immobilisation, repeat if non-diagnostic
Grid cutoffMisaligned anti-scatter gridPeripheral darkening or banding patternCorrect grid alignment, ensure grid is centred to beam
Scatter fogCompton scatter photons reaching detectorOverall greying with reduced contrastCollimation, grid use, lower kVp if appropriate
Double exposureTwo exposures on the same detectorSuperimposed anatomy creating confusing appearanceDigital systems prevent this; check for processing errors
Metal artefactJewellery, clothing snaps, surgical implantsBright white opacity obscuring underlying anatomyRemove external objects; for implants, use adjusted technique and additional views
Quantum mottleInsufficient mAs (too few photons)Grainy, speckled appearance with poor signal-to-noise ratioIncrease mAs (with corresponding dose increase)

Understanding artefacts is important for quality assurance discussions.

Evidence Base

ICRP Publication 135: Diagnostic Reference Levels in Medical Imaging

Guideline
International Commission on Radiological Protection • Annals of the ICRP (2017)
Key Findings:
  • Established international diagnostic reference levels (DRLs) for common radiographic examinations across all anatomical regions.
  • DRLs are not dose limits but investigation levels — facilities consistently exceeding them should review and optimise their protocols.
  • Plain radiography delivers the lowest effective doses among ionising imaging modalities, supporting its role as the first-line investigation.
Clinical Implication: DRLs provide benchmarks to identify facilities with unnecessarily high radiation doses and drive optimisation.
Limitation: DRLs vary between countries and are updated periodically as technology evolves; always reference local guidelines.
Source: ICRP Publication 135, Ann ICRP 2017;46(1):1-144

ARPANSA Diagnostic Reference Levels for Medical Imaging in Australia

Guideline
Australian Radiation Protection and Nuclear Safety Agency • ARPANSA Technical Report (2021)
Key Findings:
  • Australian-specific diagnostic reference levels for common radiographic procedures including chest, pelvis, lumbar spine, and extremity examinations.
  • Australian DRLs are broadly consistent with international standards but reflect local equipment profiles and practice patterns.
  • Recommends regular dose audits with comparison to DRLs as part of quality assurance programmes.
Clinical Implication: Australian trainees should reference ARPANSA DRLs when discussing radiation safety in examinations; they are the local regulatory standard.
Limitation: DRLs are based on survey data and are updated infrequently; actual best-practice doses may be lower than published DRLs.
Source: ARPANSA Technical Report 183. Diagnostic Reference Levels for Medical Imaging, 2021

European Guidelines on Diagnostic Reference Levels

Guideline
European Commission • Radiation Protection No. 185 (2018)
Key Findings:
  • European DRLs for paediatric and adult radiographic examinations with specific recommendations for dose-sensitive populations.
  • Emphasises the importance of DRLs as a quality improvement tool, not a regulatory limit.
  • Highlights the significant dose reductions achievable through modern digital radiography compared to film-screen systems.
Clinical Implication: The European framework provides additional context for understanding radiation dose benchmarks in a global practice environment.
Limitation: European-specific data may not directly apply to Australian practice but provides useful comparative context.
Source: European Commission Radiation Protection No. 185, 2018

Guidelines provide the regulatory framework for safe radiographic practice.

The Essential Physics of Medical Imaging

Textbook
Bushberg JT, Seibert JA, Leidholdt EM, Boone JM • Lippincott Williams and Wilkins (2020)
Key Findings:
  • Comprehensive coverage of X-ray production physics including the detailed interactions between accelerated electrons and the tungsten anode target.
  • Explains photoelectric absorption and Compton scatter at the atomic level with clinical correlations to radiographic contrast.
  • Provides the mathematical framework for the inverse square law and the relationships between kVp, mAs, dose, and image quality.
Clinical Implication: This is the standard reference text for radiology physics in fellowship examinations — the kVp/mAs relationships described here are directly examinable.
Limitation: Textbook-level detail may exceed what is required in most clinical viva scenarios but provides the definitive reference.
Source: Bushberg JT et al. The Essential Physics of Medical Imaging. 4th ed. Lippincott Williams and Wilkins; 2020

Strategies for Reducing Radiation Dose in Orthopaedic Surgery

Review
Giordano BD, Baumhauer JF, Morgan TL, Rechtine GR • Journal of the American Academy of Orthopaedic Surgeons (2011)
Key Findings:
  • Orthopaedic surgeons receive higher occupational radiation doses than most other surgical specialists due to frequent fluoroscopy use.
  • Practical dose reduction strategies include pulsed fluoroscopy, collimation, increased surgeon-to-source distance, and proper C-arm positioning.
  • The cumulative annual dose for a high-volume trauma surgeon may approach recommended occupational limits without protective measures.
Clinical Implication: Every orthopaedic trainee must understand and implement fluoroscopy dose reduction strategies from early in their career.
Limitation: Published dose estimates vary widely depending on case mix, equipment, and measurement methodology.
Source: Giordano BD et al. JAAOS 2011;19(2):85-93

These references provide the foundational physics and clinical dose reduction strategies.

Australian Context

In Australia, radiation safety in medical imaging is regulated by the Australian Radiation Protection and Nuclear Safety Agency (ARPANSA) and state-based radiation authorities. All facilities performing diagnostic radiography must comply with the ARPANSA Code of Practice for the Safe Use of Ionising Radiation, which mandates quality assurance programmes, dose monitoring, and adherence to diagnostic reference levels.

Australian orthopaedic trainees encounter plain radiography in every clinical setting from rural emergency departments to metropolitan trauma centres. The RANZCR (Royal Australian and New Zealand College of Radiologists) guidelines recommend a standardised approach to radiographic requesting that includes clear clinical justification, appropriate view selection, and dose optimisation. The Medicare Benefits Schedule funds diagnostic imaging under specific referral pathways, with plain radiography remaining the most widely accessible and cost-effective imaging modality across all Australian healthcare settings.

Radiation dose monitoring for orthopaedic surgeons is particularly relevant in Australia given the high volume of fluoroscopy-guided procedures (fracture fixation, joint arthroplasty, spine surgery). Personal dosimeters (typically thermoluminescent dosimeters or optically stimulated luminescence badges) are mandatory for all staff regularly exposed to ionising radiation, with results reviewed against ARPANSA occupational exposure limits of 20 mSv per year averaged over 5 years, with no single year exceeding 50 mSv.

Exam Viva Scenarios

Practice these scenarios to excel in your viva examination

VIVA SCENARIOStandard

EXAMINER

"You are shown a radiograph of a patient's elbow after a fall. The AP view appears normal but the lateral view shows an elevated anterior fat pad (sail sign) and a visible posterior fat pad."

EXCEPTIONAL ANSWER
The presence of a positive posterior fat pad sign and an elevated anterior fat pad (sail sign) on the lateral elbow radiograph indicates an intra-articular effusion, which in the context of trauma is highly suspicious for an occult fracture. The posterior fat pad is normally hidden within the olecranon fossa; its visibility indicates distension of the joint capsule by blood (hemarthrosis). In adults, the most common occult fracture in this setting is a non-displaced radial head fracture, which may not be visible on initial radiographs. My management would be: (1) Treat as a presumed radial head fracture with a broad arm sling and analgesia. (2) Arrange follow-up radiographs at 10-14 days when bone resorption at the fracture line may make it visible. (3) If clinical concern persists, CT or MRI can be used to confirm the diagnosis. (4) Begin early gentle range-of-motion exercises as pain allows to prevent stiffness.
KEY POINTS TO SCORE
Posterior fat pad sign indicates intra-articular effusion
In trauma, assume an occult fracture until proven otherwise
Radial head fracture is the most common occult adult elbow fracture
Treat with sling, analgesia, and follow-up imaging at 10-14 days
CT or MRI can confirm diagnosis if clinical doubt persists
COMMON TRAPS
āœ—Discharging the patient as 'normal X-ray' without recognising the fat pad sign
āœ—Not understanding that the posterior fat pad is normally invisible on lateral view
āœ—Immobilising the elbow in a rigid cast (risks stiffness — use sling and early motion)
VIVA SCENARIOStandard

EXAMINER

"A 28-year-old woman requires a pelvic radiograph following a road traffic collision. She tells you she might be pregnant."

EXCEPTIONAL ANSWER
This requires a structured approach balancing diagnostic need against fetal radiation risk. First, I would determine pregnancy status by asking about her last menstrual period and performing a point-of-care urine pregnancy test if there is any uncertainty. If she is confirmed pregnant: (1) I would assess whether the pelvic radiograph is genuinely clinically indicated — is there pelvic instability, hip pain, or a mechanism suggesting significant pelvic ring injury? If yes, the imaging is essential for her acute management and should proceed. (2) A single AP pelvis radiograph delivers approximately 1 mGy to the uterus, which is well below the 100 mGy threshold for deterministic effects (malformation, growth restriction). The stochastic risk (future childhood cancer) is approximately 1 in 10,000 per mGy. (3) I would optimise the technique: use the minimum field size, lowest appropriate kVp and mAs, single AP view if sufficient, and avoid unnecessary repeat exposures. (4) I would document the clinical justification and the risk-benefit discussion in the medical record. (5) Crucially, I would NOT withhold clinically necessary imaging — the maternal risk of a missed pelvic ring injury far outweighs the very small fetal radiation risk. (6) Abdominal lead shielding has limited benefit as it does not attenuate internal scatter radiation within the patient.
KEY POINTS TO SCORE
Determine pregnancy status before imaging (LMP, urine beta-hCG)
Single pelvic radiograph delivers approximately 1 mGy to the uterus
Deterministic effect threshold is approximately 100 mGy — well above any single diagnostic exposure
NEVER withhold essential imaging in a trauma scenario
Lead shielding does not protect from internal scatter within the patient
COMMON TRAPS
āœ—Refusing all imaging because the patient might be pregnant
āœ—Believing abdominal lead shielding fully protects the fetus
āœ—Not documenting the clinical justification and risk-benefit discussion
āœ—Not knowing the approximate fetal dose from a pelvic radiograph
VIVA SCENARIOChallenging

EXAMINER

"An examiner asks you to explain the physics of X-ray production and describe why bone appears white on a radiograph."

EXCEPTIONAL ANSWER
X-rays are produced in an X-ray tube when electrons emitted from a heated tungsten cathode filament are accelerated across a high voltage potential difference (measured in kilovolts peak, kVp) and strike a rotating tungsten anode target. The kinetic energy of these accelerated electrons is converted mainly into heat (over 99%) and partly into X-ray photons (less than 1%) through two mechanisms. First, Bremsstrahlung radiation (80-90% of the useful beam) occurs when electrons decelerate near the nucleus of a tungsten atom — the lost kinetic energy is emitted as an X-ray photon with energy anywhere from zero up to the maximum keV value. Second, Characteristic radiation (10-20%) occurs when an incident electron ejects an inner-shell electron from a tungsten atom; the resulting electron transition from an outer shell to fill the vacancy releases a photon of specific, discrete energy. Regarding contrast: bone appears white because the high atomic number of calcium (Z=20) makes it much more likely to undergo the photoelectric effect, which involves complete absorption of the X-ray photon. The photoelectric effect probability is proportional to Z cubed, so calcium-containing bone absorbs dramatically more X-ray photons than surrounding soft tissue (effective Z approximately 7.4). Fewer photons reach the detector behind bone, creating a white (radiopaque) appearance. Air appears black because virtually no photons are absorbed. Soft tissue is intermediate grey.
KEY POINTS TO SCORE
Two mechanisms: Bremsstrahlung (80-90%, continuous spectrum) and Characteristic radiation (10-20%, discrete peaks)
kVp determines maximum photon energy; mAs determines photon quantity
Photoelectric effect proportional to Z cubed — responsible for bone vs soft tissue contrast
Calcium Z=20 absorbs far more than soft tissue Z approximately 7.4
Bone appears white because fewer photons reach the detector (high absorption)
COMMON TRAPS
āœ—Confusing the two mechanisms of X-ray production
āœ—Stating that kVp controls quantity rather than quality
āœ—Not explaining why high Z leads to more absorption (Z cubed relationship)
āœ—Forgetting that over 99% of electron energy becomes heat, not X-rays

Plain Radiography Principles — Exam Day Reference

High-Yield Exam Summary

X-Ray Physics

  • •kVp = beam quality (penetration); mAs = beam quantity (number of photons)
  • •Bremsstrahlung (80-90%) = continuous spectrum; Characteristic (10-20%) = discrete peaks
  • •Inverse Square Law: Intensity proportional to 1/d squared — double distance = quarter dose
  • •Photoelectric effect proportional to Z cubed — creates bone vs soft tissue contrast
  • •Over 99% of electron kinetic energy becomes heat; less than 1% produces X-rays

ABCS Systematic Interpretation

  • •A = Alignment (joint congruity, angular deformity, subluxation)
  • •B = Bone (cortex, trabeculae, density, lesions, periosteal reaction)
  • •C = Cartilage and Joints (joint space, subchondral sclerosis, osteophytes, erosions)
  • •S = Soft tissues (swelling, effusion, calcification, foreign bodies, gas)

Radiation Safety (ALARA)

  • •Three principles: Time, Distance, Shielding
  • •Extremity radiograph 0.001-0.01 mSv; Pelvis 0.3-0.7 mSv; CT 6-20 mSv
  • •Pregnancy: fetal deterministic threshold approximately 100 mGy
  • •Lead apron attenuates approximately 95% of scatter at diagnostic energies
  • •15% increase in kVp has the same density effect as doubling mAs

Key Radiographic Signs

  • •Posterior fat pad sign (elbow) = occult fracture until proven otherwise
  • •Lipohemarthrosis (knee) = intra-articular fracture releasing marrow fat
  • •Shenton line disruption = hip pathology (fracture, dislocation, DDH)
  • •Anterior humeral line should pass through middle third of capitellum
  • •Radiocapitellar line must pass through capitellum on ALL views

Standard Views

  • •Minimum 2 views at 90 degrees for every long bone and joint
  • •Elbow: AP in extension, lateral at 90 degrees flexion
  • •Shoulder: AP (IR/ER) plus axillary lateral
  • •Knee: Weight-bearing AP, true lateral, Rosenberg for posterior condyles
  • •Ankle: AP, Mortise (15-20 degrees IR), Lateral
Quick Stats
Reading Time108 min
Related Topics

CT Imaging Principles

MRI Imaging Principles

Fluoroscopy Principles

Imaging the Knee — Systematic Approach
