The Finger Drop
- PIN Syndrome presents as 'Finger Drop' but sparing of wrist extension (ECRL is intact).
- Wrist extends in radial deviation (Radio-Carpal extension via ECRL).
- No sensory loss (Superficial Radial Nerve branches off proximally).
- The most common compression site is the Arcade of Frohse (proximal edge of Supinator).
- Lipomas are a common cause of 'spontaneous' PIN palsy.
- Rheumatoid synovitis at the elbow can also compress the PIN.
- “If the patient has WRIST drop, the lesion is proximal to the PIN (High Radial Nerve).
- “In PIN palsy, the patient can extend the wrist (ECRL) but it deviates radially (due to ECU paralysis).
- “Pain alone is Radial Tunnel Syndrome, not PIN Syndrome.
Vaughan-Jackson? RA patients can have EDC tendon ruptures (Vaughan-Jackson) OR PIN palsy (synovitis). Missing the difference leads to the wrong surgery. Tendon rupture: Sudden 'ping', dropped fingers one by one (Ulnar to Radial). PIN Palsy: Slow onset (usually), all fingers affected together (or specific pattern).
Tenodesis Test Flex the wrist. If the fingers extend passively (Tenodesis), the tendons are intact (nerve issue). If the fingers remain floppy/flexed then it is a Tendon rupture. Ultrasound confirms.
- Motor Loss
- Finger/Thumb Ext + ECU
- Sensory Loss
- None
- Site
- Arcade of Frohse
- Motor Loss
- None (Pain only)
- Sensory Loss
- None
- Site
- Arcade of Frohse
- Motor Loss
- None
- Sensory Loss
- Dorsal Webspace
- Site
- Fascia (Forearm)
- Motor Loss
- Wrist + Fingers + Sensation
- Sensory Loss
- Dorsal Webspace
- Site
- Spiral Groove
ASEMuscles Innervated (PIN)
Hook:The PIN supplies the deep (distal) forearm extensors after innervating the supinator; the superficial wrist extensor ECRL is supplied by the radial nerve proximally and is spared.

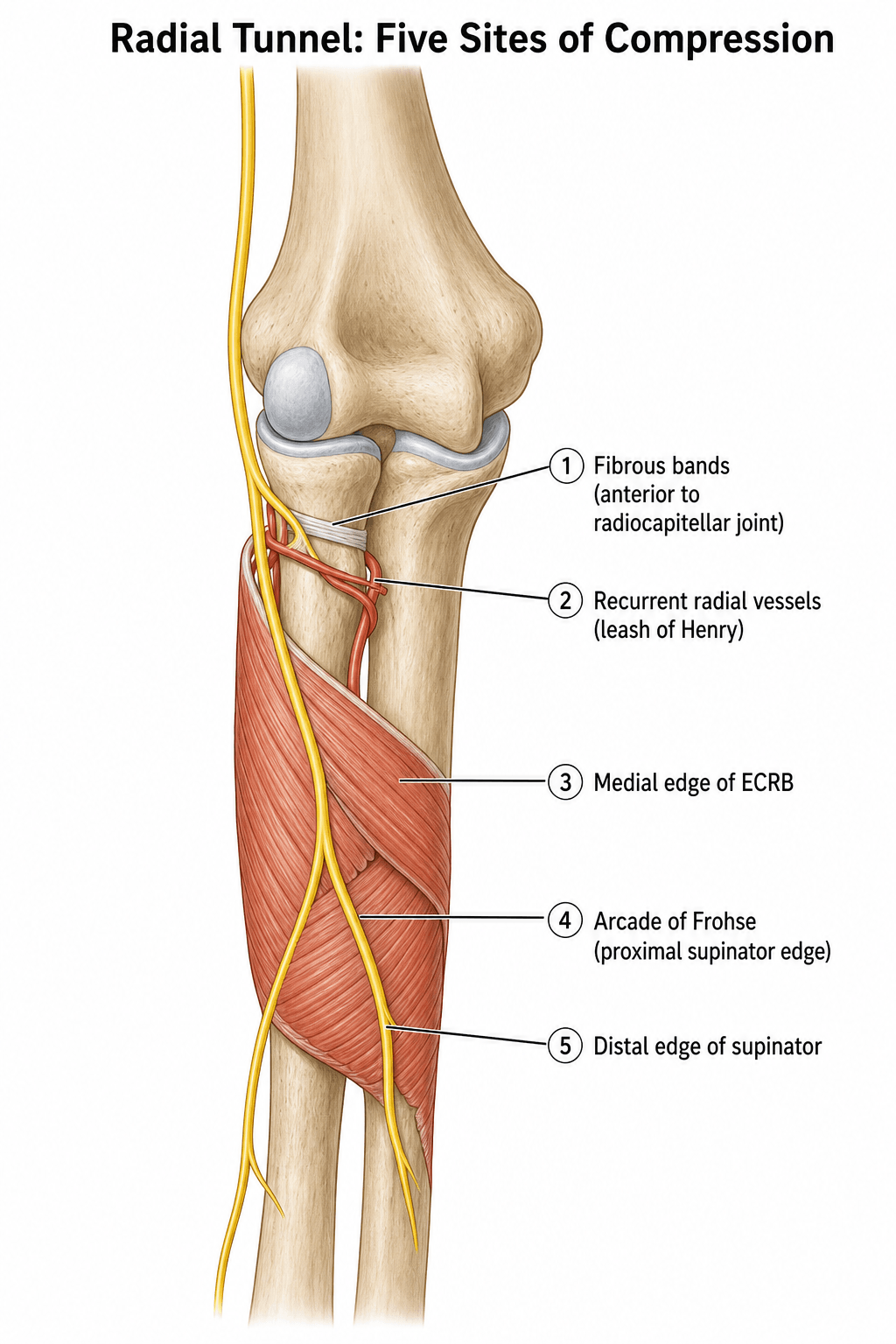

FREASSites of Compression
Hook:Radial nerve FREAS up.
Overview
Posterior Interosseous Nerve (PIN) Syndrome is a compressive neuropathy of the deep motor branch of the Radial nerve. It typically occurs at the proximal forearm within the Radial Tunnel, most commonly at the Arcade of Frohse.
Clinically, it presents as weakness of finger and thumb extension ("Finger Drop"). Crucially, wrist extension is preserved (ECRL is innervated proximal to the PIN), but the wrist deviates radially during extension because the Extensor Carpi Ulnaris (ECU) is paralyzed.
Pathophysiology and Mechanisms

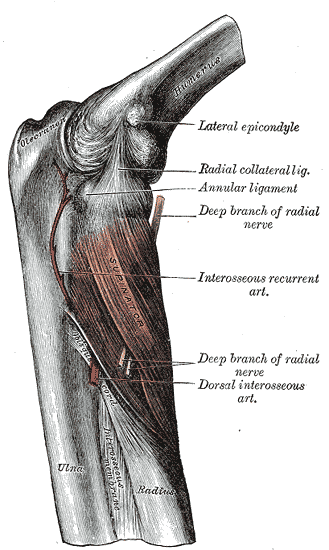

Course
- Division: The Radial Nerve divides into Superficial (Sensory) and Deep (Motor/PIN) at the level of the radio-capitellar joint.
- Entry: The PIN enters the "Radial Tunnel" under the edge of the ECRB.

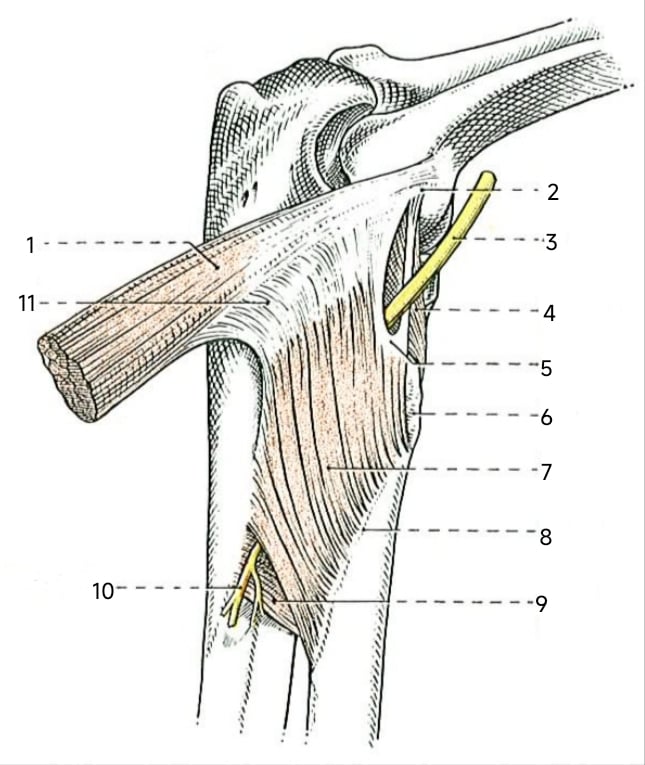

- Supinator: It pierces the Supinator muscle between its two heads. The proximal edge is the Arcade of Frohse.
- Exit: Exits the supinator distally to supply the deep extensor compartment.
The course within the supinator is 4-5cm long.
Classification Systems
Clinical Types
- Type I (Complete PIN): All PIN muscles paralyzed. Finger drop + Thumb drop + ECU paralysis.
- Type II (Partial PIN): Only some muscles (e.g., just Thumb/Index). Mimics tendon rupture.
- Type III (Radial Tunnel): Pain only. Dynamic compression.
Type II often confuses diagnosis with tendon rupture.
Clinical Assessment
Physical Exam
- Inspection: "Finger Drop". Wrist can extend but deviates Radially (ECRL acts, ECU fails).
- Power: Test EDC (MCP extension), EIP (Index extension), EPL (Thumb extension).
- Tenodesis: Check passive extension to rule out tendon rupture.
- Pain: Vague ache in proximal forearm (unlike Lateral Epicondylitis which is at the epicondyle).
Pain + Weakness = PIN Syndrome.

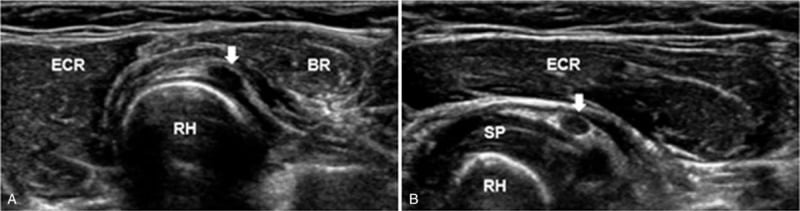

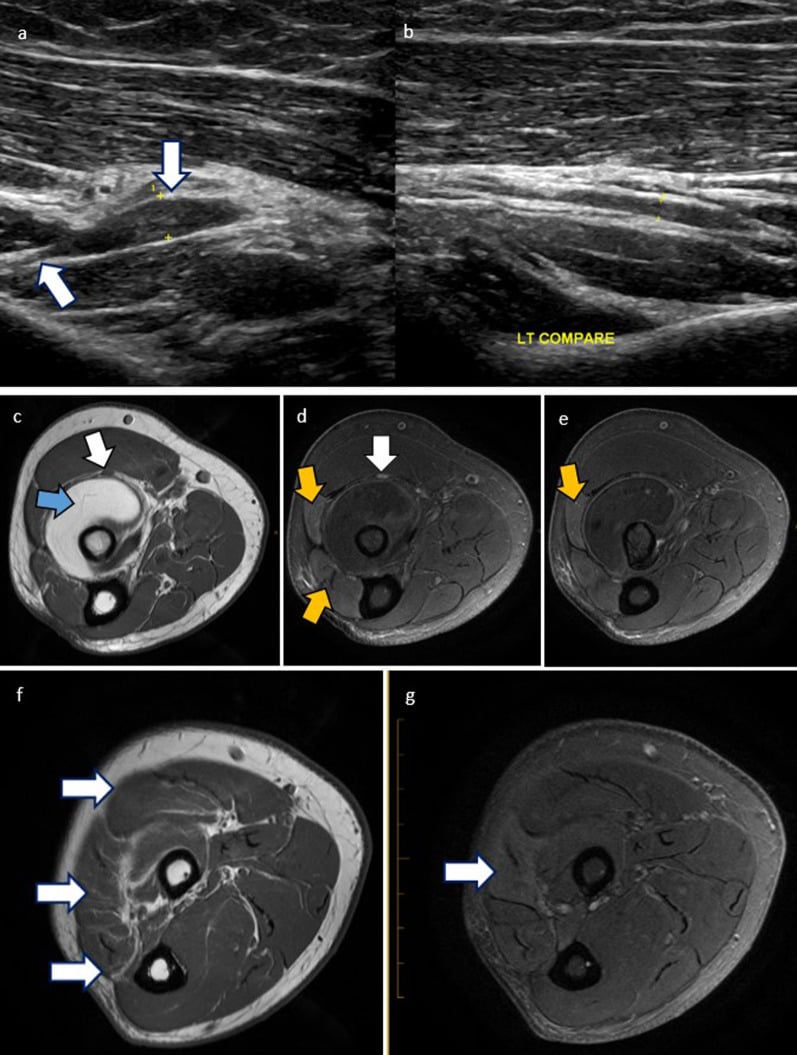

Imaging and Electrodiagnostics

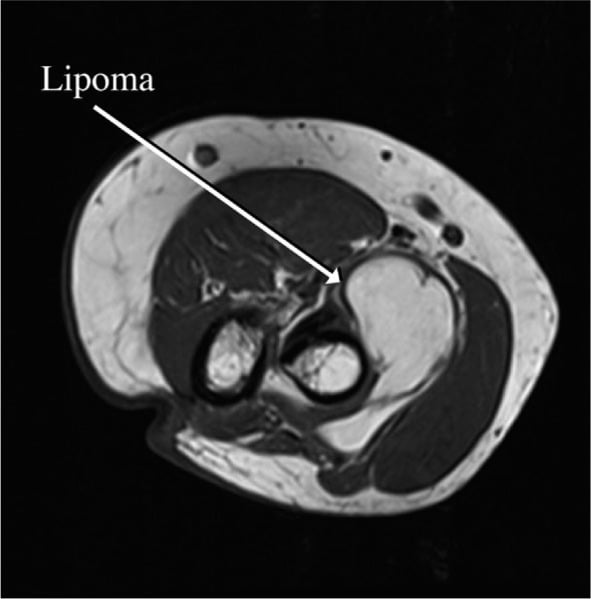

MRI
- Mandatory: For any non-traumatic PIN palsy.
- Purpose: To rule out a mass (Lipoma, Ganglion).

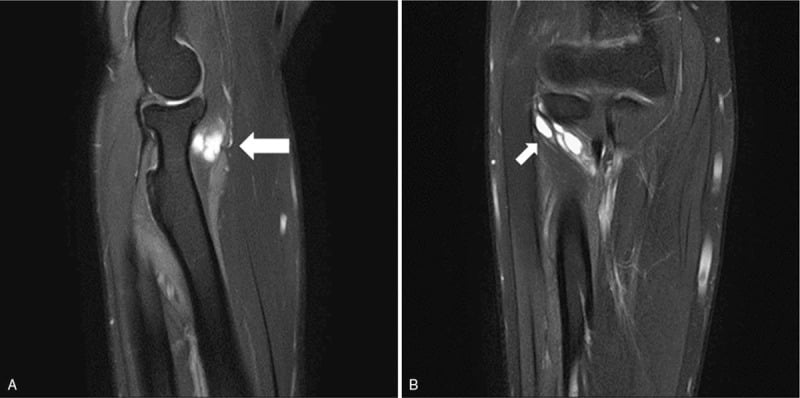

- Finding: Denervation edema in supinator/extensors. Mass lesion compressing nerve.
A negative MRI does not exclude dynamic compression.
Differential Diagnosis
A "dropped finger" or refractory lateral elbow pain has a wide differential. The decisive discriminators are the presence of motor weakness, the sensory status, and the tenodesis effect.
- Motor weakness
- Yes (finger/thumb ext, ECU; ECRL spared)
- Sensory loss
- None
- Key discriminator
- Wrist extends but deviates radially; positive tenodesis (tendons intact)
- Motor weakness
- No true weakness (mechanical loss)
- Sensory loss
- None
- Key discriminator
- Negative tenodesis: fingers stay flexed on passive wrist flexion
- Motor weakness
- Yes plus wrist drop (ECRL/BR affected)
- Sensory loss
- Dorsal first webspace
- Key discriminator
- Wrist drop and sensory loss localise proximal to the elbow
- Motor weakness
- None (pain only)
- Sensory loss
- None
- Key discriminator
- Pain ~4 cm distal to lateral epicondyle; controversial entity
- Motor weakness
- None
- Sensory loss
- None
- Key discriminator
- Maximal tenderness AT the epicondyle, not over the supinator
- Motor weakness
- None
- Sensory loss
- Dorsoradial hand
- Key discriminator
- Pure sensory; positive Tinel over distal radial forearm
- Motor weakness
- Yes, often patchy/hourglass fascicular
- Sensory loss
- Variable
- Key discriminator
- Antecedent severe pain then palsy; MRI may be mass-negative
- Motor weakness
- Yes, myotomal (multi-nerve)
- Sensory loss
- Dermatomal
- Key discriminator
- Weakness crosses peripheral nerve territories; neck signs
- Motor weakness
- Yes, upper motor neuron pattern
- Sensory loss
- Variable
- Key discriminator
- Spasticity, hyperreflexia, non-segmental distribution
Management Algorithm
Non-Operative
- Indication: Neuritis (Parsonage-Turner), Transient compression, No mass.
- Splinting: Cock-up dynamic splint (outrigger) to hold fingers in extension (prevent overstretching).
- Time: Observe for 3-6 months.
- Steroids: Limited role unless inflammatory.
Activity modification (avoid pronation/supination) is key.
Surgical Technique
Anterior Approach (Henry)
- Incision: Volar curvilinear.
- Interval: PT / BR.
- Deep: Identify Radial Nerve. Trace it distally.
- Release: Ligate Leash of Henry. Retract ECRB. Identify Arcade of Frohse.
- Action: Divide the arcade and the superficial head of supinator.
Stay on the nerve at all times visually.
The Terminal Articular Branch and Wrist Denervation
Beyond its named motor branches, the PIN does not simply end in muscle. After supplying the deep extensors, its slender terminal continuation runs distally on the dorsal aspect of the interosseous membrane to reach the dorsal wrist capsule, where it becomes a purely articular (afferent) branch carrying pain and proprioceptive fibres from the dorsal radiocarpal and intercarpal joints. It is found in the floor of the fourth extensor compartment.
This anatomy underpins partial wrist denervation: selective neurectomy of the terminal PIN (classically combined with the terminal articular branch of the anterior interosseous nerve on the volar side) ablates dorsal wrist joint pain afferents while preserving wrist and finger motor function and skin sensation. It is a motion-preserving option for chronic dorsal wrist pain — for example degenerative SLAC/SNAC wrist, post-traumatic arthritis, or a recalcitrant occult dorsal ganglion — particularly when a patient wishes to avoid or defer fusion or arthroplasty. A diagnostic local-anaesthetic block of the terminal PIN over the dorsal distal forearm that relieves the pain predicts a good response before committing to neurectomy.
The terminal branch is purely articular: dividing it abolishes dorsal wrist pain but does not cause finger drop or any cutaneous sensory loss. This is the opposite of a proximal PIN lesion (a motor palsy) — a classic point that catches candidates who assume any "PIN procedure" must weaken extension.
Iatrogenic Injury and the Surgical Safe Zone
Because it lies directly against the proximal radius within the supinator, the PIN is among the most frequently iatrogenically injured nerves of the forearm. It is at risk during any exposure of the proximal radius — radial head or neck fracture fixation or arthroplasty, Monteggia surgery, plating of the proximal radial shaft, and dissection towards the bicipital tuberosity.
The single most useful protective manoeuvre is forearm pronation. Pronating the forearm rotates the radius so that the PIN is carried medially and distally, away from the lateral operative field and the bicipital tuberosity, increasing the distance between the nerve and the radiocapitellar joint; supination does the reverse and draws the nerve anterolaterally into the danger zone.
- Effect on the PIN
- Nerve carried medially and distally, away from the lateral radius
- Operative implication
- Protective — pronate when working on the proximal radius / radial neck
- Effect on the PIN
- Nerve drawn anterolaterally, closer to the radiocapitellar joint and bicipital tuberosity
- Operative implication
- Hazardous — avoid during lateral exposure
In practical terms the safe window for lateral work is the few centimetres immediately distal to the radiocapitellar joint; with the forearm pronated the nerve sits roughly two fingerbreadths beyond the joint. Keeping subperiosteal dissection proximal to the bicipital tuberosity, avoiding circumferential retractors around the radial neck, and positively identifying the nerve whenever exposure must extend further distally all protect it. In the dorsal (Thompson) approach the PIN must be actively sought and protected within the supinator rather than relying on forearm position alone.
"How do you protect the PIN when fixing a radial head fracture?" — Pronate the forearm (moves the nerve away from the lateral radius), stay subperiosteal, keep dissection proximal to the bicipital tuberosity, and identify the nerve if you go distal. A new finger drop after radial head surgery is iatrogenic PIN injury until proven otherwise.
Complications
Intraoperative Complications
- Iatrogenic Nerve Injury: Direct injury to PIN during release, especially at the Arcade of Frohse.
- Vascular Injury: Damage to Leash of Henry (radial recurrent vessels) causing significant bleeding.
- Incomplete Release: Failure to release all five compression sites (most commonly missing distal supinator edge).
- ECRB Denervation: Variable innervation can lead to unexpected weakness if motor branch damaged.
- Superficial Radial Nerve: Injury during anterior approach causes sensory loss on dorsal hand.
Meticulous technique with loupe magnification is essential.
Rehabilitation
- Dynamic Splint: Low profile radial nerve palsy splint with metacarpophalangeal extension assist.
- Purpose: Allows active flexion, passive extension. Prevents extensor overstretching.
- Wound Care: Keep incision clean and dry; suture removal at 10-14 days.
- Edema Control: Elevation and gentle active finger movements encouraged.
- Range of Motion: Active-assisted exercises to maintain joint mobility.
- Scar Management: Silicone gel or massage once wound healed.
- Continue Splinting: Night splinting particularly important to prevent contractures.
- Recovery Monitoring: Monitor for "flicker" of EDC - first sign of reinnervation.
- Order of Recovery: Brachioradialis → ECRL → ECRB → Supinator → EDC → EPL.
- Strengthening: Gentle isometrics progressing to resistance as power returns.
Recovery progresses at 1mm per day from site of compression. Sensory re-education is NOT required (pure motor nerve). Full recovery may take 6-12 months depending on severity.
E-E-EOrder of Recovery
Hook:Recovery follows the order of innervation. Note: in a HIGH radial nerve lesion, brachioradialis and ECRL recover first — the PIN muscles (ECU, EDC, EPL) recover later.
Prognosis
Expected Outcomes by Etiology
- Compression (Arcade): Excellent recovery expected if decompression performed within 6 months; greater than 85% return to full function.
- Mass Lesion (Lipoma): Excellent with excision and neurolysis; function returns in 3-6 months post-surgery.
- Traumatic (Monteggia): Variable; depends on mechanism and timing. Neurapraxia recovers well, neurotmesis requires grafting.
- Inflammatory (RA): Good if synovectomy performed early; ongoing disease may cause recurrence.
- Radial Tunnel Syndrome: Unpredictable; 60-70% success rate for pain relief even with surgery.
Early intervention correlates strongly with better outcomes.
Guidelines, Registries & Global Practice
PIN syndrome and radial tunnel syndrome are uncommon and have no dedicated society guideline or arthroplasty-style registry. The "evidence" is therefore best summarised as global epidemiology, where the major society positions converge or differ, and how practice changes with available resources.
Global Epidemiology:
- Compressive radial neuropathy at the elbow is rare relative to carpal and cubital tunnel syndrome; isolated spontaneous PIN palsy is described mainly in case series and reviews rather than population studies (McGraw, J Hand Surg Eur Vol 2018).
- No sex predominance is firmly established; reported cases span young adults (often neuralgic amyotrophy / Parsonage-Turner) to older adults (compressive and mass lesions).
- Recognised causes worldwide: the arcade of Frohse and supinator fibrous bands, space-occupying lesions (lipoma is the classic solid mass, also ganglion, synovial cyst, nerve sheath tumour), rheumatoid elbow synovitis, Monteggia and radial head fracture–dislocation, and iatrogenic injury during radial head or proximal radius surgery.
Side-by-Side Society Positions:
- Position relevant to PIN / radial tunnel
- Lateral elbow pain pathways emphasise distinguishing lateral epicondylitis from radial tunnel syndrome; surgery for pain-only radial tunnel is regarded as having a weak evidence base.
- Position relevant to PIN / radial tunnel
- Spontaneous finger drop is a red flag requiring imaging (MRI) and hand-surgery referral to exclude a compressive mass before labelling it neuritis.
- Position relevant to PIN / radial tunnel
- PIN at risk in Monteggia and radial head/neck injuries and during proximal radius approaches; advocates nerve identification and protection, especially with the posterolateral (Kocher) and Thompson exposures.
- Position relevant to PIN / radial tunnel
- Supports decompression for confirmed compressive motor palsy; recommends caution and shared decision-making for pain-only radial tunnel syndrome given controversial outcomes.
- A true motor PIN palsy with a compressive lesion warrants decompression; an imaging-negative palsy (possible neuralgic amyotrophy) is observed first.
- MRI is the key investigation for any non-traumatic PIN palsy to exclude a mass; ultrasound is a useful, operator-dependent adjunct and can be dynamic.
- Pain-only radial tunnel syndrome is the contested zone: most bodies advise exhausting non-operative care and counselling the patient that surgical results for pain relief are unpredictable.
- High-resource settings: ready access to MRI, high-resolution nerve ultrasound, and electrodiagnostics; reconstruction may include nerve transfer for recent lesions (Bertelli, J Hand Surg Am 2020) as well as tendon transfer.
- Limited-resource settings: diagnosis is more clinical (finger drop with preserved radial-deviated wrist extension and normal sensation), imaging may be confined to radiographs and ultrasound, and tendon transfer is the dominant, durable salvage because it needs no microsurgical infrastructure and gives reliable positional results (Cheah, Hand Clin 2016).
- Rehabilitation everywhere centres on a dynamic radial-nerve-palsy outrigger splint to maintain digital extension and prevent overstretching while reinnervation or healing proceeds; serial clinical and (where available) electrodiagnostic review guides the timing of surgery.
Controversies and Areas of Uncertainty
The original Roles and Maudsley concept (1972) framed refractory lateral elbow pain as a radial nerve entrapment by analogy to carpal tunnel syndrome. Rosenbaum (1999) argued this analogy is flawed and that true neurogenic compression should produce PIN motor weakness. Surgical decompression for pain alone has unpredictable results, and there are no high-quality randomised trials. State both positions in the viva.
- Anterior versus posterior approach: No randomised data show superiority of Henry versus Thompson exposures; choice is driven by the level of pathology (proximal/arcade favours anterior control; supinator masses favour posterior) and surgeon familiarity.
- Timing of surgery in compressive palsy: Common practice is to decompress a confirmed compressive lesion promptly and to observe imaging-negative palsy for roughly 3 months, but the exact threshold is not standardised. Outcomes worsen with age over 50 and with delay (McGraw, 2018).
- Nerve transfer versus tendon transfer: For recent lesions (under ~12 months), nerve transfer can give superior wrist motion and grip compared with tendon transfer (Bertelli, 2020), but tendon transfer remains the established, microsurgery-free salvage for late or irrecoverable palsy. The optimal algorithm is still debated.
- Hourglass fascicular constriction: Increasingly recognised in spontaneous palsy (within the neuralgic amyotrophy spectrum). Whether to observe, perform neurolysis, resect-and-graft, or transfer is unresolved, and intraoperative findings often dictate the decision.
- Role of imaging: MRI is favoured to exclude a mass, but high-resolution ultrasound increasingly detects fascicular constriction and dynamic compression; the comparative diagnostic accuracy for the specific question of operability is not well defined.
MCQ Practice Points
Q: What is the most common site of PIN compression? A: The Arcade of Frohse (proximal edge of Supinator).
Q: Why does the wrist deviate radially in PIN palsy? A: ECRL (Radial N) is intact, but ECU (PIN) is paralyzed.
Q: How do you differentiate PIN palsy from multiple tendon ruptures (Vaughan-Jackson)? A: Tenodesis test. Passive wrist flexion should extend the fingers if tendons are intact.
Q: What is Wartenberg's Syndrome? A: Compression of the Superficial Radial Nerve (Sensory only) causing dorsal hand paresthesia.
Q: What is the most common soft tissue mass causing spontaneous PIN palsy? A: Lipoma. Always order MRI for spontaneous PIN palsy to rule out a mass lesion.
Viva Scenarios
Practise clinical reasoning and management decisions out loud
“A 45-year-old woman presents with inability to extend her fingers. It started gradually over 3 weeks. No trauma. Wrist extension is present but deviates. What is the diagnosis?”
“A child has a Monteggia fracture (Ulnar fracture, Radial head dislocation) reduced 6 weeks ago. Still cannot extend thumb.”
“A tennis player complains of lateral elbow pain. Treated as 'Tennis Elbow' for 6 months with no relief. Injections failed. Exam shows pain on resisted middle finger extension.”
“A 55-year-old woman with known rheumatoid arthritis develops progressive weakness of finger extension over 4 weeks. She has swelling around the elbow. How do you differentiate the cause?”
Anatomy
- FREAS (Fibrous, Recurrent, ECRB, Arcade, Supinator)
- Arcade of Frohse = #1 Site (70% fibrous)
- ECRL Spared (innervated by Radial Nerve proximally)
- PIN = pure motor branch of Radial nerve
- Supinator course: 4-5cm within muscle
Clinical
- Finger Drop (Not Wrist Drop = PIN vs High Radial)
- Radial Deviation on wrist extension (ECRL intact, ECU paralyzed)
- Tenodesis Test (rule out Vaughan-Jackson tendon rupture)
- Normal sensation (Superficial Radial branches off proximally)
- Middle Finger Test: pain/weakness 4cm distal to epicondyle
Treatment
- MRI mandatory (rule out lipoma/mass)
- Observe 3-6 months if no mass
- Release (Henry or Thompson approach)
- Transfers if no recovery at 1 year (PT-ECRB, FCU-EDC, PL-EPL)
- Splint (dynamic outrigger) prevents overstretching
Evidence Base
Arcade of Frohse: the anatomical basis of PIN compression
- Classic anatomical dissection study correlating the arcade of Frohse with PIN paralysis
- The proximal margin of the superficial supinator head is tendinous (a fibrous arcade) in a substantial proportion of adult specimens
- The arcade is membranous, not tendinous, in fetal and infant specimens, suggesting the fibrous arch is acquired with development and use
- Established the arcade of Frohse as the principal site of entrapment in spontaneous PIN palsy
Radial tunnel syndrome: resistant tennis elbow as a nerve entrapment
- Original description of radial tunnel syndrome as a cause of refractory lateral elbow pain ('resistant tennis elbow')
- Patients presented with proximal forearm pain and tenderness over the supinator, without motor deficit
- Reported symptomatic improvement after radial nerve decompression in a series of resistant cases
- Framed the entity by analogy to carpal tunnel syndrome — a comparison later disputed
Disputed radial tunnel syndrome
- Critical review arguing that true neurogenic radial tunnel syndrome is uncommon and is identifiable by focal PIN motor weakness
- Challenges the Roles and Maudsley concept that proximal forearm pain alone represents nerve entrapment
- Recommends reserving the term 'radial tunnel syndrome' for genuinely neurogenic cases
- Calls for controlled evaluation of surgery for 'persistent tennis elbow' rather than adoption by analogy to carpal tunnel syndrome
PIN discontinuity due to lipoma compression
- Two cases of severe PIN compression by a benign lipoma at the elbow producing near-transection (Sunderland grade V) of the nerve
- Proposed a 'sandwich' mechanism: the mass compresses from below while a fibrous supinator band (arcade of Frohse or distal supinator edge) compresses from above
- Demonstrates that an occult soft-tissue mass can cause profound, irreversible nerve injury
- Reinforces that lipoma is a classic and treatable cause of spontaneous PIN palsy
Isolated spontaneous PIN palsy: aetiology and management review
- Comprehensive review categorising spontaneous PIN palsy into compressive and non-compressive (e.g. neuralgic amyotrophy with hourglass fascicular constriction)
- Evidence supports surgical decompression for compressive palsy; conservative management first when no compressive lesion is seen on imaging
- Poorer prognosis with age over 50 years, delay to surgery, and long-standing compression with severe fascicular thinning
- Provides an evidence-based treatment algorithm where one was previously lacking
Nerve versus tendon transfer for radial nerve paralysis
- Comparative series: 14 patients with radial nerve lesions under 12 months underwent nerve transfer (AIN to ECRB branch, FCR branch to PIN); 13 with longstanding palsy underwent tendon transfer (PT-ECRB, FCU-EDC, PL-EPL)
- Nerve transfer gave better wrist flexion–extension range and grasp strength than tendon transfer
- Half of the tendon transfer patients had to flex the wrist to fully extend the fingers; permanent radial deviation occurred in 5 of 13
- A roughly 30-degree thumb MCP extension lag (poor EPL recovery) persisted after BOTH procedures
Radial nerve tendon transfers (technique and outcomes review)
- Review of tendon transfer reconstruction for irrecoverable radial nerve palsy (loss of wrist, finger and thumb extension)
- Common donors: pronator teres (to ECRB) for wrist extension, wrist flexors and finger flexors for digital extension
- Transfer sets are classified by the donor used to power the extensor digitorum communis (FCU, FCR or FDS variants)
- Good functional results are typical because these are positional transfers that do not demand high power
Ultrasound of the radial nerve in palsy: imaging–surgical correlation
- Prospective study of 11 patients with radial nerve palsy after humeral shaft fracture, with US compared against surgical inspection in 5 operated cases
- US correctly identified the damaged nerve in all 5 surgically explored patients (entrapment between fragments, transection, laceration, nerve riding on a fragment, nerve buried in callus)
- US confirmed nerve continuity in all 6 conservatively managed patients who recovered
- Established high-resolution ultrasound as a feasible, accurate tool for assessing radial nerve injury
