Screw Biomechanics

Back to Topics
Contents
0%

Screw Biomechanics

Comprehensive guide to screw biomechanics including screw anatomy, pullout strength, lag screw technique, and locking versus non-locking screws for basic science viva preparation

complete
Updated: 2024-12-25
High Yield Overview

SCREW BIOMECHANICS

Thread Geometry | Pullout Strength | Lag Technique | Locking vs Non-Locking

3-4xCortical vs cancellous pullout strength
80%Thread contact for optimal fixation
70%Strength from outer cortex threads
3.5mmTypical cortical screw core diameter

SCREW TYPES

Cortical Screws
PatternFine threads, small pitch, high thread depth
TreatmentCortical bone fixation
Cancellous Screws
PatternCoarse threads, large pitch, deep threads
TreatmentMetaphyseal/cancellous fixation
Locking Screws
PatternFixed angle, threaded head locks to plate
TreatmentAngular stability, osteoporotic bone

Critical Must-Knows

  • Pullout strength depends on thread engagement, bone density, and outer diameter
  • Lag screw technique achieves compression through threads in far cortex only
  • Thread pitch is distance between adjacent threads; lead is axial advance per rotation
  • Core diameter determines bending and torsional strength of screw
  • Locking screws create fixed-angle construct eliminating screw-plate toggling

Examiner's Pearls

  • "
    70% of pullout strength comes from threads engaging outer cortex
  • "
    Stripping torque proportional to outer diameter cubed and bone density
  • "
    Lag screws require gliding hole and thread hole for compression
  • "
    Locking screws function as internal fixator with reduced periosteal compression

Clinical Imaging

Imaging Gallery

A radiological photograph showing the test block and the inserted conical and cylindrical screws following cement augmentation (top) and specimens after the pullout tests (bottom). (A) A conical solid
Click to expand
A radiological photograph showing the test block and the inserted conical and cylindrical screws following cement augmentation (top) and specimens aftCredit: Chen LH et al. via BMC Musculoskelet Disord via Open-i (NIH) (Open Access (CC BY))
Testing setup in the MTS test machine
Click to expand
Testing setup in the MTS test machineCredit: Moldavsky M et al. via Indian J Orthop via Open-i (NIH) (Open Access (CC BY))
Torque meter used to measure insertion torques of pedicle screws
Click to expand
Torque meter used to measure insertion torques of pedicle screwsCredit: Moldavsky M et al. via Indian J Orthop via Open-i (NIH) (Open Access (CC BY))

Critical Screw Biomechanics Exam Points

Thread Geometry

Pitch vs Lead distinction: Pitch is distance between threads. Lead is axial advance per rotation. Single-lead screw: pitch equals lead. Dual-lead screw: lead is twice pitch. Thread depth and angle determine holding power.

Pullout Strength

Pullout force proportional to outer diameter, thread engagement length, and bone density. 70% of strength from outer cortex. Bicortical fixation provides 2-3 times strength of unicortical fixation.

Lag Screw Principle

Lag technique creates interfragmentary compression. Gliding hole allows screw shaft to pass freely. Threads engage far cortex only. Tightening pulls far fragment toward near fragment. No compression without gliding hole.

Locking Mechanism

Locking screws thread into plate holes creating fixed-angle construct. Eliminates toggling and periosteal stripping. Acts as internal fixator. Angular stability independent of bone quality but requires precise insertion.

At a Glance

Screw pullout strength depends on thread engagement length, bone density, and outer (major) diameter—70% of pullout strength comes from outer cortex engagement alone. Pitch is the distance between adjacent threads; lead is axial advance per rotation. Core (root) diameter determines bending and torsional strength. Cortical screws have fine pitch (1.0-1.5mm) and shallow threads for dense bone; cancellous screws have coarse pitch (2.5-3.0mm) and deep threads for trabecular bone. Lag screw technique achieves interfragmentary compression: the gliding hole (outer diameter) allows shaft passage while threads engage only the far cortex, pulling fragments together. Locking screws thread into plate holes creating fixed-angle constructs that eliminate toggling and periosteal compression—acting as internal fixators independent of bone quality.

Mnemonic

SCREWSCREW - Biomechanical Principles

S
Shaft (core) determines strength
Core diameter determines bending and torsional resistance
C
Cortical threads engage outer cortex
70% of pullout strength from outer cortex engagement
R
Root diameter equals core diameter
Diameter at base of threads is the mechanical weak point
E
External (outer) diameter for pullout
Outer diameter determines thread contact area and pullout
W
Work of insertion generates heat
Tapping reduces insertion torque and thermal necrosis

Memory Hook:SCREW mechanics: core for strength, cortex for pullout, outer diameter matters most

Mnemonic

PITCHPITCH - Thread Geometry

P
Pitch is thread spacing
Distance between adjacent threads (mm)
I
Insertion follows lead
Lead = axial advance per 360° rotation
T
Thread depth for cancellous
Deep threads for cancellous, shallow for cortical
C
Cortical screws have fine pitch
1.0-1.5mm pitch for cortical vs 2.5-3.0mm for cancellous
H
Holding power from thread area
Thread surface area contact determines pullout resistance

Memory Hook:PITCH determines insertion efficiency and bone engagement in screw design

Mnemonic

LAGLAG - Interfragmentary Compression

L
Large gliding hole for shaft
Gliding hole diameter equals outer thread diameter
A
Anchored threads in far cortex
Threads engage far cortex/fragment only
G
Gap closes with compression
Tightening pulls fragments together via thread purchase

Memory Hook:LAG technique requires three elements: gliding hole, thread purchase, and gap closure

Overview

Screws are the fundamental fixation device in orthopaedic surgery, converting rotational torque into axial advancement and fixation force. Understanding screw biomechanics is essential for optimal implant selection, insertion technique, and construct stability.

Why screw biomechanics matters clinically:

Fixation Failure

Screw pullout or loosening is a common mode of fixation failure. Understanding the biomechanical principles of thread engagement, bone density effects, and optimal screw selection prevents clinical failure.

Surgical Technique

Lag screw technique for interfragmentary compression, locking versus non-locking screw selection, and bicortical versus unicortical fixation all depend on biomechanical principles. Improper technique compromises stability.

Screw Function Modes

Screws function in three mechanical modes: 1) Position screws hold fragments in reduced position without compression (threads engage both fragments equally). 2) Lag screws generate interfragmentary compression (threads engage far fragment only). 3) Locking screws create fixed-angle construct (threaded head locks to plate). Understanding these modes is fundamental to screw selection.

Concepts and Mechanisms

Understanding screw anatomy is essential for biomechanical analysis.

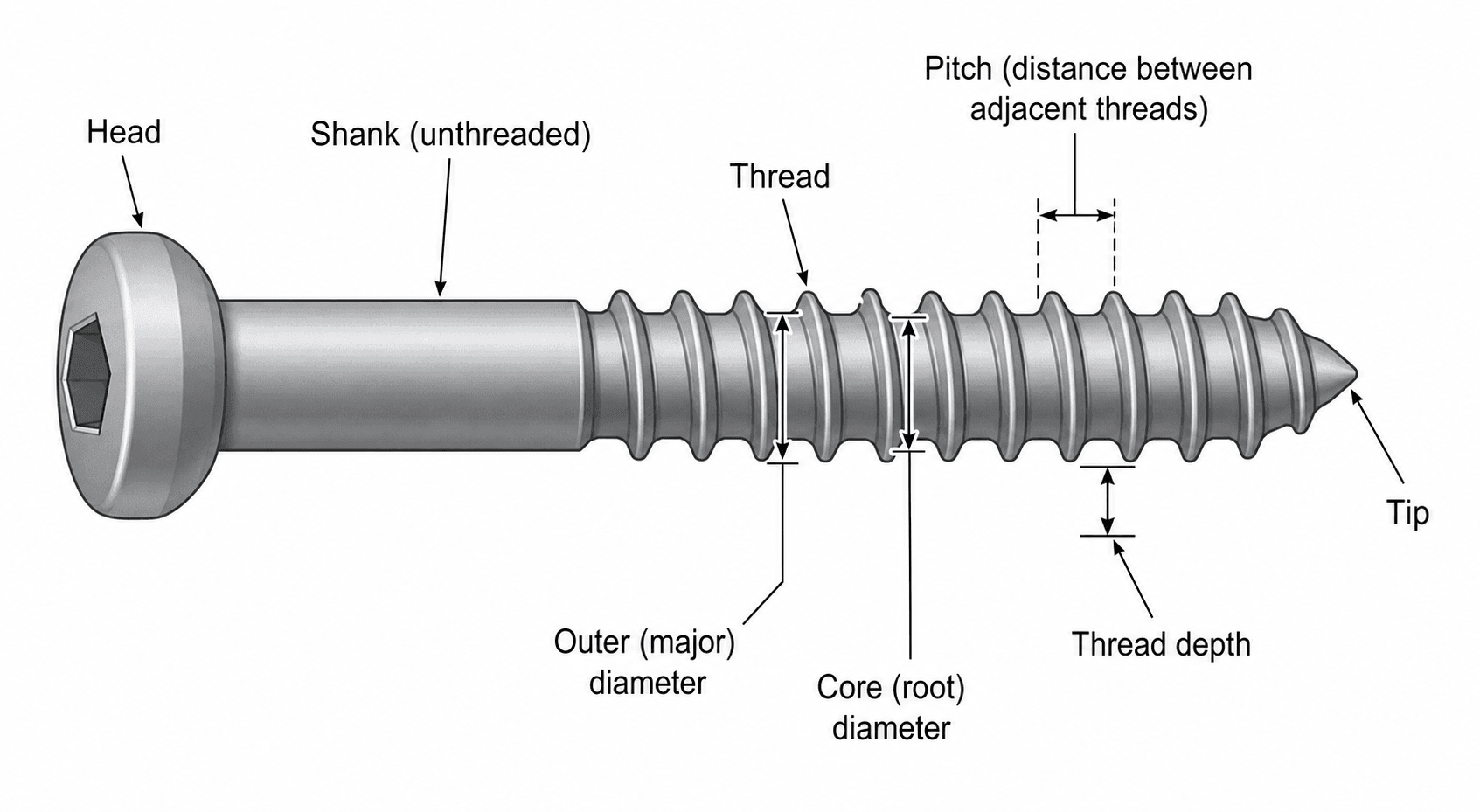

Anatomical Components of a Screw

Head:

  • Transfers torque from driver to screw
  • Compression surface (countersunk or buttress)
  • May have threads (locking screws) or smooth (non-locking)

Shaft (Shank):

  • Core diameter determines bending and torsional strength
  • May be threaded (fully threaded) or smooth (partially threaded)
  • Smooth shaft allows gliding for lag technique

Threads:

  • External (outer) diameter determines thread contact area
  • Core (root) diameter at base of threads
  • Thread depth = (outer diameter - core diameter) / 2
  • Thread angle typically 40-60 degrees

Tip:

  • Self-tapping screws cut their own threads
  • Non-self-tapping require pre-tapping
  • Trocar (sharp) or blunt tip designs

Understanding each component is critical for biomechanical analysis and screw selection.

Thread Geometry Parameters

Pitch:

  • Distance between adjacent threads (measured parallel to axis)
  • Cortical screws: 1.0-1.5 mm pitch (fine threads)
  • Cancellous screws: 2.5-3.0 mm pitch (coarse threads)
  • Smaller pitch = more threads per unit length = greater holding power

Lead:

  • Axial distance screw advances in one complete rotation
  • Single-lead screw: lead equals pitch
  • Dual-lead screw: lead equals twice pitch (faster insertion)
  • Triple-lead screw: lead equals three times pitch

Thread Depth:

  • Radial distance from core to outer diameter
  • Greater depth increases thread surface area
  • Cancellous screws have deeper threads for trabecular engagement
  • Too deep reduces core strength

Thread Angle:

  • Angle between thread flank and perpendicular to axis
  • Optimal range: 40-60 degrees
  • Smaller angle increases stripping resistance
  • Larger angle easier insertion but lower holding power

Pitch vs Lead Confusion

Examiners frequently test this distinction. Pitch is the spacing between threads. Lead is how far the screw advances per rotation. For single-lead screws (most common), pitch equals lead. For dual-lead screws (two helical thread paths), lead is twice pitch allowing faster insertion with less rotation.

Thread geometry determines insertion characteristics and holding power in bone.

Core Diameter versus Outer Diameter

Core Diameter (Root Diameter):

  • Diameter at base of threads (smallest diameter)
  • Determines bending strength and torsional strength
  • Stress concentration point during loading
  • Weak point for screw breakage

Outer Diameter (Major Diameter):

  • Diameter at tips of threads (largest diameter)
  • Determines pullout strength (thread contact area)
  • Critical for holding power in bone
  • Typically 20-30% larger than core diameter

Biomechanical implications:

  • Bending/torsional failure: Depends on core diameter cubed (moment of inertia)
  • Pullout failure: Depends on outer diameter (thread engagement area)
  • Trade-off: Larger outer diameter increases pullout but requires larger hole (weakens bone)

Over-Tapping Risk

Over-tapping creates threads too large for screw, reducing thread engagement. Results in decreased pullout strength and potential early failure. Use correct tap size matching screw core diameter. Outer cortex engagement is critical for fixation.

The relationship between core and outer diameter determines screw mechanical properties.

Pullout Strength and Failure Mechanisms

Pullout strength is the force required to extract a screw from bone and represents the primary mode of fixation failure in many constructs.

Factors Determining Pullout Strength

Screw factors:

  1. Outer diameter (most important screw factor)

    • Pullout force proportional to outer diameter
    • Doubling diameter approximately doubles pullout strength
    • Thread surface area increases with diameter
  2. Thread engagement length

    • Linear relationship with pullout strength
    • 70% of strength from outer cortex in bicortical fixation
    • Minimum 3-4 threads required for adequate purchase
  3. Thread geometry

    • Thread depth increases surface area
    • Thread angle affects stripping resistance
    • Pitch determines number of engaged threads per unit length

Bone factors:

  1. Bone density (most important bone factor)

    • Cortical bone: 3-4 times stronger than cancellous
    • Osteoporotic bone: 50-70% reduction in pullout strength
    • Proportional relationship with BMD
  2. Thread engagement location

    • Outer cortex provides 70% of pullout strength
    • Near cortex engagement critical
    • Far cortex adds 30% in bicortical fixation

Understanding these factors allows optimization of fixation strength.

Screw Pullout Failure Mechanisms

Three modes of pullout failure:

  1. Interface failure (most common)

    • Threads shear through bone
    • Occurs when bone is weaker than screw-bone interface
    • Typical in osteoporotic or cancellous bone
    • Prevention: larger diameter, longer engagement, cement augmentation
  2. Bone fracture

    • Cylinder of bone around screw fractures
    • Occurs with oversized screws or poor technique
    • Creates permanent damage reducing re-fixation strength
    • Prevention: proper hole size, avoid over-tightening
  3. Screw deformation

    • Threads deform under excessive load
    • Rare in modern screws with adequate material strength
    • May occur with cyclic loading and fatigue
    • Prevention: adequate screw size for expected loads

Stripping vs Pullout

Stripping occurs during insertion when insertion torque exceeds bone strength (creates threads but strips them immediately). Pullout occurs after insertion when axial load exceeds thread-bone interface strength. Both result in fixation loss but occur at different stages. Stripping is technique error; pullout is load or bone quality issue.

Recognizing failure modes guides prevention strategies and revision techniques.

Strategies to Enhance Pullout Strength

Screw modification strategies:

StrategyMechanismBenefitApplication
Larger outer diameterIncreases thread contact area30-50% strength increase per mmWhen bone stock adequate
Bicortical fixationEngages far cortex (adds 30%)2-3x unicortical strengthWhen length permits safe passage
Longer engagementMore threads engagedLinear increase in strengthMinimum 8-10mm engagement recommended
Variable thread pitchCompression with insertionDynamic compression effectHeadless compression screws

Bone augmentation strategies:

StrategyIndicationMechanismEvidence

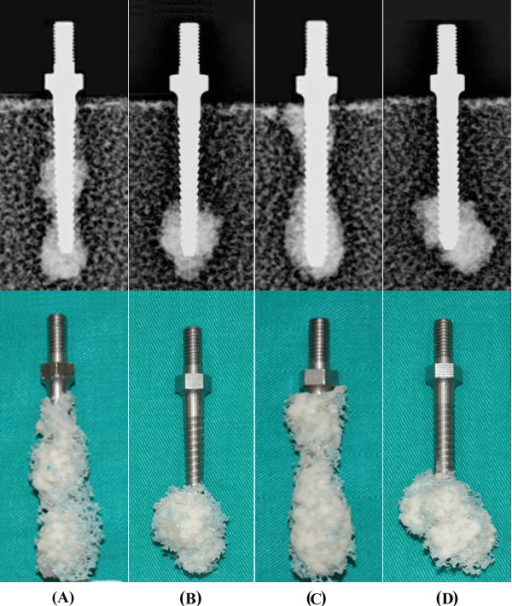

PMMA cementSevere osteoporosis, revisionFills voids, increases contact70-100% strength increase
Calcium phosphateMetaphyseal voids, mild osteoporosisRemodels to bone over time40-60% strength increase, bioresorbable
Locking screwsOsteoporotic bone, comminutionAngular stability, load sharing with plateReduces dependence on pullout strength

Multiple strategies can be combined for optimal fixation in challenging bone.

Lag Screw Biomechanics and Technique

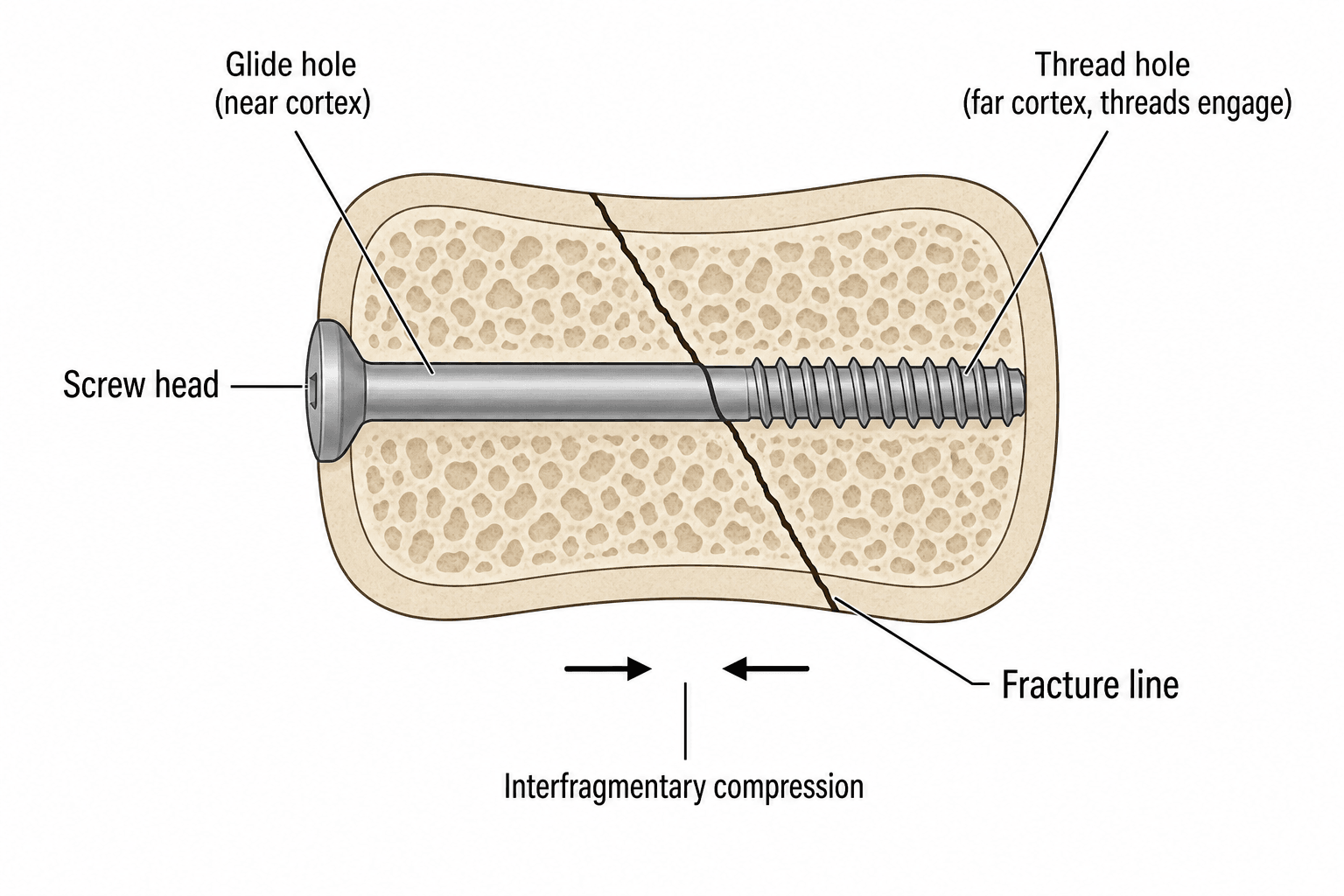

Lag screws generate interfragmentary compression, the gold standard for fracture fixation when anatomic reduction and absolute stability are desired.

Biomechanical Principle of Lag Screws

Definition: A lag screw achieves compression by engaging threads in the far cortex/fragment only, while allowing the screw shaft to glide freely through the near cortex/fragment.

Mechanism:

  1. Gliding hole drilled in near cortex/fragment

    • Diameter equals or slightly exceeds screw outer diameter
    • Allows screw shaft to pass without thread engagement
    • No purchase in near fragment
  2. Thread hole drilled in far cortex/fragment

    • Diameter equals screw core diameter
    • Threads cut into bone during insertion
    • Provides purchase for compression
  3. Compression generation:

    • Screw head contacts near fragment
    • Threads pull far fragment toward near fragment
    • Continued tightening increases compression force
    • Friction at fracture site provides stability

No Gliding Hole = No Compression

A screw only functions as lag screw if gliding hole is created. Without gliding hole, threads engage both fragments equally (position screw), preventing compression. This is the most tested concept about lag screws. Examiners often ask what happens if you forget the gliding hole.

The lag screw principle converts rotational torque into compressive force across fracture.

Step-by-Step Lag Screw Technique

Surgical technique for lag screw insertion:

Lag Screw Insertion Sequence

Fracture ReductionStep 1

Achieve and maintain anatomic reduction with clamps or provisional fixation. Gap closure is critical before lag screw insertion.

Drill Gliding HoleStep 2

Drill near cortex/fragment with gliding hole drill (diameter equals screw outer diameter). Ensure perpendicular to fracture plane for optimal compression vector.

Drill Thread HoleStep 3

Through gliding hole, drill far cortex/fragment with thread hole drill (diameter equals screw core diameter). Measure depth for screw length selection.

Optional TappingStep 4

Tap thread hole if using non-self-tapping screw. Self-tapping screws cut own threads. Tapping reduces insertion torque and heat generation.

Screw InsertionStep 5

Insert screw with gradual tightening. Threads engage far cortex only. Shaft glides through near cortex. Head compresses near fragment.

CompressionStep 6

Tighten screw until adequate compression achieved. Avoid over-tightening (strips threads or fractures bone). Assess reduction maintenance.

Over-Compression Risk

Excessive compression can fracture osteoporotic bone or comminute butterfly fragments. Titrate compression force based on bone quality. In very osteoporotic bone, consider washer under screw head to distribute load.

Proper technique ensures maximum compression without bone damage.

Lag by Design versus Lag by Technique

Two methods to achieve lag function:

MethodMechanismAdvantagesDisadvantages
Lag by techniqueStandard screw + gliding holeAny screw can be used, flexible applicationRequires drilling two different holes, technique dependent
Lag by designPartially threaded screw (smooth shaft)Shaft automatically glides, simpler techniqueLess versatile, must match fragment thickness to thread length

Lag screw by design:

  • Partially threaded screw (smooth shaft proximally, threads distally)
  • Shaft length must exceed near fragment thickness
  • Threads must be long enough to engage far fragment
  • Single drill hole (thread hole size)
  • Automatic gliding via smooth shaft
  • Common examples: 6.5mm and 7.3mm cannulated screws

Lag screw by technique:

  • Fully threaded screw with deliberate gliding hole
  • More versatile (any screw can be used as lag)
  • Technique-dependent (drilling two different holes)
  • Allows precise control of compression location

Exam Question Classic

Examiners love to ask: How do you create lag compression with a fully threaded screw? Answer: Create gliding hole in near cortex diameter equal to outer screw diameter, thread hole in far cortex diameter equal to core diameter. This demonstrates understanding of lag principle versus relying on partially threaded screw design.

Both methods achieve interfragmentary compression through same biomechanical principle.

Cortical versus Cancellous Screws

Screw design optimized for bone type improves fixation strength and reduces complications.

Cortical vs Cancellous Screw Design

FeatureCortical ScrewCancellous Screw
Thread pitchFine (1.0-1.5 mm)Coarse (2.5-3.0 mm)
Thread depthShallow (0.5 mm)Deep (1.0-1.5 mm)
Core diameter70-80% of outer diameter50-60% of outer diameter
Threads per cmHigh (7-10)Low (3-4)
Primary useCortical bone, diaphyses, platesCancellous bone, metaphyses, epiphyses
Pullout strengthHigher in cortical boneLower but adequate in trabecular bone
Insertion torqueHigher (requires tapping often)Lower (usually self-tapping)

Biomechanical rationale for design differences:

Cortical screws:

  • Fine pitch maximizes number of engaged threads in dense bone
  • Shallow threads maintain larger core diameter for strength
  • High thread count distributes force over more bone-screw interface
  • Dense cortical bone provides high pullout strength per thread
  • Examples: 3.5mm and 4.5mm cortical screws for plate fixation

Cancellous screws:

  • Coarse pitch allows deeper penetration into trabecular bone
  • Deep threads increase thread surface area in porous bone
  • Larger thread spacing engages more trabeculae per thread
  • Trabecular bone requires larger thread area for equivalent strength
  • Examples: 6.5mm and 7.3mm cancellous screws for metaphyseal fixation

Wrong Screw Type

Using cortical screw in cancellous bone results in inadequate thread engagement (fine threads between trabeculae, not engaging). Using cancellous screw in cortical bone difficult to insert (coarse threads require high torque, large core reduces penetration). Match screw design to bone type for optimal fixation.

Understanding design differences enables appropriate screw selection for each clinical situation.

Locking versus Non-Locking Screws

Locking screw technology revolutionized fracture fixation by creating fixed-angle constructs with angular stability.

Biomechanical Principle of Locking Screws

Locking screw definition: Screw head has threads that engage matching threads in plate hole, creating fixed-angle construct where screw cannot toggle or back out.

Mechanism of angular stability:

  1. Threaded screw head engages threaded plate hole
  2. Fixed angle between screw and plate (typically perpendicular)
  3. No toggling - screw cannot change angle relative to plate
  4. Load transfer through screw-plate interface, not friction
  5. Internal fixator principle - plate spans fracture without compressing periosteum

Comparison to conventional (non-locking) screws:

FeatureNon-LockingLocking
Screw-plate interfaceFriction (compression)Thread engagement (fixed)
Angular stabilityNo (screw can toggle)Yes (fixed angle)
Plate-bone contactRequired (friction)Not required (bridge)
Periosteal compressionYes (may devascularize)No (preserves perfusion)
Bone quality dependenceHigh (relies on pullout)Lower (angular stability)
Insertion precisionTolerant of angle variationRequires precise perpendicular insertion

The locking mechanism creates fundamentally different biomechanics from conventional screws.

Indications for Locking versus Non-Locking

Locking screw advantages:

  • Osteoporotic bone: Angular stability reduces reliance on pullout strength
  • Comminuted fractures: Bridge plating without compression of fragments
  • Periarticular fractures: Fixed-angle support for subchondral bone
  • Periprosthetic fractures: Avoid stress shielding while providing stability
  • Minimally invasive plating: Preserve soft tissue and periosteal blood supply

Non-locking screw advantages:

  • Compression: Can achieve interfragmentary compression with lag technique
  • Correction: Can adjust screw angle to correct alignment during insertion
  • Bone contact: Plate-bone friction provides additional stability
  • Simple fractures: Adequate fixation with lower cost
  • Revision: Easier to remove if needed

Hybrid constructs (combining both):

  • Lag screws through plate for compression of main fragments
  • Locking screws in metaphyseal regions for angular stability
  • Best of both technologies for complex fracture patterns

Locking Screws and Reduction

Locking screws lock fracture in whatever position exists when tightened. Unlike conventional screws which can be used to manipulate reduction, locking screws preserve position. Critical to achieve perfect reduction BEFORE inserting locking screws. Common exam question.

Choosing between locking and non-locking depends on fracture pattern, bone quality, and fixation goals.

Complications Specific to Locking Screws

Technical complications:

  1. Cross-threading

    • Screw threads misalign with plate threads
    • Occurs with non-perpendicular insertion
    • Results in loss of locking mechanism and weakened construct
    • Prevention: Use drill guide, ensure perpendicular approach
  2. Cold welding

    • Titanium screw threads gall titanium plate threads
    • Occurs with excessive insertion torque or cyclic loading
    • Makes screw removal difficult or impossible
    • Prevention: Avoid over-tightening, consider mixed metals
  3. Stress concentration

    • Fixed-angle construct concentrates stress at screw-bone interface
    • Can cause screw cutout in osteoporotic bone
    • Higher compared to toggling non-locking screws
    • Prevention: Adequate screw length, consider cement augmentation
  4. Reduction errors

    • Locking screws preserve malreduction
    • Cannot use screws to manipulate fragments
    • Must achieve perfect reduction before locking
    • Prevention: Provisional fixation, intraoperative imaging

Screw Removal Challenges

Locking screws can be difficult to remove due to cold welding, cross-threading damage, or bone ingrowth into threads. Plan for potential explant at index surgery. Consider titanium plate with stainless steel screws to reduce cold welding risk.

Understanding potential complications allows prevention strategies and intraoperative recognition.

Anatomy

Screw Design and Structural Components

Key Screw Anatomy

  • Head: Engages plate or countersinks into bone (hex, cruciate, star drive)
  • Shaft/Core: Determines bending and torsional strength
  • Thread: Engages bone, determines pullout strength
  • Tip: Self-drilling, self-tapping, or blunt

Critical Dimensions

  • Outer diameter: Thread peak-to-peak, determines pullout strength
  • Core diameter: Shaft diameter, determines bending strength
  • Pitch: Distance between threads, affects bone engagement
  • Thread depth: (Outer - Core)/2, affects holding power

Thread Geometry

  • V-thread: Standard, good general properties
  • Buttress thread: Asymmetric, better axial pullout resistance
  • Hi-Low thread: Variable thread depth, combines cortical and cancellous properties

Advanced Structural Considerations

Head Design Variations

  • Locking head: Threaded to engage plate (fixed-angle construct)
  • Compression head: Slides in plate hole to generate compression
  • Variable angle: Allows direction adjustment with locking capability

Core-to-Outer Diameter Ratio

  • Cortical screws: High ratio (thin threads) - stronger core
  • Cancellous screws: Low ratio (deep threads) - more bone engagement
  • Trade-off between pullout strength and bending strength

Material Properties

  • Stainless steel: High strength, corrosion resistant
  • Titanium: Biocompatible, lower modulus, reduced stress shielding
  • Bioabsorbable: PLLA/PGA, used in low-stress applications

Exam Viva Point

Pullout strength is determined by outer diameter, thread pitch, and thread engagement length. Bending strength is determined by core diameter. Cancellous screws have larger outer diameter (more pullout) but smaller core (less bending strength).

Classification

Classification of Orthopaedic Screws

By Bone Type

Cortical vs Cancellous Screws

FeatureCortical ScrewCancellous Screw
Thread pitchFine (closely spaced)Coarse (widely spaced)
Thread depthShallowDeep
Core diameterLarger relative to outerSmaller relative to outer
Typical useDiaphyseal cortical boneMetaphyseal/epiphyseal bone

By Function

  • Lag screw: Creates interfragmentary compression
  • Position screw: Maintains position without compression
  • Locking screw: Creates fixed-angle construct with plate

Advanced Classification

By Threading Pattern

  • Fully threaded: Threads along entire length - position screw
  • Partially threaded: Threads at tip only - lag by design
  • Cannulated: Hollow core for guidewire placement

By Plate Interface

  • Conventional: Smooth head, compression between plate and bone
  • Locking: Threaded head, fixed-angle with plate
  • Variable angle locking: Allows off-axis insertion with locking

Specialized Screws

  • Herbert screw: Headless, variable pitch, buried fixation
  • Syndesmotic screw: Crosses tibiofibular syndesmosis
  • Pedicle screw: Large cancellous screw for spine fixation

Exam Viva Point

Lag by design vs lag by technique: Partially threaded screws create lag effect automatically. Fully threaded screws require overdrilling near cortex to achieve lag effect. Both methods achieve interfragmentary compression.

Clinical Relevance and Applications

Screw selection depends on fracture pattern, bone quality, fixation goals, and anatomic location.

Screw Selection by Clinical Scenario

ScenarioOptimal Screw ChoiceRationale
Simple diaphyseal fracture (normal bone)Cortical lag screw through plateCompression with adequate pullout strength in cortical bone
Comminuted metaphyseal fractureLocking screws, bridge plateAngular stability without compression of fragments
Periarticular fracture (osteoporotic)Locking screws with cement augmentationFixed-angle support with enhanced pullout in weak bone
Interfragmentary fixation (no plate)Partially threaded cancellous lag screwMaximum compression with lag by design
Periprosthetic fractureLocking screws, bypass fixationAvoid stress risers near prosthesis, maintain stability
Pediatric fractureSmooth pins or small cortical screwsAvoid crossing physis, adequate strength in young bone

Compression vs Bridging

Two fundamental fixation strategies: 1) Absolute stability with compression (lag screws, compression plates) for simple fractures with good bone contact. 2) Relative stability with bridging (locked plates, external fixators) for comminuted fractures or osteoporotic bone. Screw choice follows fixation strategy: lag screws for compression, locking screws for bridging.

Osteoporotic Bone Strategy

  • Prefer locking screws for angular stability
  • Consider cement augmentation for critical screws
  • Maximize screw length and bicortical purchase
  • Avoid compression (risk of fragmentation)
  • Use plates with greater working length (distribute stress)

High-Energy Trauma Strategy

  • Bridge plating to preserve soft tissue and biology
  • Locking screws for angular stability across comminution
  • Minimize periosteal stripping (use locked plates as internal fixators)
  • Consider lag screws for main fragments only
  • Leave comminuted zone unfixed (allow callus formation)

Investigations

Testing Methods for Screw Biomechanics

Mechanical Testing

  • Pullout testing: Axial load to failure, measures screw-bone interface strength
  • Insertion torque: Resistance during insertion, correlates with pullout
  • Stripping torque: Maximum torque before thread failure
  • Bending testing: Four-point bending to assess screw strength

Imaging Assessment

  • Plain radiographs: Screw position, backing out, lucency around threads
  • CT scan: Detailed assessment of screw purchase, cortical breach
  • Fluoroscopy: Intraoperative confirmation of trajectory and depth

Advanced Testing Methods

Laboratory Testing Parameters

  • Stiffness: Force/displacement ratio before failure
  • Ultimate load: Maximum force before construct failure
  • Energy to failure: Area under load-displacement curve
  • Fatigue testing: Cyclic loading to assess long-term performance

Bone Quality Assessment

  • DEXA: Bone mineral density affects pullout strength
  • Quantitative CT: Volumetric density for screw trajectory planning
  • Intraoperative torque: Surrogate for bone quality

Computational Methods

  • Finite element analysis: Stress distribution modeling
  • Predictive modeling: Optimal screw placement simulation

Exam Viva Point

Insertion torque correlates with pullout strength - higher torque suggests better bone engagement. However, excessive torque risks stripping the threads. Stop insertion when increased resistance is felt at final seating.

Management

Screw Selection Principles

Matching Screw to Bone Type

  • Cortical bone: Cortical screws, bicortical purchase when possible
  • Cancellous bone: Cancellous screws, maximize thread engagement
  • Osteoporotic bone: Locking screws, consider augmentation

Matching Screw to Fixation Strategy

  • Compression fixation: Lag screws (partially threaded or lag technique)
  • Bridging fixation: Locking screws, position screws
  • Angular stability needed: Locking plate-screw constructs

Screw Length Selection

  • Measure depth accurately (depth gauge)
  • Bicortical when strength needed
  • Avoid excessive protrusion (soft tissue irritation)

Advanced Screw Selection

Problem-Solving in Difficult Bone

Strategies for Poor Bone Quality

ProblemSolutionMechanism
Osteoporotic boneLocking screwsAngular stability independent of bone-screw interface
Stripped screw holeLarger diameter screwFresh thread engagement
Critical periarticular screwCement augmentationIncreases pullout by 100-200%
Thin cortexUnicortical locking screwsFixed-angle without far cortex needed

Screw Density and Spacing

  • Avoid clustering screws (stress concentration)
  • Maintain adequate bone bridges between screws
  • Working length concept: Spread screws for load distribution

Exam Viva Point

In osteoporotic bone, locking screws provide angular stability that is independent of bone quality. Conventional screws rely on friction between plate and bone, which fails in weak bone.

Surgical Technique

Screw Insertion Technique

Standard Screw Insertion Steps

  1. Drill pilot hole (appropriate drill bit for screw core diameter)
  2. Measure depth with depth gauge
  3. Tap hole (if not self-tapping)
  4. Insert screw to appropriate torque

Lag Screw Technique (Fully Threaded Screw)

  1. Position fragments anatomically
  2. Drill glide hole through near cortex (same as screw outer diameter)
  3. Drill pilot hole through far cortex (same as screw core diameter)
  4. Countersink if needed
  5. Measure and insert screw - compression achieved

Key Technical Points

  • Drill perpendicular to fracture plane for optimal compression
  • Avoid heat generation (use sharp drills, irrigation)
  • Don't overtighten (strips threads in osteoporotic bone)

Advanced Insertion Techniques

Locking Screw Insertion

  • Ensure plate is properly seated before drilling
  • Use threaded drill guide to maintain trajectory
  • Drill bicortical when possible (but unicortical adequate with locking)
  • Do not over-torque (cross-threading damages mechanism)

Cannulated Screw Technique

  • Place guidewire under fluoroscopy
  • Confirm position in two planes
  • Drill over wire (protect wire from spinning)
  • Insert screw, remove wire after screw seated

Cement Augmentation Technique

  • Create pilot hole slightly undersized
  • Inject cement into hole (low viscosity, fenestrated screw, or syringe)
  • Insert screw into cement before polymerization
  • Hold until cement sets (2-3 minutes)

Exam Viva Point

Lag screw technique: Glide hole (outer diameter) in near cortex allows screw to slide. Pilot hole (core diameter) in far cortex engages threads. As screw tightens, fragments compress together. Perpendicular to fracture plane = maximum compression.

Complications

Screw-Related Complications

Thread Stripping

  • Occurs when insertion torque exceeds bone purchase capacity
  • More common in osteoporotic bone
  • Prevention: Stop at appropriate torque, avoid overtightening
  • Salvage: Larger diameter screw, cement augmentation, alternative fixation point

Screw Pullout

  • Loss of purchase due to cyclic loading exceeding pullout strength
  • Risk factors: Osteoporosis, unicortical fixation, short screws
  • Prevention: Maximize thread engagement, bicortical fixation, locking screws

Screw Breakage

  • Failure at stress concentration points (thread-shaft junction)
  • Fatigue failure from cyclic loading
  • Risk factors: Delayed union, high activity level, inadequate construct stability

Hardware Prominence

  • Screws too long or incorrect angle
  • Causes soft tissue irritation, tendon damage
  • Prevention: Accurate measurement, fluoroscopic confirmation

Advanced Complications

Cross-Threading (Locking Screws)

  • Occurs when screw not perpendicular to locking plate hole
  • Results in loss of angular stability
  • Prevention: Use drill guides, ensure perpendicular trajectory
  • Cold welding between titanium screw and plate makes removal difficult

Stress Shielding

  • Rigid construct carries load, bone does not remodel normally
  • More common with stiff locking constructs
  • Management: Consider plate removal after healing

Thermal Necrosis

  • Drilling without irrigation generates heat greater than 47°C
  • Causes bone necrosis and screw loosening
  • Prevention: Sharp drill bits, irrigation, intermittent drilling

Infection at Screw Sites

  • Biofilm formation on implant surface
  • Stainless steel more resistant to adhesion than titanium
  • Management: Debridement, implant exchange if loose

Exam Viva Point

Screw failure sequence: Stripping occurs during insertion when torque exceeds bone strength. Pullout occurs under axial load when extraction force exceeds thread purchase. Breakage occurs with fatigue under cyclic bending/torsional loads. Understanding the mechanism guides prevention strategies.

Complication Prevention Strategies

ComplicationMechanismPrevention
Thread strippingExcessive torque vs bone strengthAppropriate torque, avoid overtightening
PulloutAxial load exceeds purchaseBicortical fixation, locking screws, cement
BreakageCyclic fatigue at stress riserAdequate construct stability, bridge long segments
Cross-threadingNon-perpendicular insertionUse drill guides, visual confirmation
Thermal necrosisDrilling heat greater than 47°CSharp drills, irrigation, intermittent technique

Postoperative Care

Postoperative Considerations

Weight-Bearing Progression

  • Based on construct stability, fracture pattern, and bone quality
  • Locking constructs may allow earlier weight-bearing in osteoporotic bone
  • Lag screw fixation requires protected weight-bearing until healing

Radiographic Monitoring

  • Serial X-rays to assess fracture healing and implant position
  • Watch for screw loosening (lucency around screw threads)
  • Assess for hardware migration or breakage

Activity Modifications

  • Restrict high-impact activities during healing phase
  • Gradually progress based on radiographic and clinical progress
  • Consider patient factors: age, bone quality, compliance

Hardware Concerns to Monitor

  • Screw prominence causing soft tissue irritation
  • Signs of loosening or migration
  • Symptoms suggesting hardware failure

Advanced Postoperative Management

Construct-Specific Protocols

Weight-Bearing by Construct Type

ConstructInitial Weight-BearingRationale
Lag screw aloneTouch weight-bearing 6-8 weeksCompression depends on bone contact
Lag + neutralization platePartial weight-bearing 4-6 weeksPlate protects lag screws
Locking plate bridgeWeight-bearing as tolerated (if stable)Angular stability distributes load
Hybrid constructBased on weakest componentConventional screws may limit early loading

Hardware Removal Considerations

  • Not routine in adults unless symptomatic
  • Consider in young patients with forearm plates (refracture risk)
  • Locking screws: risk of cold welding, have extraction set available
  • Timing: typically 12-24 months after complete healing

Failure Recognition

  • Progressive lucency around screws suggests loosening
  • Screw back-out indicates inadequate purchase or excessive motion
  • Broken screw indicates fatigue failure from nonunion or construct insufficiency

Exam Viva Point

Postoperative screw assessment: Progressive peri-screw lucency greater than 2mm indicates loosening. Screw back-out suggests inadequate initial purchase or excessive motion at fracture site. Broken hardware indicates fatigue failure and should prompt investigation for nonunion.

Outcomes

Fixation Outcomes

Factors Affecting Screw Fixation Success

  • Bone quality: Osteoporotic bone has 50-70% reduced pullout strength
  • Surgical technique: Proper drilling, tapping, and insertion torque
  • Construct design: Appropriate screw selection for application
  • Patient factors: Compliance, comorbidities, smoking status

Union Rates by Fixation Type

  • Lag screw fixation: 90-95% union for simple fractures
  • Plate fixation (conventional): 85-95% depending on fracture pattern
  • Locking plate fixation: Similar union rates, advantageous in osteoporotic bone

Hardware Removal Rates

  • Overall symptomatic hardware: 5-15%
  • Higher in subcutaneous locations (ankle, wrist, clavicle)
  • Locking screws may have higher removal difficulty

Advanced Outcome Analysis

Biomechanical Outcome Predictors

Fixation Success by Bone Quality

Bone QualityExpected Pullout StrengthOptimization Strategy
Normal (T-score greater than -1)100% baselineStandard technique adequate
Osteopenic (T-score -1 to -2.5)70-85% of normalConsider locking screws, bicortical fixation
Osteoporotic (T-score less than -2.5)30-50% of normalLocking screws, cement augmentation, longer constructs

Comparative Outcomes: Locking vs Conventional

  • Meta-analyses show equivalent union rates in normal bone
  • Locking constructs superior in osteoporotic metaphyseal fractures
  • Hybrid constructs may offer best of both systems
  • Cost-effectiveness favors conventional screws when bone quality adequate

Failure Mode Analysis

  • Early failure (less than 6 weeks): Usually technical error or inadequate construct
  • Late failure (greater than 6 weeks): Suggests nonunion or fatigue from excessive motion
  • Screw breakage: Indicates stress concentration and cyclic loading beyond fatigue limit

Exam Viva Point

Outcome predictors: Bone density is the most important patient factor affecting screw fixation outcomes. In osteoporotic bone, angular-stable (locking) constructs reduce reliance on screw pullout strength and improve outcomes compared to conventional compression plating.

Evidence Base

Pullout Strength of Screws in Human Bone

5
Schatzker J, Horne JG, Sumner-Smith G • J Bone Joint Surg Br (1975)
Key Findings:
  • Pullout force proportional to screw outer diameter and thread engagement length
  • 70% of pullout strength derived from outer cortex engagement in bicortical fixation
  • Cortical bone provides 3-4 times pullout strength of cancellous bone
  • Bicortical fixation provides 2-3 times strength of unicortical fixation
Clinical Implication: Outer cortex engagement is critical for screw fixation strength. Bicortical fixation significantly improves pullout resistance especially in metaphyseal regions.

Lag Screw Biomechanics and Interfragmentary Compression

5
Perren SM • Clin Orthop Relat Res (2002)
Key Findings:
  • Lag screw compression achieved only when gliding hole prevents thread engagement in near cortex
  • Compression force proportional to tightening torque up to stripping limit
  • Interfragmentary compression provides primary stability for fracture healing
  • Friction at compressed fracture surface resists shear and bending forces
Clinical Implication: Lag screw technique requires deliberate creation of gliding hole for compression. Provides absolute stability promoting primary bone healing without callus.

Locking Plate Biomechanics and Fixed-Angle Stability

5
Stoffel K, Dieter U, Stachowiak G, et al • J Bone Joint Surg Am (2003)
Key Findings:
  • Locking screws create fixed-angle construct with angular stability independent of bone-plate friction
  • Load transfer through screw-plate interface rather than plate-bone compression
  • Reduced periosteal compression preserves bone blood supply compared to conventional plates
  • Superior performance in osteoporotic bone due to reduced reliance on screw pullout strength
Clinical Implication: Locking plates function as internal fixators providing angular stability without periosteal compression. Particularly advantageous in osteoporotic bone and comminuted fractures.

Basic Science Viva Scenarios

Practice these scenarios to excel in your viva examination

VIVA SCENARIOStandard

Scenario 1: Screw Anatomy and Pullout Strength (~3 min)

EXAMINER

"Explain the factors that determine screw pullout strength and how you would optimize fixation in osteoporotic bone."

EXCEPTIONAL ANSWER
Screw pullout strength depends on both screw and bone factors. For screw factors, the outer diameter is most important as pullout force is proportional to thread contact area. Thread engagement length has a linear relationship with pullout strength, with 70% of strength coming from outer cortex engagement. Thread geometry including depth and angle also contributes. For bone factors, bone density is critical - cortical bone provides 3-4 times the pullout strength of cancellous bone, and osteoporotic bone shows 50-70% reduction compared to normal bone. In osteoporotic bone, I would optimize fixation by: first, using locking screws for angular stability which reduces reliance on pullout strength; second, maximizing screw length and ensuring bicortical purchase when safe; third, using larger diameter screws when bone stock permits; fourth, considering cement augmentation for critical screws; and fifth, using bridge plating with longer working length to distribute stress. The key principle is that 70% of pullout strength comes from the outer cortex, so maintaining good purchase in the near cortex is essential.
KEY POINTS TO SCORE
Outer diameter most important screw factor for pullout strength
Thread engagement length has linear relationship with strength
70% of strength from outer cortex in bicortical fixation
Bone density most important bone factor (cortical 3-4x cancellous)
Osteoporotic bone: use locking screws, maximize length, consider cement
Bicortical fixation provides 2-3x strength of unicortical
COMMON TRAPS
✗Confusing core diameter (determines bending strength) with outer diameter (determines pullout)
✗Not emphasizing 70% from outer cortex
✗Missing specific strategies for osteoporotic bone
✗Forgetting cement augmentation option
LIKELY FOLLOW-UPS
"What is the difference between core diameter and outer diameter?"
"How does cement augmentation work biomechanically?"
"What is stripping torque and how does it relate to pullout strength?"
VIVA SCENARIOStandard

Scenario 2: Lag Screw Technique (~4 min)

EXAMINER

"You are fixing a simple oblique diaphyseal fracture. Explain the biomechanical principle of lag screw technique and describe how to achieve compression with a fully threaded screw."

EXCEPTIONAL ANSWER
The lag screw principle achieves interfragmentary compression by engaging threads in the far cortex only while allowing the shaft to glide through the near cortex. This creates three essential elements: first, a gliding hole in the near cortex with diameter equal to or slightly larger than the screw's outer diameter, preventing thread engagement; second, threads that engage only the far cortex providing purchase; and third, the screw head that contacts the near fragment. When tightened, the threads pull the far fragment toward the near fragment generating compression force. To create a lag screw with a fully threaded screw, I would: first, achieve and hold anatomic reduction; second, drill the gliding hole through the near cortex using a drill diameter matching the screw's outer thread diameter; third, through the gliding hole, drill the thread hole in the far cortex using a drill diameter matching the screw's core diameter; fourth, measure depth and select appropriate screw length; fifth, optionally tap the far cortex if using non-self-tapping screw; and finally, insert the screw which will glide through the near cortex and engage threads only in the far cortex. Tightening generates compression. The critical point is that without the gliding hole, threads would engage both fragments equally creating a position screw without compression.
KEY POINTS TO SCORE
Lag screw achieves compression via threads engaging far cortex only
Three elements: gliding hole (near), thread hole (far), screw head contact
Gliding hole diameter equals screw outer diameter
Thread hole diameter equals screw core diameter
Without gliding hole, no compression (position screw instead)
Can achieve lag with fully threaded screw using proper drilling technique
Difference from lag by design (partially threaded screw with smooth shaft)
COMMON TRAPS
✗Not explaining what happens without gliding hole
✗Confusing gliding hole size (outer diameter) vs thread hole size (core diameter)
✗Missing the difference between lag by design and lag by technique
✗Not mentioning need for anatomic reduction before insertion
LIKELY FOLLOW-UPS
"What is the difference between a position screw and a lag screw?"
"How would you create lag compression with a partially threaded screw?"
"What happens if you over-compress an osteoporotic bone?"
VIVA SCENARIOChallenging

Scenario 3: Locking versus Non-Locking Screws (~4 min)

EXAMINER

"Compare the biomechanics of locking and non-locking screws. When would you choose each type and what are the potential complications of locking screws?"

EXCEPTIONAL ANSWER
Locking and non-locking screws have fundamentally different biomechanics. Non-locking screws rely on friction between plate and bone created by compression, with the screw able to toggle in the plate hole. Load is transferred through bone-plate friction. In contrast, locking screws have threads on the screw head that engage threaded plate holes, creating a fixed-angle construct. This provides angular stability where the screw cannot toggle, and load is transferred through the screw-plate interface rather than friction. The plate functions as an internal fixator without requiring bone contact. I would choose locking screws in: osteoporotic bone where angular stability reduces reliance on pullout strength; comminuted fractures requiring bridge plating; periarticular fractures needing fixed-angle support; periprosthetic fractures; and minimally invasive plating to preserve soft tissue. I would choose non-locking screws when: compression is needed using lag technique; ability to adjust screw angle for reduction is desired; bone quality is good in simple fracture patterns; and cost is a consideration. Locking screw complications include: cross-threading when insertion is not perpendicular causing loss of locking mechanism; cold welding between titanium screw and plate making removal difficult; stress concentration at screw-bone interface potentially causing cutout; and preservation of malreduction since screws lock position. The key difference is that locking screws lock the fracture in whatever position exists when tightened, whereas conventional screws can manipulate reduction.
KEY POINTS TO SCORE
Non-locking: friction-based, screw toggles, plate-bone contact required
Locking: thread engagement, fixed angle, no toggling, internal fixator principle
Locking advantages: angular stability, osteoporotic bone, preserve periosteum
Non-locking advantages: compression capability, angle adjustment, cost
Locking complications: cross-threading, cold welding, stress concentration, locks malreduction
Must achieve perfect reduction before inserting locking screws
Hybrid constructs combine benefits of both
COMMON TRAPS
✗Not explaining fixed-angle mechanism clearly
✗Missing that locking screws preserve malreduction
✗Forgetting cold welding complication
✗Not discussing hybrid constructs option
✗Missing internal fixator principle for locking plates
LIKELY FOLLOW-UPS
"What is cross-threading and how do you prevent it?"
"Can you use a lag screw through a locking plate?"
"How does angular stability help in osteoporotic bone?"

MCQ Practice Points

Exam Pearl

Q: What are the key design parameters of a screw that affect its holding power?

A: (1) Outer diameter: Larger = more bone contact, greater pullout resistance. (2) Root diameter (core): Determines bending/torsional strength. (3) Pitch: Distance between threads; smaller pitch = more threads per unit length. (4) Thread depth: Outer minus root diameter; deeper = more purchase. (5) Thread profile: Buttress, V-thread, asymmetric designs. Pullout strength proportional to thread depth × thread length × bone density.

Exam Pearl

Q: What is the difference between cortical and cancellous screws?

A: Cortical screws: Smaller pitch (more threads/cm), smaller thread depth, fully threaded, designed for dense cortical bone. Cancellous screws: Larger pitch, deeper threads, often partially threaded, designed for trabecular bone. Cancellous screws have larger outer:core ratio for better purchase in soft bone. Partially threaded cancellous screws allow lag effect.

Exam Pearl

Q: What is the mechanism of lag screw fixation?

A: Lag technique creates interfragmentary compression. Mechanism: Threads engage only the far cortex (glide hole in near cortex), as screw is tightened, the head compresses fragments together. Can be achieved with: (1) Partially threaded screw (thread length shorter than fracture gap), or (2) Fully threaded screw with overdrilled glide hole. Compression generates friction resistance to shear.

Exam Pearl

Q: What is the relationship between screw insertion torque and pullout strength?

A: Insertion torque does NOT equal pullout strength. Insertion torque: Rotational force to advance screw (friction-dependent). Pullout strength: Axial force to extract screw (thread engagement in bone). Overtightening (excessive torque) can strip threads, reducing pullout strength. Optimal insertion: "Hand-tight" feel. Self-tapping screws have lower insertion torque than non-self-tapping.

Exam Pearl

Q: How do locking screws differ from conventional screws biomechanically?

A: Conventional screws: Compression between plate and bone, friction-based stability, pullout depends on bone quality, toggle under load. Locking screws: Threaded head locks to plate (fixed-angle construct), load shared across all screws, no plate-bone compression needed, better in osteoporotic bone. Locking construct acts as internal fixator. Disadvantage: Cannot achieve interfragmentary compression.

Australian Context

Australian Practice Considerations

TGA Regulation

  • Orthopaedic screws and plates are TGA-registered medical devices
  • Surgeons should use devices from approved manufacturers
  • Awareness of implant recalls and safety alerts

Implant Selection in Australian Practice

  • Major implant companies (DePuy Synthes, Stryker, Smith and Nephew, Zimmer) widely available
  • Regional variations in preferred systems
  • Training and familiarity influence implant selection

Cost Considerations

  • Public hospital: implant costs absorbed by hospital budget
  • Private practice: consideration of insurance coverage and out-of-pocket costs
  • Locking implants more expensive than conventional systems

Advanced Australian Context

AOANJRR Data Relevance

  • AOANJRR primarily tracks arthroplasty outcomes
  • Fracture fixation registries (AOANJRR includes hip fractures, some centres tracking others)
  • Importance of voluntary outcome data collection

Australian Trauma System

  • Major trauma centres have access to comprehensive implant inventories
  • Regional centres may have limited options requiring patient transfer
  • RACS trauma verification program sets implant availability standards

Training Considerations

  • AOA SET program covers basic screw biomechanics
  • AO courses widely available for advanced training
  • Simulator training increasingly used for technical skill development

Medicare and Prostheses List

  • Orthopaedic screws included under Part C of Prostheses List
  • Benefits scheduled for standard and locking systems
  • Gap payments may apply for premium implants in private sector

Exam Viva Point

Australian exam relevance: While screw biomechanics is a universal topic, candidates should be aware of Australian implant regulation (TGA), the Prostheses List for private practice cost considerations, and the availability of advanced fixation options across the Australian healthcare system.

SCREW BIOMECHANICS

High-Yield Exam Summary

Screw Anatomy

  • •Core diameter: determines bending and torsional strength
  • •Outer diameter: determines pullout strength (thread contact area)
  • •Pitch: distance between threads (1.0-1.5mm cortical, 2.5-3.0mm cancellous)
  • •Lead: axial advance per rotation (equals pitch for single-lead screws)
  • •Thread depth: (outer - core diameter) / 2 (shallow cortical, deep cancellous)

Pullout Strength Factors

  • •Outer diameter (most important screw factor) - proportional to thread area
  • •Thread engagement length - linear relationship with pullout force
  • •70% from outer cortex, 30% from far cortex (bicortical fixation)
  • •Bone density (most important bone factor) - cortical 3-4x cancellous
  • •Bicortical fixation: 2-3x strength of unicortical
  • •Osteoporotic bone: 50-70% reduction in pullout strength

Lag Screw Principle

  • •Compression via threads engaging far cortex only
  • •Gliding hole (near cortex): diameter = screw outer diameter
  • •Thread hole (far cortex): diameter = screw core diameter
  • •No gliding hole = no compression (becomes position screw)
  • •Lag by design: partially threaded screw (smooth shaft glides)
  • •Lag by technique: fully threaded screw with deliberate gliding hole

Cortical vs Cancellous Screws

  • •Cortical: fine pitch (1.0-1.5mm), shallow threads, 70-80% core/outer ratio
  • •Cancellous: coarse pitch (2.5-3.0mm), deep threads, 50-60% core/outer ratio
  • •Cortical: diaphyseal, plate fixation, high pullout in dense bone
  • •Cancellous: metaphyseal, epiphyseal, deep threads engage trabeculae
  • •Wrong type = poor fixation (cortical in cancellous, cancellous in cortical)

Locking vs Non-Locking

  • •Non-locking: friction-based, screw toggles, plate-bone compression
  • •Locking: threaded head-plate interface, fixed angle, angular stability
  • •Locking advantages: osteoporotic bone, comminution, periosteum preservation
  • •Locking complications: cross-threading, cold welding, locks malreduction
  • •Non-locking advantages: compression (lag), angle adjustment, cost
  • •Achieve perfect reduction BEFORE locking screws (cannot adjust after)

Clinical Applications

  • •Simple fracture, good bone: non-locking with lag compression
  • •Comminuted metaphyseal: locking screws, bridge plating
  • •Osteoporotic periarticular: locking screws with cement augmentation
  • •Periprosthetic: locking screws, bypass fixation
  • •Hybrid constructs: lag screws for main fragments, locking for metaphyses
  • •Bicortical when safe: 2-3x strength, need 3-4 threads beyond far cortex
Quick Stats
Reading Time146 min
Related Topics

Articular Cartilage Structure and Function

Bending Moment Distribution in Fracture Fixation

Biceps Femoris Short Head Anatomy

Biofilm Formation in Orthopaedic Infections
