Tibial Hemimelia

Tibial hemimelia is a rare congenital deficiency in which part or all of the tibia is absent. It is much rarer than fibular hemimelia, one of the most challenging conditions in paediatric orthopaedics, and its treatment is decided primarily by whether the knee functions.

How rare. The incidence usually quoted is 1 in 1,000,000 live births, against 1 in 40,000 for fibular hemimelia. That figure is repeated through the literature without an identifiable population study behind it, so treat it as an order of magnitude rather than a measurement.

Who. Boys are affected slightly more often than girls (1.5:1), the right and left sides equally, and about 30% of cases are bilateral.

Cause. Tibial hemimelia results from failure of normal tibial development during embryogenesis. The exact cause is unknown but may involve:

• Vascular insult during development
• Genetic factors (rare familial cases)
• Teratogenic exposure
• Failure of mesenchymal condensation

The condition is a spectrum, from complete absence of the tibia (Jones type IA) to partial presence (types IB-IV).

Why the tibia matters. The tibia normally carries roughly 85-90% of axial load. It stabilises the knee, where it articulates proximally with the femur via the medial tibial plateau and cruciates, and the ankle, where it articulates distally with the talus. Losing it produces a predictable set of problems, and where they fall depends on which part of the tibia is missing.

The decisive structures. Whether a stable knee can be salvaged depends on the proximal tibial anlage (bony or cartilaginous), the patella and an active quadriceps mechanism. The fibula is almost always present and frequently becomes the load-bearing strut after reconstruction.

Rarely isolated. Expect a foot deformity, usually equinovarus, and a marked limb-length discrepancy. Look for ipsilateral hand and upper-limb anomalies and a bifid or duplicated femur, and remember the recognised autosomal-dominant familial form; the syndromes are set out below.

Choosing a system. None is universally adopted, so always state which one you are quoting. Jones remains the exam standard but is purely radiographic; Kalamchi is treatment-oriented; Weber adds the cartilaginous anlage and a whole-limb score; Paley is reconstruction-focused.

Jones ClassificationKalamchi & WeberPaley

Jones (1978) graded the deficiency by how much tibia is present. The classification itself is radiographic; knee functionality is assessed alongside it, and together they decide treatment.

Type IA

Tibial Status

Absent tibia

Knee Function

Non-functional

Treatment

Amputation

Type IB

Tibial Status

Proximal cartilage only

Knee Function

Functional (preserve)

Treatment

Synostosis + Syme

Type II

Tibial Status

Ossified proximal tibia

Knee Function

Functional (preserve)

Treatment

Synostosis + Syme

Type III

Tibial Status

Ossified distal only

Knee Function

Variable

Treatment

Syme or Chopart

Type IV

Tibial Status

Short tibia, diastasis

Knee Function

Variable

Treatment

Syme amputation

Jones Classification Summary

Type	Tibial Status	Knee Function	Treatment
Type IA	Absent tibia	Non-functional	Amputation
Type IB	Proximal cartilage only	Functional (preserve)	Synostosis + Syme
Type II	Ossified proximal tibia	Functional (preserve)	Synostosis + Syme
Type III	Ossified distal only	Variable	Syme or Chopart
Type IV	Short tibia, diastasis	Variable	Syme amputation

View larger

Type IA is the most severe form: complete absence of the tibia and a non-functional knee. Type IB has a proximal tibia present only as cartilage, not ossified on radiographs, and must be told apart from IA with ultrasound or MRI. Type II is the same pattern with the proximal tibia ossified.

Type III, an ossified distal tibia with the proximal tibia absent, is the least common; assume that proximal ossification may eventually occur. Type IV is a short tibia with distal tibiofibular diastasis (separation).

Types IA and II are the most common, although in Fernandez-Palazzi's 22 limbs type II (3) was outnumbered by types Ib and IV (4 each), with type Ia leading at 9.

Kalamchi (1985) proposed three treatment groups:

• Type I: total absence of the tibia
• Type II: distal tibia absent (proximal tibia present)
• Type III: distal deficiency with tibiofibular diastasis

Kalamchi stressed three practical determinants of surgery: early radiographic appearance, quadriceps function and the severity of knee flexion contracture.

Weber (2008) set out seven types that explicitly grade the cartilaginous tibial anlage earlier classifications ignored, and it demands ultrasound or MRI for staging. A five-class score captures the whole limb: coxa, femur, patella, tibia, fibula and foot. Its exam relevance is that it is the formal evidence that plain film alone understages the tibia.

Paley (2016) links pathoanatomy directly to joint-preserving reconstruction (Brown fibular centralisation, Weber patelloplasty, staged distraction) rather than defaulting to amputation. When reconstruction is favoured is set out under Management.

View larger

History. A shortened lower limb is noted at birth, sometimes with a foot deformity. Ask about:

• Family history (rare, but may be present)
• Difficulty with weight-bearing or walking
• Previous treatment, in an established case

Inspection and palpation. The limb is short and foot deformity is common. The tibia may be absent or hypoplastic and may not be palpable, while the fibula is usually present. Check whether both legs are involved, and look at the other limbs for associated anomalies; associations in other systems are rare.

The knee. This is the critical part of the examination, because knee functionality decides treatment. Assess quadriceps function, stability and passive motion, and look for contractures.

Ankle and foot. The ankle may have limited motion or be unstable. Assess the structure and deformities of the foot, and whether it could be preserved.

Leg length.

• True: ASIS to medial malleolus
• Apparent: umbilicus to medial malleolus

Radiographs. Plain films show what has ossified:

• AP and lateral lower limb: whether the tibia is present, the proximal and distal tibia where present, the fibula, the knee and ankle joints, and the limb-length discrepancy
• Full-length standing radiographs: accurate LLD measurement and alignment, with the knee and ankle
• Foot radiographs: foot structure and deformities

View larger

Ultrasound and MRI. Cartilage is not visible on radiographs, so a film that shows no tibia cannot separate type IA from IB, and ultrasound is essential. Proximal tibial cartilage means type IB and a knee to preserve; no cartilage means type IA and amputation. MRI assesses the proximal tibia and its cartilage in detail when ultrasound is inconclusive.

View larger

View larger

The short, varus, externally deformed leg of tibial hemimelia overlaps clinically with several other congenital long-bone deficiencies.

The syndromic associations cluster at the severe, proximally deficient end of the spectrum. Recognising them changes both the counselling and the reconstructive plan.

Gollop-Wolfgang complex. The triad is distal femoral bifurcation (a forked, duplicated distal femur), ipsilateral complete tibial hemimelia (aplasia) and hand ectrodactyly (split hand, or "lobster claw"). The femur-tibia overlap is sometimes labelled the tibial agenesis-ectrodactyly syndrome.

What it means for treatment. The bifurcated femur carries an accessory bony spike that typically must be resected to bring the limb into line before any reconstruction or prosthetic fitting. The complex signals that the proximal tibia is usually absent and the knee usually non-salvageable, so management gravitates toward knee disarticulation or complex staged reconstruction rather than a simple synostosis.

View larger

View larger

View larger

Familial tibial hemimelia. Pedigrees with affected siblings and vertical transmission are documented, and Fernandez-Palazzi recorded familial cases. An autosomal-dominant pattern with variable expressivity and incomplete penetrance is recognised, and familial cases are more often bilateral and syndromic. A careful family history, and clinical-genetics referral where available, is therefore part of the workup.

Other associations. Survey for preaxial polydactyly and triphalangeal thumb, other limb-reduction defects and occasional visceral anomalies. A deliberate head-to-toe anomaly survey is mandatory before committing to any irreversible surgical decision.

View larger

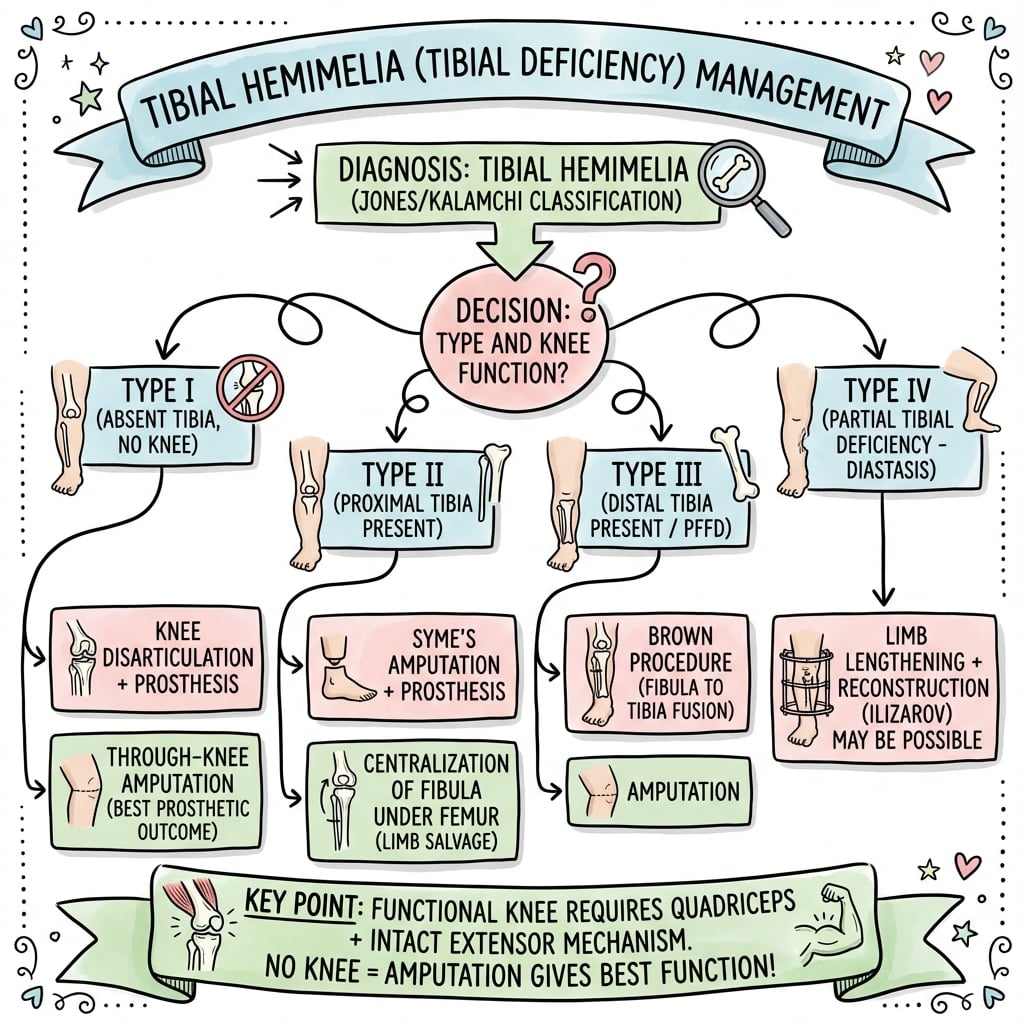

Treatment is based on knee functionality, not just on whether a tibia is present.

Goals of treatment, whatever the classification:

• A stable, extensor-competent knee, if salvageable
• A plantigrade, weight-bearing foot or a good end-bearing stump
• Leg lengths equalised by maturity
• Acceptable alignment and an efficient, comfortable gait

The decision rests on four factors:

1. Knee function: a non-functional knee (type IA) means amputation; a functional knee (IB/II) means synostosis and Syme
2. Tibial presence, assessed with radiographs, ultrasound and MRI
3. Type IB versus IA, which only ultrasound or MRI can settle
4. Family preference, after counselling about both options

Type IA: amputation. When the tibia is completely absent, the knee non-functional and ultrasound or MRI confirms no proximal tibial cartilage, the treatment is knee disarticulation or above-knee amputation, followed by prosthetic fitting.

Types IB and II: synostosis, then Syme. When the proximal tibia is present, as cartilage in IB (confirmed with ultrasound or MRI) or ossified in II, and the knee functions, a proximal tibiofibular synostosis creates a bony bridge between the proximal tibia and fibula. It provides a stable knee and the fibula becomes the weight-bearing bone. A Syme amputation follows distally once the synostosis has healed, preserving the knee and allowing prosthetic fitting.

Types III and IV. Type III is treated by Syme or Chopart amputation and type IV by Syme amputation.

Timing. Amputation at 6 months to 1 year; synostosis when there is sufficient ossification, usually at 1-2 years. Early treatment allows prosthetic fitting and better developmental outcomes.

Reconstruction. Paley's approach favours joint-preserving reconstruction when a knee joint or proximal tibia, patella and quadriceps mechanism are present. Where it stands against amputation is set out under Controversies.

Staged reconstruction. The sequences below show the Paley reconstructive alternative to amputation, done in stages with external fixation.

View larger

View larger

View larger

Concept. Brown (1965) transposed the fibula medially and centralised it beneath the femoral condyles, so that it articulates with the distal femur as a weight-bearing strut: "fibula pro tibia", the fibula in place of the tibia. The proximal fibula is aligned under the intercondylar notch and stabilised, the soft tissues (including the hamstrings and knee flexors) are balanced, and the foot is managed separately, usually by Syme amputation or ankle reconstruction.

Why it disappoints in complete absence. True Jones type IA generally means an absent or deficient extensor mechanism, quadriceps and patella. A knee with no active extension develops persistent or recurrent flexion contracture and posterior instability or subluxation of the centralised fibula, and a large proportion of these limbs ultimately need knee disarticulation anyway. That is why the historic Brown procedure for complete absence gave poor knee stability.

Who might suit it. The rare good candidate has active knee extension, a stable proximal fibula and minimal fixed flexion. Such a limb, by definition, tends to have a proximal tibial anlage (Jones IB/II) and is usually better served by tibiofibular synostosis. For genuine complete absence with no extensor mechanism, most surgeons now favour early knee disarticulation.

Its modern place is narrow. It has largely been superseded by anlage-preserving synostosis (IB/II), and by Paley-type staged reconstruction (patelloplasty, distraction of contractures, lengthening) where a proximal tibia, patella and quadriceps exist. In a viva, state this nuance explicitly rather than offering centralisation as a routine option for the absent tibia.

View larger

View larger

After synostosis. Early problems are wound healing and, rarely, infection or neurovascular injury. Later, the synostosis may fail to unite and need revision, and there may be malalignment, hardware problems, or knee instability if the synostosis fails.

After amputation. Wound-healing problems occur in 5-10% and infection is rare. After a Syme, the heel pad may migrate if it is not properly fixed; heel-pad migration and bony overgrowth may each need revision. Prosthetic fitting problems are rare.

Prevention. Careful patient selection, meticulous surgical technique, proper imaging (ultrasound or MRI to separate IB from IA) and realistic expectations.

After synostosis. Pain management, wound care and a cast for 6-8 weeks, monitoring for union. Once united, protected weight-bearing and physiotherapy prepare the child for the Syme amputation, after which come prosthetic fitting, gait training and return to activities.

After amputation (type IA). Pain management, wound care and a cast for 2-3 weeks. Once healed, prosthetic fitting (6-8 weeks), gait training and return to activities.

Long term. The prosthesis needs adjusting as the child grows, with regular follow-up and monitoring for complications.

Type IA. Amputation gives good function with a prosthesis from a single operation, with minimal restrictions, and early treatment allows development.

Types IB and II. Synostosis and Syme preserve the knee and give good prosthetic function, at the price of a two-stage procedure. The result is better than a through-knee amputation when the knee is genuinely functional, but no study has compared the two in comparable limbs: in the largest series the amputated limbs were the worst ones, so the apparent advantage of reconstruction is confounded by indication.

Types III and IV. Outcomes are variable and depend on the specific anatomy.

Overall. Both groups function well, prosthetic function is good and most children function independently; psychosocial support is important. Success depends on appropriate patient selection, proper imaging to separate IB from IA, meticulous technique and early treatment.

View larger

Global epidemiology

• Incidence approximately 1 per 1,000,000 live births - one of the rarest long-bone deficiencies, roughly 25-30x less common than fibular hemimelia.
• Slight male predominance; bilateral in around 30%; right and left affected equally.
• Rarely isolated - associated limb (hand ectrodactyly, bifid femur/Gollop-Wolfgang), and occasional syndromic or autosomal-dominant familial forms; a deliberate anomaly survey is mandatory.

Practice positions across regions (no single society publishes a dedicated tibial hemimelia guideline given rarity; positions are derived from major paediatric limb-deficiency literature):

Registry note: congenital limb-deficiency surveillance networks (e.g. EUROCAT in Europe, ICBDSR internationally) capture birth-prevalence data, but no arthroplasty-style implant registry exists for this reconstructive paediatric condition - outcome evidence rests on single-centre case series (level IV), not registry or randomised data.

High- vs limited-resource practice variation

• High-resource: MRI/ultrasound staging, multidisciplinary teams (paediatric orthopaedics, radiology, prosthetics, physiotherapy, psychology, genetics), and the option of multi-stage reconstruction with growth-friendly lengthening.
• Limited-resource: imaging access may be confined to plain radiographs, biasing toward early amputation; prosthetic durability, follow-up logistics and cost favour a single definitive procedure.

Counselling and governance (universal): informed consent for an irreversible decision (amputation vs reconstruction), documented knee/quadriceps assessment, US/MRI confirmation of the anlage before committing, balanced discussion of both pathways with realistic outcome expectations, and structured follow-up to skeletal maturity for limb-length management and prosthetic adjustment.

Related pages: Congenital Lower Limb Deficiency Overview is the parent page and places tibial hemimelia among the longitudinal deficiencies; Fibular Hemimelia is the far commoner counterpart and the essential contrast — fibular hemimelia spares the knee and threatens the foot and ankle, tibial hemimelia threatens the knee itself, which is why the presence of a quadriceps mechanism and a proximal anlage dominates every decision on this page; Proximal Femoral Focal Deficiency frequently coexists and must be assessed before any plan is made, because the femoral segment determines whether the reconstructed limb can ever be length-matched; Congenital Knee Dislocation and Clubfoot are the associated deformities most often present at birth in the same limb; Polydactyly matters specifically here because preaxial polydactyly with tibial deficiency is the Gollop-Wolfgang phenotype discussed above and should trigger a family history and a genetics referral; Limb Lengthening Principles, Distraction Osteogenesis and Ilizarov External Fixation carry the reconstruction machinery this page prescribes — and the healing index and complication burden that make a multi-stage reconstruction a decade-long commitment rather than an operation; Guided Growth for Angular Deformity Correction for the residual angular problems that follow; and Prosthetic Limb Components is the page to read before counselling a family, because the honest comparison is not reconstruction against nothing but reconstruction against a well-fitted prosthesis, and no study on this page has made that comparison in comparable limbs.

Amputation versus reconstruction. The historic default, early amputation (knee disarticulation for type 1a, Syme for the distal types), is reliable and single-stage and gives excellent prosthetic function. Modern reconstruction (fibular centralisation, patelloplasty, lengthening) can preserve a biological knee and foot, and Shahcheraghi reported better quality-of-life scores in reconstructed limbs, at the cost of multiple operations and higher complication rates. That comparison is the confounded one described under Outcomes; there is no level 1 evidence, and the decision is individualised.
