Calcaneovalgus Foot

Calcaneovalgus foot (talipes calcaneovalgus) is a postural deformity of the newborn foot in which the foot is held in excessive dorsiflexion and eversion. In its classic form the dorsum of the foot lies against the anterolateral surface of the tibia, and the sole faces outward (laterally).

Definition: A supple, passively correctable foot posture caused by intrauterine moulding rather than a fixed bony abnormality. The bones and joints are normally formed; it is the soft tissues that are temporarily stretched (dorsolateral) and tightened (the foot is held up against the shin).

Frequency:

• Along with metatarsus adductus, it is one of the most common foot postures seen at birth.
• More frequent in first-borns and after oligohydramnios or breech positioning — all features of a tight intrauterine environment ("packaging" deformity).
• Often unilateral, and commonly accompanied by other moulding signs (plagiocephaly, torticollis, metatarsus adductus).

The "packaging" concept (key for the exam): Calcaneovalgus belongs to the family of intrauterine positioning deformities. According to articles retrieved from PubMed, reviews of the newborn foot group calcaneovalgus with metatarsus adductus and pes supinatus as benign malpositions with an excellent prognosis, distinct from the true malformations of clubfoot and vertical talus (Delpont et al, Arch Pediatr 2014). This single idea — position versus structure — drives the whole topic.

Why it matters despite being benign:

1. It is a diagnosis of exclusion — you must rule out the rigid rocker-bottom of CVT.
2. The identical posture can sit on top of a posteromedial bow of the tibia, which is NOT benign because it produces a leg-length discrepancy.
3. It is an independent risk factor for DDH, mandating a careful hip examination.

Normal newborn foot: At birth the foot has a wide range of passive motion. The talus, calcaneus and navicular are normally aligned; the talar head is supported by the spring (plantar calcaneonavicular) ligament and the talonavicular joint is congruent.

Pathoanatomy of calcaneovalgus (all reducible):

• Ankle: held in marked dorsiflexion — the anterior ankle and dorsal soft tissues are tight, the Achilles and posterior structures are stretched (the OPPOSITE of clubfoot).
• Hindfoot: valgus (everted) due to lateral soft-tissue tightness.
• Forefoot: abducted and dorsiflexed.
• Bones and joints: structurally NORMAL. The talonavicular joint is congruent — it is NOT dislocated (this is the crucial contrast with CVT).

Biomechanical contrast — the two ends of the equinus/calcaneus axis:

• Clubfoot (talipes equinovarus): foot points DOWN and IN (equinus + varus).
• Calcaneovalgus: foot points UP and OUT (calcaneus/dorsiflexion + valgus). They are mirror-image postures, which is why "calcaneovalgus" is sometimes called the opposite of clubfoot.

Where the talus sits:

• In calcaneovalgus the talus is normally located; the deformity is in the soft tissues holding the foot up.

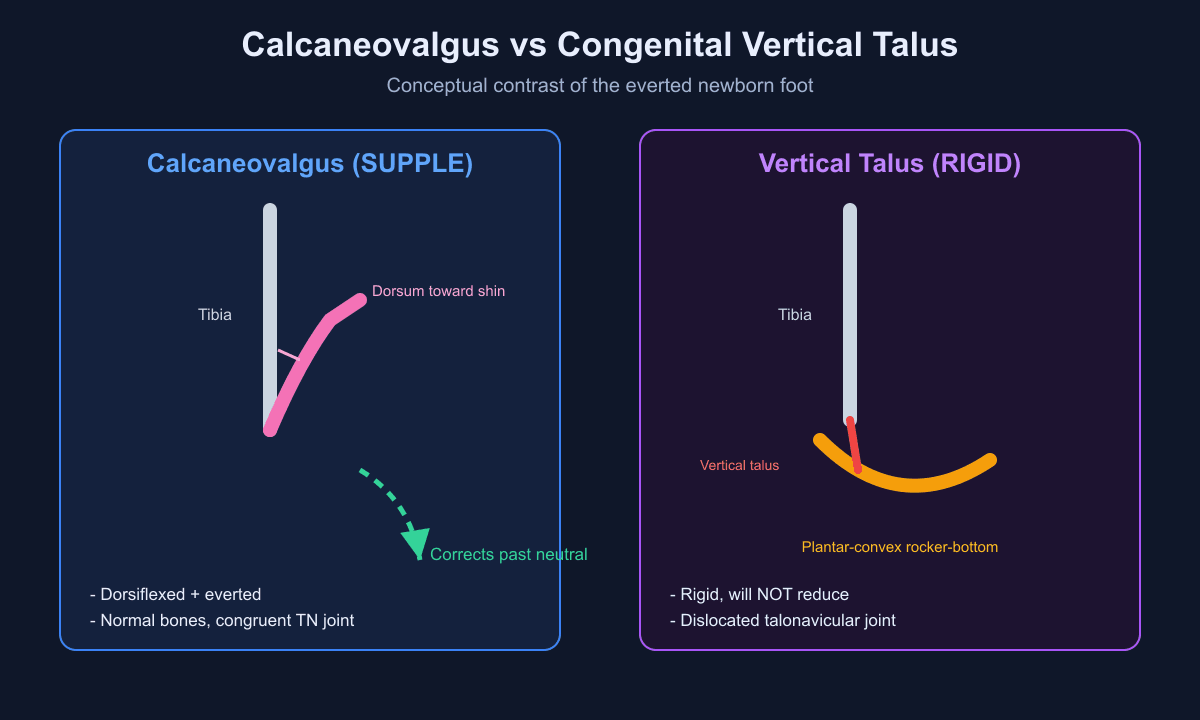

• In congenital vertical talus the talus is plantarflexed and vertical, and the navicular is dislocated onto its dorsum — a structural, irreducible problem. Recognising that calcaneovalgus is "all soft tissue, normal bone" is what makes it benign.

Calcaneovalgus is a mechanical, in-utero soft-tissue deformity, not a developmental error of the foot skeleton.

Deforming sequence:

1. Intrauterine constraint — a crowded uterus (oligohydramnios, large fetus, breech, primigravid tight uterus) holds the foot pressed against the front of the leg.
2. Sustained dorsiflexion and eversion stretches the dorsolateral soft tissues and shortens the anterior/dorsal capsule so the foot "sets" in the up-and-out position.
3. The skeleton remains normal — because the joints are congruent and the talus is correctly placed, the foot is fully reducible.
4. Postnatal remodelling — once the constraining force is removed at birth, normal kicking and growth allow the soft tissues to recover, which is why most resolve spontaneously.

Contrast with structural mimics:

• In CVT, the deformity is a fixed talonavicular dislocation — no amount of stretching reduces it, so it does not self-correct and needs casting then surgery.
• In posteromedial bowing of the tibia, the everted foot posture is a marker of the same intrauterine moulding, but the underlying tibia is bowed; the bow remodels substantially over years yet a residual leg-length discrepancy is the rule (Sevencan et al, Jt Dis Relat Surg 2022 — retrieved from PubMed).

The DDH link: The same crowded intrauterine environment that produces the foot posture also predisposes to hip instability, which is the mechanistic basis for the documented association between calcaneovalgus and DDH (Haberg et al, Bone Joint J 2020 — retrieved from PubMed).

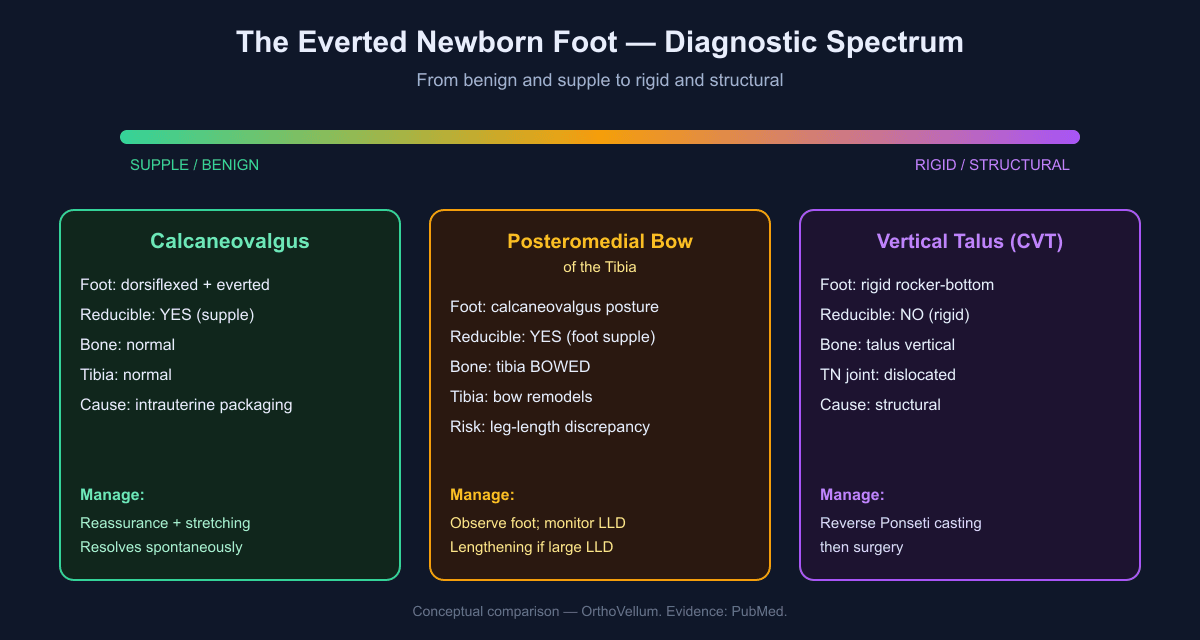

There is no single eponymous "classification of calcaneovalgus" — the clinically useful framework is to place the everted newborn foot on a supple-to-rigid spectrum and to separate isolated postural deformity from structural disease and from underlying bone/neuromuscular pathology.

View larger

History:

• Noted at birth; parents describe the foot "folded up" against the shin.
• Ask about pregnancy and delivery: oligohydramnios, breech, first pregnancy, twin — the packaging clues.
• Family history of DDH or foot deformity.

Inspection:

• The foot is held dorsiflexed and everted; the dorsum may rest against the anterolateral tibia.
• The sole faces outward (laterally).
• Look for other moulding signs: torticollis, plagiocephaly, metatarsus adductus on the other foot.

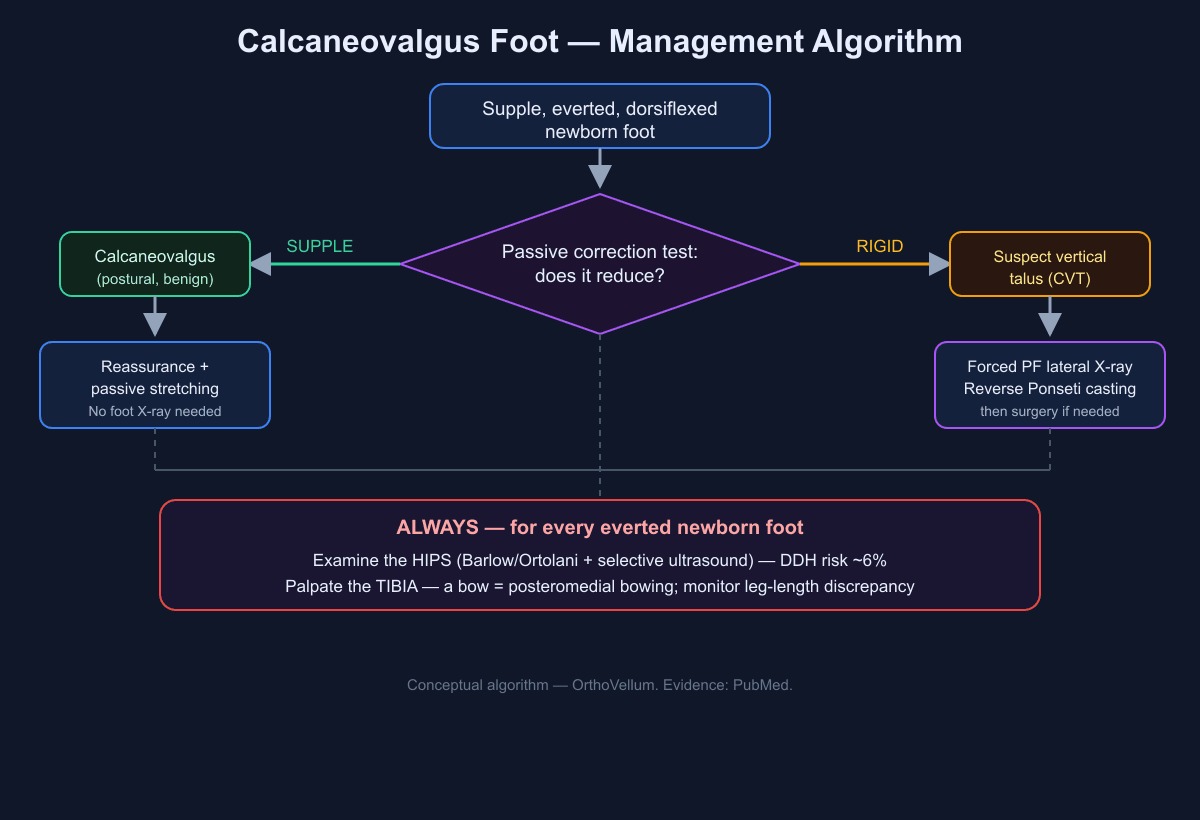

The defining manoeuvre — passive correction:

• Gently bring the foot into plantarflexion and inversion.
• In calcaneovalgus the foot corrects easily past neutral. This supple reducibility is the diagnosis.
• If it will NOT reduce, abandon the benign diagnosis and reassess for CVT.

Palpate the tibia (do not skip):

• Run a thumb along the subcutaneous medial border of the tibia.
• A posteromedial bow (concavity facing anterolaterally) signals posteromedial bowing of the tibia — a different prognosis with a leg-length issue.

Examine the hips (mandatory):

• Perform Barlow and Ortolani tests and assess for limited abduction / leg-length (Galeazzi).
• Calcaneovalgus is a recognised DDH risk factor, so arrange hip ultrasound per local screening pathway.

Neurological screen:

• Assess spontaneous movement, tone and the spine (sacral dimple, hairy patch) to exclude a neuromuscular calcaneus (spina bifida).

Calcaneovalgus is a clinical diagnosis. Investigations are used to exclude the mimics, not to confirm a benign postural foot.

When NOT to image:

• A supple, passively correctable foot in an otherwise normal newborn needs no foot radiographs.

Radiographs — when the foot is rigid or doubt remains (to exclude CVT):

• Lateral weight-bearing / simulated standing:
  • Meary's (talo-first-metatarsal) angle: in calcaneovalgus the talus and first metatarsal remain essentially co-linear or only mildly disrupted, because the bones are normally aligned.
  • In CVT the talus is vertical and the line is grossly broken (plantar apex).
• Forced plantarflexion lateral ("the money view"):
  • Calcaneovalgus / normal: the foot reduces and alignment restores.

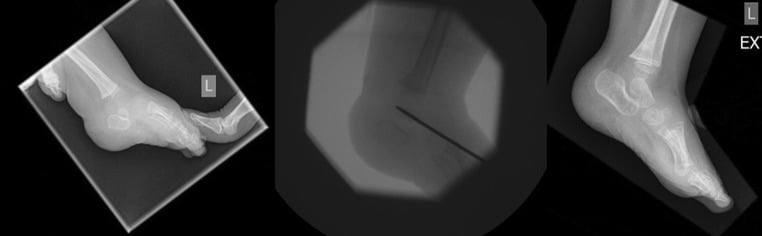

  • CVT: the talonavicular joint stays dislocated — it does NOT reduce. This is the single most useful film to separate supple from rigid.
• Forced dorsiflexion lateral: assesses hindfoot equinus (a feature of CVT, absent in calcaneovalgus).

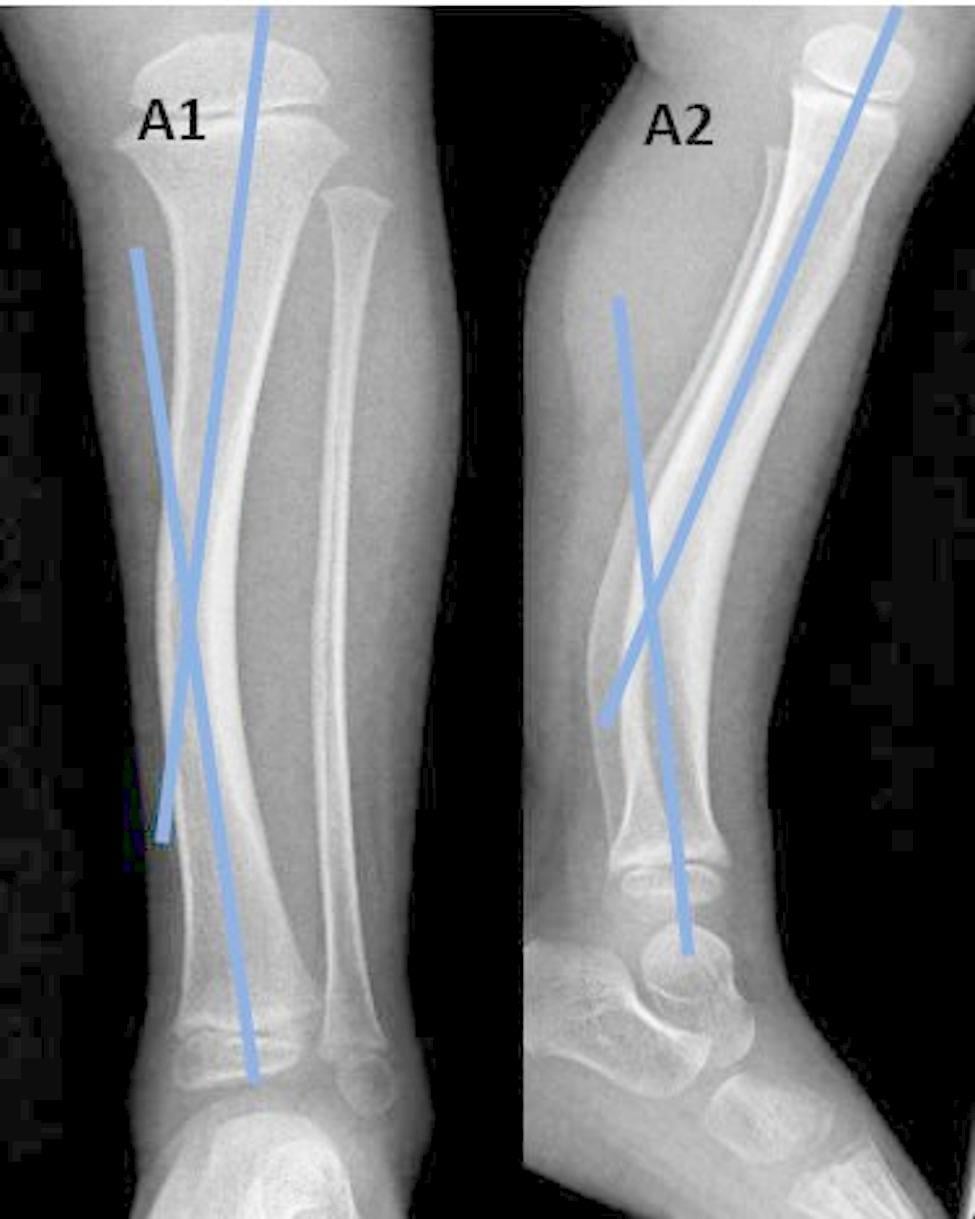

Tibial imaging — if a bow is palpable:

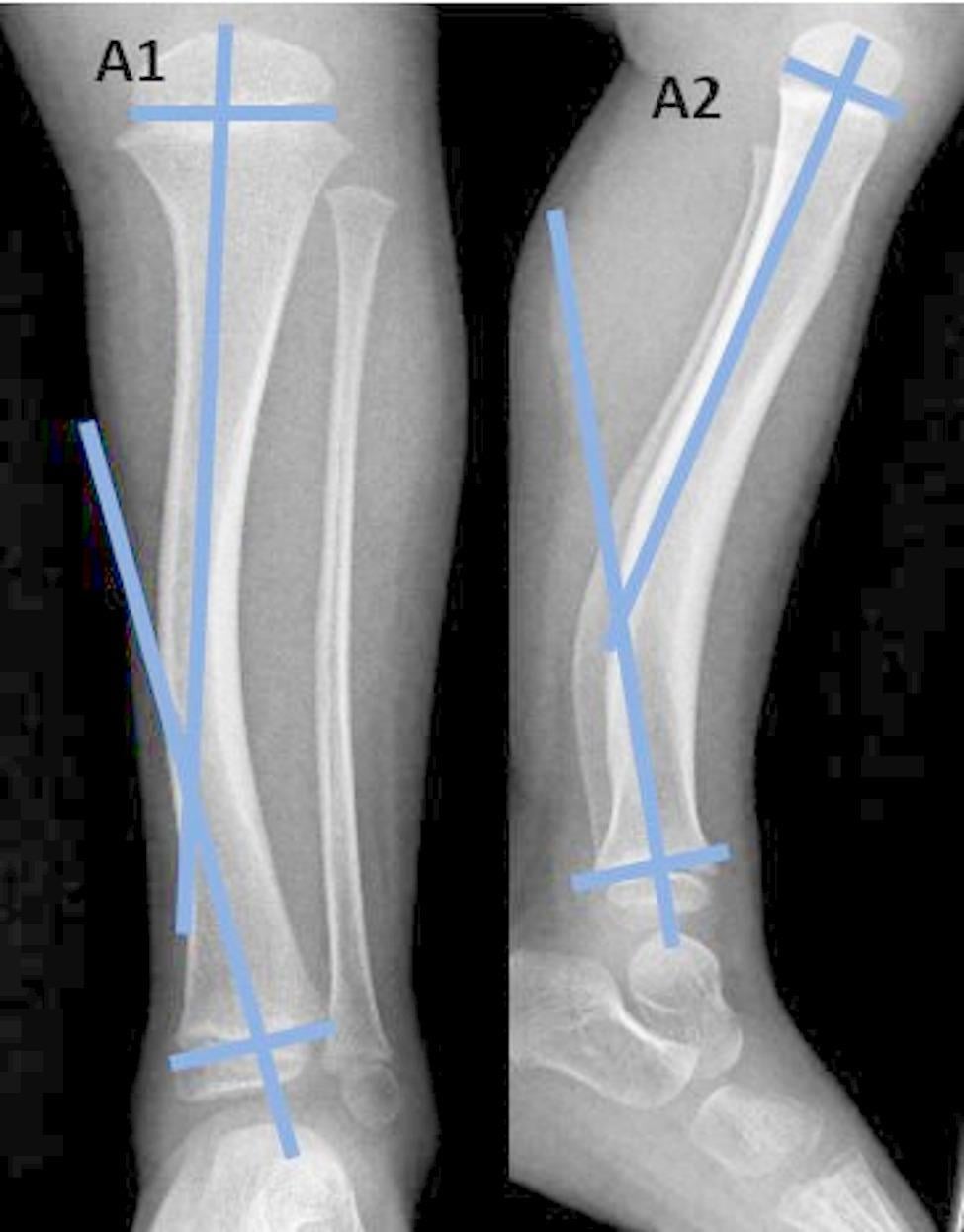

• AP and lateral of the tibia/fibula to confirm posteromedial bowing and provide a baseline for monitoring angular remodelling and leg-length discrepancy over time.

Hip imaging:

• Hip ultrasound (Graf) in the newborn period as part of DDH screening, given the association.

Neonatal note: the navicular is not ossified in the newborn, so radiographic diagnosis of talonavicular position is inferred from talar and metatarsal axes rather than seen directly.

• Natural history: excellent. Isolated postural calcaneovalgus resolves spontaneously in the great majority within the first weeks to months of life; many need only reassurance and stretching.

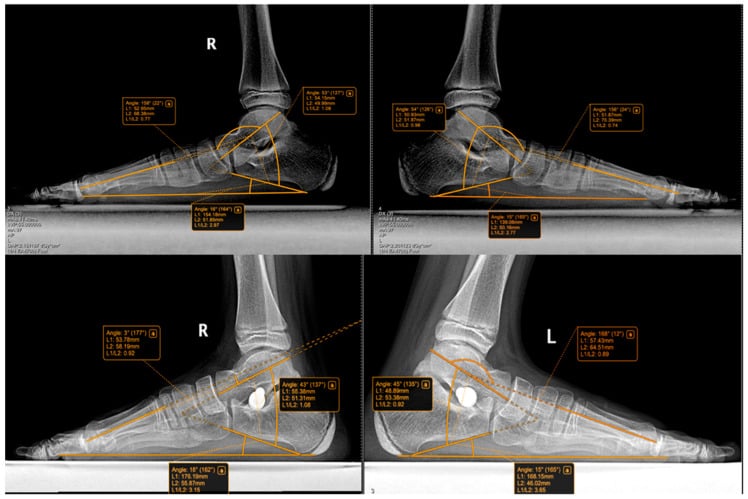

• Residual flatfoot: a minority retain a flexible flatfoot posture into childhood, which is usually asymptomatic and managed expectantly.

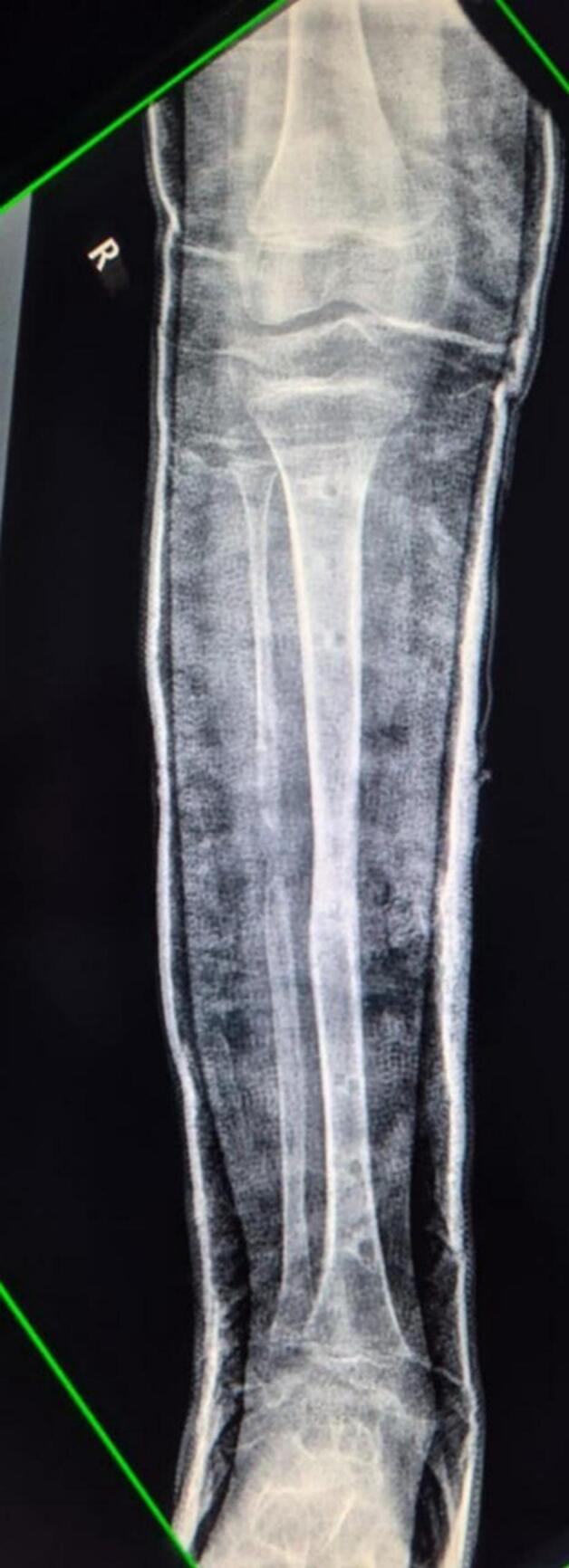

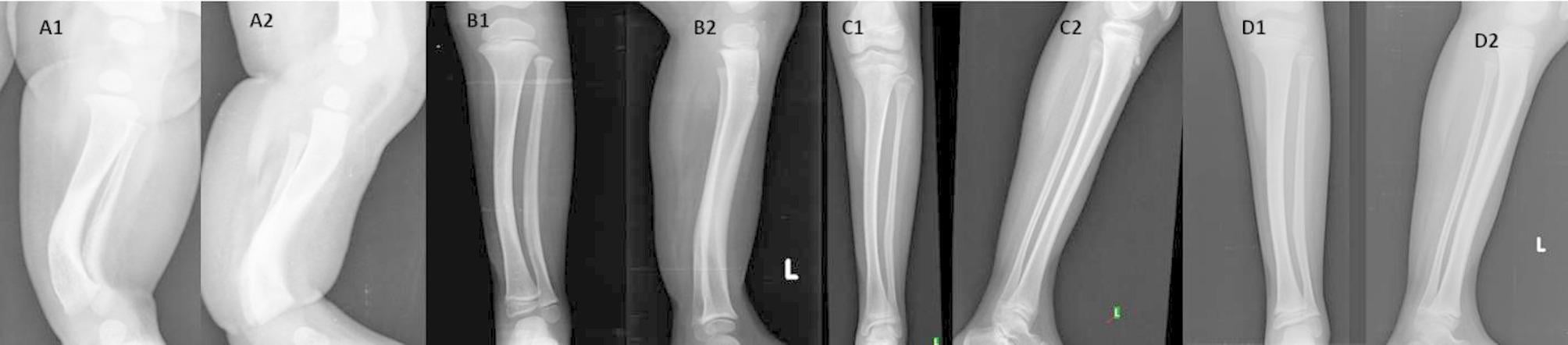

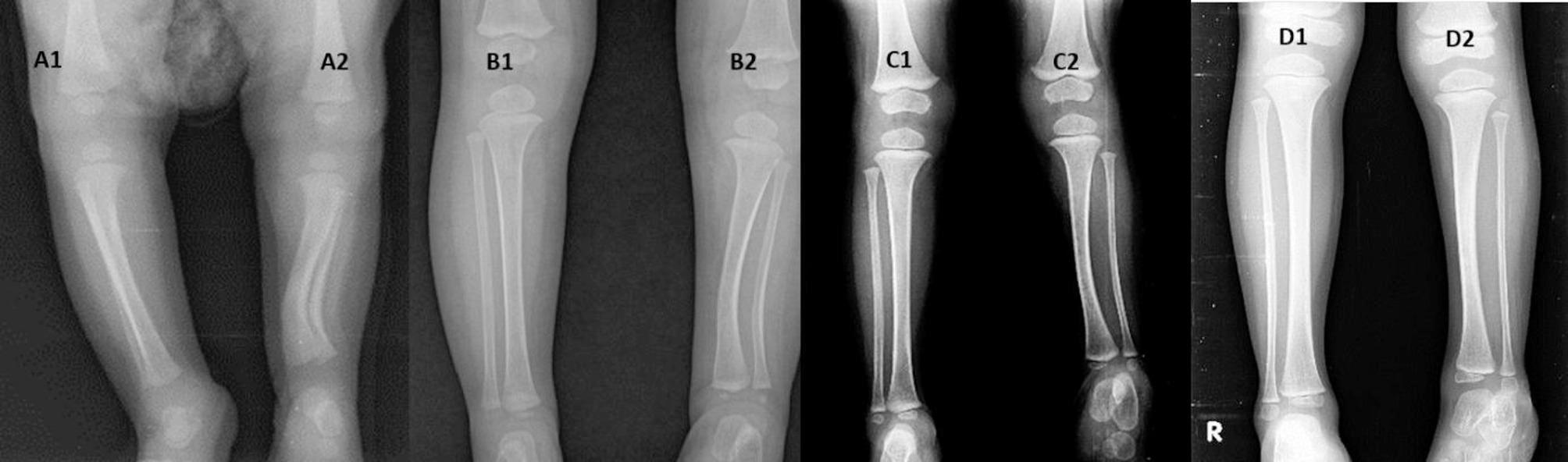

• Posteromedial bowing of the tibia: the bow remodels substantially — in one long-term series more than half of children needed no surgery for the deformity or leg length — but a measurable leg-length discrepancy persists and a proportion (around 40 percent in that series) ultimately require lengthening (Sevencan et al, Jt Dis Relat Surg 2022 — retrieved from PubMed). Lifelong-to-maturity monitoring of leg lengths is therefore essential when a bow is present.
• CVT misdiagnosed as calcaneovalgus: poor outcome if missed, because delay worsens the structural deformity — hence the emphasis on the passive-correction test.
• The hip: outcome of the foot is benign, but a missed associated DDH is not — this is why every calcaneovalgus foot triggers a hip assessment.

• How aggressively to treat a slow-resolving supple foot: most authorities favour reassurance and stretching, but the role and threshold for serial casting/splinting in stubborn (yet still supple) feet is not standardised.
• Screening intensity for DDH: calcaneovalgus is an established DDH risk factor, but whether every case warrants formal ultrasound versus careful clinical examination depends on local screening pathways.
• Calcaneovalgus and later flexible flatfoot: whether infantile calcaneovalgus predisposes to symptomatic flexible flatfoot in childhood is debated; most residual flatfeet are asymptomatic.

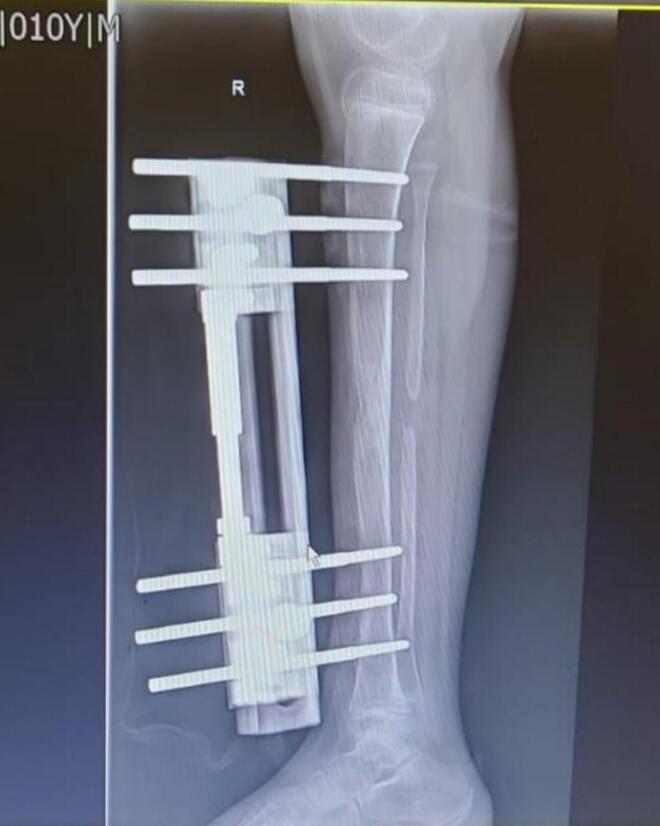

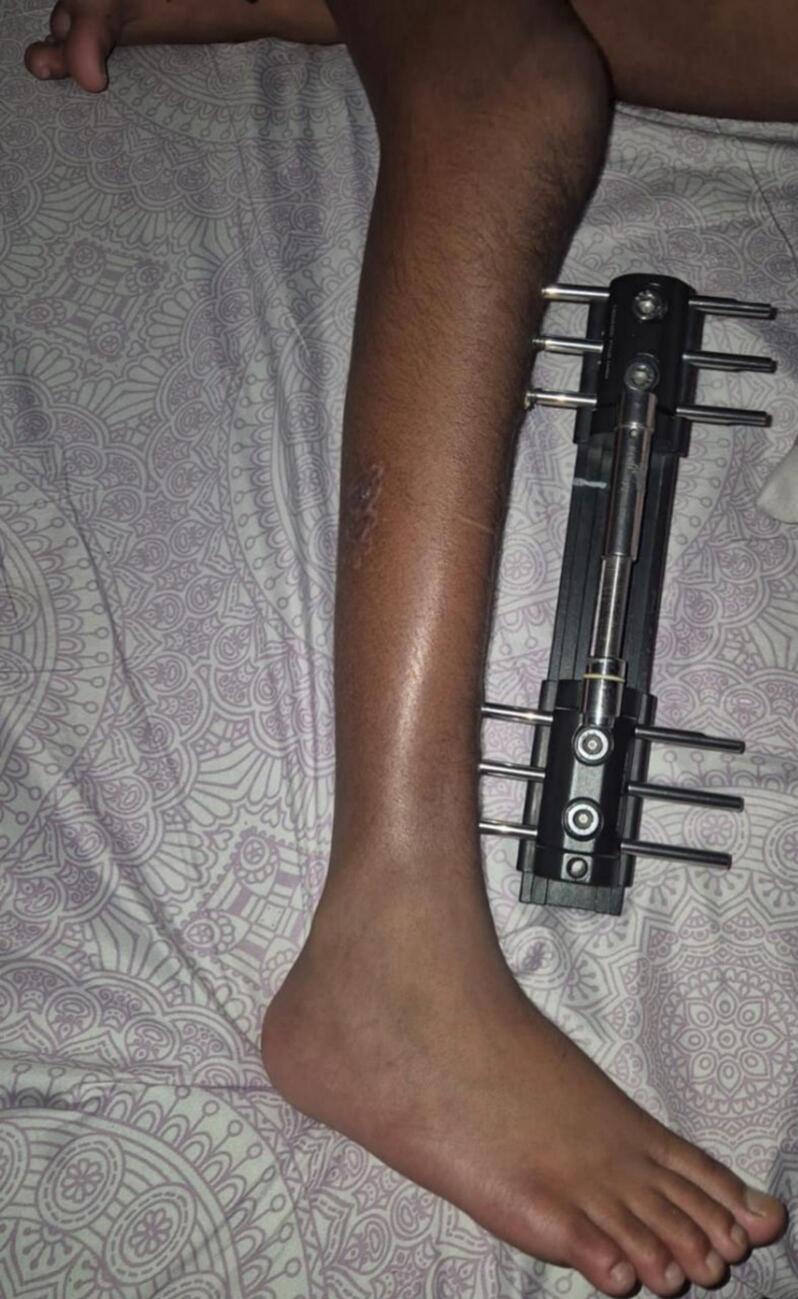

• Timing of lengthening in posteromedial bowing: when, and at what discrepancy, to lengthen versus perform contralateral epiphysiodesis remains a judgement call, as remodelling potential is considerable but variable.

Global epidemiology

• Calcaneovalgus and metatarsus adductus are the most frequently observed newborn foot postures worldwide; both are associated with first pregnancies, breech presentation and oligohydramnios (intrauterine packaging).
• There is no dedicated registry for calcaneovalgus; the strongest population-level data come from national newborn screening cohorts (e.g. the Norwegian cohort linking calcaneovalgus to DDH).

Side-by-side guidance

The consistent global message: treat the supple foot with reassurance, exclude the rigid mimic (CVT), and use the foot as a prompt to examine the hips and tibia.

High- versus limited-resource practice

• Well-resourced settings: ready access to hip ultrasound and tibial radiographs; structured newborn screening pathways capture the DDH association.
• Limited-resource settings: diagnosis rests on the bedside passive-correction test and clinical hip examination; the priority is not to miss a rigid CVT or an associated dislocatable hip, both of which carry far greater long-term cost than the benign foot itself.
