Accessory Soleus Muscle

The accessory soleus is a congenital anatomic variant consisting of an extra muscle belly in the deep posterior compartment of the leg. It is present in roughly 1 to 6 percent of individuals depending on the series (imaging or cadaveric) and is bilateral in a minority of cases. Most people with an accessory soleus live their entire lives without symptoms and the finding is incidental on MRI performed for unrelated foot or ankle pathology.

When symptomatic, the accessory soleus produces a characteristic posteromedial ankle mass or pain that is activity-related and often first noticed in adolescence or young adulthood during sports or military training. The key clinical clue is that the mass becomes firmer and sometimes visibly larger when the patient actively plantarflexes the ankle. Because the muscle follows normal skeletal muscle signal on every MRI sequence and has its own tendon, it is readily diagnosed without biopsy once the examiner and radiologist are familiar with the entity.

For the exam, the topic links surface anatomy, compartment anatomy, tarsal tunnel contents, MRI interpretation, and the simple principle that a symptomatic accessory muscle in a young active patient can be cured by complete excision when conservative measures have failed.

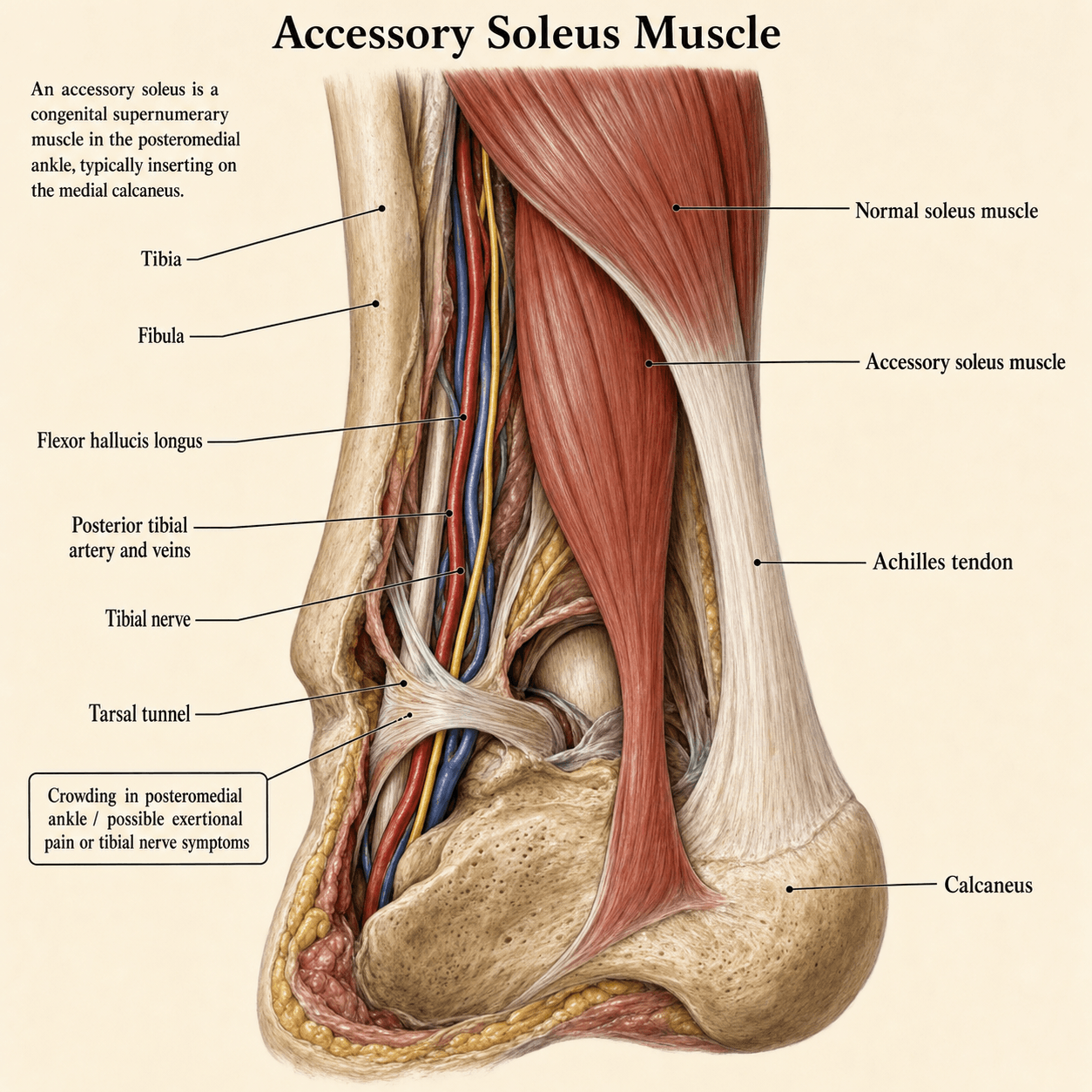

The accessory soleus arises from the anterior (deep) surface of the soleus muscle, the fibula, or the soleal line on the tibia, usually distal to the normal soleus origin. It lies anterior or anteromedial to the Achilles tendon within the deep posterior compartment and remains muscular well into the distal leg or retromalleolar region, where it tapers to a tendon that inserts separately from the Achilles.

Insertion patterns matter clinically. The tendon may join the Achilles, insert on the superior, medial, or inferior surfaces of the calcaneus, reach the plantar fascia, or end freely in the fat or on the flexor retinaculum. The medial calcaneal insertion is the pattern most often responsible for focal pain and compression of the tibial nerve or its branches within or just proximal to the tarsal tunnel.

Innervation is via a branch of the tibial nerve (separate from the branch to the soleus in most descriptions). Blood supply comes from muscular branches of the posterior tibial artery. Because the muscle is enclosed by the deep posterior compartment fascia and the flexor retinaculum distally, any increase in its volume (hypertrophy with training) or simple presence of extra bulk in a tight space produces pressure effects during activity.

Pathophysiology of symptoms:

• During plantarflexion the accessory soleus contracts and increases in cross-sectional area, raising pressure against the Achilles, the neurovascular bundle, or the calcaneal insertions.
• In the retromalleolar region or tarsal tunnel it acts as a space-occupying lesion, producing local pain, swelling sensation, or true compression neuropathy of the tibial nerve (medial heel/plantar paraesthesia, Tinel's sign, night symptoms).
• Exertional compartment-like pain can occur because the extra muscle is working inside a non-compliant fascial envelope.
• Visible or palpable mass effect is simply the contracting muscle belly itself; there is no true sheath or bursa in most cases.

The variant is entirely benign. It does not degenerate into sarcoma and does not represent a neoplastic process. Misinterpretation as a soft-tissue tumour is the most common serious error and is avoided by recognising the normal muscle signal and the contraction sign on examination.

Demographics and history

Patients are typically adolescents or young adults (15-40 years), often involved in running, jumping sports, or military training. The history is usually of gradual onset posteromedial ankle or distal leg "swelling" or pain noticed during or after activity. Pain is described as aching, pressure, or cramping and is worse with prolonged standing, running, or wearing tight boots. Some patients report plantar foot tingling or burning that is worse at night or after exercise - a tarsal tunnel picture. There is no history of trauma in the classic case.

Examination - look, feel, move, special tests

• Look: With the patient standing, inspect from behind for asymmetric fullness or a visible mass posteromedial to the Achilles tendon, just above or at the level of the medial malleolus. The contralateral side is usually flat in that location. The skin is normal (no erythema or sinus).

• Feel: Palpate a firm, non-fluctuant mass that is distinct from the Achilles tendon (a groove or plane may be felt between them). The mass is usually non-tender or only mildly tender. Ask the patient to perform a single-leg heel rise or resisted plantarflexion while you palpate - the mass becomes visibly larger and rock-hard. This contraction sign is the single most useful physical finding.

• Move: Ankle and subtalar range of motion are usually full. Pain may be reproduced at the extreme of passive dorsiflexion (stretch) or with resisted plantarflexion. Strength is normal unless chronic disuse or nerve compression has caused weakness.

• Special tests: Tinel's percussion over the tarsal tunnel (posterior to the medial malleolus and along the course of the tibial nerve) may elicit plantar paraesthesia if the accessory soleus is compressing the nerve. The dorsiflexion-eversion test for tarsal tunnel may be positive. Compare pulses and sensation; vascular or neurologic deficit is rare but should be documented if present.

Differential diagnosis

Lipoma (soft, does not contract), ganglion cyst (fluctuant, transilluminates, no muscle signal on MRI), Achilles tendinopathy or paratendinitis (no separate mass), sarcoma or other neoplasm (progressive night pain, heterogeneous on MRI, rapid growth), chronic exertional compartment syndrome (bilateral, no mass), and idiopathic tarsal tunnel syndrome (no space-occupying lesion on imaging).

View larger

Plain radiographs

Usually normal. May show a non-specific soft-tissue shadow posterior to the Achilles or a small enthesophyte at the calcaneal insertion site of the accessory tendon. Not diagnostic but useful to exclude bony tumour or fracture in the work-up of ankle pain.

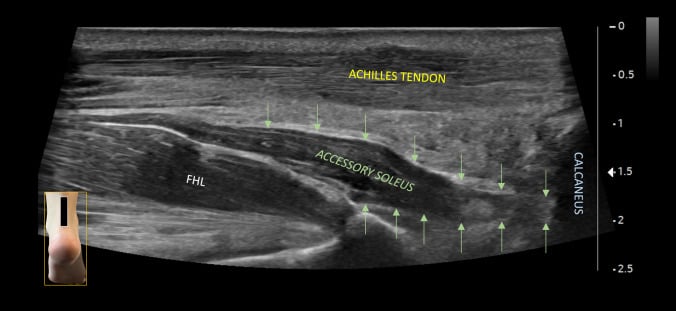

Ultrasound

Useful first-line or bedside tool in clinics with US available. Demonstrates a structure with normal skeletal muscle echotexture (hypoechoic with hyperechoic septa) that contracts dynamically on plantarflexion. Can map the tendon insertion and assess for compression of the tibial nerve. Operator-dependent; negative US does not exclude the diagnosis when clinical suspicion is high.

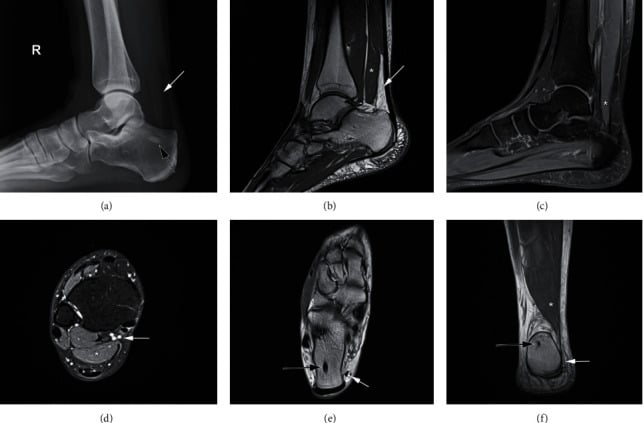

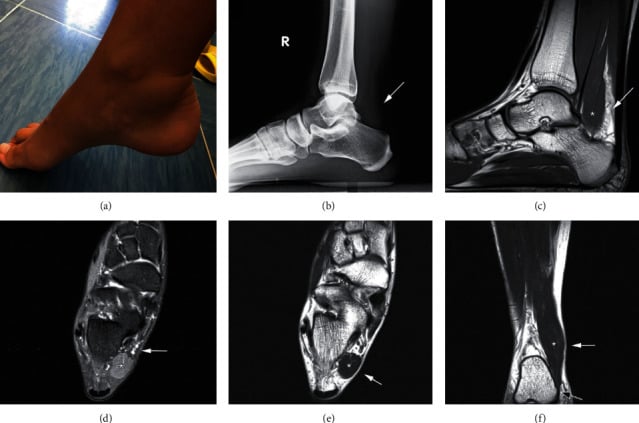

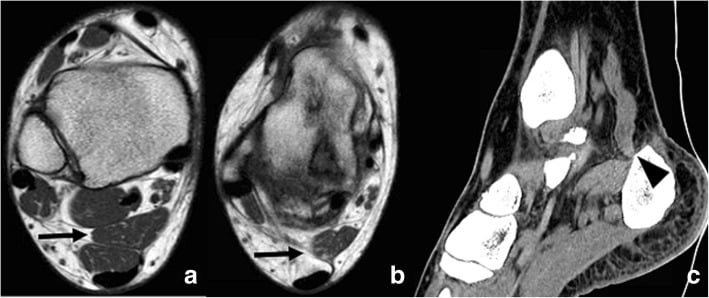

MRI (gold standard)

MRI is the investigation of choice. The accessory soleus appears as a fusiform or pennate muscle belly of identical signal intensity to the soleus and gastrocnemius on T1-weighted, T2-weighted, and proton-density sequences. There is no fat suppression dropout or enhancement after gadolinium (unlike many tumours). A tendon is visible extending from the muscle belly to its insertion, separate from the Achilles. Axial and sagittal planes best show the relationship to the neurovascular bundle and the exact insertion. MRI also excludes lipoma (high T1 fat signal), ganglion (fluid signal, thin wall), and sarcoma (heterogeneous, invasion, perilesional oedema).

Other

CT is rarely helpful except when bony detail of the insertion is needed for surgical planning. Nerve conduction studies and EMG are indicated when there is clinical or imaging evidence of tibial nerve compression; they confirm the level and severity but are not required for the diagnosis of the accessory muscle itself. Biopsy is contraindicated in the typical imaging picture - it risks sampling error, unnecessary surgery, and patient anxiety.

View larger

View larger

The Management section describes complete excision, but the topic's own pooled evidence shows that excision is only one of the surgical options actually used - and not even the commonest. In the quantitative systematic review of symptomatic cases, fasciotomy (fascial decompression) was the single most frequently performed procedure (about a fifth to a quarter of operated cases), ahead of excision and isolated tibial-nerve decompression, and all surgically treated patients were satisfied whichever route was chosen. Candidates should therefore be able to justify the choice rather than reflexively "excise everything."

When decompression (fasciotomy) is logical. If the dominant problem is an exertional, compartment-like syndrome - deep posterior leg pain and tightness with exercise, relieved by rest, from a muscle working inside a non-compliant fascial envelope - then releasing the tight investing fascia of the deep posterior compartment relieves the pressure while preserving the muscle. This mirrors the principle used for chronic exertional compartment syndrome and is attractive when there is no discrete mass and no focal nerve entrapment; it is a smaller operation with less dissection around the neurovascular bundle.

When excision is preferred. Complete excision of the muscle-tendon unit is favoured when the muscle is itself the space-occupying culprit: a symptomatic focal posteromedial mass, or documented tibial-nerve / tarsal-tunnel compression where the muscle is flattening the nerve. Removing the offending bulk addresses both the mass effect and the neuropathy in one step; partial removal risks recurrence, so the whole unit is taken from origin to insertion.

When to combine procedures. Where the accessory soleus is compressing the tibial nerve within the tarsal tunnel, excision combined with tarsal tunnel decompression may be required - as in the reported case that presented with a neuropathic picture and no swelling. Isolated retinacular release that leaves the muscle behind is the classic trap and is insufficient when the muscle is the compressor.

Of the condition itself

• Chronic exertional pain limiting sport or duty.
• Missed or delayed diagnosis leading to inappropriate interventions (tarsal tunnel release alone, biopsy, or oncology referral).
• Tarsal tunnel syndrome with permanent sensory change or weakness if long-standing compression is ignored.

Of surgical excision

• Incomplete excision with recurrent mass effect or pain (prevent by removing the entire unit to the insertion).
• Iatrogenic injury to the tibial nerve or its calcaneal branches (prevent by identifying and protecting the nerve throughout).
• Wound healing problems or scar sensitivity in the posteromedial ankle (thin soft-tissue envelope).
• Deep vein thrombosis or infection (standard prophylaxis and sterile technique).
• Perceived weakness (rare; the normal soleus and gastrocnemius compensate for loss of the small accessory belly).

The accessory soleus is a high-yield exam topic because it is common enough to appear in clinic and on imaging lists, yet unfamiliar enough that candidates who do not know it will misdiagnose the mass as a tumour or will recommend unnecessary biopsy. It tests the ability to link surface anatomy (posteromedial fullness that contracts), deep compartment anatomy (deep posterior compartment and tarsal tunnel contents), imaging interpretation (normal muscle signal on MRI), and surgical decision-making (reassure the incidental finding; excise the symptomatic refractory one completely).

In practice it appears in three common scenarios: the young athlete or recruit with a "swelling" that hurts on running, the patient with unexplained unilateral tarsal tunnel symptoms, and the incidental finding on an MRI already performed for Achilles or ankle pathology. In each setting the examiner wants to hear: recognise the contraction sign, order MRI rather than biopsy, describe the insertion, and reserve excision for clear refractory cases after conservative treatment has been tried.

• Epidemiology is consistent worldwide: cadaveric and imaging series from multiple continents report prevalence between 0.7% and 5.5%, with no strong evidence of major geographic or ethnic variation. Bilateral cases occur in approximately 10-15% of individuals with the variant.

• No dedicated society guidelines: because the accessory soleus is a rare cause of symptoms rather than a primary disease, major organisations (AAOS, BOA, EFORT, AOFAS) have not issued specific clinical practice guidelines. Management is guided by level IV and V evidence (case series, small comparative studies, and two recent systematic/narrative reviews).

• Diagnostic standard is MRI: across published series the shift from routine biopsy or exploration in the 1980s-1990s to MRI-first diagnosis has been universal where MRI is available. In resource-limited settings, ultrasound plus plain films plus a clear contraction sign on examination can be sufficient to avoid invasive steps.

• Surgical outcomes are reported from athletic and military cohorts: good-to-excellent pain relief and return to pre-symptom activity levels are described in greater than 85-90% of operated cases when complete excision is performed. These results come from series in Europe, North America, the Middle East and Asia; the principles (protect the tibial nerve, remove the entire unit, confirm normal muscle on histology) are the same everywhere.

• Registries: not applicable. The accessory soleus is not an implant or arthroplasty-related condition; no joint registries capture it.

• Global practice variation: the main variation is access to MRI for definitive non-invasive diagnosis and the threshold for surgery in borderline symptomatic cases. In high-performance military or elite sport settings, earlier imaging and lower threshold for excision are common; in general orthopaedic practice a longer trial of conservative care is usual. The core teaching - recognise the variant, image before you cut, excise completely when operating - remains constant.

The topic is repeatedly called a congenital variant, and the natural examiner follow-up is why it forms - a point the narrative-review evidence explicitly lists under embryology but the body has not developed. The accessory soleus is a developmental anomaly of the deep posterior (flexor) compartment. During limb-bud development the leg muscles differentiate from a common mesenchymal flexor mass, and the normal soleus condenses from this mass as a single belly. The accessory soleus is thought to arise when an extra slip splits from the soleus primordium (or from the deep surface of the developing soleus and the adjacent tibia/fibula) instead of merging into the single normal muscle. In other words it is an error of segmentation and differentiation of the soleus anlage - not a duplication of a whole muscle and not a post-natal acquired lesion.

Several clinically useful facts follow logically from this origin and are worth stating in a viva:

• It is present from birth even though symptoms usually appear only in the second or third decade. The extra belly does not form de novo in the athlete; training-related hypertrophy simply makes pre-existing bulk matter once it is working inside a tight fascial envelope.
• Because it develops as part of the deep posterior compartment, it carries a tibial-nerve branch for innervation and a posterior tibial arterial supply and is normal skeletal muscle in every respect - which is exactly why its MRI signal is identical to the soleus and why histology is unremarkable.
• The variable distal insertion (Achilles, superior/medial/inferior calcaneus, or a free retinacular ending) reflects where the aberrant slip's tendon condensed during development, and this in turn determines the later clinical pattern and the extent of any excision.

This developmental framing directly supports the two things examiners test most: that the lesion is unequivocally benign (a differentiation variant, never a neoplasm) and that it is congenital yet characteristically late-presenting.
