Adolescent Sports Injuries | Apophyseal Avulsions
Avulsion Sites
Critical Must-Knows
- Population: Adolescent athletes (open apophyses). Apophysis is weaker than muscle/tendon.
- Mechanism: Sudden forceful muscle contraction against resistance.
- Imaging: X-ray (compare to contralateral). CT if unclear.
- Treatment: Most are conservative. ORIF for Ischial Tuberosity greater than 2cm displacement.
- Prognosis: Excellent. Return to sport 6-12 weeks.
Clinical Pearls
- "Avulsions occur because the APOPHYSIS is weaker than the muscle-tendon unit in adolescents.
- "ASIS avulsion is from Sartorius (sprinting). AIIS is from Rectus Femoris (kicking).
- "Ischial Tuberosity is the one that may need surgery (greater than 2cm displacement).
- "Always compare to the contralateral side on X-ray (apophyses can look irregular).
Pelvic Avulsion Pitfalls
Missed Diagnosis
Compare Sides. Apophyses look irregular normally. Compare to contralateral to avoid missing avulsion.
Ischial Tuberosity Displacement
May Need Surgery. If greater than 2cm displaced, consider ORIF. Chronic pain/weakness if missed.
Tumor Mimics
Callus Formation. Exuberant callus can mimic osteosarcoma on imaging. Know the history.
Recurrence
Return Too Early. Athletes want to return quickly. Ensure healed before full sport.
At a Glance: Avulsion Sites
| Site | Muscle | Mechanism | Surgery |
|---|---|---|---|
| ASIS | Sartorius | Sprinting | Rare |
| AIIS | Rectus Femoris | Kicking | Rare |
| Ischial Tuberosity | Hamstrings | Hurdles/Splits | If greater than 2cm |
| Iliac Crest | Abdominals | Twisting | Rare |
| Lesser Trochanter | Iliopsoas | Hip Flexion | Rare |
AIILAvulsion Sites
| A | ASIS Sartorius origin |
| A | AIIS Rectus Femoris origin |
| I | Ischial Tuberosity Hamstrings origin |
| I | Iliac Crest Abdominal muscles |
| L | Lesser Trochanter Iliopsoas insertion |
| A | ASIS Sartorius origin | I | Iliac Crest Abdominal muscles |
| A | AIIS Rectus Femoris origin | L | Lesser Trochanter Iliopsoas insertion |
| I | Ischial Tuberosity Hamstrings origin |
Hook:Apophyseal Avulsion Sites.
S-R-H-AMuscles by Site
| S | Sartorius ASIS |
| R | Rectus Femoris AIIS (Straight head) |
| H | Hamstrings Ischial Tuberosity |
| A | Abdominals Iliac Crest (EO, IO, TA) |
| S | Sartorius ASIS | H | Hamstrings Ischial Tuberosity |
| R | Rectus Femoris AIIS (Straight head) | A | Abdominals Iliac Crest (EO, IO, TA) |
Hook:Match muscle to site.
2cm ITSurgical Indication
| 2 | 2 centimeters Displacement threshold |
| c | Consider Consider surgery if greater than 2cm |
| m | Matters Only IT commonly needs surgery |
| I | Ischial Ischial Tuberosity |
| T | Tuberosity Hamstring avulsion |
| 2 | 2 centimeters Displacement threshold | I | Ischial Ischial Tuberosity |
| c | Consider Consider surgery if greater than 2cm | T | Tuberosity Hamstring avulsion |
| m | Matters Only IT commonly needs surgery |
Hook:IT greater than 2cm = Surgery.
Overview and Epidemiology
Definition: Pelvic avulsion fractures are injuries where a muscle-tendon unit avulses its apophyseal attachment from the pelvis. They occur almost exclusively in adolescents due to the relative weakness of the unfused apophysis compared to the muscle-tendon unit.
Epidemiology:
- Age: 14-17 years (before apophyseal closure).
- Sex: Males greater than Females.
- Sports: Sprinting, Soccer, Gymnastics, Hurdling, Baseball.
- Bilaterality: Rare.
Common Sites:
- ASIS (Anterior Superior Iliac Spine): Sartorius.
- AIIS (Anterior Inferior Iliac Spine): Rectus Femoris (Straight head).
- Ischial Tuberosity: Hamstrings (Semimembranosus, Semitendinosus, Biceps Femoris long head).
- Iliac Crest: External Oblique, Internal Oblique, Transversus Abdominis.
- Lesser Trochanter: Iliopsoas.
Anatomy and Pathophysiology
Apophyseal Anatomy:
- Apophysis: Secondary ossification center for muscle attachment.
- Weakness: Cartilaginous growth plate is weaker than bone, muscle, or tendon.
- Closure: Apophyses fuse in late adolescence (17-25 years).
Mechanism:
- Sudden Contraction: Explosive muscle contraction against resistance.
- Eccentric Load: Muscle lengthening under load (e.g., hurdle).
- Result: Apophysis avulses before muscle or tendon fails.
Site-Specific Mechanisms:
- ASIS (Sartorius): Sprinting (hip extension with knee flexion).
- AIIS (Rectus Femoris): Kicking (hip flexion with knee extension).
- Ischial Tuberosity (Hamstrings): Hurdles, Splits, Waterskiing.
- Iliac Crest: Twisting, Throwing.
Classification
By Site
| Site | Muscle | Sport | Surgery |
|---|---|---|---|
| ASIS | Sartorius | Sprinting | Rare |
| AIIS | Rectus Femoris | Kicking | Rare |
| Ischial Tuberosity | Hamstrings | Hurdles | If greater than 2cm |
| Iliac Crest | Abdominals | Twisting | Rare |
| Lesser Trochanter | Iliopsoas | Flexion | Rare |
| Pubic Symphysis | Adductors | Adduction | Rare |
Ischial Tuberosity is the most important to recognize for surgical consideration.
Clinical Assessment
History:
- Mechanism: Sudden pop/pain during sprinting, kicking, or jumping.
- Sport: Sprinting, Soccer, Gymnastics.
- Age: Adolescent (13-17).
Physical Examination:
- Tenderness: Point tenderness over avulsion site (ASIS, AIIS, IT, Iliac Crest).
- Swelling/Bruising: Variable.
- Weakness: Weakness of the involved muscle (Hip flexion, Hamstrings).
- Gait: Antalgic.
- ROM: Painful with stretch of involved muscle.
Investigations
Imaging:
- X-ray (AP Pelvis): Compare to contralateral side. Look for displaced fragment.
- CT: If X-ray unclear. Quantify displacement.
- MRI: Rarely needed. For soft tissue assessment or chronic cases.
Key Findings:
- ASIS Avulsion: Fragment displaced inferolaterally.
- AIIS Avulsion: Fragment displaced inferiorly.
- Ischial Tuberosity: Fragment displaced inferiorly (by hamstrings).
- Iliac Crest: Multiple small fragments (apophysis strips).
Differential Diagnosis
Differentiating Pelvic Avulsion from Mimics
| Condition | Distinguishing Features | Key Investigation |
|---|---|---|
| Pelvic avulsion fracture | Acute pop during explosive activity; point tenderness over apophysis; displaced bony fragment | AP pelvis radiograph (compare sides) |
| Muscle/tendon strain | Same mechanism but NO bony fragment; tenderness in muscle belly; normal radiograph | Radiograph negative; MRI/US if doubt |
| Apophysitis (e.g. iliac crest, ischial) | Chronic activity-related pain; no acute event; widened but non-displaced apophysis | Radiograph; compare contralateral side |
| Normal apophyseal irregularity | Asymptomatic; symmetric fragmentation; incidental | Compare contralateral apophysis |
| Osteosarcoma / Ewing sarcoma | Worsening rest/night pain; soft-tissue mass; aggressive periosteal reaction; exuberant callus mimic | MRI; biopsy only if history unclear |
| Osteomyelitis / septic process | Fever, raised inflammatory markers, no clear trauma; progressive symptoms | MRI, bloods (CRP/ESR), cultures |
The Tumour Mimic
Healing callus and chronic non-united avulsions can show aggressive features that mimic osteosarcoma or Ewing sarcoma. A clear history of an acute sporting injury with improving symptoms is reassuring. If the history is unclear or symptoms worsen, obtain MRI before considering biopsy — an ill-judged biopsy of healing callus is a classic trap.

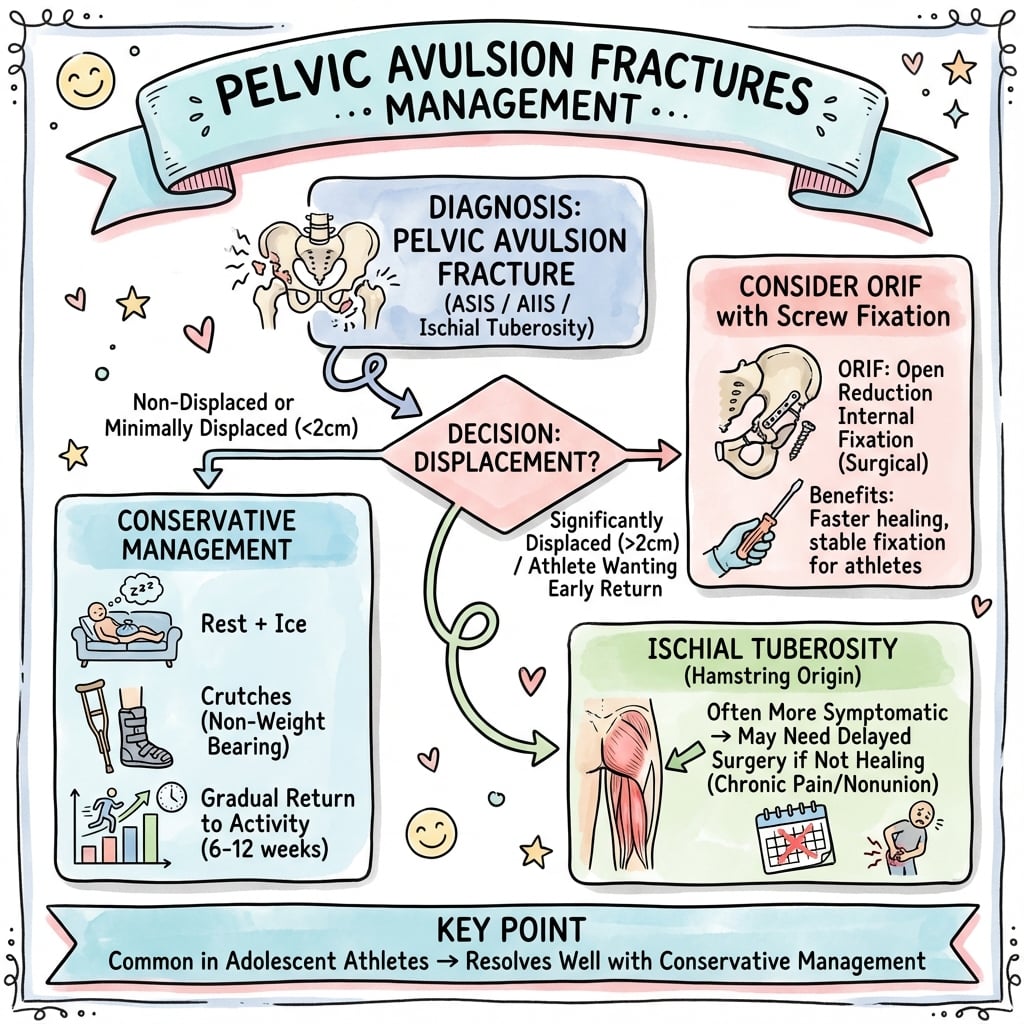

Management Algorithm

Conservative Management (Most Cases)
- Rest: Crutches for comfort (1-2 weeks).
- Ice: 20 minutes, 3-4 times daily.
- Analgesia: NSAIDs, Paracetamol.
- Physiotherapy:
- Week 1-2: Gentle ROM.
- Week 2-6: Progressive strengthening.
- Week 6-12: Sport-specific training.
- Return to Sport: 6-12 weeks (when pain-free and full strength).
Most avulsions heal well without surgery.
Surgical Technique
Ischial Tuberosity ORIF
- Positioning: Prone or Lateral.
- Incision: Gluteal crease incision (cosmetically hidden).
- Dissection: Identify sciatic nerve (protect). Identify hamstring origin.
- Reduction: Reduce avulsed fragment to ischial tuberosity.
- Fixation: 2 x 4.5mm Cortical Screws or Cannulated Screws. Suture anchors if fragment small.
- Closure: Layered.
- Post-op: Crutches. NWB 2 weeks. Progressive PT.
Protect the Sciatic Nerve.
Complications
Complications
| Complication | Risk Factor | Management |
|---|---|---|
| Non-Union | Large displacement | ORIF / Excision |
| Chronic Weakness | IT greater than 2cm | Delayed ORIF |
| Exuberant Callus | Normal healing | Reassurance (Mimics tumor) |
| Recurrence | Early return to sport | Wait for healing |
| Sciatic Nerve Injury | IT surgery | Careful dissection |
Postoperative Care
- Crutches: 2-4 weeks.
- ROM: Early gentle ROM.
- Strengthening: Week 4-6 progressive.
- Return to Sport: 12-16 weeks (post-surgery).
Outcomes
- Conservative: 90%+ return to full sport.
- Surgical (IT): Good outcomes with ORIF.
- Long-term: No significant issues if managed appropriately.
Evidence Base
Largest Modern Series — Natural History (228 fractures)
- 225 patients, 228 avulsion fractures; mean age 14.4 years, 76% male.
- AIIS most common (49%), then ASIS (30%), ischial tuberosity (11%), iliac crest (10%) — contrary to older series.
- 97% managed successfully non-operatively; surgery in only 3%.
- Displacement over 20mm increased nonunion risk 26-fold; 4 of 5 nonunions were ischial tuberosity.
- AIIS avulsions were 4.47x more likely to develop chronic pain (over 3 months).
Classic Epidemiology — Sites & Sports Distribution
- 203 avulsion fractures in 198 adolescent athletes over 22 years.
- Ischial tuberosity most common (109), then AIIS (45), ASIS (39), pubic symphysis (7), iliac crest (3).
- Soccer (74) and gymnastics (55) accounted for most injuries.
- Plain radiographs were diagnostic in the majority.
Surgical vs Conservative — Systematic Review
- Systematic review of operative vs non-operative outcomes (2010-2017).
- Excellent-outcome and return-to-pre-injury-sport rates were higher after surgery.
- Surgery carried higher heterotopic ossification (9% vs 1.8%) but lower nonunion (0% vs 2.5%).
- No evidence-based threshold exists; decision driven by displacement, fragment size and recovery demands.
Current Concepts — Displacement Threshold
- Conservative treatment recommended for minimally displaced avulsions.
- Surgery favoured for displacement over 15mm, giving quicker return to sport.
- Missed diagnosis can cause further displacement, nonunion, FAI and infection.
- AP and frog-lateral radiographs are diagnostic in most cases.
AIIS Avulsion as a Cause of Subspine Impingement
- Described AIIS/subspine impingement, including cases following prior AIIS avulsion.
- Exuberant or malunited AIIS bone can abut the proximal femur, causing extra-articular FAI.
- Arthroscopic AIIS/subspine decompression relieved symptoms at minimum 1-year follow-up.
Easily Missed Diagnosis — Ischial Tuberosity
- Ischial tuberosity avulsion is frequently misdiagnosed as a hamstring strain.
- Failure to image risks chronic pain, nonunion and weakness.
- Posterior pelvic pain in an adolescent athlete warrants a radiograph.
Overview of All Pelvic/Hip Apophyseal Sites
- Reviews ASIS, AIIS, ischial tuberosity, iliac crest, pubic symphysis and lesser trochanter sites.
- Injuries are often unrecognised and can take months to heal.
- Most managed non-operatively; surgery reserved for selected displaced cases.
Viva Scenarios
Clinical Decision Scenarios
Use these scenarios to practise clinical reasoning and management decisions
The Sprinter with Hip Pain
"What is your working diagnosis and management?"
The Hurdler with Posterior Thigh Pain
"What is your diagnosis and when would you operate?"
The Concerning X-ray
"What is your assessment?"
MCQ Practice Points
ASIS Muscle
Q: Which muscle avulses from the ASIS? A: Sartorius.
AIIS Muscle
Q: Which muscle avulses from the AIIS? A: Rectus Femoris (straight head).
Surgical Threshold
Q: What is the surgical threshold for Ischial Tuberosity avulsion? A: Greater than 2cm displacement. Consider ORIF to prevent chronic hamstring weakness.
Population
Q: Why do pelvic avulsion fractures occur in adolescents? A: The apophysis (secondary ossification center) is weaker than the muscle-tendon unit in adolescents before skeletal maturity.
Ischial Tuberosity Mechanism
Q: What is the mechanism for Ischial Tuberosity avulsion? A: Forceful eccentric contraction of the hamstrings (e.g., hurdling, splits, waterskiing).
Controversies and Areas of Uncertainty
There are no randomised trials and no formal society guideline for pelvic apophyseal avulsions; practice is built on retrospective series and expert consensus. Key unsettled questions:
- Operative displacement threshold. Commonly quoted cut-offs range from over 15mm (Ghanem) to over 20mm (Schuett nonunion data) to "over 2cm" as a teaching round number. The figure is a guide, not a rule — there is no level I/II evidence defining a single threshold.
- Which site predominates. Older radiographic series report ischial tuberosity as the most common site (Rossi), whereas the largest modern imaging-era series reports AIIS as most common (Schuett, 49%). Both are quotable; the discrepancy reflects era, referral pattern and imaging access.
- Surgery vs conservative for the displaced ischial tuberosity. Surgery offers higher return-to-pre-injury sport and lower nonunion but adds heterotopic ossification and operative risk (Calderazzi). The trade-off is individualised by athletic demand, displacement and fragment size.
- Acute fixation vs delayed/secondary surgery. Many displaced injuries can be treated conservatively first, reserving fixation/excision for symptomatic nonunion — but this risks a harder secondary operation through scar.
- Role of MRI/ultrasound. Useful for purely cartilaginous avulsions in the young (radiographically occult) and for tumour-mimic reassurance, but routine advanced imaging is not justified when the radiograph and history are clear.
Guidelines, Registries & Global Practice
Global epidemiology
- Predominantly adolescents aged 11-17 with open apophyses; male predominance (around 76% in the largest series).
- Sport profile is region-driven: soccer and gymnastics dominate in European data (Rossi), while sprinting/running and kicking dominate North American data (Schuett). Track and field, dance, martial arts and racquet sports also feature.
- Overall a benign, self-limiting injury — roughly 97% are managed non-operatively with excellent outcomes.
Guidance across societies (no dedicated guideline exists)
| Body / Source | Position on pelvic apophyseal avulsions |
|---|---|
| AAOS / OrthoInfo (US) | Educational guidance: rest, protected weight-bearing, staged rehab; surgery reserved for markedly displaced fragments |
| BOA / BOAST (UK) | No avulsion-specific BOAST; managed under general paediatric/sports trauma principles — radiograph adolescent "hamstring strains" |
| AO Foundation | Apophyseal avulsions classed as paediatric pelvic ring/avulsion injuries; ORIF principles for displaced ischial tuberosity |
| Sports-medicine consensus (IOC-aligned) | Graduated return-to-play criteria: pain-free, symmetric strength and sport-specific function before full return |
Registry note. Pelvic avulsion fractures are not tracked by arthroplasty/implant registries (NJR, AJRR, AOANJRR, SHAR) — these are non-implant, paediatric soft-tissue-bone injuries, so registry survivorship data do not apply.
High- vs limited-resource practice
- Well-resourced settings: ready radiographs, CT to quantify displacement, MRI for occult cartilaginous avulsion or tumour-mimic reassurance, and access to surgical fixation/arthroscopic subspine decompression when indicated.
- Limited-resource settings: diagnosis rests on a single AP pelvis radiograph and clinical examination; conservative management is the near-universal default and yields good results, with the main risk being missed diagnosis rather than under-operating.
Clinical summary
Sites
- •ASIS: Sartorius
- •AIIS: Rectus Femoris
- •IT: Hamstrings
- •Iliac Crest: Abdominals
- •Lesser Troch: Iliopsoas
Surgery
- •IT displacement over 2cm: Consider ORIF
- •Excision for chronic nonunion/painful callus
- •Sciatic nerve at risk (IT approach)
- •Most conservative: Rest + Protected activity
Treatment
- •Rest, Ice, Analgesia initially
- •PT: ROM then Strength progression
- •Return to sport: 6-12 weeks
- •No contact until pain-free strength
Pitfalls
- •Compare sides on X-ray
- •Callus mimics tumor (biopsy risk)
- •Don't over-treat (most heal)
- •Consider apophyseal stage (MRI if needed)
