DENIS CLASSIFICATION (ZONES)
Critical Must-Knows
- Denis zones predict NEUROLOGICAL injury risk (lateral to central progression)
- CT is ESSENTIAL - 30-50% missed on plain radiographs
- Zone III involves sacral canal = cauda equina symptoms (bowel/bladder/sexual)
- Spinopelvic dissociation = complete disconnection of spine from pelvis
- Document bowel, bladder, sexual function (sacral roots S2-S4)
Clinical Pearls
- "Zone I: 5-10% neuro injury (L5 nerve - foot drop risk)
- "Zone II: 25-30% neuro injury (S1-S2 roots - plantarflexion/sensation)
- "Zone III: Up to 60% neuro injury (cauda equina - emergency!)
- "U-shaped (Roy-Camille) fractures = spinopelvic dissociation = highest neuro rate
- "SI screws must avoid foramina and target S1 body (safe corridor)
Clinical Imaging
Imaging Gallery

Exam Warning
Sacral fractures are frequently MISSED on plain radiographs (30-50%). CT is ESSENTIAL for diagnosis and surgical planning. The Denis classification predicts neurological injury based on fracture location: Zone I (5-10%), Zone II (25-30%), Zone III (up to 60%). Zone III fractures involve the sacral canal and can cause cauda equina syndrome with bowel, bladder, and sexual dysfunction.
At a Glance Table
Sacral Fractures - Quick Reference
| Feature | Zone I | Zone II | Zone III |
|---|---|---|---|
| Location | Lateral to foramina | Through foramina | Medial to foramina |
| Structure | Alar region | Transforaminal | Sacral canal |
| Nerve at risk | L5 | S1-S4 roots | Cauda equina |
| Neuro injury rate | 5-10% | 25-30% | Up to 60% |
| Key deficit | Foot drop | Weak plantarflexion | Bowel/bladder/sexual |
| Stability | Usually stable | Variable | Usually unstable |
SACRUMSACRUM - Key Sacral Fracture Concepts
| S | Scan with CT plain films miss 30-50% |
| A | Alar fractures Zone I) have lowest neuro risk |
| C | Central fractures Zone III) have highest neuro risk |
| R | Roots at risk: L5 I), S1-2 (II), cauda (III |
| U | U-shaped fractures = spinopelvic dissociation |
| M | Mandatory neuro exam bowel, bladder, sexual function |
| S | Scan with CT plain films miss 30-50% | C | Central fractures Zone III) have highest neuro risk | U | U-shaped fractures = spinopelvic dissociation |
| A | Alar fractures Zone I) have lowest neuro risk | R | Roots at risk: L5 I), S1-2 (II), cauda (III | M | Mandatory neuro exam bowel, bladder, sexual function |
Hook:Remember SACRUM for sacral fractures - CT is essential, zones predict neuro injury
Overview
Introduction
Sacral fractures occur in approximately 45% of pelvic ring injuries and are among the most commonly missed fractures in trauma. The dense bony overlap on plain radiographs makes visualization difficult, and CT imaging is essential for diagnosis.
The sacrum plays a critical role as the posterior keystone of the pelvic ring, transferring weight from the spine to the lower extremities. Sacral fractures can occur in isolation (stress fractures, falls) or as part of complex pelvic ring injuries (vertical shear, LC, APC patterns).
Clinical Significance
Why Sacral Fractures Matter:
- Frequently missed: Up to 50% missed on plain X-ray
- Neurological injury: 5-60% depending on zone
- Pelvic stability: Posterior structures provide 60% of ring stability
- Chronic pain: Sacroiliac dysfunction common
- Associated injuries: Often part of complex polytrauma
Epidemiology
Incidence:
- Present in 45% of pelvic ring injuries
- Often underdiagnosed (30-50% missed initially)
- Insufficiency fractures in elderly common
Mechanism:
- High-energy trauma (MVA, falls)
- Vertical shear injuries
- Lateral compression injuries
- Insufficiency fractures (osteoporosis)
Demographics:
- Bimodal distribution
- Young: High-energy trauma
- Elderly: Insufficiency fractures
Anatomy and Biomechanics
Sacral Anatomy
Bony Anatomy
Sacrum Structure:
- Triangular bone of 5 fused vertebrae (S1-S5)
- Forms posterior wall of pelvis
- Articulates with L5 above, coccyx below
- SI joints bilaterally
Sacral Ala:
- Lateral wing-like extensions
- L5 nerve root runs on anterior surface
- Zone I fractures occur here
Sacral Foramina:
- Anterior and posterior openings
- Transmit sacral nerve roots
- Zone II fractures through these
Sacral Canal:
- Central canal housing cauda equina
- Zone III fractures involve this
- Highest neurological risk
Neural Anatomy
Lumbosacral Plexus:
- L5 root: Exits under sacral ala, anterior surface
- S1-S4 roots: Exit through sacral foramina
- Cauda equina: Within sacral canal
Function by Level:
- L5: Great toe extension, dorsiflexion
- S1: Ankle plantarflexion, ankle jerk
- S2-S4: Bowel, bladder, sexual function
Classification Systems
Denis Classification (Most Important)
The Denis classification divides the sacrum into three longitudinal zones based on location relative to the sacral foramina. This classification predicts neurological injury risk.
Location:
- Lateral to sacral foramina
- Sacral ala region (wing)
Neural Structures at Risk:
- L5 nerve root (runs on anterior ala surface)
Neurological Injury Rate:
- 5-10%
Clinical Presentation:
- Foot drop (L5 weakness)
- Weak great toe extension
- Sensory loss dorsum of foot
- Usually stable fracture
Management:
- Often conservative if minimally displaced
- SI screws if unstable or displaced
.
Roy-Camille Classification (Transverse Fractures)
For transverse sacral fractures specifically:
Type I: Flexion injury, no kyphosis Type II: Flexion with posterior displacement and angulation Type III: Extension injury with anterior displacement Type IV: Comminuted fracture pattern
Spinopelvic Dissociation
Definition:
- Complete disconnection of spine from pelvis
- Usually bilateral transverse sacral fractures
- U-shaped or H-shaped patterns
Key Features:
- Upper sacrum moves with spine
- Lower sacrum/pelvis moves independently
- Highest neurological injury rates (often greater than 60%)
- Requires lumbopelvic fixation
Recognition:
- Bilateral vertical fractures through sacrum
- Connecting transverse fracture component
- On imaging: spine-pelvis discontinuity
ZONESZONES - Neuro Injury Rates
| Z | Zone I = 5-10% five percent for Zone one |
| O | Oh! Zone II = 25-30% twenty-five to thirty |
| N | Now Zone III = Up to 60% highest |
| E | Each zone moves medial = increasing risk |
| S | Sacral canal involvement = cauda equina |
| Z | Zone I = 5-10% five percent for Zone one | E | Each zone moves medial = increasing risk |
| O | Oh! Zone II = 25-30% twenty-five to thirty | S | Sacral canal involvement = cauda equina |
| N | Now Zone III = Up to 60% highest |
Hook:ZONES increase in neuro risk as you move medially toward the canal
Clinical Assessment
Primary Survey
Sacral fractures occur in major trauma context. Assessment follows ATLS principles.
Mechanism History
High-Energy:
- Motor vehicle accident
- Fall from height
- Pedestrian struck
- Motorcycle accident
Low-Energy:
- Insufficiency fractures
- Falls in elderly
- Osteoporosis-related
Physical Examination
Inspection:
- Ecchymosis over sacrum (Morel-Lavallee lesion possible)
- Lower extremity posture
- Gluteal swelling
Palpation:
- Sacral tenderness
- Step-off or crepitus
- SI joint tenderness
Rectal Examination:
- Assess rectal tone (S2-S4)
- Rule out open fracture
- Palpate for bony fragments
Neurological Examination (CRITICAL)
Document DETAILED neurological examination in ALL sacral fractures. Include motor function (L5-S1), sensory examination, rectal tone, bulbocavernosus reflex, and specifically ask about bowel, bladder, and sexual function. Zone III fractures can cause permanent cauda equina syndrome.
Motor Assessment:
- Hip extension (L5-S1)
- Knee flexion (S1-2)
- Great toe extension (L5) - KEY
- Ankle plantarflexion (S1-2)
- Ankle dorsiflexion (L4-5)
Sensory Assessment:
- Dorsum of foot (L5)
- Lateral foot (S1)
- Posterior thigh (S2)
- Perianal sensation (S2-S4) - saddle area
Reflex Testing:
- Ankle jerk (S1-2)
- Bulbocavernosus reflex (S2-S4)
- Anal wink (S2-S4)
Specific Questions:
- Urinary retention or incontinence
- Fecal incontinence
- Erectile dysfunction (males)
- Vaginal sensation (females)
Investigations
Imaging Protocol
Plain Radiography
AP Pelvis:
- Often inadequate for sacral fractures
- Look for: Asymmetry, cortical disruption
- Foraminal lines may be disrupted
- Miss rate: 30-50%
Lateral Sacrum:
- Better visualization
- Assess for kyphosis
- Still often inadequate
Ferguson View (AP Sacrum):
- 30-degree cephalad tilt
- Better visualization of foramina
- Rarely used in acute trauma
CT Imaging (ESSENTIAL)
Why CT is Mandatory:
- Plain films miss 30-50%
- Defines fracture pattern precisely
- Denis zone classification
- Foraminal involvement
- Associated pelvic injuries
Key Findings:
- Fracture location (Denis zone)
- Transverse vs longitudinal
- Displacement and comminution
- Foraminal compromise
- Sacral canal involvement
3D Reconstruction:
- Excellent for surgical planning
- Demonstrates complex patterns
- Communication tool
MRI
Indications:
- Neurological deficit
- Suspected cauda equina compression
- Insufficiency fractures (edema pattern)
- Soft tissue assessment
Findings:
- Nerve root compression
- Canal stenosis
- Bone marrow edema
- Soft tissue injury
Differential Diagnosis
Low back, buttock or sacral pain (especially the insidious insufficiency-fracture presentation) has several mimics. The key discriminators are mechanism, MRI signal pattern and red-flag features.
Sacral Pain - Key Differentials
| Diagnosis | Typical patient / clue | Imaging discriminator | Why it matters |
|---|---|---|---|
| Sacral insufficiency fracture | Elderly, osteoporotic, no/low trauma | MRI: H-shaped (Honda sign) marrow oedema, fracture line | Benign; treat conservatively + bone health |
| Sacral metastasis / myeloma | Known cancer, weight loss, night pain | Lytic/destructive lesion, soft-tissue mass, abnormal marrow beyond fracture plane | Must not be missed; biopsy/staging before any cement |
| Sacroiliitis (inflammatory) | Younger, inflammatory back pain, raised CRP/HLA-B27 | MRI: subchondral SI joint oedema/erosions, not a fracture line | Rheumatology referral, DMARD/biologic therapy |
| Sacral / SI joint infection | Fever, IVDU, immunosuppression | MRI: joint effusion, abscess, contrast enhancement | Needs aspiration and antibiotics, not fixation |
| Coccygeal injury / coccydynia | Pain on sitting, distal to sacrum | Localised to coccyx on lateral imaging | Usually conservative; avoids over-investigation |
| Lumbar radiculopathy | Dermatomal leg pain, positive SLR | Disc/foraminal pathology at L4-S1, sacrum normal | Different treatment pathway |

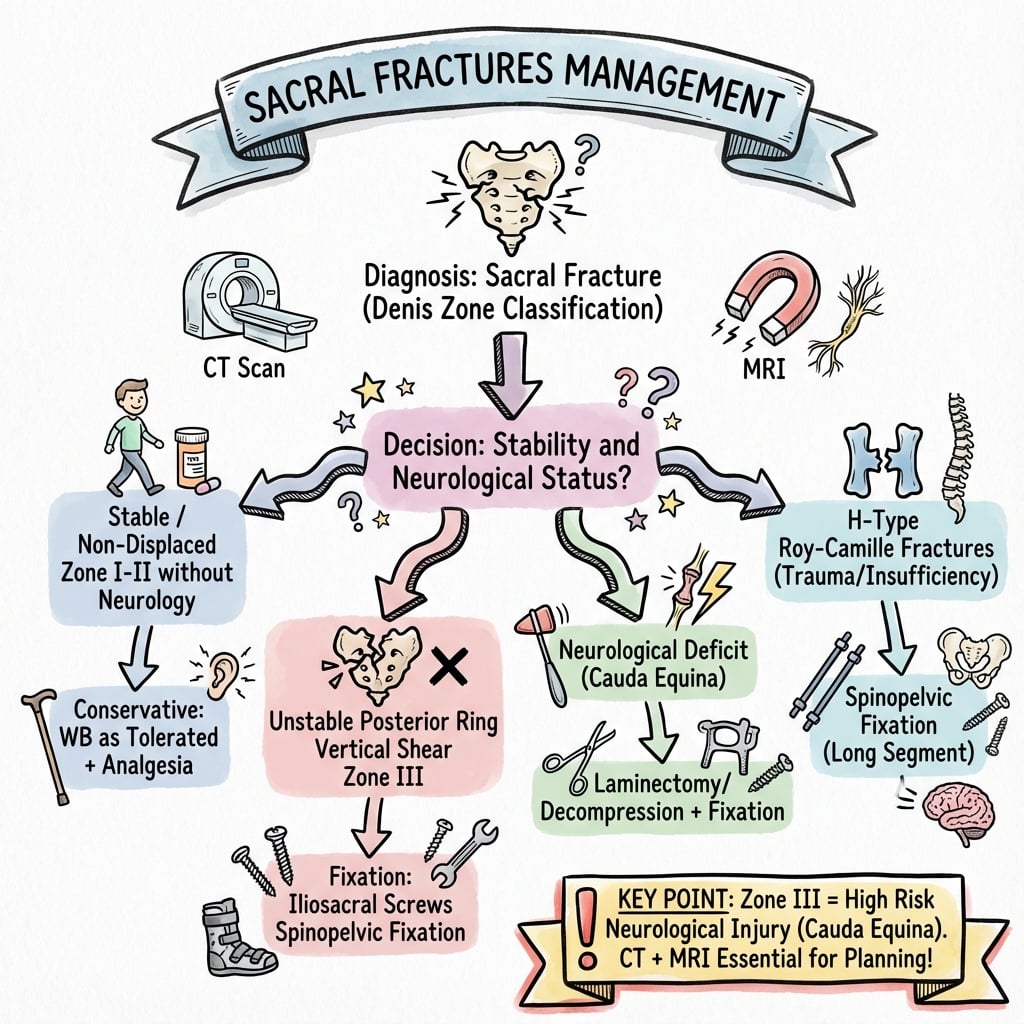

Management Algorithm

Decision-Making Framework
Indications:
- Zone I with minimal displacement (less than 5mm)
- Stable pelvic ring
- No neurological deficit
- Insufficiency fractures (first line)
Protocol:
- Initial bed rest (2-4 weeks)
- Progressive mobilization
- Weight-bearing as tolerated
- Analgesia (paracetamol, NSAIDs, opioids)
- DVT prophylaxis (LMWH)
- Serial radiographs (1, 2, 6 weeks)
- Physiotherapy for mobilization
Expected Outcomes:
- Most heal at 6-12 weeks
- Return to function gradual
- Monitor for late complications
.
Surgical Technique
Percutaneous Sacroiliac Screws
Indications:
- Zone I and II fractures
- Longitudinal sacral fractures
- SI joint instability
- Stable to moderately unstable patterns
Patient Positioning:
- Supine on radiolucent table
- Lateral decubitus alternative
Equipment:
- 7.3mm or 7.0mm cannulated screws
- Fluoroscopy (inlet, outlet, lateral views)
- Guidewires, cannulated instruments
Technique Steps:
-
Imaging Setup:
- Obtain true AP pelvis (inlet view)
- Obtain outlet view (40 degrees caudal)
- Obtain lateral sacrum view
- Mark S1 body corridor
-
Entry Point:
- Posterior ilium lateral to SI joint
- Approximately 1cm superior to greater sciatic notch
- Avoid L5 nerve anteriorly
-
Guidewire Insertion:
- Advance under fluoroscopic guidance
- Check all three views continuously
- Target S1 body (safe zone)
- Avoid sacral canal medially
- Avoid anterior cortex breach
-
Screw Placement:
- Measure guidewire depth
- Insert cannulated screw over wire
- Ensure bicortical purchase
- Final confirmation all views
-
S2 Screw (Optional):
- For greater stability
- Enter more cephalad
- Similar technique
Dangers:
- L5 nerve anterior to ala
- Sacral canal medially
- Anterior vascular structures
- Dysmorphic sacrum variants
SCREWSCREW - SI Screw Safe Placement
| S | S1 body is the safe zone not ala |
| C | Check inlet, outlet, and lateral views |
| R | Recognize L5 nerve anterior to ala |
| E | Enter posterior ilium lateral to SI joint |
| W | Watch for dysmorphic sacrum variants |
| S | S1 body is the safe zone not ala | E | Enter posterior ilium lateral to SI joint |
| C | Check inlet, outlet, and lateral views | W | Watch for dysmorphic sacrum variants |
| R | Recognize L5 nerve anterior to ala |
Hook:Use SCREW safely - target S1 body with three fluoroscopic views
Complications
Early Complications
Neurological Injury:
- Most significant complication
- Zone-dependent rates (I: 5-10%, II: 25-30%, III: up to 60%)
- May be permanent especially Zone III
- Document baseline and monitor closely
Hemorrhage:
- Presacral venous plexus injury
- Part of pelvic hemorrhage with ring injuries
- Usually managed with pelvic trauma protocol
- Angioembolization if ongoing bleeding
- Rarely requires surgical exploration
Thromboembolic Events:
- High DVT risk (pelvic trauma)
- Prolonged immobility increases risk
- Chemical prophylaxis essential (LMWH)
- Mechanical prophylaxis (compression devices)
- Early mobilization when possible
Infection:
- Wound infection (surgical cases)
- Deep infection rare
- Higher risk with open fractures
- Prophylactic antibiotics per protocol
Late Complications
Chronic Pain:
- Sacroiliac dysfunction common (30-40%)
- Neuropathic pain
- Mechanical pain
- May require multimodal management
- SI joint injections
- Pain clinic referral
Malunion:
- Kyphotic deformity (transverse fractures)
- Leg length discrepancy possible
- Gait abnormality
- SI joint dysfunction
- May need corrective surgery
Nonunion:
- Rare with adequate fixation (less than 5%)
- More common with conservative treatment
- May need revision surgery
- Bone grafting and rigid fixation
Sexual Dysfunction:
- S2-S4 root involvement
- Erectile dysfunction in males
- Vaginal sensation loss in females
- Counseling important
- May be permanent
- Impacts quality of life significantly
Bowel/Bladder Dysfunction:
- S2-S4 root injury
- May require long-term management
- Intermittent catheterization
- Bowel regimen
- Multidisciplinary approach
- Urology/colorectal consultation
Implant-Related Complications:
- Screw malposition
- Nerve injury from screw
- Implant prominence (lumbopelvic fixation)
- Implant failure (rare with modern techniques)
- May require removal after union
Postoperative Care
Immediate Postoperative Period
Monitoring:
- Neurological observations (especially if decompression performed)
- Motor and sensory function q4h initially
- Bowel and bladder function
- Wound checks
- DVT prophylaxis
Pain Management:
- Multimodal analgesia
- IV opioids initially
- Transition to oral medications
- Neuropathic pain agents if needed (gabapentin, pregabalin)
Early pain control is essential for neurological recovery and patient comfort.
Outcomes and Prognosis
Union Rates
Operative Management:
- SI screw fixation: Greater than 90% union rate
- Lumbopelvic fixation: Greater than 85% union rate
- Higher union rates with stable fixation
- Nonunion rare with adequate fixation
Conservative Management:
- Most heal with conservative treatment
- Takes longer (12-16 weeks)
- Insufficiency fractures: Good healing rates
- May have residual pain even with union
Union typically occurs within 12-16 weeks with appropriate management.
Special Patterns
Insufficiency Fractures
Definition:
- Fracture through weakened bone under normal physiological load
- Osteoporosis most common cause
Presentation:
- Elderly patient
- Low back/buttock pain
- Gradual onset
- No significant trauma
Imaging:
- X-ray often negative initially
- MRI: Bone marrow edema pattern
- CT: Subtle fracture lines
Management:
- Usually conservative
- Analgesia
- Osteoporosis treatment
- Sacroplasty if refractory
Stress Fractures
Population:
- Athletes, military recruits
- Long-distance runners
Presentation:
- Activity-related pain
- Gradual onset
- Improves with rest
Management:
- Activity modification
- Typically heals with rest
- Bone health assessment
H-Type and U-Type Sacral Fractures
H-Type:
- Bilateral vertical fractures
- Connected by transverse fracture
- H-shaped pattern
U-Type:
- Bilateral vertical fractures through ala
- Connected by transverse fracture through body
- Complete spinopelvic dissociation
Significance:
- Highest neurological injury rates
- Complete spine-pelvis disconnection
- Requires lumbopelvic fixation
Evidence and Guidelines
Denis Classification: The Defining Study (236 cases)
- Retrospective analysis of 236 sacral fractures (from 776 pelvic injuries) plus 39 cadavers established the three-zone classification. Neurological deficit was present in roughly 6% of Zone I, 28% of Zone II and 57% of Zone III injuries, with the rate rising as the fracture line moves medially towards the central canal. Routine pelvic radiographs were 'almost useless' for these injuries; CT was crucial.
Transverse Sacral Fractures and Delayed Diagnosis
- Literature review of 90 transverse sacral fractures (29 articles, 1975-2006). Roughly 97% had neurological impairment ranging from radiculopathy to bowel/bladder disturbance. Because of associated polytrauma these fractures are frequently missed in the acute stage; CT is required, and surgically treated patients tended to have better stability and neurological outcomes.
Triangular Osteosynthesis: Biomechanical Rationale
- In 12 cadaveric lumbopelvic specimens cyclically loaded in single-leg stance, triangular osteosynthesis (lumbopelvic fixation plus an iliosacral screw) gave significantly less fracture-site displacement under peak load (mean 0.16 cm versus 0.61 cm) than an isolated iliosacral screw. All triangular constructs survived 10,000 cycles with minimal motion, whereas half of the isolated-screw constructs failed catastrophically.
Spinopelvic Dissociation: Predictors of Outcome
- In 36 H-type spinopelvic-dissociation fractures treated with lumbopelvic fixation and neural decompression (minimum 18-month follow-up), 42% still had a poor clinical outcome. The degree of initial and residual translational displacement and kyphosis of the transverse fracture predicted neurological recovery (Gibbons score) and clinical outcome. Notably, Roy-Camille type, age, ISS, timing of surgery and laminectomy were NOT significantly associated with outcome; accurate reduction was.
Roy-Camille Classification of Transverse Sacral Fractures
- Described transverse fractures of the upper sacrum ('suicidal jumper's fracture') from falls from height. The position of the lumbar spine at impact (kyphosis versus lordosis) determines the morphology: Type 1 (kyphotic angulation, no displacement), Type 2 (kyphosis with posterior displacement) and Type 3 (complete anterior displacement). These injuries are frequently missed because of associated polytrauma.
Cement-Augmented Iliosacral Screws vs Sacroplasty
- For sacral insufficiency fractures in the elderly, navigated cement-augmented iliosacral screw fixation is presented as a more durable alternative to sacroplasty. Finite-element evidence cited suggests sacroplasty alone may not permanently restore the weight-bearing capacity of the sacrum, whereas augmented screws give immediate fixation and rapid pain relief with early mobilisation.
Viva Scenarios
Clinical Decision Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Zone II Sacral Fracture with Neuro Deficit
"A 28-year-old motorcyclist is brought in after a high-speed collision. CT shows a Zone II sacral fracture with displacement through the left S1 and S2 foramina. He has 4/5 left ankle plantarflexion and absent left ankle jerk. Describe your assessment and management."
Recognition: Zone II (transforaminal) sacral fracture with neurological deficit (S1 dysfunction).
Immediate Assessment:
- ATLS approach - evaluate polytrauma
- Complete neurological examination including bowel/bladder
- Assess for associated pelvic ring injury
- Evaluate for other injuries (head, chest, abdomen)
Neurological Documentation:
- Motor: L5 (great toe extension), S1 (plantarflexion - 4/5)
- Sensory: L5, S1, S2-S4 dermatomal testing
- Reflexes: Ankle jerk absent left
- Bulbocavernosus reflex, rectal tone
- Ask about urinary retention, bowel function
Management:
- Neurological deficit with foraminal compromise requires surgery
- Options: Percutaneous SI screws with/without decompression
- May need posterior approach if decompression required
- Address pelvic ring if unstable
Denis Classification
"Explain the Denis classification for sacral fractures. Why is this classification clinically important?"
Denis Classification Overview:
Divides sacrum into three longitudinal zones based on relationship to sacral foramina.
Zone I (Alar/Lateral):
- Location: Lateral to all sacral foramina
- Involves the sacral ala (wing)
- Nerve at risk: L5 (runs on anterior ala surface)
- Neurological injury rate: 5-10%
- Clinical deficit: Foot drop, dorsum foot numbness
Zone II (Transforaminal):
- Location: Through one or more sacral foramina
- Most common location for traumatic fractures
- Nerves at risk: S1-S4 roots
- Neurological injury rate: 25-30%
- Clinical deficit: Weak plantarflexion, sensory loss, possible bladder
Zone III (Central):
- Location: Medial to foramina, involving sacral canal
- Nerves at risk: Cauda equina, all sacral roots
- Neurological injury rate: Up to 60%
- Clinical deficit: Cauda equina syndrome - bowel, bladder, sexual dysfunction, saddle anesthesia
Clinical Importance:
- Predicts neurological injury risk accurately
- Guides urgency of intervention
- Zone III may require urgent decompression
- Helps counsel patients on prognosis
- Determines need for detailed bowel/bladder assessment
Sacral Insufficiency Fracture
"A 75-year-old woman with osteoporosis presents with 6 weeks of low back and buttock pain. X-rays are unremarkable. MRI shows bone marrow edema in the sacrum bilaterally. What is the diagnosis and management?"
Diagnosis: Sacral insufficiency fracture
Definition:
- Fracture through pathologically weakened bone
- Normal physiological load causes fracture
- Osteoporosis is primary cause
Clinical Features:
- Elderly patient with osteoporosis
- Low back/buttock pain
- Gradual onset without significant trauma
- Often bilateral (H-pattern on MRI)
- Weight-bearing worsens pain
Imaging:
- X-ray: Often negative initially (this case)
- MRI: Bone marrow edema - diagnostic
- CT: May show subtle fracture lines
- Bone scan: Sensitive but less specific
Conservative Management (First Line):
- Analgesia (paracetamol, opioids if needed)
- Activity modification
- Walking aids
- Gradual mobilization as tolerated
- DVT prophylaxis if immobile
Osteoporosis Treatment:
- DEXA scan to confirm osteoporosis
- Calcium and vitamin D supplementation
- Bisphosphonates or other anti-resorptive therapy
- Falls prevention assessment
Sacroplasty (if Conservative Fails):
- CT-guided PMMA injection
- Indicated for persistent severe pain
- Good pain relief in appropriately selected patients
Prognosis:
- Most heal with conservative treatment (6-12 weeks)
- Risk of contralateral fracture
- Address underlying osteoporosis to prevent recurrence
MCQ Practice Points
Denis Classification
Q: What are the neurological injury rates for each Denis zone? A: Zone I (alar) = 5-10% (L5 nerve), Zone II (transforaminal) = 25-30% (S1-S2 roots), Zone III (central) = up to 60% (cauda equina). Zones move lateral to medial with increasing neurological risk.
Imaging Requirements
Q: What is the miss rate for sacral fractures on plain X-ray? A: 30-50% of sacral fractures are missed on plain radiographs. CT is mandatory for diagnosis and classification. MRI is best for neurological assessment.
SI Screw Technique
Q: What is the safe zone for SI screw placement? A: The S1 body is the target. Use three fluoroscopic views (inlet, outlet, lateral). L5 nerve is at risk anteriorly, sacral canal at risk medially. Watch for dysmorphic sacrum.
Spinopelvic Dissociation
Q: What is spinopelvic dissociation and how is it treated? A: Complete disconnection of spine from pelvis seen in U-shaped or H-shaped sacral fractures. Requires lumbopelvic fixation (triangular osteosynthesis) with L4/L5 pedicle screws to bilateral iliac screws.
Zone III Emergency
Q: Why is Zone III a surgical emergency? A: Zone III involves the sacral canal causing cauda equina syndrome with bowel, bladder, and sexual dysfunction (S2-S4). Early decompression (less than 72 hours) improves neurological outcomes.
Guidelines, Registries & Global Practice
OrthoVellum is a worldwide resource. The principles below describe the global standard of care and the key regional differences a candidate may be examined on at any board.
Global Epidemiology
Two distinct populations sustain sacral fractures. In Denis's defining series, sacral fractures were identified in approximately 30% of pelvic injuries (236 of 776), and modern series report sacral involvement in a large proportion of pelvic-ring trauma. The condition has a bimodal distribution: high-energy axial-loading or vertical-shear injuries in younger patients (motor-vehicle crashes, falls and jumps from height), and low-energy fragility (insufficiency) fractures in elderly osteoporotic patients, which are increasingly common as populations age.
Defining Classifications and What Each Changes
| System | What it describes | What it changes in management |
|---|---|---|
| Denis (1988) | Longitudinal zone relative to foramina (I alar, II transforaminal, III central) | Predicts neurological risk; flags Zone III for canal assessment and decompression |
| Roy-Camille (1985) | Morphology of transverse upper-sacral fractures (Types 1-3) | Guides reduction of kyphosis and the need for stabilisation |
| Strange-Vognsen/Lebwohl (U/H type) | Bilateral vertical fractures with a transverse component | Identifies spinopelvic dissociation requiring lumbopelvic fixation |
| AO/AOSpine sacral classification | Morphology plus neurological and modifier subtypes | Standardises reporting and severity grading for comparison |
Guidance Across Boards and Societies
| Body / region | Practical position | Evidence base |
|---|---|---|
| AO Foundation / OTA | CT is mandatory; iliosacral or transsacral screws for posterior ring; triangular osteosynthesis for vertically unstable and dissociation patterns | Cadaveric biomechanics (Schildhauer 2003) and large operative series |
| BOA / BOAST (UK, pelvic & acetabular) | Major pelvic trauma to a specialist centre; early CT; documented lumbosacral and perianal neurological exam | Consensus standards, expert opinion |
| Spinal / spine-society guidance | Spinopelvic dissociation treated as a spinal injury: reduction quality and lumbopelvic fixation prioritised | Level IV series (Lindahl 2014) |
| Fragility-fracture pathways (e.g. FLS models) | Conservative care first; bone-health work-up and anti-osteoporosis therapy; augmentation/fixation for refractory pain or instability | Level IV-V, technical reports (Tjardes 2008) |
Because no high-level randomised evidence exists for most operative decisions, recommendations are largely consensus- and biomechanics-driven and converge internationally: CT for diagnosis, neurological documentation, and stabilisation of unstable or neurologically threatened patterns.
Registry and Series Evidence
Unlike arthroplasty, sacral-fracture fixation is not tracked by dedicated implant registries; the evidence base is observational. Key signals from operative series: triangular osteosynthesis resists cyclic failure far better than an isolated iliosacral screw (Schildhauer 2003), and in spinopelvic dissociation the quality of reduction, not the timing of surgery or use of laminectomy, predicts neurological and functional recovery, with around 42% of patients still having a poor clinical outcome despite fixation (Lindahl 2014).
Global Practice Variation
- High-resource settings: intraoperative 3D imaging or navigation for screw placement, dedicated pelvic-trauma teams, and ready CT/MRI.
- Limited-resource settings: greater reliance on fluoroscopy-guided technique and clinical neurological assessment; conservative management of stable patterns is appropriate worldwide.
- Fragility fractures: management is broadly conservative everywhere, but access to cement augmentation, navigated augmented screws and structured bone-health/falls-prevention services varies markedly.
Exam Focus Points
High-Yield Concepts
Clinical Pearl
DENIS ZONES = NEUROLOGICAL RISK: Zone I = 5-10% (L5), Zone II = 25-30% (S1-S2), Zone III = Up to 60% (cauda equina). The zones move lateral to medial, with risk increasing toward the canal. Zone III involves the sacral canal and can cause bowel/bladder/sexual dysfunction.
Key Numbers
- 30-50%: Miss rate on plain X-ray
- Zone I: 5-10% neuro injury
- Zone II: 25-30% neuro injury
- Zone III: Up to 60% neuro injury
Surgical Decision-Making
Conservative:
- Stable, minimally displaced Zone I
- No neurological deficit
- Insufficiency fractures
Operative:
- Neurological deficit with canal compromise
- Unstable pelvic ring
- Spinopelvic dissociation
- Zone III with cauda equina
Special Patterns
- U-shaped/H-shaped: Spinopelvic dissociation, lumbopelvic fixation required
- Insufficiency fractures: Conservative first, sacroplasty if refractory
SACRAL FRACTURES
Clinical summary
Denis Classification
- •Zone I = lateral to foramina (alar) = L5 nerve = 5-10%
- •Zone II = through foramina = S1-S2 roots = 25-30%
- •Zone III = medial/central = cauda equina = up to 60%
- •Zones move lateral to medial = increasing neuro risk
Key Imaging
- •CT MANDATORY - X-rays miss 30-50%
- •Ferguson view = 30 degrees cephalad tilt
- •MRI for neurological assessment
- •Look for U-type or H-type patterns
Surgical Indications
- •Neurological deficit with canal compromise
- •Spinopelvic dissociation (U-type/H-type)
- •Unstable pelvic ring
- •Zone III with cauda equina
SI Screw Technique
- •Target S1 body (safe zone)
- •Three views: inlet, outlet, lateral
- •L5 at risk anteriorly
- •Canal at risk medially
Complications
- •Chronic SI pain: 30-40%
- •Neurological deficit (zone-dependent)
- •Bowel/bladder/sexual dysfunction (S2-S4)
- •Implant removal: 10-15%
Key Numbers
- •45% of pelvic fractures involve sacrum
- •30-50% missed on plain X-ray
- •Greater than 90% union with operative fixation
- •72 hours = optimal decompression window
