High-yield overview
The Sentinel of the Shoulder
C5-C6Roots
Post.Cord
5.5cmSafe Zone from Acromion
45%Nerve injury in dislocation/neck #
INJURY MECHANISMS
Trauma
PatternAnterior Shoulder Dislocation / Proximal Humerus #
TreatmentReduce → Observe
Compression
PatternQuadrangular Space Syndrome
TreatmentDecompression
Iatrogenic
PatternDeltoid splitting approach / Arthroscopy
TreatmentRepair / Transfer
Neuritis
PatternParsonage-Turner Syndrome
TreatmentMedical / Physio
Critical Must-Knows
- Originates from Posterior Cord (with Radial nerve)
- Passes through Quadrangular Space with PCHA
- Divides into Anterior (Motor) and Posterior (Mixed) branches
- Anterior Branch wraps horizontally around humerus (5-7cm from acromion)
- Sensory: 'Regimental Badge' area (Upper Lateral Cutaneous Nerve of Arm)
Clinical Pearls
- "Most commonly injured nerve in shoulder dislocation
- "Teres Minor is the first muscle recovered (Posterior Branch)
- "Deltoid extension lag is a sign of Axillary palsy (often missed)
- "Nerve Transfer: Triceps branch to Axillary is the gold standard salvage
Clinical Imaging
Imaging Gallery
| Branch | Supplies | Course | Injury Risk |
|---|---|---|---|
| Main Trunk | Shoulder Joint Capsule | Quadrangular Space | Dislocation / QSS |
| Anterior Branch | Deltoid (Ant/Mid) | Winds around surgical neck | Deltoid Splitting / #PH |
| Posterior Branch | Teres Minor + Deltoid (Post) | Deep to Deltoid | Retraction injury |
| Upper Lat Cutaneous | Skin over deltoid | Pierces deep fascia | Sensory loss only |
Mnemonic
TAM-hum-triQuadrangular Space Boundaries
| Superior | Teres Minor (Subscapularis anteriorly) |
| Inferior | Teres Major |
| Medial | Triceps Long Head |
| Lateral | Humerus (Surgical Neck) |
| Superior | Teres Minor (Subscapularis anteriorly) | Medial | Triceps Long Head |
| Inferior | Teres Major | Lateral | Humerus (Surgical Neck) |
Hook:The Teres sandwich with Humerus and Triceps bread.
Mnemonic
BADGERegimental Badge
| B | Blow Direct blow or Dislocation |
| A | Axillary Nerve injured |
| D | Deltoid Wasting |
| G | Great Tuberosity Sensation area |
| E | Extension Lag is the key sign |
| B | Blow Direct blow or Dislocation | G | Great Tuberosity Sensation area |
| A | Axillary Nerve injured | E | Extension Lag is the key sign |
| D | Deltoid Wasting |
Hook:Soldiers wear the badge where the sensation is lost.
Mnemonic
SITSRotator Cuff Innervation
| S | Supraspinatus Suprascapular Nerve |
| I | Infraspinatus Suprascapular Nerve |
| T | Teres Minor Axillary Nerve |
| S | Subscapularis Subscapular Nerves (Upper/Lower) |
| S | Supraspinatus Suprascapular Nerve | T | Teres Minor Axillary Nerve |
| I | Infraspinatus Suprascapular Nerve | S | Subscapularis Subscapular Nerves (Upper/Lower) |
Hook:Axillary only supplies the MINOR Teres.
Overview
The Axillary Nerve is a terminal branch of the Posterior Cord. It provides motor function to the Deltoid and Teres Minor, critical for shoulder abduction and external rotation. Its course around the surgical neck of the humerus makes it highly vulnerable in trauma.
Neurovascular
Origin
- Posterior Cord of Brachial Plexus (C5, C6).
- Lies posterior to the Axillary Artery.
- Located on the surface of Subscapularis.
Course
- Runs inferiorly and laterally.
- Exits axilla through the Quadrangular Space.
- Travels with the Posterior Circumflex Humeral Artery (PCHA).
- Winds posteriorly around the Surgical Neck of the Humerus.
This course explains the high risk during inferior capsule release.
Classification Systems
Seddon Classification (1943)
- Neuropraxia: Conduction block. No structural damage. Expect full recovery.
- Axonotmesis: Axon interruption. Sheath intact. Wallerian degeneration occurs. Recovery 1mm/day.
- Neurotmesis: Complete transection. No recovery without surgery.
This system is universally used for nerve injuries.
Clinical Assessment
Motor Testing
- Deltoid: Abduction (check greater than 90 deg, as Supraspinatus does 0-30). Also Extension (Post Deltoid).
- Teres Minor: External Rotation (Hornblower's Sign).
- Look for "Swallow Tail" sign on extension (lag of posterior deltoid).
Sensory Testing
- Regimental Badge: Area over the middle deltoid.
- Supplied by Superior Lateral Cutaneous Nerve (branch of Posterior division).
- Sensation may be preserved even with motor injury (incomplete palsy).
Differential Diagnosis
| Condition | Weakness | Sensory Loss | Key Feature |
|---|---|---|---|
| Axillary Palsy | Deltoid/Teres Minor | Regimental Badge | Hx of Trauma/Dislocation |
| C5 Radiculopathy | Deltoid + Biceps | C5 Dermatome (Thumb) | Neck Pain, Biceps Reflex loss |
| Rotator Cuff Tear | Supraspinatus (Abd) | None (usually) | Painful Arc, Weak ER |
| Parsonage-Turner | Patchy / Severe Pain | Variable | Viral prodrome, profound waste |
Investigations
MRI Shoulder
- Acute: Identify edema in Deltoid/Teres Minor (denervation edema).
- Chronic: Fatty infiltration and atrophy.
- Quadrangular Space: Visualize space-occupying lesions (Paralabral cyst, Lipoma) compressing the nerve.
- Hypertrophy: Teres Minor hypertrophy is a sign of chronic rotator cuff tear (compensation), NOT axillary nerve path.
MRI is also crucial for excluding rotator cuff tears in elderly patients.

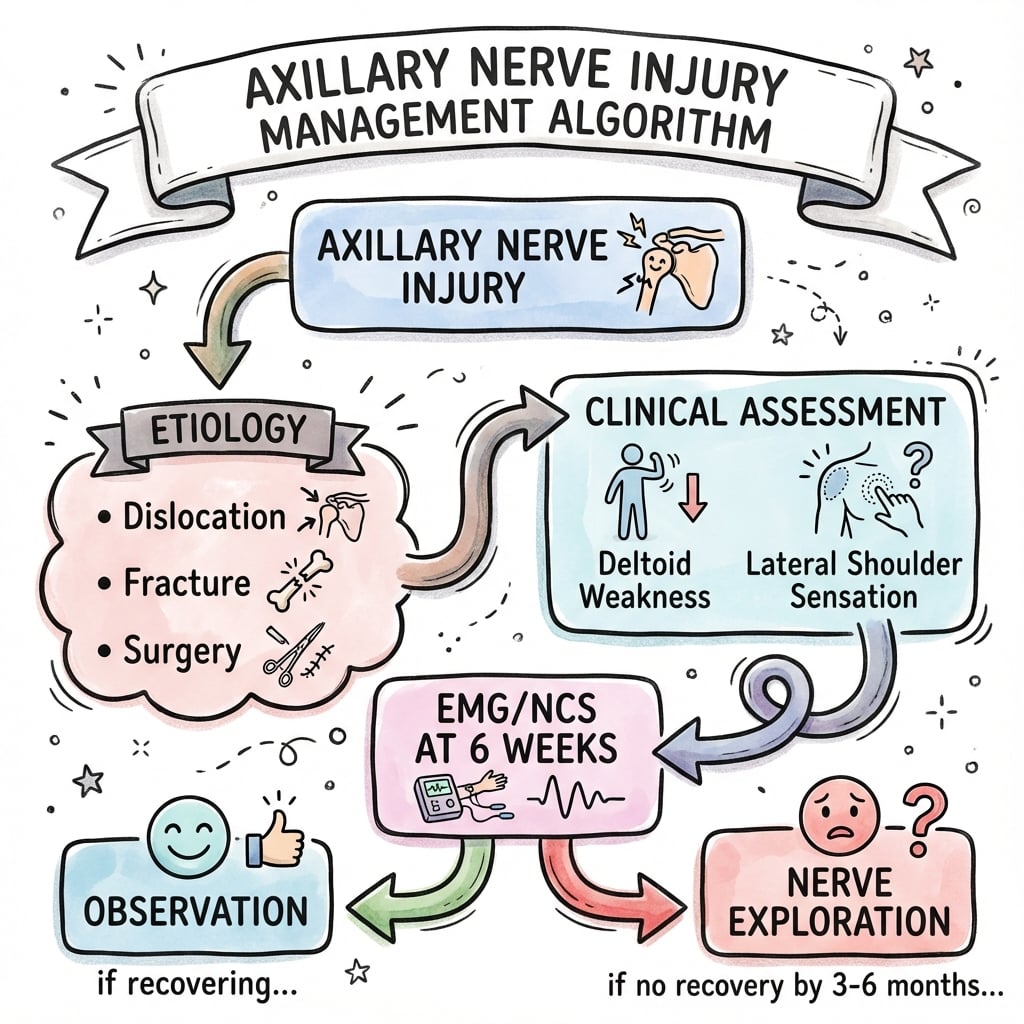

Management Algorithm
Algorithm
Trauma (Dislocation/#)
- Closed Injuries: 80-90% are neuropraxia and recover spontaneously.
- Protocol:
- Reduce shoulder gently.
- Re-examine nerve.
- Physio (Range of motion).
- NCS at 3-4 weeks if complete palsy.
- Repeat NCS at 3 months.
- Surgery: If no recovery by 3-6 months → Exploration / Graft / Transfer.
Timing is critical for successful re-innervation.
Treatment Summary
| Scenario | Timeframe | Action |
|---|---|---|
| Acute Dislocation | Day 0 | Reduce, Confirm Neuro status |
| Palsy Post-Reduc | Week 3-4 | EMG to baseline. Physio. |
| No Recovery | Month 3-4 | Repeat EMG. If denervation + no MUAPs → Plan Surg |
| Exploration | Month 4-6 | Neurolysis vs Graft vs Transfer |
Surgical Technique
Posterior Approach
- Incision: Vertical incision over posterior deltoid border.
- Interval: Deltoid (Axillary) and Triceps (Radial).
- Landmark: Teres Major (Inferior border of Q-Space).
- Identify: Axillary nerve emerging from Quadrangular Space.
- Action: Neurolysis (release bands) or Sural Graft.
The key landmark is the Teres Major muscle belly inferiorly.
The Safe Zone
In the Deltoid Splitting Lateral Approach, the axillary nerve runs horizontally approx 5-7 cm distal to the acromion.
- Stay within 5cm of the acromion to stay safe.
- If extending distally, palpate the nerve or peel deltoid from insertion.
- The "Safe Zone" is shorter in smaller patients!
Complications
- Shoulder stiffness: Adhesive capsulitis from prolonged immobilization.
- Fail to recover: Permanent deltoid wasting.
- Donor site morbidity: Sural nerve (numb foot), Triceps weakness (rare grade 4).
- Neuroma: Painful neuroma in continuity.
Early identification of stiffness is key.
Rehabilitation Protocol
| Phase | Timeframe | Goals | Precautions |
|---|---|---|---|
| Protection | 0-3 Weeks | Sling, Pendulums | No Active Abduction |
| Activation | 3-8 Weeks | Gravity eliminated abduction | Observe Scapular rhythm |
| Strengthening | 8+ Weeks | Deltoid strengthening | Full ROM |
Specific Exercises
- Gravity Eliminated: Lying supine or on side, sliding arm.
- Scapular Setting: Crucial to prevent "hitching" compensation.
Special Scenarios
Quadrangular Space Syndrome
- Pathology: Compression of Axillary Nerve and PCHA in the space.
- Causes: Hypertrophy of muscles (pitchers, swimmers), Fibrous bands, Paralabral cysts.
- Presentation: Vague posterior shoulder pain, paresthesia in badge area, weakness in ER/Abd (fatigue).
- Diagnosis: MRI (atrophy), Angiogram (PCHA occlusion on abduction).
- Treatment: Surgical decompression.
Decompression involves releasing fibrous bands in the space.
Prognosis
- Spontaneous Recovery: 80-90% of dislocation-associated palsies recover by 3-6 months.
- Surgical Repair: Direct repair outcomes are better than graft.
- Nerve Transfer: Triceps to Axillary yields M4 strength in over 85% of patients.
- Quality of Life: Persistent deltoid weakness is well tolerated if Rotator Cuff is intact (Supraspinatus compensation).
Evidence Base
Triceps Long Head to Axillary Transfer - Anatomic Basis
Witoonchart K, Leechavengvongs S, et al. • J Hand Surg Am (2003)
Key Findings:
- Cadaveric study (36 shoulder girdles) establishing the anatomic feasibility of transferring the nerve to the long head of triceps to the anterior branch of the axillary nerve via a posterior approach
- Anterior branch of axillary nerve averaged 2.1 mm diameter with ~2704 axons; nerve to long head of triceps averaged 1.1 mm with ~1233 axons
- Using the acromial angle as landmark, the combined nerve lengths exceeded the gap, allowing tension-free direct coaptation without a graft
Clinical Implication: Provides the anatomic foundation for the now-popular triceps-branch-to-axillary nerve transfer in upper brachial plexus and isolated axillary injuries.
Limitation: Cadaveric anatomic feasibility study; no clinical outcomes.
Combined Nerve Transfers for C5-C6 Avulsion (Deltoid Outcomes)
Leechavengvongs S, Witoonchart K, et al. • J Hand Surg Am (2006)
Key Findings:
- 15 patients with C5-C6 avulsion treated with combined transfers including nerve to long head of triceps to the anterior branch of the axillary nerve
- All patients recovered deltoid function: 13 scored M4 and 2 scored M3; mean shoulder abduction 115 degrees
- No clinical donor-nerve deficits; rapid recovery attributed to short regeneration distance without a graft
Clinical Implication: Triceps-branch-to-axillary transfer reliably restores useful deltoid power, supporting its use over grafting for proximal or late injuries.
Limitation: Retrospective therapeutic Level IV case series.
Triceps Medial Head and Anconeus to Deltoid Transfer
Bertelli JA, Ghizoni MF • J Hand Surg Am (2014)
Key Findings:
- 9 patients with isolated axillary nerve injury; radial branch to lower triceps medial head and anconeus transferred to the anterior division of the axillary nerve
- All recovered deltoid function and retained full elbow extension; abduction strength improved from ~40% to ~60% of the normal side
- Abduction endurance improved from ~25% to ~65% of normal, eliminating reported shoulder pain and fatigability
Clinical Implication: An alternative donor (medial head/anconeus) for deltoid reinnervation that preserves elbow extension.
Limitation: Small retrospective therapeutic Level IV series.
Nerve Lesions in Shoulder Dislocation & Humeral Neck Fracture
de Laat EAT, Visser CPJ, Coene LNJEM, et al. • J Bone Joint Surg Br (1994)
Key Findings:
- Prospective clinical and EMG study of 101 patients with primary shoulder dislocation or humeral neck fracture
- Electrophysiological evidence of nerve injury in 45%, most often axillary, suprascapular, radial and musculocutaneous nerves
- Significantly more injuries in older patients and those with a haematoma; most recovered within four months, with only eight retaining persistent motor loss
Clinical Implication: Nerve injury is far more common than clinically appreciated - document neurological status before and after reduction.
Limitation: Single-centre prospective cohort; no DOI indexed for this 1994 record.
Acromion-Axillary Nerve Distance & Safe Zone (Clinical)
Yildirim C, Demirel M, Bayram E, et al. • J Orthop Surg Res (2022)
Key Findings:
- Intra-operative measurement in 37 patients undergoing proximal humerus plating
- Mean acromion-to-axillary-nerve distance 6.0 cm (range 5.5-6.6); nerve location predictable from arm length in only 18% of patients
- Authors recommend treating 5.5 cm from the anterolateral acromion as the safe zone in the deltoid-splitting approach
Clinical Implication: The classic '5 cm rule' is conservative; individual variation means the nerve should be identified directly when working distally.
Limitation: Single-centre prospective clinical measurement study.
Quadrilateral (Quadrangular) Space Syndrome - Original Series
Cahill BR, Palmer RE • J Hand Surg Am (1983)
Key Findings:
- Original description: compression of the posterior humeral circumflex artery and axillary nerve in the quadrilateral space
- Symptoms aggravated by abduction and external rotation; arteriography shows PCHA occlusion in abduction/external rotation with point tenderness over the space
- Of 18 operated patients, 8 had complete relief and 8 improved after posterior decompression
Clinical Implication: Consider QSS in athletes with posterior shoulder pain and badge-area paraesthesia; decompression helps refractory cases.
Limitation: Small uncontrolled surgical case series.
Axillary Nerve Risk in Percutaneous Proximal Humeral Plating
Dang KH, Ornell SS, Reyes G, et al. • J Shoulder Elbow Surg (2019)
Key Findings:
- Cadaveric study (20 shoulders) of the Synthes PHILOS aiming guide via a lateral deltoid-splitting approach
- The axillary nerve traversed row D in every shoulder and crossed row C in 11 and row E in 16 shoulders; closest distance to a screw was 4.5 mm
- Demonstrated for the first time that the nerve crosses row C of the plate, with left-sided screws closer to the nerve
Clinical Implication: Percutaneous aiming arms do not eliminate axillary nerve risk during proximal humeral plating - protect the nerve before placing diaphyseal/proximal screws.
Limitation: Cadaveric study; device-specific.
Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
CLINICAL SCENARIOStandard
Scenario 1: Anterior Dislocation
CLINICAL PROMPT
"A 25-year-old male has an anterior shoulder dislocation. Reduced in ED. You see him next day. He has numbness over the deltoid. What do you do?"
PRACTICAL APPROACH
This represents an Axillary Nerve injury, common in dislocation (neurapraxia). 1. Document full neurological exam (check distal pulses/nerves too). 2. Confirm reduction X-rays (Greater Tuberosity #?). 3. Manage expectantly: Physio for ROM. 4. Review at 3 weeks. If still palsy → EMG. Most recover. Operative exploration is reserved for no recovery at 3-4 months.
KEY CLINICAL POINTS
Neuropraxia is most common
Documentation is Medicolegal critical
Wait 3 months before surgery
COMMON PITFALLS
Rushing to MRI (unless cuff tear suspected)
Ignoring the palsy
FURTHER QUESTIONS
"What if he is 60 years old?"
"Massive rotator cuff tear is the main differential for weakness."
CLINICAL SCENARIOStandard
Scenario 2: Failed Cuff Repair
CLINICAL PROMPT
"A patient had a rotator cuff repair via a mini-open lateral approach. Now has no active abduction. Cuff appears intact on Ultrasound. Diagnosis?"
PRACTICAL APPROACH
Consider iatrogenic Axillary Nerve injury (Anterior Branch). The lateral splitting approach puts the nerve at risk if extended beyond 5cm. I would order an EMG to look for denervation in the anterior/middle deltoid. If confirmed, this is a clean transection or suture entrapment. It requires urgent exploration and repair/grafting (unlike blunt trauma neuropraxia).
KEY CLINICAL POINTS
Iatrogenic injury = Explore early
Anterior branch is motor only
Different to dislocation management
COMMON PITFALLS
Waiting 3-6 months 'to see'
Assuming it's a recurrent tear
FURTHER QUESTIONS
"What transfer options exist?"
"Triceps to Axillary."
CLINICAL SCENARIOCritical
Scenario 3: Quadrangular Space Syndrome
CLINICAL PROMPT
"A 19-year-old elite swimmer complains of vague posterior shoulder pain and fatigue during late laps. MRI shows isolated atrophy of Teres Minor. Proximal humerus is normal."
PRACTICAL APPROACH
This is classical Quadrangular Space Syndrome. The hypertrophy of the Teres muscles compresses the Axillary nerve. The isolated Teres Minor atrophy suggests compression of the posterior branch or main trunk. Management: 1. Confirm with Angiogram (PCHA occlusion in abduction) or dynamic EMG. 2. Stop aggravating activity. 3. Surgical decompression if non-operative management fails (release fibrous bands).
KEY CLINICAL POINTS
Young overhead athletes
Isolated atrophy on MRI
Dynamic vascular occlusion
COMMON PITFALLS
Diagnosing 'Rotator Cuff Tendinitis'
Missing the atrophy on MRI
FURTHER QUESTIONS
"What artery runs with the nerve?"
"Posterior Circumflex Humeral Artery."
MCQ Practice Points
Quadrangular Space Contents
Q: What accompanies the Axillary nerve in the Quadrangular Space? A: Posterior Circumflex Humeral Artery (PCHA). The Circumflex Scapular Artery is in the Triangular Space. The Profunda Brachii is in the Triangular Interval.
Safe Zone
Q: What is the average distance of the axillary nerve from the acromion? A: 5-7 cm. However, in shorter individuals, it can be 4cm. A safe rule of thumb is 3-4 cm.
First Sign of Recovery
Q: Which muscle recovers first after a proximal axillary nerve injury? A: Teres Minor. It is supplied by the posterior branch and is closer to the origin than the deltoid branches. Recovery of external rotation often precedes abduction.
Hornblower's Sign
Q: What does Hornblower's sign test for? A: Teres Minor dysfunction. The patient cannot externally rotate the arm in 90 degrees of abduction. The hand falls towards the mouth (like blowing a horn).
Nerve Transfer Donor
Q: Which nerve is most commonly used as a donor for Axillary Nerve reconstruction? A: Radial Nerve (Branch to Long Head Triceps). It is anatomically close, has redundant innervation to the triceps, and provides excellent motor axon match.
Controversies & Areas of Uncertainty
- Timing of exploration in closed traumatic palsy. There is no Level 1 trial defining the exact cut-off. Most centres explore at 3-6 months if there is no clinical or electrophysiological recovery, applying the "1 mm/day" regeneration principle so that the motor end-plate is reached before irreversible atrophy (commonly cited as roughly 12-18 months from injury). Some advocate earlier exploration in complete high-energy injuries and avulsions, where spontaneous recovery is unlikely.
- Nerve transfer versus interpositional grafting. Distal triceps-branch-to-axillary transfer shortens regeneration distance and avoids a graft donor, and is increasingly preferred for proximal or late injuries. However, comparative data are largely retrospective Level III-IV case series; no randomised comparison exists, and graft remains valid for short, accessible gaps with a healthy proximal stump.
- Single versus double fascicular / dual neurotisation. Adding a posterior-branch (teres minor) target to the anterior-branch transfer may improve external rotation and abduction endurance, but evidence is limited and the optimal donor combination is unsettled.
- Quadrangular space syndrome diagnosis. QSS is a clinical-radiological diagnosis of exclusion. Dynamic posterior circumflex humeral artery occlusion on angiography is described in asymptomatic individuals, so a positive arteriogram is supportive rather than diagnostic; over-diagnosis and unnecessary decompression are recognised risks.
- Routine MRI / nerve ultrasound after dislocation. High-resolution ultrasound and MR neurography can demonstrate nerve continuity early, but their role in changing management before the 3-month electrophysiology window remains debated.
Guidelines, Registries & Global Practice
Global Epidemiology
- Anterior glenohumeral dislocation has an incidence of roughly 15-25 per 100,000 person-years, with a bimodal distribution (young athletic males, older females after falls).
- In a prospective electrophysiological study of primary shoulder dislocations and humeral neck fractures, evidence of nerve injury was found in 45% of patients, most involving the axillary, suprascapular, radial and musculocutaneous nerves; injury was significantly more common in older patients and those with a haematoma. The axillary nerve is the single most frequently injured.
- Most lesions are traction neuropraxia or axonotmesis; the large majority recover partially or completely within four months, with persistent motor loss in a small minority.
Side-by-Side Guidance
| Body | Emphasis | Practical Point |
|---|---|---|
| AAOS / ASSH (US) | Document neurovascular status pre- and post-reduction; baseline EMG at 3-4 weeks | Early referral for nerve transfer if no recovery by 3-6 months |
| BOA / BESS (UK) | Reduce promptly; structured rehab; MRI in over-40s to exclude associated cuff tear | Peripheral nerve injury MDT referral for persistent palsy |
| AO Foundation | Anterolateral deltoid-splitting approach with axillary-nerve protection; stay near the acromion | Identify and protect the nerve when extending distally for plating |
| EFORT / European consensus | Neurophysiology-guided timing; reconstruction (transfer or graft) before end-plate degeneration | Favour distal nerve transfer for proximal/avulsion lesions |
Registry & Resource-Setting Notes
- There is no dedicated peripheral-nerve-injury registry comparable to arthroplasty registries; outcome data come from specialist brachial-plexus and peripheral-nerve units, which concentrate volume and expertise.
- High-resource settings: access to MR neurography, high-resolution nerve ultrasound, intra-operative nerve stimulation and microsurgical transfer; earlier, protocolised decision-making.
- Limited-resource settings: diagnosis is largely clinical with EMG where available; emphasis on prompt reduction, documented serial examination and timely referral to a regional microsurgical centre, since delayed reconstruction (beyond roughly 12 months) markedly reduces the chance of useful deltoid recovery.
Clinical summary
Anatomy High Yield
- •Roots: C5-C6
- •Cord: Posterior
- •Space: Quadrangular
- •Vessel: PCHA
Clinical Signs
- •Badge: Sensory loss
- •Square Shoulder: Wasting
- •Swallow Tail: Post Delt Lag
- •Hornblower: Teres Minor (ER)
Key Numbers
- •5.5cm: Safe zone from anterolateral acromion
- •45%: Nerve injury on EMG (dislocation/neck #)
- •3-4 weeks: Baseline EMG timing
- •1mm/day: Nerve regrowth rate
Differentials
- •Rotator Cuff Tear (Pain/Weakness)
- •C5 Radiculopathy (Biceps involved)
- •Parsonage Turner (Pain +++)
- •Frozen Shoulder (Stiffness)
