Hierarchical Organization | 65% Inorganic | Type I Collagen | Lamellar Architecture
BONE TYPES
Critical Must-Knows
- Bone is composite material - mineral provides stiffness, collagen provides toughness
- Hydroxyapatite Ca10(PO4)6(OH)2 is the inorganic mineral phase
- Type I collagen (90% of organic matrix) provides tensile strength
- Lamellar bone is organized mature bone, woven bone is immature
- Hierarchical structure: mineral crystals to lamellae to osteons to whole bone
Clinical Pearls
- "Bone mineral density increases with hydroxyapatite deposition
- "Collagen fibril orientation determines mechanical anisotropy
- "Osteoid is unmineralized organic matrix (14-day lag before mineralization)
- "Cortical bone has lower remodeling rate than cancellous (3-5% vs 20-25% per year)
Clinical Imaging
Imaging Gallery
Critical Bone Structure Exam Points
Composite Nature
Bone is a composite material combining mineral (stiffness) and organic matrix (toughness). Remove mineral and bone bends like rubber. Remove collagen and bone shatters like chalk. Both are essential.
Hydroxyapatite
Ca10(PO4)6(OH)2 is the key mineral. Calcium and phosphate ions substitute (carbonate for PO4, fluoride for OH) affecting bone quality. Fluoride increases density but brittleness.
Type I Collagen
90% of organic matrix is Type I collagen. Triple helix structure with crosslinks provides tensile strength. Collagen diseases (osteogenesis imperfecta) cause bone fragility.
Hierarchical Organization
Seven levels: mineral nanocrystals to collagen fibrils to lamellae to osteons to cortical/trabecular bone to whole bone. Defects at any level compromise strength.
At a Glance
Bone is a composite material comprising 65% inorganic mineral (hydroxyapatite Ca₁₀(PO₄)₆(OH)₂), 25% organic matrix, and 10% water. The mineral phase provides stiffness while Type I collagen (90% of organic matrix) provides tensile strength and toughness—remove mineral and bone bends like rubber; remove collagen and it shatters like chalk. The hierarchical organization spans seven levels from mineral nanocrystals to collagen fibrils to lamellae to osteons to whole bone. Cortical (compact) bone constitutes 80% of skeletal mass with slower remodeling (3-5% per year), while cancellous (trabecular) bone accounts for 80% of bone surface area with faster turnover (20-25% per year). Osteoid is unmineralized matrix with a 14-day lag before mineralization occurs.
BONEBONE - Key Components
| B | Both mineral and organic Composite material - 65% mineral, 25% organic |
| O | Osteoid precedes mineralization 14-day lag from osteoid deposition to mineralization |
| N | Nanocrystals of hydroxyapatite 50nm × 25nm × 3nm crystals in collagen |
| E | Each lamella organized Lamellar bone is organized mature bone |
| B | Both mineral and organic Composite material - 65% mineral, 25% organic | N | Nanocrystals of hydroxyapatite 50nm × 25nm × 3nm crystals in collagen |
| O | Osteoid precedes mineralization 14-day lag from osteoid deposition to mineralization | E | Each lamella organized Lamellar bone is organized mature bone |
Hook:BONE is both mineral and organic working together in organized layers
COLLAGENCOLLAGEN - Organic Matrix
| C | Crosslinks for strength Pyridinoline and deoxypyridinoline crosslinks |
| O | One (Type I) is dominant Type I collagen is 90% of organic matrix |
| L | Lamellae organization Parallel collagen fibers in each lamella |
| L | Long triple helix 300nm tropocollagen triple helix |
| A | Aligned with stress Collagen orientation follows mechanical loading |
| G | Glycine every third residue Gly-X-Y repeat in collagen |
| E | Enzymatic crosslinking Lysyl oxidase creates crosslinks |
| N | Non-collagenous proteins present Osteocalcin, osteopontin, osteonectin |
| C | Crosslinks for strength Pyridinoline and deoxypyridinoline crosslinks | L | Long triple helix 300nm tropocollagen triple helix | E | Enzymatic crosslinking Lysyl oxidase creates crosslinks |
| O | One (Type I) is dominant Type I collagen is 90% of organic matrix | A | Aligned with stress Collagen orientation follows mechanical loading | N | Non-collagenous proteins present Osteocalcin, osteopontin, osteonectin |
| L | Lamellae organization Parallel collagen fibers in each lamella | G | Glycine every third residue Gly-X-Y repeat in collagen |
Hook:COLLAGEN provides the organic scaffold with crosslinks for tensile strength
Overview
Bone is a specialized connective tissue that serves multiple functions: structural support, protection of vital organs, mineral homeostasis (calcium and phosphate reservoir), and hematopoiesis (bone marrow).
Why bone structure matters clinically:
Fracture Biomechanics
Understanding bone composition explains fracture patterns. High-energy trauma overcomes both mineral (compression) and collagen (tension) components. Osteoporotic bone has adequate mineral but poor microarchitecture.
Disease States
Osteogenesis imperfecta (collagen defect), osteomalacia (mineralization defect), and Paget disease (abnormal remodeling) all affect bone composition differently.
Composite Material Concept
Bone is nature's composite material combining the stiffness of mineral with the toughness of collagen. Remove the mineral (acid demineralization) and bone becomes flexible like rubber. Remove the collagen (heating) and bone becomes brittle like chalk. Both components are essential for normal mechanical properties.
Principles of Bone Composition
Hydroxyapatite: Ca10(PO4)6(OH)2
The mineral phase comprises 65% of bone weight and provides compressive strength and stiffness.
Crystal Structure
Chemical formula: Ca10(PO4)6(OH)2
Crystal dimensions:
- Length: 50 nm
- Width: 25 nm
- Thickness: 2-3 nm
- Hexagonal crystal structure
Location: Crystals deposit within and between collagen fibrils, aligned with fibril long axis.
Understanding crystal size and orientation is important for bone biomechanics.
Organic Component - Matrix Proteins
The organic matrix comprises 25% of bone weight and provides tensile strength and toughness.
Type I Collagen - 90% of Organic Matrix
Structure:
- Triple helix: two alpha-1(I) chains + one alpha-2(I) chain
- Length: 300 nm (tropocollagen molecule)
- Diameter: 1.5 nm
- Gly-X-Y amino acid repeat (glycine every 3rd residue)
Assembly:
- Intracellular: Procollagen synthesis, hydroxylation (requires Vitamin C)
- Extracellular: Procollagen to tropocollagen (cleavage of N- and C-propeptides)
- Fibril formation: Tropocollagen self-assembles into fibrils (67 nm periodicity)
- Crosslinking: Lysyl oxidase creates covalent crosslinks (pyridinoline, deoxypyridinoline)
Osteogenesis Imperfecta
Osteogenesis imperfecta is caused by mutations in COL1A1 or COL1A2 genes, producing abnormal Type I collagen. This results in brittle bones with multiple fractures, blue sclerae, and hearing loss. The organic scaffold is defective despite normal mineralization.
Collagen provides the organic scaffold upon which mineral deposits.
Hierarchical Structure of Bone
Seven levels of organization: from nanoscale to whole bone level.
Hierarchical Levels of Bone Structure
| Level | Structure | Size Scale | Key Feature |
|---|---|---|---|
| 1. Molecular | Tropocollagen + hydroxyapatite crystals | 1-100 nm | Mineral in collagen gap zones |
| 2. Nanoscale | Mineralized collagen fibrils | 100-1000 nm | 67 nm periodicity (D-band) |
| 3. Submicron | Fibril arrays (lamellae) | 1-10 micrometers | Parallel fibers in each lamella |
| 4. Microstructure | Osteons (Haversian systems) | 100-300 micrometers | Concentric lamellae around central canal |
| 5. Mesostructure | Cortical vs trabecular bone | 0.1-1 mm | Dense vs porous architecture |
| 6. Macrostructure | Whole bone regions | 1-10 mm | Diaphysis, metaphysis, epiphysis |
| 7. Organ | Whole bone | 10-100 mm | Integrated mechanical structure |
Hierarchical Failure
Bone strength depends on integrity at all hierarchical levels. Osteoporosis (trabecular thinning at mesostructure level), osteogenesis imperfecta (collagen defect at molecular level), and osteomalacia (mineralization defect at nanoscale) all compromise bone strength through different mechanisms.
Understanding hierarchical structure explains how different diseases affect bone strength.
Cortical and Trabecular Bone
Cortical (Compact) Bone
Key characteristics:
- 80% of skeletal mass
- 20% of bone surface area
- Porosity: 5-10%
- Remodeling rate: 3-5% per year
- Location: diaphyses of long bones, outer shell of all bones
Structure - Osteons (Haversian systems):
- Central Haversian canal (blood vessels, nerves)
- Concentric lamellae (4-20 layers)
- Osteocyte lacunae and canaliculi
- Cement line boundary
- Diameter: 200-300 micrometers
Secondary osteons result from remodeling, surrounded by cement lines (reversal lines).
Cement Lines
Cement lines mark the boundary of remodeling cycles. They are hypermineralized and weaker than surrounding bone, serving as sites for crack initiation but also deflection (toughening mechanism).
Cortical bone provides mechanical strength and protection.
Lamellar versus Woven Bone
Lamellar vs Woven Bone
| Feature | Lamellar Bone (Mature) | Woven Bone (Immature) |
|---|---|---|
| Collagen organization | Highly organized, parallel fibers | Random, disorganized fibers |
| Formation rate | Slow (1-2 micrometers/day) | Rapid (4-6 micrometers/day) |
| Mechanical strength | High | Low |
| Osteocyte density | Low | High |
| When present | Normal adult bone, remodeling | Fracture callus, fetal bone, Paget disease |
Lamellar bone:
- Organized structure with collagen fibers parallel within each lamella
- Alternating fiber orientation between lamellae (plywood-like)
- Slow deposition allows optimal organization
Woven bone:
- Rapidly formed during fracture healing
- Disorganized collagen orientation
- Weaker and more flexible than lamellar bone
- Remodeled to lamellar bone over months
Paget Disease
Paget disease produces abnormal bone with both woven and lamellar patterns (mosaic pattern). The rapid, disorganized remodeling produces weak bone despite increased density. Jigsaw puzzle appearance on histology.
Understanding lamellar versus woven bone helps interpret fracture healing and bone pathology.
Clinical Relevance and Applications
Understanding bone composition and structure directly informs clinical decision-making in orthopaedic practice.
Clinical Correlations of Bone Structure
| Structural Level | Disease/Condition | Clinical Implication |
|---|---|---|
| Mineral phase | Osteomalacia/Rickets | Vitamin D supplementation, correct underlying cause |
| Collagen (organic) | Osteogenesis imperfecta | Bisphosphonates, fracture prevention, genetic counseling |
| Trabecular microarchitecture | Osteoporosis | Antiresorptive therapy, fracture risk assessment |
| Cortical porosity | Age-related bone loss | Monitoring with DXA, fall prevention |
| Remodeling cycle | Paget disease | Bisphosphonates to normalize remodeling |
Implant Considerations
Bone quality affects implant fixation. Osteoporotic bone has reduced holding power for screws (trabecular loss reduces surface area for fixation). Cortical bone provides better screw purchase than cancellous bone. Consider cement augmentation or alternative fixation strategies in poor quality bone.
Fracture Healing Implications
- Woven bone forms first in fracture callus
- Remodeling to lamellar bone takes 12-18 months
- Smoking impairs collagen synthesis
- Vitamin D deficiency delays mineralization
- NSAIDs may inhibit bone healing
Surgical Planning Applications
- Assess bone quality on preoperative imaging
- Cortical thickness guides plate selection
- Trabecular patterns influence screw trajectory
- Bone density affects implant choice
- Consider bone grafting for defects
Differentiating Bone Composition Disorders
A favourite examiner manoeuvre is to ask which structural component is at fault in a given metabolic bone disease. Mapping each disease to the affected component — mineral phase, organic (collagen) phase, mineralization process, or architecture/remodeling — makes the differential systematic rather than a list to be memorised.
Differential Diagnosis by Affected Structural Component
| Disease | Component at Fault | Mineral/Matrix Pattern | Discriminating Clue |
|---|---|---|---|
| Osteoporosis | Architecture (quantity, microarchitecture) | Normal composition, reduced bone quantity and connectivity | Low BMD with normal calcium, phosphate, ALP; trabecular thinning |
| Osteomalacia / Rickets | Mineralization process | Excess unmineralized osteoid, normal collagen | Low/normal calcium and phosphate, high ALP, low vitamin D; Looser zones |
| Osteogenesis imperfecta | Organic phase (type I collagen) | Defective collagen scaffold, mineralization ongoing | Blue sclerae, dentinogenesis imperfecta, hearing loss, family history |
| Paget disease | Remodeling (architecture) | Disorganised woven-plus-lamellar mosaic, high turnover | Markedly raised ALP, bone pain/deformity, mosaic cement lines on histology |
| Diabetic bone disease | Organic phase (collagen crosslink quality) | Normal/high mineral, AGE-crosslinked brittle collagen | Fracture despite normal or high BMD; raised pentosidine |
| Renal osteodystrophy | Mineralization + remodeling | Mixed: high-turnover (osteitis fibrosa) or low-turnover (adynamic) | CKD, abnormal PTH, calcium, phosphate; bone biopsy for turnover |
One-Line Discriminators
Osteoporosis = too little bone of normal quality. Osteomalacia = enough matrix but not enough mineral. Osteogenesis imperfecta = defective collagen scaffold. Paget = disorganised over-remodeling. Diabetic bone = normal mineral, poor collagen. Biochemistry (Ca, PO₄, ALP, PTH, vitamin D) plus histology localises the lesion to a structural component.
Controversies and Areas of Uncertainty
Intrafibrillar vs Extrafibrillar Mineral
The relative contribution of mineral located within versus around collagen fibrils to whole-bone mechanics remains debated. Atomistic modelling indicates intrafibrillar mineral alone cannot account for whole-bone stiffness, implying extrafibrillar mineral is essential — but the exact partition and its biological control are unsettled.
Bone Quality Beyond BMD
DXA-measured BMD explains only part of fracture risk. How best to capture the "quality" contribution (collagen crosslinks, crystallinity, microdamage, microarchitecture) in routine practice is unresolved; Trabecular Bone Score and HR-pQCT are surrogates, not direct measures.
Fluoride and Strontium
Agents that alter the mineral phase increase measured density but historically gave disappointing or paradoxical fracture outcomes (fluoride increased brittleness; strontium ranelate was withdrawn in many regions over cardiovascular concerns), underscoring that more mineral does not equal stronger bone.
Osteocalcin's Systemic Role
Beyond its established role as a bone-formation marker, undercarboxylated osteocalcin has been proposed as a hormone influencing glucose metabolism and other systems. The clinical significance in humans remains an area of active investigation and is not yet exam-established fact.
Evidence Base
Hierarchical Structure of Bone
- Surveyed bone mechanical data across the full hierarchy from nanoscale to whole bone
- Mechanical properties emerge from structural organization at each level
- Simple composite rule-of-mixtures formulae only partly predict bone behaviour
- Load transfer between organic and inorganic subunits is incompletely understood
Intrafibrillar Mineralization and Compressive Strength
- Full-atomistic simulation of the three-dimensional mineralized collagen fibril
- Compressive modulus rises monotonically as intrafibrillar mineral density increases
- Intrafibrillar mineral alone gives a modulus an order of magnitude below whole bone
- Extrafibrillar mineralization is therefore mandatory for bone's load-bearing capacity
Basic Science Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Scenario 1: Bone Composition (~3 min)
"Describe the composition of bone and explain how each component contributes to its mechanical properties."
Scenario 2: Hierarchical Structure (~4 min)
"Explain the hierarchical organization of bone from the molecular level to whole bone. How does this relate to fracture risk in osteoporosis?"
Scenario 3: Bone Quality, Composition and Implant Fixation (~4 min)
"A 72-year-old diabetic woman sustains a low-energy distal femoral fracture. Her DXA bone mineral density is in the normal range. Using your knowledge of bone composition and structure, explain why she fractured and how bone quality affects your fixation strategy."
MCQ Practice Points
Bone Composition
Q: What is the approximate composition of bone by weight?
A: 65% inorganic mineral (hydroxyapatite), 25% organic matrix (90% Type I collagen), and 10% water. The inorganic phase provides stiffness and compressive strength, while the organic matrix provides toughness and tensile strength.
Hydroxyapatite Formula
Q: What is the chemical formula for hydroxyapatite, the primary mineral in bone?
A: Ca₁₀(PO₄)₆(OH)₂ - calcium phosphate hydroxide. Calcium and phosphate ions can be substituted (e.g., carbonate for phosphate, fluoride for hydroxyl) which affects bone quality. Fluoride increases density but also increases brittleness.
Cortical vs Cancellous Bone
Q: What is the key difference between cortical and cancellous bone in terms of remodeling rate?
A: Cortical bone: 3-5% annual turnover rate, comprises 80% of skeletal mass Cancellous bone: 20-25% annual turnover rate, comprises only 20% of mass but 80% of surface area
The higher surface area of cancellous bone explains its faster turnover and greater susceptibility to metabolic bone diseases.
Osteoid Mineralization
Q: What is the typical lag time between osteoid deposition and mineralization?
A: 10-14 days. Osteoid is unmineralized organic matrix secreted by osteoblasts. The mineralization lag time is clinically relevant - increased lag indicates osteomalacia, while decreased lag may indicate impaired matrix maturation.
Guidelines, Registries & Global Practice
Bone composition and structure is a basic-science topic that underpins the way every major examining body and society frames metabolic bone disease, fracture risk and implant fixation. The principles are universal; the way bone quality is assessed and acted upon varies by guideline and by resource setting.
Global Epidemiology of Bone Strength Disorders
- Osteoporosis affects an estimated 1 in 3 women and 1 in 5 men over age 50 worldwide for a fragility fracture in their remaining lifetime, reflecting trabecular microarchitectural deterioration superimposed on age-related collagen and mineral changes.
- Fragility fractures are projected to rise sharply as populations age, with the largest absolute increases anticipated in Asia.
- Osteogenesis imperfecta (primary collagen/organic-matrix defect) has a birth prevalence of roughly 1 in 15,000-20,000, mostly autosomal dominant COL1A1/COL1A2 mutations.
- Vitamin D insufficiency, the dominant driver of impaired mineralization (osteomalacia/rickets), is highly prevalent across all latitudes, with higher rates at high latitudes, in people with darker skin pigmentation, and where cultural dress limits sun exposure.
- Diabetes mellitus increasingly contributes to fracture burden via accumulation of advanced-glycation-end-product collagen crosslinks that reduce bone toughness independent of mineral density.

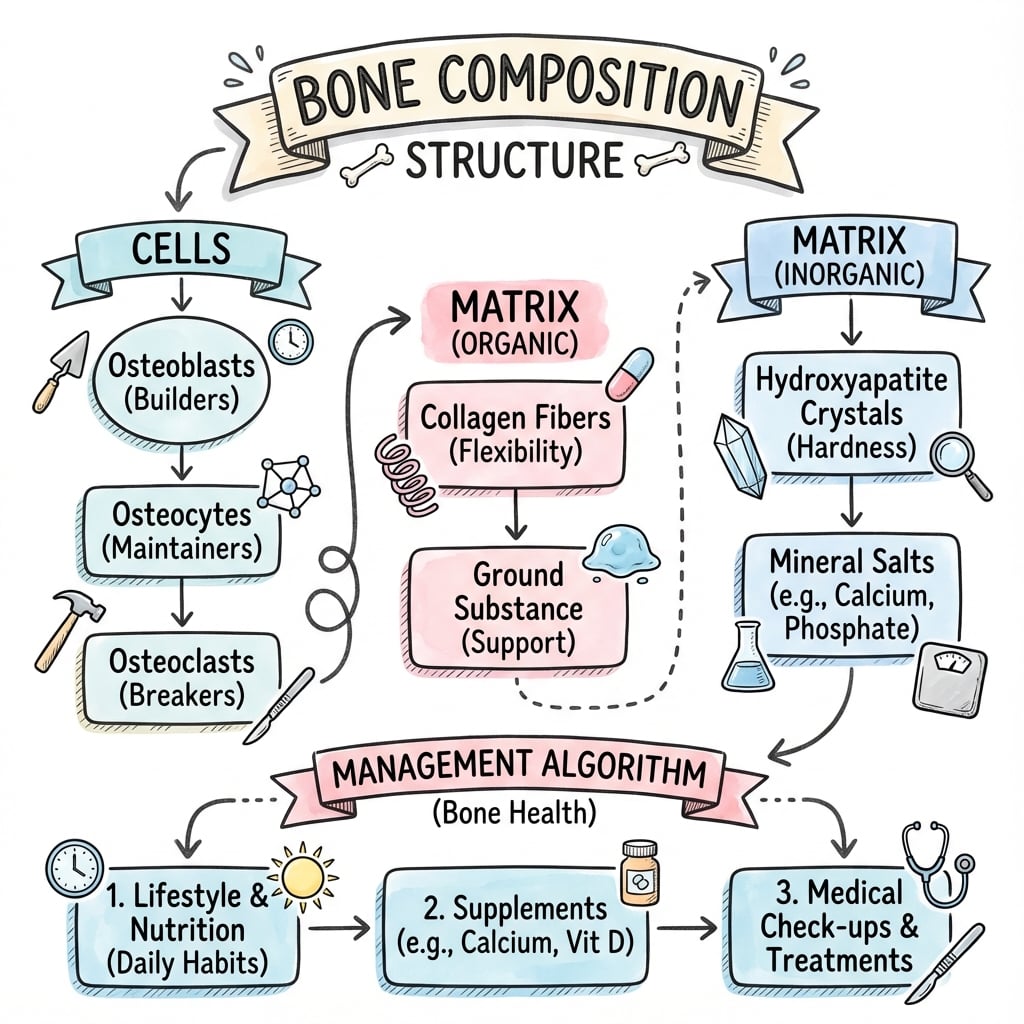

Management Algorithm
BONE COMPOSITION AND STRUCTURE
Clinical summary
Composition by Weight
- •65% inorganic (hydroxyapatite mineral)
- •25% organic (90% Type I collagen + 10% non-collagenous proteins)
- •10% water
- •Composite material: mineral = stiffness, collagen = toughness
Hydroxyapatite Mineral
- •Ca10(PO4)6(OH)2 chemical formula
- •Crystal size: 50nm × 25nm × 2-3nm (nanoscale)
- •Deposits in collagen gap zones (67 nm periodicity)
- •Ion substitutions: carbonate, fluoride, strontium affect properties
Collagen and Organic Matrix
- •Type I collagen = 90% of organic matrix
- •Triple helix (two alpha-1, one alpha-2 chain), 300 nm length
- •Crosslinks: pyridinoline and deoxypyridinoline (enzymatic)
- •Non-collagenous: osteocalcin, osteopontin, osteonectin, BSP
Hierarchical Levels
- •Level 1-2: Tropocollagen + crystals → mineralized fibrils (67 nm)
- •Level 3-4: Lamellae → osteons (200-300 micrometers)
- •Level 5: Cortical (dense, 80% mass) vs trabecular (porous, 80% surface)
- •Levels 6-7: Whole bone regions and organ
Cortical vs Trabecular
- •Cortical: 80% mass, 5-10% porosity, 3-5% remodeling/year
- •Trabecular: 20% mass, 80% surface, 50-90% porosity, 20-25% remodeling/year
- •Trabecular affected first in osteoporosis (higher surface area)
- •Cortical provides strength, trabecular provides metabolic reserve
Key Clinical Correlations
- •Osteogenesis imperfecta: Type I collagen defect (brittle bones)
- •Osteomalacia: Mineralization defect (soft bones, excess osteoid)
- •Osteoporosis: Multi-level failure (trabecular loss, cortical porosity)
- •Paget disease: Woven bone mosaic pattern (weak despite high density)
