- Coronoid is the anterior buttress - prevents posterior subluxation
- Over 50% height = unstable - requires operative fixation
- Terrible triad component - dislocation + radial head + coronoid
- Anteromedial facet fractures are often varus-posteromedial pattern
- Never ignore - instability leads to poor outcomes
- “Anteromedial facet fractures have different mechanism - varus stress, not dislocation
- “Coronoid tip fractures in terrible triad may need fixation despite small size
- “Basal fractures always unstable - include brachialis insertion
- “Sublime tubercle involvement means MCL attachment disrupted
Clinical Imaging
Imaging Atlas
Coronoid is the anterior buttress of the elbow. It resists posterior displacement of the ulna. Loss of over 50% height = elbow instability. Must reconstruct for stability.
Tip fractures (Type I) often with posterolateral dislocation. Anteromedial facet (Type II) with varus-posteromedial instability. Basal (Type III) always unstable.
75%+ occur with elbow dislocation. Part of terrible triad (with radial head fracture, LCL). May have isolated anteromedial pattern with MCL injury.
Fix coronoid to restore stability. Options include suture lasso, screw fixation, or plate buttress. Approach depends on pattern - lateral vs medial.
| O'Driscoll Type | Key Finding | Treatment |
|---|---|---|
| Type I (Tip) - Stable | Elbow stable after reduction | Treat associated injuries, no coronoid fixation |
| Type I (Tip) - Unstable | Part of terrible triad, persistent instability | Consider suture lasso fixation |
| Type II (Anteromedial) - Small | Subtype 1, less than 50% of facet | May be stable - assess carefully |
| Type II (Anteromedial) - Large | Subtype 2-3, medial instability | Buttress plate via medial approach |
| Type III (Basal) - Any | Always unstable, over 50% height | Plate fixation mandatory |
| Sublime Tubercle | MCL attachment involved | Fix fragment = fixes MCL insertion |
Key Mnemonics for Exam Recall
DRISCOLLO'DRISCOLL - Classification Framework
Hook:O'Driscoll described it - Types go from tip to base with increasing instability
BUTTRESSBUTTRESS - Coronoid Function
Hook:The coronoid BUTTRESS prevents posterior subluxation
SUBLIMESUBLIME - Tubercle Anatomy
Hook:SUBLIME tubercle = MCL insertion - fixing it = fixing the MCL
TRIADTRIAD - Terrible Triad Management
Hook:The TERRIBLE TRIAD requires addressing all three components systematically
Overview and Epidemiology
Coronoid fractures are typically associated with elbow instability. Isolated coronoid fractures are rare; most occur with elbow dislocation or other fracture patterns. The coronoid is a critical structure for elbow stability.
Mechanism of injury:
- Posterolateral dislocation - most common (Type I tip fractures)
- Elbow dislocates, shearing off the coronoid tip
- Part of terrible triad pattern
- Varus-posteromedial rotational instability (Type II anteromedial)
- Axial load with varus stress
- Different mechanism from posterolateral dislocation
- High-energy direct trauma (Type III basal)
- Significant force through ulnohumeral joint
Tip fractures occur with posterolateral dislocation - the coronoid is sheared off as the elbow dislocates. Anteromedial facet fractures occur with varus stress without dislocation - a distinct mechanism and injury pattern requiring different treatment approach.
Associated injuries:
- Elbow dislocation (75%+)
- Radial head fracture (terrible triad)
- LCL complex rupture (always with dislocation)
- MCL rupture (with anteromedial facet fractures)
- Olecranon fracture (transolecranon pattern)
Anatomy and Biomechanics
Coronoid anatomy:
- Anterior projection of the proximal ulna
- Forms anterior buttress of the greater sigmoid notch
- Tip is attachment of anterior capsule
- Sublime tubercle - medial aspect, MCL (anterior bundle) attachment
- Brachialis insertion - on anterior surface of coronoid base
Key anatomical relationships:
- Anterior capsule attaches to tip
- MCL anterior bundle attaches to sublime tubercle
- Brachialis attaches across base
- Lateral facet articulates with radial head via radioulnar joint
Biomechanical function:
The coronoid provides the primary anterior buttress against posterior subluxation. Loss of more than 50% of coronoid height results in significant elbow instability. Even smaller fractures can contribute to instability in the presence of ligamentous injury.
Stability contribution:
- Primary constraint to posterior translation (with olecranon)
- Secondary valgus stabilizer (with MCL and radial head)
- Works with radial head to resist axial loading
50% Rule:
- Loss of over 50% of coronoid height = unstable elbow
- Applies to sagittal plane (anterior-posterior height)
- Even smaller fractures may be unstable with ligament injuries
Classification Systems
O'Driscoll Classification (most commonly used)
- Subtype
- Tip
- Description
- Tip fracture (less than 2mm)
- Mechanism
- Posterolateral dislocation
- Subtype
- 1
- Description
- Sublime tubercle (medial)
- Mechanism
- Varus-posteromedial
- Subtype
- 2
- Description
- Anteromedial rim
- Mechanism
- Varus-posteromedial
- Subtype
- 3
- Description
- Anteromedial rim + tip
- Mechanism
- Varus-posteromedial
- Subtype
- 1
- Description
- Basal - less than 50%
- Mechanism
- High energy
- Subtype
- 2
- Description
- Basal - more than 50%
- Mechanism
- High energy
Type II anteromedial facet fractures have a different mechanism than Type I tip fractures. They result from varus-posteromedial rotational instability, not posterolateral dislocation. This affects both approach and treatment strategy.
Clinical Assessment
History:
- Mechanism (fall, direction of force)
- Any sense of instability or dislocation
- Whether elbow was relocated (self-reduced or reduced)
- Previous elbow problems
- Hand dominance, occupation
Physical examination:
| Finding | Significance | Action |
|---|---|---|
| Elbow effusion | Intra-articular injury | X-ray, CT if fracture suspected |
| Anteromedial tenderness | Coronoid/anteromedial facet | CT for classification |
| Valgus instability | MCL injury | Consider sublime tubercle involvement |
| Varus instability | LCL injury | May have anteromedial facet pattern |
| Posterolateral apprehension | PLRI pattern | Likely had posterolateral dislocation |
| Gross instability | Multiple structure involvement | Urgent surgical planning |
Stability testing:
Posterolateral rotational instability (PLRI): Elbow subluxes posterolaterally - associated with tip fractures. Varus-posteromedial instability: Ulna rotates posteromedially - associated with anteromedial facet fractures. Different patterns require different approaches.
Key examination points:
- Range of motion - assess for mechanical block
- Valgus stress test - MCL integrity
- Varus stress test - LCL integrity
- Posterolateral rotatory instability test - pivot shift
- Neurovascular status - especially ulnar nerve
Differential diagnosis:
| Diagnosis | Distinguishing features | Key discriminator |
|---|---|---|
| Coronoid fracture | Anterior elbow pain, effusion, often part of dislocation; subtle on plain films | Loss of triangular coronoid projection on lateral X-ray; confirm and type on CT |
| Terrible triad (dislocation + radial head + coronoid) | History of dislocation, gross instability, radial head fracture | All three components present - LCL ruptured by definition |
| Isolated radial head fracture | Lateral pain, painful rotation, no posteromedial tenderness | Coronoid intact on CT; elbow stable through arc |
| Olecranon (transolecranon) fracture-dislocation | Posterior wound/pain, large coronoid fragment, dorsal ulna disrupted | Trochlear notch incongruity; ulnohumeral relationship lost through fracture |
| Simple (ligamentous) elbow dislocation | Dislocation that reduces and stays stable, no fracture | No bony fragment on CT - purely capsuloligamentous injury |
| Varus posteromedial rotatory instability | Fall onto varus-loaded arm, no frank dislocation, medial joint pain | Anteromedial facet fracture plus LCL avulsion - typically no radial head fracture |
| Sublime tubercle (MCL) avulsion | Valgus laxity, medial pain, often in throwing athlete | Bony avulsion at MCL anterior bundle insertion on CT/MRI |
Investigations
Radiographic assessment:
Radiographic assessment:
Standard views:
- AP elbow - may see coronoid fracture
- Lateral elbow - best view for coronoid height
- Oblique views - anteromedial facet visualization
On the lateral X-ray, assess coronoid height - the anterior projection of the ulna. Compare to the opposite side if needed. Loss of the normal triangular projection suggests coronoid fracture.
CT imaging:
Indications (essential for coronoid fractures):
- All suspected coronoid fractures
- Classification (O'Driscoll typing)
- Fragment size and displacement assessment
- Surgical planning
- Associated injuries (radial head, olecranon)
CT assessment checklist:
- Fragment size (% of coronoid height)
- Fragment location (tip vs anteromedial vs basal)
- Sublime tubercle involvement
- Associated radial head fracture
- Articular step-off
3D CT reconstruction:
- Helpful for complex patterns
- Surgical planning
- Understanding fragment geometry
MRI:
- Rarely indicated acutely
- May assess ligamentous structures
- Consider for chronic instability evaluation

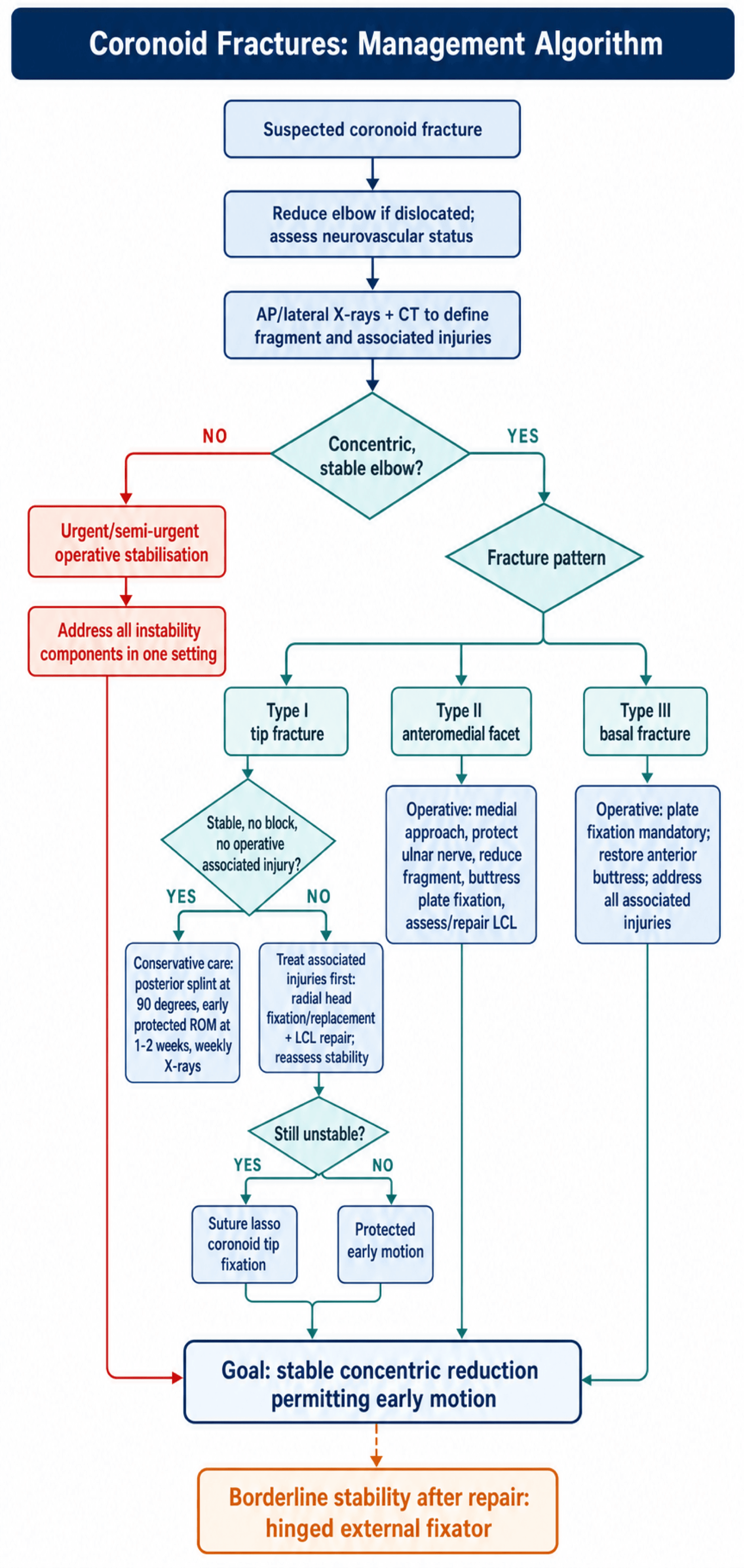

Management Algorithm
Conservative management:
- Type I tip fracture with stable elbow
- Concentric reduction maintained
- No mechanical block
- No associated operative injuries
- Posterior splint at 90 degrees initially
- Begin motion at 1-2 weeks if stable
- Active ROM in flexion-extension arc
- Avoid terminal extension initially
- Progressive motion over 6 weeks
- Weekly X-rays initially
- Assess for subluxation
- Progress motion if maintaining reduction
Conservative management only appropriate for Type I tip fractures with a stable, concentrically reduced elbow. Any instability, incongruency, or associated injuries requiring surgery = fix the coronoid.
Surgical Technique
Lateral Approach (for terrible triad):
- Kocher or lateral column approach
- Addresses radial head and LCL
- Can reach coronoid from lateral (over-the-top)
- Suture lasso technique for tip fractures
Medial Approach (for anteromedial facet):
- FCU splitting or over-the-top of flexor mass
- Identify and protect ulnar nerve
- Direct access to anteromedial facet
- Can also assess/repair MCL
Posterior Approach:
- For transolecranon fracture-dislocations
- Direct visualization through olecranon fracture
- Fix coronoid from posterior
Approach selection depends on fracture pattern and associated injuries.
Complications
| Complication | Incidence | Management |
|---|---|---|
| Recurrent instability | 5-15% | Revision fixation, ligament repair, hinged fixator |
| Stiffness | 20-30% | Early motion, physio, capsular release if severe |
| Post-traumatic arthritis | 15-25% | Activity modification, eventual arthroplasty |
| Heterotopic ossification | 5-15% | Prophylaxis, excision if limiting |
| Ulnar neuropathy | 5-10% | Often transient, protect during medial approach |
| Hardware prominence | Variable | Hardware removal if symptomatic |
| Nonunion | Rare | Revision fixation, bone graft |
Recurrent instability:
- Most significant complication
- Usually due to inadequate coronoid reconstruction
- Or missed associated injuries
- May require revision surgery, hinged external fixator
Stiffness:
- Common with complex elbow trauma
- Prevention: stable fixation, early motion
- Treatment: physiotherapy, dynamic splinting, capsular release
The ulnar nerve is at risk during the medial approach. Options include in-situ protection (preferred for brief procedures) or anterior transposition (for prolonged retraction or if nerve subluxing). Always identify and protect before deep dissection.
Postoperative Care and Rehabilitation
Postoperative protocol:
- Posterior splint at 90 degrees
- Elevation, ice
- Finger motion
- Wound check at 5-7 days
- Begin active ROM if stable fixation
- May use hinged brace if borderline stable
- Focus on flexion-extension
- Avoid varus/valgus stress
- Progressive active ROM
- Target functional ROM by 6 weeks
- No resistance until 6 weeks
- Dynamic splinting if stiff
- Begin gentle strengthening
- Progressive loading
- Return to light activities
- Full strengthening
- Return to sport/work
- Final outcome assessment
Key rehabilitation principles:
- Early motion critical to prevent stiffness
- Stable fixation allows early motion
- If stability borderline - hinged external fixator
- Avoid varus/valgus stress early
- May need extension block initially
If the elbow remains borderline unstable after addressing all injured structures, a hinged external fixator allows early motion while protecting the repair. It centers rotation at the elbow axis and prevents subluxation during rehabilitation.
Outcomes and Prognosis
Outcomes by pattern:
- Good/Excellent
- 80-90%
- Key Factors
- Stable reduction critical
- Good/Excellent
- 70-80%
- Key Factors
- Address all components
- Good/Excellent
- 70-80%
- Key Factors
- Adequate buttress fixation
- Good/Excellent
- 60-75%
- Key Factors
- High energy, complex
Prognostic factors:
- Associated injuries (worse with complex patterns)
- Quality of reconstruction
- Time to surgery
- Patient compliance
- Pre-existing elbow conditions
Terrible triad injuries have worse outcomes than isolated coronoid fractures. Despite addressing all three components (radial head, coronoid, LCL), expect higher rates of stiffness and residual instability. Counsel patients about guarded prognosis.
Evidence Base
- Defined the coronoid classification by fracture location — tip, anteromedial facet, and basal (body) — and recognised anteromedial facet fractures as varus posteromedial rotatory fracture-subluxations rather than dislocation-driven injuries. These patterns predict associated injuries, instability and surgical approach.
- In 67 surgically treated coronoid fractures, fracture morphology was strongly associated with the instability pattern: large coronoid fractures with olecranon fracture-dislocations, small transverse tip fractures with terrible-triad injuries, and anteromedial facet fractures with varus posteromedial rotational instability (statistically significant for both classification systems).
- 18 anteromedial facet fractures: all but three had avulsion of the LCL complex from the lateral epicondyle. Six elbows in which the facet was not specifically treated (or lost fixation) developed varus subluxation and arthrosis with fair/poor results; secure medial buttress fixation restored good or excellent function in the remainder.
- 42 terrible-triad elbows treated by a modified Pugh standard protocol (radial head fixation/replacement, LCL repair, coronoid fixation when indicated) achieved a mean Mayo Elbow Performance Score of 88, mean flexion-extension arc of 107 degrees, and 24 excellent plus 16 good results; complications included heterotopic ossification (n=5) and transient nerve palsies, with four reoperations.
- 13 patients with persistent ulnohumeral instability after elbow fracture-dislocation treated with a protocol of coronoid and radiocapitellar restoration, LCL repair/reconstruction and temporary hinged external fixation regained stability in every case (mean Mayo score 84, mean motion arc 99 degrees), though arthrosis was common.
- 9 studies, 210 patients: no significant difference in mean MEPS (replacement 88.6 vs reconstruction 88.5) or range of motion. The overall complication rate was 65% and reoperation rates were high in both groups (replacement 18.4%, reconstruction 17.9%).
Viva Scenarios
Practise clinical reasoning and management decisions out loud
“A 45-year-old woman falls from a ladder. Her elbow was dislocated and has been reduced. CT shows a comminuted radial head fracture with more than 4 fragments and a small coronoid tip fracture. How do you approach this injury?”
“A 38-year-old man presents after a fall onto his arm. He has no history of dislocation. CT shows an anteromedial facet fracture involving approximately 40% of the coronoid with the sublime tubercle involved. What is your diagnosis and management approach?”
“A 52-year-old man involved in a motorcycle accident has a complex elbow injury. CT shows a basal coronoid fracture involving approximately 60% of the coronoid height. The elbow is grossly unstable. What are your key considerations?”
MCQ Practice Points
Q: What defines an O'Driscoll Type II coronoid fracture? A: Anteromedial facet fracture - includes subtypes involving the sublime tubercle (MCL insertion), anteromedial rim, or combination. This pattern results from varus-posteromedial rotational instability, not posterolateral dislocation.
Q: What percentage of coronoid height loss results in elbow instability? A: Greater than 50%. Basal fractures (O'Driscoll Type III) involving more than 50% of coronoid height are always unstable and require operative fixation.
Q: What structure attaches to the sublime tubercle? A: The MCL (specifically the anterior bundle). The sublime tubercle is the ulnar insertion of the most important stabilizing bundle of the MCL. Fractures involving this area are essentially bony MCL avulsions.
Q: What is the mechanism of anteromedial facet fractures? A: Varus-posteromedial rotational instability - an axial load with varus stress, NOT posterolateral dislocation. This is distinct from tip fractures which occur with posterolateral dislocation.
Q: What approach is required for anteromedial facet fracture fixation? A: Medial approach (FCU splitting or over-the-top). These fractures cannot be adequately visualized or fixed from a lateral approach. Must protect the ulnar nerve.
Guidelines, Registries & Global Practice
Global epidemiology. Isolated coronoid fractures are rare; the coronoid is fractured almost exclusively as part of a complex injury pattern. Across consecutive surgical series, the fragment morphology tracks the instability pattern — small transverse tip fractures with terrible-triad injuries, larger fractures with olecranon fracture-dislocations, and anteromedial facet fractures with varus posteromedial rotational instability (Doornberg & Ring, J Hand Surg Am 2006; PMID 16443103). The anteromedial facet is anatomically vulnerable: 3D-CT analysis shows that on average 58% of the facet (range 26-82%) is unsupported by the proximal ulnar metaphysis, explaining why it so often shears off as a discrete fragment (Doornberg et al., J Shoulder Elbow Surg 2007; PMID 17512221). High-energy mechanisms (motorcycle and vehicle trauma, falls from height, occupational falls) predominate for basal patterns, whereas low-energy varus-loading falls produce anteromedial facet injuries.
Guideline & society position (side-by-side). No registry tracks coronoid fractures specifically, and there is no randomised-trial-level guideline; practice is governed by classification-led expert consensus and instructional teaching from the major societies.
- Region
- USA / global
- Position on coronoid fractures
- Pattern-based fixation; restore the anterior buttress; fix coronoid within the terrible-triad sequence after radial head and LCL
- Evidence level
- Expert consensus (Level V)
- Region
- UK
- Position on coronoid fractures
- Complex fracture-dislocations to be managed at units with elbow/upper-limb expertise; early definitive surgery, early mobilisation
- Evidence level
- Consensus standard
- Region
- Europe
- Position on coronoid fractures
- Endorse O'Driscoll typing; anteromedial facet via medial approach with buttress plate; hinged fixator for residual instability
- Evidence level
- Expert consensus (Level V)
- Region
- UK
- Position on coronoid fractures
- Covered under general non-complex/complex fracture pathways; no disease-specific recommendation
- Evidence level
- Not addressed
Registry evidence. Coronoid fractures are not separately captured in arthroplasty or trauma registries (AOANJRR, NJR, AJRR record joint replacement, not elbow fracture fixation), so the evidence base is series- and meta-analysis-driven rather than registry-driven. The best pooled data come from systematic reviews of the terrible triad: comparable functional scores for radial head repair versus replacement (mean MEPS ~88), with an overall complication rate near 65% and reoperation rates of roughly 18% in both groups (Kyriacou et al., Arch Orthop Trauma Surg 2019; PMID 30656475).
Practice variation. Surgical approach is the main area of genuine variation. A meta-analysis found that a combined lateral and anteromedial approach gave significantly greater elbow and forearm motion and a higher MEPS than a lateral-only approach for the terrible triad, at the cost of longer operative time (Meena et al., Bull Emerg Trauma 2020; PMID 32201696). Choice of radial head reconstruction versus replacement, routine versus selective coronoid fixation in tip fractures, and threshold for hinged external fixation differ between centres and surgeon experience.
Be prepared to discuss coronoid classification, recognise the difference between tip and anteromedial facet patterns, understand the sublime tubercle anatomy, and know when plate fixation versus suture lasso is appropriate. Examiners also probe why there is no registry or RCT-level guidance and how you reconcile the high complication rates reported in meta-analyses with the need for early motion. These are common viva topics.
O'DRISCOLL CLASSIFICATION
- Type I: Tip fracture - posterolateral dislocation mechanism
- Type II: Anteromedial facet - varus-posteromedial mechanism
- Type III: Basal - over 50% height, always unstable
- Subtypes: I.1/I.2, II.1/II.2/II.3, III.1/III.2 by fragment size
KEY ANATOMY
- Coronoid = anterior buttress of elbow
- Sublime tubercle = MCL (anterior bundle) insertion
- Brachialis inserts on coronoid base
- Over 50% height loss = unstable
PATTERN RECOGNITION
- Type I tip - part of terrible triad (posterolateral dislocation)
- Type II anteromedial - varus stress mechanism, different approach needed
- Type III basal - always operative, plate fixation
- Isolated Type I can be treated conservatively if elbow stable
SURGICAL APPROACHES
- Tip fractures - lateral approach, suture lasso
- Anteromedial facet - MEDIAL approach, buttress plate
- Basal - medial or posterior, plate fixation
- Protect ulnar nerve on medial approach
FIXATION TECHNIQUES
- Suture lasso - for tip fractures (Type I)
- Screws - for larger single fragments
- Buttress plate - for anteromedial facet (Type II)
- Plate - mandatory for basal (Type III)
TERRIBLE TRIAD PROTOCOL
- 1. Fix/replace radial head
- 2. Repair LCL
- 3. Assess stability - fix coronoid if unstable
- 4. Consider hinged fixator if still borderline
