Gymnast's Wrist (Distal Radial Physeal Stress Injury)

Gymnast's wrist is a repetitive stress injury of the open distal radial physis caused by chronic compressive loading of the wrist in young, skeletally immature athletes. It is the most common overuse injury of the wrist in competitive gymnasts, with studies reporting radiographic abnormalities in up to half of young gymnasts training at a high level. It also occurs in other sports that involve weight-bearing through the upper limb in wrist extension, such as cheerleading, martial arts, and certain field events in athletics.

The distal radial physis contributes roughly 70 to 80 percent of the longitudinal growth of the radius and about 40 percent of total forearm length. Repetitive axial compression and dorsal shear during gymnastics skills (vault, floor exercise, beam, rings, pommel horse, and handstands) overload this growth plate beyond its capacity to repair, producing a spectrum from physeal stress reaction through to physeal disruption and, in severe cases, premature physeal arrest.

The condition matters for three exam-relevant reasons: it is a classic example of an overuse physeal injury in the paediatric athlete, it illustrates the principle that MRI detects stress injury before plain radiograph changes appear, and the feared complication of premature physeal arrest with progressive positive ulnar variance links paediatric sports medicine to adult wrist pathology (ulnar impaction syndrome).

Distal radial physis

The distal radial physis (growth plate) lies between the metaphysis and epiphysis of the distal radius. Key anatomical points:

• It is one of the most active physes in the body, contributing approximately 70 to 80 percent of radial longitudinal growth and roughly 40 percent of overall forearm length
• It typically closes at around 16 to 18 years in girls and 17 to 19 years in boys
• During gymnastics, the upper limb is a weight-bearing strut: forces of 2 to 4 times body weight are transmitted across the wrist during skills such as vaulting, back handsprings, and handstands
• In wrist hyperextension, the lunate compresses the volar aspect of the distal radial physis, while dorsal shear loads the dorsal physis

Pathomechanics

The injury develops through a cycle of repetitive microtrauma exceeding the rate of repair:

1. Axial compression across the wrist loads the physis during weight-bearing skills
2. Dorsal shear in hyperextension adds an angular stress component
3. The physis responds with hypertrophy and widening of the physeal cartilage (a stress reaction)
4. With continued loading, the physis develops microfractures of the zone of provisional calcification, metaphyseal bone resorption, and bone marrow oedema
5. In severe or prolonged cases, the physis may partially or completely arrest prematurely, producing progressive positive ulnar variance

The dorsal and volar margins of the physis are most vulnerable because they experience the highest shear stresses. This explains why MRI often shows focal widening of the volar or dorsal physis rather than uniform widening.

There is no single universally accepted classification system for gymnast's wrist. In practice, clinicians use a combination of radiographic grading and MRI staging to guide management.

Who is affected

• Age: typically 10 to 14 years (skeletal immaturity with an open distal radial physis)
• Sex: both, but female gymnasts are more commonly affected in published series (reflecting higher participation rates and earlier peak training loads relative to skeletal maturity)
• Training level: competitive gymnasts training more than 15 to 20 hours per week are at highest risk; recreational gymnasts are less commonly affected

Symptoms

• Dorsal wrist pain that is worse during and after weight-bearing activities (handstands, vault, floor exercise, beam, rings)
• Pain often begins insidiously and worsens gradually over weeks to months
• Initially, pain is present only during high-impact skills; later it may occur with all wrist loading and even at rest
• Bilateral involvement is common (both wrists are loaded during gymnastics)

Signs

• Tenderness directly over the distal radial physis (palpable just proximal to the wrist joint on the radial side)
• Pain on axial compression of the wrist in hyperextension (reproducing the loading mechanism)
• Pain on passive wrist hyperextension
• Possible mild dorsal wrist swelling in more advanced cases
• Reduced grip strength or reluctance to bear weight through the wrist
• Normal range of motion unless there is established positive ulnar variance (then forearm rotation may be limited)

Plain radiographs (first-line)

Standard PA and lateral wrist radiographs are the initial investigation. A dedicated PA view in neutral forearm rotation (shoulder abducted 90 degrees, elbow flexed 90 degrees, forearm neutral) is essential for measuring ulnar variance accurately.

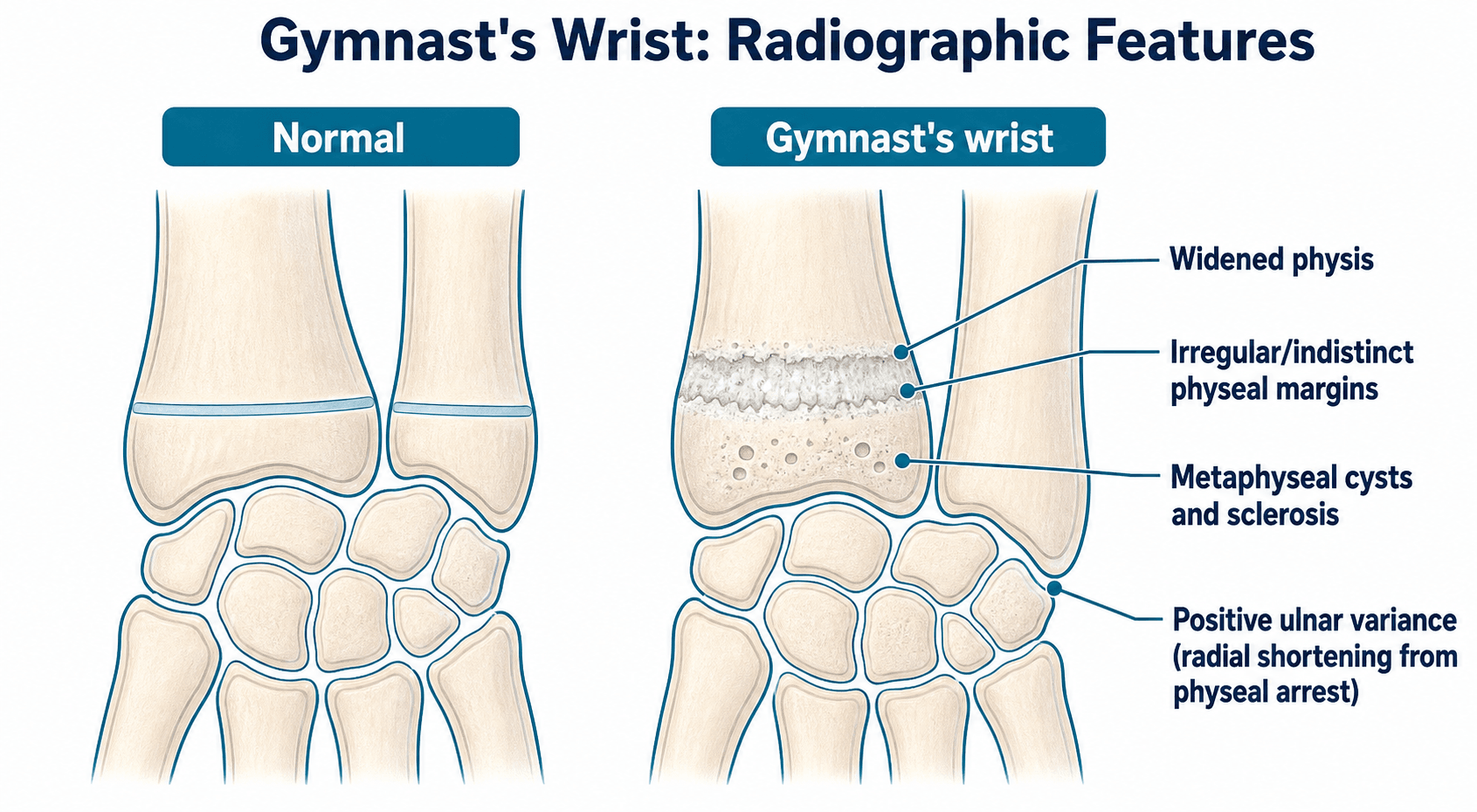

Radiographic findings in gymnast's wrist:

MRI (gold standard)

MRI is the investigation of choice when the diagnosis is suspected clinically but radiographs are normal, or when staging the severity of physeal injury to guide return-to-sport decisions.

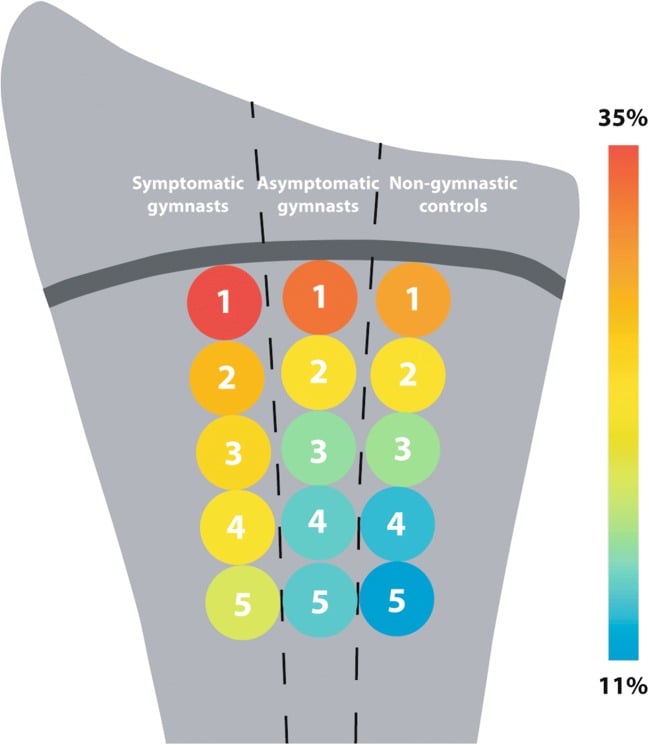

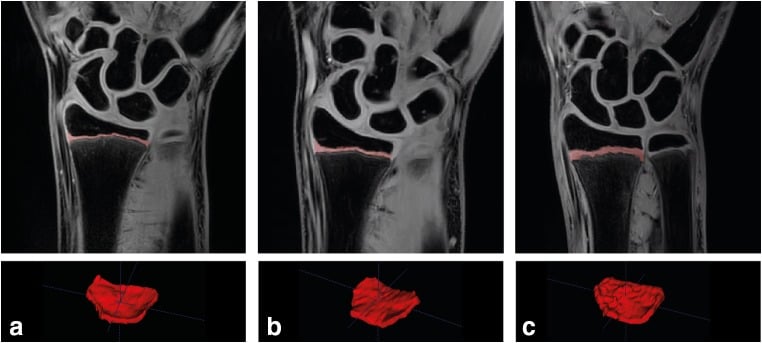

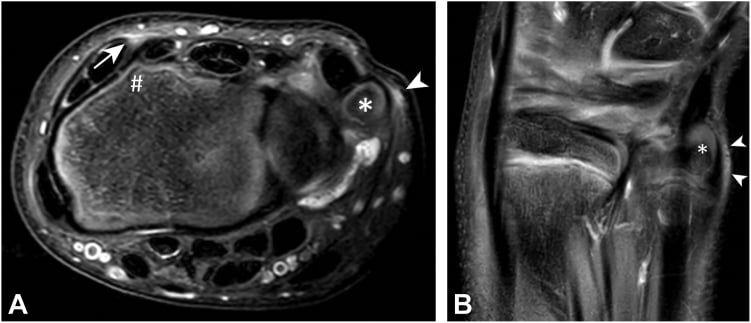

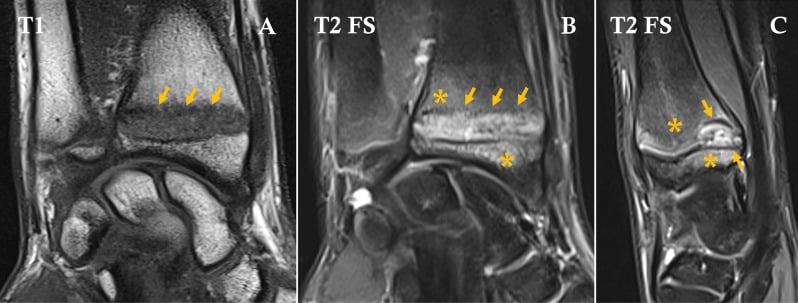

Key MRI findings:

• Physeal widening (especially volar and/or dorsal margins)
• Bone marrow oedema adjacent to the physis (high signal on T2 fat-suppressed or STIR sequences, low signal on T1)
• Physeal signal change (fluid-like signal extending through the physis)
• Metaphyseal cystic change and sclerosis (seen earlier than on plain radiographs)

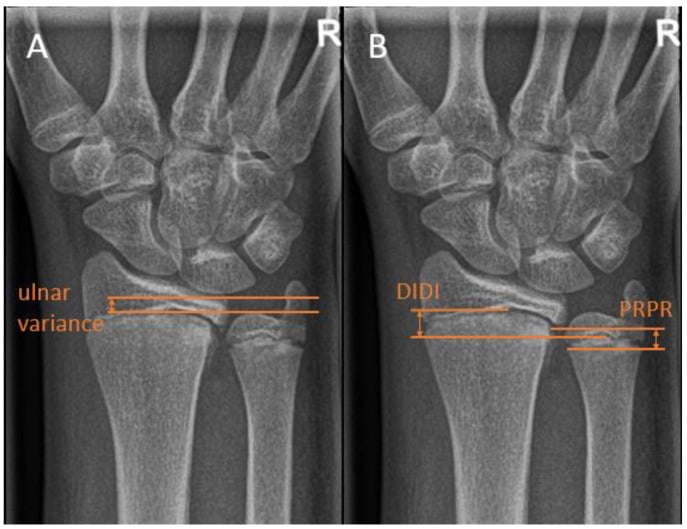

Ulnar variance measurement

Ulnar variance is measured on a neutral rotation PA wrist radiograph by drawing a line perpendicular to the long axis of the radius through the ulnar border of the lunate fossa (radial articular surface) and measuring the distance to the distal ulnar articular surface:

• Negative variance: ulna is shorter than the radius (normal in most children)
• Neutral variance: equal lengths
• Positive variance: ulna extends beyond the radius (the pathological direction in gymnast's wrist)

Management is guided by the severity of physeal stress injury and the presence or absence of premature physeal arrest. The overarching principle is that the earlier the diagnosis and the sooner wrist loading is reduced, the better the outcome.

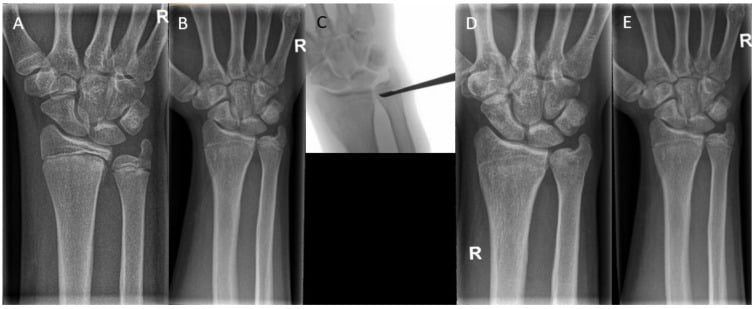

Premature physeal arrest

This is the most important complication to understand for the exam. The mechanism is:

1. Repetitive loading damages the physis beyond its capacity for normal repair
2. The zone of provisional calcification is disrupted, and bony bridges form across the physis (physeal bar formation)
3. These bridges tether further growth: partial arrest causes angular deformity, complete arrest stops radial growth entirely
4. The ulna continues to grow at its normal rate (the distal ulnar physis is unaffected)
5. The result is progressive positive ulnar variance as the child grows - the discrepancy worsens with each year of remaining growth
6. Positive ulnar variance leads to ulnar impaction (abutment of the ulnar head against the lunate), TFCC tears, and eventual degenerative arthritis

Gymnast's wrist is a viva favourite because it links paediatric sports medicine, physeal anatomy, imaging strategy (MRI before X-ray changes), and growth disturbance in a single clinical scenario that examiners across all training systems will recognise.

In the basic science viva, it is a perfect topic for discussing the structure and function of the physis, the blood supply of the growth plate, and how the zone of provisional calcification is the weakest link under shear stress. In the paediatric or upper-limb clinical viva, a young gymnast with dorsal wrist pain and physeal widening on X-ray is a straightforward spot diagnosis that leads into investigation strategy, management, and the complications of premature physeal arrest. In the trauma viva, understanding that the same physis that is injured acutely in a Salter-Harris fracture is injured chronically in gymnast's wrist demonstrates a sophisticated understanding of growth-plate pathology.

The key messages for the exam are: recognise the clinical pattern (young gymnast, dorsal wrist pain on loading, tender distal radial physis), use MRI when the X-ray is normal, rest early and enforce it, and monitor ulnar variance serially to catch premature physeal arrest before it produces irreversible positive ulnar variance.

• No single international guideline specifically addresses gymnast's wrist. Management is based on expert consensus, retrospective case series, and the general principles of overuse physeal injury management shared across paediatric sports medicine societies worldwide (AAP, AOSSM, EFOST, and equivalent national bodies).
• Activity modification as first-line treatment is universally agreed: reducing or eliminating compressive wrist loading until symptoms resolve and physeal changes normalise. The duration and degree of restriction vary by practice, but all published reviews agree that continued training through pain worsens the prognosis.
• MRI for early detection is increasingly standard in centres with access, reflecting the evidence that MRI shows physeal stress changes before plain radiographs. In settings without MRI access, a clinical diagnosis with enforced rest is acceptable, but the risk of underdiagnosis is acknowledged.

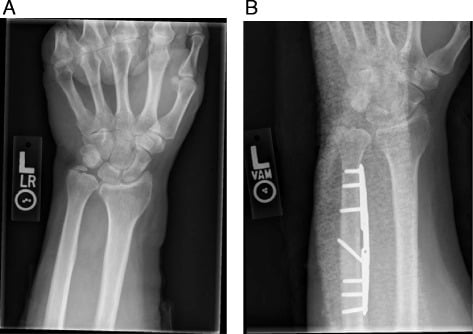

• Premature physeal arrest and positive ulnar variance are managed surgically in specialist centres globally. The threshold for ulnar shortening osteotomy varies (some surgeons operate at 2 to 3 mm positive variance with symptoms, others observe until variance is progressive and symptomatic), but the principle of addressing ulnar impaction before degenerative change is consistent.
• Prevention strategies under investigation include wrist guards (such as the Tiger Paw), technique modification to reduce hyperextension, training load monitoring, and periodic screening radiographs in high-level gymnasts. No consensus guideline mandates routine screening, but many elite gymnastics programmes in North America, Europe, and Australasia obtain baseline wrist radiographs and track ulnar variance in skeletally immature athletes.
