Medial Ankle Instability

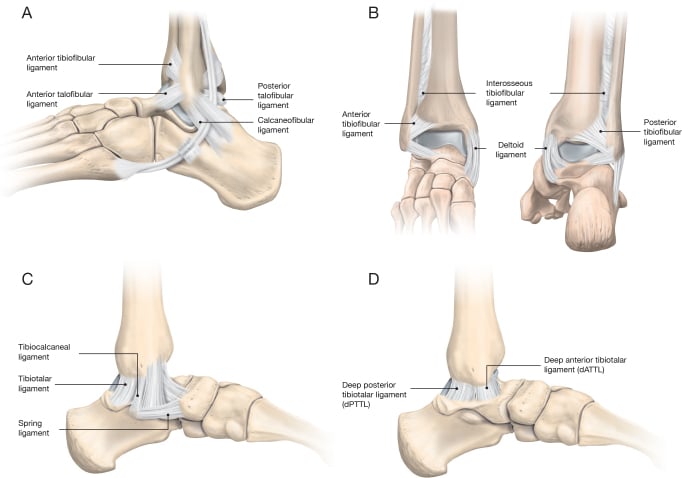

Deltoid Ligament Complex

The deltoid ligament is the primary medial ankle stabilizer, consisting of superficial and deep layers with distinct anatomic and functional characteristics.

Biomechanical Function

The deltoid complex is the principal restraint to lateral talar translation and external rotation of the talus within the mortise, and a major restraint to hindfoot valgus. The deep posterior tibiotalar ligament is the strongest, most consistent band and the key restraint to lateral talar shift; the superficial layer (acting with the spring ligament as the tibiocalcaneonavicular complex) chiefly resists hindfoot valgus and supports the medial longitudinal arch. Band engagement is position-dependent: the tibiospring band tightens in plantarflexion, whereas the tibiocalcaneal and deep posterior tibiotalar bands tighten in dorsiflexion. Deltoid competence is also essential for syndesmotic stability, an incompetent deltoid permits medial clear space widening and lateral talar shift even with an intact syndesmosis, which is why restoring medial stability can normalise the mortise.

Injury Patterns and Associated Pathology

Isolated deltoid ligament injury is rare due to the ligament's substantial strength (2-3 times stronger than ATFL). Most deltoid injuries occur as part of more complex injury patterns.

Clinical Imaging

---

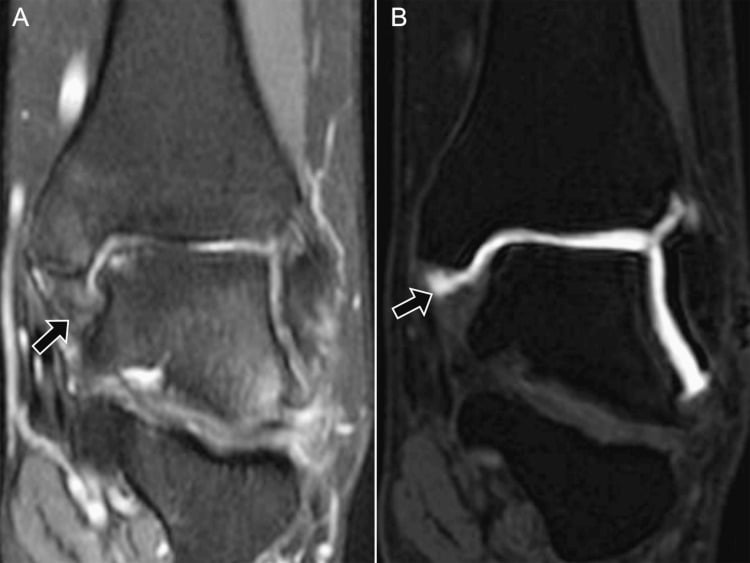

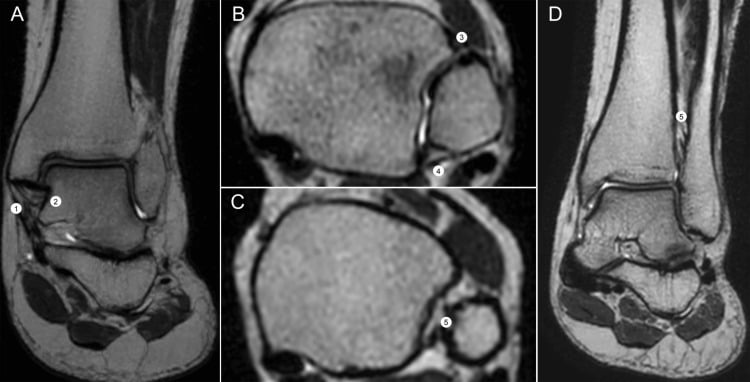

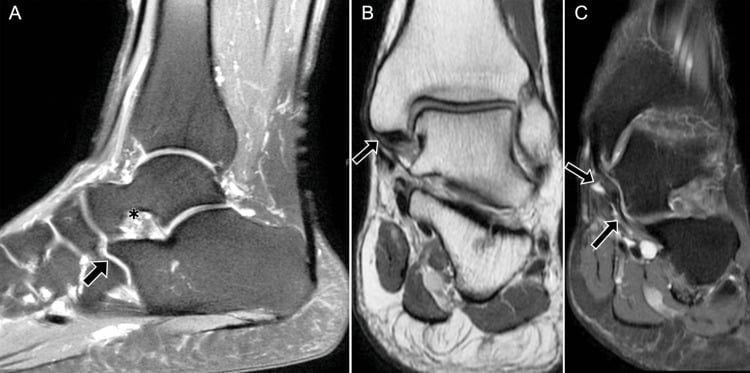

Imaging Atlas

View larger

View larger

View larger

History and Physical Examination

Patient history should elicit mechanism of injury (valgus force, external rotation), previous ankle injuries or instability, and functional limitations. Pain with cutting or pivoting activities suggests rotational instability. History of flatfoot or PTTD relevant for chronic cases.

Inspection reveals medial ankle swelling in acute injuries or valgus hindfoot deformity in chronic cases. Observe for pes planus deformity suggesting concurrent PTTD or spring ligament insufficiency. Check for antalgic gait or inability to perform single heel raise.

Palpation should systematically assess medial malleolus, deltoid ligament course (from anterior colliculus inferiorly), spring ligament (plantar-medial to navicular), and PTT course. Tenderness localizes injury and identifies associated pathology.

Special Tests:

• External rotation stress test: With knee flexed 90 degrees and ankle in neutral, apply external rotation force to foot. Pain and increased rotation compared to contralateral side indicates deltoid injury
• Valgus stress test: Apply valgus force to hindfoot with ankle in neutral. Increased medial joint opening suggests deltoid insufficiency
• Kleiger test: External rotation of foot with ankle dorsiflexed and tibia stabilized. Pain at medial ankle indicates deltoid injury; pain at syndesmosis suggests combined pathology
• Single heel raise test: Inability to perform or lack of hindfoot inversion during raise indicates PTT dysfunction or severe deltoid insufficiency

Imaging Protocol

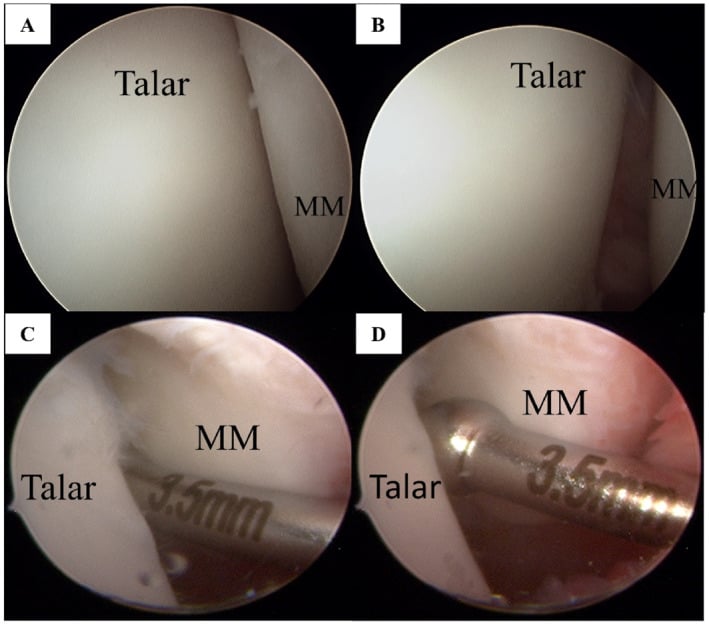

Medial ankle pain with a sense of "giving way" has several mimics. The key task is separating true medial instability (deltoid/spring incompetence with talar tilt or shift) from medial gutter pathology and tendon disorders that cause pain without instability.

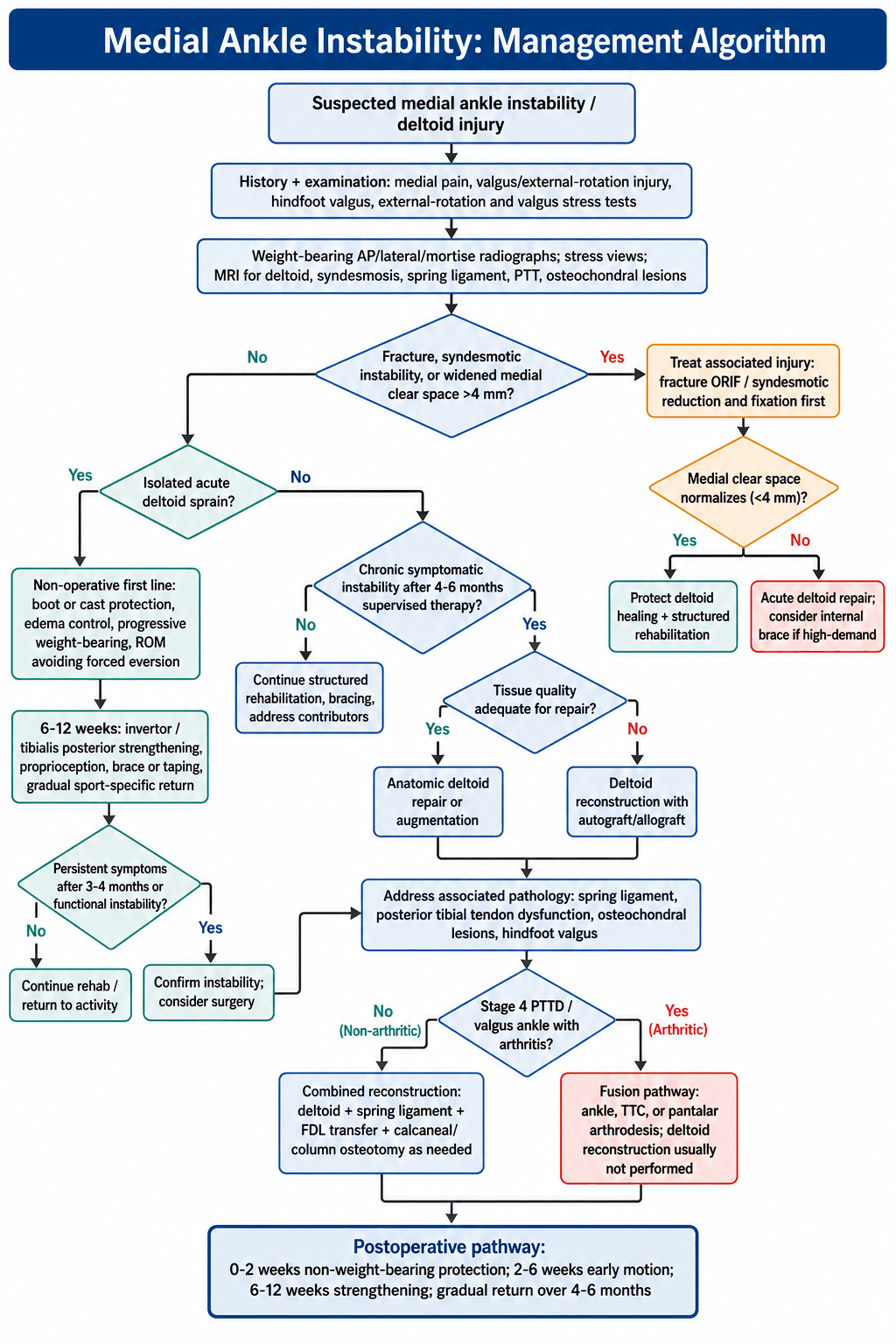

Treatment Protocol for Acute Injuries

Non-operative management is first-line treatment for isolated deltoid sprains without fracture or syndesmotic injury, successful in 60-70% of cases.

Phase 1 (0-3 weeks): Protection and Immobilization

• CAM boot or short leg cast, non-weight-bearing for grade 2-3 injuries
• Protected weight-bearing for grade 1 injuries after first week
• Ice, elevation, compression for edema control
• NSAIDs for pain management (if no contraindications)

Phase 2 (3-6 weeks): Progressive Weight-Bearing

• Transition to weight-bearing as tolerated in CAM boot
• Begin gentle ankle range of motion exercises (avoid forced eversion)
• Initiate isometric strengthening (tibialis posterior, gastrocnemius)
• Continue until pain-free with daily activities

Phase 3 (6-12 weeks): Strengthening and Return to Activity

• Progress to lace-up ankle brace or taping
• Progressive resistance exercises focusing on tibialis posterior and invertor muscles
• Proprioceptive training (single leg balance, wobble board)
• Sport-specific training with gradual progression
• May require 3-4 months for return to high-level athletics

Indications for Surgical Intervention

Conservative management fails in 30-40% of cases, requiring surgical consideration. Indications for surgery include:

Absolute indications:

• Acute deltoid disruption with syndesmotic instability requiring fixation
• Deltoid disruption with widened medial clear space (greater than 4mm) despite syndesmotic fixation
• Chronic symptomatic instability with functional limitation despite 4-6 months therapy
• Stage 4 PTTD with deltoid insufficiency and progressive deformity

Relative indications:

• High-demand athletes with persistent symptoms after 3 months conservative care
• Deltoid injury associated with medial malleolus fracture with comminution preventing stable fixation
• MRI-confirmed complete deltoid rupture with poor tissue quality in acute setting

Rehabilitation Protocol

The imaging protocol and the vivas repeatedly rely on "external rotation stress" and "gravity-stress" views (and the controversies flag that their technique varies), and normal plain films famously do not exclude the injury - but how the views are taken is never described.

• Why they are needed. Static non-weight-bearing films can look normal because the talus reduces at rest. A stress or weight-bearing view loads the medial side to unmask a widened medial clear space or talar tilt.

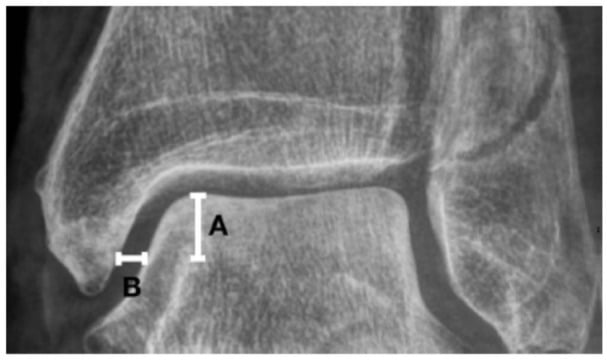

• Manual external-rotation stress view. A mortise radiograph is taken while an external-rotation force is applied to the plantigrade foot with the tibia held. A medial clear space over 4 mm, side-to-side asymmetry over 1 mm versus the contralateral ankle, or a medial clear space exceeding the superior clear space indicates deltoid incompetence - the same test that decides whether a supination-external-rotation (SER) fibular fracture is "stable" (deltoid intact) or "unstable" (deltoid torn, needs fixation).

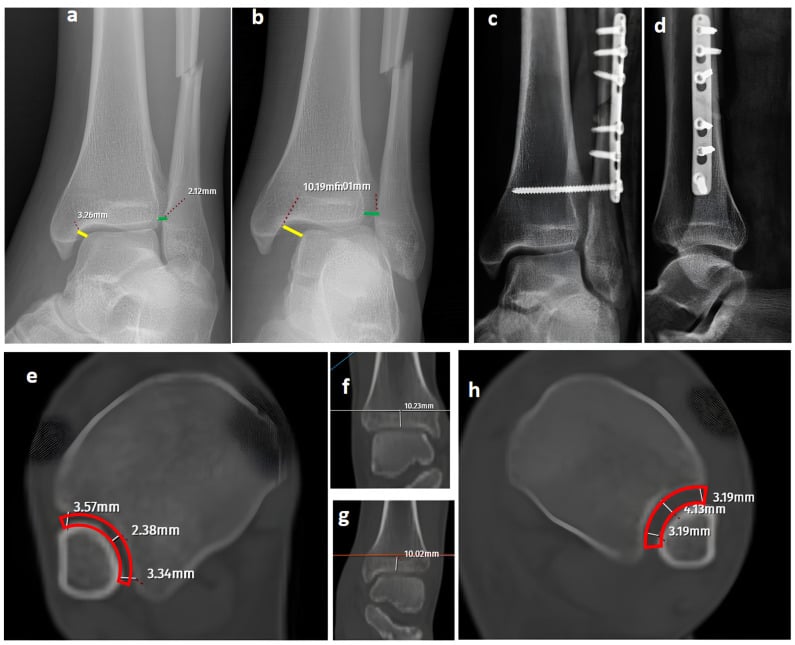

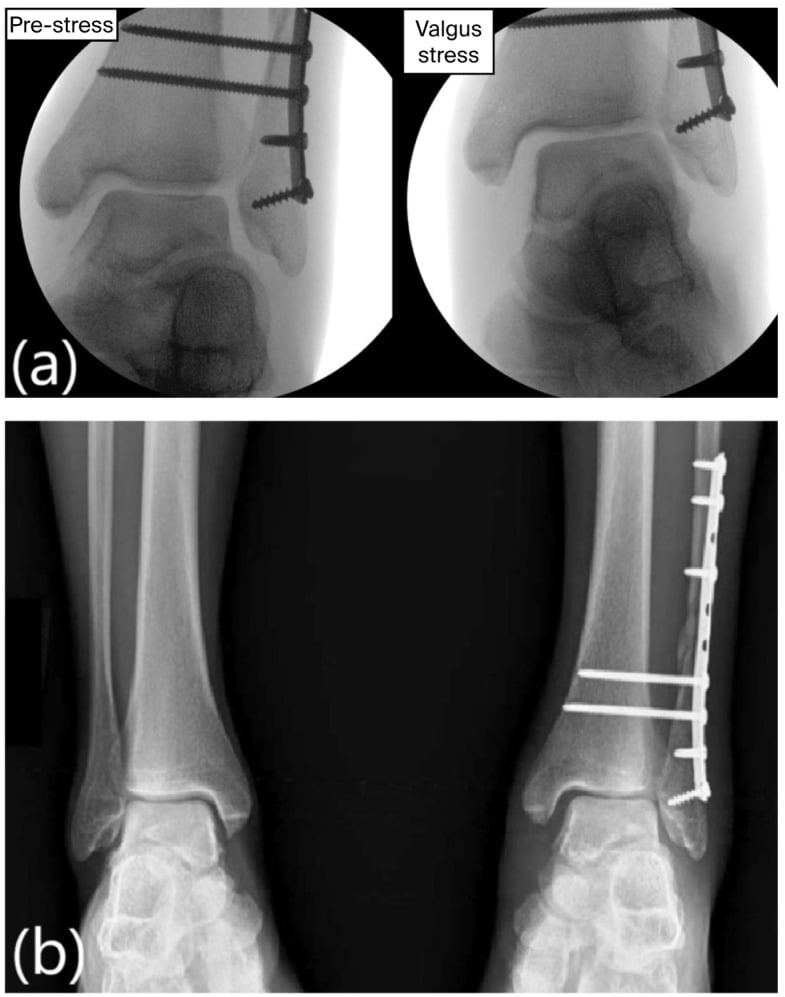

• Gravity stress view. The patient lies with the injured leg dependent (lateral decubitus, ankle unsupported) and gravity supplies the external-rotation/eversion load, giving a mortise view without the examiner's hand in the field. It is about as reliable as the manual test for detecting deltoid incompetence in SER fractures and avoids irradiating the examiner.

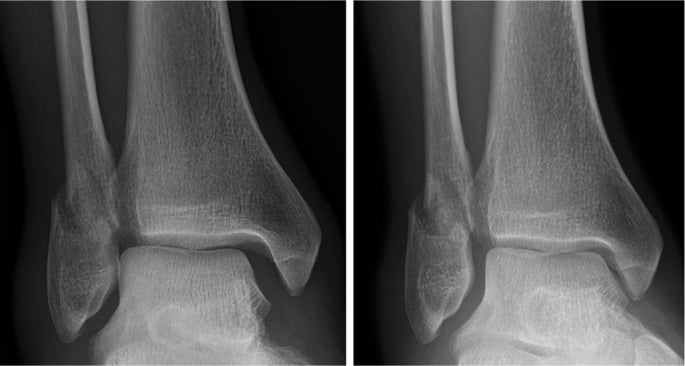

• Weight-bearing views. For chronic instability, standing AP/mortise views (and weight-bearing CT) reproduce physiological load and reveal valgus talar tilt and peritalar subluxation better than a supine film.
• The caveat. The 4 mm cut-off and side-to-side comparison are pragmatic rather than rigorously validated and stress technique varies between centres - so interpret the number alongside the clinical stress examination rather than in isolation.

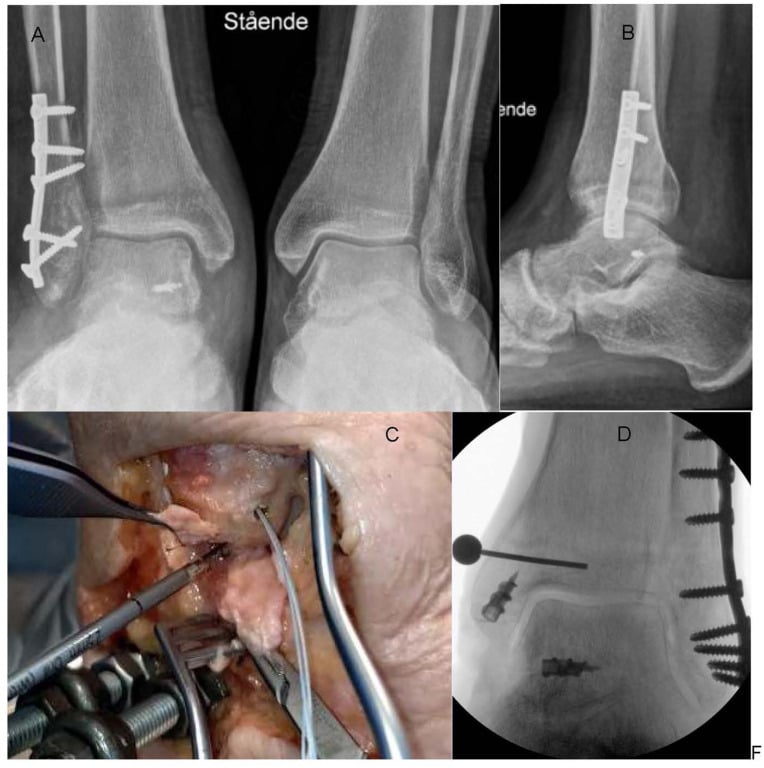

The repair technique, the combined-procedures tab, the controversies and a viva followUp all mention "suture-tape / internal brace augmentation", and the management algorithm says to "consider internal brace if high-demand" - but the construct and its role are never described.

• What it is. A suture-tape (e.g. FiberTape) internal brace is a strong, non-absorbable tape secured with anchors that spans the repaired or reconstructed deltoid as an independent load-sharing "check-rein" - typically a medial malleolar anchor to a talar (and/or calcaneal/sustentacular) anchor recreating the deep and superficial vectors.
• Why it is used. It is not the primary repair; it protects the biological repair/graft while it heals, restrains external rotation and valgus, and is intended to permit earlier, safer rehabilitation - the same rationale as internal bracing of the lateral ligament.
• When it is offered. In poor-quality tissue (chronic, diabetic, revision), in high-demand athletes, and to reinforce a repair that would otherwise be marginal - hence the algorithm's "consider internal brace if high-demand".
• The caveat. Evidence is largely biomechanical and short-term small series; it supplements rather than replaces anatomic repair, and over-tensioning the tape risks stiffness or over-constraint - so routine use is not established.

Early Complications

Wound healing problems occur in 5-8% due to thin soft tissue envelope over medial malleolus. Risk factors include diabetes, smoking, peripheral vascular disease, and steroid use. Prevention requires careful handling of skin flaps, avoiding excessive tension on closure, and appropriate patient selection. Management ranges from local wound care to debridement and delayed closure for deeper dehiscence.

Saphenous nerve injury presents as numbness or dysesthesia along medial ankle and foot (10-15% incidence). Usually iatrogenic from surgical dissection or retractor placement. Majority are neurapraxia resolving within 3-6 months. Permanent injury occurs in less than 2% but can be debilitating. Prevention requires identification and protection of nerve during approach.

Posterior tibial neurovascular injury is rare (less than 1%) but catastrophic. Bundle lies approximately 1.5cm posterior to medial malleolus. At risk during deep dissection for deltoid reconstruction or bone tunnel creation. Presents with numbness on plantar foot, weakness of toe flexion, or vascular compromise. Prevention through careful dissection and knowledge of anatomy.

Late Complications

Stiffness and loss of motion affects 15-20% of patients following deltoid reconstruction, higher than lateral ligament procedures. Typically involves loss of dorsiflexion (average 8-12 degrees) and subtalar motion. Caused by immobilization duration, adhesion formation, or overtightening during repair. Prevention includes early motion protocols (after 2 weeks protection) and avoiding excessive tension during reconstruction. Treatment with aggressive physical therapy, occasionally manipulation under anesthesia.

Persistent instability occurs in 10-15% following reconstruction. Causes include technical failure (inadequate graft tension, tunnel malposition), unaddressed hindfoot valgus deformity, progression of PTTD, or syndesmotic insufficiency. Requires thorough re-evaluation with imaging to identify specific failure mechanism. Management may require revision reconstruction, calcaneal osteotomy, or salvage fusion procedures.

Post-traumatic arthritis develops in 20-30% of patients with deltoid injuries associated with ankle fractures or syndesmotic disruption. Risk factors include initial fracture displacement, quality of fracture reduction, articular cartilage damage, and age greater than 50 years. Presents with progressive pain and stiffness over 2-5 years. Treatment ranges from conservative measures (bracing, activity modification, injections) to ankle arthroplasty or arthrodesis in severe cases.

• Routine vs selective deltoid repair in ankle fractures. Whether to repair the deltoid during fracture fixation remains contested. Comparative series (Woo et al; Whitlock et al) show repair restores a smaller medial clear space and reduces reoperation, but most authorities still favour a stability-driven, selective approach, restore the lateral column and syndesmosis, then repair only if the medial clear space stays widened. No adequately powered randomised trial exists.
• Deltoid repair vs trans-syndesmotic fixation. Some evidence suggests direct deltoid repair gives equivalent function with fewer hardware-removal reoperations than syndesmotic screws, but selection bias limits conclusions and suture-button fixation has changed the comparison.
• Significance of an isolated superficial deltoid tear. Cadaveric band-specific work (Gregersen et al) indicates the deep posterior tibiotalar band is often spared in SER injuries, so a superficial tear does not necessarily mean global deltoid incompetence. Dynamic stress assessment, not static MRI signal, should drive treatment.

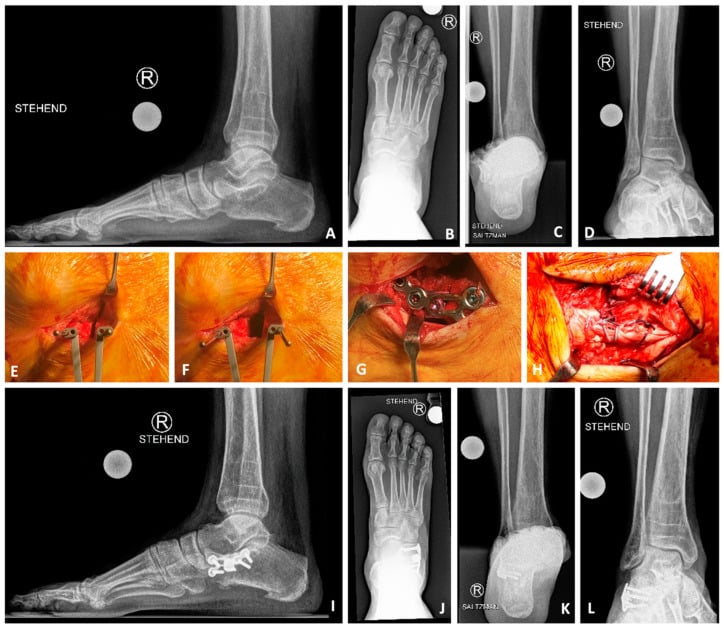

• Reconstruction technique and graft choice. No consensus exists on autograft vs allograft, single- vs double-bundle reconstruction, or the role of suture-tape (internal brace) augmentation; recommendations are extrapolated from anatomic and small clinical series.
• Role of weight-bearing CT. Weight-bearing CT is increasingly used to quantify hindfoot valgus and subtle peritalar subluxation, but thresholds defining pathological medial instability are not yet standardised.
• Optimal medial clear space threshold. The widely quoted 4mm cut-off and side-to-side comparison are pragmatic rather than rigorously validated, and gravity/external-rotation stress views vary in technique between centres.

Medial ankle instability from deltoid ligament insufficiency represents only 3-5% of ankle sprains due to the ligament's significant strength (2-3x ATFL). The deltoid has superficial (hindfoot valgus restraint) and deep (external rotation and lateral talar shift restraint) components. Isolated deltoid injury is rare; most occur with syndesmotic injuries (40-60%), pronation-external rotation fractures, or stage 4 PTTD. Diagnosis requires stress radiographs showing medial clear space widening greater than 4mm or MRI demonstrating ligament discontinuity. Conservative management succeeds in 60-70%; surgical reconstruction is indicated for persistent symptomatic instability.

The deltoid ligament resists 40% of valgus stress and is primary restraint to external rotation of the talus within the mortise. The deep posterior tibiotalar ligament prevents lateral translation of the talus, maintaining medial clear space (normal less than 4mm). Deltoid competency is essential for syndesmotic stability; deltoid insufficiency allows widening of ankle mortise even with intact syndesmosis.
