Red Zone | Vertical Tear | Preserve Meniscus
Vascular Zones
Critical Must-Knows
- Peripheral 3mm (red-red zone) has best vascularity and healing
- Vertical longitudinal tears are ideal for repair
- ACL reconstruction improves meniscal healing rates (hemarthrosis)
- Preserve meniscus whenever possible to prevent arthritis
- Inside-out is gold standard for posterior horn tears
Clinical Pearls
- "Medial meniscus: More restrained, tears more common
- "Lateral meniscus: More mobile, less restrained
- "Bucket handle = displaced vertical longitudinal tear
- "Root tears: Equivalent to total meniscectomy biomechanically
Arthroscopic Gallery
Imaging Gallery



Critical Meniscal Repair Exam Points
Repair Indications
Vertical longitudinal tear in red-red or red-white zone. Greater than 10mm length. Unstable (greater than 3mm displacement). Acute better than chronic. ACL reconstruction setting ideal.
Vascular Zones
Red-red (outer 3mm): Direct blood supply. Red-white (middle): Some vascularity. White-white (central): Avascular. Healing decreases toward center.
Technique
Inside-out: Gold standard for posterior horn. Posterior incision protects nerves. All-inside: Devices across tear. Popular. Outside-in: Anterior horn.
Outcomes
85-90% healing in red-red zone. ACL reconstruction concurrent improves rates. Failure more common: white zone, complex tears, chronic, older patients.
VOLARRepair Indications
| V | Vertical tear pattern Longitudinal or bucket handle |
| O | Outer (peripheral) zone Red-red or red-white |
| L | Length greater than 10mm Worth repairing |
| A | ACL reconstruction setting Improves healing |
| R | Reducible/repairable tissue Good tissue quality |
| V | Vertical tear pattern Longitudinal or bucket handle | A | ACL reconstruction setting Improves healing |
| O | Outer (peripheral) zone Red-red or red-white | R | Reducible/repairable tissue Good tissue quality |
| L | Length greater than 10mm Worth repairing |
Hook:VOLAR = Vertical Outer Long ACL Repairable - ideal for repair!
RRWVascular Zones
| R | Red-Red (outer 3mm) Best healing 85-90%, vascular |
| R | Red-White (middle) Intermediate 65-75%, some vascularity |
| W | White-White (central) Poor healing less than 50%, avascular |
| R | Red-Red (outer 3mm) Best healing 85-90%, vascular |
| R | Red-White (middle) Intermediate 65-75%, some vascularity |
| W | White-White (central) Poor healing less than 50%, avascular |
Hook:Healing potential decreases from periphery to center - Red to White!
IAORepair Technique Selection
| I | Inside-out Gold standard for posterior horn - protect nerves |
| A | All-inside Popular, no accessory incision, good for body |
| O | Outside-in Best for anterior horn tears |
| I | Inside-out Gold standard for posterior horn - protect nerves |
| A | All-inside Popular, no accessory incision, good for body |
| O | Outside-in Best for anterior horn tears |
Hook:IAO - Inside for posterior, All-inside popular, Outside for anterior!
Overview and Epidemiology
Meniscal function includes load transmission, shock absorption, joint stability, proprioception and lubrication. The meniscus converts axial compressive load into circumferential hoop stress resisted by its strong peripheral collagen fibres. Loss of meniscal tissue removes this hoop mechanism, raising peak tibiofemoral contact stress (roughly a 4-7 fold rise after total meniscectomy) and accelerating osteoarthritis.
Meniscal tears are among the most common knee injuries, showing a bimodal pattern: young patients with traumatic vertical/longitudinal tears (often with ACL injury) and older patients with degenerative complex tears. The modern philosophy is meniscus preservation wherever the tear is biologically repairable.
Pathophysiology and Vascular Anatomy
Healing potential is dictated by blood supply. The meniscus receives a peripheral supply from the perimeniscal capillary plexus (branches of the medial and lateral geniculate arteries), penetrating only the outer 10-30% (approximately 3mm) of the meniscal width. The inner portion is essentially avascular and nourished by synovial diffusion.
- Red-Red Zone — outer 3mm, vascular, best healing potential.
- Red-White Zone — middle zone, partial vascularity, intermediate healing.
- White-White Zone — central, avascular, poor intrinsic healing.
A repairable tear approximates two vascularised edges so that a fibrovascular healing response can bridge the defect. This is why tear location (zone), pattern (vertical/longitudinal apposes well; complex/horizontal does not) and tissue quality are the dominant determinants of success, and why biological augmentation (marrow venting, fibrin clot, PRP, trephination) is used to stimulate healing in less vascular zones.
Clinical Presentation
- History — twisting/pivoting injury (traumatic tears) or insidious onset (degenerate); joint-line pain; true mechanical locking or catching suggests a displaced (bucket-handle) fragment; recurrent effusions.
- Examination — joint-line tenderness, positive McMurray and Thessaly tests, effusion, and a possible block to terminal extension with a locked bucket-handle tear. Assess ligamentous stability (Lachman/pivot-shift) as concurrent ACL injury is common and influences healing.
- Root tears — may present with a sudden pop and posterior knee pain, rapid functional decline and meniscal extrusion; biomechanically equivalent to total meniscectomy if untreated.
Investigations
- MRI — investigation of choice; defines tear pattern, length, zone (vascularity) and rim width, and detects root tears (radial gap, "ghost sign", meniscal extrusion over 3mm). Helps predict repairability before surgery.
- Weight-bearing radiographs — assess limb alignment and degenerative change, which strongly influence whether a tear is repairable or better resected; long-leg views if realignment osteotomy is considered.
- Diagnostic arthroscopy — the definitive assessment of tissue quality and stability (probing for displacement over 3mm). The final repair-versus-resect decision is frequently made intra-operatively.
Indications and Contraindications
Indications for Repair
- Tear pattern: Vertical longitudinal (including bucket handle)
- Location: Red-red or red-white zone (peripheral)
- Length: Greater than 10mm
- Stability: Unstable tear (greater than 3mm displacement)
- Tissue quality: Good meniscal tissue, not degenerative
- Patient factors: Younger, active patients
- ACL reconstruction: Concurrent ACL recon improves healing
Contraindications to Repair
- White-white zone (avascular)
- Complex or degenerative tears
- Significant tissue loss
- Poor tissue quality
- Chronic tears (may still attempt but lower success)
- Older, low-demand patients (relative)
Management: Repair Techniques
Gold Standard for posterior horn tears.
Technique: Sutures passed from inside joint through meniscus and capsule. Needles exit posteriorly. Requires posterior incision to protect neurovascular structures and retrieve/tie sutures over capsule.
Protection: Posteromedial incision protects saphenous nerve (medial). Posterolateral incision protects peroneal nerve (lateral).
Advantages: Strong repair, multiple sutures, gold standard for posterior horn.
Disadvantages: Requires second incision, nerve risk.

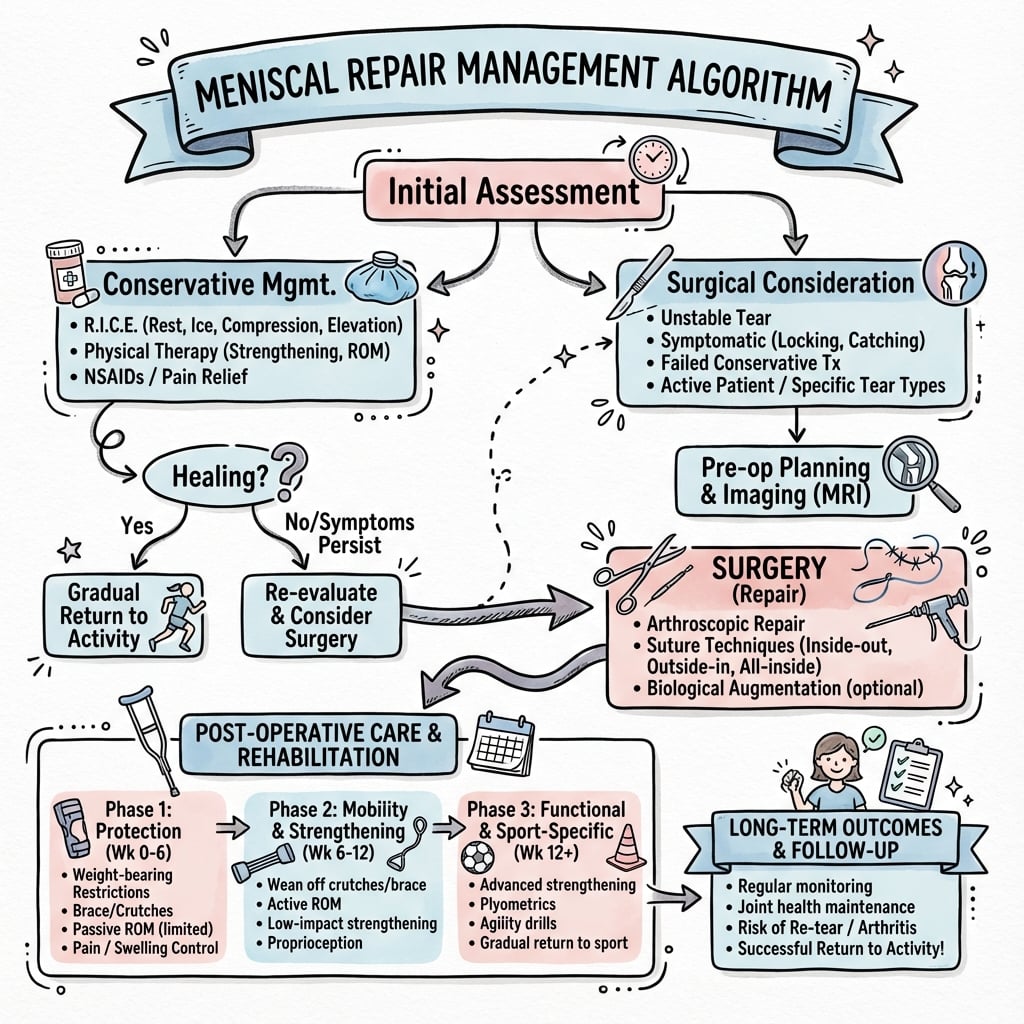

Treatment Algorithm

Complications and Outcomes
- Repair failure / re-tear — the principal concern; pooled long-term failure is roughly 23% (Nepple meta-analysis), and revision repair has substantially lower success (about 40-50%). Failure is more likely with white-zone, complex, chronic and older-patient tears.
- Saphenous nerve injury (medial inside-out) and common peroneal nerve injury (lateral inside-out) — prevented by a protective posterior incision and direct suture retrieval; nerve symptoms are reported in around 9% with inside-out repair.
- Implant-related problems (all-inside) — chondral abrasion from rigid/older devices, implant migration, breakage and local soft-tissue irritation.
- Other — stiffness/arthrofibrosis, infection, persistent effusion, and progression to osteoarthritis if the repair fails and meniscectomy becomes necessary.
- Post-meniscectomy syndrome — pain and early arthritis after tissue loss; in young patients this may ultimately be salvaged with meniscal allograft transplantation.
Evidence Base
- Systematic review/meta-analysis of 13 studies (566 repairs) with minimum 5-year follow-up
- Pooled meniscal repair failure (reoperation or clinical failure) was 23.1% (131/566)
- Failure rates were similar for medial vs lateral and for intact vs reconstructed ACL knees
- Pooled failure varied only narrowly (about 22-24%) across techniques studied
- Systematic review of 19 studies of isolated longitudinal (bucket-handle) tears in ACL-stable knees
- Clinical failure 17% inside-out vs 19% all-inside (no significant difference)
- Nerve injury/irritation more common with inside-out (9% vs 2%)
- Implant migration, breakage and chondral injury more common with all-inside (older rigid devices)
Differential Diagnosis
A locked or painful knee with a suspected meniscal tear has a broad differential. The table below contrasts the key mimics an examiner expects you to exclude before committing to meniscal repair.
Differential Diagnosis of the Painful/Locked Knee
| 0 | 1 | 2 | 3 |
|---|---|---|---|
| Repairable meniscal tear | Joint-line pain, true mechanical locking, twisting injury, effusion | MRI: vertical/longitudinal tear in peripheral zone | Tear in red-red/red-white zone, vertical pattern, stable rim |
| Degenerative meniscal tear | Older patient, insidious onset, horizontal/complex pattern, early OA | MRI plus weight-bearing radiographs | Avascular/degenerate tissue, OA changes - favours non-operative or debridement, not repair |
| Meniscal root tear | Sudden pop, posterior pain, meniscal extrusion, rapid OA | MRI: 'ghost sign', radial gap at root, extrusion over 3mm | Biomechanically equals total meniscectomy; needs root repair not standard repair |
| ACL rupture | Pivot injury, haemarthrosis, instability/giving way | Lachman/pivot-shift, MRI | Instability rather than locking; often coexists and aids meniscal healing |
| Osteochondral lesion / loose body | Catching, locking, effusion, may follow trauma | Radiographs, MRI, CT | Cartilage/bone fragment seen; locking from loose body not meniscus |
| Discoid lateral meniscus | Younger patient, snapping/clunking lateral knee | MRI: greater than 3 contiguous sagittal slices ('bow-tie sign') | Congenital morphology; saucerisation with repair of unstable rim, not simple repair |
| Patellofemoral pain | Anterior pain, worse on stairs/sitting, no true locking | Clinical, skyline view | No joint-line tenderness or mechanical block |
Controversies and Areas of Uncertainty
- Repair in the white-white (avascular) zone — Traditional teaching forbids it, but biological augmentation (marrow venting, fibrin clot, PRP, trephination) has expanded the boundary. Evidence remains low-level; the central-third tear in a young patient is the genuine grey area.
- All-inside vs inside-out durability — Equivalence reviews (Grant, Samuelsen) coexist with a 2024 meta-analysis (Villarreal-Espinosa) showing about 1.77x higher failure odds for all-inside. The signal is modest and confounded by athlete cohorts; most surgeons choose by tear location and access.
- ACL status and healing — Older literature taught markedly better healing with concurrent ACL reconstruction, yet Nepple's long-term meta-analysis found similar failure regardless of ACL status. The biological benefit is real but probably smaller and tear-pattern dependent than classically stated.
- Biological augmentation — Marrow stimulation, fibrin clot, PRP and bone-marrow aspirate are increasingly used, but high-quality RCT evidence of a healing benefit is still limited.
- Rehabilitation aggressiveness — Restricted protocols (limited flexion, protected weight-bearing) versus accelerated free rehabilitation show comparable healing in several series; the optimal protocol, especially for root and radial repairs, is unsettled.
- Lateral meniscus stability tears at ACL reconstruction — Whether to repair or leave stable, short, peripheral lateral tears (the "leave-alone" lesion) remains debated; many heal without intervention in the ACL-reconstructed knee.
Exam Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Scenario 1: Meniscal Repair Indications
"A 25-year-old has an ACL tear with a bucket handle medial meniscal tear. How do you manage the meniscus?"
Scenario 2: Red-White Zone Meniscal Tear - Complex Decision-Making
"You are performing an ACL reconstruction in a 28-year-old semi-professional footballer who sustained his injury 6 weeks ago. During arthroscopy, you identify a vertical longitudinal tear of the medial meniscus posterior horn measuring approximately 15mm in length. The tear is located at the red-white junction (approximately 4mm from the peripheral rim). The tear is unstable with greater than 5mm displacement on probing. The meniscal tissue appears healthy with no degenerative changes. Your assistant questions whether this tear should be repaired or resected, given that it is not fully in the red-red zone. The patient is high-demand and wants to return to professional football. How do you counsel the patient and what is your management plan?"
Scenario 3: Failed Meniscal Repair - Revision Decision-Making
"You are seeing a 26-year-old woman in your clinic 18 months after you performed an ACL reconstruction and medial meniscal repair for a bucket handle tear. She initially did well for the first 9 months post-operatively, achieving full range of motion and returning to recreational netball at 10 months. However, over the past 3 months she has developed progressive medial knee pain, mechanical symptoms (clicking and occasional locking), and swelling after activity. On examination, she has a positive McMurray test medially, a small effusion, and tenderness along the medial joint line. Her ACL reconstruction is stable (negative Lachman and pivot shift). You order an MRI which shows that the previously repaired medial meniscus has re-torn - there is a recurrent vertical longitudinal tear at the same location (posterior horn, red-white zone), measuring approximately 12mm. The ACL graft appears intact and well-incorporated. There is no chondral damage visible on MRI. She is devastated that the repair has failed and asks what can be done. What is your assessment and what are the management options?"
Guidelines, Registries & Global Practice
Global Epidemiology
- Meniscal tears are among the most common knee injuries, with reported surgical incidence of roughly 60-70 per 100,000 person-years in high-income settings; a clear bimodal pattern (young athletes with traumatic vertical tears, older adults with degenerative tears).
- Root tears account for an estimated 10-21% of all meniscal tears.
- The proportion of meniscal operations that are repairs (rather than meniscectomy) has risen steadily over two decades as meniscus preservation became the prevailing philosophy, but meniscectomy still predominates worldwide, especially in degenerate tears.
Guideline Comparison
How Major Bodies Frame Meniscal Surgery
| 0 | 1 | 2 |
|---|---|---|
| AAOS (US) | Strong recommendation against arthroscopic surgery for degenerative meniscal tears with concurrent knee OA; supports repair of repairable traumatic tears | Preserve meniscus in traumatic tears; avoid debridement in OA knees |
| ESSKA (Europe) | Consensus that degenerative meniscal lesions should first be managed non-operatively; arthroscopy reserved for true mechanical symptoms after failed rehabilitation | Stepwise care; clear distinction degenerative vs traumatic |
| NICE / BOA (UK) | Arthroscopic lavage and debridement not recommended for knee OA; physiotherapy first line for degenerate tears | Avoid low-value arthroscopy; rehabilitation first |
| AO Foundation / sports societies | Repair preferred over resection whenever the tear is repairable to protect against post-meniscectomy arthritis | Technique selection by tear pattern and zone |
Registry & Trial Evidence
- Landmark RCTs (e.g. degenerative tear trials from Finland and Scandinavia) showed arthroscopic partial meniscectomy offers no durable benefit over sham surgery or structured exercise for degenerative tears with mild OA - reinforcing repair/preservation only where biologically sensible and non-operative care for degenerate disease.
- Long-term cohort and registry data consistently link meniscectomy with accelerated radiographic osteoarthritis, underpinning the global shift toward preservation.
High- vs Limited-Resource Practice
- Well-resourced settings: ready access to MRI, arthroscopic all-inside implants and inside-out instrumentation; root repair, biological augmentation and meniscal allograft transplantation available in specialist centres.
- Limited-resource settings: MRI and proprietary all-inside devices may be scarce; outside-in and inside-out repair using standard sutures are cost-effective, durable alternatives. Meniscectomy may be chosen for pragmatic reasons, making careful patient selection and counselling on long-term arthritis risk especially important.
MENISCAL REPAIR
Clinical summary
Vascular Zones
- •Red-red: Outer 3mm, 85-90% healing
- •Red-white: Middle, 65-75% healing
- •White-white: Central, less than 50% healing
Repair Indications (VOLAR)
- •Vertical tear pattern
- •Outer (peripheral) zone
- •Length greater than 10mm
- •ACL reconstruction setting
- •Repairable tissue quality
Techniques
- •Inside-out: Gold standard posterior horn
- •All-inside: Popular, no second incision
- •Outside-in: Anterior horn
Key Points
- •Preserve meniscus to prevent arthritis
- •ACL recon improves healing
- •Protect repair (limit flexion 6 weeks)
