Cuboid Compression | Lisfranc Association | Lateral Column Shortening
FRACTURE PATTERNS
Critical Must-Knows
- Nutcracker fracture = cuboid compression between calcaneus and 4th/5th metatarsals during forced plantarflexion and abduction
- Often associated with Lisfranc injuries - Nutcracker fracture suggests midfoot instability, always check for Lisfranc injury
- Lateral column shortening - Compression causes impaction and bone loss, leading to lateral column shortening and midfoot collapse
- ORIF with bone graft required - Restore lateral column length with bone graft, prevent midfoot collapse
- Bone graft essential - Compression mechanism causes impaction, bone loss requires structural graft to restore length
Clinical Pearls
- "Nutcracker = compression between calcaneus and metatarsals
- "Always check for Lisfranc injury
- "Bone graft essential for impaction
- "Restore lateral column length
Critical Nutcracker Fracture Exam Points
Nutcracker Mechanism
Nutcracker fracture = cuboid compression - Compression between calcaneus and 4th/5th metatarsals during forced plantarflexion and abduction. Causes impaction and bone loss. Classic mechanism for cuboid fractures.
Chopart / Lisfranc Association
Nutcracker fracture suggests midfoot instability - Isolated cuboid fractures are rare; most arise within a Chopart (midtarsal) or Lisfranc injury complex. Always actively exclude associated midfoot injury — both components usually require ORIF.
Lateral Column Shortening
Compression causes impaction and shortening - Bone loss leads to lateral column shortening and midfoot collapse. ORIF with bone graft required to restore length and prevent collapse.
Bone Graft Essential
Structural bone graft required - Compression mechanism causes impaction and bone loss. Autograft from calcaneus or iliac crest. Allograft acceptable. Essential to restore lateral column length.
Nutcracker Fractures - Quick Decision Guide
| Pattern | Impaction | Treatment | Outcome |
|---|---|---|---|
| Type I | Isolated cuboid compression | ORIF with bone graft | 80-85% good results |
| Type II | With Lisfranc injury | ORIF both injuries | 75-85% good results |
| Type III | Severe impaction | ORIF with structural graft | 70-80% good results |
NUTCRACKERNutcracker Fracture Features
| N | Nutcracker Compression mechanism |
| U | Usually Associated with Lisfranc |
| T | Tarsal Cuboid compression |
| C | Compression Impaction injury |
| R | Restore Lateral column length |
| A | Abduction Forced abduction |
| C | Calcaneus Compressed against |
| K | Keystone Lateral column |
| E | Examine Check for Lisfranc |
| R | Restore ORIF with graft |
| N | Nutcracker Compression mechanism | C | Compression Impaction injury | C | Calcaneus Compressed against | R | Restore ORIF with graft |
| U | Usually Associated with Lisfranc | R | Restore Lateral column length | K | Keystone Lateral column | ||
| T | Tarsal Cuboid compression | A | Abduction Forced abduction | E | Examine Check for Lisfranc |
Hook:NUTCRACKER: Nutcracker mechanism, Usually associated with Lisfranc, Tarsal cuboid compression, Compression injury, Restore lateral column, Abduction mechanism, Calcaneus compression, Keystone of lateral column, Examine for Lisfranc, Restore with ORIF and bone graft!
GRAFTTreatment Decision
| G | Graft Bone graft essential |
| R | Restore Lateral column length |
| A | Anatomic Anatomic reduction |
| F | Fixation Screws or plate |
| T | Treatment ORIF required |
| G | Graft Bone graft essential | F | Fixation Screws or plate |
| R | Restore Lateral column length | T | Treatment ORIF required |
| A | Anatomic Anatomic reduction |
Hook:GRAFT: Graft essential, Restore lateral column length, Anatomic reduction, Fixation with screws or plate, Treatment is ORIF!
ALWAYSLisfranc Association
| A | Always Always check |
| L | Lisfranc For Lisfranc injury |
| W | With With nutcracker |
| A | Associated 30-40% associated |
| Y | Yes Yes, check always |
| S | Surgery Both need surgery |
| A | Always Always check | W | With With nutcracker | Y | Yes Yes, check always |
| L | Lisfranc For Lisfranc injury | A | Associated 30-40% associated | S | Surgery Both need surgery |
Hook:ALWAYS: Always check for Lisfranc, Lisfranc injury, With nutcracker fracture, Associated in 30-40%, Yes check always, Surgery for both!
Overview and Epidemiology
Nutcracker fractures are compression injuries of the cuboid bone resulting from the nutcracker mechanism - compression between the calcaneus and 4th/5th metatarsals during forced plantarflexion and abduction. These fractures are often associated with Lisfranc injuries and require ORIF with bone graft to restore lateral column length.
Definition
Nutcracker fracture: Compression fracture of the cuboid bone, which:
- Mechanism: Nutcracker (compression between calcaneus and metatarsals)
- Location: Lateral midfoot (cuboid)
- Impaction: Causes bone loss and shortening
- Association: Often with Lisfranc injuries
Nutcracker mechanism:
- Compression: Between calcaneus and 4th/5th metatarsals
- Forced plantarflexion and abduction: Classic mechanism
- Impaction: Causes bone loss and lateral column shortening
- Lisfranc: Often associated with midfoot instability
Epidemiology
- Incidence: Rare — cuboid fractures account for under 1% of foot fractures, and the compression (nutcracker) subtype is rarer still
- Age: Predominantly adult trauma population; also described in children and adolescents (Fenton type 2 most common in children)
- Gender: No clear predominance
- Mechanism: Forced forefoot abduction with axial load; usually higher-energy, but low-energy and even classmate-collision injuries are reported in children
- Associated injuries: Isolated cuboid fractures are uncommon — most occur within a Chopart (midtarsal) or Lisfranc injury complex, so a high index of suspicion for associated midfoot injury is mandatory
Nutcracker Mechanism
Nutcracker fracture = cuboid compression - The cuboid is crushed between the calcaneus and the bases of the 4th/5th metatarsals when the forefoot is forced into abduction, causing impaction and lateral column shortening. Because isolated cuboid fractures are rare, always actively exclude an associated Chopart or Lisfranc injury.
Anatomy and Pathophysiology
Cuboid Anatomy
Cuboid bone:
- Location: Lateral midfoot
- Function: Keystone of lateral column
- Articulations: Calcaneus (proximal), 4th/5th metatarsals (distal), navicular (medial), lateral cuneiform (medial)
- Blood supply: Branches from dorsalis pedis and lateral plantar arteries
Lateral column:
- Components: Calcaneus, cuboid, 4th/5th metatarsals
- Function: Lateral foot stability and weight bearing
- Cuboid role: Keystone, maintains lateral column length
Nutcracker mechanism:
- Compression: Between calcaneus and 4th/5th metatarsals
- Forced plantarflexion and abduction: Classic mechanism
- Impaction: Causes bone loss and shortening
Pathophysiology
Injury mechanism:
- Forced plantarflexion and abduction: Classic mechanism
- Compression: Cuboid compressed between calcaneus and metatarsals
- Impaction: Causes bone loss and lateral column shortening
- Lisfranc association: Often associated with midfoot instability (30-40%)
Why impaction matters:
- Bone loss: Compression causes impaction and bone loss
- Lateral column shortening: Loss of length causes midfoot collapse
- Arthritis risk: Shortening leads to lateral column arthritis
Why bone graft essential:
- Restore length: Bone graft restores lateral column length
- Prevent collapse: Prevents midfoot collapse
- Structural support: Provides structural support for articular surface
Classification Systems
Pattern-Based Classification
Type I (Isolated cuboid compression):
- Isolated nutcracker fracture
- Impaction with bone loss
- Treatment: ORIF with bone graft
- Outcome: 80-85% good results
Type II (With Lisfranc injury):
- Nutcracker fracture with Lisfranc injury
- Treatment: ORIF both injuries
- Outcome: 75-85% good results
Type III (Severe impaction):
- Severe impaction with significant bone loss
- Treatment: ORIF with structural graft
- Outcome: 70-80% good results
Pattern guides treatment approach.
Clinical Assessment
History
Symptoms:
- Lateral foot pain: Pain on lateral side of foot
- Swelling: Localised to lateral midfoot
- Difficulty weight bearing: Pain with weight bearing
- Mechanism: Forced plantarflexion and abduction
Risk factors:
- High-energy trauma
- Lisfranc injury mechanism
- Midfoot instability
Physical Examination
Inspection:
- Swelling on lateral midfoot
- Ecchymosis (may be delayed)
- Deformity (lateral column shortening if displaced)
Palpation:
- Tenderness over cuboid
- Lisfranc joint tenderness (if associated)
- Lateral column instability
Range of Motion:
- Midfoot ROM limited and painful
- Inversion/eversion painful
- Plantarflexion/dorsiflexion painful
Special tests:
- Lisfranc stress test: Check for midfoot instability
- Lateral column stress: Pain with stress
- Midfoot alignment: Check for collapse
Clinical Examination Key Point
Always check for associated midfoot injury - Isolated cuboid fractures are rare, so any nutcracker fracture should prompt a careful search for an associated Chopart or Lisfranc injury. Perform a Lisfranc stress test, assess midfoot stability, and obtain CT to evaluate the whole midfoot. Routinely assess for compartment syndrome in higher-energy injuries.
Investigations
Standard X-ray Protocol
AP view:
- May show cuboid compression
- Check for Lisfranc injury
Lateral view:
- May show fracture
- Assess lateral column alignment
Oblique view:
- May show compression better
- Lisfranc joint view
Key point: CT is often needed for diagnosis and planning.
Management Algorithm
Management Pathway

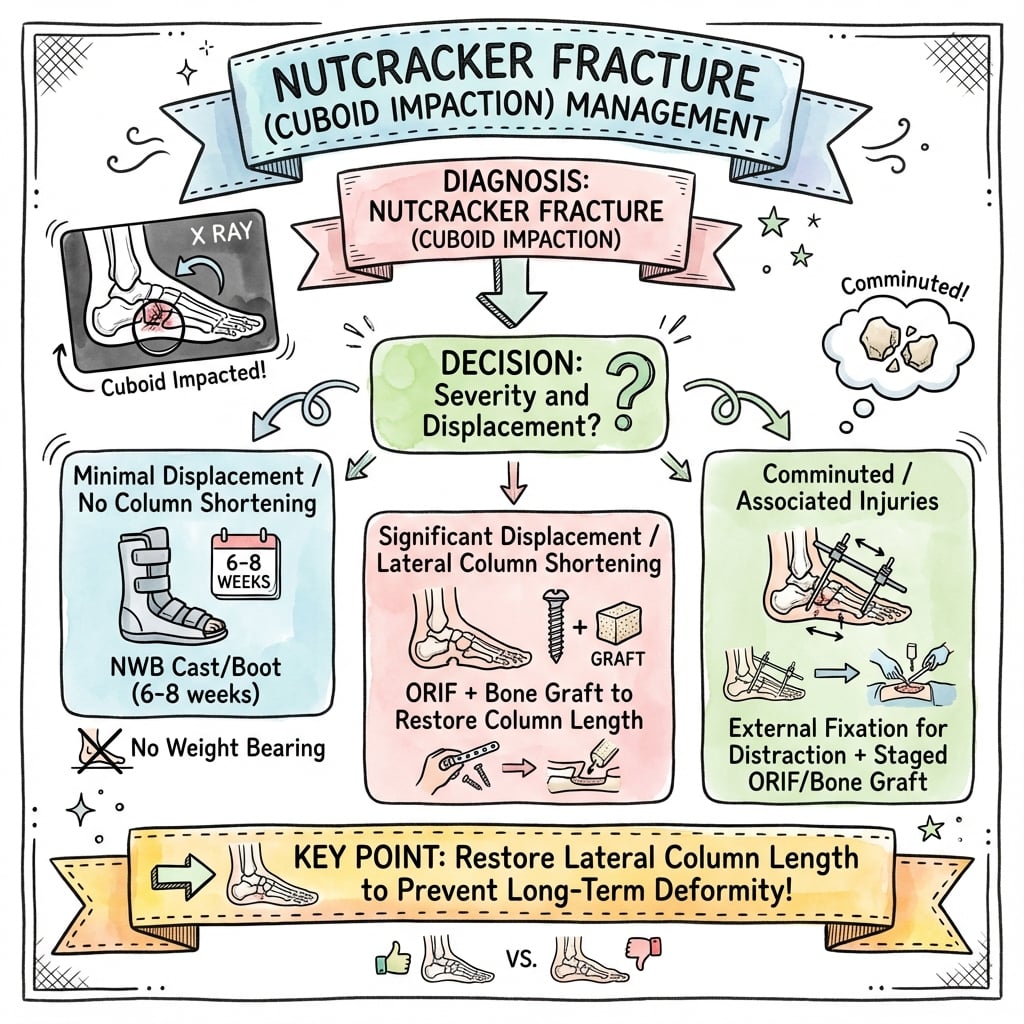

Nutcracker Fracture Management
CT is usually required for diagnosis - nutcracker fractures show impaction and bone loss. Assess impaction severity, associated Lisfranc injury, and lateral column shortening. Check for midfoot instability.
If isolated nutcracker fracture, ORIF with bone graft required. Restore lateral column length. Autograft from calcaneus or iliac crest. Allograft acceptable. Success rate 80-85%.
If associated with Lisfranc injury, address both injuries. Cuboid ORIF with bone graft as part of Lisfranc fixation. Restore lateral column length and midfoot stability. Success rate 75-85%.
If severe impaction with significant bone loss, structural bone graft required. Autograft from iliac crest preferred. Restore lateral column length and prevent collapse. Success rate 70-80%.
Surgical Technique
ORIF with Bone Graft Technique
Indications:
- Nutcracker fractures with impaction
- Lateral column shortening
- Bone loss requiring restoration
Approach:
- Lateral approach to cuboid
- Expose cuboid
- Protect peroneal tendons
Technique:
- Exposure: Lateral approach to cuboid, expose fracture, protect peroneal tendons
- Debridement: Remove impacted bone fragments, assess bone loss
- Bone graft: Fill impaction defect with bone graft - autograft from calcaneus or iliac crest (preferred for structural support), allograft acceptable, structural graft if severe impaction
- Reduction: Restore lateral column length, reduce fracture anatomically
- Fixation: Screws (2.7-3.5mm) or mini-fragment plate (2.0-2.7mm)
- Verification: Confirm reduction and hardware position fluoroscopically, verify lateral column length restored (compare to contralateral)
Advantages:
- Restores lateral column length
- Prevents midfoot collapse
- Allows early motion
ORIF with bone graft restores lateral column length.
Complications
| Complication | Incidence | Risk Factors | Prevention/Management |
|---|---|---|---|
| Lateral column shortening | 15-20% | Inadequate bone graft, severe impaction | Structural graft, restore length |
| Midfoot collapse | 15-20% | Lateral column shortening | Restore length, adequate fixation |
| Missed associated injury | Common | Focus on cuboid only; injury often missed at first presentation | CT whole midfoot, exclude Chopart/Lisfranc |
| Nonunion | 5-10% | Inadequate fixation, bone loss | Rigid fixation, bone graft |
Lateral Column Shortening
15-20% incidence (if untreated):
- Cause: Inadequate bone graft, severe impaction, bone loss
- Prevention: Structural bone graft, restore length, adequate fixation
- Management: Revision ORIF with structural graft if symptomatic
Midfoot Collapse
15-20% incidence (if untreated):
- Cause: Lateral column shortening, inadequate fixation
- Prevention: Restore length, adequate fixation
- Management: Revision ORIF or midfoot fusion if severe
Postoperative Care
Immediate Postoperative
- Immobilisation: Short leg cast or boot
- Weight bearing: Non-weight bearing (6-8 weeks)
- ROM: Ankle ROM after cast removal
- PT: Midfoot ROM and strengthening
Rehabilitation Protocol
Weeks 0-6:
- Short leg cast, non-weight bearing
- Elevation to reduce swelling
- Ankle ROM exercises (if stable)
Weeks 6-8:
- CT to confirm healing
- Cast removal if healing
- Transition to walking boot
- Progressive weight bearing
Weeks 8-12:
- Full weight bearing
- Progressive activity
- Return to sport (3-4 months)
Outcomes and Prognosis
Overall Outcomes
ORIF with bone graft (isolated):
- Success rate: 80-85% (union, pain relief)
- Functional outcomes: 75-80% return to pre-injury level
- Lateral column: 80-85% maintain length
ORIF with bone graft (part of Lisfranc):
- Success rate: 75-85% (union, pain relief)
- Functional outcomes: 70-75% return to pre-injury level
- Lateral column: 75-80% maintain length
ORIF with structural graft (severe impaction):
- Success rate: 70-80% (union, pain relief)
- Functional outcomes: 65-70% return to pre-injury level
- Lateral column: 70-75% maintain length
Long-Term Prognosis
Lateral column shortening progression:
- With proper treatment: 15-20% develop shortening
- Without treatment: 30-40% develop shortening
- Risk factors: Severe impaction, inadequate graft, delayed treatment
Evidence Base
All evidence below has been verified against PubMed. Named reviews are cited at their stated level; primary case series carry their PubMed identifiers.
Original Description of the Nutcracker Fracture
- Coined the term 'nutcracker fracture' of the cuboid
- Mechanism: cuboid crushed between calcaneus and metatarsal bases
- Caused by indirect violence with forefoot abduction
- Foundational eponym still used in exams and practice
Cuboid Fractures: Critical Analysis Review
- Isolated cuboid fractures are rare — actively exclude Chopart/Lisfranc injury
- Cuboid is the cornerstone of the lateral column
- No validated clinical classification system exists
- Non-operative only for non-displaced (under 1 mm) or avulsion fractures
ORIF and Bone Grafting for Nutcracker Fractures
- All 6 fractures showed lateral column shortening
- Treated with ORIF plus allograft where bone loss present
- Operate if shortening or articular step greater than 1 mm
- Outcomes good in 2, fair in 4 — function often imperfect
Cuboid Nutcracker Fractures in Children: Management and Results
- Fenton classification applied; extra-articular type 2 most common (69%)
- Intra-articular involvement and midfoot disruption worsen AOFAS scores
- Paediatric remodelling means bone grafting often unnecessary
- Articular and associated injuries are the key prognostic drivers
Chopart Dislocations: Systematic Review
- 58 papers synthesised — historically poor outcomes for these injuries
- Routine CT and compartment syndrome assessment advised
- Urgent ORIF restoring column length gives best outcomes
- High rate of missed injury at first presentation
Chopart Joint Injuries — Contemporary Review
- Low incidence but high complication rate if missed or undertreated
- Combined bony and ligamentous injury requires column realignment
- Fixation construct tailored to pattern and soft-tissue envelope
- Prompt recognition and anatomic fixation predict good outcomes
Differential Diagnosis
Lateral midfoot pain after a twisting or abduction injury has several causes. The nutcracker fracture is distinguished by cuboid impaction with lateral column shortening on imaging.
Differential Diagnosis of Lateral Midfoot Pain / Cuboid Injury
| Diagnosis | Key Mechanism / Feature | Discriminating Finding | Implication |
|---|---|---|---|
| Nutcracker (cuboid impaction) fracture | Forced forefoot abduction, axial load | Cuboid compression with lateral column shortening on AP X-ray / CT | ORIF, restore length, graft impaction |
| Cuboid avulsion fracture | Low-energy inversion (calcaneocuboid ligament) | Small lateral fleck, no shortening, no articular step | Usually non-operative if under 1 mm |
| Lisfranc injury | Axial load on plantarflexed foot | Tarsometatarsal malalignment, fleck sign, C1-M2 diastasis | ORIF / fusion; commonly coexists with nutcracker |
| Chopart fracture-dislocation | High-energy midtarsal force | Talonavicular and/or calcaneocuboid disruption on CT | Urgent ORIF, restore both columns |
| Peroneal tendon injury / subluxation | Acute dorsiflexion-eversion | Tenderness/clicking behind lateral malleolus, normal bone | Tendon-directed treatment |
| Os peroneum / stress lesion | Chronic overload, painful os peroneum | Sesamoid within peroneus longus, no acute trauma | Conservative, consider excision if refractory |
Controversies and Areas of Uncertainty
No Validated Classification
The 2020 critical analysis review (Engelmann/Rammelt/Schepers) concluded that no classification system is validated for clinical practice — none reliably guides management or predicts outcome. The Fenton system is descriptive (and was derived in part from paediatric cohorts). Treatment is principle-based (restore congruity, length, stability), not classification-driven.
Graft Type and Necessity
Whether autograft, allograft, or synthetic/calcium-phosphate substitute best fills the impaction defect is unsettled — series report all three with acceptable results, and one paediatric series needed no graft at all. The principle (support the elevated articular surface and maintain length) matters more than the material.
Fixation Construct
Choice between lag screws, mini-fragment plates, temporary bridge plating across the calcaneocuboid joint, or external/internal distraction is individualised to comminution and soft tissues. Bridge constructs are typically removed after union; high-quality comparative data are lacking.
Threshold for Surgery
The widely quoted operative threshold (articular step or shortening greater than 1-2 mm) derives from small case series and expert opinion, not trials. The displacement at which non-operative care fails is not precisely defined.
Examiner-Level Nuance
Do not present fabricated percentages for "Lisfranc association" — the honest, defensible statement is that isolated cuboid fractures are rare and most occur within a Chopart or Lisfranc complex, so associated injury must be actively excluded. Evidence in this area is almost entirely Level IV/V (case reports and small series); there are no randomised trials.
Exam Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Scenario 1: Isolated Nutcracker Fracture
"A 28-year-old patient presents with lateral foot pain after forced plantarflexion and abduction injury. CT shows nutcracker fracture of cuboid with impaction and bone loss. No associated Lisfranc injury."
Scenario 2: Nutcracker with Lisfranc Injury
"A 32-year-old patient has a nutcracker fracture as part of a Lisfranc injury. The examiner asks you to explain how you manage both injuries and why bone graft is essential."
Scenario 3: Comminuted Cuboid with Severe Impaction
"A 40-year-old motorcyclist sustains a high-energy foot injury. CT shows a severely comminuted cuboid with marked articular impaction and lateral column shortening greater than 5 mm, plus a calcaneocuboid joint disruption. The skin over the lateral midfoot is swollen and blistered. The examiner asks how you would assess and manage this."
MCQ Practice Points
Nutcracker Mechanism
Q: What is the nutcracker mechanism for cuboid fractures? A: Compression between calcaneus and 4th/5th metatarsals - During forced plantarflexion and abduction. Causes impaction and bone loss. Often associated with Lisfranc injuries (30-40%).
Chopart / Lisfranc Association
Q: Why does a nutcracker fracture mandate a search for other midfoot injury? A: Isolated cuboid fractures are rare - The same forefoot-abduction force that crushes the cuboid commonly disrupts the Chopart (midtarsal) or Lisfranc (tarsometatarsal) joints. A nutcracker fracture therefore signals possible midfoot instability — obtain CT, exclude Chopart/Lisfranc injury, and fix all unstable components.
Bone Graft
Q: Why is bone graft essential for nutcracker fractures? A: Compression mechanism causes impaction and bone loss - Structural bone graft required to restore lateral column length. Autograft from calcaneus or iliac crest (preferred). Prevents lateral column shortening and midfoot collapse.
Lateral Column
Q: Why is lateral column length important in nutcracker fractures? A: Cuboid is keystone of lateral column - Loss of length causes lateral column shortening and midfoot collapse. ORIF with bone graft required to restore length. Success rate 80-85% if length restored.
ORIF Indications
Q: When is ORIF with bone graft required for nutcracker fractures? A: Impaction with bone loss or associated Lisfranc injury - Restores lateral column length and prevents midfoot collapse. Structural bone graft essential. Success rate 80-85% for isolated, 75-85% with Lisfranc.
Guidelines, Registries & Global Practice
There is no dedicated arthroplasty/implant registry for cuboid fractures, and no randomised trial evidence — guidance is principle-based across societies and synthesised in critical-analysis and systematic reviews.
Guidance Across Major Bodies (Principle-Based)
| Source / Society | Position on Cuboid / Nutcracker Fracture |
|---|---|
| AO Foundation / AOTrauma | Cuboid is the keystone of the lateral column; goals are restoration of length, articular congruity and Chopart/Lisfranc stability. Disimpaction, bone-void filling and buttress fixation (lag screw, mini-fragment plate or temporary CC bridge plate) are described. |
| JBJS Reviews critical analysis (Engelmann/Rammelt/Schepers, 2020) | Non-operative care only for non-displaced articular fractures (under 1 mm) or low-energy avulsions; operate to restore congruity, length and stability. No classification validated for clinical use. |
| BOA / BOAST (UK) — open fractures & foot trauma principles | Apply general standards: timely senior assessment, CT for midfoot trauma, soft-tissue-led timing of fixation, compartment-syndrome vigilance in high-energy foot injuries. |
| Foot & Ankle reviews (Chopart injuries, 2023-2024) | Treat within the Chopart complex: routine CT, exclude compartment syndrome, urgent anatomic reduction maintaining column length gives best long-term outcomes. |
Global Epidemiology
- Cuboid fractures: under 1% of foot fractures worldwide; the compression (nutcracker) subtype is rarer still
- Reported across all regions and ages; paediatric cases described with Fenton type 2 predominating
- Evidence base is uniformly low level (case reports, small series) — no geographic registry data
High- vs Limited-Resource Practice
- Well-resourced settings: CT and 3D planning routine; mini-fragment plating, structural graft/substitutes and staged soft-tissue care available
- Limited-resource settings: reliance on plain radiographs (risk of missed injury), K-wire fixation and provisional external fixation; bone substitutes may be unavailable, favouring autograft
- Across all settings the principle is identical: restore lateral column length and articular congruity
Orthopaedic Exam Relevance
Nutcracker fractures are a common viva topic. Know the mechanism (cuboid crushed between calcaneus and metatarsal bases in forced forefoot abduction), that isolated fractures are rare so a Chopart/Lisfranc injury must always be excluded, that ORIF restores articular congruity and lateral column length, that bone graft fills impaction defects to prevent shortening, and that comminuted patterns may need bridge plating or external distraction. Be prepared to discuss the mechanism and why lateral column length restoration is central.
NUTCRACKER FRACTURES
Clinical summary
Key Concepts
- •Nutcracker mechanism = compression between calcaneus and 4th/5th metatarsals
- •Often associated with Lisfranc injuries (30-40%)
- •Bone graft essential for impaction
- •Restore lateral column length
Classification
- •Type I: Isolated cuboid compression - ORIF with bone graft (80-85% good results)
- •Type II: With Lisfranc injury - ORIF both injuries (75-85% good results)
- •Type III: Severe impaction - ORIF with structural graft (70-80% good results)
- •Key Factor: Impaction severity dictates graft requirement
Treatment
- •Isolated: ORIF with bone graft (autograft from calcaneus or iliac crest, 80-85% good results)
- •With Lisfranc: ORIF both injuries with bone graft (75-85% good results)
- •Severe impaction: ORIF with structural graft (70-80% good results)
- •Bone graft essential to restore lateral column length
Surgical Technique
- •Lateral approach: Protect peroneal tendons
- •Debride impacted bone, assess bone loss
- •Bone graft: Fill impaction defect (autograft preferred, structural if severe)
- •Fixation: Screws (2.7-3.5mm) or mini-fragment plate (2.0-2.7mm)
- •Restore lateral column length
- •Verify reduction fluoroscopically
Complications
- •Lateral column shortening: 15-20% if untreated (prevent with bone graft, restore length)
- •Midfoot collapse: 15-20% if untreated (prevent with adequate fixation)
- •Missed associated injury: common, often missed at first presentation (prevent by CT of whole midfoot, exclude Chopart/Lisfranc)
- •Nonunion: 5-10% (prevent with rigid fixation, bone graft)
