STAGES OF OSSEOINTEGRATION
Critical Must-Knows
- Osseointegration = direct structural and functional connection between bone and implant surface
- Titanium is gold standard due to oxide layer and biocompatibility
- Surface roughness (1-10 micrometers) enhances bone apposition and integration
- Primary stability (press-fit) essential for successful secondary biological fixation
- Micromotion greater than 150 micrometers inhibits osseointegration and promotes fibrous tissue
Clinical Pearls
- "Distance osteogenesis (bone grows from host bed) requires gap less than 500 micrometers
- "Contact osteogenesis (bone forms on implant) requires rough surface and biocompatible material
- "Porous coatings allow bone ingrowth (50-400 micrometer pores optimal)
- "Hydroxyapatite coating accelerates early integration but may degrade over time
Critical Osseointegration Exam Points
Definition
Osseointegration is direct bone-to-implant contact without intervening fibrous tissue layer. First described by Brånemark in dental implants. Requires biocompatible material, stable fixation, and appropriate healing time.
Titanium Oxide Layer
Titanium spontaneously forms TiO2 layer (2-10 nm thick) that is highly biocompatible and osteoconductive. This passivation layer prevents corrosion and allows direct bone apposition without inflammatory response.
Primary vs Secondary Stability
Primary stability = mechanical press-fit at surgery. Secondary stability = biological fixation via bone formation (3-6 months). Loss of primary stability before secondary stability develops leads to implant failure.
Micromotion Threshold
Micromotion greater than 150 micrometers at bone-implant interface prevents osseointegration and promotes fibrous tissue formation. Absolute stability required during healing period.
At a Glance
Osseointegration is the direct structural and functional connection between living bone and implant surface without intervening fibrous tissue, first described by Brånemark. Titanium is the gold standard due to its biocompatible TiO₂ oxide layer (2-10 nm) that allows direct bone apposition. The process requires primary mechanical stability (press-fit) followed by secondary biological stability (bone formation over 3-6 months). Critical threshold: micromotion greater than 150 μm prevents osseointegration and promotes fibrous tissue formation. Surface roughness of 1-10 μm optimizes osteoblast adhesion; porous coatings (50-400 μm pores) allow bone ingrowth. Distance osteogenesis (bone grows from host bed) requires gaps less than 500 μm, while contact osteogenesis (bone forms on implant) requires rough, biocompatible surfaces.
TITANIUMTITANIUM - Why Titanium Osseointegrates
| T | TiO2 oxide layer 2-10 nm passivation layer, biocompatible and osteoconductive |
| I | Inert and biocompatible Minimal inflammatory response, no cytotoxicity |
| T | Tough mechanical properties High strength-to-weight ratio, fatigue resistant |
| A | Allows bone apposition Surface chemistry permits direct bone contact |
| N | No fibrous tissue interposition Direct bone-implant contact without soft tissue |
| I | Immune tolerance Does not trigger foreign body rejection |
| U | Uniform integration Predictable and reliable osseointegration |
| M | Modifiable surface Can be roughened, coated, or treated for enhanced integration |
| T | TiO2 oxide layer 2-10 nm passivation layer, biocompatible and osteoconductive | A | Allows bone apposition Surface chemistry permits direct bone contact | U | Uniform integration Predictable and reliable osseointegration |
| I | Inert and biocompatible Minimal inflammatory response, no cytotoxicity | N | No fibrous tissue interposition Direct bone-implant contact without soft tissue | M | Modifiable surface Can be roughened, coated, or treated for enhanced integration |
| T | Tough mechanical properties High strength-to-weight ratio, fatigue resistant | I | Immune tolerance Does not trigger foreign body rejection |
Hook:TITANIUM is the gold standard because of its oxide layer and biocompatibility
STABLESTABLE - Requirements for Osseointegration
| S | Surface biocompatible Titanium or other osteoconductive material |
| T | Tight press-fit initially Primary stability essential (less than 150 micrometer motion) |
| A | Appropriate gap distance Less than 500 micrometers for distance osteogenesis |
| B | Bone quality adequate Sufficient trabecular and cortical bone for fixation |
| L | Load control during healing Protected weight-bearing for 6-12 weeks minimum |
| E | Environment optimized No infection, adequate vascularity, good nutrition |
| S | Surface biocompatible Titanium or other osteoconductive material | A | Appropriate gap distance Less than 500 micrometers for distance osteogenesis | L | Load control during healing Protected weight-bearing for 6-12 weeks minimum |
| T | Tight press-fit initially Primary stability essential (less than 150 micrometer motion) | B | Bone quality adequate Sufficient trabecular and cortical bone for fixation | E | Environment optimized No infection, adequate vascularity, good nutrition |
Hook:STABLE fixation both mechanically and biologically is required for osseointegration
ROUGHROUGH - Surface Modifications
| R | Ra 1-10 micrometers optimal Moderate roughness enhances integration |
| O | Osteoblast adhesion enhanced Rough surface improves cell attachment |
| U | Undercutting increases contact Surface irregularities provide mechanical interlock |
| G | Greater surface area Increased area for bone apposition |
| H | Hydroxyapatite coating option HA accelerates early integration |
| R | Ra 1-10 micrometers optimal Moderate roughness enhances integration | G | Greater surface area Increased area for bone apposition |
| O | Osteoblast adhesion enhanced Rough surface improves cell attachment | H | Hydroxyapatite coating option HA accelerates early integration |
| U | Undercutting increases contact Surface irregularities provide mechanical interlock |
Hook:ROUGH surfaces (moderate roughness 1-10 micrometers) enhance osseointegration
Overview and Definition
Osseointegration is the direct structural and functional connection between ordered, living bone and the surface of a load-bearing implant without intervening fibrous tissue.
Historical context: First described by Per-Ingvar Brånemark in 1952 when he observed titanium chambers becoming permanently incorporated into rabbit bone. He coined the term "osseointegration" in 1981 and applied the principle to dental implants, revolutionizing implant dentistry and later orthopaedic surgery.
Why osseointegration matters clinically:
Implant Longevity
Successful osseointegration provides durable biological fixation for joint replacements, dental implants, and bone-anchored prostheses. Failure to osseointegrate leads to aseptic loosening and revision surgery.
Load Transfer
Direct bone-implant contact allows physiological load transfer without stress shielding or interface breakdown. Fibrous fixation creates pain and progressive loosening under cyclic loading.
Osseointegration vs Biointegration
Osseointegration specifically refers to bone-implant contact. Biointegration is broader term including soft tissue integration (e.g., tendon-bone, ligament-bone). In exams, use "osseointegration" for bone-implant interfaces and be specific about the tissue type involved.
Concepts and Mechanisms
Fundamental Principles of Osseointegration
Direct bone-implant contact without fibrous tissue interposition is the hallmark of successful osseointegration. This biological phenomenon requires specific conditions and materials to occur reliably.
Three key concepts:
1. Biocompatibility:
- Titanium's spontaneous oxide layer (TiO2) is chemically inert
- No inflammatory or foreign body response
- Allows protein adsorption and cell adhesion
- Other materials (tantalum, hydroxyapatite) also biocompatible
2. Mechanical stability:
- Primary stability (press-fit at surgery) prevents early micromotion
- Micromotion threshold: less than 150 micrometers allows osseointegration
- Secondary stability (biological fixation) develops over 3-6 months
- Load transfer through direct bone-implant contact
3. Biological healing:
- Contact osteogenesis: bone forms directly ON implant surface
- Distance osteogenesis: bone bridges gap FROM host bone
- Timeline: woven bone (weeks 2-4), lamellar bone (months 3-6)
- Surface roughness (1-10 micrometers) enhances osteoblast adhesion
Osseointegration vs Fibrous Fixation
Osseointegration (bone-implant contact) provides stable, load-bearing fixation for decades. Fibrous fixation (soft tissue interposition) is mechanically weak, painful under load, and leads to progressive loosening. The difference is determined by primary stability and micromotion control during healing.
Biological Mechanisms of Osseointegration
Osseointegration occurs through two primary mechanisms:
Contact Osteogenesis - Bone Forms ON Implant Surface
Mechanism:
- Mesenchymal stem cells differentiate directly on implant surface
- Osteoblasts deposit bone matrix directly onto implant
- No intervening cartilage or fibrous tissue
- Requires biocompatible surface chemistry
Requirements:
- Biocompatible material (titanium, tantalum, hydroxyapatite)
- Surface roughness (1-10 micrometers optimal)
- Micromotion less than 150 micrometers
- No bacterial contamination
Timeline:
- Day 0-7: Hematoma formation, inflammatory phase
- Week 1-2: Mesenchymal stem cell recruitment to surface
- Week 2-4: Osteoblast differentiation, woven bone deposition
- Week 4-12: Woven bone remodeling to lamellar bone
- Month 3-6: Mature lamellar bone with direct implant contact
Surface Roughness Window
Moderate roughness (Ra 1-10 micrometers) is optimal. Smooth surfaces (less than 1 micrometer) have poor osteoblast attachment. Very rough surfaces (greater than 10 micrometers) trap bacteria and inflammatory cells, increasing infection risk.
Contact osteogenesis is the primary mechanism for cementless implants with rough surfaces.
Materials and Surface Modifications
Titanium and Titanium Alloys
Pure titanium (Grade 1-4):
- Excellent biocompatibility
- Spontaneous TiO2 layer (2-10 nm thick)
- Moderate strength, good corrosion resistance
- Used in dental implants, some bone screws
Titanium-6-Aluminum-4-Vanadium (Ti-6Al-4V):
- Most common orthopaedic titanium alloy
- Higher strength than pure titanium
- Lower modulus than cobalt-chrome (110 vs 210 GPa)
- Still forms protective TiO2 oxide layer
- Used in femoral stems, acetabular cups, fracture fixation
Oxide layer properties:
- Forms spontaneously in air/body fluids (milliseconds)
- Self-healing if scratched
- Prevents metal ion release
- Negatively charged surface attracts proteins and cells
Titanium vs Cobalt-Chrome
Titanium (modulus 110 GPa) reduces stress shielding compared to cobalt-chrome (modulus 210 GPa) but is softer and more prone to scratching. Cobalt-chrome has better wear properties for bearing surfaces, titanium better for stems and fixation.
Titanium is the gold standard for osseointegration due to its oxide layer and biocompatibility.
Primary and Secondary Stability
Understanding stability transition is critical for successful osseointegration:
Implant Stability Over Time
Primary (mechanical) stability: Press-fit fixation, friction at bone-implant interface. Depends on implant geometry, bone quality, surgical technique. Must prevent micromotion greater than 150 micrometers.
Decreasing primary stability: Bone resorption at interface due to surgical trauma. Primary stability declines before secondary stability develops. Risk period for early loosening if inadequate initial fixation or excessive loading.
Emerging secondary stability: Woven bone forms at interface, begins to provide biological fixation. Gradual increase in bone-implant contact. Stability minimum occurs around 6-8 weeks, then increases.
Secondary (biological) stability: Lamellar bone remodeling, mature osseointegration. Bone-implant contact 60-90%. Stable fixation can now tolerate full physiological loads.
Ongoing remodeling: Bone adapts to loading patterns per Wolff law. Density increases in loaded areas, decreases in shielded areas. Stable equilibrium if loading appropriate.
Stability Valley
Weeks 6-8 post-op are critical period when primary stability declining but secondary stability not yet established. This "stability valley" is when implants are most vulnerable to failure. Protected weight-bearing essential during this period.
Factors affecting primary stability:
Implant Factors
- Geometry (tapered better than straight)
- Diameter (larger = more contact)
- Length (longer = more fixation area)
- Thread design (for screws)
- Surface coefficient of friction
Bone Factors
- Bone density (cortical better than trabecular)
- Bone quality (young better than osteoporotic)
- Surgical technique (undersize vs oversize)
- Anatomic location (metaphysis vs diaphysis)
Osteoporotic Bone
Poor bone quality (osteoporosis, revision surgery, elderly patients) reduces primary stability. Consider cement augmentation, longer stems, metaphyseal fixation, or protected weight-bearing for longer period (12 weeks vs 6 weeks).
Anatomy
Bone-Implant Interface Structure
Ultrastructure of osseointegrated interface:
From implant surface outward:
- Titanium oxide layer (TiO₂): 2-10 nm thick passivation layer
- Proteoglycan layer: 20-50 nm of adsorbed proteins (fibronectin, vitronectin)
- Mineralized bone: Direct apposition, no fibrous tissue
- Osteocyte network: Canaliculi connect to implant surface
Key observation: In successful osseointegration, bone mineral is in direct contact with the oxide layer at the molecular level
Zones of Bone at Interface
Histological zones around osseointegrated implant:
Zone 1 - Interface zone (0-50 μm):
- Newly formed woven bone
- High osteocyte density
- Active remodeling
Zone 2 - Transition zone (50-500 μm):
- Mixed woven and lamellar bone
- Gradual maturation
Zone 3 - Host bone (greater than 500 μm):
- Native cortical or cancellous bone
- Normal architecture
Osseointegrated vs Fibrous Encapsulated Interface
| Feature | Osseointegration | Fibrous Encapsulation |
|---|---|---|
| Tissue at interface | Bone directly on implant | Fibrous tissue layer |
| Gap at interface | Less than 50 nm | 50-500 μm fibrous membrane |
| Micromotion tolerated | Less than 150 μm | High micromotion present |
| Mechanical stability | Excellent | Poor (loose implant) |
| Clinical outcome | Stable fixation | Implant loosening |
| Histology | Direct bone contact (BIC%) | Fibrous tissue, inflammation |
What is Osseointegration?
Brånemark's definition: "Direct structural and functional connection between ordered, living bone and the surface of a load-carrying implant." At the ultrastructural level, this means bone mineral is in contact with the titanium oxide layer without intervening fibrous tissue. Clinically, this translates to stable, non-mobile fixation that can withstand functional loading.
Classification
Stages of Osseointegration
| Stage | Timeframe | Process | Clinical Relevance |
|---|---|---|---|
| Primary stability | Day 0 (surgery) | Mechanical press-fit | Determined by bone quality, implant design, surgical technique |
| Healing phase | Days 1-14 | Hematoma, inflammation, angiogenesis | Protected weight-bearing, avoid micromotion |
| Bone formation | Weeks 2-6 | Osteoblast recruitment, woven bone | Gradual loading possible |
| Secondary stability | Months 1-3 | Bone remodeling, lamellar bone | Full loading permitted |
| Functional adaptation | Months 3+ | Wolff's law remodeling to load | Long-term stability achieved |
Classification by Bone Formation Type
Two mechanisms of bone apposition:
Distance osteogenesis:
- Bone grows from host bone bed TOWARD implant
- Requires gap less than 500 μm
- Depends on osteoblasts migrating from host bone
- Slower process (takes longer to bridge gap)
Contact osteogenesis:
- Bone forms directly ON the implant surface
- Osteogenic cells migrate to implant and deposit bone there
- Requires rough, osteoconductive surface
- Faster and more robust integration
Classification by Surface Type
Surface modification strategies:
Smooth (machined):
- Ra less than 0.5 μm
- Lowest bone-implant contact
- Historical standard
Rough (textured):
- Ra 1-10 μm (optimal range)
- Grit-blasted, acid-etched, or sandblasted
- Best osseointegration outcomes
Porous (ingrowth):
- Pore size 50-400 μm
- Allows bone to grow INTO surface
- Sintered beads, plasma spray, 3D-printed
Distance vs Contact Osteogenesis
Distance osteogenesis = bone grows from host bed toward implant (requires small gap). Contact osteogenesis = bone forms directly on implant surface (requires rough, biocompatible surface). Contact osteogenesis is preferred as it is faster and results in better bone-implant contact. Most modern surface treatments aim to promote contact osteogenesis.
Clinical Applications in Orthopaedics
Cementless Joint Replacement
Total hip arthroplasty:
- Femoral stems: Proximal porous coating or full coating
- Acetabular cups: Hemispherical, press-fit, porous coated
- Success rate greater than 95% at 10 years with modern designs
- Osseointegration evident by 3-6 months on radiographs
Radiographic signs of osseointegration:
- No progressive radiolucent lines
- Bone densification adjacent to implant (spot welds)
- Endosteal bone formation (calcar remodeling in hip)
- No subsidence or migration after initial settling
Total knee arthroplasty:
- Cementless components less common than hip (cemented standard)
- Porous-coated tibial baseplates and femoral components available
- Younger patients (less than 55 years) may benefit from cementless fixation
- Requires good bone quality and precise surgical technique
Shoulder arthroplasty:
- Glenoid component: Controversial (cemented vs cementless)
- Humeral stem: Cementless common, press-fit metaphyseal fixation
- Reverse shoulder: Glenoid baseplate osseointegration critical for longevity
Cemented vs Cementless Indications
Cementless preferred in younger patients (less than 60-65 years) with good bone quality - allows bone ingrowth, no cement mantle to fail. Cemented preferred in elderly, osteoporotic bone, or when immediate fixation required (no 6-12 week protected weight-bearing).
Factors Affecting Osseointegration Success
Factors Influencing Osseointegration
| Factor | Favorable | Unfavorable | Clinical Strategy |
|---|---|---|---|
| Bone quality | Young, dense, healthy bone | Osteoporotic, irradiated bone | Augment poor bone with cement or biologics |
| Primary stability | Press-fit, less than 150 micrometer motion | Loose fit, excessive motion | Undersize preparation, larger implant, screw fixation |
| Gap distance | Less than 200 micrometers | Greater than 500 micrometers | Line-to-line or undersize by 1mm maximum |
| Loading | Protected 6-12 weeks, gradual increase | Immediate full weight-bearing | Crutches, walker, graduated progression |
| Surface | Rough (Ra 1-10 micrometers), clean | Smooth, contaminated | Grit-blast and acid-etch, ultrasonic clean |
| Vascularity | Good blood supply, young | Avascular, smoker, diabetic | Optimize medical conditions, smoking cessation |
| Infection | Sterile technique, prophylaxis | Bacterial contamination | Antibiotics, debridement if infected |
| Patient factors | Healthy, compliant | Diabetes, smoking, steroids | Medical optimization, patient education |
Critical thresholds to remember:
Risk Factors for Failure
High-risk scenarios for osseointegration failure:
- Revision surgery (poor bone stock, scar tissue)
- Osteoporotic bone (reduced primary stability)
- Smoking (impairs angiogenesis and bone formation)
- Diabetes (poor glycemic control reduces healing)
- Infection (promotes fibrous tissue, prevents bone apposition)
- Excessive early loading (micromotion greater than 150 micrometers prevents integration)
Investigations
Radiographic Assessment
Plain radiographs:
Signs of successful osseointegration:
- Stable implant position on serial X-rays
- No progressive radiolucent lines at interface
- Trabecular bone incorporation into porous surface
- No subsidence or migration
Signs of failure/loosening:
- Progressive radiolucent lines (greater than 2mm = definite loosening)
- Implant migration or subsidence
- Reactive sclerosis (stress shielding pattern)
- Component rotation or angular change
Clinical Assessment
Exam findings of osseointegration status:
Well-osseointegrated implant:
- Pain-free function
- No start-up pain (pain on first few steps)
- Stable on clinical exam
- Normal gait pattern
Loose implant:
- Activity-related pain (especially with loading)
- Start-up pain (classic sign of femoral loosening)
- Thigh pain (femoral stem loosening)
- May be stable initially (fibrous fixation) but progressive
Radiolucent Line Interpretation
| Width | Zones Involved | Progression | Interpretation |
|---|---|---|---|
| Less than 1mm | Partial (1-2 zones) | Stable | Likely normal healing or fibrous tissue at interface |
| 1-2mm | Multiple zones | Stable | Fibrous fixation, monitor closely |
| Greater than 2mm | Complete (all zones) | Progressive | Definite loosening, failure of osseointegration |
| Any width | Any | Increasing over time | Active loosening process, intervention required |
Radiolucent Lines and Osseointegration
Radiolucent lines greater than 2mm or progressive radiolucent lines indicate failure of osseointegration. In a well-osseointegrated implant, there should be no radiolucent line at the bone-implant interface - bone is in direct contact with the porous surface. Partial radiolucent lines less than 1mm may represent normal trabecular remodeling, but complete radiolucent lines indicate fibrous encapsulation rather than osseointegration.
Differential Diagnosis: Painful Cementless Implant
| Diagnosis | Key Clinical Clue | Best Discriminating Test | Distinguishing Feature |
|---|---|---|---|
| Aseptic loosening (failed osseointegration) | Start-up and activity-related pain, progressive | Serial radiographs (progressive radiolucent lines, migration) | Normal CRP/ESR, no organism on aspiration |
| Periprosthetic joint infection | Rest pain, warmth, effusion, sinus | Joint aspiration (cell count, culture, alpha-defensin) | Raised CRP/ESR, positive culture/biofilm |
| Periprosthetic fracture | Acute pain after fall or load | Radiographs (Vancouver classification) | Cortical breach; stem may be well-fixed (B1) or loose (B2) |
| Stress shielding / adaptive remodelling | Often asymptomatic, proximal | Radiographs (proximal cortical thinning, Engh grade) | Stable implant, no migration, no lucent line at tip |
| Osteolysis from wear debris | Late new pain after pain-free interval | Radiographs / CT (scalloped lytic lesions) | Focal lysis around well-fixed implant, often eccentric liner wear |
| Referred / non-implant pain (spine, vascular) | Pain not load-related, no startup pain | Spinal/vascular work-up, normal implant imaging | Implant radiographically and clinically well-fixed |

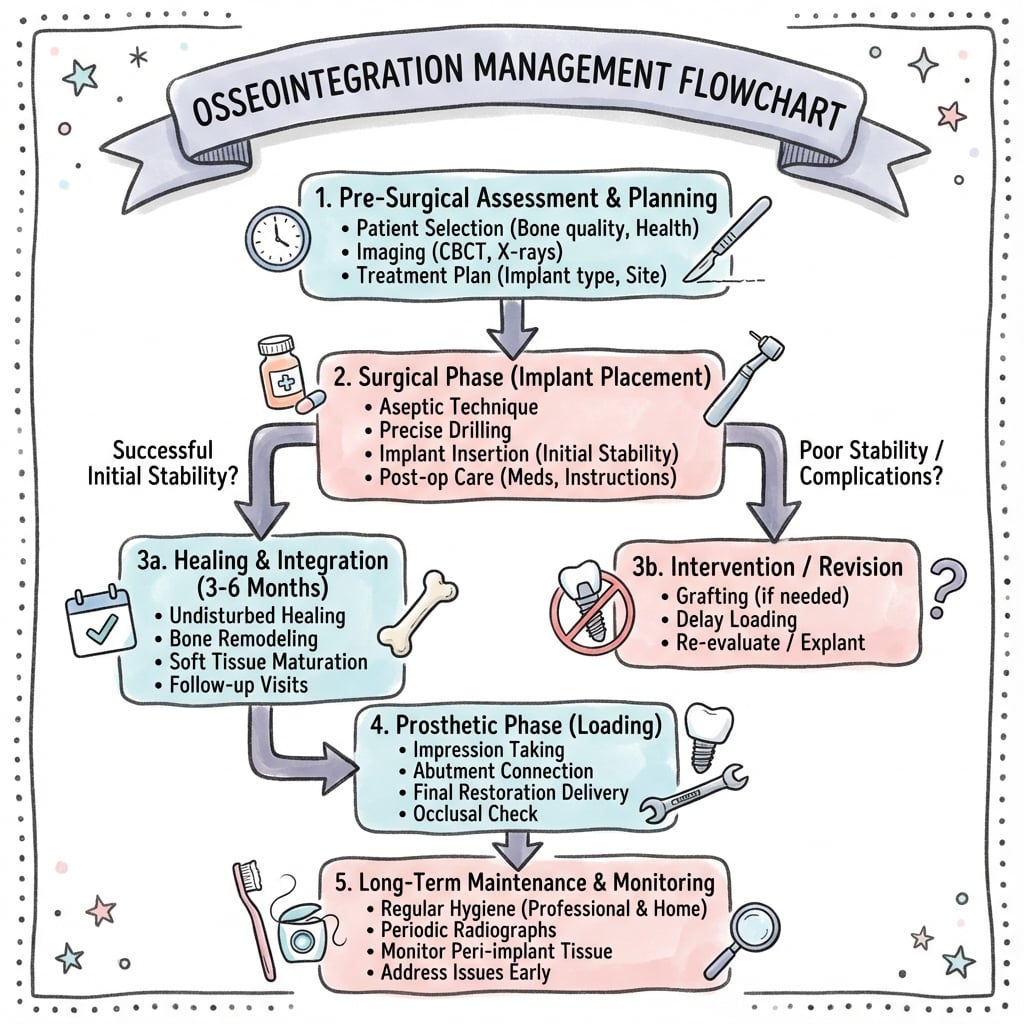

Management
Optimizing Primary Stability
Surgical factors for successful osseointegration:
Implant selection:
- Size appropriately (tight press-fit)
- Surface: rough/porous for bone ingrowth
- Material: titanium or Ti-6Al-4V alloy
Surgical technique:
- Accurate reaming and broaching
- Avoid thermal necrosis (cool irrigation)
- Achieve press-fit (slightly undersized cavity)
- Handle implant carefully (avoid scratching surface)
Intraoperative assessment:
- Confirm stability before closure
- Assess bone quality (adjust technique if osteoporotic)
Loading Protocol
Weight-bearing guidelines post-cementless THA:
Immediate full weight-bearing:
- Modern cementless THA with good press-fit
- Excellent bone quality
- Standard approach (no osteotomies)
Protected weight-bearing (6-12 weeks):
- Suboptimal primary stability
- Osteoporotic bone
- Revision surgery with bone grafting
- Complex acetabular reconstruction
Delayed loading (dental/maxillofacial):
- Traditional: 3-6 months before loading
- Modern protocols allow earlier loading with good primary stability
Factors Affecting Osseointegration
| Factor | Optimization Strategy | Impact on Success |
|---|---|---|
| Primary stability | Press-fit, appropriate sizing | Essential - without it, integration fails |
| Surface roughness | Ra 1-10 μm, porous coating | Higher roughness improves BIC |
| Micromotion | Limit to less than 150 μm | Excessive motion = fibrous tissue |
| Gap distance | Less than 500 μm bone-implant gap | Large gaps delay/prevent integration |
| Bone quality | Address osteoporosis if present | Poor bone = poor primary stability |
| Loading timing | Protected WB until secondary stability | Early overload disrupts healing |
Micromotion Threshold
Micromotion greater than 150 μm at the bone-implant interface prevents osseointegration and promotes fibrous encapsulation instead. This is why primary mechanical stability (press-fit) is essential - it limits micromotion during the healing period until secondary biological stability develops. Modern cementless implants can often tolerate immediate full weight-bearing because the press-fit achieves stability below the 150 μm threshold.
Surgical Technique
Principles for Achieving Osseointegration
Intraoperative goals:
1. Primary stability:
- Tight press-fit (0.5-1mm undersizing)
- Axial and rotational stability
- No visible toggling of implant
2. Maximize bone-implant contact:
- Accurate reaming/broaching
- Minimal gap between bone and implant
- Avoid excessive bone removal
3. Protect the interface:
- Avoid thermal injury (cool irrigation)
- Handle implant carefully (don't scratch surface)
- Avoid contamination of porous surface
Steps for Cementless Femoral Stem
THA femoral stem insertion technique:
-
Start with smallest broach
-
Progress by 1-2 sizes until axial/rotational stability
-
Confirm leg length and offset
-
Assess stability through range of motion
-
Insert implant with axial impaction
-
Confirm stability (should require extraction instrument)
-
Implant should not move with manipulation
-
If unstable, upsize or consider cement
Technical Factors Affecting Osseointegration
| Factor | Optimal Technique | Consequence of Error |
|---|---|---|
| Press-fit | 0.5-1mm undersizing of cavity | Too loose = micromotion, failure |
| Thermal injury | Cool irrigation during reaming | Bone necrosis, fibrous tissue |
| Implant handling | Handle by non-porous areas only | Scratching/contamination impairs integration |
| Bone preparation | Preserve cancellous bone if possible | Excessive reaming = poor press-fit |
| Implant position | Correct alignment and depth | Malalignment increases stress, loosening |
Press-Fit Sizing
Press-fit is achieved by undersizing the prepared cavity by 0.5-1mm relative to the implant size. This creates an interference fit where the bone is slightly compressed around the implant. Too tight risks fracture; too loose results in micromotion and failure of osseointegration. The final broach should feel stable with no toggle - if not, upsize.
Complications
Failure of Osseointegration
Primary failure modes:
- Aseptic loosening: Most common - fibrous encapsulation instead of bone integration
- Periprosthetic infection: Bacteria prevent osseointegration, promote fibrous tissue
- Periprosthetic fracture: Disrupts bone-implant interface
- Stress shielding: Bone resorption from unloading (proximal femur in THA)
Key point: Any of these can occur early (failure to integrate) or late (loss of established integration)
Aseptic Loosening
The most common cause of THA/TKA revision:
Mechanisms:
- Failure of primary stability (micromotion)
- Fibrous encapsulation instead of bone formation
- Progressive osteolysis from wear debris
- Stress shielding and bone resorption
Clinical presentation:
- Pain with activity (especially loading)
- Start-up pain (classic for femoral stem)
- Progressive symptoms over months-years
Radiographic signs:
- Progressive radiolucent lines
- Implant migration or subsidence
- Osteolysis (scalloped lesions)
Stress Shielding
Bone resorption from altered loading:
Mechanism:
- Stiff implant shields bone from normal stress
- Bone resorbs per Wolff's law (use it or lose it)
- Proximal femur most affected in THA
Severity (Engh classification):
- Grade 1: Minimal (cortical thinning only)
- Grade 2: Moderate (calcar rounding, cortical thinning)
- Grade 3: Severe (absent calcar, marked thinning)
Prevention:
- Shorter stems (preserves proximal loading)
- Tapered stems (less distal fixation)
- Lower modulus materials (titanium over CoCr)
Early vs Late Failure of Osseointegration
| Feature | Early Failure (less than 2 years) | Late Failure (greater than 2 years) |
|---|---|---|
| Cause | Failed primary stability, infection | Osteolysis, stress shielding, late infection |
| Presentation | Persistent pain from surgery | New onset pain after pain-free interval |
| Histology | Fibrous tissue at interface | Osteolysis, granuloma, bone resorption |
| X-ray | Early radiolucent lines, migration | Progressive osteolysis, stress shielding |
| Management | Revision with optimized fixation | Revision +/- bone grafting, address osteolysis |
Osteolysis from Wear Debris
Wear debris (polyethylene, metal, ceramic) triggers a macrophage inflammatory response at the bone-implant interface. This releases osteoclast-activating cytokines (IL-1, IL-6, TNF-α), leading to bone resorption around the implant. This is why reducing wear (XLPE, ceramic bearings) is critical for long-term implant survival.
Postoperative Care
Weight-Bearing Protocol
Protecting osseointegration during healing:
Immediate weight-bearing (modern standard):
- Most cementless THA with good press-fit
- Evidence supports early mobilization
- Limits micromotion if press-fit adequate
Protected weight-bearing (6-12 weeks):
- Suboptimal primary stability
- Complex reconstruction
- Bone grafting around implant
- Revision surgery
Progression:
- Week 0-6: Per surgeon protocol
- Week 6-12: Progress as tolerated
- Month 3+: Full activities usually permitted
Follow-up Schedule
Monitoring osseointegration:
Early follow-up:
- 2 weeks: Wound check
- 6 weeks: Clinical review, X-ray
- 3 months: Functional assessment
Annual surveillance:
- Clinical exam: Pain, function, stability
- X-ray: Radiolucent lines, osteolysis, position
- Compare to baseline and prior films
Red flags requiring early review:
- New onset pain after pain-free interval
- Start-up pain or thigh pain
- Signs of infection
Weight-Bearing Guidelines by Scenario
| Scenario | Weight-Bearing | Rationale |
|---|---|---|
| Standard cementless THA (good press-fit) | Full WB immediately | Primary stability achieved, accelerates recovery |
| Osteoporotic bone | PWB 6-12 weeks | Reduced primary stability, higher micromotion risk |
| Revision with bone grafting | PWB 6-12 weeks | Allow graft incorporation and integration |
| Acetabular reconstruction | PWB 6-12 weeks | Protect reconstruction until healed |
| Bone-anchored prosthesis | Gradual loading over months | Skin-implant interface needs protection |
Early Weight-Bearing is Safe
Modern evidence supports immediate full weight-bearing after cementless THA with adequate press-fit. Early studies recommended protected weight-bearing, but this was based on cemented implants. With modern porous-coated implants achieving good primary stability, early loading actually stimulates bone formation (Wolff's law) without compromising osseointegration. However, if press-fit is suboptimal, protected weight-bearing remains appropriate.
Outcomes
Cementless THA Outcomes
Long-term results with osseointegrated implants:
Survival rates (AOANJRR 2023):
- 10 years: 95-97%
- 15 years: 92-95%
- 20 years: 85-90%
Key findings:
- Equivalent or superior to cemented in younger patients
- Revision for aseptic loosening less than 5% at 15 years
- XLPE has dramatically reduced wear-related failure
Factors predicting good outcome:
- Good primary stability at surgery
- Porous-coated titanium surface
- Adequate liner thickness (XLPE)
Cementless TKA Outcomes
Cementless knee arthroplasty:
Survival rates:
- 10 years: 95-96%
- 15 years: 90-94%
Comparison to cemented:
- Early studies showed higher loosening with cementless
- Modern designs with trabecular metal show equivalent outcomes
- AOANJRR: cemented slightly better at 15 years
Current recommendation:
- Cemented remains gold standard for TKA
- Cementless used selectively (younger patients, metaphyseal fixation)
Osseointegration Success by Application
| Application | Success Rate | Time to Integration | Key Factors |
|---|---|---|---|
| Cementless THA (stem) | Over 95% at 15 years | 3-6 months | Surface, press-fit, bone quality |
| Cementless THA (cup) | Over 95% at 15 years | 3-6 months | Press-fit, screw augmentation |
| Cementless TKA | 90-94% at 15 years | 3-6 months | Less proven than cemented |
| Dental implants | 90-95% at 10 years | 3-6 months | Bone density, smoking, diabetes |
| Bone-anchored prosthesis | 90-95% | 6-12 months | Staged protocol, skin care |
Cementless vs Cemented - Current Evidence
For THA, cementless fixation is now standard in most patients under 70 years, with equivalent or superior long-term outcomes to cemented. For TKA, cemented fixation remains the gold standard with slightly better registry outcomes, though modern cementless designs are closing the gap. The choice depends on patient age, bone quality, and surgeon experience.
Evidence Base
Brånemark - Osseointegrated Titanium Fixtures (Foundational Clinical Series)
- 91% positive 5-9 year result in approximately 400 consecutive edentulous patients restored with titanium implants
- Good results attributed to anchorage in living bone without interposing soft-tissue layer
- SEM and TEM of removed implants gave direct structural evidence of osseointegration
- Established the foundational clinical principle later adopted in orthopaedic cementless fixation
Surface Topography and Bone Integration (Systematic Review)
- Systematic review of 100 in-vivo studies of titanium surface topography and bone response
- Smooth (Sa less than 0.5 micrometers) and minimally rough (Sa 0.5-1 micrometers) surfaces showed weaker bone responses than rougher surfaces
- Moderately rough surfaces (Sa greater than 1-2 micrometers) gave the strongest bone-to-implant contact and removal-torque results
- Most published studies used inadequate surface characterisation, highlighting need for standardised measurement
Micromotion Threshold for Bone Ingrowth (Landmark)
- Bone ingrowth into porous-surfaced implants occurred despite small relative movement (up to approximately 28 micrometers)
- Movement of 150 micrometers or more produced fibrous connective-tissue attachment instead of bone
- Canine femoral implant studies defined the movement window separating bone from fibrous fixation
- Initial implant micromotion is the key determinant of bone versus fibrous-tissue interface
Optimum Pore Size for Bone Ingrowth Fixation (Landmark)
- Cobalt-base alloy implants with four pore-size ranges placed in canine femora for 4, 8 and 12 weeks
- Pore size of approximately 50-400 micrometers gave the maximum fixation shear strength (17 MPa)
- This optimum range achieved peak fixation strength in the shortest time (by 8 weeks)
- Defined the design window for porous-surfaced cementless implant fixation by bone ingrowth
Radiographic Signs of Biologic Fixation (Engh Score)
- Defined and validated radiographic signs predicting osseointegration versus mechanical stability of cementless femoral stems
- Signs were correlated with histological fixation in retrieved implants and stability confirmed at reoperation
- A two-year fixation/stability score predicted durable stability through five years in 1005 cases
- Low scores correlated strongly with symptomatic loosening
Bone-Anchored (Osseointegrated) Limb Prosthesis - Prospective Safety
- Prospective cohort of 90 lower-limb amputees treated with press-fit titanium osseointegration implants
- Soft-tissue infections were common but mostly treated successfully with antibiotics; only one septic implant failure and no aseptic loosening at one year
- Prosthesis-use score improved from 52 to 88 and global quality-of-life score from 40 to 71 at one year
- Confirmed safety and functional benefit of transcutaneous osseointegration over socket suspension at short-term follow-up
MCQ Practice Points
Clinical Pearl
Q: What is the definition of osseointegration as described by Brånemark?
A: "Direct structural and functional connection between living bone and the surface of a load-bearing implant." Key features: no fibrous tissue interposition, bone-implant contact, and functional load transfer. Histologically defined as direct bone-to-implant contact without intervening soft tissue. Contrast with fibrous integration (fibrous capsule around implant = failure).
Clinical Pearl
Q: What surface modifications improve osseointegration of titanium implants?
A: (1) Macro-texture: porous coating, plasma spray, sintered beads (allows bone ingrowth). (2) Micro-texture: grit-blasting, acid-etching (increases surface area). (3) Nano-texture: hydroxyapatite coating (osteoconductive, accelerates osseointegration). Rougher surfaces (Ra 1-2 μm) have better bone-implant contact than smooth surfaces. Hydroxyapatite coating accelerates initial osseointegration but may delaminate long-term.
Clinical Pearl
Q: What is the optimal initial stability (primary fixation) for cementless implants to achieve osseointegration?
A: Micromotion under 150 μm (ideally under 50 μm). Micromotion greater than 150 μm leads to fibrous tissue formation instead of bone ingrowth. Press-fit interference (typically 1-2mm larger than prepared cavity) creates initial stability. Bone ingrowth occurs over 6-12 weeks. Early full weight-bearing may be permitted if press-fit is adequate.
Clinical Pearl
Q: How does osseointegration differ between cemented and cementless implant fixation?
A: Cemented: PMMA cement fills gap between implant and bone; no direct bone-implant contact; relies on mechanical interlock (cement-bone and cement-implant interfaces). Cementless: Requires direct bone growth onto/into implant surface; no intermediate material; relies on biological fixation through bone ingrowth/ongrowth. Both can achieve excellent long-term fixation.
Clinical Pearl
Q: What factors impair osseointegration of cementless implants?
A: (1) Excessive micromotion (greater than 150 μm), (2) Inadequate initial stability (poor press-fit), (3) Gap greater than 2mm between implant and bone, (4) Infection, (5) Patient factors: smoking, diabetes, bisphosphonates (controversial), radiation. NSAIDs may impair early bone healing but effect on osseointegration is controversial. Hydroxyapatite coating can bridge gaps up to 2mm.
Guidelines, Registries & Global Practice
Global picture. Osseointegration is the biological basis of all cementless fixation. Worldwide, cementless fixation now dominates primary total hip arthroplasty in most high-income registries, while cemented fixation remains the predominant approach for total knee arthroplasty and for hip fracture hemiarthroplasty/THA in older patients. The major national joint registries — NJR (England, Wales, NI), AJRR (USA), AOANJRR (Australia), Swedish (SHAR), Norwegian and NZJR — provide the principal real-world evidence on how different fixation methods and implant surfaces osseointegrate and survive. There is no single global guideline for fixation choice; practice is registry- and evidence-led rather than codified.
Fixation Guidance and Registry Signal by Region
| Source / Region | THA fixation stance | TKA fixation stance | Basis |
|---|---|---|---|
| NICE / BOA (UK) | Cemented or hybrid favoured, especially over 65; cementless acceptable in younger bone | Cemented standard | NJR survivorship and cost-effectiveness analysis |
| AAOS / AJRR (USA) | Cementless dominant for primary THA across most ages | Cemented majority; cementless growing | AJRR registry trends |
| AOANJRR (Australia/NZ) | Cementless dominant; cemented preferred in elderly/osteoporotic and neck-of-femur fracture | Cemented standard (over 85%) | AOANJRR cumulative revision data |
| Scandinavian (SHAR/Norway) | Historically strong cemented tradition; cementless rising in younger patients | Cemented standard | Long-term Swedish/Norwegian registry data |
What Registries Show Globally
Consistent cross-registry signals:
- Modern porous-coated/cementless THA achieves excellent long-term survival (broadly 90% or better at 15 years)
- Cementless and cemented THA give broadly comparable mid-term revision rates in most cohorts
- Cementless fixation in the elderly with osteoporotic bone carries a higher early periprosthetic fracture risk
- For hip fracture, cemented stems reduce periprosthetic fracture vs cementless in older patients
- For TKA, cemented fixation remains the registry benchmark; modern cementless designs are approaching parity
Global Practice Variation
Why practice differs by region and resource setting:
- Surgeon training/tradition: Scandinavian cemented heritage vs North American/Australian cementless preference
- Patient demographics: Younger, higher-demand populations favour cementless osseointegration
- Bone quality: Higher osteoporosis prevalence shifts choice toward cement for reliable immediate fixation
- Resource/cost: Cement is cheaper and avoids dependence on press-fit; cementless implants and instrumentation cost more
- Bearing trends: Ceramic-on-highly-cross-linked-polyethylene increasingly standard worldwide to limit wear-related osteolysis
Registry Evidence in Any Exam
National joint registries (NJR, AJRR, AOANJRR, Swedish, Norwegian, NZJR) are the world's largest real-world datasets on how implants osseointegrate and survive. They track revision by fixation method, surface technology and specific brand, allowing early identification of poorly performing implants. Quoting registry evidence — not just one country's — demonstrates a global, evidence-based understanding in any orthopaedic exam.
Exam Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Viva Scenario: Ultrastructure of Osseointegration
"An examiner asks you to describe what happens at the bone-implant interface at the molecular level during successful osseointegration."
Viva Scenario: Optimal Surface for Osseointegration
"What surface characteristics optimize osseointegration in cementless total hip arthroplasty?"
Viva Scenario: Assessing Implant Osseointegration
"A 65-year-old patient is 5 years post-cementless THA and presents with thigh pain. X-rays show a radiolucent line at the bone-implant interface. How do you assess whether the implant is osseointegrated or loose?"
Viva Scenario: Optimizing Osseointegration in THA
"A 55-year-old diabetic smoker with osteoporosis requires primary THA. How do you optimize osseointegration in this high-risk patient?"
Viva Scenario: Intraoperative Decision-Making
"During cementless THA, you insert the final broach but it feels slightly loose with some toggle. What do you do?"
Viva Scenario: Aseptic Loosening
"A patient is 8 years post-cementless THA with progressive thigh pain. X-rays show radiolucent lines in all Gruen zones and proximal femoral osteolysis. What is your diagnosis and management?"
Viva Scenario: Postoperative Pain
"A patient is 6 months post-cementless THA and reports mild thigh pain with weight-bearing. X-rays show stable implant position with no radiolucent lines. How do you manage this?"
Viva Scenario: Cemented vs Cementless Decision
"A 72-year-old patient with moderate osteoporosis requires primary THA. Would you use cemented or cementless fixation?"
Viva Scenario: Using Registry Data
"An examiner asks you how the AOANJRR helps monitor osseointegration outcomes in Australia."
OSSEOINTEGRATION
Clinical summary
Core Definition and History
- •Direct bone-implant contact without fibrous tissue layer
- •Brånemark 1952 discovery (titanium in rabbit bone), coined term 1981
- •First applied to dental implants, then orthopaedic surgery
- •Titanium gold standard due to TiO2 oxide layer (2-10 nm, biocompatible)
Requirements for Success
- •Biocompatible material: Titanium, tantalum, hydroxyapatite
- •Primary stability: Micromotion LESS than 150 micrometers (critical threshold)
- •Gap distance: Less than 500 micrometers (ideally less than 200 micrometers)
- •Surface roughness: Ra 1-10 micrometers optimal (moderate roughness)
- •Protected loading: 6-12 weeks weight-bearing restriction
- •Adequate bone quality, vascularity, no infection
Biological Mechanisms
- •Contact osteogenesis: Bone forms ON implant surface (rough surface required)
- •Distance osteogenesis: Bone grows FROM host bed across gap (less than 500 micrometers)
- •Timeline: Week 2-4 woven bone, Week 4-12 remodeling, Month 3-6 mature lamellar
- •Bone-implant contact: 60-90% in successful integration
Primary vs Secondary Stability
- •Primary = mechanical press-fit at surgery (friction, geometry)
- •Secondary = biological fixation via bone formation (3-6 months)
- •Stability valley at 6-8 weeks (primary declining, secondary developing)
- •This is most critical period - protected weight-bearing essential
- •Excessive micromotion during this period → fibrous tissue → failure
Surface Modifications
- •Grit-blast + acid-etch: Creates Ra 1-5 micrometers (standard)
- •Porous coatings: 100-200 micrometer pores, 30-50% porosity (bone ingrowth)
- •Hydroxyapatite coating: Accelerates early integration but may resorb
- •Smooth surface (Ra less than 0.5 micrometers): Poor integration, fibrous tissue
Critical Numbers
- •Micromotion threshold: Less than 150 micrometers (above = fibrous tissue)
- •Gap limit: Less than 500 micrometers for integration
- •Optimal roughness: Ra 1-10 micrometers
- •Optimal pore size: 100-200 micrometers for ingrowth
- •Integration timeline: 3-6 months for mature lamellar bone
- •Protected weight-bearing: 6-12 weeks minimum
Clinical Applications
- •Cementless THA/TKA: Porous-coated stems and cups
- •Dental implants: Original Brånemark application
- •Spinal implants: Pedicle screws, titanium cages (not PEEK)
- •Bone-anchored prostheses: Transcutaneous implants for limb loss
- •Indications: Young patients, good bone quality vs cemented in elderly/osteoporotic
Exam Tips and Traps
- •Always mention Brånemark when defining osseointegration
- •Know micromotion threshold (150 micrometers) - frequently asked
- •Explain stability valley concept (6-8 weeks critical)
- •Titanium oxide layer (TiO2) essential for biocompatibility
- •PEEK does NOT osseointegrate (bioinert, not bioactive)
- •HA coating accelerates early but no long-term advantage proven
