Paediatric ACL Injury
Instability, meniscal preservation and growth-plate-respecting treatment
Practical classification
Critical Must-Knows
- A rapid effusion after a pivoting or landing injury is an intra-articular injury until proven otherwise.
- Younger children may sustain a tibial spine avulsion rather than a midsubstance ACL tear; X-rays are therefore not optional.
- MRI should be read for the ACL, tibial spine, meniscus, cartilage, bone bruising, collateral injury and physeal maturity.
- Repeated giving way increases the risk of secondary meniscal and chondral damage.
- Technique choice depends on growth remaining: non-operative surveillance, tibial spine fixation, physeal-sparing, all-epiphyseal, hybrid or carefully planned transphyseal reconstruction.
Clinical Pearls
- "Lachman is usually more useful than forcing a pivot shift in an acutely painful child.
- "A locked knee after ACL injury is urgent because a bucket-handle meniscal tear or displaced tibial spine fragment may block extension.
- "Non-operative care is selected active surveillance with activity modification and rehabilitation, not permission to keep pivoting on an unstable knee.
- "Return to sport is based on motion, strength, neuromuscular control, hop testing, confidence and graded sport exposure, not a date alone.
A swollen pivot knee is not just a sprain
A child with a pop, rapid effusion, giving way or loss of extension after a pivoting injury needs X-rays for tibial spine avulsion and MRI assessment for ACL, meniscus and cartilage injury.
Images and Diagrams
At a Glance
| Question | Practical answer | Why it matters |
|---|---|---|
| Typical story? | Pivot, pop, rapid swelling and inability to continue sport | Suggests intra-articular ligament injury |
| Younger child? | Look for tibial spine avulsion on X-ray | This may be the ACL-equivalent injury |
| Main competing risks? | Instability damage versus physeal treatment risk | Explains maturity-specific treatment |
| Key associated injury? | Meniscal tear, especially with recurrent instability | Meniscal preservation drives timely treatment |
| Clearance for sport? | Criteria-based progression | Time alone does not protect against reinjury |
ACLHistory Clues
Memory Hook:ACL keeps the history focused on mechanism, swelling and instability.
SPINEYounger Child ACL Equivalent
Memory Hook:SPINE prevents missing a bony ACL-equivalent injury.
GROWReconstruction Safety
Memory Hook:GROW keeps technique choice tied to skeletal maturity.
Overview/Epidemiology
Paediatric ACL injury has become more common with year-round youth sport, early specialisation and high-volume pivoting activities. The injury may be a midsubstance ACL rupture, partial tear, tibial spine avulsion, or a combined injury with meniscal, chondral, collateral or osteochondral damage.
The decision is different from an adult ACL tear because two risks must be managed at the same time:
- Instability risk: repeated giving way can damage the meniscus and cartilage in a knee that should last for decades.
- Growth risk: adult-style reconstruction through open physes can rarely cause limb-length difference or angular deformity.
Current evidence no longer supports simply waiting until skeletal maturity for every child. Non-operative care can be appropriate for selected stable injuries and low-demand children, but an unstable pivoting athlete with recurrent giving way or a repairable meniscal tear needs timely specialist treatment. The plan must be individualised to the child, maturity, sport demands, instability episodes, family goals and local expertise.

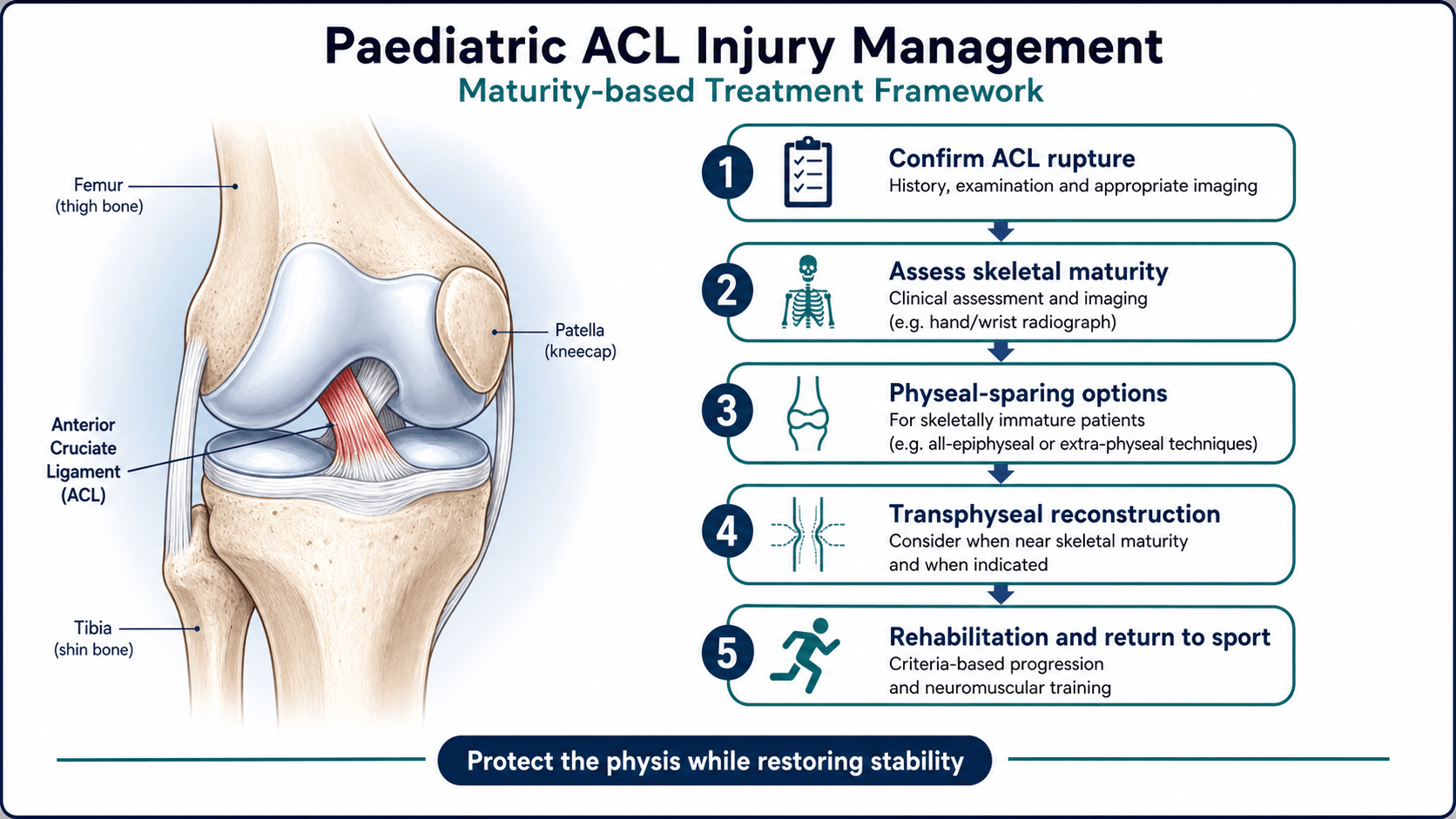

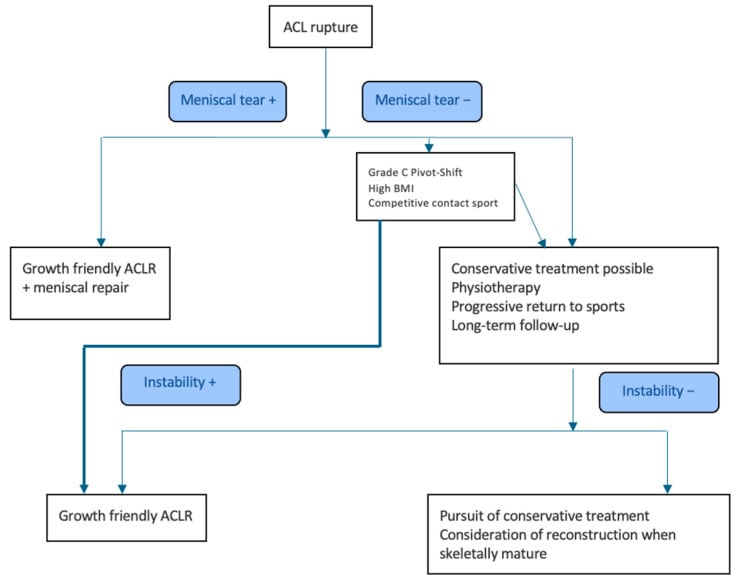

Decision Framework
The safe clinical sequence is:
Decision Sequence
| Step | Clinical question | Decision impact |
|---|---|---|
| 1. Recognise | Is this an intra-articular knee injury? | Rapid effusion after pivoting triggers ACL, meniscus and tibial spine workup |
| 2. Exclude bony avulsion | Is there a tibial spine fracture or osteochondral injury? | X-ray changes urgency and treatment |
| 3. Confirm full pattern | What does MRI show beyond the ACL? | Meniscus, cartilage, ramp lesion and bone bruise affect the plan |
| 4. Define maturity | How much growth remains? | Guides physeal-sparing, hybrid or transphyseal reconstruction |
| 5. Decide treatment | Is the knee stable enough for selected rehabilitation? | Prevents repeated instability while avoiding unnecessary physeal risk |
| 6. Clear sport safely | Has the child passed functional, psychological and sport-specific criteria? | Reduces graft and contralateral injury risk |

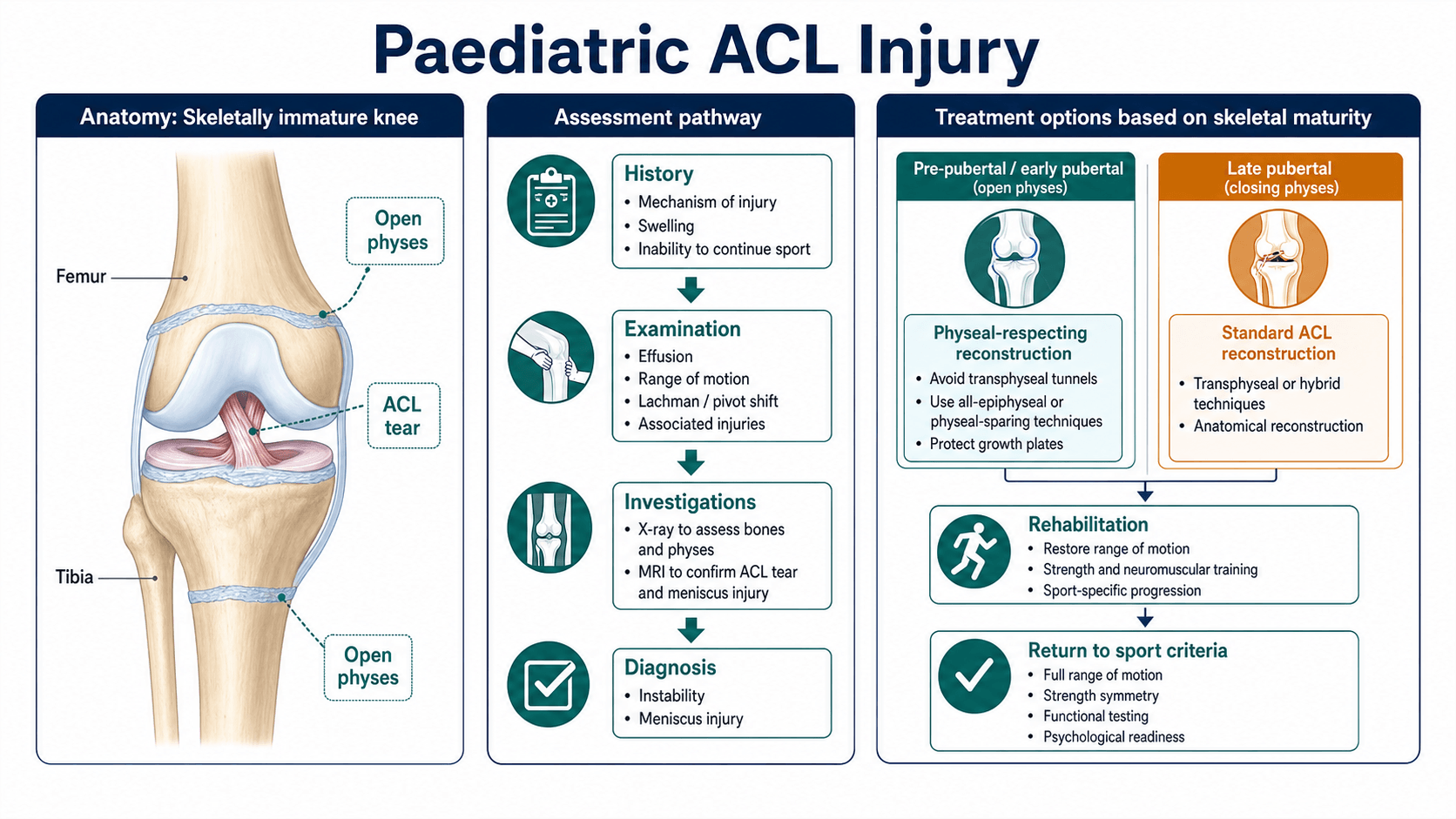

Pathophysiology and Anatomy
The ACL restrains anterior tibial translation and contributes to rotational stability. It is vulnerable during non-contact pivoting, cutting, deceleration or landing, commonly with the knee near extension and loaded in valgus and rotation.
Children differ from adults in two important ways:
- Tibial spine vulnerability: in younger children the ACL may avulse bone from the intercondylar eminence rather than tear in the ligament substance.
- Open physes: distal femoral and proximal tibial growth plates can be affected by tunnels, fixation, bone blocks, thermal damage or repeated drill passes.
An acute haemarthrosis occurs because the ACL is intra-articular but extrasynovial and vascular. The pivot-shift mechanism may also injure the meniscus, articular cartilage and subchondral bone. Lateral meniscal injury and bone bruising are common in acute pivot injuries; medial meniscal tears and chondral injury become increasingly important with recurrent instability and delay.
The meniscus is the real urgency
The question is not only whether the ACL is torn. The key clinical issue is whether ongoing instability is converting a reconstructable ligament problem into a meniscal and chondral preservation problem.
Classification
Classification should describe the injury pattern, bony attachment, associated pathology and skeletal maturity.
- Complete midsubstance tear: functionally unstable in many active children and adolescents.
- Partial ACL tear: may be stable or unstable; treatment depends on Lachman/pivot, symptoms and sport demand rather than MRI wording alone.

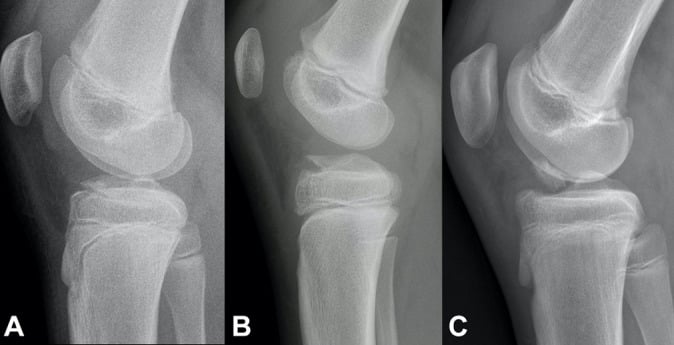

- Tibial spine avulsion: bony ACL-equivalent injury from the tibial eminence.
- Combined injury: ACL plus meniscal, chondral, collateral, posterolateral, osteochondral or patellar instability pathology.

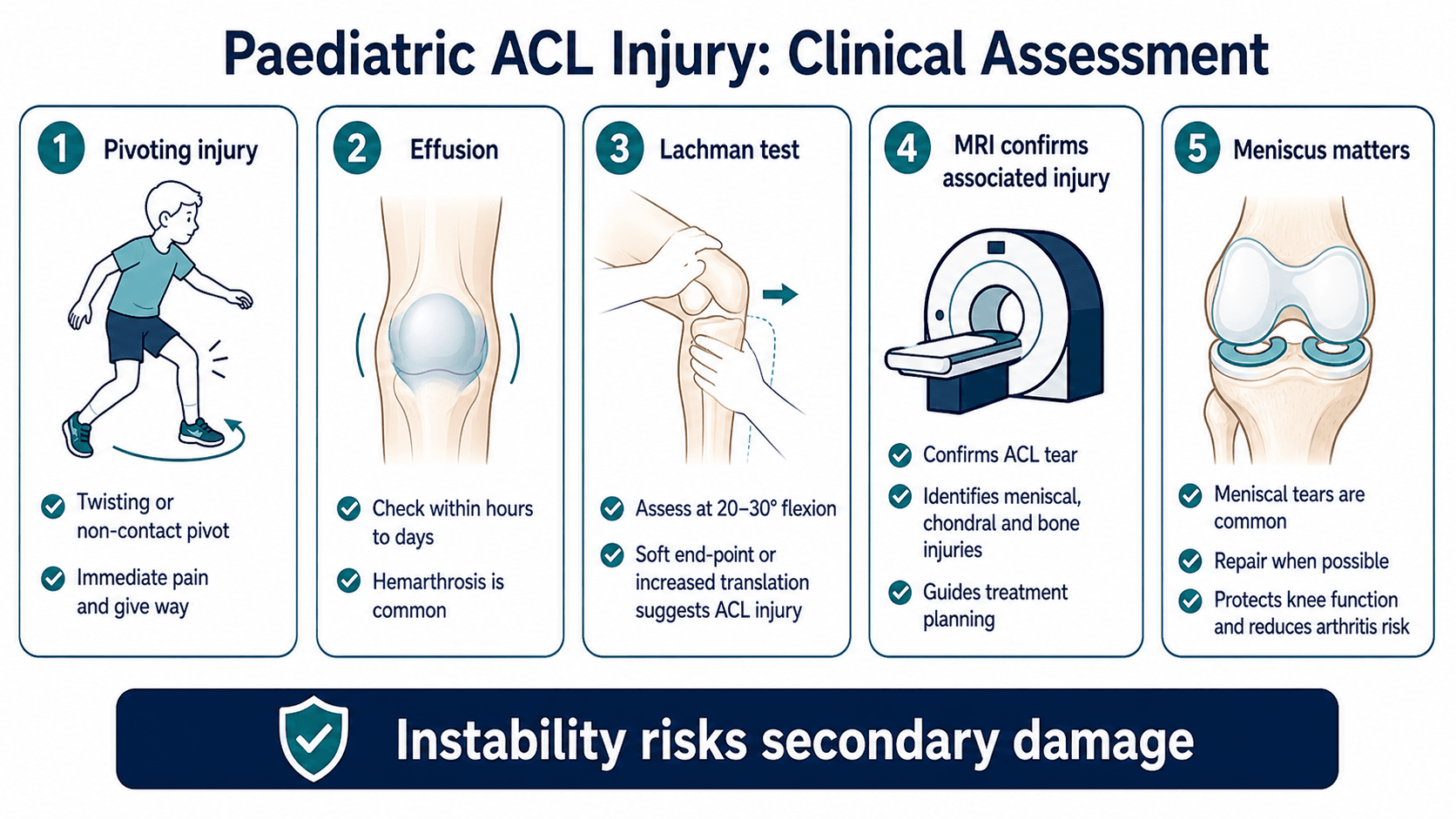

Clinical Presentation
History
The classic presentation is a pivoting or landing injury with a pop, immediate pain, rapid swelling and inability to continue sport. Some children describe instability immediately; others mainly describe swelling, apprehension and inability to fully trust the knee.
Ask specifically about:
- Mechanism: pivot, sidestep, deceleration, landing, tackle, hyperextension or direct contact.
- Pop, immediate pain and rapid effusion.
- Ability to continue sport and ability to weight bear.
- Giving way, recurrent instability or fear of pivoting.
- Locking, catching or inability to fully extend.
- Previous patellar dislocation, prior knee injury and contralateral ACL injury.
- Sport level, season timing, position, training volume and willingness to modify activity.
- Growth history, pubertal stage and menarche history where clinically appropriate.
Examination
The acute knee may be painful and guarded. Start with effusion, range of motion and the ability to achieve full extension. Compare with the opposite knee.
Assess:
- Effusion or tense haemarthrosis.
- Extension loss or true mechanical block.
- Lachman test and endpoint when tolerated.
- Pivot shift later, under anaesthetic, or when pain settles; do not force it in an acutely painful child.
- Joint-line tenderness, McMurray symptoms and meniscal locking.
- Collateral ligaments and posterolateral corner in higher-energy injuries.
- Patellar apprehension and osteochondral injury clues.
- Distal neurovascular status.
- Limb alignment, generalised laxity, gait and functional squat/landing control when appropriate.
Do not force the pivot shift
A dramatic pivot shift is not required to diagnose a clinically suspicious paediatric ACL injury. In the acute setting, effusion, extension loss, Lachman, X-ray and MRI are usually more useful.
Investigations
X-ray first

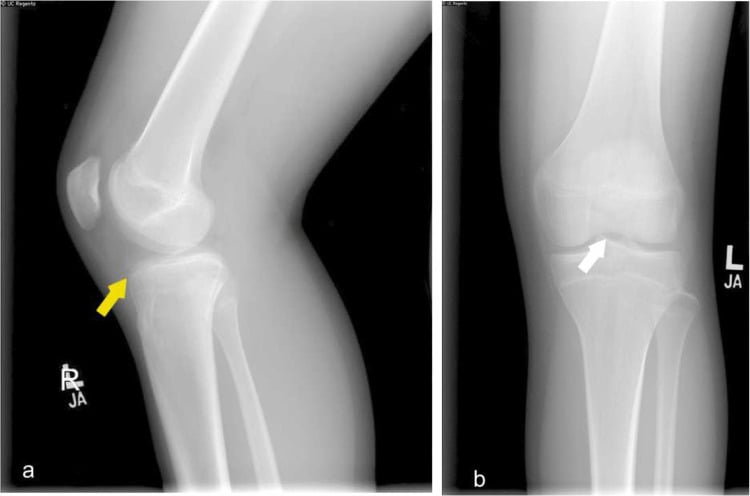

Obtain AP and lateral knee radiographs. Add notch, tunnel or sunrise views when clinically relevant. The paediatric reason for X-ray is not just fracture exclusion; it is to identify tibial spine avulsion, osteochondral fracture, Segond-type injury, patellar dislocation sequelae or physeal injury.

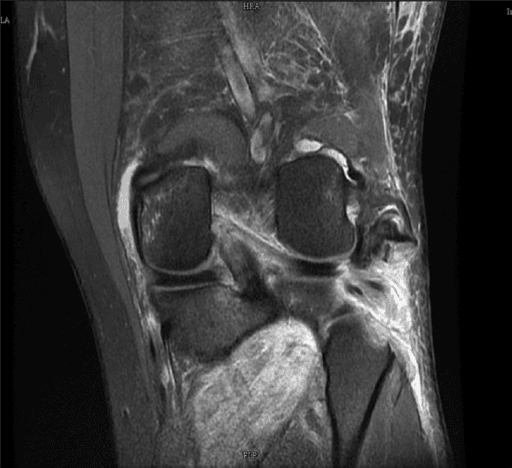

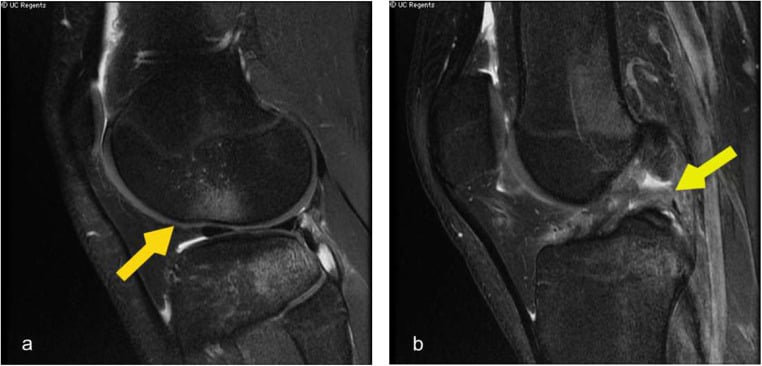

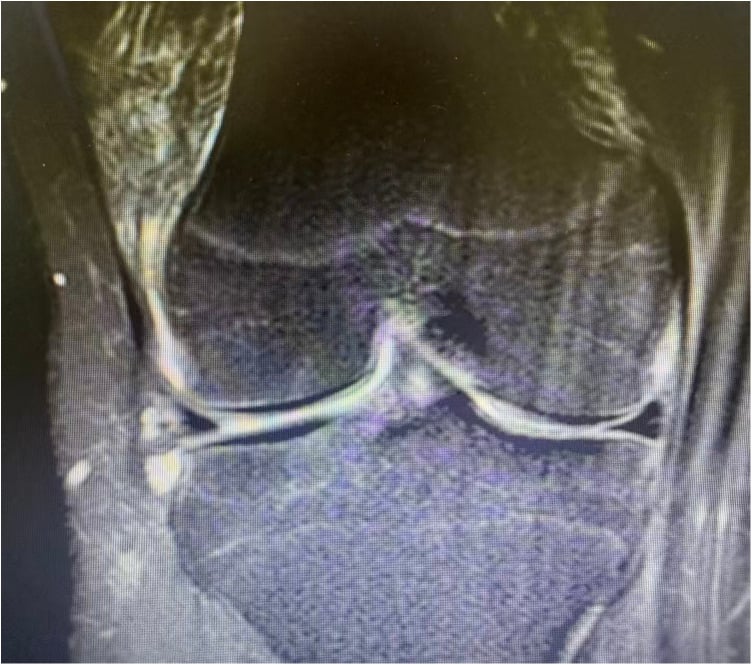

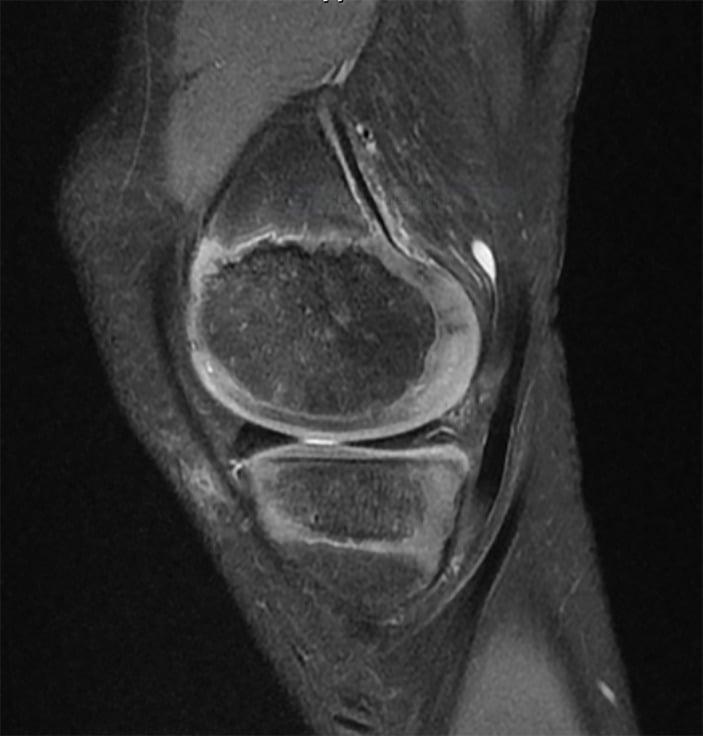

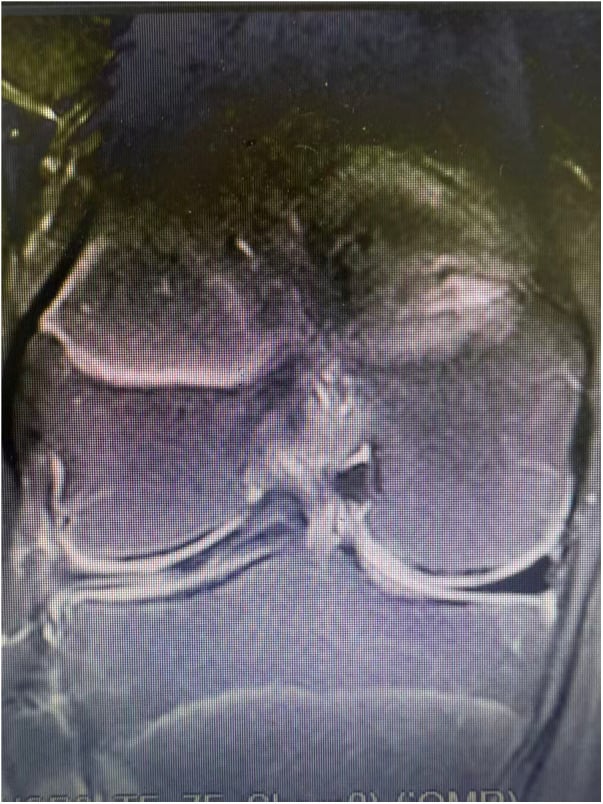

MRI
MRI confirms the ACL pattern and must be reviewed actively:
- ACL continuity, fibre orientation and stump position.
- Tibial spine fragment or bony avulsion.

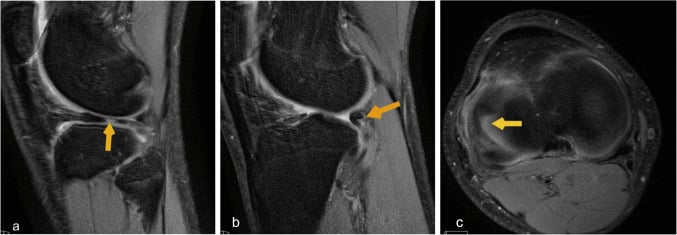

- Meniscal tear, bucket-handle tear and ramp lesion.

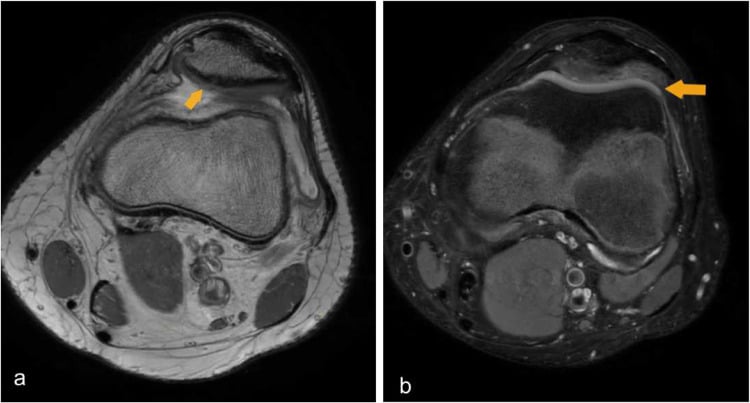

- Chondral or osteochondral injury.
- Bone bruising pattern.
- Collateral ligament or posterolateral injury.
- Physeal status and safe tunnel anatomy.
Maturity assessment
Skeletal maturity assessment is required when reconstruction technique depends on growth remaining. Chronological age alone is insufficient. Use a combination of growth history, pubertal stage, knee radiographs, hand bone age, standing hip-to-ankle radiographs or local maturity protocols where appropriate.
Investigation Strategy
| Question | Investigation | Decision it informs |
|---|---|---|
| Could this be a bony ACL-equivalent injury? | AP and lateral knee X-rays | Detects tibial spine avulsion, osteochondral injury and fracture |
| Is the ACL torn and what else is injured? | MRI | Defines ACL, meniscus, cartilage, bone bruise and associated ligament injury |
| How much growth remains? | Maturity assessment and imaging when needed | Guides physeal-sparing, hybrid or transphyseal technique |
| Is return to sport safe? | Functional and psychological testing | Assesses strength, hop performance, control and confidence |
Differential Diagnosis
The swollen paediatric sports knee has important mimics and associated injuries:
- Tibial spine avulsion.
- Patellar dislocation with osteochondral fracture.
- Bucket-handle meniscal tear.
- Isolated meniscal tear.
- Collateral ligament injury.
- Posterolateral corner injury after high-energy mechanism.
- Distal femoral or proximal tibial physeal fracture.
- Osteochondritis dissecans presenting after a minor episode.
- Acute haemarthrosis from bleeding disorder in the right clinical context.
Management
Acute care aims to control swelling, restore extension and define the injury.
- Analgesia, ice, compression and protected weight bearing.
- Early restoration of full extension as pain allows.
- X-ray before MRI.
- Avoid premature return to pivoting or cutting.
- Urgent review for locked knee, displaced tibial spine avulsion, osteochondral fracture or suspected bucket-handle meniscus.
Prolonged immobilisation is avoided unless required for a fracture pattern because stiffness and quadriceps shutdown complicate recovery.
Treatment Selection
| Clinical situation | Reasonable direction | Avoid |
|---|---|---|
| Stable partial tear with low demand | Structured rehabilitation, activity modification and close review | Unsupervised return to pivoting sport |
| Unstable complete tear in pivoting athlete | Maturity-specific ACL reconstruction | Repeated giving way while waiting for maturity |
| Displaced tibial spine avulsion | Arthroscopic reduction and fixation when extension or stability is compromised | Missing interposed meniscus or accepting residual extension block |
| Open physes with substantial growth remaining | Physeal-sparing or all-epiphyseal strategy when reconstruction is needed | Adult-style tunnels and fixation without maturity assessment |
| Near-mature adolescent | Carefully planned transphyseal reconstruction may be appropriate | Overstating physeal risk when instability is damaging the meniscus |
| ACL tear with repairable meniscus | Stabilise the knee and repair the meniscus where possible | Partial meniscectomy by default |

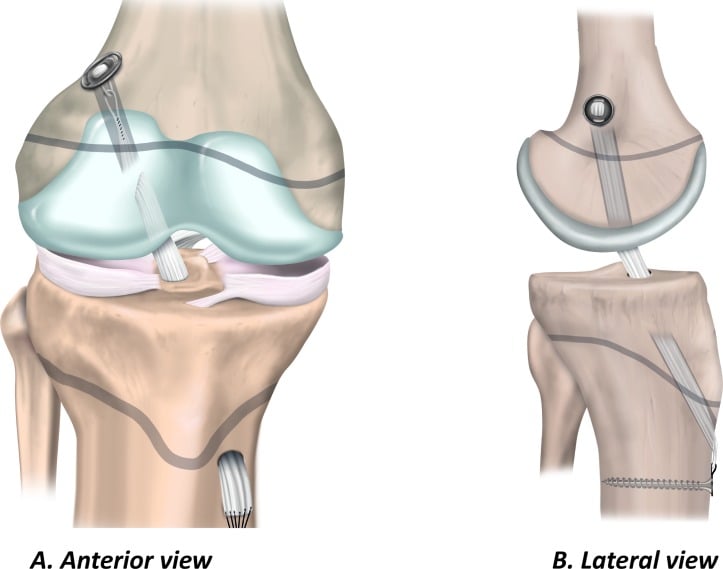

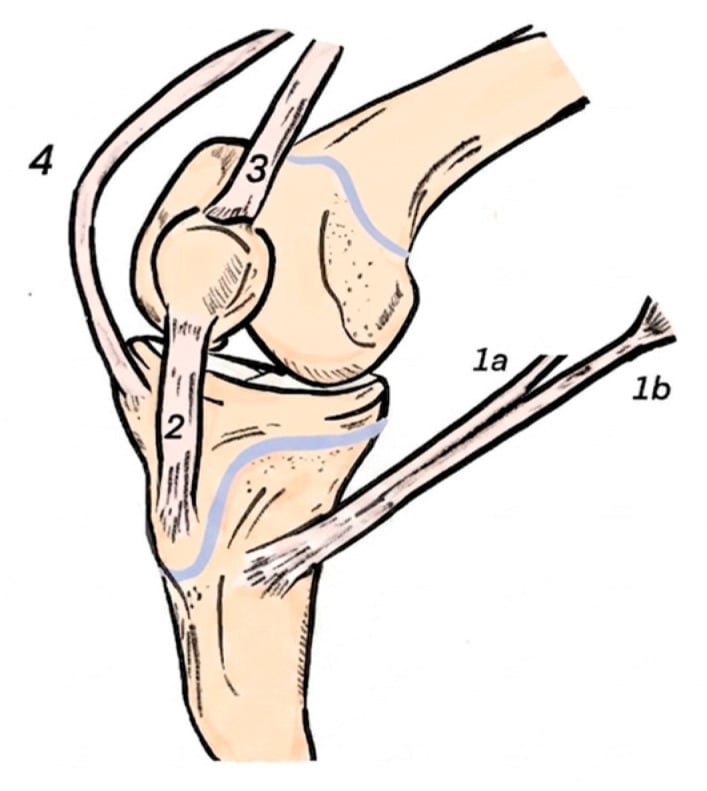

Graft and Technique Principles
The best graft is not the same for every child. Choose graft and technique according to skeletal maturity, sport, tunnel plan, graft size, donor-site morbidity, revision risk and surgeon experience.
Graft and Technique Considerations
| Option | Potential advantages | Important cautions |
|---|---|---|
| Hamstring autograft | Commonly used, soft-tissue graft, avoids bone plug across physis | Small graft diameter and hamstring weakness may matter in small children |
| Quadriceps tendon autograft | Increasing evidence of good paediatric outcomes and lower rupture in some meta-analyses | Technique, graft thickness and donor-site morbidity require experience |
| Bone-patellar tendon-bone | Strong adult graft with bone-to-bone healing | Generally avoided with substantial growth remaining because bone blocks can injure physes |
| Allograft | No donor-site morbidity | Generally avoided in young active athletes because failure risk is higher |
| Lateral extra-articular procedure | May reduce rotational instability in very high-risk selected patients | Indications in skeletally immature patients remain selective and evolving |

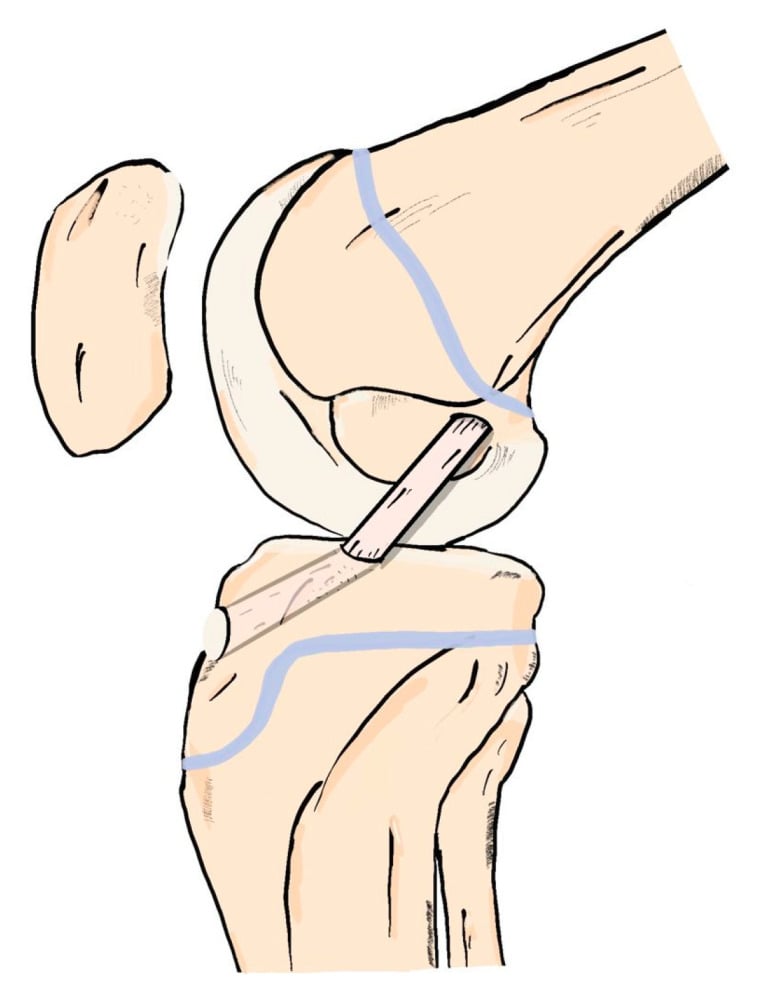

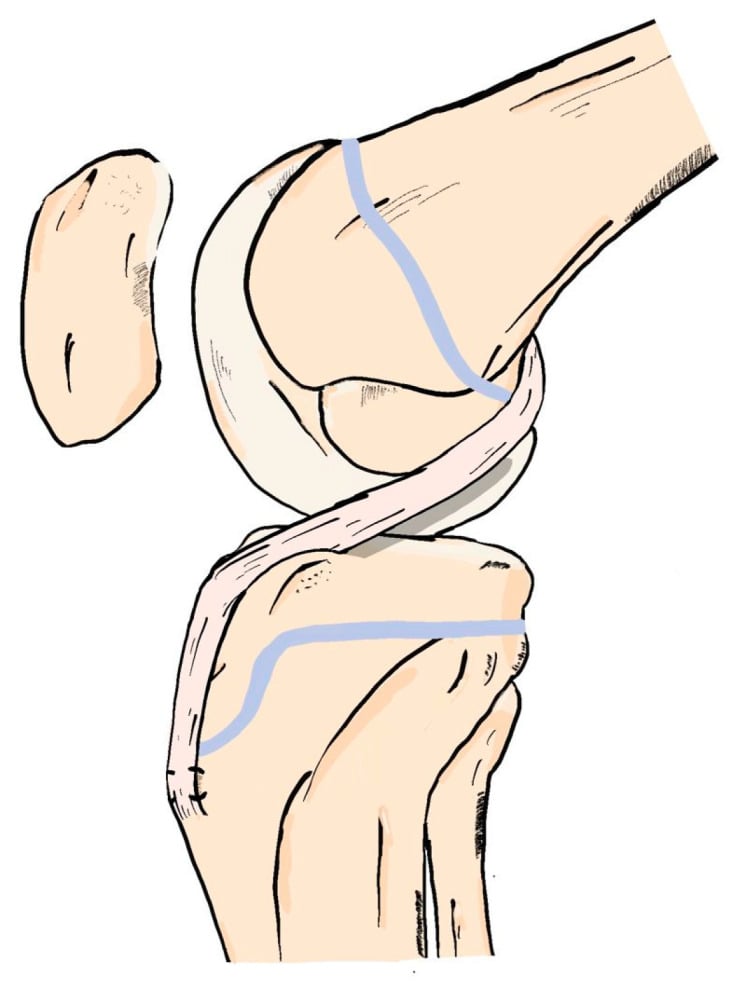

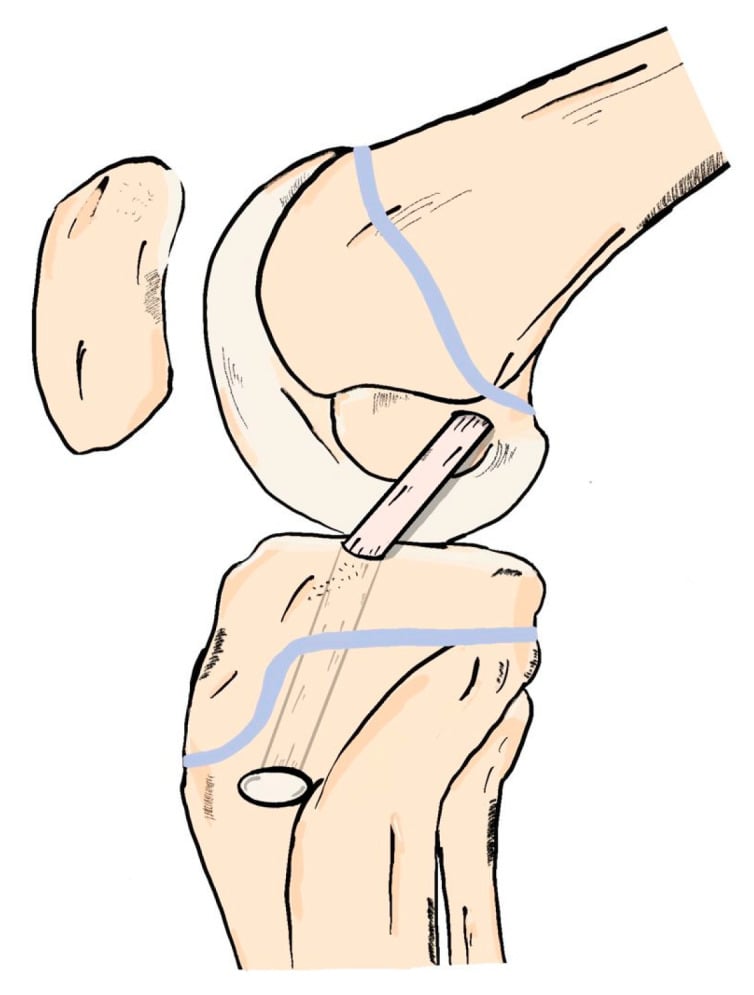

Physeal risk is reduced by avoiding large peripheral tunnels, avoiding hardware or bone blocks crossing the growth plate, minimising repeated drilling, keeping tunnels as central and vertical as is compatible with safe reconstruction, and following growth clinically and radiographically when risk exists.
Rehabilitation and Return to Sport
Rehabilitation is part of the treatment decision. A technically good reconstruction can fail if strength, landing mechanics and confidence are not restored.
Early goals
- Control pain and effusion.
- Restore full extension.
- Recover quadriceps activation.
- Normalise gait.
- Protect meniscal repair or tibial spine fixation restrictions where relevant.
Intermediate goals
- Restore progressive flexion and functional range.
- Build quadriceps, hamstring, hip and trunk strength.
- Improve neuromuscular control.
- Correct dynamic valgus and poor landing mechanics.
- Maintain cardiovascular conditioning without pivoting exposure.
Return-to-sport criteria
Return to pivoting sport should include:
- No effusion or pain response to training.
- Full extension and functional flexion.
- Quadriceps and hamstring strength symmetry.
- Hop testing and side-to-side performance.
- Quality of landing, cutting and deceleration mechanics.
- Psychological readiness and confidence.
- Sport-specific graded exposure.
- Ongoing injury-prevention program.
Calendar trap
A time point is not a clearance test. A child who swells, limps, lands poorly, lacks strength or lacks confidence is not ready for unrestricted pivoting sport.
Complications and Follow-up
Early complications
- Missed tibial spine avulsion.
- Locked knee from bucket-handle meniscus or displaced fragment.
- Persistent extension loss.
- Arthrofibrosis.
- Recurrent giving way before definitive treatment.
- Missed collateral, posterolateral or osteochondral injury.
Late complications
- Secondary meniscal tear after recurrent instability.
- Chondral injury and early degenerative change.
- Graft rupture.
- Contralateral ACL tear.
- Growth disturbance after physeal injury.
- Limb-length difference or angular deformity.
- Persistent quadriceps weakness.
- Fear of return to sport.
Follow-up should monitor symptoms, effusion, extension, graft stability, meniscal symptoms, strength, movement quality, sport exposure and growth when physes remain open.
Clinical Reasoning Pitfalls
Pitfall 1: Calling haemarthrosis a sprain
Rapid swelling after pivoting is an intra-articular injury until proven otherwise. Missing the diagnosis delays activity restriction and increases risk of secondary injury.
Pitfall 2: MRI before X-ray thinking
MRI is essential, but X-rays are the first step because tibial spine avulsion and osteochondral fracture change management.
Pitfall 3: Treating partial tear by MRI wording alone
A partial tear that gives way is not benign. Stability, sport demand and symptoms drive management.
Pitfall 4: Waiting for maturity while the knee keeps giving way
The aim is not to avoid surgery at any cost. The aim is to avoid both physeal injury and instability-related meniscal damage.
Pitfall 5: Return to sport by time alone
Young athletes have high graft and contralateral ACL risk. Clearance needs functional testing, psychological readiness and injury-prevention work.
Evidence Base
Paediatric ACL consensus
- Paediatric ACL care requires attention to prevention, diagnosis, treatment, rehabilitation and shared decision-making.
- Management should consider skeletal maturity, instability, sport demands and associated injuries.
- Return to sport should be criterion-based and prevention-focused.
Early versus delayed treatment
- Delayed reconstruction beyond 12 weeks increased the risk of meniscal injury and irreparable meniscal tear.
- Non-operative management showed high rates of residual instability and lower return-to-sport rates.
- Early and delayed operative treatment both achieved satisfactory stability, but early treatment better protected the meniscus.
Selected References
-
Ardern CL, Ekas GR, Grindem H, et al. 2018 International Olympic Committee consensus statement on prevention, diagnosis and management of paediatric anterior cruciate ligament injuries. Br J Sports Med. 2018;52:422-438. PMID: 29478021
-
James EW, Dawkins BJ, Schachne JM, et al. Early operative versus delayed operative versus nonoperative treatment of pediatric and adolescent anterior cruciate ligament injuries: a systematic review and meta-analysis. Am J Sports Med. 2021;49:4008-4017. PMID: 33720764
-
Kay J, Memon M, Shah A, et al. Earlier anterior cruciate ligament reconstruction is associated with decreased risk of medial meniscal and articular cartilage damage in children and adolescents. Knee Surg Sports Traumatol Arthrosc. 2018;26:3738-3753. PMID: 29876862
-
Pierce TP, Issa K, Festa A, Scillia AJ, McInerney VK. Pediatric anterior cruciate ligament reconstruction: a systematic review of transphyseal versus physeal-sparing techniques. Am J Sports Med. 2017;45:488-494. PMID: 27045088
-
Fury MS, Paschos NK, Fabricant PD, et al. Assessment of skeletal maturity and postoperative growth disturbance after ACL reconstruction in skeletally immature patients: a systematic review. Am J Sports Med. 2022;50:1430-1441. PMID: 33984243
-
Jin H, Tahir N, Jiang S, et al. Management of anterior cruciate ligament injuries in children and adolescents: a systematic review. Sports Med Open. 2025;11:61. PMID: 40263204
-
Zacharias AJ, Whitaker JR, Collofello BS, et al. Secondary injuries after pediatric anterior cruciate ligament reconstruction: a systematic review with quantitative analysis. Am J Sports Med. 2021;49:1086-1093. PMID: 32809855
-
Rangasamy K, Baburaj V, Gopinathan NR, Dhillon MS, Parikh SN. Quadriceps tendon autograft is promising with lower graft rupture rates than hamstring tendon autograft in pediatric ACL reconstruction: a systematic review and meta-analysis. J Orthop. 2024;50:34-43. PMID: 38223427
-
Yellin JL, Fabricant PD, Gornitzky A, et al. Rehabilitation following anterior cruciate ligament tears in children: a systematic review. JBJS Rev. 2016;4:e4. PMID: 27490007
-
Elnewishy A, El Menawy Z, Zahed M, et al. Suture fixation versus screw fixation in pediatric tibial eminence fractures: a systematic review and meta-analysis. Cureus. 2025. PMID: 41487842
Clinical Decision Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Acute swollen knee after pivot injury
"A 13-year-old has a pop, rapid swelling and instability after pivoting during sport. How do you assess and manage the injury?"
Open physes and ACL reconstruction
"Why does skeletal maturity matter when choosing ACL reconstruction technique in a child?"
Paediatric ACL Injury Clinical Summary
Clinical summary
Recognise
- •Pivot or landing
- •Pop
- •Rapid effusion
- •Giving way
- •Lachman
- •X-ray first
- •Tibial spine
- •MRI ACL
- •Meniscus and cartilage
- •Physes
Treat
- •Restore extension
- •Fix displaced tibial spine
- •Selected rehabilitation
- •Maturity-specific reconstruction
- •Meniscal repair when possible
Follow
- •Instability
- •Extension
- •Meniscus symptoms
- •Growth disturbance
- •Return-to-sport criteria
"Think swollen pivot knee, X-ray for tibial spine, MRI for full injury pattern, maturity-based treatment, meniscal preservation and criterion-based return to sport."
