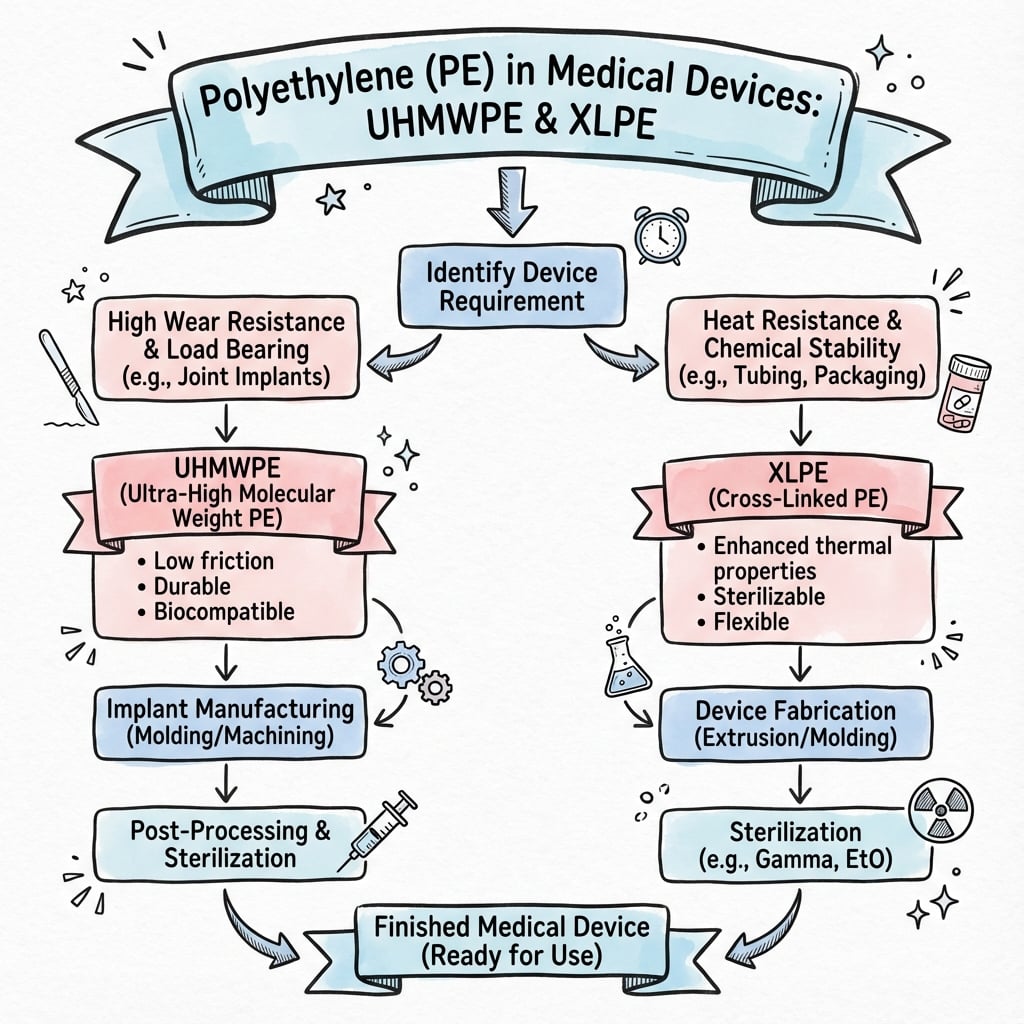

Polyethylene in Arthroplasty: UHMWPE and XLPE

Remelting Method (First Generation XLPE)

Process:

1. Irradiation: Gamma or e-beam (50-100 kGy) in inert atmosphere
2. Crosslinking: C-C bonds form between chains
3. Remelting: Heat above melting point (over 137C, typically 150C)
4. Cooling: Controlled cooling to room temperature
5. Machining: Fabricate into liners

Purpose of remelting:

• Eliminate all free radicals: Heating allows radicals to recombine or be quenched
• Prevent oxidation: No residual radicals means no oxygen reaction
• Shelf stability: Can be stored indefinitely without degradation

Trade-offs:

• Crystallinity reduced: Melting destroys crystalline lamellae, reduces from 45% to 30-35%
• Toughness reduced: Lower crystallinity means lower fracture toughness and impact strength
• Fatigue resistance reduced: More prone to crack propagation under cyclic loading

Clinical implication: Remelted XLPE requires minimum 6-8mm thickness to prevent rim fracture.

This completes the remelting method description.

Annealing Method (Sequential XLPE)

Process:

1. Irradiation: Gamma or e-beam (50-100 kGy) in inert atmosphere
2. Crosslinking: C-C bonds form between chains
3. Annealing: Heat below melting point (below 137C, typically 130C for several hours)
4. Cooling: Controlled cooling to room temperature
5. Machining: Fabricate into liners

Purpose of annealing:

• Reduce free radicals: Heating allows some radicals to recombine (not all)
• Preserve crystallinity: Temperature below melting point maintains lamellae structure
• Better toughness: Maintains 40-45% crystallinity (closer to conventional PE)

Trade-offs:

• Residual free radicals: Not all radicals eliminated (5-10% remain)
• Slow oxidation: Radicals can react with oxygen over years (but much slower than conventional PE)
• Shelf life: Should be packaged in barrier packaging to prevent shelf aging

Clinical implication: Annealed XLPE has better mechanical properties than remelted, but slight oxidation risk. Still vastly superior to conventional PE.

This completes the annealing method description.

Vitamin E Stabilized XLPE (Third Generation)

Concept:

• Antioxidant: Vitamin E (alpha-tocopherol) scavenges free radicals
• Prevents oxidation: Vitamin E reacts with radicals instead of oxygen
• Preserves toughness: No need for high-temperature remelting

Methods:

1. Diffusion method: Soak irradiated PE in vitamin E (diffuses into surface)
2. Blending method: Mix vitamin E into UHMWPE powder before compression molding

Advantages:

• Oxidation resistance: Vitamin E eliminates free radicals without remelting
• Better mechanical properties: Can use lower radiation dose or skip remelting (higher toughness)
• Long-term stability: Vitamin E provides ongoing antioxidant protection

Considerations:

• Lower crosslink density: Some formulations use lower radiation dose (better toughness, slightly higher wear)
• Vitamin E migration: Diffusion method may have non-uniform distribution
• Clinical data: 10+ year data emerging, excellent wear performance

Clinical implication: Vitamin E XLPE may represent optimal balance of wear resistance and mechanical properties.

This completes the vitamin E stabilization description.

Polymer Morphology and Microstructure:

Detailed Ultrastructure:

Lamellae Organization:

• Primary lamellae: Thick (20-50nm), formed during slow cooling
• Secondary lamellae: Thin (10-20nm), formed during recrystallization
• Lamellar thickness: Proportional to crystallization temperature
• Spherulites: Radially arranged lamellae visible under polarized light

Tie Molecule Concept:

• Long polymer chains traverse multiple crystalline and amorphous regions
• Tie molecules: Segments of chain that connect adjacent lamellae through amorphous phase
• Critical for mechanical integrity (transfer stress between crystalline regions)
• More tie molecules = better toughness and fatigue resistance
• High molecular weight (3-6 million Da) ensures abundant tie molecules

Effect of Processing on Morphology:

Chain Mobility and Wear:

The wear resistance of XLPE relates directly to molecular mobility:

• Uncrosslinked PE: Chains can slide past each other (adhesive wear)
• Crosslinked PE: C-C bonds lock chains together (restricted sliding)
• Crystalline regions: Already restricted mobility (inherently wear-resistant)
• Amorphous regions: Crosslinking here provides greatest benefit

Why 50-100 kGy dose is optimal:

• Creates sufficient crosslinks in amorphous phase to restrict chain mobility
• Preserves enough chain mobility for adequate toughness
• Higher doses (greater than 100 kGy) cause excessive chain scission and embrittlement

Classification of Polyethylene Types in Arthroplasty:

Detailed Classification by Brand:

Classification by Radiation Source:

Gamma radiation:

• Cobalt-60 source
• Penetrates throughout material uniformly
• Dose rate: lower (takes hours)
• Temperature: rises during irradiation (may affect crosslinking)

Electron beam (e-beam):

• Accelerated electrons
• Limited penetration depth (may need multiple passes)
• Dose rate: higher (minutes)
• Temperature: can be controlled more precisely

Vitamin E XLPE Sub-classification:

Blending method:

• Vitamin E (0.05-0.3% by weight) mixed into UHMWPE powder
• Uniform distribution throughout material
• Can be irradiated after blending
• Example: E1 (Biomet)

Diffusion method:

• UHMWPE irradiated and crosslinked first
• Soaked in vitamin E solution (diffuses in)
• Gradient concentration (highest at surface)
• Example: Vivacit-E (Zimmer)

Quality Control and Clinical Assessment Methods:

Laboratory Testing Methods:

Mechanical Testing:

1. Tensile testing (ASTM D638):

   • Ultimate tensile strength (UTS)
   • Yield strength and elongation at break
   • XLPE slightly lower UTS than conventional (35-45 vs 40-50 MPa)

2. Impact testing:

   • Izod impact strength (notched specimen)
   • Charpy impact test
   • XLPE reduced 30-40% compared to conventional

3. Fatigue testing:

   • Cyclic loading to simulate walking cycles
   • Crack propagation rate
   • XLPE more susceptible to fatigue crack growth

Oxidation Assessment:

FTIR (Fourier Transform Infrared Spectroscopy):

• Measures carbonyl absorption peak (1718 cm⁻¹)
• Oxidation index = carbonyl peak / reference peak ratio
• Fresh PE: OI less than 0.1; Oxidized: OI greater than 1.0
• Used for shelf aging assessment and retrieval analysis

ESR (Electron Spin Resonance):

• Detects unpaired electrons (free radicals)
• Quantifies residual free radicals after manufacturing
• Remelted XLPE: near zero; Annealed: detectable residuals

Crosslink Density Testing:

Retrieval Analysis (Explanted Liners):

When liners are revised, laboratory analysis provides valuable information:

• Visual inspection: Wear patterns, scratches, rim damage
• Dimensional measurement: Compare to original dimensions (CMM)
• Oxidation profiling: FTIR through thickness (surface to bulk)
• Mechanical testing: Tensile, impact if sufficient material
• Microscopy: Subsurface cracking, delamination, third-body wear

Clinical Imaging for Osteolysis:

Plain radiographs:

• Annual follow-up X-rays recommended
• Look for: periarticular lucencies, component migration, liner wear

CT scan (if osteolysis suspected):

• More sensitive than X-ray for detecting osteolytic lesions
• Quantify lesion volume for surgical planning
• Metal artifact reduction sequences helpful

Implant Selection and Decision-Making:

Advanced Selection Considerations:

XLPE Type Selection:

Dual Mobility Considerations:

In dual mobility constructs:

• Large outer head (40-48mm+ effectively) provides stability
• Smaller inner articulation (22-28mm)
• Some dual mobility cups use conventional PE (design-specific)
• XLPE dual mobility increasingly available and preferred

TKA Polyethylene Selection:

XLPE in TKA - Different considerations:

• Lower cross-shear wear than THA (more sliding, less rotation)
• Conventional PE still acceptable in TKA (less wear concern)
• XLPE increasingly used but evidence less clear than THA
• Cruciate-retaining vs posterior-stabilized affects loading pattern

Managing PE Wear in Follow-up:

X-ray assessment:

• Annual AP pelvis and lateral hip X-rays
• Compare to immediate post-op baseline
• Look for linear penetration, osteolysis, component migration

If lucency detected:

• CT scan to quantify osteolysis volume
• MRI if soft tissue concern (ALTR, pseudotumor)
• Plan intervention based on lesion size and progression

Consider revision if:

• Measurable linear wear greater than 0.1mm/year with XLPE (unusual)
• Progressive osteolysis greater than 1-2cm lesions
• Component loosening or impending fracture
• Symptomatic (pain, instability)

Liner Exchange Considerations:

When liner wear or osteolysis requires intervention:

• Isolated liner exchange possible if shell well-fixed and well-positioned
• Bone grafting of osteolytic lesions through screw holes
• Always upgrade to XLPE if revising from conventional PE
• Consider head exchange (new head on existing stem) to optimize articulation

Liner Selection and Intraoperative Considerations:

Advanced Liner Considerations:

Modular vs Fixed Bearing Liners:

Locking Mechanism Considerations:

Different manufacturers use different liner locking mechanisms:

• Peripheral snap-fit: Ring around liner edge
• Central post: Central locking mechanism
• Screw holes: Can allow osteolysis access (some designs cover them)

Important: Match liner to shell design - they are not interchangeable between manufacturers.

Head-Liner Selection Sequence:

After final reaming, confirm cup size (typically 1-2mm underream for press-fit).

Insert final cup with appropriate press-fit, confirm stable seating.

Liner thickness = (Cup OD - Head size) / 2 + liner wall thickness

Example: 54mm cup with 36mm head = (54-36)/2 = 9mm dome thickness (acceptable)

Insert trial liner and head. Assess:

• Stability (shuck test, ROM testing)
• Leg length and offset
• Impingement (test full ROM)

Insert real liner (confirm full seating). Insert real head (confirm taper engagement).

Handling and Storage:

XLPE handling precautions:

• Keep in sterile packaging until ready to insert
• Avoid prolonged exposure to room air (some formulations)
• Do not drop or damage (may cause rim defects)
• Follow manufacturer storage recommendations

Vitamin E XLPE:

• May have yellow tint (normal for vitamin E)
• Same handling as other XLPE

Detailed Complication Analysis:

Rim Fracture:

Mechanism:

• Edge loading concentrates stress at liner rim
• Reduced toughness of XLPE (crosslinking restricts chain mobility)
• Thinner liners have less material to resist fracture
• Cup malposition increases edge loading risk

Risk factors:

• Liner thickness less than 6mm
• Cup abduction greater than 55 degrees (edge loading)
• High activity level (more loading cycles)
• Impingement (concentrated stress at rim)

Prevention:

• Minimum 6-8mm liner thickness
• Optimal cup position (40-45 degrees abduction)
• Avoid elevated lip liners if cup malpositioned
• Consider larger cup if acetabulum permits

Oxidation and Degradation:

Backside Wear:

Mechanism:

• Micromotion between modular liner and metal shell
• Generates additional particles
• Especially problematic with screw holes (particle access to bone)

Prevention:

• Secure liner locking mechanism
• Confirm complete liner seating
• XLPE reduces but doesn't eliminate backside wear concern
• Some designs use liner covers for screw holes

Dislocation (Related to Liner Choice):

Liner factors affecting stability:

• Elevated lip liners increase jump distance
• Larger head size improves stability (but thinner liner)
• Lateralized liners affect offset
• Constrained liners for high-risk patients

XLPE enables larger heads (low wear penalty) which improves stability.

Differential Diagnosis: The Painful or Failing Polyethylene-Bearing THA

When a patient with a polyethylene-bearing hip presents with pain, instability, or a lytic lesion, the bearing is only one of several explanations. Working through these systematically is a common viva structure.

Surveillance and Monitoring for PE Wear:

Advanced Surveillance Considerations:

When to Increase Surveillance Frequency:

Activity Recommendations:

Patient counselling regarding PE longevity:

• XLPE is designed for active patients
• No specific activity restrictions related to PE wear
• General THA precautions apply (avoid high-impact, contact sports)
• Higher activity = more cycles, but XLPE handles this well

Weight management:

• Higher BMI increases joint loading
• Weight loss beneficial for implant longevity (and general health)
• Not specific to PE type, but reduces overall wear

Managing Symptomatic Patients:

If patient develops symptoms (pain, instability, clicking):

1. Clinical examination:

   • Gait, ROM, stability testing
   • Impingement tests
   • Rule out infection (aspiration if needed)

2. Imaging:

   • X-rays (AP pelvis, lateral hip)
   • CT scan for osteolysis assessment
   • MRI if soft tissue concern

3. Differential diagnosis:

   • Liner wear/osteolysis
   • Component loosening
   • Liner fracture
   • Infection
   • Adverse local tissue reaction
   • Other (bursitis, tendinopathy)

Long-term Survivorship Expectations:

With XLPE:

• 10-year survivorship: greater than 95%
• 15-year survivorship: greater than 90%
• 20-year survivorship: Data emerging, excellent

Main revision reasons with XLPE:

• Instability/dislocation (not PE-specific)
• Infection (not PE-specific)
• Osteolysis (dramatically reduced with XLPE)
• Liner fracture (rare, preventable with proper thickness)

Global epidemiology and burden:

Total hip and knee arthroplasty are among the highest-volume elective procedures worldwide, with demand projected to rise substantially as populations age and osteoarthritis prevalence increases. Because polyethylene wear and the resulting osteolysis were historically the dominant cause of late aseptic revision, the global shift to XLPE bearings is one of the most consequential materials changes in the history of arthroplasty. The major national registries (AOANJRR in Australia, the National Joint Registry for England, Wales, Northern Ireland and the Isle of Man, the Nordic Arthroplasty Register Association combining the Swedish, Danish, Norwegian and Finnish registries, and the US American Joint Replacement Registry) now report that XLPE is the dominant acetabular bearing material, and registry data consistently associate it with lower rates of revision for loosening and lysis (Paxton 2015, PMID 25560957).

Practice variation worldwide:

• Head material: Ceramic-on-XLPE is favoured in younger patients in Australia and much of Europe; cobalt-chrome-on-XLPE remains common in the US and in cost-constrained systems. Both outperform metal-on-conventional PE for revision risk (Paxton 2015, PMID 25560957).
• Vitamin E uptake: Adoption of vitamin E-stabilised XLPE is more advanced in parts of Europe and Australia, with registries now tracking it; long-term comparative outcome data remain limited (Nebergall 2017, PMID 28455465).
• TKA bearings: XLPE use in TKA is more variable than in THA because wear-driven revision is a smaller share of knee failures; early-to-mid-term TKA data show outcomes comparable to conventional UHMWPE (antioxidant XLPE review, PMID 36813217).
• Regulation: Implant-grade polyethylene must conform to ISO 5834 / ASTM F648; national regulators (e.g. TGA in Australia, MHRA in the UK, FDA in the US) require pre-market approval and post-market surveillance feeding the registries.
