Adhesive | Abrasive | Fatigue | Third-Body
- Polyethylene wear debris causes particle-induced osteolysis via macrophage activation
- Cross-linking reduces polyethylene wear by 50-90% but may reduce mechanical properties
- Ceramic-on-ceramic has lowest volumetric wear but risk of fracture and squeaking
- Third-body wear from cement, bone, or metal particles accelerates bearing damage
- Wear threshold: historic 2mm/year PE wear associated with osteolysis risk
- βAdhesive = cold welding, material transfer
- βAbrasive = harder scratches softer (two-body or three-body)
- βFatigue (delamination) = subsurface crack propagation
- βParticle size 0.1-1ΞΌm most biologically active for osteolysis
Adhesive: Cold welding and transfer. Abrasive: Scratching. Third-body: Trapped particles. Fatigue: Subsurface cracks from cyclic loading (delamination in PE).
Wear particles activate macrophages β release cytokines (IL-1, TNF-Ξ±) β stimulate osteoclasts β bone resorption around implant β loosening. Particle size 0.1-1ΞΌm most inflammatory.
Highly cross-linked polyethylene (radiation, remelting/annealing) reduces wear 50-90%. Trade-off: reduced toughness and fracture resistance. Standard for hip, gaining use in knee.
MoP: Metal-on-poly, standard, improved with HXLPE. CoC: Ceramic-on-ceramic, lowest wear but fracture/squeak risk. MoM: Abandoned due to metal ions. CoP: Ceramic-on-poly, low wear.
At a Glance
Four primary wear mechanisms affect orthopaedic bearings: adhesive (cold welding and material transfer), abrasive (harder surface scratches softer), fatigue/delamination (subsurface crack propagation from cyclic loading), and third-body (trapped particles accelerate wear). Polyethylene wear debris causes particle-induced osteolysis via macrophage activation and cytokine release (IL-1, TNF-Ξ±) stimulating osteoclastsβparticles 0.1-1ΞΌm are most biologically active. Highly cross-linked polyethylene (HXLPE) reduces wear by 50-90% but with reduced toughness. Bearing combinations: MoP (metal-on-poly, improved with HXLPE), CoC (ceramic-on-ceramic, lowest wear but fracture/squeak risk), CoP (ceramic-on-poly), and MoM (abandoned due to metal ion concerns). Historic threshold: over 2mm/year PE wear associated with osteolysis risk.
AAFTWear Types
Hook:AAFT = Adhesive, Abrasive, Fatigue, Third-body - the four wear mechanisms!
POMOOsteolysis Pathway
Hook:POMO = Particles β macrophages (Opsonize) β Mediators β Osteolysis!
Overview
Wear is the progressive loss of material from articulating surfaces due to mechanical action. In orthopaedic joint replacement, wear generates debris that can cause adverse biological reactions (osteolysis) leading to implant loosening and revision surgery.
Clinical Significance
- Primary cause of long-term arthroplasty failure
- Polyethylene wear debris triggers osteolysis
- Drives bearing surface material development
- HXLPE has dramatically improved outcomes
Mechanisms and Types
Adhesive Wear
Definition: Wear resulting from adhesion (cold welding) between asperities of two surfaces, followed by material transfer.
Mechanism:
- High local pressure at asperity contact points
- Local adhesion (micro-welding) between surfaces
- Relative motion shears the junction
- Material transfers from weaker to stronger surface
- Transferred material may detach as debris
Factors:
- Surface finish quality
- Lubrication (synovial fluid)
- Material hardness mismatch
- Contact pressure
Clinical Examples:
- Metal-on-metal bearings (historic)
- Poorly lubricated interfaces
- Run-in wear in new implants
Prevention:
- Good surface finish
- Adequate lubrication
- Material selection (CoCr or ceramic heads)
Bearing Surface Anatomy
Articulating Surfaces
Hip Arthroplasty:
- Femoral head (CoCr, ceramic, or oxinium)
- Acetabular liner (PE, ceramic, or metal)
- Modular junction (head-neck trunnion)
Knee Arthroplasty:
- Femoral component (CoCr)
- Tibial insert (polyethylene)
- Patellofemoral articulation
| Combination | Head | Cup/Insert |
|---|---|---|
| MoP | CoCr or ceramic | Polyethylene |
| CoC | Ceramic | Ceramic |
| CoP | Ceramic | Polyethylene |
| MoM | CoCr | CoCr (abandoned) |
Classification
Wear Mechanism Types (AAFT)
Four Primary Mechanisms:
| Type | Mechanism | Example |
|---|---|---|
| Adhesive | Cold welding, material transfer | MoM bearings |
| Abrasive | Scratching by harder surface | Damaged CoCr head |
| Fatigue | Subsurface cracks, delamination | Gamma-sterilized PE |
| Third-body | Trapped particles accelerate wear | Cement debris |
Clinical Relevance - Particle Disease
Particle-Induced Osteolysis
Pathophysiology:
- Wear particles generated at bearing surfaces
- Macrophages attempt to phagocytose particles
- Particles too large or resistant to digestion
- Frustrated phagocytosis activates macrophages
- Release of pro-inflammatory cytokines (IL-1, TNF-Ξ±, IL-6)
- Cytokines stimulate osteoclast differentiation (RANK-RANKL)
- Osteoclastic bone resorption around implant
- Progressive osteolysis leads to loosening
Particle Characteristics:
- Size 0.1-1ΞΌm most biologically active
- Larger particles less inflammatory (cannot be phagocytosed)
- Smaller particles - billions generated, cumulative effect
- Material volume of debris: PE greater than metal greater than ceramic
Clinical Manifestations:
- Often asymptomatic until advanced
- Radiolucent lesions on radiographs
- Progressive loosening
- Pathological periprosthetic fracture
Investigations
Assessment of Wear
Radiographic Evaluation:
- Serial radiographs for PE wear measurement
- Measure from femoral head center to acetabular rim
- Compare to baseline post-op films
Key Findings:
- Linear wear rate (mm/year)
- Eccentric head position
- Osteolytic lesions (radiolucent areas)
| Modality | Purpose | Findings |
|---|---|---|
| X-ray | Wear measurement | Linear wear, osteolysis |
| CT | Osteolysis quantification | 3D bone loss assessment |
| MARS-MRI | Soft tissue assessment | ALVAL, pseudotumor |
Management

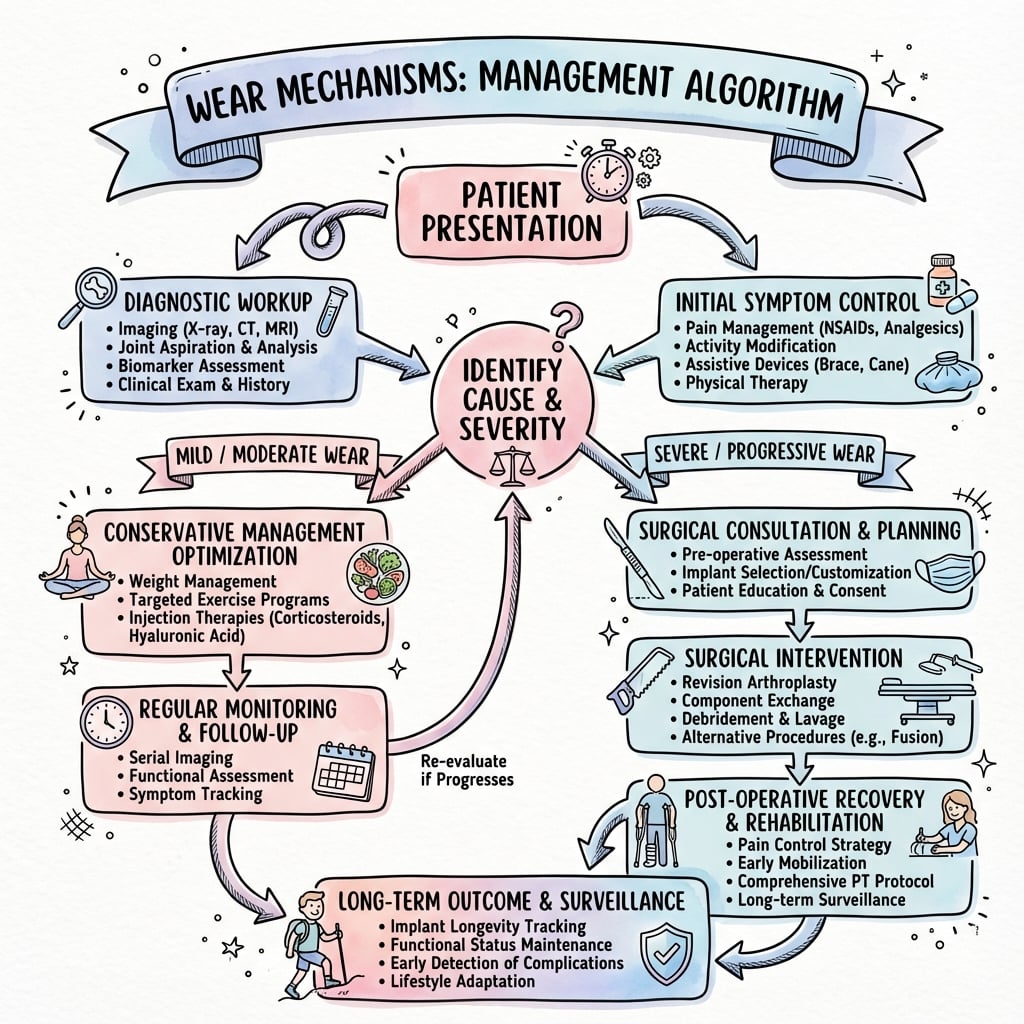

Management Approach
Surveillance:
- Asymptomatic wear: Serial monitoring
- Annual or biannual radiographs
- Assess for progressive osteolysis
Intervention Thresholds:
- Symptomatic loosening
- Progressive osteolysis
- High wear rate with HXLPE available
| Situation | Approach | Rationale |
|---|---|---|
| Early wear, stable | Observe, serial X-rays | May stabilize |
| Significant osteolysis | Plan revision | Prevent bone loss |
| Symptomatic loosening | Revision arthroplasty | Address failure |
Revision Surgical Technique
Revision Approach
Options:
- Isolated liner exchange: Well-fixed cup, adequate bone
- Cup revision: Loose cup or insufficient bone
- Stem revision: If loose or corroded trunnion
Liner Exchange:
- Remove liner, debride membrane
- Bone graft osteolytic lesions
- Insert new HXLPE liner
| Procedure | Indication | Complexity |
|---|---|---|
| Liner exchange | Well-fixed cup, good bone | Moderate |
| Cup revision | Loose or poor bone stock | Major |
| Full revision | Both components involved | Complex |
Complications
Wear-Related Complications
Biological:
- Particle-induced osteolysis
- Aseptic loosening
- Periprosthetic fracture
Material-Specific:
- Polyethylene: Osteolysis, loosening
- Metal: ALVAL, pseudotumor, metallosis
- Ceramic: Fracture, squeaking
| Material | Complication | Incidence |
|---|---|---|
| Conventional PE | Osteolysis | 10-20% at 10 years |
| HXLPE | Osteolysis | Less than 5% at 10 years |
| Ceramic | Fracture | Less than 0.1% |
| MoM | ALVAL | 5-10% (abandoned) |
Postoperative Care
After Revision Surgery
Immediate:
- Standard THA precautions
- Protected weight-bearing if bone grafted
- VTE prophylaxis
Follow-up:
- Serial radiographs to assess bone healing
- Monitor for osteolysis resolution
- Long-term surveillance
| Timeframe | Weight-Bearing | Activity |
|---|---|---|
| 0-6 weeks | Protected if bone graft | Hip precautions |
| 6-12 weeks | Progress to full | Rehabilitation |
| 3+ months | Full activities | Long-term monitoring |
Outcomes
Modern Bearing Outcomes
HXLPE Results:
- 95-98% survivorship at 10-15 years
- Dramatic reduction in osteolysis
- Lower revision rates than conventional PE
Ceramic-on-Ceramic:
- 97-99% survivorship at 10 years
- Lowest wear rates
- Rare fracture/squeaking
| Bearing | 10-Year Survival | Key Advantage |
|---|---|---|
| MoP (HXLPE) | 95-98% | Low wear, proven |
| CoC | 97-99% | Lowest wear |
| CoP | 96-98% | Low wear, no squeak |
| MoP (conv) | 85-90% | Abandoned for HXLPE |
Evidence Base
- Double-blinded RCT, 122 patients, minimum 10-year follow-up
- 3-D wear rate 0.03 mm/yr (XLPE) versus 0.27 mm/yr (conventional UHMWPE), p less than 0.001
- Osteolysis prevalence 8% (XLPE) versus 38% (conventional), p less than 0.005
- Revision rate 1.9% (XLPE) versus 14.6% (conventional), p = 0.012
- It is the concentration of particles in the critical size range, not total wear volume, that drives the biological response
- Critical size range for macrophage activation is 0.2-0.8 micron
- Pre-clinical testing of any bearing must characterise particle size and reactivity, not just wear volume
- Predicted nanometre-scale metal-on-metal debris would raise new biological concerns
- Polyethylene particle NUMBER (not size) differed between osteolysis-positive and -negative cases
- Critical threshold around 1 x 10^10 particles per gram of tissue for osteolysis
- Macrophages identified as the cells primarily responsible for bone loss
- Solid bone-implant fixation limits particle migration and osteolysis
- First RCT reporting 7-year RSA results for vitamin E-diffused HXLPE (VEPE)
- Mean 7-year proximal head penetration -0.07 mm (VEPE) versus 0.00 mm (moderately XLPE), not significant
- All wear rates below the 0.1 mm/yr osteolysis threshold
- No implants revised for aseptic loosening; acetabular radiolucency linked to greater shell migration
- 235 fourth-generation (BIOLOX delta) CoC THAs, mean 12-year follow-up
- All-cause survivorship 96.7% at 12 years
- Squeaking reported in 9 hips; only 1 required revision for squeaking
- No ceramic liner or head fractures in the cohort
- Reviews development and clinical results of HXLPE in hip and knee arthroplasty
- Polyethylene wear and osteolysis identified as principal long-term failure modes
- Second-generation (vitamin E) HXLPE introduced to address oxidative degradation
- Ongoing retrieval and clinical studies needed for longest-term durability
Exam Viva Scenarios
Practise clinical reasoning and management decisions out loud
βA 65-year-old man presents with progressive periacetabular osteolysis 12 years after primary cemented THA. PE wear measures 3mm. He is minimally symptomatic. How do you manage him?β
βA retrieved polyethylene liner shows sheet-like surface delamination with a subsurface white band. The examiner asks you to classify the wear mechanisms acting on a bearing surface and explain what this retrieval demonstrates.β
βA 58-year-old woman has groin pain three years after a large-head metal-on-metal THA. Radiographs show well-fixed components. How do you investigate and manage her?β
MCQ Practice Points
Q: What are the four main types of wear in orthopaedic implants? A: Adhesive (cold welding), Abrasive (scratching), Fatigue (delamination), and Third-body (trapped particles). Remember AAFT.
Q: What is the mechanism of particle-induced osteolysis? A: Wear particles are phagocytosed by macrophages β activated macrophages release cytokines (IL-1, TNF-Ξ±) β cytokines stimulate RANK-RANKL pathway β osteoclast activation β bone resorption.
Q: How does highly cross-linked polyethylene reduce wear? A: Cross-linking by irradiation creates bonds between polymer chains, reducing plastic deformation and adhesive/abrasive wear by 50-90%. Post-irradiation treatment (remelting/annealing/vit E) removes free radicals to prevent oxidation.
Differential Diagnosis: Causes of Late Arthroplasty Failure
Wear-driven osteolysis is one of several causes of a painful or failing joint replacement. Distinguishing them governs management.
| Cause | Typical Features | Key Investigation | Discriminator |
|---|---|---|---|
| Wear / particle osteolysis | Slow, often asymptomatic; eccentric head; lytic lesions | Serial X-ray, CT volume | High PE wear rate, scalloped periprosthetic lysis |
| Aseptic loosening | Start-up pain, progressive radiolucent lines | Serial X-ray | Migration/subsidence over time |
| Periprosthetic infection | Rest pain, early failure, effusion, raised CRP/ESR | Aspiration, alpha-defensin, cultures | Positive aspirate, raised inflammatory markers |
| Adverse reaction to metal debris (ARMD) | MoM or corroded trunnion; effusion, mass | Cobalt/chromium ions, MARS-MRI | Pseudotumour, elevated metal ions |
| Ceramic complication | Squeak or sudden noise; CoC bearing | X-ray, CT | Audible squeak, fracture line, stripe wear |
Controversies & Areas of Uncertainty
Remelting (above the melt transition) eliminates free radicals most completely but lowers crystallinity and mechanical strength. Annealing (below melt) preserves mechanical properties but leaves residual free radicals and a residual oxidation risk. The optimal trade-off remains debated; vitamin E stabilisation is an attempt to sidestep it.
HXLPE is the clear standard at the hip, but the knee sees higher contact stress, multidirectional motion and thinner inserts where reduced toughness could matter. Registry signals are favourable but long-term superiority over conventional PE in TKA is not yet definitively proven.
The commonly cited ~7 ppb cobalt/chromium action level is a guide, not a hard cut-off. Symptoms, imaging and trends matter more than a single value, and authorities differ on exact thresholds and surveillance intervals.
CoC offers the lowest wear and is attractive in young, active patients, but fracture risk (rare with fourth-generation delta ceramic), squeaking and cost temper enthusiasm versus ceramic-on-HXLPE. Best bearing for the young patient is unresolved.
Guidelines, Registries & Global Practice
Global epidemiology: Particle-induced osteolysis and aseptic loosening were historically the leading causes of late revision in metal-on-conventional-polyethylene hips. The widespread shift to HXLPE has substantially reduced wear-related revision worldwide, while metal-on-metal bearings were largely abandoned after 2010 following adverse-reaction-to-metal-debris signals.
- Position on bearings & wear
- Supports HXLPE as standard bearing; evidence-based work-up for painful MoM hips
- Position on bearings & wear
- Bearing selection guidance with registry-informed implant benchmarks (ODEP ratings)
- Position on bearings & wear
- Emphasises tribology principles, component positioning to limit edge loading
- Position on bearings & wear
- Endorse HXLPE and ceramic bearings; structured MoM surveillance
- Position on bearings & wear
- Issued alerts mandating surveillance of metal-on-metal hips (ion levels, MARS-MRI)
Registry evidence: National joint registries (NJR England/Wales, AJRR US, AOANJRR Australia, Swedish SHAR, Norwegian, NZJR) consistently show lower revision rates for HXLPE versus conventional polyethylene and the highest revision rates for large-head metal-on-metal bearings, driving global practice change. Registries also underpin implant benchmarking schemes (e.g. ODEP) used internationally.
High- vs limited-resource practice: In high-resource settings HXLPE and ceramic bearings are routine, with CT and MARS-MRI available for surveillance. In limited-resource settings conventional polyethylene and metal-on-poly remain common due to cost, and surveillance relies mainly on serial plain radiographs; metal ion assays and metal-artefact-reduction MRI may be unavailable.
Wear Types (AAFT)
- Adhesive: Cold welding and transfer
- Abrasive: Scratching (two-body or three-body)
- Fatigue: Subsurface cracks, delamination
- Third-body: Trapped particles accelerate wear
Osteolysis Pathway
- Particles β Macrophage phagocytosis
- Cytokine release (IL-1, TNF-Ξ±)
- RANK-RANKL β Osteoclast activation
- Particle size 0.1-1ΞΌm most active
HXLPE
- Cross-linking by irradiation
- Remelting/annealing removes free radicals
- Wear reduction 50-90%
- Standard for hip, increasing in knee
Bearing Selection
- MoP with HXLPE: Standard, proven
- CoC: Lowest wear, fracture/squeak risk
- CoP: Low wear, ceramic benefits
- MoM: Abandoned (metal ions, ALVAL)
