Baxter's Nerve Entrapment

Standing Assessment:

• Evaluate hindfoot alignment (varus or valgus)
• Assess for cavus foot deformity
• Look for muscle atrophy of abductor digiti minimi (late finding)
• Check for signs of prior surgery or trauma
• Observe for pes planus or high arch

Gait Analysis:

• Antalgic gait with shortened stance phase on affected side
• Reduced push-off power
• May demonstrate lateral weight shift to avoid medial heel pressure
• Assess cadence and step length symmetry

Muscle atrophy is a late finding and indicates chronic severe denervation. Compare the bulk of the lateral foot musculature to the contralateral side. Subtle atrophy may only be apparent with careful side-to-side comparison.

Systematic Palpation Technique:

1. Plantar fascia origin - central calcaneal tuberosity
2. Abductor hallucis-quadratus plantae interval - 2-3cm distal and plantar to medial malleolus

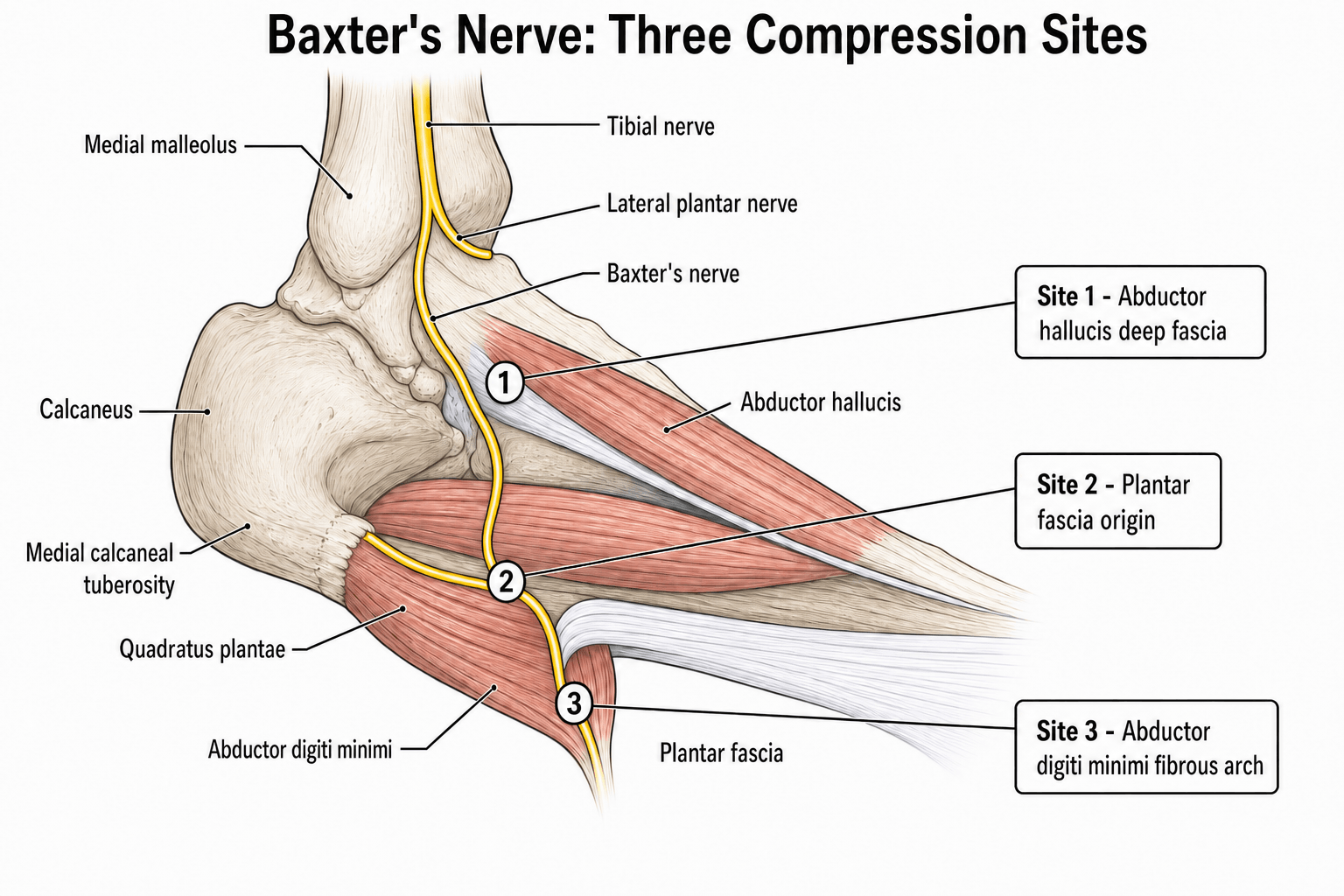

3. Course of Baxter's nerve - follow from medial to lateral
4. Lateral heel - assess ADM muscle bulk and tenderness

Key Examination Findings:

The maximal point of tenderness is typically located at the abductor hallucis-quadratus plantae interval, which is deeper and more distal than the typical plantar fasciitis tenderness at the medial calcaneal tuberosity. This distinction is crucial for clinical diagnosis.

Nerve Percussion Test (Tinel Sign):

• Percuss along course of nerve from medial to lateral
• Positive test: reproduction of burning/tingling pain radiating distally
• Sensitivity: 85%, Specificity: 75%
• Helps localize site of compression

Tarsal Tunnel Compression Test:

• Direct pressure over tarsal tunnel for 30-60 seconds
• Positive: reproduction of symptoms suggests proximal involvement
• Helps differentiate from isolated Baxter's entrapment

Maximal Eversion Test:

• Passive eversion of hindfoot with ankle dorsiflexed
• Places tension on Baxter's nerve
• Positive: reproduction of characteristic pain
• Sensitivity: 70%, Specificity: 80%

Abductor Digiti Minimi Strength Testing:

• Active abduction of fifth toe against resistance
• Compare to contralateral side
• Weakness suggests motor involvement
• Late finding indicating significant nerve damage

A comprehensive examination should always include testing for other causes of heel pain including plantar fascia tenderness, calcaneal stress fracture (medial-lateral squeeze test), and posterior tibial tendon dysfunction.

Motor Examination:

• Abductor digiti minimi strength (fifth toe abduction)
• Flexor digitorum brevis strength
• Intrinsic foot muscle function
• Compare bulk of lateral foot muscles to contralateral side

Sensory Examination:

• Baxter's nerve has variable sensory contribution
• Some patients report numbness over lateral heel
• Most common: dysesthesias rather than complete numbness
• Map out any areas of altered sensation

Reflexes:

• Ankle jerk reflex (should be normal in isolated Baxter's)
• Absent or diminished reflex suggests tibial nerve or S1 radiculopathy

Provocative Tests:

• Dorsiflexion-eversion test (DVT): maximally dorsiflex ankle and evert hindfoot, hold 30 seconds
• Positive: reproduction of symptoms suggests nerve tension
• Helps differentiate from purely mechanical heel pain

Complete neurologic examination helps differentiate Baxter's entrapment from lumbar radiculopathy, peripheral neuropathy, or tarsal tunnel syndrome. The examination should include assessment of more proximal nerve function.

Technique: Open Decompression via Medial Incision

Patient Positioning:

• Supine position with bump under ipsilateral hip
• Thigh tourniquet application
• Ensure access to medial heel and ankle
• Fluoroscopy available but typically not required

Surgical Steps:

1. Incision: 4-6cm curvilinear incision centered 2cm distal and plantar to medial malleolus, along posterior border of abductor hallucis

2. Exposure: Incise deep fascia, identify and protect posterior tibial nerve branches, retract abductor hallucis muscle inferiorly

3. Nerve Identification: Locate first branch of lateral plantar nerve between abductor hallucis (superficial) and quadratus plantae (deep), typically 5-8mm distal to medial malleolus

4. Site 1 Decompression: Release deep fascia of abductor hallucis from its calcaneal origin, free nerve from fascial tunnel

5. Site 2 Decompression: Follow nerve laterally to plantar fascia origin, partially release plantar fascia (medial 30%) if compressing nerve, protect nerve during fascia release

6. Site 3 Decompression: Trace nerve to ADM muscle, release fibrous arch at muscle origin, ensure complete nerve mobility

7. Inspection: Verify nerve freely mobile along entire course, no residual compression points, check for intraneural scarring or nerve thickening

8. Closure: Repair deep fascia loosely, dermal and skin closure, soft dressing, posterior splint in neutral

Critical Technical Points:

• Nerve may be small and easily missed (2-3mm diameter)
• Complete decompression requires release of all three sites
• Avoid excessive traction on nerve during dissection
• Partial plantar fascia release only when necessary (30% medial release safe)
• Mark nerve with vessel loop to avoid inadvertent injury

The key to successful surgery is identifying the nerve and systematically releasing all three compression sites. Incomplete decompression is the most common cause of surgical failure.

Technique: Endoscopic Decompression

Advantages:

• Smaller incision with improved cosmesis
• Less soft tissue dissection
• Potentially faster recovery
• Reduced risk of heel pad complications

Portal Placement:

• Medial portal: 1.5cm plantar and distal to medial malleolus
• Small 1-2cm incision for endoscope and instruments
• Direct visualization of nerve and compression points

Surgical Steps:

1. Portal Creation: Create medial portal with blunt dissection, ensure access to retrocalcaneal space

2. Endoscopic Identification: Use 4.0mm 30-degree arthroscope, identify abductor hallucis and quadratus plantae

3. Nerve Visualization: Locate Baxter's nerve between muscle layers, may use loupe magnification

4. Systematic Decompression: Release fascia overlying nerve using endoscopic knife or scissors, ensure complete release of all three sites

5. Plantar Fascia: Assess need for partial release, perform under direct visualization if required

6. Verification: Confirm nerve mobility throughout its course

Limitations:

• Steep learning curve
• Difficulty identifying small nerve endoscopically
• Limited ability to address anatomic variations
• Risk of incomplete decompression if nerve not clearly identified

Endoscopic approach is technically demanding and requires specific training. Open approach remains gold standard for most surgeons due to superior nerve visualization.

Technique: Decompression with Plantar Fascia Release

Indications for Combined Procedure:

• Coexisting plantar fasciitis with failed conservative treatment
• Significant plantar fascia thickening on MRI (greater than 5mm)
• Plantar fascia directly compressing nerve at Site 2
• Calcaneal spur contributing to compression

Additional Surgical Steps:

1. Fascia Assessment: After nerve decompression, evaluate plantar fascia thickness and tension

2. Partial Release: Release medial 30% of plantar fascia origin from calcaneal tuberosity

3. Spur Excision: If calcaneal spur present, use rongeur to remove prominence, smooth bone surface

4. Nerve Protection: Ensure nerve identified and protected throughout plantar fascia release

5. Stability Check: Verify hindfoot stability after fascia release, avoid excessive release (greater than 50%)

Risks of Combined Procedure:

• Lateral column overload if excessive plantar fascia release
• Arch collapse with loss of medial longitudinal arch support
• Heel pad displacement
• Increased recovery time

Evidence:

• Limited high-quality studies comparing isolated decompression vs combined procedures
• Combined approach may be beneficial if significant plantar fasciitis component
• Risk of complications higher with combined procedure

The decision to add plantar fascia release should be individualized based on intraoperative findings and severity of plantar fascia pathology. Isolated nerve decompression is sufficient in most cases.

Global Epidemiology

Burden of heel pain:

• Plantar heel pain affects roughly 1 in 10 people over a lifetime and is one of the commonest foot complaints presenting to primary care worldwide
• Baxter's neuropathy is widely cited as accounting for up to 20% of chronic heel pain, though this figure derives from expert review rather than population studies
• It frequently coexists with plantar fasciitis rather than occurring in isolation

Imaging-based prevalence:

• A systematic review (1052 participants) found fatty infiltration of abductor digiti minimi on MRI in 4-11% of the general population, with similar rates in people with and without foot pain - so the imaging sign is common and not specific
• True population prevalence of symptomatic Baxter's neuropathy remains undefined

Risk groups (consistent across regions):

• Higher BMI and occupations requiring prolonged standing or walking
• Runners and athletes (the original athletic cohorts of Henricson and Westlin)
• Cavus or pronated foot morphology and coexisting plantar fasciitis
• Diabetes and other causes of peripheral neuropathy lower the threshold for symptoms and worsen outcomes

Side-by-Side Society Guidance

There is no condition-specific international guideline for Baxter's neuropathy; practice is extrapolated from plantar heel pain pathways and surgical series.

Common threads across bodies:

• Minimum 6 months of structured conservative care before surgery
• Electrodiagnostic and/or image-guided diagnostic confirmation preferred before decompression
• Limit plantar fascia release (medial portion only) to protect arch integrity

Registries and Resource-Setting Variation

Registry note:

• Baxter's nerve decompression is a soft-tissue procedure with no implant, so it is not captured by arthroplasty registries (NJR, AJRR, AOANJRR, SHAR). Evidence rests on case series and reviews rather than registry data - a recognised gap in the literature.

High-resource settings:

• Ready access to MRI, high-resolution ultrasound and electrodiagnostics enables confident diagnosis and image-guided injection or hydrodissection before surgery
• Day-case decompression under regional or general anaesthesia with structured rehabilitation

Limited-resource settings:

• Diagnosis is necessarily clinical, relying on pain quality, tenderness at the abductor hallucis-quadratus plantae interval, and response to a diagnostic local anaesthetic injection
• Plain radiographs remain the most accessible adjunct; treatment emphasises orthoses, activity modification and judicious corticosteroid injection
• Workers' compensation and litigation contexts are associated with poorer outcomes across all settings, an important counselling point
