Joint Reaction Forces

Joint reaction force is the resultant force acting across a joint, calculated using free body diagrams and static equilibrium equations (ΣF = 0, ΣM = 0). Forces far exceed body weight due to short muscle lever arms: the hip experiences 3-7x body weight during gait, the knee 2-4x during walking, and the ankle 4-5x during normal activities. These magnitudes drive bearing surface wear in arthroplasty, implant fixation requirements, and the progression of osteoarthritis. Clinically, forces can be reduced through contralateral cane use (20-30% reduction), weight loss, increased hip offset (reducing abductor force required), and avoiding high-impact activities.

Joint reaction force is the resultant force acting across a joint surface, arising from the combined effect of external loads (body weight, ground reaction forces) and internal loads (muscle and ligament forces). Understanding joint reaction forces is fundamental to orthopaedic biomechanics, implant design, and the pathophysiology of degenerative joint disease.

These forces are typically several times body weight during routine activities due to the mechanical disadvantage of muscle attachments. Muscles attach close to joints (short moment arms) while body weight acts at a distance (long moment arm from the center of mass), requiring large muscle forces to maintain equilibrium.

Clinical Significance: Joint reaction forces directly influence articular cartilage stress, bearing surface wear in arthroplasty, fixation loads on implants, bone remodeling patterns, and the progression of osteoarthritis. Surgeons must understand these forces to optimize implant positioning, select appropriate bearing surfaces, and counsel patients on activity modification.

Epidemiology and Context

Joint reaction forces vary systematically across joints and activities:

• Hip joint: 2.5-3x BW standing on one leg; 3-7x BW during normal gait (peak mid-stance); up to 8-10x BW during running or stumbling
• Knee joint: 2-3x BW walking; 3-4x BW stair climbing; 6-8x BW running; up to 24x BW during landing from a jump (elite athletes)
• Ankle joint: 4-5x BW during normal walking; 8-13x BW during running due to ground reaction force magnification
• Shoulder joint: 0.5-1.5x BW depending on arm position and load (different mechanics due to non-weight-bearing nature)

These magnitudes have been measured using instrumented implants with telemetry systems, validating theoretical calculations from biomechanical modeling.

Relevance to Arthroplasty

Understanding joint reaction forces is critical for:

• Implant design: Bearing surfaces must withstand millions of cycles at 3-7x body weight loads
• Wear prediction: Volumetric wear directly proportional to load magnitude in polyethylene bearings
• Fixation requirements: Cement mantles and bone-implant interfaces experience these cyclical loads
• Component positioning: Malposition alters moment arms and increases reaction forces
• Patient counseling: Obesity and high-impact activities dramatically increase implant stress and failure risk

Free Body Diagram Method

The standard approach to calculating joint reaction forces uses static equilibrium principles applied to a free body diagram:

Step 1: Isolate the Body Segment Draw the bone segment (e.g., femur for hip analysis) isolated from adjacent segments. The joint becomes a "cut" where internal forces are exposed as unknowns.

Step 2: Identify All Forces Draw vectors for:

• Body weight (W): Acts downward through the center of mass
• Muscle forces (Fm): Primary stabilizers (e.g., hip abductors)
• Joint reaction force (R): Unknown magnitude and direction at joint center

Step 3: Establish Coordinate System Typically horizontal (x) and vertical (y) axes aligned with anatomical planes.

Step 4: Apply Equilibrium Equations

For static equilibrium:

• ΣFx = 0: Sum of horizontal forces equals zero
• ΣFy = 0: Sum of vertical forces equals zero
• ΣM = 0: Sum of moments about any point equals zero

Step 5: Solve for Unknowns Use moment equation to find muscle force, then force equations to find reaction force components. Combine components to get resultant magnitude and direction.

Key Biomechanical Principles

Principle 1: Mechanical Advantage and Leverage Muscles operate at a mechanical disadvantage. The moment arm of body weight about the hip joint (typically 10-15 cm) is 2-3 times larger than the abductor muscle moment arm (4-6 cm). This ratio means abductor force must be 2-3 times body weight just to balance the pelvis during single-leg stance.

Principle 2: Vector Addition The joint reaction force is NOT simply body weight minus muscle force. Instead, it is the vector sum (resultant) of all forces acting on the segment. Since muscle force and body weight act in roughly opposite directions vertically but both compress the joint, the reaction force magnitude exceeds either individual force.

Principle 3: Dynamic vs Static Analysis The calculations above assume static equilibrium (standing still). During gait, acceleration terms introduce additional inertial forces (F = ma), further increasing peak reaction forces during mid-stance push-off.

Magnitude During Activities

The hip joint experiences some of the highest forces in the human body:

Gait Cycle Analysis: Hip reaction force varies throughout the gait cycle:

• Heel strike: 2-3x BW (initial loading)
• Mid-stance: 4-7x BW (PEAK - single leg support with rapid weight transfer)
• Toe-off: 2-3x BW (push-off phase)
• Swing phase: Less than 1x BW (no ground contact)

The double-peak pattern during stance phase reflects the biomechanical demands of single-leg support and forward propulsion.

Abductor Muscle Mechanics

The hip abductors (gluteus medius and minimus) are the critical force generators:

Anatomy:

• Origin: Outer surface of ilium
• Insertion: Greater trochanter of femur
• Moment arm: Approximately 5-6 cm from hip center of rotation
• Function: Prevent pelvic drop on opposite side during single-leg stance

Force Requirement: During mid-stance gait, the pelvis and upper body (approximately 5/6 of total body weight) create a large overturning moment about the stance hip. The abductors must generate 2-3x body weight force to counteract this moment due to their short moment arm.

Trendelenburg Gait: If abductors are weak or non-functional (e.g., superior gluteal nerve injury, severe trochanteric pain syndrome), the patient cannot generate sufficient abductor force. The pelvis drops on the swing leg side, and the patient compensates by lurching the trunk over the stance hip (reducing the body weight moment arm to maintain balance).

Differential Diagnosis of an Abductor-Lurch / Trendelenburg Gait

A positive Trendelenburg sign reflects a failure of the abductor force couple, but several distinct mechanisms produce it. Distinguishing them is a common viva probe because each changes management.

Effect of Hip Geometry on Forces

Several anatomical and surgical factors alter hip reaction forces:

Femoral Offset Restoration: In total hip replacement, maintaining or restoring normal femoral offset is biomechanically critical. Each 1 cm increase in offset reduces abductor force requirement by approximately 15%, with corresponding reduction in hip reaction force. This reduces bearing surface wear and improves abductor efficiency.

Limb Length Discrepancy: Lengthening the limb tightens the abductors, improving their tension-length relationship but potentially increasing joint reaction force if excessive. Shortening reduces abductor tension and efficiency, potentially causing Trendelenburg gait.

Instrumented Implant Data

Direct measurements from instrumented hip replacements (telemetry systems) have validated theoretical models:

• Bergmann et al. demonstrated peak forces of 2.5-3.5x BW during normal walking in elderly patients with THR
• Younger, more active patients generate forces up to 4-5x BW during normal gait
• Stumbling or fall events can generate transient peaks of 8-10x BW
• Prolonged standing on one leg: sustained 2.5-3x BW

These data inform implant design requirements and wear testing protocols (ISO standards require testing at 3x BW for 5-10 million cycles to simulate 10-20 years of use).

Magnitude and Activity Dependence

Knee joint forces are lower than hip during walking but can exceed hip forces during high-impact activities:

Gait Cycle:

• Heel strike: 2x BW (initial impact absorption)
• Mid-stance: 2-3x BW (controlled flexion, quadriceps eccentric contraction)
• Terminal stance: 2.5-3x BW (push-off preparation)
• Swing phase: Minimal force (less than 0.5x BW)

Stair Activities:

• Ascending stairs: 3-4x BW (quadriceps work to extend knee against gravity)
• Descending stairs: 3-4.5x BW (eccentric quadriceps control, often higher than ascending)

Patellofemoral vs Tibiofemoral Forces

The knee has two articulations with different force patterns:

Tibiofemoral Joint:

• Primarily compression from body weight and ground reaction force
• Range: 2-4x BW during walking
• Distributed across medial and lateral compartments (60:40 ratio medially in normal alignment)

Patellofemoral Joint:

• Forces from quadriceps tendon and patellar tendon creating compressive force on patella
• Magnitude = Quadriceps force × sin(knee flexion angle / 2)
• Peak at 30-60 degrees flexion (stair climbing, rising from chair)
• Can reach 5-7x BW during deep knee bends or squatting

Clinical Relevance: Understanding the different force patterns explains why patellofemoral arthritis and tibiofemoral arthritis present with different symptom patterns (PF pain with stairs, TF pain with walking).

Quadriceps Force and Reaction Force

The quadriceps muscle group is the primary force generator at the knee:

During gait, the quadriceps must:

1. Absorb impact during early stance (eccentric contraction)
2. Stabilize knee during mid-stance (isometric contraction)
3. Extend knee for push-off (concentric contraction in terminal stance)

The quadriceps force can be 3-4x body weight during these activities, contributing to the total knee reaction force through the patellar mechanism.

Biomechanical Calculation Example: Standing from a chair (60-degree knee flexion):

• Quadriceps force required: approximately 4x BW
• Patellar contact force: Fq × sin(60°/2) ≈ 4 × 0.5 = 2x BW
• Tibiofemoral compression: 3-4x BW (vector sum of forces)

Effect of Alignment on Knee Forces

Coronal plane alignment critically affects medial vs lateral compartment loading:

Clinical Implications:

• Varus malalignment overloads medial compartment, accelerating medial OA progression
• Lateral compartment unloading in varus knees leads to medial bone loss and deformity progression
• Total knee replacement aims to restore neutral alignment for equal load distribution
• High tibial osteotomy shifts mechanical axis laterally to unload diseased medial compartment

Unique Characteristics of Shoulder Biomechanics

The shoulder differs fundamentally from hip and knee:

Key Differences:

• Non-weight-bearing: Arm weight (approximately 5% of body weight) is much less than lower extremity loads
• Mobility over stability: Shallow glenoid socket prioritizes range of motion
• Muscular suspension: Rotator cuff and deltoid balance forces to center humeral head
• Variable loading: Forces depend heavily on arm position and external loads carried

Deltoid and Rotator Cuff Force Balance

The shoulder force equilibrium involves a unique interplay:

Deltoid Muscle:

• Primary function: Arm elevation (abduction)
• Force direction: Superior (tends to pull humeral head upward into acromion)
• Magnitude: 2-3x arm weight during abduction

Rotator Cuff (Subscapularis, Supraspinatus, Infraspinatus, Teres Minor):

• Primary function: Humeral head compression and inferior pull
• Force direction: Medial and inferior (counteracts deltoid superior force)
• Magnitude: 1.5-2x arm weight
• Net effect: Compresses and centers humeral head on glenoid

Force Couple Concept: The deltoid (superior force) and rotator cuff (inferior force) create a force couple that allows smooth elevation while maintaining glenohumeral joint stability. Rotator cuff tears disrupt this balance, allowing superior migration of the humeral head (superior escape).

Shoulder Reaction Force During Abduction

During shoulder abduction to 90 degrees:

Force Analysis:

• Arm weight: 5% BW = 35 N (for 70 kg person)
• Deltoid force: approximately 800-1000 N (to overcome arm weight moment)
• Rotator cuff force: approximately 600-800 N (to balance deltoid)
• Glenohumeral reaction force: 1-1.5x body weight (700-1000 N)

The reaction force is much lower than hip or knee because the arm weight is small. However, carrying external loads (groceries, tools, weights) dramatically increases the reaction force, potentially reaching 2-3x body weight.

Clinical Relevance to Shoulder Arthroplasty

Reverse Shoulder Arthroplasty Biomechanics: Reverse shoulder replacement alters the normal biomechanics to compensate for a deficient rotator cuff:

• Medialized center of rotation: Reduces deltoid moment arm, reducing force needed
• Distal and lateral offset: Increases deltoid moment arm and pretensions deltoid for more efficient force generation
• Reaction force changes: Can increase contact force but distributes over larger glenosphere surface
• Net effect: Allows deltoid to elevate arm without functional rotator cuff

Glenoid Wear Patterns: In anatomic shoulder replacement, posterior glenoid wear is common due to:

• Posterior subluxation tendency in osteoarthritic shoulders
• Eccentric loading (posterior force concentration)
• Increased reaction force magnitude on smaller contact area
• Component loosening risk if not corrected (posterior augmented glenoid components)

Bearing Surface Wear and Joint Forces

Polyethylene wear is directly proportional to joint reaction force magnitude:

Wear Equation (Archard's Law): Volumetric wear ∝ (Contact force × Sliding distance) / Material hardness

Clinical Translation:

• Doubling body weight approximately doubles wear rate in THA
• High-impact activities (running, jumping) with forces of 6-10x BW cause disproportionate wear
• Obesity is a major risk factor for accelerated polyethylene wear and osteolysis
• Wear debris generation leads to osteolysis, aseptic loosening, and revision surgery

Implant Fixation Requirements

Joint reaction forces determine the loads at the bone-implant interface:

Cemented Fixation:

• Cement mantle must withstand shear and compressive stresses from cyclical loads
• High reaction forces increase cement stress and creep (time-dependent deformation)
• Adequate cement thickness (2-4 mm) distributes stress; thin mantles crack
• Modern cementing technique emphasizes pressurization to improve bone-cement interdigitation

Uncemented Fixation:

• Initial press-fit stability must resist motion under cyclical loading until osseointegration occurs
• Micromotion greater than 150 microns prevents bone ingrowth and causes fibrous encapsulation
• High reaction forces can exceed friction force, causing early migration and failure
• Porous coating and surface treatments (hydroxyapatite, trabecular metal) promote osseointegration

Stress Shielding: Stiff implants (e.g., cobalt-chrome stems) carry more load than surrounding bone due to elastic modulus mismatch. This reduces bone stress below threshold for remodeling (Wolff's law), causing proximal bone resorption. Joint reaction force magnitude influences extent of stress shielding.

Component Positioning and Biomechanics

Surgical technique directly affects postoperative joint reaction forces:

Total Hip Replacement:

• Femoral offset: Every 5 mm reduction increases abductor force 15%, increasing reaction force and wear
• Limb length: Excessive lengthening increases abductor force; excessive shortening reduces efficiency
• Cup position: Excessive medialization reduces offset, increasing reaction forces
• Anteversion: Incorrect version alters force direction, causing edge loading and accelerated wear

Total Knee Replacement:

• Alignment: Neutral mechanical axis ensures equal medial/lateral force distribution
• Joint line: Lowering joint line increases patellofemoral forces by altering patellar height
• Rotation: Internal rotation of femoral or tibial component alters patellar tracking and PF forces
• Slope: Posterior tibial slope affects anteroposterior stability and quadriceps force requirements

Total Shoulder Replacement:

• Glenoid version: Retroversion increases posterior eccentric force, accelerating wear
• Humeral offset: Affects deltoid and rotator cuff lever arms, altering force requirements
• Reverse TSA lateralization: Optimal lateralization balances deltoid efficiency with reaction force magnitude

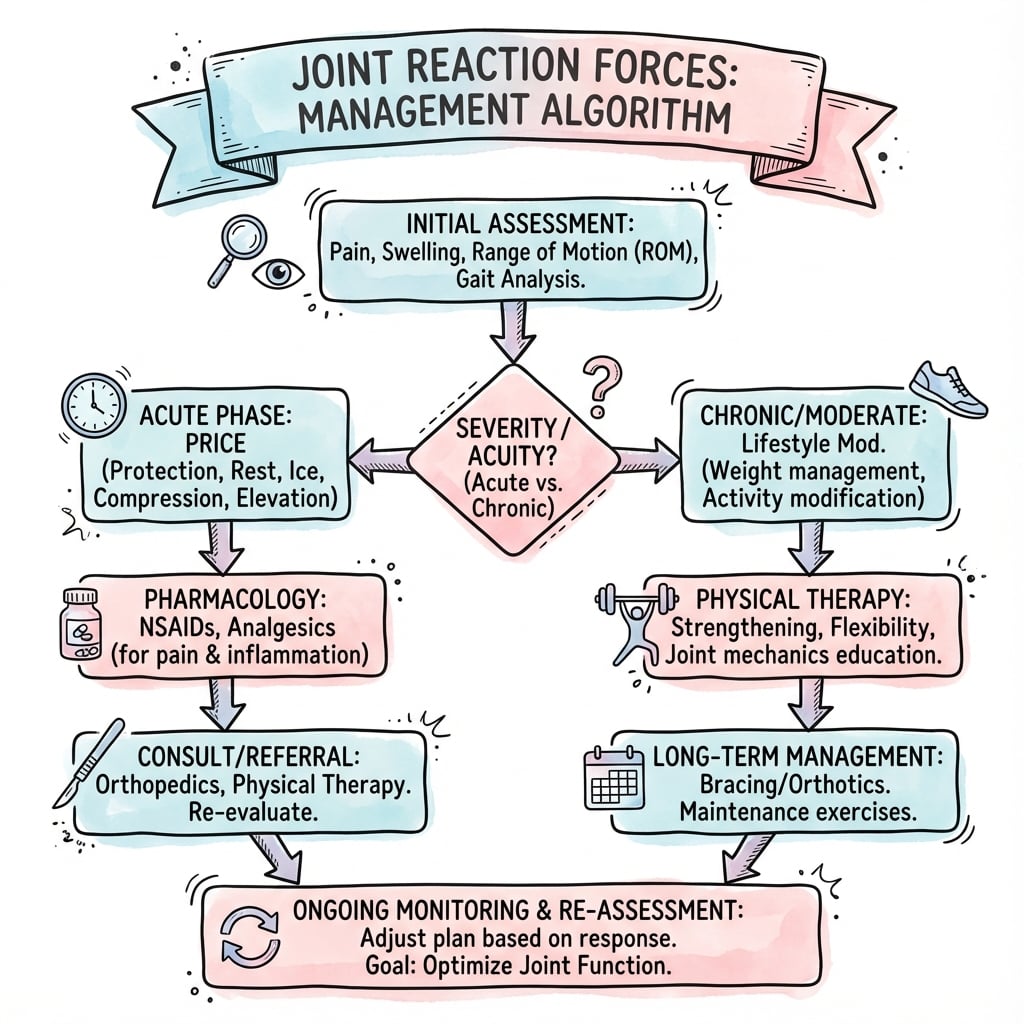

Patient Factors and Activity Modification

Weight Reduction: Every 1 kg of body weight lost reduces peak hip reaction force by 3-7 kg during gait. For an obese patient losing 10 kg:

• Hip force reduction: 30-70 kg peak load reduction
• Cumulative benefit: Millions of loading cycles over years
• Wear reduction: Proportional decrease in polyethylene wear rate
• Recommendation: Weight loss is the single most effective intervention for force reduction

Activity Guidelines:

Assistive Devices

Contralateral Cane Use: Biomechanical effect:

• Creates upward force on opposite side, reducing body weight moment about stance hip
• Reduces hip abductor force requirement by 20-40%
• Reduces hip reaction force by 20-40% (proportional to reduction in abductor force)
• Technique: Cane in hand opposite to affected hip; advance cane with affected leg

Walker Use:

• Bilateral support reduces force on each hip/knee by distributing weight across all four points
• Particularly effective during early postoperative period when bone ingrowth occurring
• Disadvantage: Slower gait, less efficient than cane for long-term use

Shoe Modifications:

• Cushioned soles with shock absorption reduce impact forces at heel strike
• Rocker-bottom soles reduce ankle and midfoot forces by smoothing push-off transition
• Effect is modest (5-10% force reduction) but may benefit marginal cases

Surgical Optimization

Hip Arthroplasty:

• Restore offset: Use appropriate femoral stem offset; consider high-offset stems for large patients
• Avoid medialized cups: Maintain hip center of rotation near anatomic position
• Optimize limb length: Match contralateral side; avoid excessive lengthening (increases force) or shortening (reduces abductor efficiency)
• Consider hard bearings: Ceramic or metal bearings for young, high-demand patients to resist wear from high forces

Knee Arthroplasty:

• Neutral alignment: Restore mechanical axis to knee center for equal compartment loading
• Maintain joint line: Avoid distal femoral over-resection that lowers joint line and increases PF forces
• Optimize rotation: Correct femoral and tibial component rotation for optimal patellar tracking
• Consider constraint level: Higher forces may require more constrained designs (PS vs CR)

Shoulder Arthroplasty:

• Reverse for cuff deficiency: Alters biomechanics to reduce deltoid force requirements
• Optimize lateralization: Balance force efficiency with glenoid stress in reverse TSA
• Correct glenoid version: Avoid posterior glenoid wear by addressing retroversion

Global Epidemiology

Joint reaction forces are the mechanical driver behind load-related cartilage degeneration, so the global burden of osteoarthritis (OA) frames their clinical importance. According to PubMed, the Global Burden of Disease 2019 analysis reports age-standardised prevalence per 100,000 of approximately 4376 for knee OA, 1726 for hand OA and 401 for hip OA, with hip and knee OA prevalence rising significantly between 1990 and 2019 (Li XX et al., Int J Rheum Dis 2024 DOI). High body-mass is a leading modifiable contributor: increased body weight raises every lower-limb joint reaction force in direct proportion, accelerating OA and, after arthroplasty, bearing wear. Obesity prevalence is high in many high-income countries (around 30% of Australian adults), magnifying joint loading at a population level.

Guideline Positions (Side by Side)

There is no joint-reaction-force-specific guideline; the principles are operationalised within OA management and arthroplasty optimisation guidance. The table summarises how major bodies translate the underlying biomechanics into practice.

Registry Evidence

National arthroplasty registries provide the largest real-world signal that joint loading governs implant survival. According to PubMed, an Australian-led meta-analysis of more than 3.1 million total knee arthroplasties found higher all-cause revision (OR 1.15) and deep infection (OR 1.47) in obese patients (Onggo JR et al., ANZ J Surg 2021 DOI). Registry observations consistent with force principles include:

• AOANJRR (Australia): higher cumulative revision in high-BMI patients and in younger, higher-demand recipients, and better survivorship when normal biomechanics (offset, alignment) are restored.
• NJR (England, Wales, NI) and AJRR (USA): report increased early revision for instability and loosening with malposition, the mechanism of which is altered moment arms and reaction-force direction.
• Bearing-surface trends (hard-on-hard or highly cross-linked polyethylene for young, active patients) reflect the force-wear relationship (Archard's law).

Practice Variation and Controversies

• Mechanical versus kinematic alignment in TKA: instrumented-implant data (Kutzner et al., Bone Joint J 2017) show varus malalignment raises the medial force ratio, fuelling debate over how much constitutional varus is safe to leave.
• BMI thresholds for elective arthroplasty: some systems apply hard BMI cut-offs while others reject them as inequitable; evidence for force-driven complications informs but does not settle this.
• Offset targeting: increasing femoral offset reduces abductor and reaction force but risks trochanteric pain and leg-length issues, so targets vary between centres.

Australian Practice Notes

• Pre-operative weight optimisation and dietitian input are increasingly embedded in arthroplasty pathways, supported by PBS-listed pharmacotherapy where indicated.
• Subsidised physiotherapy delivers gait retraining and assistive-device (contralateral cane) education to lower joint reaction forces conservatively.
• eTG endorses multimodal analgesia, activity modification and weight management as first-line conservative care for OA before considering arthroplasty.
