OSTEOBLAST LINEAGE
Critical Must-Knows
- Runx2 (Cbfa1) is the master transcription factor - essential for osteoblast differentiation
- Wnt/β-catenin signaling promotes osteoblast differentiation and bone formation
- Alkaline phosphatase hydrolyzes pyrophosphate (mineralization inhibitor) to enable mineralization
- Osteoblasts produce osteoid (unmineralized matrix) with 10-14 day lag before mineralization
- Mature osteoblasts become osteocytes (embedded), lining cells (quiescent), or undergo apoptosis
Clinical Pearls
- "Osteoblast differentiation requires Runx2 and osterix transcription factors
- "BMP-2 and BMP-7 are potent osteoinductive growth factors
- "Sclerostin (from osteocytes) inhibits Wnt signaling to reduce bone formation
- "Parathyroid hormone has anabolic effect when given intermittently (stimulates osteoblasts)
Critical Osteoblast Exam Points
Runx2 Master Regulator
Runx2 (Cbfa1) is the master transcription factor for osteoblast differentiation. Runx2 knockout mice have no osteoblasts and no bone formation. Cleidocranial dysplasia is caused by RUNX2 haploinsufficiency.
Wnt/β-Catenin Pathway
Wnt signaling promotes osteoblast differentiation and function. Sclerostin (SOST gene) inhibits Wnt by binding LRP5/6 co-receptors. Anti-sclerostin antibodies (romosozumab) are anabolic bone agents.
Alkaline Phosphatase
Alkaline phosphatase (ALP) is the osteoblast marker enzyme. It hydrolyzes pyrophosphate (mineralization inhibitor) allowing hydroxyapatite crystal formation. Hypophosphatasia (ALP deficiency) causes defective mineralization.
Matrix Synthesis
Osteoblasts synthesize type I collagen (90% of matrix) and non-collagenous proteins (osteocalcin, osteopontin, BSP). Osteoid is unmineralized matrix with 10-14 day mineralization lag time.
At a Glance
Osteoblasts are the bone-forming cells derived from mesenchymal stem cells through a differentiation pathway controlled by the master transcription factor Runx2 (Cbfa1)—Runx2 knockout mice have no osteoblasts and no bone. Wnt/β-catenin signaling promotes osteoblast differentiation, while sclerostin (from osteocytes) inhibits this pathway. Osteoblasts synthesize Type I collagen (90% of organic matrix) and non-collagenous proteins (osteocalcin, osteopontin), producing osteoid that mineralizes after a 10-14 day lag. Alkaline phosphatase (the osteoblast marker enzyme) hydrolyzes pyrophosphate (a mineralization inhibitor) to enable hydroxyapatite crystal formation. Mature osteoblasts have three fates: become embedded as osteocytes, become quiescent bone lining cells, or undergo apoptosis.
RUNX2RUNX2 - Master Osteoblast Regulator
| R | Required for osteoblast differentiation Master transcription factor |
| U | Upregulates osteoblast genes Activates Col1a1, ALP, osteocalcin |
| N | No bone without it Knockout mice have no osteoblasts |
| X | X-linked in name only Actually on chromosome 6 |
| 2 | Two domains: DNA binding and transactivation Runt domain binds DNA |
| R | Required for osteoblast differentiation Master transcription factor | X | X-linked in name only Actually on chromosome 6 |
| U | Upregulates osteoblast genes Activates Col1a1, ALP, osteocalcin | 2 | Two domains: DNA binding and transactivation Runt domain binds DNA |
| N | No bone without it Knockout mice have no osteoblasts |
Hook:RUNX2 - if it doesn't RUN, no bone is formed (master regulator)
WNTWNT - Anabolic Bone Pathway
| W | Wingless signaling pathway Named from Drosophila gene |
| N | β-cateNin stabilization Prevents β-catenin degradation |
| T | Transcription of bone genes Promotes osteoblast differentiation and function |
| W | Wingless signaling pathway Named from Drosophila gene |
| N | β-cateNin stabilization Prevents β-catenin degradation |
| T | Transcription of bone genes Promotes osteoblast differentiation and function |
Hook:WNT = We Need This pathway for bone formation (sclerostin blocks it)
FATEFATE - Osteoblast Destinations
| F | Flat lining cells Become quiescent bone lining cells |
| A | Apoptosis (die) Undergo programmed cell death |
| T | Tomb (osteocyte) Get embedded as osteocytes in lacunae |
| E | Each osteoblast has one of three fates After completing matrix synthesis |
| F | Flat lining cells Become quiescent bone lining cells | T | Tomb (osteocyte) Get embedded as osteocytes in lacunae |
| A | Apoptosis (die) Undergo programmed cell death | E | Each osteoblast has one of three fates After completing matrix synthesis |
Hook:The FATE of every mature osteoblast: become a lining cell, die, or become an osteocyte
Overview and Introduction
Osteoblasts are the bone-forming cells derived from mesenchymal stem cells. They synthesize and secrete the organic matrix (osteoid) and regulate its mineralization to form new bone.
Concepts and Molecular Biology
Key Molecular Concepts
Runx2 as Master Regulator:
- Essential transcription factor for osteoblast differentiation
- Runx2 knockout = no osteoblasts and no bone
- Activates downstream genes: Col1a1, ALP, osteocalcin
Wnt/β-catenin Pathway:
- Primary anabolic signaling pathway for bone
- Wnt ligands stabilize β-catenin, promoting osteoblast genes
- Sclerostin (SOST) inhibits Wnt by blocking LRP5/6 receptors
BMP Signaling:
- BMP-2 and BMP-7 are potent osteoinductive factors
- Used clinically for nonunion and spinal fusion
- Activate Smad signaling for osteoblast differentiation
Clinical Relevance and Applications
Clinical importance:
- Anabolic therapy targets: Osteoblast stimulation is the goal of anabolic osteoporosis treatments (teriparatide, romosozumab)
- Fracture healing: Osteoblasts are responsible for callus formation and remodeling
- Bone tumors: Osteosarcoma arises from malignant osteoblasts
- Genetic disorders: Osteogenesis imperfecta (collagen synthesis defect), cleidocranial dysplasia (RUNX2 mutation)
Why Understanding Osteoblasts Matters
Osteoblast function is the target of anabolic bone therapy. Understanding the Wnt/β-catenin pathway explains how anti-sclerostin antibodies (romosozumab) work. Understanding PTH receptors on osteoblasts explains why intermittent PTH is anabolic while continuous PTH (hyperparathyroidism) is catabolic.

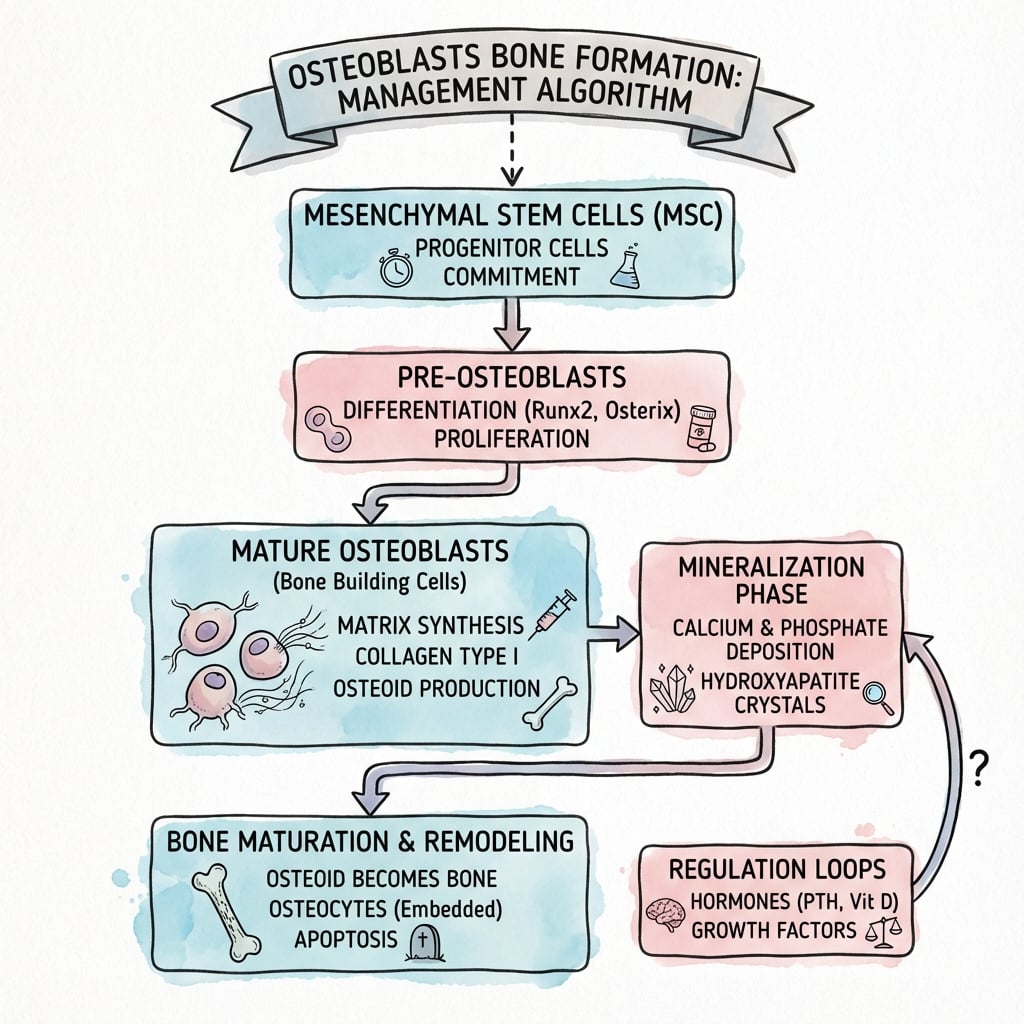

Osteoblast Differentiation
From MSC to Osteoblast
Osteoblast Differentiation Stages
Multipotent progenitor that can differentiate into osteoblasts, chondrocytes, adipocytes, or myoblasts. Present in bone marrow and periosteum.
Committed to osteoblast lineage. Express Runx2 (master regulator). Can still proliferate. No alkaline phosphatase yet.
Express osterix (Sp7 transcription factor, downstream of Runx2). Begin expressing alkaline phosphatase. Proliferation slows.
Active matrix synthesis. High alkaline phosphatase activity. Secrete type I collagen and non-collagenous proteins (osteocalcin, osteopontin). Cuboidal morphology, located on bone surface.
Three possible outcomes: (1) Become osteocyte (embedded in matrix), (2) become bone lining cell (quiescent on surface), or (3) undergo apoptosis (50-70% of osteoblasts).
Understanding the differentiation sequence explains marker expression and therapeutic targets.
Osteoblast Function and Matrix Synthesis
Synthesis of Bone Matrix
Type I collagen synthesis (90% of organic matrix):
- Intracellular: Procollagen synthesis (pro-α1 and pro-α2 chains)
- Post-translational modification: Hydroxylation (requires Vitamin C), glycosylation
- Triple helix formation: Two α1(I) + one α2(I) chains
- Secretion: Procollagen secreted into osteoid
- Extracellular processing: N- and C-propeptides cleaved by proteases
- Fibril assembly: Tropocollagen self-assembles (67 nm periodicity)
- Crosslinking: Lysyl oxidase creates pyridinoline and deoxypyridinoline crosslinks
Non-collagenous proteins (10% of organic matrix):
- Osteocalcin: Vitamin K-dependent, binds calcium, regulates mineralization
- Osteopontin: Cell adhesion, regulates crystal growth
- Bone sialoprotein (BSP): Nucleates hydroxyapatite crystal formation
- Osteonectin (SPARC): Binds collagen and calcium, links organic and mineral phases
Osteoblasts secrete both collagen and non-collagenous proteins to form osteoid (unmineralized matrix).
Osteoblast Terminal Differentiation
After completing matrix synthesis, osteoblasts have three possible fates:
Three Fates of Mature Osteoblasts
| Fate | Percentage | Characteristics | Function |
|---|---|---|---|
| Osteocyte | 10-20% | Embedded in lacunae within bone matrix | Mechanosensor, secretes sclerostin, regulates remodeling |
| Bone lining cell | 30-40% | Flat, quiescent cells on bone surface | Can reactivate to osteoblasts during remodeling |
| Apoptosis | 50-70% | Programmed cell death | Removes excess osteoblasts after remodeling cycle |
Osteocytes:
- Location: Embedded in lacunae, interconnected by canaliculi
- Morphology: Stellate (star-shaped) with long dendritic processes
- Number: 10 times more numerous than osteoblasts (90-95% of bone cells)
- Function: Mechanosensation (sense mechanical strain), secrete sclerostin (inhibits bone formation), regulate phosphate homeostasis (FGF23)
- Lifespan: Decades (as long as bone exists)
Bone lining cells:
- Location: Flat cells on quiescent bone surfaces
- Morphology: Squamous (flat), cover 80-90% of adult bone surfaces
- Function: Barrier between bone and marrow, can reactivate to osteoblasts when stimulated
- Clinical relevance: Reserve of osteoblast progenitors during remodeling
Osteocyte Function
Osteocytes are mechanosensors that detect mechanical strain through fluid flow in canaliculi. Mechanical loading reduces sclerostin production by osteocytes, increasing Wnt signaling and bone formation. This is the cellular mechanism of Wolff's law (bone adapts to mechanical stress).
Regulation of Osteoblast Activity
Hormonal and Systemic Regulation
| Factor | Effect on Osteoblasts | Mechanism | Clinical Relevance |
|---|---|---|---|
| PTH (intermittent) | Anabolic (stimulates) | Activates Wnt pathway, reduces sclerostin | Teriparatide for osteoporosis |
| PTH (continuous) | Catabolic (via RANKL) | Increases RANKL, activates osteoclasts | Hyperparathyroidism causes bone loss |
| Vitamin D (1,25-(OH)2-D3) | Maturation, mineralization | Promotes osteocalcin synthesis | Deficiency causes osteomalacia |
| Glucocorticoids | Inhibits (high dose) | Reduces proliferation, increases apoptosis | Steroid-induced osteoporosis |
| Estrogen | Maintains (indirect) | Reduces osteoblast apoptosis, decreases RANKL | Loss at menopause increases remodeling |
| Growth hormone / IGF-1 | Stimulates | Promotes osteoblast differentiation and function | Acromegaly increases bone formation |
PTH Paradox
Intermittent PTH is anabolic (teriparatide given daily), while continuous PTH is catabolic (hyperparathyroidism causes bone loss). The difference: intermittent PTH stimulates osteoblasts without sustained RANKL-mediated osteoclast activation. Continuous PTH increases RANKL, driving net bone resorption.
Systemic factors coordinate bone formation with whole-body calcium and phosphate homeostasis.
Evidence Base
Cbfa1/Runx2 Disruption Causes Complete Lack of Bone Formation
- Homozygous Cbfa1 (Runx2) knockout mice died just after birth with a complete lack of ossification
- Both intramembranous and endochondral ossification were completely blocked
- Only immature osteoblasts formed (weak alkaline phosphatase, no osteopontin or osteocalcin) - a maturational arrest
- Establishes Runx2 as essential and non-redundant for osteoblast maturation and osteogenesis
Osterix (Sp7) Is Required Downstream of Runx2 for Osteoblast Differentiation
- Osterix (Osx) is a zinc-finger transcription factor expressed in all developing bones
- Osx-null mice show no bone formation despite normal Runx2 expression
- Osx is not expressed in Runx2-null mice, placing Osx genetically downstream of Runx2
- Osx-null preosteoblasts express chondrocyte markers, suggesting Runx2+ preosteoblasts remain bipotential
LRP5 (Wnt Co-receptor) Controls Bone Mass Accrual
- Loss-of-function LRP5 mutations cause osteoporosis-pseudoglioma syndrome (OPPG) with reduced bone mass
- OPPG carriers (heterozygotes) had reduced bone mass versus matched controls
- LRP5 is expressed by osteoblasts and transduces canonical Wnt signaling
- Wnt signaling via LRP5 determines peak bone mass during growth
Teriparatide (Intermittent PTH 1-34) Reduces Fractures
- 1637 postmenopausal women with prior vertebral fractures; daily subcutaneous PTH(1-34) versus placebo, median 21 months
- 20 mcg dose: new vertebral fractures fell from 14% (placebo) to 5% (relative risk 0.35) - about 65% reduction
- Nonvertebral fragility fractures reduced (relative risk 0.47) - about 53% reduction
- BMD rose roughly 9 percentage points at lumbar spine and 3 at femoral neck versus placebo
Romosozumab (Anti-Sclerostin) Reduces Vertebral Fracture - FRAME
- 7180 postmenopausal women with osteoporosis; monthly subcutaneous romosozumab 210 mg versus placebo for 12 months, then denosumab in both arms
- New vertebral fractures at 12 months: 0.5% romosozumab versus 1.8% placebo - a 73% lower risk (P less than 0.001)
- Clinical fractures reduced 36% at 12 months; nonvertebral fracture reduction did not reach significance
- Romosozumab simultaneously increased bone formation and decreased bone resorption - validating sclerostin as a target
Romosozumab Then Alendronate Beats Alendronate Alone - ARCH
- 4093 high-risk postmenopausal women; 12 months romosozumab then alendronate versus alendronate throughout
- New vertebral fractures at 24 months: 6.2% versus 11.9% - a 48% lower risk (P less than 0.001)
- Hip fracture risk lower by 38%; nonvertebral fracture risk lower by 19%
- More positively adjudicated serious cardiovascular events with romosozumab in year 1 (2.5% versus 1.9%)
Differential Diagnosis: Disorders of Osteoblast and Mineralization Pathways
A favourite viva manoeuvre is to give a defect and ask which step of osteoblast biology is broken. Anchor your answer to the molecular lesion.
Distinguishing Disorders by the Defective Step
| Disorder | Molecular Defect | Osteoblast Step Affected | Discriminating Feature |
|---|---|---|---|
| Cleidocranial dysplasia | RUNX2 haploinsufficiency | Osteoblast differentiation (master TF) | Absent/hypoplastic clavicles, delayed fontanelle closure, supernumerary teeth |
| Osteogenesis imperfecta | COL1A1/COL1A2 (most), defective type I collagen | Matrix synthesis (collagen quality/quantity) | Blue sclerae, recurrent low-energy fractures, dentinogenesis imperfecta |
| Hypophosphatasia | ALPL (tissue-nonspecific ALP) loss-of-function | Mineralization (PPi not hydrolyzed) | LOW serum ALP, raised PLP and urinary phosphoethanolamine, premature tooth loss |
| Nutritional rickets/osteomalacia | Vitamin D or phosphate deficiency | Mineralization (substrate lack) | Normal-to-high ALP, low calcium/phosphate, widened osteoid seams |
| Osteoporosis-pseudoglioma (OPPG) | LRP5 loss-of-function | Wnt signaling (low bone mass) | Childhood low bone mass plus congenital blindness |
| Sclerosteosis / Van Buchem | SOST loss-of-function (no sclerostin) | Wnt disinhibition (high bone mass) | Progressive bone overgrowth, cranial nerve entrapment, tall stature |
| Osteopetrosis | OsteoCLAST failure (CA-II, CLCN7, TCIRG1) | NOT an osteoblast defect | Dense brittle bone, marrow failure - the classic osteoblast-mimic trap |
The Classic Osteoblast Trap
Osteopetrosis is a defect of osteoCLASTS, not osteoblasts. Bone formation proceeds normally but resorption fails, so dense, disorganised, fragile bone accumulates with marrow failure. Likewise, hypophosphatasia is the only one of these with a LOW serum ALP - every other mineralization disorder tends to raise ALP.
Controversies and Areas of Uncertainty
Osteocalcin as a Hormone
Murine work proposed undercarboxylated osteocalcin as an endocrine regulator of insulin secretion, energy metabolism and fertility. Human data are inconsistent, and humans lacking the proposed receptor (GPRC6A) do not reliably reproduce the mouse phenotype. The "bone as an endocrine organ" story remains unproven in humans.
BMP-2 in Spine Surgery
Recombinant BMP-2 reliably promotes fusion but carries real risks: retrograde ejaculation and life-threatening anterior cervical soft-tissue swelling (off-label), ectopic bone and seroma. An early cancer signal was not confirmed on pooled re-analysis. Use is now far more selective than after its launch.
Anabolic vs Antiresorptive First
ARCH and the VERO trial (teriparatide vs risedronate) suggest anabolic-first sequencing reduces fractures more than antiresorptive-first in high-risk patients, yet cost and the romosozumab cardiovascular signal keep antiresorptives as default first-line in most guidelines.
Romosozumab Cardiovascular Signal
ARCH showed more serious cardiovascular events versus alendronate, but FRAME (versus placebo) did not. Whether this reflects a true hazard or alendronate cardioprotection is unresolved; regulators contraindicate romosozumab after recent myocardial infarction or stroke.
Guidelines, Registries and Global Practice
Global Epidemiology
- Osteoporosis underlies the public-health burden that osteoblast-targeted drugs address: an estimated 1 in 3 women and 1 in 5 men over 50 worldwide will sustain a fragility fracture in their remaining lifetime.
- Hip-fracture incidence varies more than tenfold between countries, with the highest age-standardised rates historically reported in Northern Europe and the fastest absolute growth projected across Asia as populations age.
Side-by-Side Guideline Positions
How Major Societies Position Anabolic (Osteoblast-Stimulating) Therapy
| Body | Anabolic agents covered | Positioning | Notable caveat |
|---|---|---|---|
| AACE/ACE (US) | Teriparatide, abaloparatide, romosozumab | First-line for very-high-risk patients | Follow with an antiresorptive to preserve gains |
| Endocrine Society (US) | Teriparatide, romosozumab | Recommended for high fracture risk; romosozumab up to 12 months | Avoid romosozumab with recent MI/stroke |
| NOGG / NICE (UK) | Teriparatide, romosozumab | Reserved for very high risk / multiple vertebral fractures | Cost-effectiveness thresholds gate access |
| ESCEO/IOF (Europe) | Teriparatide, abaloparatide, romosozumab | Anabolic-first for imminent/very-high risk | Emphasise sequential therapy and adherence |
Registry and Real-World Evidence
- Large pharmacovigilance and registry datasets confirm the rare class harms of antiresorptive follow-on therapy (osteonecrosis of the jaw, atypical femoral fracture) and have shaped the limited (12-month) treatment courses for romosozumab and teriparatide.
- Bone-turnover-marker registries (PINP for formation, CTX for resorption) are increasingly used internationally to monitor osteoblast response and adherence to therapy.
High- versus Limited-Resource Practice
- In well-resourced systems, fracture-liaison services, DXA, bone-turnover markers and the full anabolic armamentarium are available; sequencing decisions dominate.
- In limited-resource settings, calcium/vitamin D repletion and generic oral bisphosphonates remain the practical mainstays; high-cost biologics (romosozumab, denosumab) and routine bone-turnover-marker monitoring are often unavailable, so correcting nutritional osteomalacia and ensuring adherence carry the greatest yield.
Basic Science Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Scenario 1: Osteoblast Differentiation and Runx2 (~3 min)
"Describe osteoblast differentiation from mesenchymal stem cells. What is the role of Runx2?"
Scenario 2: Bone Matrix Synthesis and Mineralization (~4 min)
"Explain how osteoblasts synthesize bone matrix and regulate its mineralization. What is the role of alkaline phosphatase?"
Scenario 3: Coupling, the Wnt Pathway and Anabolic Therapy (~4 min)
"How do osteoblasts and osteoclasts communicate, and how is this coupling exploited by anabolic osteoporosis drugs?"
MCQ Practice Points
Master Transcription Factor
Q: What is the master transcription factor for osteoblast differentiation?
A: Runx2 (Cbfa1). It is essential for osteoblast differentiation - Runx2 knockout mice have no osteoblasts and no bone. Cleidocranial dysplasia is caused by RUNX2 haploinsufficiency (absent clavicles, delayed fontanelle closure, dental abnormalities).
Wnt Signaling Pathway
Q: What is the role of the Wnt/β-catenin pathway in bone, and what inhibits it?
A: Wnt signaling promotes osteoblast differentiation and bone formation. It is inhibited by sclerostin (produced by osteocytes, encoded by SOST gene) which binds LRP5/6 co-receptors. This is the target for romosozumab - an anti-sclerostin antibody used as an anabolic bone agent.
Alkaline Phosphatase Function
Q: What is the primary role of alkaline phosphatase in bone mineralization?
A: Alkaline phosphatase (ALP) hydrolyzes pyrophosphate, which is an inhibitor of mineralization. By removing pyrophosphate, ALP allows hydroxyapatite crystal formation. Hypophosphatasia (ALP deficiency) causes defective bone mineralization resembling rickets.
Osteoblast Fates
Q: What are the possible fates of mature osteoblasts after completing bone formation?
A: Three possible fates:
- Osteocyte (most common) - embedded in matrix, become mechanosensors
- Bone lining cell - quiescent surface cells that can reactivate
- Apoptosis - programmed cell death (up to 60-80% undergo this fate)
Management Algorithm
OSTEOBLASTS AND BONE FORMATION
Clinical summary
Differentiation Pathway
- •MSC → osteoprogenitor (Runx2+) → preosteoblast (osterix+) → mature osteoblast (ALP+) → terminal fate
- •Runx2 is master regulator - knockout = no osteoblasts, no bone, death at birth
- •Osterix (Sp7) required downstream of Runx2
- •Three terminal fates: osteocyte (10-20%), lining cell (30-40%), apoptosis (50-70%)
Signaling Pathways
- •Wnt/β-catenin: promotes differentiation and function (target of romosozumab)
- •BMP-2/BMP-7: potent osteoinductive factors, activate Runx2 via Smad1/5/8
- •Sclerostin (from osteocytes): inhibits Wnt by binding LRP5/6
- •PTH: intermittent = anabolic (teriparatide), continuous = catabolic (hyperPTH)
Matrix Synthesis
- •Type I collagen = 90% of organic matrix (triple helix, 67 nm periodicity)
- •Non-collagenous proteins = 10% (osteocalcin, osteopontin, BSP, osteonectin)
- •Osteoid deposition rate: 1-2 micrometers/day
- •Mineralization lag time: 10-14 days (osteoid thickness 10-15 micrometers)
Alkaline Phosphatase
- •Key osteoblast enzyme and marker (serum ALP reflects activity)
- •Hydrolyzes pyrophosphate (PPi), a mineralization inhibitor
- •Allows hydroxyapatite crystal formation by removing PPi
- •Hypophosphatasia: ALP deficiency, defective mineralization, rickets/osteomalacia
Bone Formation Markers
- •Alkaline phosphatase (ALP) - bone-specific ALP (BSAP) preferred
- •Osteocalcin (OC) - vitamin K-dependent, late marker
- •Procollagen I N-propeptide (PINP) - collagen synthesis, least variable
- •Used to monitor osteoporosis treatment response
Key Clinical Correlations
- •Cleidocranial dysplasia: RUNX2 haploinsufficiency (clavicle hypoplasia, delayed fontanelle closure)
- •Teriparatide: intermittent PTH, anabolic therapy for osteoporosis
- •Romosozumab: anti-sclerostin antibody, anabolic via Wnt pathway
- •BMP-2: osteoinductive, used for spinal fusion (FDA-approved) and nonunions
