High-yield overview
Six typesI to VI ordered by increasing energy and complexity
Types I-IIIlateral plateau only — valgus mechanism, lower energy
Types IV-VImedial or both plateaus — higher energy, varus or axial load
CT mandatorychanges classification and approach in up to one third of cases
Critical Must-Knows
- Schatzker classifies tibial plateau fractures by location and morphology to predict energy, soft-tissue injury, and surgical strategy. Higher numbers indicate higher-energy mechanisms with greater risk of compartment syndrome, ligament disruption, and post-traumatic arthritis.
- Types I to III involve the lateral plateau only. Type I is a pure split, Type II split plus depression, Type III pure central depression; all are valgus injuries and the commonest in young active patients.
- Types IV to VI cross the midline or involve the metaphysis. Type IV is medial, Type V bicondylar without metaphyseal extension, Type VI adds metaphyseal-diaphyseal dissociation; these require dual approaches or staged fixation.
- Always obtain CT before definitive fixation. Plain films underestimate depression depth, miss coronal splits, and misclassify up to thirty percent of fractures, directly altering the surgical plan.
CT changes the plan
Every surgical tibial plateau fracture requires a CT scan with coronal and sagittal reconstructions before the operating theatre. The classification on plain films alone is unreliable and frequently underestimates the extent of articular comminution and the presence of posteromedial or posterolateral fragments that dictate approach and fixation strategy. Higher Schatzker types carry exponentially higher rates of soft-tissue complications and demand staged management when swelling or open wounds are present.

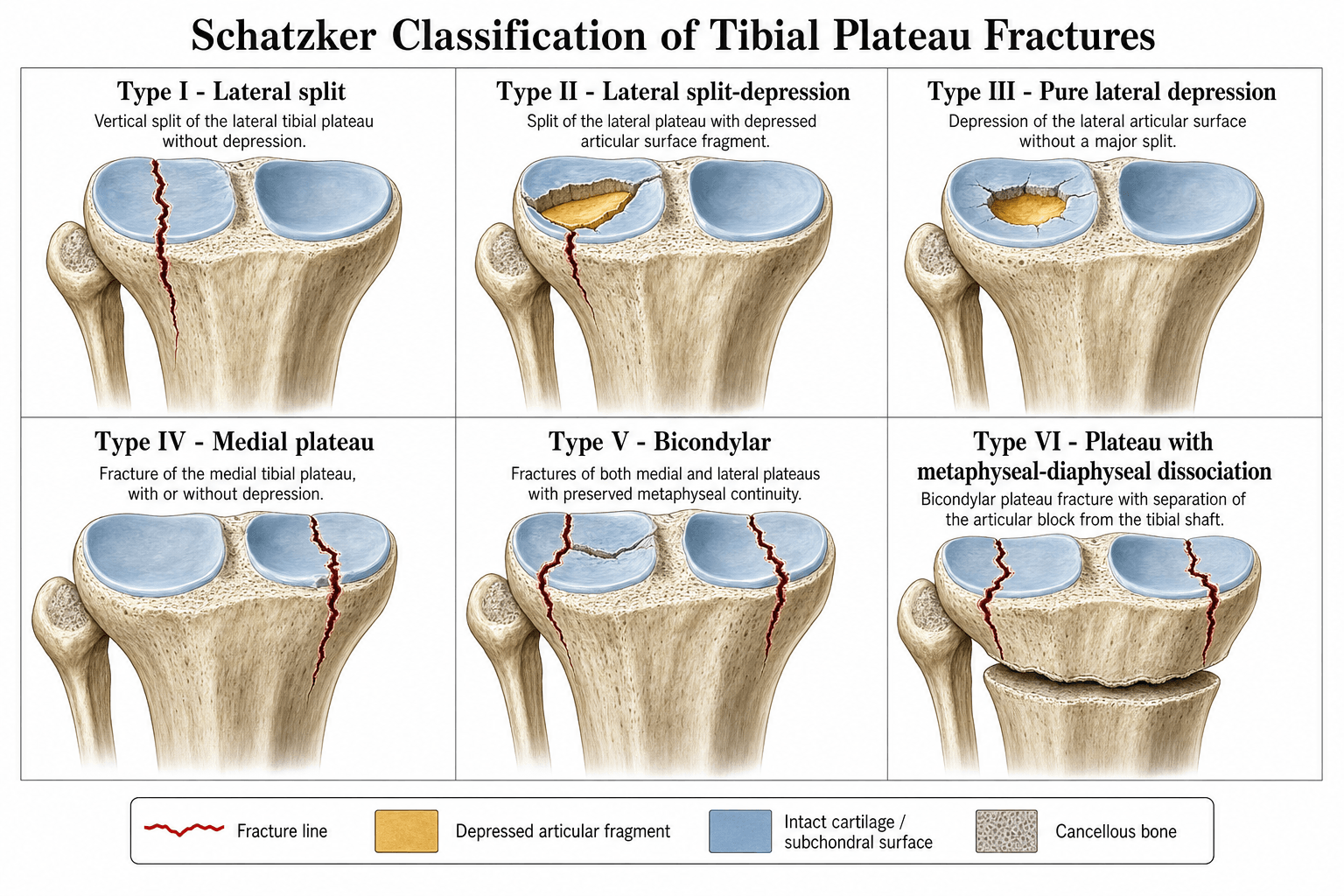

The Schatzker Classification System
The classification divides fractures into six types based on the location of the main fracture lines and the presence of depression or dissociation.
| Type | Pattern | Mechanism/Energy | Key Associated Injuries | Typical Fixation |
|---|---|---|---|---|
| I | Lateral split (wedge) | Valgus, low energy | Lateral meniscus tear, MCL | Raft screws or lateral buttress plate |
| II | Lateral split-depression | Valgus plus axial load, moderate | Meniscus entrapment, ACL | Elevate depression, raft screws, buttress plate |
| III | Pure central depression | Axial load, low-moderate | Osteopenia in elderly | Percutaneous elevation or limited ORIF if step-off greater than two millimetres |
| IV | Medial condyle | Varus, high energy | Knee dislocation spectrum, popliteal artery, peroneal nerve | Medial buttress plate, consider dual plating or spanning fixator first |
| V | Bicondylar | High-energy axial | Bicruciate and collateral ligament injury | Dual plating through two approaches or single midline with careful soft-tissue handling |
| VI | Bicondylar plus metaphyseal-diaphyseal dissociation | Highest energy | Open fracture, compartment syndrome, vascular injury | Spanning external fixator first, delayed ORIF when soft tissues allow |
Mnemonic
Split • Split-Depress • DepressLateral three types
Mnemonic
Medial • Both • DissociationMedial and beyond
Mnemonic
Higher number, higher energy, higher vigilanceEnergy and urgency
Clinical Pearl
CT is not optional. Coronal and sagittal reformats reveal posteromedial fragments in Type IV and V fractures that are invisible on AP and lateral radiographs yet require separate fixation to restore the medial buttress. Failure to recognise these fragments is a common cause of late varus collapse.
Type Interpretation and Surgical Planning
Surgical urgency and approach are dictated by the type and the soft-tissue envelope rather than the radiograph alone.
| Type | Non-operative Criteria | Operative Indications | Key Surgical Considerations |
|---|---|---|---|
| I-II | Stable split less than two millimetres displacement, no depression | Any depression greater than two millimetres or instability on stress views | Protect the lateral meniscus, use submeniscal arthrotomy or arthroscopy to confirm reduction |
| III | Depression less than two millimetres, stable knee | Step-off greater than two millimetres or varus/valgus instability | Elevate through metaphyseal window, support with raft screws and bone graft if large void |
| IV | Rarely non-operative | Almost all displaced medial fractures | Assume knee dislocation until proven otherwise; vascular assessment before and after reduction; dual plating if posteromedial fragment present |
| V-VI | Never in displaced fractures | All displaced bicondylar patterns | Staged protocol: spanning external fixator, CT planning, definitive fixation only when swelling subsides and skin wrinkles appear |
Caution
Compartment syndrome occurs in up to ten percent of high-energy plateau fractures and must be excluded clinically before any surgical intervention. In Type V and VI injuries the soft-tissue envelope dictates timing; attempting definitive fixation through swollen tissues produces wound breakdown and deep infection. Temporary spanning external fixation restores length and alignment while allowing soft-tissue recovery.
Limitations and Modern Context
- Inter-observer reliability of the Schatzker classification on plain radiographs is only moderate; CT improves agreement but does not eliminate disagreement on borderline cases between Types II and V.
- The original system does not account for posterolateral or posteromedial fragments that are now recognised as critical to stability and require dedicated fixation strategies.
- Modern three-dimensional imaging and intraoperative cone-beam CT allow more precise articular reduction assessment than was possible when the classification was described.
- Associated ligamentous and meniscal injuries occur in more than fifty percent of cases and influence long-term outcome more than the bony classification alone; MRI or direct inspection during surgery is required.
- The classification remains valuable for communication and operative planning but must be supplemented by soft-tissue grading (Tscherne or Gustilo-Anderson) and detailed CT mapping.
Evidence Base
Evidence
The tibial plateau fracture. The Toronto experience 1968-1975
Schatzker J, McBroom R, Bruce D • Clin Orthop Relat Res (1979)
Key Findings:
- Original description of the six-type classification based on mechanism and morphology in 94 patients
Clinical implication: Provided the first practical framework linking fracture pattern to surgical approach and prognosis.
Limitation: Pre-CT era; relied on plain films and tomograms only.
Source: Clin Orthop Relat Res 1979;(138):94-104
Evidence
Indications for surgical treatment of tibial condyle fractures
Honkonen SE • Clin Orthop Relat Res (1994)
Key Findings:
- Prospective series confirming that articular step-off greater than two millimetres and condylar widening greater than five millimetres correlate with poor outcome
Clinical implication: Established modern thresholds for acceptable reduction that still guide decision-making between operative and non-operative care.
Limitation: Single-surgeon series; limited by contemporary fixation technology.
Source: Clin Orthop Relat Res 1994;(302):199-205
Evidence
CT classification of tibial plateau fractures
Chan PS, Klimkiewicz JJ, Luchetti WT, et al. • J Orthop Trauma (1997)
Key Findings:
- CT altered the planned surgical approach or fixation in twenty-six percent of cases compared with plain radiographs alone
Clinical implication: Demonstrated that CT is essential for accurate classification and preoperative planning in virtually all operative plateau fractures.
Limitation: Small cohort; did not correlate classification change with clinical outcome.
Source: J Orthop Trauma 1997;11(7):484-9
Evidence
Reliability of the Schatzker classification
Walton NP, Spiteri M, et al. • Injury (2003)
Key Findings:
- Moderate inter-observer agreement on plain films that improved only modestly with addition of CT
Clinical implication: Emphasises the need for careful review of all imaging planes and supplementary soft-tissue assessment rather than rigid reliance on the numeric label.
Limitation: Observer study without outcome correlation.
Source: Arch Orthop Trauma Surg 2003;123(8):396-8
Evidence
Associated soft-tissue injuries in tibial plateau fractures
Gardner MJ, Yacoubian S, Geller D, et al. • J Orthop Trauma (2005)
Key Findings:
- MRI demonstrated complete ACL or MCL disruption in more than half of high-energy Schatzker IV-VI fractures
Clinical implication: The bony classification underestimates the full injury; ligament repair or reconstruction timing must be integrated into the overall plan.
Limitation: Selected high-energy cohort; may overestimate ligament injury rate in low-energy patterns.
Source: J Orthop Trauma 2005;19(2):79-84
Exam Viva
Practise clinical reasoning and management decisions out loud
Viva scenarioStandard
Clinical prompt
“A thirty-five-year-old motorcyclist is brought in after a high-speed collision. The knee is swollen and deformed. Plain radiographs show a bicondylar tibial plateau fracture with apparent metaphyseal extension. What is your classification, and how do you proceed?”
Practical approach
This is a Schatzker Type VI fracture — bicondylar involvement plus metaphyseal-diaphyseal dissociation — indicating the highest-energy pattern. I would first perform a full ATLS assessment, document neurovascular status, and measure compartment pressures. I would obtain an urgent CT scan once the limb is temporarily stabilised. Because of the high-energy mechanism and expected soft-tissue swelling, I would apply a spanning external fixator across the knee in slight flexion to restore length and alignment while allowing soft-tissue recovery. Definitive fixation would be delayed until the skin wrinkles appear, typically seven to fourteen days later, using a dual-plating strategy through separate anterolateral and posteromedial approaches after careful preoperative CT planning.
Key clinical points
Recognise Type VI pattern on plain films and confirm with CT
Assume compartment syndrome until proven otherwise
Damage-control external fixation first, not immediate ORIF
Dual approaches planned from the CT reconstruction
Vascular examination repeated after any manipulation
Common pitfalls
Attempting single-stage definitive plating through swollen tissues
Missing the posteromedial fragment that requires a separate approach
Failing to span the knee and allowing further shortening
Further questions
“What investigations would you perform before definitive surgery?”
“How would your plan change if this were an open fracture?”
“Which reduction aids and fixation constructs are used for the posteromedial fragment?”
Viva scenarioAdvanced
Clinical prompt
“A sixty-year-old woman falls from standing onto her outstretched leg. Radiographs show an isolated lateral tibial plateau fracture with apparent central depression. How do you classify it and decide on treatment?”
Practical approach
On plain films this appears to be a Schatzker Type III pure depression fracture. However I would insist on a CT scan before any decision. If the CT confirms pure central depression with no split and step-off greater than two millimetres, and the knee is stable to varus-valgus stress under anaesthesia, I would consider non-operative management with protected weight-bearing if the patient is low-demand. If there is any instability or the depression exceeds four millimetres I would proceed to limited open reduction, elevation of the articular surface through a metaphyseal window, raft-screw support, and bone grafting of the void, followed by early range-of-motion exercises.
Key clinical points
Type III is the only pattern that may be treated non-operatively in selected patients
CT is still required to exclude an occult split that would upgrade the classification to Type II
Depression depth and knee stability are the decision thresholds
Elderly osteopenic bone requires different fixation strategy from young dense bone
Common pitfalls
Treating on plain films alone and missing a split component
Accepting greater than two millimetres step-off in an active patient
Using a large plate in poor-quality bone when raft screws alone suffice
Further questions
“What is the role of arthroscopy or submeniscal arthrotomy in Type III fractures?”
“How does the presence of a lateral meniscus tear alter your plan?”
“What rehabilitation protocol would you prescribe after non-operative treatment?”
Exam day cheat sheet
Schatzker — Exam Cheat Sheet
The six types at a glance
- Type I: lateral split only — valgus, low energy, raft screws or buttress plate
- Type II: lateral split plus depression — most common, elevate and buttress
- Type III: pure central depression — axial, elderly, consider non-operative if stable and minimal step-off
- Type IV: medial condyle — varus, high energy, knee dislocation until proven otherwise
- Type V: bicondylar without metaphyseal extension — dual plating when soft tissues allow
- Type VI: bicondylar plus metaphyseal-diaphyseal dissociation — spanning external fixator first
Energy and soft-tissue implications
- Higher number equals higher energy, more ligament disruption, higher compartment risk
- Type IV-VI almost always require staged protocol with temporary external fixation
- CT changes classification and approach in up to one third of cases
Key examination and planning points
- Always document compartments, pulses, and neurological status before and after reduction
- Obtain CT with three-dimensional reconstructions for every operative case
- Plan approaches according to the location of articular fragments on CT, not the plain-film label
