Tibial Stress Fractures

Tibial stress fractures account for 50% of all stress fractures and are stratified by risk based on location. Anterior cortex = HIGH RISK (tension side, poor blood supply, "dreaded black line" on imaging) - may require prophylactic IM nailing. Posteromedial = LOW RISK (compression side, excellent blood supply) - heals with 6-8 weeks rest. MRI is gold standard for diagnosis, showing bone marrow edema 2-6 weeks before X-ray changes. Always assess for training errors and screen for the female athlete triad (amenorrhea, eating disorder, osteoporosis). Medial tibial stress syndrome (MTSS) is periostitis without fracture line and rarely requires surgery.

Definition

Stress fractures are overuse injuries resulting from repetitive submaximal loading that exceeds the bone's ability to remodel and repair. The tibia is the most common site.

Epidemiology

• 50% of all stress fractures occur in the tibia
• Military recruits: 1-5% incidence during basic training
• Runners: Account for majority of tibial stress fractures
• Female athletes: 2-10x higher risk than males
• Peak age: 17-25 years (high-activity athletes/military)

Risk Factors

Intrinsic:

• Female sex
• Low BMI/eating disorders
• Menstrual irregularities (female athlete triad)
• Low bone mineral density
• Previous stress fracture
• Leg length discrepancy
• Pes planus or cavus foot

Extrinsic:

• Sudden increase in training volume/intensity
• Change in running surface
• Inadequate footwear
• Poor nutrition (calcium, vitamin D deficiency)

Tibial Anatomy Relevant to Stress Fractures

Anterior Cortex (High Risk):

• Located on tension side during loading
• Tensile forces promote crack propagation
• Poor periosteal blood supply anteriorly
• Cortical bone with minimal cancellous support
• "Dreaded black line" represents true cortical fracture

Posteromedial Cortex (Low Risk):

• Located on compression side during loading
• Compressive forces favor healing
• Rich periosteal blood supply
• More cancellous bone support
• Typically appears as periosteal reaction

Pathophysiology of Stress Fractures

Bone Remodeling Imbalance:

1. Normal activity causes microdamage
2. Osteoclasts resorb damaged bone (takes 3 weeks)
3. Osteoblasts lay down new bone (takes 3 months)
4. If loading exceeds repair capacity, stress fracture develops

Stress Reaction Continuum:

• Grade 1: Periosteal edema only
• Grade 2: Bone marrow edema
• Grade 3: Marrow edema + cortical signal abnormality
• Grade 4: Complete fracture line (with or without displacement)

Risk-Based Classification

The most clinically relevant classification for tibial stress fractures stratifies them by anatomical location and biomechanical risk.

Fredericson MRI Grading (Severity)

This classification grades the severity of stress injury based on MRI findings and correlates with return-to-activity timeline.

Clinical Application:

• Grade 1-2: Stress reaction - relative rest, modify activity
• Grade 3-4: True stress fracture - complete rest from running
• Anterior cortex Grade 4 with black line - surgical consideration
• Higher grades require longer recovery before return to sport

History

Key Questions:

• Training history - recent changes in volume, intensity, surface
• Onset - insidious, activity-related
• Location of pain - anterior vs posteromedial
• Night pain (suggests more advanced injury)
• Previous stress fractures
• Dietary history, menstrual history (female athlete triad)
• Medications (bisphosphonates can cause atypical fractures)

Red Flags:

• Anterior tibial pain (high-risk location)
• Pain at rest or night
• History of multiple stress fractures
• Signs of eating disorder/amenorrhea

Physical Examination

Inspection:

• Usually normal externally
• May have subtle swelling

Palpation:

• Point tenderness over fracture site
• Anterior cortex: tender mid-tibial anterior border
• Posteromedial: tender along posteromedial border (distal more common)

Special Tests:

• Hop test: Single-leg hop reproduces pain (sensitive)
• Tuning fork test: Vibration over fracture site causes pain (poor specificity)
• Fulcrum test: Bending stress reproduces pain

MTSS vs Stress Fracture:

Differential Diagnosis of Exercise-Related Leg Pain

The radiographic differential of a tibial stress lesion also includes osteoid osteoma, malignancy and chronic osteomyelitis, which can mimic a stress reaction on imaging [PMID 28343329]. The clinical differential of activity-related shin pain is summarised below.

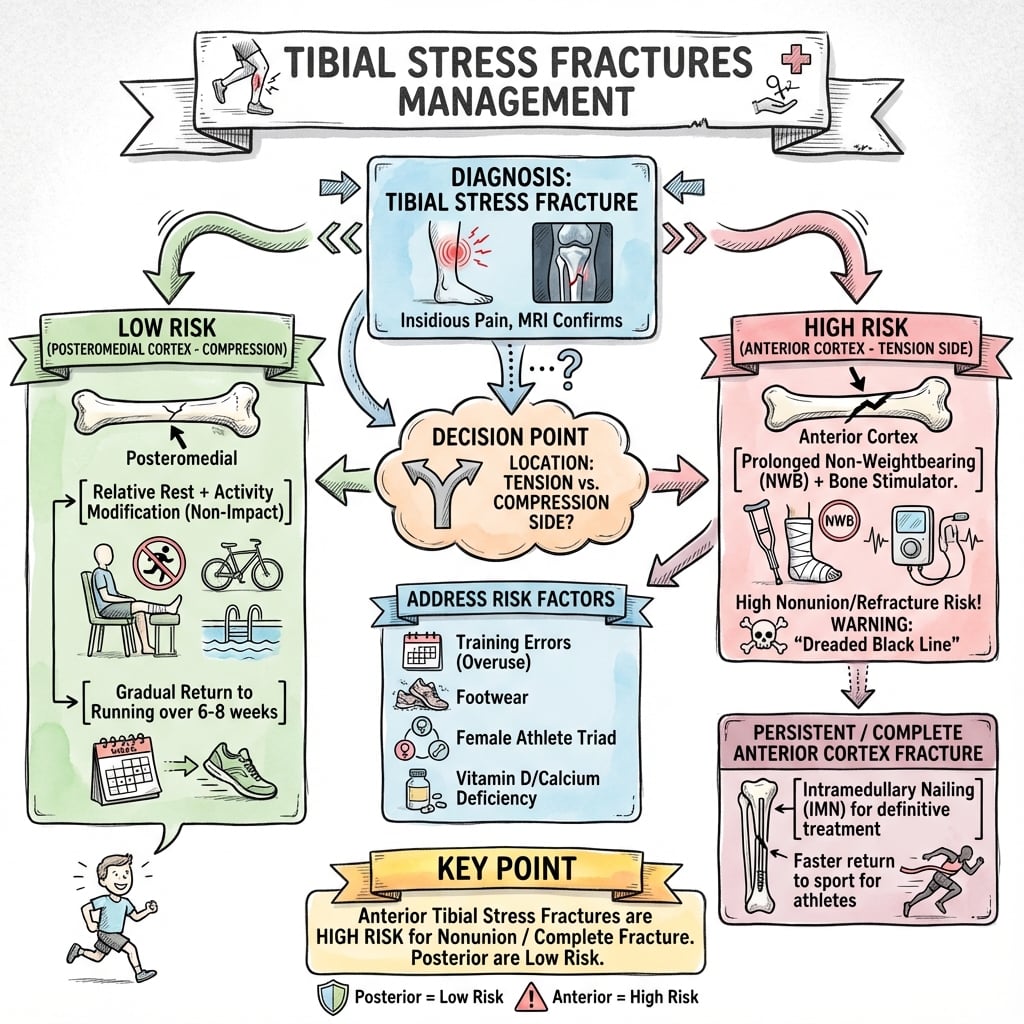

Algorithm

View larger

Treatment Principles

Management depends on risk stratification (location) and grade (MRI findings).

Return to Play Protocol

Posteromedial (Low Risk):

1. Pain-free walking (week 1-2)
2. Pain-free hopping/jumping (week 3-4)
3. Walk-run program (week 4-6)
4. Sport-specific training (week 6-8)
5. Full return when pain-free at sport intensity

Anterior Cortex (High Risk):

1. Protected weight-bearing until imaging shows healing
2. Progressive loading under supervision
3. Gradual return over 3-6 months
4. Consider prophylactic nailing if early return required

Indications for Surgery

Anterior Cortex Stress Fractures:

• Presence of "dreaded black line" on imaging
• Failed conservative management (3-6 months)
• Elite athlete requiring expedited return
• Complete fracture or displacement
• Established non-union
• Patient preference for definitive treatment

Relative Contraindications:

• Active infection at surgical site
• Severe osteoporosis (consider alternative fixation)
• Medical comorbidities precluding surgery

Intramedullary Nailing Technique

Complete Fracture

Risk Factors:

• Anterior cortex location
• Delayed diagnosis
• Continued activity despite pain
• Dreaded black line ignored

Management:

• IM nailing if displaced
• Can treat as typical tibial shaft fracture
• Higher risk of delayed union

Non-union

More Common in:

• Anterior cortex stress fractures
• Delayed treatment
• Nutritional deficiencies
• Smoking

Management:

• IM nailing with reaming
• Bone grafting if needed
• Address metabolic factors

Recurrence

Prevention:

• Address underlying risk factors
• Optimize nutrition
• Gradual return to activity
• Correct biomechanical issues
• Appropriate footwear

Immediate Postoperative Management

Day 0-1 (Hospital):

• Weight-bearing as tolerated immediately with IM nail
• Neurovascular checks q4h first 24 hours
• Monitor for compartment syndrome (rare but serious)
• DVT prophylaxis per protocol
• Pain control with multimodal analgesia
• Discharge typically day 1-2

Wound Care:

• Keep incisions clean and dry for 2 weeks
• Sutures/staples removed at 14 days
• Watch for signs of infection

Rehabilitation Protocol

Weeks 0-2:

• WBAT with crutches as needed for comfort
• ROM exercises immediately
• Ankle pumps, quad sets, straight leg raises
• Ice and elevation for swelling
• Avoid impact activities

Weeks 2-6:

• Progress to full weight-bearing without aids
• Advance ROM and strengthening
• Stationary bike when comfortable
• Pool exercises for cardiovascular fitness
• Continue PT 2-3 times per week

Weeks 6-12:

• Progressive resistance training
• Begin light jogging if pain-free walking
• Gradual increase in activity per protocol
• Sport-specific exercises after week 8
• Serial radiographs at 6 weeks, 12 weeks

Months 3-4:

• Return to full training if:
  • Pain-free with all activities
  • Full ROM
  • Radiographic evidence of union
  • Functional strength restored
• Return to competition typically 3-4 months

Follow-Up Schedule

• 2 weeks: Wound check, suture removal
• 6 weeks: Clinical exam, radiographs
• 12 weeks: Clinical exam, radiographs, consider return to sport
• 6 months: Final clinical and radiographic assessment

Activity Modification

Return-to-Sport Criteria:

• Radiographic union (bridging callus on XR)
• Pain-free with high-impact activity
• Full ROM compared to contralateral side
• Functional testing (single-leg hop, agility drills)
• Sport-specific skills without pain

Long-Term Considerations:

• Address underlying risk factors (nutrition, training errors)
• Monitor for contralateral stress fractures
• Consider nail removal at 12-18 months if symptomatic
• Most nails can remain indefinitely if asymptomatic

Posteromedial (Low-Risk) Outcomes

Conservative Management:

• Union rate: Over 95% with activity modification
• Average healing time: 6-8 weeks
• Return to sport: 8-12 weeks typically
• Recurrence rate: Less than 5% if risk factors addressed
• Excellent functional outcomes

Prognostic Factors:

• Fredericson Grade correlates with healing time
• Grade 1-2: 3-6 weeks return
• Grade 3: 12-16 weeks return
• Nutrition and compliance critical

Anterior Cortex (High-Risk) Outcomes

Conservative Management:

• Union rate: 50-70% (high failure rate)
• Average healing time: 4-6 months (if successful)
• Non-union risk: 30-50%
• Recurrence common if premature return
• Complete fracture risk if inadequately treated

Surgical Management (IM Nailing):

• Union rate: Over 90% (significantly superior to conservative)
• Average healing time: 3-4 months
• Return to sport: 3-4 months
• Complications: Low (under 5%)
• Excellent functional outcomes
• Lower recurrence with risk factor modification

Prognostic Indicators

Favorable:

• Posteromedial location
• Early diagnosis
• Good nutrition and bone health
• Compliance with activity restriction
• Biomechanical issues addressed

Unfavorable:

• Anterior cortex location
• Dreaded black line present
• Delayed diagnosis
• Continued activity despite symptoms
• Poor bone health/female athlete triad
• Smoking

Complications and Their Impact

Complete Fracture:

• Occurs in 10-20% of untreated anterior cortex stress fractures
• Requires standard fracture management
• Delays return to sport by 6+ months
• May result in permanent activity restriction

Non-union:

• More common in anterior cortex (30-50% without surgery)
• Requires salvage surgery (IM nail + bone graft)
• Extended recovery (6-12 months)
• May limit return to elite competition

Recurrence:

• Overall recurrence rate: 10-20%
• Higher if underlying risk factors not addressed
• Female athlete triad major risk factor
• Training errors most common modifiable cause

Long-Term Outcomes

Return to Sport:

• Low-risk fractures: Over 95% return to pre-injury level
• High-risk fractures (conservatively treated): 70-80% return to pre-injury level
• High-risk fractures (surgically treated): Over 90% return to pre-injury level
• Elite athletes typically require surgical management for anterior cortex

Quality of Life:

• Most patients return to full activity without restrictions
• Chronic pain rare if appropriately treated
• Recurrent stress fractures may necessitate activity modification
• Female athlete triad requires ongoing management

Global Epidemiology

Stress fractures are a worldwide overuse problem in athletes and military recruits, and the tibia is consistently the single most common site. In a 12-month prospective study of competitive track and field athletes the overall incidence was 21.1%, with the tibia accounting for 46% of stress fractures, followed by the navicular (15%) and fibula (12%) [PMID 8775123]. Among female military recruits the reported frequency of stress fractures is in the order of 5-15% during basic training [PMID 18628731]. Female sex, low bone mineral density, menstrual disturbance and low energy availability are the dominant intrinsic risk factors across populations [PMID 8947404].

Guideline Convergence and Practice Variation

There is no single dominant national-society guideline specific to tibial stress fractures; practice is shaped by sports-medicine consensus statements rather than by AAOS, NICE or BOAST documents (which do not address this entity directly). Internationally there is strong agreement on the core principles: MRI is the imaging standard for staging, low-risk posteromedial fractures are managed with relative rest and graded return, and high-risk anterior cortex fractures (the dreaded black line) warrant aggressive management with a low threshold for intramedullary nailing [PMID 26972260] [PMID 15888719]. The main areas of genuine variation are:

• Imaging access — in high-resource settings MRI is obtained early; in limited-resource settings diagnosis often relies on serial radiographs and clinical assessment, with bone scintigraphy where MRI is unavailable.
• Timing of surgery in elite athletes — earlier nailing of anterior cortex fractures is favoured where rapid return to competition is required, whereas a longer trial of non-operative care is common elsewhere.
• Energy-availability screening — increasingly routine in high-performance and military programmes (triad/RED-S frameworks) but still under-recognised in general practice worldwide.

Registry and Preventive Evidence

Joint registries (NJR, AJRR, AOANJRR, SHAR) do not capture stress fractures, so the strongest population-level evidence comes from military and athletic cohort studies. A randomised controlled trial in 5201 female US Navy recruits showed that calcium (2000 mg) and vitamin D (800 IU) daily reduced stress fracture incidence by approximately 20% over 8 weeks [PMID 18433305], supporting nutritional optimisation as a low-cost preventive intervention across all health systems.
