Baker's Cyst (Popliteal Cyst)

Classification by underlying cause:

Associated intra-articular pathology (independent MRI associations; Miller 1996, PMID 8816552):

• Joint effusion
• Meniscal tear
• Degenerative arthropathy (osteoarthritis)
• Inflammatory arthropathy and chronic synovitis (e.g. rheumatoid arthritis), PVNS and chondral injury are also recognised secondary causes

The probability of a cyst rises with the number of these co-existing features. The aetiology classification guides treatment - primary can be observed, secondary requires knee assessment.

Classification by clinical status:

Complicated cysts may require more aggressive intervention beyond treating the knee alone.

Classification by size:

Classification by extent:

• Localized: Confined to popliteal fossa
• Proximal extension: Along semimembranosus or gastrocnemius
• Distal extension: Dissecting into posterior calf compartments
• Multiloculated: Multiple compartments or septations

Size and extent influence risk of complications and treatment approach.

Ultrasound is the first-line imaging modality.

Advantages:

• Non-invasive, no radiation
• Dynamic examination (test Foucher sign)
• Can assess for rupture (fluid tracking into calf)
• Can guide aspiration if needed
• Can assess popliteal vessels (exclude DVT, aneurysm)
• Relatively inexpensive

Typical findings:

• Anechoic (fluid-filled) cystic structure
• Located between medial head of gastrocnemius and semimembranosus
• May show neck communicating with joint
• Can measure size accurately
• Doppler can exclude vascular abnormalities

Limitations:

• Limited assessment of intra-articular knee pathology
• Operator dependent
• May miss small meniscal tears

Ultrasound is excellent for confirming the diagnosis and excluding vascular pathology.

MRI is the gold standard for comprehensive assessment.

Indications:

• Assess underlying knee pathology (meniscal tears, ligament injuries)
• Characterize complex or large cysts
• Evaluate for complications (dissection, compression)
• Surgical planning
• Atypical features (solid components, septations)

Typical findings:

• Well-defined fluid signal mass (T1 low, T2 high signal)
• Located in posteromedial popliteal fossa
• Between gastrocnemius and semimembranosus
• Connection to knee joint (neck or stalk)
• Can identify associated intra-articular pathology:
  • Meniscal tears (especially posterior horn medial meniscus)
  • Cartilage defects
  • Ligament tears
  • Synovitis

Size and extent:

• Can measure accurately in all planes
• Shows proximal or distal extension
• Identifies multiloculation or septations
• Relationship to neurovascular structures

Plain X-rays have limited role.

Indications:

• Assess for osteoarthritis
• Exclude calcified masses
• Evaluate bony abnormalities

Findings:

• May show soft tissue shadow posteriorly
• Signs of osteoarthritis (if present)
• Calcification (rare - suggests chronicity or other diagnosis)

Limitations:

• Cannot visualize soft tissue cyst well
• Cannot assess internal structure
• No information about underlying soft tissue pathology

Plain radiographs are useful to assess for arthritis but not diagnostic for Baker's cyst.

CT scan:

• Rarely indicated
• Can show cyst as low-density mass
• Useful if concern for vascular pathology or bone involvement
• Contrast can show enhancement pattern

Doppler ultrasound:

• Essential if concern for DVT (in ruptured cyst presenting as pseudothrombophlebitis)
• Can assess popliteal artery (exclude aneurysm)
• Can assess for venous compression

Arthrography:

• Historical method
• Injection of contrast into knee joint shows filling of cyst
• Demonstrates communication with joint
• Now superseded by MRI and ultrasound

The choice of imaging depends on clinical presentation and need to assess underlying knee pathology.

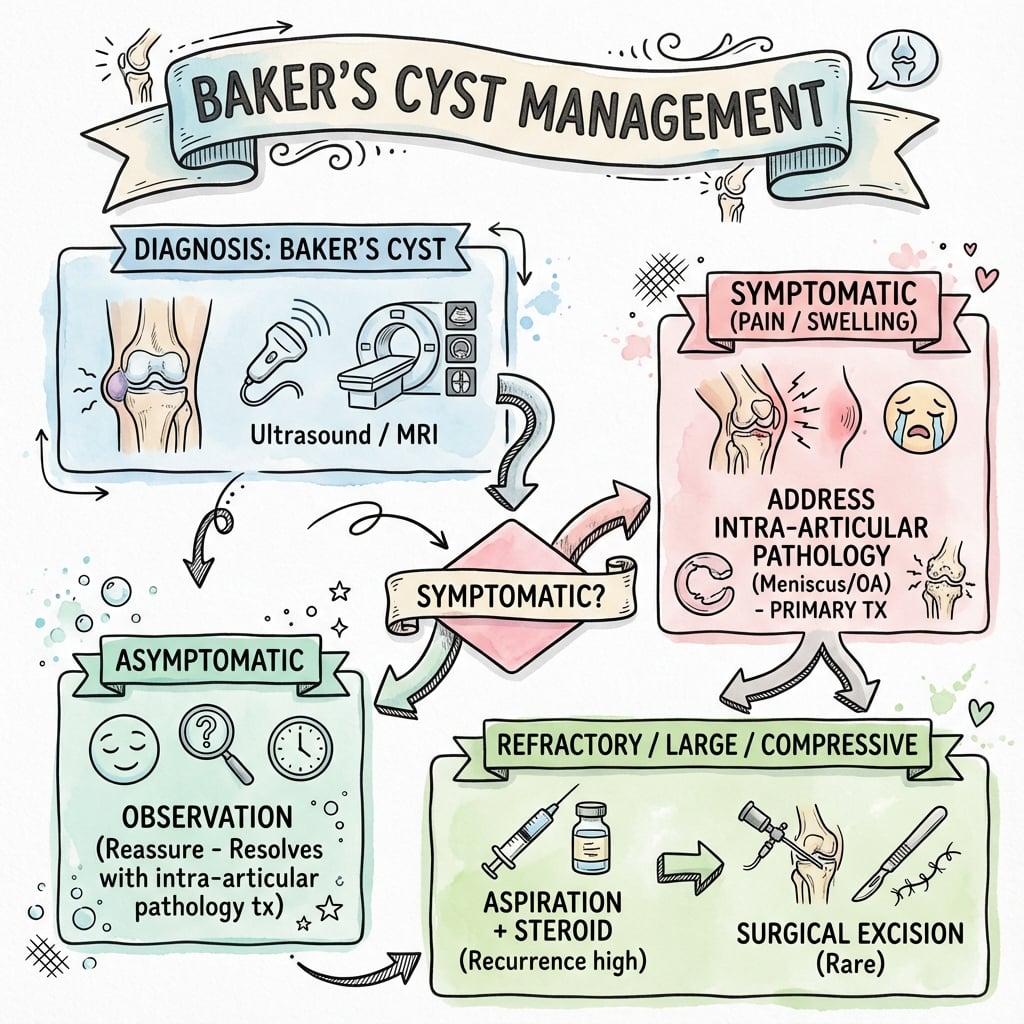

Conservative management is first-line for most Baker's cysts.

Indications:

• Asymptomatic or minimally symptomatic cysts
• No complications (rupture, compression, infection)
• Patient preference after counseling

Treatment modalities:

1. Observation:

• Many cysts are asymptomatic
• May resolve spontaneously if underlying pathology treated
• Monitor size and symptoms

2. Activity modification:

• Avoid activities that increase knee effusion
• Limit prolonged standing
• Low-impact exercise (swimming, cycling)

3. NSAIDs:

• Reduce inflammation and synovitis
• May decrease fluid production
• Standard anti-inflammatory doses
• Consider gastroprotection if prolonged use

4. Physical therapy:

• Quadriceps strengthening
• Range of motion exercises
• Proprioceptive training
• May help reduce effusion

5. Treat underlying knee pathology:

• This is the most important aspect
• Meniscal tear: consider arthroscopic repair or meniscectomy
• ACL tear: reconstruction if indicated
• Osteoarthritis: optimize medical management, consider injections
• Inflammatory arthritis: optimize DMARD therapy

Aspiration with or without corticosteroid injection.

Indications:

• Symptomatic relief in patients not surgical candidates
• Temporizing measure while planning definitive treatment
• Diagnostic confirmation
• As adjunct to treatment of underlying pathology

Technique:

• Ultrasound-guided preferred (higher success, safer)
• Patient prone or lateral decubitus
• Sterile technique
• 18-gauge needle
• Aspirate as much fluid as possible (may be 20-30 mL or more)
• Can inject corticosteroid (e.g., 40 mg methylprednisolone)

Outcomes:

• Provides temporary symptom relief
• High recurrence rate (50-80%) if underlying pathology not addressed
• May need to be repeated
• Combination with treatment of knee pathology improves success

Complications:

• Infection (very rare with sterile technique)
• Bleeding (avoid if on anticoagulation)
• Nerve injury (rare with ultrasound guidance)
• Re-accumulation

Evidence:

• Studies show 50-80% recurrence after isolated aspiration
• Recurrence reduced to 20-30% if combined with treatment of meniscal tear or other pathology
• Corticosteroid injection may prolong symptom-free interval

Aspiration is palliative, not curative. It buys time but does not address the underlying problem.

Surgical excision is reserved for specific indications.

Indications:

• Failed conservative management with persistent symptoms
• Complications:
  • Nerve compression with neurological symptoms
  • Vascular compression
  • Recurrent rupture
  • Suspicion of malignancy (very rare)
• Large cyst causing functional impairment
• Patient preference after failure of conservative measures

Contraindications:

• Active infection
• Medical comorbidities precluding surgery
• Unrealistic expectations
• Untreated underlying knee pathology (will recur)

Surgical approach:

1. Arthroscopic treatment of intra-articular pathology:

• Address meniscal tear, remove loose bodies, etc.
• May close communication between bursa and joint (controversial)
• Many cysts resolve after arthroscopic treatment of underlying pathology alone

2. Direct cyst excision (open):

• Posterior approach
• Patient prone
• Incision in popliteal fossa crease
• Identify and protect neurovascular structures (tibial nerve, popliteal vessels)
• Dissect and excise cyst
• Ligate communication with joint (silk suture or clips)
• Close in layers

3. Combined approach:

• Arthroscopy to treat intra-articular pathology
• Direct excision of cyst if large or symptomatic
• Addresses both aspects

Outcomes of surgery:

• Isolated cyst excision: 40-60% recurrence
• Combined with treatment of knee pathology: Less than 10% recurrence
• Most patients have good symptom relief
• Return to activity in 4-6 weeks

The combined approach has the best outcomes with lowest recurrence risk.

Management of ruptured Baker's cyst (pseudothrombophlebitis).

Presentation:

• Acute calf pain and swelling
• Mimics DVT clinically
• Crescent sign (ecchymosis below medial malleolus)

Essential step:

• Exclude DVT with Doppler ultrasound - this is mandatory
• Calf DVT and ruptured Baker's cyst can coexist
• Do not assume it's only a cyst rupture

Once DVT excluded:

Acute management:

• Rest, ice, elevation
• NSAIDs for pain and inflammation
• Compression stocking may help (once DVT excluded)
• Crutches if needed for comfort
• Avoid vigorous activity

Recovery:

• Usually resolves over 2-4 weeks
• Fluid is reabsorbed
• Residual cyst may persist
• Treat underlying knee pathology to prevent recurrence

Surgery rarely indicated for rupture:

• Most resolve conservatively
• Surgery only if recurrent ruptures or persistent symptoms

The key is distinguishing from DVT - always do Doppler ultrasound.

Surgical indications for Baker's cyst excision:

Absolute indications:

• Nerve compression with progressive neurological deficit
• Vascular compression with claudication or swelling
• Suspected malignancy (very rare)

Relative indications:

• Failed conservative management (6+ months)
• Large cyst (greater than 10 cm) with functional impairment
• Recurrent ruptures
• Patient preference with realistic expectations

Prerequisites:

• Underlying knee pathology must be addressed (ideally same surgery)
• Patient counseled about recurrence risk
• Conservative measures exhausted
• No active infection

Isolated cyst excision without treating knee pathology is not recommended due to high recurrence.

Posterior approach to popliteal fossa:

Patient positioning:

• Prone position
• Padded supports under chest and hips
• Foot elevated on bolster or supported
• Tourniquet applied (optional - generally not needed)

Incision:

• Transverse or S-shaped incision in popliteal fossa crease
• Center incision over palpable mass
• Length typically 5-8 cm (adjust based on cyst size)

Landmarks:

• Popliteal fossa crease
• Medial and lateral heads of gastrocnemius
• Palpable cyst

Skin incision:

• Divide skin and subcutaneous tissue
• Identify and protect small saphenous vein (ligate if necessary)
• Divide deep fascia in line with incision

Safe exposure requires careful identification of neurovascular structures before proceeding.

Surgical steps for cyst excision:

Step 1: Identify neurovascular structures

• Tibial nerve runs lateral to the cyst (most at risk)
• Popliteal vessels run deep and lateral
• Common peroneal nerve is lateral (around fibular head)
• Protect these structures throughout

Step 2: Identify the cyst

• Usually posteromedial between gastrocnemius and semimembranosus
• May be multiloculated
• Carefully dissect investing fascia

Step 3: Mobilize the cyst

• Blunt dissection to separate cyst from surrounding structures
• Identify neck or stalk connecting to joint
• Trace proximally to capsular communication

Step 4: Ligate communication

• Critical step to prevent recurrence
• Identify stalk entering posteromedial joint capsule
• Ligate with heavy non-absorbable suture (e.g., 0 silk)
• Can use clips or suture ligature
• Tie securely to close communication

Step 5: Excise cyst

• Divide cyst distally to ligation
• Remove cyst completely
• Send for histopathology (confirm diagnosis, exclude malignancy)

Step 6: Hemostasis and closure

• Careful hemostasis (small vessels in area)
• Irrigate wound
• Close deep fascia (absorbable suture)
• Subcutaneous closure (absorbable)
• Skin closure (subcuticular or staples)

Arthroscopy plus open excision:

This is the preferred approach for most cases as it addresses both the cyst and underlying pathology.

Stage 1: Arthroscopy

• Standard diagnostic arthroscopy
• Identify and treat intra-articular pathology:
  • Meniscal tear (repair or partial meniscectomy)
  • Loose bodies (remove)
  • Chondral defects (debridement or microfracture)
  • Synovitis (synovectomy)
• Some surgeons identify and cauterize/close communication with cyst (controversial)

Stage 2: Reposition to prone

• Turn patient prone
• Re-prep and drape posterior knee

Stage 3: Open cyst excision

• As described above
• Ligate communication
• Excise cyst

Advantages:

• Addresses both aspects in one surgery
• Reduced recurrence rate (less than 10%)
• Definitive treatment

Disadvantages:

• Longer operative time
• Need for repositioning
• Two separate approaches

This combined approach has the best outcomes with lowest recurrence.

Post-surgical management:

Immediate (Day 0-2):

• Posterior splint or knee brace at 30 degrees flexion
• Elevation
• Ice for comfort
• DVT prophylaxis (mechanical, +/- pharmacologic based on risk)
• Pain control (multimodal)

Early (Day 3-14):

• Wound check at 2 weeks
• Begin gentle ROM exercises
• Weight bearing as tolerated with crutches
• Continue elevation

Intermediate (Week 2-6):

• Progress ROM (goal: full by 6 weeks)
• Begin gentle strengthening
• Wean crutches
• Return to desk work at 2-3 weeks

Late (Week 6+):

• Full activities as tolerated
• Return to sports at 8-12 weeks (depending on sport and knee pathology)
• Follow up MRI if recurrence suspected

Follow-up:

• 2 weeks (wound check)
• 6 weeks (ROM, clinical exam)
• 3 months (ensure resolution)
• PRN if symptoms recur

Most patients recover fully within 6-8 weeks with low recurrence if knee pathology addressed.
