Spring Ligament Insufficiency

High-yield overview

Adult Flatfoot Deformity | Medial Arch Collapse | Static Restraint Failure

90%associated with PTTD

3 bandssuperomedial, inferior, oblique

50%bear talar head load

85%reconstruction success rate

Spring Ligament Pathology

Stage I

PatternElongation, no tear, reducible

TreatmentConservative + Orthosis

Stage II

PatternPartial tear, flexible deformity

TreatmentAugmentation + PTT transfer

Stage III

PatternComplete tear, rigid deformity

TreatmentReconstruction + Osteotomy

Critical Must-Knows

Spring ligament is the PRIMARY STATIC restraint to talar head plantar displacement
Nearly always occurs with Stage II or higher PTTD (90% association)
Superomedial band is most commonly injured (largest, under talar head)
Direct repair fails - requires augmentation (FHL/FDL/allograft)
MRI shows thickening, fluid signal, discontinuity on coronal views

Clinical Pearls

"
Ask about progression - acute trauma rare, usually degenerative with PTTD
"
Palpable gap at spring ligament site indicates complete rupture
"
Always assess in context of adult flatfoot - never isolated pathology
"
Reconstruction is adjunct to PTT reconstruction, never alone

Critical Spring Ligament Exam Points

Anatomy - Static Keystone

Talar Head Sling. 3 bands (superomedial largest) form a hammock suspending the talar head. Resists 50% of load on medial arch.

Never Isolated

Always PTTD. Spring ligament failure occurs in Stage II-IV adult flatfoot. Isolated spring injury is extremely rare (trauma only).

Clinical Sign

Palpable Gap. With complete rupture, a gap can be palpated medial to talar head, especially with hindfoot eversion stress.

Surgical Principle

Augmentation Required. Primary repair fails. Use FHL/FDL autograft or allograft to reconstruct the superomedial band.

At a Glance: Spring Ligament vs PTTD

Feature	Spring Ligament	PTT	Combined Pathology
Restraint Type	Static (ligamentous)	Dynamic (tendon)	Both systems fail
Primary Failure	Rare (trauma only)	Common (degenerative)	Spring is secondary
Deformity	Talar head plantar sag	Hindfoot valgus	Progressive flatfoot
Treatment	Reconstruction + PTTD surgery	Stage-based algorithm	Combined procedures

Mnemonic

SIOSpring Ligament Anatomy (3 Bands)

S	Superomedial band Largest, from sustentaculum to navicular tuberosity, primary load bearer
I	Inferior (plantar) band Deep, blends with plantar fascia
O	Oblique band Most lateral, overlaps with PTTD insertion

S	Superomedial band Largest, from sustentaculum to navicular tuberosity, primary load bearer
I	Inferior (plantar) band Deep, blends with plantar fascia
O	Oblique band Most lateral, overlaps with PTTD insertion

Hook:SIO = Superomedial Is Overhead, supporting the talar head from below.

Overview and Epidemiology

The plantar calcaneonavicular ligament (spring ligament) is a critical static restraint to medial longitudinal arch collapse. While isolated injury is rare, spring ligament insufficiency is present in 90% of patients with Stage II or higher posterior tibial tendon dysfunction (PTTD). The ligament acts as a hammock supporting the talar head, resisting approximately 50% of the load transmitted through the medial arch during weight bearing.

Why Called 'Spring' Ligament?

The name derives from the ligament's elastic properties, which were historically thought to provide a spring-like recoil to the arch. However, modern biomechanical studies show it functions primarily as a static restraint, not a dynamic spring.

Anatomy of the Spring Ligament Complex

Superomedial Band (Primary)

Origin: Sustentaculum tali (anterior aspect)
Insertion: Medial navicular tuberosity
Function: Primary restraint to talar head plantar displacement
Characteristics: Thickest, fibrocartilaginous undersurface (articulates with talar head)
Most commonly torn

Inferior and Oblique Bands

Inferior: Blends with plantar fascia, supports plantar aspect
Oblique: Most lateral, overlaps with PTT insertion site
Function: Secondary restraints, maintain arch integrity
Clinical: Less commonly symptomatic in isolation

Fibrocartilage Metaplasia

The inferior surface of the superomedial band undergoes fibrocartilaginous metaplasia where it articulates with the plantar aspect of the talar head. This allows the ligament to withstand compressive loads but also makes it vulnerable to degenerative failure under chronic stress.

Mnemonic

SPRINGMedial Arch Static Restraints

S	Spring ligament (Primary) 50% of static restraint
P	Plantar fascia Windlass mechanism
R	Rear foot alignment Subtalar joint position
I	Interosseous talocalcaneal Sinus tarsi stability
N	Naviculocuneiform Midfoot Lisfranc complex
G	Ground reaction force Tripod weight distribution

S	Spring ligament (Primary) 50% of static restraint	R	Rear foot alignment Subtalar joint position	N	Naviculocuneiform Midfoot Lisfranc complex
P	Plantar fascia Windlass mechanism	I	Interosseous talocalcaneal Sinus tarsi stability	G	Ground reaction force Tripod weight distribution

Hook:The arch has a SPRING system - multiple static supports working together.

Pathophysiology

Spring ligament insufficiency develops through a progressive degenerative process, nearly always in the context of posterior tibial tendon dysfunction:

Pathologic Cascade

Stage 1PTT Tendinopathy

PTT loses strength and begins to elongate. Increased load is transferred to spring ligament.

Stage 2Ligament Attenuation

Chronic overload causes spring ligament elongation. Superomedial band begins to stretch, allowing talar head plantar sag.

Stage 3Partial Tear

Superomedial band develops longitudinal tears or interstitial degeneration. Flexible flatfoot deformity becomes apparent.

Stage 4Complete Rupture

Full-thickness disruption of superomedial band. Talar head fully plantarflexes, creating rigid flatfoot if untreated.

Acute Spring Ligament Injury

Isolated acute spring ligament rupture is exceedingly rare but can occur with severe hindfoot eversion trauma (e.g., motor vehicle accident). Unlike degenerative failure, acute injury may present without pre-existing PTTD. MRI shows acute hemorrhage and complete discontinuity.

Classification Systems

Progressive Failure Classification

Stage	Pathology	MRI Findings	Deformity	Treatment
I	Elongation, no tear	Thickening under 8mm, normal signal	Flexible, reducible	Conservative + UCBL orthosis
II	Partial tear	Thickening greater than 8mm, increased T2 signal, partial discontinuity	Flexible with talar sag	Augmentation + PTT transfer
III	Complete rupture	Complete discontinuity, fluid gap	Rigid, fixed flatfoot	Reconstruction + Osteotomy

This classification parallels the Johnson and Strom PTTD staging, as spring ligament insufficiency nearly always occurs with PTTD.

Clinical Presentation

History

Typical Patient Profile

Demographics: Middle-aged female (40-60 years), 9:1 F greater than M ratio
Onset: Gradual progression over months to years
Pain: Medial midfoot pain, worse with prolonged standing/walking
Deformity: Progressive flatfoot, "arch is falling"
Function: Difficulty with single-leg heel rise, uneven terrain

Red Flags for Acute Injury

Sudden onset after trauma (rare)
Immediate inability to weight bear
Massive medial swelling
Palpable medial defect

These red flags suggest acute traumatic rupture rather than degenerative insufficiency.

Examination

Inspection

Standing: Medial arch collapse, talar head prominence medially
"Too Many Toes": Hindfoot valgus (more than 3 toes visible from behind)
Gait: Excessive pronation, loss of heel rise

Palpation

Spring ligament zone: Palpate medial to talar head (between sustentaculum and navicular)
Gap sign: Palpable defect with complete rupture (rare)
Talar head: Prominent medially, may be tender

Special Tests

Single heel rise: Inability indicates PTT weakness (associated finding)
Passive arch correction: Assess flexibility vs rigidity
Hindfoot alignment: Jack test (toe extension recreates arch if flexible)

Tests assess combined PTTD and spring ligament pathology, not spring ligament in isolation.

Investigations

Imaging Protocol

First LineWeight-Bearing Radiographs

AP, Lateral, Hindfoot Alignment Views. Assess arch collapse (Meary angle, calcaneal pitch), talonavicular uncoverage, hindfoot valgus. Not specific for spring ligament but essential for surgical planning.

Gold StandardMRI

Coronal T2-weighted sequences are critical. Shows thickening, increased signal, partial or complete discontinuity of superomedial band. Sagittal views show talar head plantar sag. Also assesses PTT pathology.

AdjunctUltrasound

Can visualize spring ligament tears dynamically but operator-dependent. Less commonly used than MRI.

Mnemonic

FLUIDMRI Findings in Spring Ligament Tear

F	Fluid signal (T2) High signal on T2-weighted images
L	Ligament thickening Superomedial band greater than 8mm
U	Undersurface irregularity Fibrocartilage disruption
I	Interstitial tears Longitudinal splits within substance
D	Discontinuity (complete) Full-thickness gap (severe)

F	Fluid signal (T2) High signal on T2-weighted images	I	Interstitial tears Longitudinal splits within substance
L	Ligament thickening Superomedial band greater than 8mm	D	Discontinuity (complete) Full-thickness gap (severe)
U	Undersurface irregularity Fibrocartilage disruption

Hook:FLUID on MRI = spring ligament pathology.

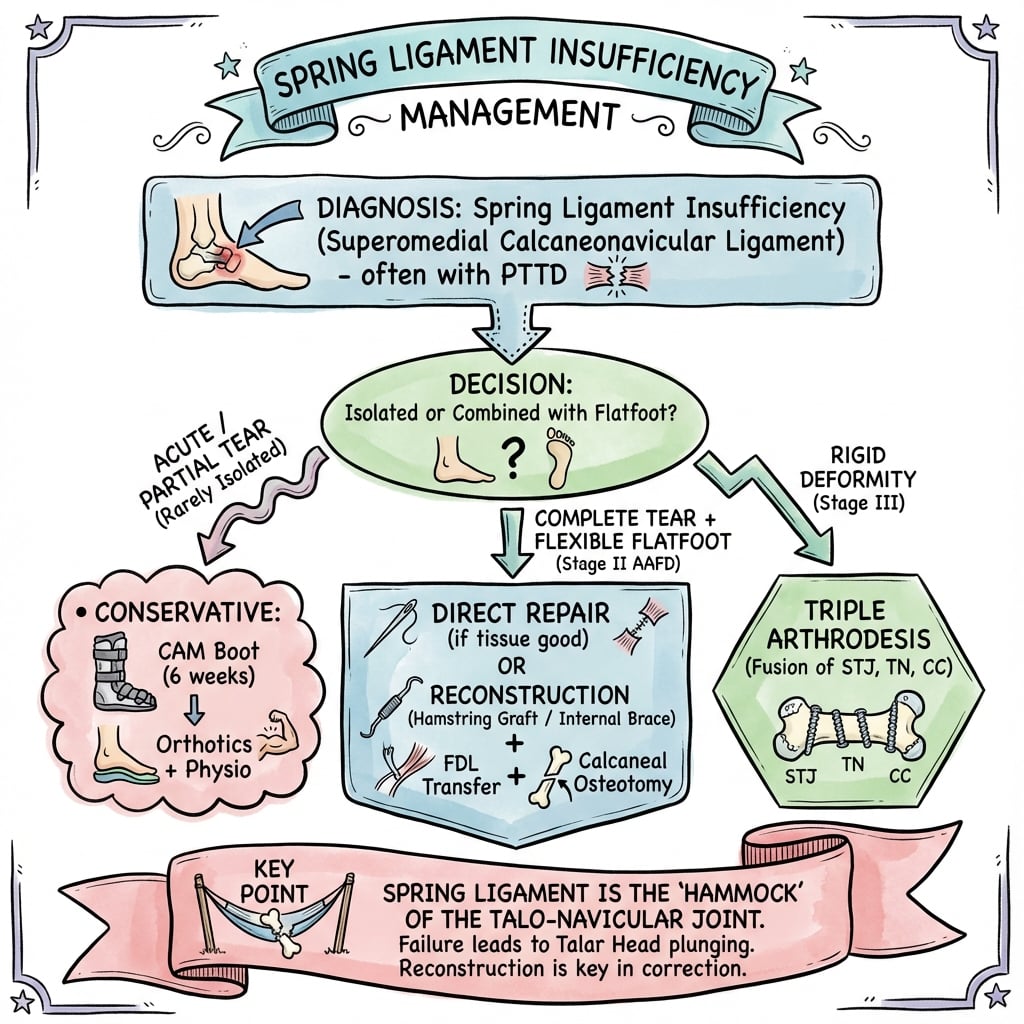

Management Algorithm

Indications

Stage I (elongation, no tear)
Minimal symptoms
Reducible deformity
Patient unfit for surgery

Protocol

Non-Operative Treatment

Phase 1Acute Symptom Control (0-6 weeks)

Boot/Brace: CAM walker or Arizona brace to offload medial arch
NSAIDs: Anti-inflammatory medication
Activity modification: Avoid prolonged standing

Phase 2Orthotic Support (6 weeks onward)

Custom UCBL orthosis: University of California Biomechanics Laboratory insole
Medial posting: Supports talar head, reduces spring ligament load
Arch support: Rigid arch maintains alignment

Phase 3Rehabilitation

PTT strengthening: Resisted inversion, toe curls
Intrinsic foot muscles: Toe spreading, short foot exercises
Proprioception: Single-leg balance, unstable surface training

Conservative management addresses PTT weakness but cannot reverse spring ligament elongation or tear. Success rate is 60-70% for symptom relief but does not prevent progression.

Surgical Technique

Patient Positioning

Position: Supine with bump under ipsilateral hip
Tourniquet: Thigh tourniquet (250-300 mmHg)
Draping: Leg free draped to allow foot manipulation

Medial Incision

Location: Centered over interval between PTT and FHL
Length: 8-12 cm from navicular tuberosity to sustentaculum
Deepening: Identify PTT sheath first (dorsal structure), then spring ligament (plantar)

Exposure

Incise PTT sheath longitudinally
Inspect PTT (usually requires debridement or transfer)
Identify spring ligament inferior to talar head
Assess tear pattern (longitudinal split vs complete rupture)

Exposure requires careful dissection to avoid injury to the plantar medial neurovascular bundle, which runs deep to the spring ligament.

Complications

Complication	Incidence	Risk Factors	Management
Recurrent deformity	10-15%	Inadequate correction, non-compliance	Revision reconstruction, osteotomy
Wound healing issues	5-8%	Diabetes, smoking, peripheral vascular disease	Local wound care, VAC therapy
Nerve injury (medial plantar)	2-3%	Deep dissection, excessive retraction	Observation (usually neuropraxia), neurolysis if persistent
Graft failure	5-10%	Inadequate fixation, early mobilization	Revision with allograft augmentation
Subtalar stiffness	10-20%	Over-correction, aggressive immobilization	Physiotherapy, subtalar mobilization

Medial Plantar Nerve at Risk

The medial plantar nerve runs deep to the spring ligament and can be injured during deep dissection or bone tunnel creation. Injury causes numbness to the medial forefoot and weakness of intrinsic muscles. Use careful retraction and stay superficial to the neurovascular bundle.

Postoperative Care and Rehabilitation

Rehabilitation Protocol

Weeks 0-2Non-Weight Bearing

Splint immobilization. Below-knee backslab or boot. Leg elevation, DVT prophylaxis, wound care.

Weeks 2-6Non-Weight Bearing in Boot

Transition to removable boot. Continue non-weight bearing. Begin ankle ROM exercises (plantarflexion/dorsiflexion only, no inversion/eversion).

Weeks 6-12Protected Weight Bearing

Progressive weight bearing in boot. 25% at week 6, 50% at week 8, 75% at week 10, full at week 12. Boot worn full-time.

Weeks 12-16Transition to Shoe

Wean from boot to supportive shoe with custom orthosis. UCBL or full-length rigid orthotic mandatory. Continue gait retraining, strengthening.

Months 4-6Return to Activity

Gradual return to sports/high-demand activities. Permanent orthotic use recommended. Avoid barefoot walking, unsupportive shoes.

Outcomes and Prognosis

Predictors of Poor Outcome

Risk factors for failure:

Rigid deformity (fixed flatfoot despite reconstruction)
Severe hindfoot valgus not corrected (greater than 20 degrees)
Obesity (BMI greater than 35)
Peripheral neuropathy (diabetes)
Non-compliance with orthotic use postoperatively

Differential Diagnosis

Spring ligament insufficiency presents as medial-sided foot pain with arch collapse. The key task is distinguishing it from other causes of acquired flatfoot and medial foot pain, and recognising that it usually coexists with posterior tibial tendon dysfunction rather than occurring in isolation.

Differential Diagnosis of Medial Foot Pain with Arch Collapse

Condition	Distinguishing Features	Key Investigation	Pitfall
Spring ligament insufficiency	Talar head plantar-medial prominence, tenderness between sustentaculum and navicular	Coronal MRI: superomedial band thickening then distal thinning	Assuming it is always secondary to PTTD
Posterior tibial tendon dysfunction	Weak/absent single heel rise, too-many-toes sign, retromalleolar tenderness	MRI of PTT (tenosynovitis, split, gap)	Treating PTTD alone and missing the spring tear
Isolated spring ligament rupture	Flexible flatfoot with a normal PTT and intact heel rise	MRI tear plus normal PTT; confirmed intra-operatively	Mislabelling as PTTD and under-treating
Deltoid ligament insufficiency (stage IV)	Valgus tilt of the talus within the ankle mortise	Weight-bearing ankle AP shows valgus talar tilt	Missing the ankle component above the hindfoot
Midfoot (naviculocuneiform/TMT) collapse	Apex of deformity at the midfoot, not talonavicular	Lateral weight-bearing radiograph: sag at NC or TMT	Osteotomy fails if true apex is more distal
Charcot neuroarthropathy	Diabetes/neuropathy, warmth, swelling, bony fragmentation	Radiographs and MRI; check sensation and glucose	Operating during the active fragmentation phase
Tarsal coalition (rigid flatfoot)	Younger patient, rigid hindfoot, peroneal spasm	CT: talocalcaneal or calcaneonavicular bar	Attempting soft-tissue reconstruction of a rigid foot

Controversies and Areas of Uncertainty

Primary vs Secondary Pathology

The long-held view that spring ligament failure is always secondary to PTTD has been challenged: small series document isolated rupture with a normal PTT (Orr and Nunley). The true incidence of isolated injury is unknown and likely under-recognised.

Anatomic vs Non-anatomic Reconstruction

Cadaveric work suggests a strictly anatomic superomedial-band reconstruction may correct less deformity than grafts with more proximal/oblique fixation lines, implying other medial structures share the load. The optimal graft path remains debated.

Graft Choice and Synthetic Augmentation

FHL versus FDL autograft, peroneus longus, allograft and synthetic suture-tape (internal brace) augmentation all have advocates. High-quality comparative outcome data are lacking, so choice is largely surgeon preference and tissue availability.

Soft Tissue vs Bony Correction

Regression data show the medializing calcaneal osteotomy, not the ligament reconstruction, drives hindfoot correction. How much soft-tissue reconstruction adds once bony alignment is restored, and whether it improves durability, is unresolved.

What the Examiners Want You to Say

Acknowledge the uncertainty honestly: spring ligament reconstruction is an adjunct within a staged flatfoot algorithm, the evidence base is level IV with small numbers, and correction of bony alignment (osteotomy, lateral column lengthening) is the foundation. Avoid claiming any single graft or technique is proven superior.

Evidence Base and Key Studies

Anatomical Spring Ligament Reconstruction with Peroneus Longus (Biomechanical)

Choi K, Lee S, Otis JC, Deland JT • Foot Ankle Int (2003)

Key Findings:

Cadaveric model (10 foot-ankle specimens) of failed spring ligament with 5 to 15 degrees talonavicular abduction
Compared three peroneus longus reconstruction passages under 357 N vertical ground-reaction load
Superomedial/plantar passage through calcaneus and navicular corrected talonavicular abduction from 9.1 degrees abducted to 1.0 degree adducted
Same passage restored subtalar joint from 3.1 degrees everted toward neutral

Clinical Implication: An anatomical soft-tissue reconstruction reproducing the superomedial band path can correct simulated flatfoot, providing the biomechanical rationale for graft-based spring ligament reconstruction.

Limitation: Cadaveric model only; static loading does not replicate in vivo dynamics; small sample.

Verify on PubMed (PMID 12801201)

Peroneus Longus Autograft Spring Ligament Reconstruction (Clinical Outcomes)

Williams BR, Ellis SJ, Deyer TW, Pavlov H, Deland JT • Foot Ankle Int (2010)

Key Findings:

Retrospective series of 13 patients (14 feet), mean age 63.5 years, where lateral column lengthening failed to fully correct talonavicular deformity
AOFAS ankle-hindfoot score improved from 43.1 to 90.3 at mean 8.9-year follow-up
Significant radiographic correction of talonavicular coverage, calcaneal pitch and lateral talonavicular angles into normal ranges
Mean residual hindfoot alignment 2.7 degrees valgus; few complications

Clinical Implication: Spring ligament reconstruction is a durable alternative to arthrodesis when bony procedures alone fail to correct medial peritalar deformity.

Limitation: Small retrospective series, no comparison group, heterogeneous concomitant procedures.

Verify on PubMed (PMID 20663422)

MRI Features of Surgically Proven Spring Ligament Tears

Williams G, Widnall J, Evans P, Platt S • Skeletal Radiol (2013)

Key Findings:

Retrospective review of 13 surgically proven spring ligament tears versus a 96-patient comparison group
Superomedial band proximal thickening over 5mm seen in 92% and distal thinning under 2mm in 85% of proven tears
Medioplantar band findings (thickening over 7mm, signal heterogeneity) were far less reliable
Superomedial band abnormalities were consistent, reproducible and correlated with surgical pathology

Clinical Implication: MRI assessment should focus on the superomedial band; thickening with distal thinning is the most reproducible sign of a tear.

Limitation: Single-centre retrospective design; surgical correlation limited to operated cases; modest tear numbers.

Verify on PubMed (PMID 23636731)

Isolated Spring Ligament Failure as a Cause of Flatfoot

Orr JD, Nunley JA • Foot Ankle Int (2013)

Key Findings:

Six consecutive patients (all female, mean age 42) with flexible flatfoot from spring ligament rupture and an intact tibialis posterior tendon
MRI suggested a spring ligament tear in all 5 patients imaged preoperatively
All had a normal PTT confirmed intraoperatively, refuting the assumption that spring ligament failure is always secondary
At mean 13 months, 5 of 6 were pain-free without orthoses and all were free of residual deformity

Clinical Implication: Isolated spring ligament failure with a normal PTT is a real, treatable entity; failure to recognise it risks inappropriate management.

Limitation: Very small retrospective series, short follow-up, no validated outcome scores.

Verify on PubMed (PMID 23564421)

Deltoid-Spring (TCNL) Ligament Reconstruction for Medial Peritalar Instability

Brodell JD, MacDonald A, Perkins JA, Deland JT, Oh I • Foot Ankle Int (2019)

Key Findings:

14 feet (12 patients) with advanced flexible flatfoot (stage IIB with large spring tears, or stage IV) had osseous correction plus allograft tibiocalcaneonavicular reconstruction
FAAM activities-of-daily-living improved from 69.3 to 90.1 at mean 24 months
Meary angle improved from 29.7 to 12.5 degrees and talonavicular coverage from 47.4 to 23.1 degrees
The superficial deltoid blends with the superomedial spring ligament to form the TCNL, the rationale for combined reconstruction

Clinical Implication: In advanced deformity with medial peritalar instability, reconstructing the deltoid-spring complex augments correction beyond bony procedures alone.

Limitation: Small retrospective series, short follow-up, allograft cost and integration concerns.

Verify on PubMed (PMID 30902021)

Medializing Calcaneal Osteotomy Drives Hindfoot Correction

Chan JY, Williams BR, Nair P, Young E, Sofka C, Deland JT, Ellis SJ • Foot Ankle Int (2013)

Key Findings:

Prospective study of 30 stage II flatfoot reconstructions analysing 19 variables against hindfoot moment arm
On multivariate regression, the amount of medializing calcaneal osteotomy was the only significant predictor of hindfoot correction
Spring ligament reconstruction and lateral column lengthening contributed on univariate analysis but not independently
Final regression model fit well (R-squared 0.93)

Clinical Implication: Hindfoot valgus correction is governed chiefly by the calcaneal osteotomy; spring ligament reconstruction is an adjunct, not the principal corrector of hindfoot alignment.

Limitation: Single-centre prospective case series, radiographic outcome only, level IV evidence.

Verify on PubMed (PMID 23413053)

Exam Viva Scenarios

Use these scenarios to practise clinical reasoning and management decisions

CLINICAL SCENARIOStandard

Scenario 1: MRI Diagnosis and Initial Management

CLINICAL PROMPT

"A 52-year-old female presents with progressive medial foot pain and arch collapse over 2 years. MRI shows thickening and partial discontinuity of the spring ligament superomedial band. How would you manage this patient?"

PRACTICAL APPROACH

This patient has spring ligament insufficiency, likely in the context of posterior tibial tendon dysfunction given the progressive nature. I would take a systematic approach: First, confirm associated PTTD with clinical exam (single heel rise test, too many toes sign) and MRI review of the PTT. Second, assess deformity flexibility with Jack test and hindfoot alignment views. Third, initiate conservative management with UCBL orthosis, NSAIDs, and PTT strengthening for a minimum of 6 months. If symptoms persist despite conservative measures and deformity is flexible, I would consider surgical reconstruction with spring ligament augmentation using FHL autograft combined with FDL to PTT transfer and medializing calcaneal osteotomy if hindfoot valgus is present. I would counsel about the 85% success rate, need for permanent orthotic use, and 12-month recovery.

KEY CLINICAL POINTS

Spring ligament insufficiency nearly always occurs with PTTD (90% association)

MRI shows thickening, fluid signal, partial or complete discontinuity on coronal T2

Conservative management first with UCBL orthosis and PTT strengthening

Surgical reconstruction requires combined procedures: spring ligament augmentation + PTT transfer + calcaneal osteotomy

COMMON PITFALLS

Forgetting to assess for PTTD - spring ligament failure is rarely isolated

Offering surgery before adequate conservative trial (minimum 6 months)

Proposing isolated spring ligament reconstruction without addressing PTT or hindfoot valgus

FURTHER QUESTIONS

"What MRI findings would you look for?"

"Which autograft would you use for reconstruction?"

"What are indications for calcaneal osteotomy?"

CLINICAL SCENARIOChallenging

Scenario 2: Surgical Technique Deep Dive

CLINICAL PROMPT

"You are performing spring ligament reconstruction using FHL autograft. Walk me through your surgical technique, focusing on graft passage and fixation."

PRACTICAL APPROACH

For spring ligament reconstruction, I would use a medial utility incision centered over the interval between PTT and FHL. After exposing and debriding the torn PTT and identifying the spring ligament defect, I harvest the FHL tendon distal to the master knot of Henry. I create two bone tunnels: first, a 4.5mm tunnel in the sustentaculum tali from medial cortex aimed posterolateral; second, a 4.5mm tunnel in the navicular tuberosity from dorsomedial aimed plantar. I pass the FHL graft through the sustentaculum tunnel from medial to lateral, then under the talar head recreating the superomedial band sling, and finally through the navicular tunnel from dorsal to plantar. With the foot held in corrected position (talar head reduced, arch recreated, hindfoot neutral), I tension the graft and fix it with interference screws or suture anchors at both tunnel sites. This is combined with FDL to PTT transfer and medializing calcaneal osteotomy to address all components of the flatfoot deformity. Postoperatively, the patient is non-weight bearing for 6 weeks, then protected weight bearing in a boot for another 6 weeks, with permanent orthotic use.

KEY CLINICAL POINTS

FHL harvest distal to master knot of Henry provides 8-10 cm graft length

Bone tunnels in sustentaculum (medial to lateral) and navicular (dorsal to plantar)

Graft recreates superomedial band sling under talar head

Tension graft with foot in corrected position (critical for preventing over/under-correction)

Always combined with PTT transfer and calcaneal osteotomy - never isolated

COMMON PITFALLS

Harvesting FHL proximal to master knot (disrupts FHL function)

Under-tensioning graft (recurrent deformity) or over-tensioning (stiffness)

Forgetting to address hindfoot valgus with calcaneal osteotomy

Injuring medial plantar nerve during deep dissection

FURTHER QUESTIONS

"What is the advantage of FHL over FDL autograft?"

"What are the tunnels' exit points and how do you confirm them?"

"How do you manage if the graft tears during passage?"

CLINICAL SCENARIOCritical

Scenario 3: Complication Management

CLINICAL PROMPT

"A patient returns 8 months after spring ligament reconstruction with FHL autograft, FDL transfer, and medializing calcaneal osteotomy. They report recurrent medial foot pain and progressive arch collapse. X-rays show loss of correction. How would you manage?"

PRACTICAL APPROACH

This patient has recurrent flatfoot deformity after reconstruction, occurring in 10-15% of cases. I would systematically assess the failure: First, review original imaging and operative notes to determine adequacy of initial correction. Second, perform clinical examination assessing deformity flexibility (Jack test), hindfoot valgus degree, and single heel rise. Third, obtain new weight-bearing radiographs (AP, lateral, hindfoot alignment) and MRI to assess graft integrity, PTT transfer function, and osteotomy position. Fourth, assess patient factors: orthotic compliance, BMI, diabetes, activity level. Management depends on findings: if graft failure with flexible deformity in a compliant patient, I would consider revision reconstruction with allograft augmentation and possible revision osteotomy. If rigid deformity or elderly low-demand patient, I would recommend triple arthrodesis. I would counsel about the higher complication rate with revision surgery (20-30%) and the importance of lifelong orthotic use and weight management.

KEY CLINICAL POINTS

Recurrence rate 10-15%, most commonly due to inadequate initial correction or graft failure

Systematic assessment: review original surgery, assess flexibility, new imaging (X-ray + MRI)

Revision options: allograft augmentation if flexible, arthrodesis if rigid

Patient factors critical: orthotic compliance, BMI, diabetes control

COMMON PITFALLS

Immediately offering revision without assessing patient compliance and modifiable factors

Missing residual or recurrent hindfoot valgus requiring osteotomy revision

Using same autograft source for revision (insufficient tissue, consider allograft)

Not counseling about higher risk with revision procedures

FURTHER QUESTIONS

"What are the most common causes of reconstruction failure?"

"When would you offer arthrodesis instead of revision reconstruction?"

"What would you do differently in the revision surgery?"

MCQ Practice Points

Anatomy Question

Q: What percentage of medial arch load is resisted by the superomedial band of the spring ligament? A: 50% - The superomedial band is the primary static restraint to talar head plantar displacement, bearing approximately half of the medial longitudinal arch load during weight bearing.

Association Question

Q: What is the most common associated pathology in spring ligament insufficiency? A: Posterior tibial tendon dysfunction (PTTD) - Spring ligament insufficiency occurs in 90% of patients with Stage II or higher PTTD. Isolated spring ligament injury without PTTD is exceedingly rare and typically only seen with acute trauma.

Imaging Question

Q: Which MRI sequence and plane are most sensitive for diagnosing spring ligament tears? A: Coronal T2-weighted sequences - These show high signal intensity (fluid), thickening greater than 8mm, and discontinuity of the superomedial band. Sagittal views are adjunctive for assessing talar head plantar sag.

Surgical Technique Question

Q: Why does primary repair of the spring ligament fail, requiring augmentation? A: Degenerative tissue quality and chronic attenuation - The native spring ligament in insufficiency has undergone degenerative elongation and has poor healing potential. Primary suture repair cannot restore the ligament's original length and strength. Augmentation with autograft or allograft is required to recreate the superomedial band.

Management Question

Q: What is the minimum conservative management trial before considering surgical reconstruction for spring ligament insufficiency? A: 6 months - Conservative management with UCBL orthosis, NSAIDs, activity modification, and PTT strengthening should be trialed for at least 6 months. Surgery is reserved for patients who fail conservative management with persistent symptoms and functional limitation.

Guidelines, Registries & Global Practice

Spring ligament insufficiency is managed within the broader framework of adult acquired flatfoot deformity (AAFD), now increasingly termed progressive collapsing foot deformity (PCFD). There is no isolated society guideline for the spring ligament itself; practice is guided by foot-and-ankle society consensus on flatfoot and by the underlying evidence.

Global epidemiology

AAFD predominantly affects middle-aged women (typical onset 40 to 65 years), with a strong female preponderance.
Spring ligament pathology is identified in the large majority of advanced (flexible stage II and beyond) flatfeet at surgery; isolated rupture with a normal PTT is rare but real and under-recognised.
Obesity, hypertension, diabetes and seronegative inflammatory arthropathy are recognised associations with degenerative medial-arch failure.

Society and Consensus Positions on Flatfoot / PCFD Reconstruction

Body	Position Relevant to Spring Ligament	Emphasis
AOFAS / Consensus on PCFD	Classify by flexibility and deformity class; soft-tissue reconstruction is an adjunct to osseous realignment	Class-based, deformity-specific algorithm
AAOS (US)	Trial structured non-operative care first; reserve reconstruction for failed conservative management	Stepwise, evidence-graded care
BOA / BOFAS (UK)	Stage-based flatfoot pathway; combined tendon transfer, osteotomy and ligament repair for flexible deformity	Combined-procedure reconstruction
AO Foundation	Anatomic reduction of talonavicular sag with osteotomy plus medial soft-tissue restoration	Restore the medial column mechanically
EFORT / European groups	Endorse flexible-deformity reconstruction; recognise heterogeneity and low-level evidence	Joint preservation where feasible

Registry note. No arthroplasty-style registry tracks spring ligament reconstruction; it is a soft-tissue procedure with no implant. Evidence is therefore confined to small retrospective and prospective series rather than registry survivorship data, which is why recommendations remain level IV.

High-Resource Settings

MRI-guided staging and 3T imaging of the superomedial band
Combined reconstruction: FDL transfer + medializing calcaneal osteotomy + spring/TCNL reconstruction, with allograft or suture-tape augmentation available
Custom orthoses and supervised rehabilitation

Limited-Resource Settings

Clinical staging and weight-bearing radiographs where MRI is unavailable
Reliance on autograft (FDL/FHL/peroneus longus) and standard osteotomy without costly implants or allograft
Prefabricated arch supports; arthrodesis reserved for rigid or salvage deformity

Counselling Points (Globally Applicable)

Set expectations: spring ligament reconstruction is part of a combined flatfoot operation, recovery is prolonged (around 12 months to full activity), long-term orthotic support is usually advised, and recurrence occurs in roughly 10 to 15 percent. Document the flexibility assessment and the failed conservative trial before surgery.
