A low-grade cartilage tumour with an abrupt transition to a juxtaposed high-grade non-cartilaginous sarcoma — the most lethal chondrosarcoma variant
- Defining histology is an ABRUPT junction between low-grade cartilage and a high-grade non-cartilaginous sarcoma — not a gradual grade transition.
- Both components share clonal genetic changes, including IDH1/IDH2 mutations, supporting a single precursor clone rather than collision of two tumours.
- Imaging is bimorphic: a ring-and-arc mineralised cartilage component adjacent to a purely lytic destructive area with cortical breach and soft-tissue mass.
- The biopsy must sample the LYTIC component. Sampling only the mineralised area yields low-grade cartilage and understages the tumour.
- Prognosis is dismal — early lung metastasis, median survival often under two years; local control alone rarely alters outcome.
- Pathological fracture is common at presentation and complicates limb salvage.
- “Longstanding dull ache for years that suddenly accelerates over weeks in an older patient equals dedifferentiation until proven otherwise.
- “A rising, expanding lytic area within a known atypical cartilaginous tumour on surveillance is the classic dedifferentiation signal.
- “Chemotherapy is often given to fit patients using osteosarcoma-type regimens, but registry and multicentre data show at best modest and inconsistent survival gain.
- “Radiotherapy is used for inoperable pelvic disease and palliation, not as a curative substitute for resection.
- “Amputation may be the only wide-margin option in a large pelvic or proximal femoral tumour with fracture haematoma contamination.
Image-guided biopsy targeted at the non-mineralised, destructive, contrast-enhancing component. A needle passed through the calcified cartilage returns bland low-grade cartilage and the patient is treated as a grade 1 lesion — a catastrophic understaging error. Plan the tract so it is excisable with the specimen.
Intralesional surgery for what is assumed to be an atypical cartilaginous tumour disseminates high-grade sarcoma. Any lytic, cortically destructive or soft-tissue-forming area within a cartilage lesion mandates staging and biopsy before any intralesional procedure.
Fracture haematoma contaminates compartments and neurovascular planes, converts a planned limb salvage to amputation in a substantial minority, and independently worsens survival. Never internally fix an undiagnosed destructive lesion in an older adult.
CT chest at presentation is mandatory; a significant proportion already have pulmonary metastases. Discovering metastatic disease after a morbid internal hemipelvectomy is an avoidable tragedy — staging precedes any resection planning.
Definition, Biology and Why It Matters
Dedifferentiated chondrosarcoma is defined by the juxtaposition of a low-grade cartilaginous neoplasm and a high-grade non-cartilaginous sarcoma with an abrupt, sharply demarcated interface. The high-grade component is most often an undifferentiated pleomorphic sarcoma or fibrosarcoma-like spindle cell sarcoma, but may be osteosarcomatous, rhabdomyosarcomatous or angiosarcomatous.
Key biological points
- The two components are clonally related. Shared mutations, including IDH1 and IDH2 hotspot mutations typical of conventional central cartilage tumours, are found in both the cartilage and dedifferentiated components in the majority of cases. This supports dedifferentiation of one clone, not a collision tumour.
- Additional events (TP53 alteration, CDKN2A loss, complex karyotype) accumulate in the high-grade element.
- Dedifferentiation may arise de novo at presentation, within a pre-existing central chondrosarcoma or atypical cartilaginous tumour, in enchondromatosis (Ollier disease, Maffucci syndrome), or in secondary peripheral chondrosarcoma from osteochondromas — the latter rarer.
- It is not simply "grade progression". A grade 1 lesion becoming grade 3 remains cartilaginous with a gradual transition; dedifferentiation means loss of cartilaginous phenotype altogether with a knife-edge boundary.
Clinical consequence: the biology of the tumour is that of a high-grade pleomorphic sarcoma of bone in an older adult, superimposed on a chemoresistant cartilage matrix. Survival tracks the high-grade component; the cartilage component is prognostically irrelevant except that it makes the tumour look deceptively benign.
Epidemiology and Presentation
- Accounts for roughly 10 to 15 percent of all chondrosarcomas.
- Peak in the sixth and seventh decades; rare before 40. Slight male predominance in most series.
- Sites in descending frequency: pelvis (especially periacetabular ilium), proximal femur, femoral diaphysis/distal femur, proximal humerus, scapula, ribs. Hands and feet almost never.
- Risk contexts: known central chondrosarcoma under surveillance, Ollier disease and Maffucci syndrome (lifetime malignant transformation risk substantial, and dedifferentiation reported), multiple hereditary exostoses (rarer route).
Staging and Prognostic Factors
- Enneking (MSTS) system: essentially all are stage IIB (high grade, extracompartmental) or III if metastatic.
- AJCC staging applies but adds little to decision-making beyond metastatic status.
Adverse prognostic factors
- Effect
- Dominant adverse factor; median survival months
- Effect
- Worse than appendicular — resection margins harder
- Effect
- Contamination, higher amputation rate, worse survival
- Effect
- Higher local recurrence and reduced survival
- Effect
- Associated with poorer outcome in several series
- Effect
- Limits ability to deliver chemotherapy or major resection
Achieving a wide margin without metastatic disease is the only variable consistently associated with prolonged survival. Local control by itself, in the presence of pulmonary metastases, does not rescue the patient — which is why the metastatic work-up must precede a decision about internal hemipelvectomy or amputation.
Imaging: The Bimorphic Hallmark
Obtain orthogonal plain films of the whole involved bone, plus an AP pelvis for pelvic lesions.
Look for two adjacent but different territories in the same bone:
- Appearance
- Ring-and-arc / popcorn / stippled chondroid mineralisation, endosteal scalloping, fusiform expansion, relatively defined margins
- Appearance
- Purely lytic, geographic to permeative, no matrix, cortical destruction, periosteal reaction, extraosseous mass
The abrupt change from a mineralised, chronic-looking region to an aggressive lytic region in the same bone is the single most useful radiographic sign. Endosteal scalloping greater than two thirds of cortical thickness, cortical breach and any soft-tissue mass push a cartilage lesion out of the "atypical cartilaginous tumour" category.
If PET, dynamic MRI or plain films show a discrete lytic/solid area, biopsy must be steered there. A report of "low-grade cartilage tumour" from a needle placed in the calcified region does not exclude dedifferentiation. When histology and imaging disagree, the imaging wins — repeat the biopsy.
Biopsy: Technique and Rules
Full imaging of the primary and chest CT first. Biopsy artefact (haemorrhage, oedema) degrades subsequent MRI interpretation and can obscure the true tumour boundary.
The tract must lie within the planned resection or flap sacrifice zone. Referral to a sarcoma unit before biopsy reduces unplanned excisions and amputations.
Core needle biopsy under CT or ultrasound guidance directed at the soft-tissue mass or lytic intraosseous area, avoiding necrotic centres. Take multiple cores; send fresh tissue for cytogenetics/molecular work and material for culture if infection is a differential.
Longitudinal approach, single tract, shortest route through one compartment, avoid neurovascular bundles and joints, mark the skin entry with a permanent marker/tattoo or note it precisely.
Discuss at sarcoma MDT with radiology and pathology together. A discordant benign result triggers re-biopsy, not reassurance.
Histology to expect: two populations with an abrupt border. Immunohistochemistry supports the dedifferentiated line (desmin/myogenin if rhabdomyosarcomatous, absent S100 in the high-grade area whereas the cartilage is S100 positive). IDH1/IDH2 mutation testing supports cartilage lineage and can help separate dedifferentiated chondrosarcoma from primary osteosarcoma or undifferentiated pleomorphic sarcoma of bone.
ABRUPTRecognising dedifferentiation
Hook:Everything about this tumour is ABRUPT — the histology, the imaging boundary, the clinical change, and the decline.
Differential Diagnosis
- Discriminating features
- Cartilaginous throughout with gradual increase in cellularity and atypia; no abrupt non-cartilaginous component; still lobular high T2 signal
- Consequence of getting it wrong
- Better survival than dedifferentiated; chemotherapy not offered
- Discriminating features
- Younger patient; malignant osteoid produced directly by tumour cells throughout; cartilage is malignant, not low grade; no abrupt interface
- Consequence of getting it wrong
- Chemosensitive — neoadjuvant chemotherapy is standard and outcome far better
- Discriminating features
- Young adults; small round blue cells with haemangiopericytoma-like vessels and islands of well-formed hyaline cartilage; HEY1-NCOA2 fusion
- Consequence of getting it wrong
- Chemosensitive; systemic therapy genuinely indicated
- Discriminating features
- Multiple lesions, known primary, monoclonal protein; no chondroid matrix
- Consequence of getting it wrong
- Radiotherapy and fixation appropriate — but never fix a solitary destructive lesion without a diagnosis
- Discriminating features
- No cartilage component anywhere on imaging or in generous sampling; IDH wild type
- Consequence of getting it wrong
- Similar high-grade management; distinction is prognostic and academic in practice
- Discriminating features
- Serpiginous infarct margins or coarse trabecular Paget bone with lytic destruction
- Consequence of getting it wrong
- Different setting, similarly poor prognosis
Management: Decision Thresholds
- Confirm diagnosis with an adequately targeted core biopsy reviewed at a sarcoma MDT.
- Stage — CT chest, cross-sectional imaging of the primary, PET-CT where available.
- Is the patient fit and the disease localised?

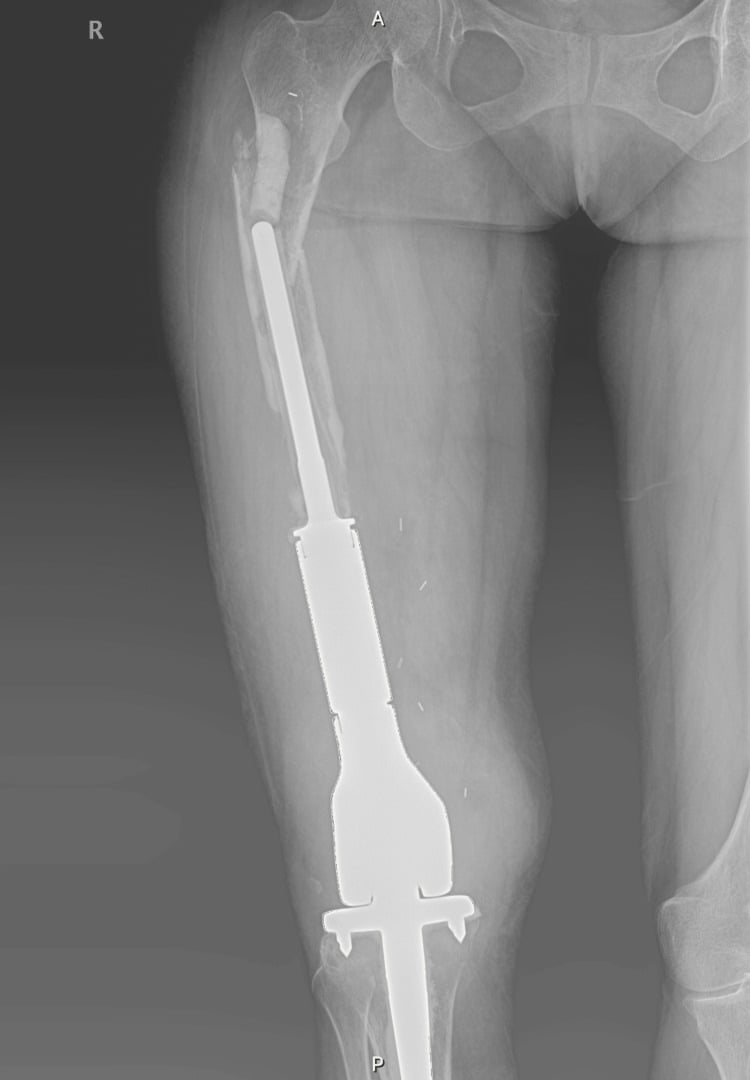

- Yes and a wide margin is achievable with acceptable function → wide en-bloc resection with reconstruction.
- Yes but a wide margin needs sacrifice of critical structures (sciatic nerve plus iliac vessels, extensive fracture contamination) → amputation / external hemipelvectomy may be the only oncologically sound option; discuss frankly against palliative alternatives given prognosis.
- Unresectable primary (extensive intrapelvic, sacral, or vascular encasement in a frail patient) → palliative approach: radiotherapy, analgesia, stabilisation of impending fracture, early palliative care involvement.
- Metastatic at presentation → the balance shifts sharply towards symptom control. Resection of the primary is justified mainly for pain, fungation or impending fracture, not for cure.
- Chemotherapy — consider in fit patients with localised, high-volume dedifferentiated disease as part of an MDT decision and ideally within a trial; counsel honestly that the evidence is weak.
An older patient with a destructive proximal femoral lesion and a fracture is not automatically a metastasis. Intramedullary nailing of an undiagnosed dedifferentiated chondrosarcoma contaminates the entire femoral canal and converts a resectable tumour into a hindquarter or hip disarticulation problem. Investigate, biopsy, then decide.
STOPPre-treatment checklist before any bone lesion surgery in an older adult
Hook:STOP before the saw — the first operation determines whether cure is still possible.
Complications and Follow-Up
- Notes and management
- Commonest after marginal/intralesional margins and after fracture; usually heralds systemic disease. Re-resection or amputation only if isolated and the patient has no metastases
- Notes and management
- The dominant cause of death; typically within 12 to 24 months. Metastasectomy considered only for few, resectable, late nodules with controlled primary
- Notes and management
- High rates reported after custom pelvic implants; manage with debridement, targeted antibiotics, and implant removal with conversion to flail hip if uncontrolled
- Notes and management
- Abduction bracing, constrained or dual-mobility bearings, soft-tissue reconstruction with mesh
- Notes and management
- Superior gluteal artery sacrifice, prior radiotherapy; plastic surgical involvement at the planning stage
- Notes and management
- Sciatic or femoral nerve sacrifice — pre-warn the patient, provide orthoses and gait retraining
- Notes and management
- Anthracycline cardiotoxicity, nephrotoxicity, myelosuppression — significant in the seventh decade; weigh against unproven benefit
Surveillance: clinical review with local imaging and CT chest every 3 months for 2 years, then 6-monthly to 5 years, then annually — reflecting the front-loaded risk. In practice surveillance often shifts to symptom-directed and supportive care once metastases appear.
Guidelines, Registries & Global Practice
Global epidemiology. Chondrosarcoma is the second or third commonest primary bone sarcoma worldwide and is proportionally more important in ageing populations; the dedifferentiated variant, at roughly 10 to 15 percent of chondrosarcomas, is therefore encountered in almost every regional sarcoma unit but rarely in general orthopaedic practice. Incidence appears broadly similar across regions; differences in reported outcome largely reflect stage at presentation and access to specialist surgery.
Society guidance — where it genuinely applies
- What it says relevant to this topic
- Management of bone sarcoma in reference centres; biopsy by the treating team; wide surgical excision is the mainstay for chondrosarcoma; chemotherapy of unproven benefit in conventional and dedifferentiated chondrosarcoma outside trials
- What it says relevant to this topic
- Dedifferentiated chondrosarcoma may be treated along osteosarcoma lines in selected fit patients; wide excision remains primary; radiotherapy for unresectable or close-margin disease
- What it says relevant to this topic
- Any suspicious bone lesion referred to a sarcoma diagnostic service before biopsy; imaging pathway with plain radiograph then MRI; strict prohibition on local biopsy or excision of suspected bone sarcoma
- What it says relevant to this topic
- Defines dedifferentiated chondrosarcoma by the abrupt bimorphic pattern; separates it from grade 3 conventional and mesenchymal chondrosarcoma
- What it says relevant to this topic
- Emphasise centralisation of bone sarcoma surgery and multidisciplinary decision-making
Registry evidence. Bone sarcoma registries and national cancer datasets (for example the Netherlands and Scandinavian bone tumour registries, and large population datasets) consistently show that dedifferentiated chondrosarcoma has the worst survival of all chondrosarcoma subtypes, that pelvic location and metastatic presentation dominate outcome, and that treatment at high-volume centres is associated with better margin rates. Arthroplasty registries (NJR, AJRR, AOANJRR, SHAR, NZJR) contribute mainly by documenting the high revision, infection and dislocation burden of tumour endoprostheses and custom pelvic reconstructions relative to primary arthroplasty — data worth quoting when counselling about reconstruction.
Practice variation by resource setting.
- High-resource centres: navigation and 3D-printed patient-specific guides and implants, particle therapy for unresectable axial disease, molecular profiling and trial access.
- Middle-resource settings: wide resection with off-the-shelf endoprostheses, allografts or hip transposition; radiotherapy for unresectable disease; chemotherapy availability variable.
- Low-resource settings: late presentation with fungating or fractured tumours; amputation or hindquarter amputation is often the only feasible oncological operation, and palliative care provision becomes the central issue. Prognostic honesty and pain control are universal obligations regardless of setting.
Controversies & Areas of Uncertainty
- Does chemotherapy help? The central controversy. Retrospective data conflict; there is no randomised evidence. Some centres treat all fit patients as high-grade osteosarcoma, others reserve chemotherapy for trials only. Selection bias plausibly explains most reported benefit.
- Radical surgery versus palliation in metastatic disease. With a median survival often under a year in metastatic cases, an internal or external hemipelvectomy may consume the patient's remaining functional life. Some units offer it for uncontrolled local symptoms only.
- Reconstruct or not after pelvic resection. Custom implants restore better limb length and function but carry high infection and mechanical failure rates; hip transposition and flail hip are lower-morbidity options that some argue better suit a short prognosis.
- Margin width. No agreed millimetre threshold. Contaminated fields after fracture or prior surgery make "wide" a judgement rather than a measurement.
- Surveillance of atypical cartilaginous tumours. How intensively and for how long to image indolent cartilage lesions to catch dedifferentiation early is unsettled; over-surveillance is costly and anxiety-provoking, under-surveillance misses the treatable window — and it is unproven that earlier detection of dedifferentiation improves survival.
- Role of particle therapy and IDH-directed agents. Promising but with limited access and immature outcome data.
