Tendon-Bone Interface (Enthesis)

The enthesis is the specialised junction where a tendon or ligament inserts into bone. It solves an engineering problem: fixing compliant soft tissue to rigid hard tissue. Without a gradual transition, stress would concentrate at the interface and cause failure at low loads.

The graded transition. A fibrocartilaginous enthesis passes from tendon through uncalcified fibrocartilage and calcified fibrocartilage to bone, so its mechanical properties change gradually instead of all at once. That distributes stress over a larger area and over distance, and prevents catastrophic failure. The whole soft-to-hard transition is 1mm thick.

Why it matters clinically. Enthesis structure explains the high failure rates at tendon-bone junctions, in rotator cuff tears and Achilles ruptures. It explains poor outcomes despite surgical repair: healing forms mechanically inferior scar rather than the native four-zone architecture, one contributor to re-tear after tendon-to-bone repair. And it explains enthesitis in the spondyloarthropathies, immune targeting of this unique tissue, and the need for prolonged protection after repair.

Two types. Fibrocartilaginous entheses are found at sites of high compression, such as the rotator cuff, Achilles and patellar tendon. They have the four-zone fibrocartilage transition, contain collagen types I, II and III, and have a tidemark separating the calcified from the uncalcified zone; where compressive load is high, as at the rotator cuff and Achilles, the fibrocartilage is thick.

Fibrous (direct) entheses are found at sites without compression, such as deltoid to humerus and the flexor tendons. Collagen I continues directly into bone as Sharpey fibres, without an intermediary and without fibrocartilage zones.

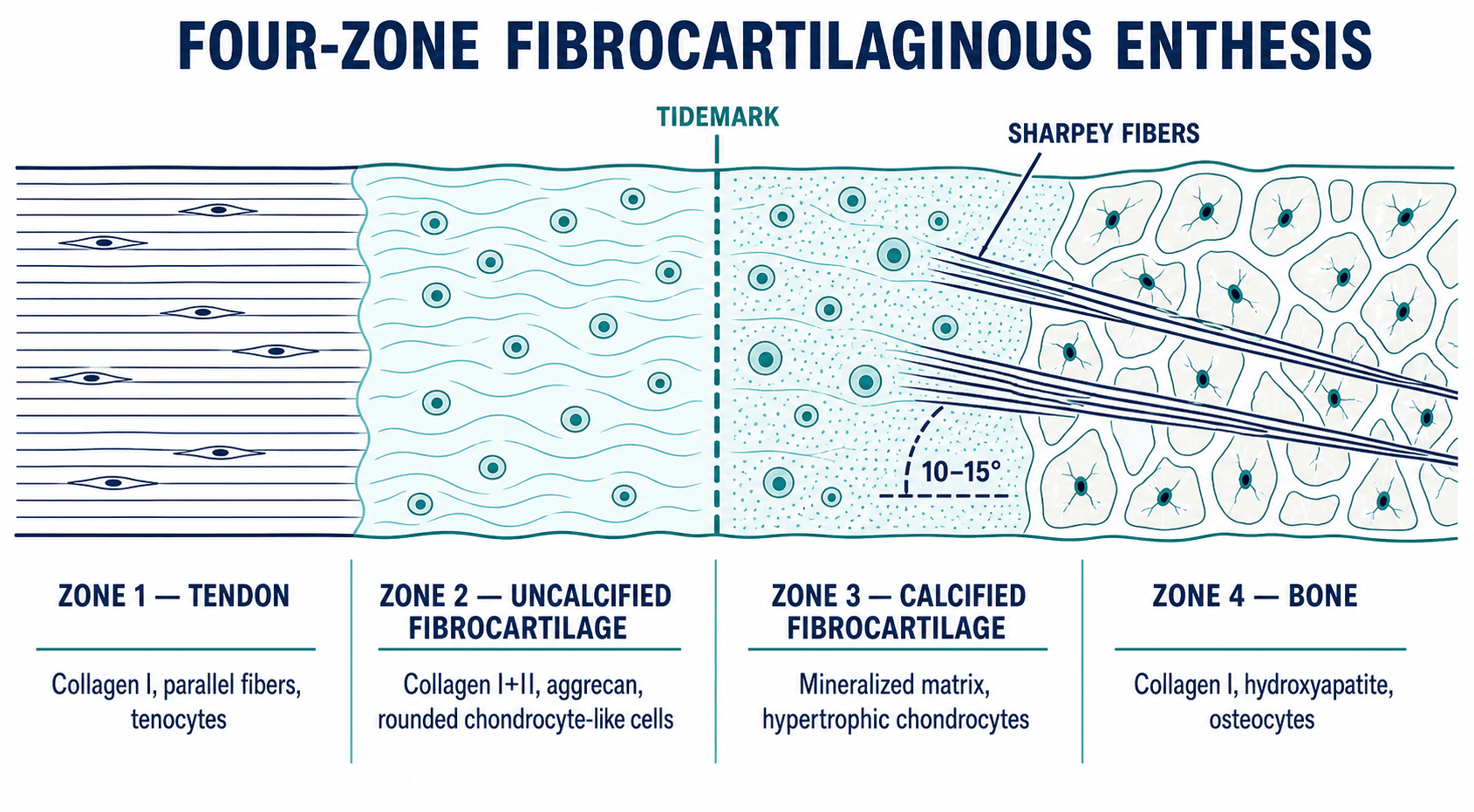

The four zones. Matrix, cells and mineral change zone by zone from tendon to bone. The fibrocartilage, with collagen II and aggrecan appearing in zones 2 and 3, resists compression and shear at the insertion site.

The tidemark. A basophilic line, visible histologically on H&E, that separates zone 2 from zone 3. It represents the mineralisation front and is similar to the tidemark in articular cartilage.

Collagen anchorage. Collagen bundles become progressively mineralised across the calcified fibrocartilage-to-bone transition, and mineralised collagen continuity and the subchondral bone anchor the insertion. Fibre orientation is site-specific and changes with local anatomy and loading; there is no universal Sharpey-fibre insertion angle for all entheses.

Classic Sharpey fibres are especially associated with fibrous entheses and with tendon-to-bone repair tissue, and are not a universal fixed-angle feature of every fibrocartilaginous enthesis. In a mature fibrocartilaginous enthesis, load transfer depends on the complete graded transition, not a single fixed-angle bundle.

Benjamin's enthesis organ is the single most important conceptual advance in understanding entheses, and in understanding why enthesopathy behaves as a whole-region disease.

More than the insertion. At many sites the tendon does not simply pull straight off bone. Near the attachment it wraps against, and is compressed by, the adjacent bone, and a cluster of specialised tissues works together to spread load over the whole region rather than a single point:

• the enthesis fibrocartilage itself
• periosteal fibrocartilage on the bone and sesamoid fibrocartilage on the deep tendon surface, where the two contact
• an associated fat pad
• often a bursa

The fat pad and bursa. The synovial or subtendinous fat pad, classically Kager's fat pad behind the Achilles, is not inert packing. It fills dead space during movement, may have a proprioceptive role, and moves in and out of the retrocalcaneal recess as the ankle plantarflexes and dorsiflexes. The retrocalcaneal bursa reduces friction between tendon and bone, and both are integral parts of the stress-dissipating unit.

Why it matters clinically. Because the enthesis, its fibrocartilages, fat pad and bursa are one functional unit, disease rarely stays confined to the tendon-bone line. Insertional Achilles tendinopathy, Haglund's or retrocalcaneal bursitis and fat-pad involvement coexist, and in spondyloarthropathy the entheseal inflammation spreads into the adjacent bursa and synovium, the imaging basis for the "enthesitis-driven secondary synovitis" model.

Managing enthesopathy therefore means treating the whole muscle-tendon-bone-bursa unit, not an isolated point.

The modulus gradient. From tendon to bone the elastic modulus rises 10- to 40-fold, but the uncalcified fibrocartilage breaks the sequence:

• Tendon: 0.5-1 GPa
• Uncalcified fibrocartilage: 10-40 MPa, softer than tendon
• Calcified fibrocartilage: 0.5-5 GPa, intermediate
• Bone: 10-20 GPa, the stiffest

The compliant layer. Because the uncalcified fibrocartilage is softer than tendon, it acts as a compliant layer that absorbs some deformation and reduces stress concentration at the bone interface. The enthesis resists tensile, compressive and shear forces, and each is borne mainly in a different zone.

Loading builds and maintains the enthesis. Mechanical loading is essential for enthesis development, maintenance and healing. It promotes development of the fibrocartilage zone, improves collagen alignment and interfacial maturation, enhances mineralisation in the calcified zone and maintains the integrity of the tidemark.

Immobilisation. Without load the fibrocartilage zone atrophies, the collagen becomes disorganised and interface strength falls, with a 30-50% reduction in ultimate failure load and an irregular tidemark. How this applies to rehabilitation after a repair is not settled, because the animal studies separate external activity from the muscle's own load; they are set out under Controversies.

Enthesis healing after injury or surgical repair proceeds through inflammatory, proliferative and remodelling phases, but never fully restores native architecture.

What forms instead. A scar-tissue bridge, not an organised four-zone structure. The fibrocartilage zones do not regenerate, the collagen stays disorganised and more type III than native, and the risk of re-tear is higher: 20-40% at 2 years for the rotator cuff.

Why healing is poor. Several factors limit it:

• The hypovascular zone 2 (uncalcified fibrocartilage) has a poor nutrient supply
• The cells needed, chondrocytes, do not migrate into the healing site
• The mechanical environment, with micromotion, prevents organised healing
• The developmental programme that builds the four zones is not recapitulated in adults (next section)

Protection. Healing takes 12-16 weeks at minimum, and the repair needs prolonged protection through that period.

Built after birth. The mineralised four-zone fibrocartilaginous insertion is not present at birth; it matures postnatally. In the mouse supraspinatus the four zones and a mineralised tidemark appear only around three weeks of age, through a spatially and temporally ordered programme: type II collagen (chondrocytes) appears first, then type X collagen marks the mineralising fibrocartilage.

A distinct progenitor pool and signalling programme. The enthesis arises from a dedicated population of insertion-site progenitor cells, characteristically co-expressing the tendon factor Scleraxis (Scx) and the cartilage factor Sox9. Its maturation is driven by a growth-plate-like cascade, notably Hedgehog signalling in Gli1-responsive cells, which establishes the mineralised fibrocartilage gradient. This is a developmental programme, distinct from ordinary tendon or bone healing.

Muscle loading is required to build it. The programme is mechanosensitive. Normal muscle contraction and loading during development are essential for the mineralised fibrocartilage to form, and paralysis or unloading of the developing limb prevents a normal enthesis, the developmental counterpart of the adult finding that total unloading impairs repair.

Why adult healing fails. Adult tendon-to-bone healing mounts a generic scar (fibrovascular) response and does not re-activate the Scx/Sox9 progenitor, Hedgehog-driven, load-tuned programme. The graded fibrocartilage is never rebuilt and the repair stays biomechanically inferior.

This is why tissue-engineering strategies aim to re-create the mineral and stiffness gradient, with graded scaffolds, controlled mineralisation, delivered progenitors or growth factors and staged mechanical loading, rather than simply gluing tendon to bone.

Enthesopathies are diseases targeting the enthesis, most commonly in the spondyloarthropathies. By aetiology they are:

• Degenerative - chronic overload and ageing (rotator cuff, Achilles)
• Inflammatory - the spondyloarthropathies (ankylosing spondylitis, psoriatic arthritis)
• Traumatic - acute avulsion injuries

By location they are upper limb (lateral epicondyle, rotator cuff insertion), lower limb (Achilles insertion on the calcaneus, plantar fascia insertion, patellar tendon insertion, which is Osgood-Schlatter in juveniles) or axial (spinal ligament entheses).

Inflammatory enthesitis. Enthesitis is the hallmark of the seronegative spondyloarthropathies: ankylosing spondylitis, psoriatic arthritis and reactive arthritis. The inflammation is immune-mediated through activation of the IL-23/IL-17 pathway, with erosive change first and new bone formation after, which can lead to ossification and ankylosis. The Achilles and plantar fascia insertions are commonly affected.

Overuse enthesopathy. Repetitive loading can cause enthesopathy even without systemic disease, as in rotator cuff tendinopathy at the supraspinatus insertion, lateral epicondylitis at the common extensor origin and Achilles tendinopathy at the calcaneal insertion. Repeated microtrauma exceeds the capacity to heal, leading to degenerative change, fibrocartilage calcification and eventual failure.

Ultrasound is the first-line imaging for enthesopathy: dynamic and free of radiation. It shows thickening of the tendon at its insertion, hypoechogenicity from degeneration, cortical irregularity and enthesophytes, and on power Doppler the neovascularity of inflammation.

Radiographs are widely available and cheap. They show enthesophytes (chronic traction spurs), calcification within the tendon near its insertion, cortical irregularity at the insertion site and, in inflammatory enthesopathy, bone erosion.

MRI gives the best soft-tissue detail. It shows bone marrow oedema adjacent to the enthesis, tendon signal change from degeneration or partial tear, peritendinous fluid, and whether a tear is complete or partial.

Research imaging. Three techniques are used in research:

• T2* mapping for tendon degeneration
• Sodium MRI for proteoglycan content
• Ultrasound elastography for stiffness

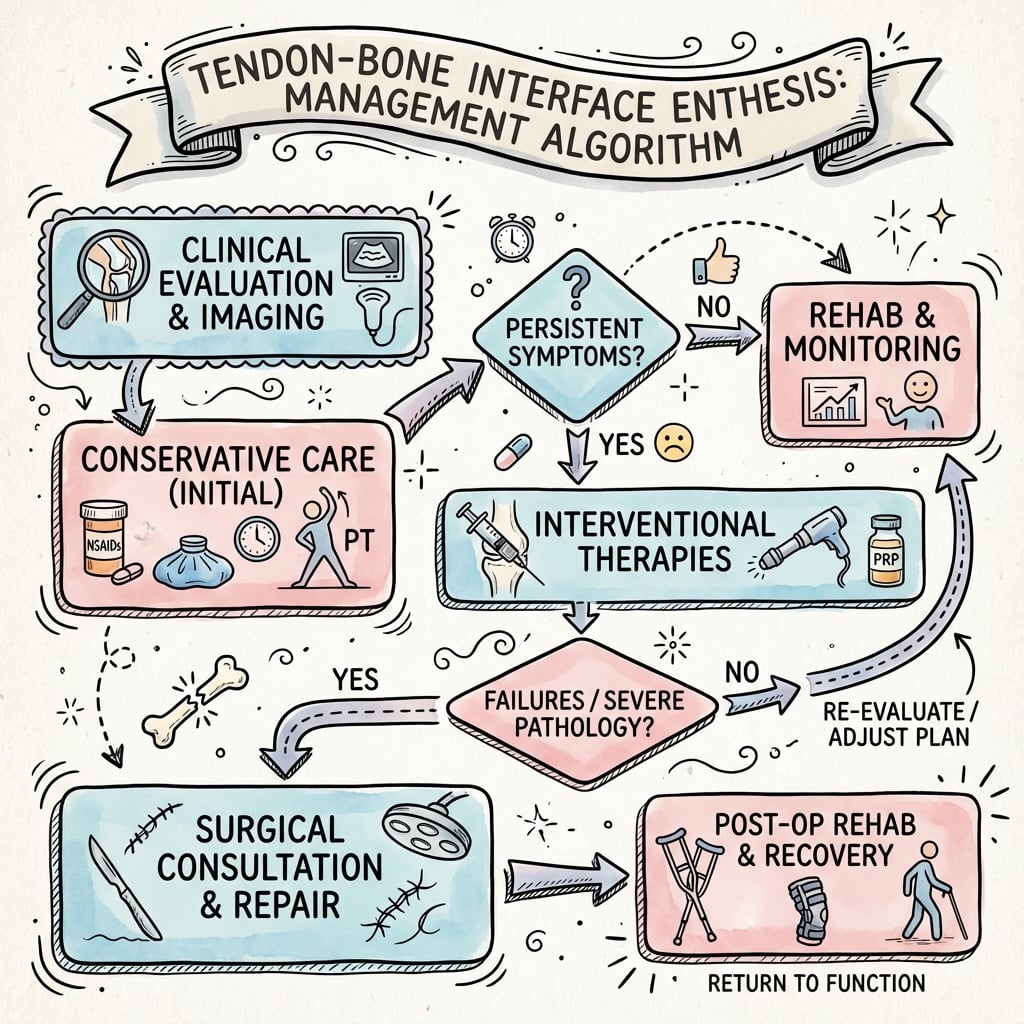

Pain localised to a tendon-bone insertion has a broad differential. The key clinical task is separating mechanical or degenerative enthesopathy from inflammatory enthesitis and from referred or bony pathology.

Degenerative and overuse enthesopathy. Treatment starts with activity modification: relative rest from aggravating activities, cross-training with low-impact alternatives and a gradual return to activity as symptoms improve. Physiotherapy centres on eccentric loading programmes for the Achilles and patellar tendon, with stretching and flexibility work, strengthening proximal and distal to the insertion, and biomechanical correction with orthotics or footwear.

NSAIDs treat pain and inflammation. Corticosteroid injection calls for caution near weight-bearing tendons, and PRP injection has emerging evidence.

Inflammatory enthesopathy. NSAIDs are first-line for spondyloarthropathy. DMARDs (sulfasalazine, methotrexate) are used for peripheral disease, and the biologic options are TNF-alpha inhibitors and IL-17 inhibitors. Locally, corticosteroid injection treats isolated enthesitis, alongside physiotherapy and biomechanical optimisation.

Enthesis biology guides surgical technique for tendon-to-bone repairs, at the rotator cuff, ACL and Achilles.

Fixation. Transosseous repair passes sutures through bone tunnels, giving good bone-tendon apposition at lower cost than anchors. Suture anchors are placed in bone at the insertion footprint, in single-row or double-row constructs.

In a double-row repair the medial row anchors sit at the articular margin and the lateral row provides suture-bridge compression, improving footprint contact and initial fixation. Suture-bridge constructs maximise footprint coverage.

Biologic augmentation. Bone marrow stimulation, by microfracture or abrasion at the footprint, recruits mesenchymal stem cells and creates a healing response at the interface. Other options are PRP, bone graft and growth factors; PRP and growth factors applied at the tendon-bone interface may enhance early healing, but the evidence for improved outcomes is variable.

Scaffolds, either acellular dermal matrix or synthetic, augment the repair, especially in re-tears.

Degenerative enthesopathy. Chronic degeneration weakens the tendon until it fails with minimal trauma, a progression common at the Achilles insertion and rotator cuff. Calcium deposition in degenerative tissue, as in calcific tendinitis of the rotator cuff, may cause mechanical symptoms.

Re-tear after repair. Re-tear is the most common complication. The rate is high because healing does not restore native four-zone architecture and the scar tissue is biomechanically inferior. At the tendon-bone interface a repair can fail in three ways:

• Suture pullout through tendon
• Anchor pullout from bone
• Interface failure, the most common

Outcomes. Pain relief is generally good, and functional improvement good, while structural healing is variable.

Predictors of outcome. Smaller tears, better tissue quality, younger age, not smoking and good compliance with rehabilitation predict a better result. The factors that predict a worse one are:

• Large or massive tears
• Fatty infiltration greater than Goutallier 2
• Muscle atrophy
• Revision surgery
• Smoking and diabetes

Larger tears, older patients and fatty infiltration predict higher re-tear rates.

The phases. Rehabilitation moves from protection to load in four stages:

1. Protection, 0-6 weeks - immobilisation or protected motion with passive range of motion only, to prevent stiffness while protecting the healing interface; avoid active contraction of the repaired muscle
2. Early motion, 6-12 weeks - active-assisted motion, light loading and progressive range-of-motion exercises, avoiding heavy resistance
3. Strengthening, 12-16 weeks - progressive resistance
4. Return to sport, months 4-6 - sport-specific training and return to full activity

Loading after repair. Complete immobilisation is harmful to the enthesis and leads to stiffness. Controlled passive motion stimulates collagen organisation without overloading the repair, and the programme balances protection against beneficial loading. Whether early motion helps the repair itself is less clear than it sounds; the rat and human evidence is set out under Controversies.

What sets the pace. Tear size and tissue quality, the strength of the repair construct, patient compliance and biology, and smoking, diabetes and age.

Related pages: Tendon Healing is the companion basic-science page for the tendon MIDSUBSTANCE, and the contrast is the teaching point - midsubstance repair heals by remodelling that eventually approaches normal tendon, whereas the insertion never rebuilds its four zones; Rotator Cuff Tears and Massive Rotator Cuff Tears are where this biology is cashed out clinically, and where the fatty infiltration and retraction the Kim card identifies as re-tear predictors are graded and acted on; Rotator Cuff Arthropathy is the endpoint when the interface fails permanently; Achilles Tendinopathy and Plantar Fasciitis are the two commonest INSERTIONAL enthesopathies, and the enthesis-organ concept explains why the retrocalcaneal bursa and Kager's fat pad are part of the disease rather than bystanders; Achilles Tendon Rupture for the midsubstance counterpart in the same tendon; Patellar Tendinitis for jumper's knee at the inferior pole; Lateral Epicondylitis and Medial Epicondylitis for the elbow entheses, where the degenerative-not-inflammatory point matters most because the name says otherwise; Seronegative Spondyloarthropathy and Ankylosing Spondylitis for the inflammatory enthesitis the McGonagle card describes - the one context where an enthesopathy really is driven by inflammation and responds to systemic immunomodulation rather than load management; Ligament Biology for the osteoligamentous insertions that share this architecture; Bone Healing and Growth Factors in Bone Healing for the mineralised side of the junction; and PRP and Orthobiologics for the augmentation strategies the tissue-engineering card anticipates and which still lack clinical proof at this interface.

Early motion versus protection after repair. Two rat studies are routinely quoted against each other, and they do not conflict: they varied different things. Gimbel 2007 varied activity (immobilise, cage, exercise) with the muscle intact, and found immobilisation gave the best insertion mechanics at 16 weeks. Galatz 2009 abolished muscle load with botulinum toxin and casted the controls too, so it compared paralysis with a working muscle, both immobilised, and did not compare motion with rest.

Put together they say one thing: the repair needs the muscle's own tension and is not helped by external activity. The real unresolved question is how long a human shoulder can be protected before stiffness costs more than the mechanical gain, a trade-off neither rat study measured because neither assessed range of motion. Human RCTs of early versus delayed rehabilitation show broadly similar healing with possibly faster early range-of-motion recovery, which is why protocols remain surgeon-dependent.

Single-row versus double-row repair. Double-row and suture-bridge constructs restore more footprint and have higher biomechanical strength, but higher-level clinical evidence shows only modest, often non-significant differences in functional scores, with some reduction in re-tear for larger tears. Cost and implant burden remain real trade-offs.

Biologic augmentation. PRP, bone-marrow stimulation, scaffolds and growth factors (e.g. TGF-beta3) aim to regenerate the graded interface. Pre-clinical signals are promising, but no biologic has reliably re-created the four-zone enthesis in humans, and clinical benefit remains unproven and variable.

Mechanical or immune trigger of enthesitis. Whether spondyloarthropathy enthesitis is primarily biomechanical micro-damage at stressed entheses driving an IL-23/IL-17 response, or a primary autoimmune process, is debated. The enthesis organ and mechano-inflammation models attempt to reconcile the two; this underpins why entheses at high-stress sites are preferentially affected.
