Catastrophic Complication | Quadriceps or Patellar Tendon
- Devastating complication with poor functional outcomes
- Prevention is critical - protect extensor mechanism during surgery
- Patellar tendon ruptures have worse outcomes than quadriceps
- Allograft reconstruction is treatment of choice for chronic ruptures
- Many patients cannot achieve active extension despite treatment
- “Risk factors: previous surgery, diabetes, steroid use, MUA
- “Acute: primary repair with augmentation
- “Chronic: allograft (Achilles, whole extensor mechanism)
- “Extension lag is functional measure of success
Most devastating extensor mechanism injury. Risk factors: prior surgery, TTO, diabetes, steroid injection. Presents with inability to extend, patella alta on XR. Primary repair rarely successful - usually needs allograft.
Better prognosis than patellar tendon due to better tissue quality. Can often achieve primary repair with augmentation. Still significant functional limitation expected.
Protect the extensor mechanism: Avoid forceful manipulation, careful TTO technique with secure fixation, protect during exposure, avoid multiple surgeries when possible.
Allograft options: Achilles tendon allograft (bone block to patella), whole extensor mechanism allograft, or synthetic mesh augmentation. Outcomes variable.
| Injury Type | Timing | Tissue Quality | Management |
|---|---|---|---|
| Acute quadriceps rupture | Less than 2 weeks | Good tissue | Primary repair with augmentation |
| Chronic quadriceps rupture | Greater than 6 weeks | Retracted, scarred | Allograft reconstruction |
| Acute patellar tendon | Less than 2 weeks | Usually poor | Primary repair (often fails) or early allograft |
| Chronic patellar tendon | Greater than 6 weeks | Retracted, scarred | Allograft extensor mechanism |
RUPTURERisk Factors
Hook:These factors put the tendon at risk of RUPTURE!
GRAFTManagement Principles
Hook:Use GRAFT principles for extensor mechanism reconstruction!
AWEAllograft Options
Hook:AWE - Allografts are the mainstay of reconstruction!
Overview and Epidemiology
Extensor mechanism disruption after TKA is an uncommon but devastating complication. It includes rupture of the patellar tendon, quadriceps tendon, or patellar fracture extending into the tendon insertion. Outcomes are often poor, with many patients losing the ability to actively extend the knee.
Loss of active extension prevents stair climbing, rising from chair, and normal gait. Even with successful reconstruction, many patients have permanent extension lag (10-30 degrees) and reduced functional capacity. This is a quality-of-life altering complication.
- Previous knee surgery (strongest factor)
- Revision TKA: 3-4x higher risk
- Tibial tubercle osteotomy
- Diabetes mellitus
- Steroid use (systemic or local)
- Inflammatory arthritis
- Intraoperative: During exposure, manipulation
- Early postoperative: Fall, forceful flexion
- Late: Spontaneous (weakened tissue)
- MUA: Excessive force during manipulation
Pathophysiology and Mechanisms
The extensor mechanism includes quadriceps muscle → quadriceps tendon → patella → patellar tendon → tibial tubercle. The patellar tendon has poorer blood supply than quadriceps tendon, especially after TKA with fat pad resection, explaining worse outcomes for patellar tendon injuries.
| Structure | Vascularity | Healing Potential | Repair Considerations |
|---|---|---|---|
| Quadriceps tendon | Good (muscle supply) | Better healing | Primary repair often possible |
| Patellar tendon | Poor (fat pad dependent) | Poor healing | Often needs allograft |
| Tibial tubercle | Moderate | Bone healing | Screw fixation of TTO |
Patellar tendon vascularity is compromised by: fat pad resection, previous surgery, diabetes, and lateral release. The tendon receives blood from inferior pole of patella and fat pad. Loss of these sources leads to poor healing potential.
- Quadriceps force: up to 7x body weight
- Patellofemoral contact: 3x body weight stairs
- Tendon stress concentrated at insertions
- Weakest point after TKA: patellar tendon
- Fat pad resection (blood supply)
- Lateral release (destabilizes patella)
- Multiple surgeries (scar, vascularity)
- Steroid injection (collagen weakening)
- Component malposition (abnormal stress)
Classification Systems
Classification by Anatomical Site
| Location | Incidence | Prognosis | Primary Treatment |
|---|---|---|---|
| Quadriceps tendon rupture | 30-40% | Better | Primary repair with augmentation |
| Patellar tendon rupture | 40-50% | Worst | Allograft reconstruction |
| Patellar fracture with mechanism disruption | 20-30% | Variable | ORIF vs revision patella |
Location determines prognosis and treatment options.
Clinical Assessment
- Mechanism: Fall, sudden pop, intraoperative
- Timing: When did it occur relative to TKA
- Symptoms: Inability to extend, giving way
- Previous surgeries: Risk factor assessment
- Comorbidities: Diabetes, steroids, RA
- Active extension: Complete loss or extension lag
- Palpable gap: At rupture site
- Patella position: Alta (patellar tendon) or baja (quadriceps)
- Swelling/ecchymosis: Around knee
- Wound assessment: Previous surgical scars
Inability to actively extend the knee is pathognomonic for complete extensor mechanism rupture. Test with patient supine, leg straight - ask to lift leg off bed. If unable to maintain straight leg raise = complete disruption.
| Rupture Site | Patella Position | Palpable Defect | Extension Test |
|---|---|---|---|
| Patellar tendon | Patella ALTA (high-riding) | Below patella | Complete loss of extension |
| Quadriceps tendon | Patella BAJA (low) | Above patella | Complete loss of extension |
| Partial rupture | May be normal | Tenderness only | Weak extension, may have lag |
Extension lag = can maintain extension if placed there, but cannot actively achieve full extension. This indicates partial disruption or weak/reconstructed mechanism. Measure lag in degrees (e.g., 15-degree extension lag).
| Diagnosis | Distinguishing Feature | Key Investigation | Management Direction |
|---|---|---|---|
| Complete extensor mechanism rupture | Total loss of active extension, palpable gap, patella alta/baja | Lateral XR (Insall-Salvati), USS/MRI | Repair or reconstruction |
| Partial extensor tendon tear | Weak extension with lag but some active power | USS/MRI for tendon continuity | Often non-operative, brace and monitor |
| Periprosthetic / quadriceps tendon avulsion at patella | Defect at superior pole, patella baja | XR plus MRI | Repair to patella bone tunnels |
| Patellar fracture (transverse, displaced) | Crepitus, fracture line on XR, extension deficit | Skyline plus lateral XR | ORIF, partial patellectomy or revision |
| Component loosening / instability | Pain, effusion, instability rather than true lag | Serial XR, exam under anaesthesia | Revision arthroplasty |
| Periprosthetic joint infection | Pain, warmth, raised CRP/ESR; may cause tissue failure | Aspiration, CRP/ESR, alpha-defensin | Treat infection BEFORE any reconstruction |
| Reflex inhibition / disuse weakness | Intact tendon, lag resolves with effort/rehab | Clinical, normal imaging | Physiotherapy, no surgery |
A new extensor lag in a previously functioning TKA may be the first sign of periprosthetic joint infection eroding the tendon. Reconstructing over an unrecognised infection guarantees failure. Check CRP/ESR and aspirate the joint before planning any extensor mechanism surgery.
Investigations
Diagnostic Workup
Lateral XR: Assess patella position (alta vs baja). Look for patellar fracture, avulsion fragments. Compare to previous films.
Can visualize tendon continuity, gap size, and retraction. Operator-dependent but useful for confirming clinical diagnosis.
Defines rupture site, gap size, tissue quality, and associated pathology. Useful for surgical planning. May have artifact from prosthesis.
If any suspicion of infection contributing to tissue failure. CRP, ESR, aspiration if needed.
Insall-Salvati ratio (patellar tendon length / patella length): Normal 1.0-1.2. Patella alta (greater than 1.2) suggests patellar tendon rupture. Patella baja (less than 0.8) suggests quadriceps rupture. Compare to contralateral.
- Patella position (alta vs baja)
- Avulsion fragments
- Patellar fracture
- Component position (still important)
- Tibial tubercle fragment (TTO failure)
- Tendon discontinuity
- Gap measurement
- Tissue quality assessment
- Associated muscle atrophy
- Planning for reconstruction

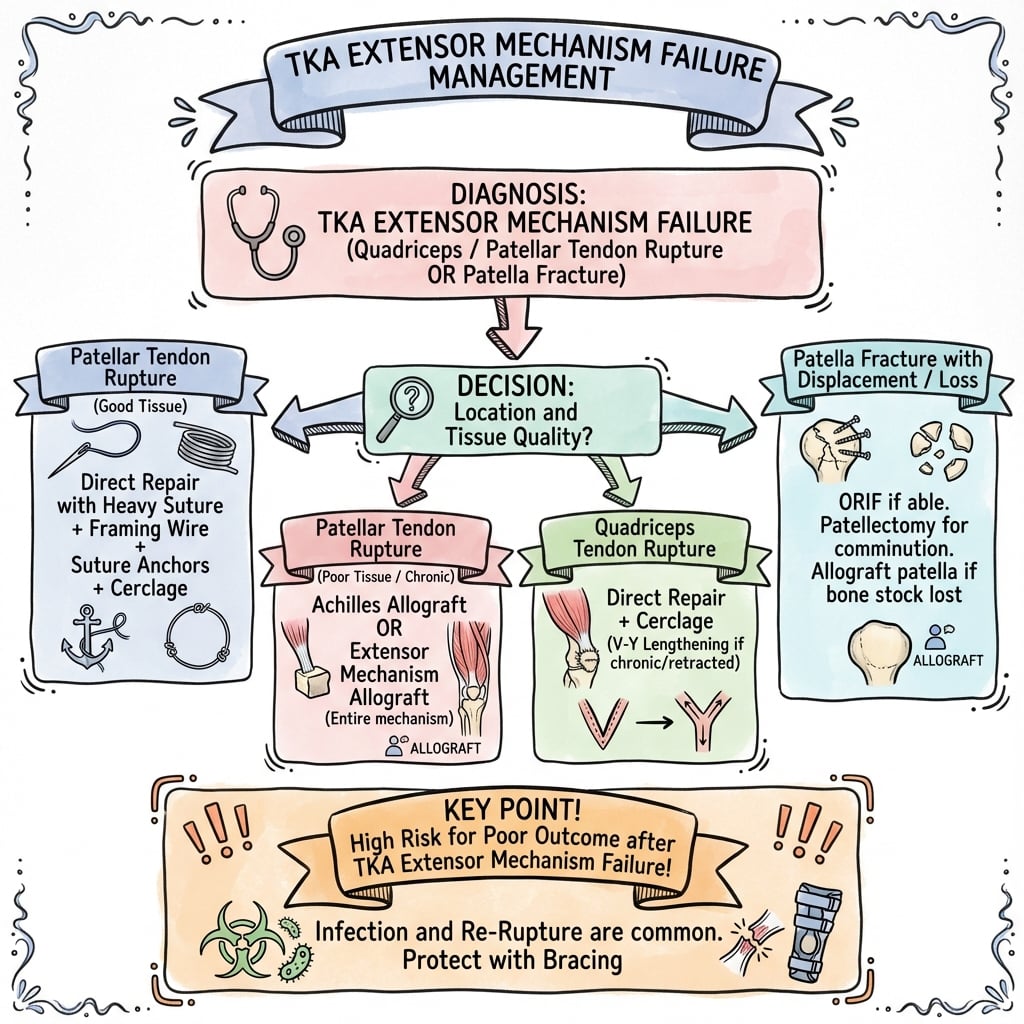

Management Algorithm
Acute Extensor Mechanism Rupture (Less than 2-4 Weeks)
| Location | Tissue Quality | Treatment | Prognosis |
|---|---|---|---|
| Quadriceps tendon | Good | Primary repair + augmentation | Fair |
| Quadriceps tendon | Poor/friable | Primary repair + allograft augmentation | Guarded |
| Patellar tendon | Any | Primary repair (often fails) or early allograft | Poor |
Primary repair with augmentation (autograft hamstrings, synthetic mesh, or allograft) is preferred when tissue allows. Repair is tensioned with knee in extension. Protected for 6-8 weeks in extension splint.
Early surgery (within 2 weeks) gives best chance of primary repair.
Surgical Technique
Primary Repair with Augmentation
Surgical Steps
Midline incision through previous scar. Identify rupture site and tendon ends. Debride non-viable tissue. Assess tissue quality.
Freshen tendon ends. Create bone tunnels in patella or tibial tubercle as needed. May need to mobilize retracted tendon.
Heavy non-absorbable suture (Krackow or Bunnell technique). Pass through bone tunnels. Tension with knee in full extension.
Augment the repair: Options include semitendinosus autograft, synthetic mesh (e.g., polypropylene), or allograft tissue. Provides additional strength.
Primary repair alone often fails in TKA setting due to poor tissue quality and vascularity. Augmentation provides: mechanical reinforcement, scaffold for healing, and protection during rehabilitation.
Protect repair with extension splint for 6-8 weeks.
Complications
| Complication | Incidence | Risk Factors | Management |
|---|---|---|---|
| Re-rupture | 10-30% | Poor tissue, non-compliance | Repeat reconstruction or accept |
| Persistent extension lag | 50-70% | Expected outcome | PT, accept residual lag |
| Infection | 5-15% | Multiple surgeries, diabetes | Debridement, antibiotics |
| Allograft failure/resorption | 10-20% | Immune response, poor incorporation | Revision reconstruction |
| Stiffness | Variable | Immobilization, fibrosis | PT, possible MUA (cautious) |
Re-rupture occurs in 10-30% of reconstructions. Risk factors: inadequate protection, early aggressive ROM, poor tissue quality, allograft failure. Always protect repair for full 6-8 weeks with extension splint.
Even with successful reconstruction, expect: extension lag 10-30 degrees in most patients, reduced stair climbing ability, need for assistive devices for some. Full extension rarely achieved. Set realistic expectations preoperatively.
Postoperative Care
Rehabilitation Protocol
Extension splint or cylinder cast full-time. No active flexion. Weight bearing as tolerated with brace locked. Prevent flexion forces on repair.
Begin gentle passive flexion (0-30, progress to 0-60). Continue brace for ambulation. Start isometric quadriceps. Gradual progression.
Progressive active ROM. Quadriceps strengthening (closed chain). Gait training. Wean from brace gradually based on strength.
Continue strengthening. Assess final ROM and extension lag. Adapt to residual deficits. May need long-term brace for some activities.
- Protect repair - extension splint mandatory
- Delay flexion - avoid stress on repair
- Gradual progression - no rushing
- Accept limitations - extension lag likely
- Sudden loss of extension ability
- Palpable new gap
- Significant swelling
- Unable to maintain extension
Outcomes and Prognosis
| Rupture Type | Primary Repair Success | Allograft Survival (5yr) | Functional Outcome |
|---|---|---|---|
| Quadriceps (acute) | 60-70% | N/A if repair holds | Fair-Good |
| Quadriceps (chronic) | Low | 60-70% | Fair |
| Patellar (any) | Low | 50-60% | Poor-Fair |
Extension lag is the key functional measure. Patients with less than 15-degree lag can usually manage stairs and transfers. Greater than 30-degree lag often requires assistive devices. Complete active extension is rarely achieved.
Controversies and Areas of Uncertainty
Meta-analysis (Shau 2018) shows equivalent success (approximately 76% vs 74%) and similar failure rates. Mesh is cheaper, off-the-shelf and avoids disease transmission; allograft offers biological incorporation. No high-level trial settles the debate.
Direct repair fails in roughly 34% (quadriceps) and up to 63% (patellar tendon). Whether to reinforce every acute repair with mesh/allograft, or reserve augmentation for poor tissue, remains unresolved.
Small series (semitendinosus, gastrocnemius flap) report low failure and least lag, but cohorts are tiny. Whether autograft truly outperforms allograft/mesh, or reflects selection bias, is uncertain.
In low-demand or high-comorbidity patients, a braced, lagging knee may be safer than a complex reconstruction with approximately 25-32% failure and high infection risk. The threshold to operate is individualised, not evidence-defined.
Across all reconstruction techniques, periprosthetic joint infection is present in 39-44% of failures (Rajgopal 2025). Many "failed reconstructions" are in fact unrecognised or recurrent infections. This is the dominant area of uncertainty and the key to improving outcomes.
Evidence Base
- 20 consecutive whole extensor mechanism allograft (tubercle-patellar tendon-patella-quadriceps tendon) reconstructions after TKA.
- All 7 loosely-tensioned grafts FAILED (mean residual lag 59 degrees, HSS score 52). All 13 grafts tensioned tightly in FULL EXTENSION succeeded (mean lag 4.3 degrees, HSS 88; p less than 0.0001).
- Flexion was not significantly compromised by full-extension tensioning.
- 40 knees with chronic extensor mechanism disruption after TKA treated with whole extensor mechanism allograft; 13 previously infected.
- At mean 3.6 years, 34 of 36 evaluable patients (94%) had a successful clinical result; mean Knee Society function score improved 37 to 68.
- 8 allografts ruptured and required re-grafting; mean extensor lag 13 degrees.
- 9 patellar tendon ruptures after TKA reconstructed with fresh-frozen Achilles tendon allograft + calcaneal bone block.
- Mean extensor lag improved from 44 degrees to 3 degrees; mean ROM 88 to 107 degrees; Knee/function scores 26/14 to 81/53.
- 2 early graft failures, both successfully re-repaired; mean proximal patellar migration 17.8 mm did not impair function.
- 13 subacute/chronic patellar tendon disruptions after TKA reconstructed with knitted monofilament polypropylene mesh (5 had failed prior allograft).
- 9 of 13 succeeded with extensor lag 10 degrees or less and maintained flexion; 3 failed within 6 months, 1 recurrent infection.
- Mesh was significantly cheaper than allograft and avoids disease transmission.
- 7 patellar ligament ruptures after TKA reconstructed with autogenous semitendinosus tendon woven through patella and tibial tubercle.
- Restored active extension in this small series — established autograft as a viable option when allograft/mesh are unavailable.
- Avoids disease transmission and immune/incorporation issues of allograft.
- Systematic review and meta-analysis of 14 studies, 204 knees, comparing allograft vs synthetic mesh extensor mechanism reconstruction.
- No significant difference in success (76% allograft vs 74% mesh), Knee Society Scores, extensor lag, or complications — approximately 25% failure in both groups.
- Periprosthetic joint infection is a leading cause of failure in both groups; mesh is cheaper and universally available.
- 32 studies (655 reconstructions, 119 repairs); incidence of extensor mechanism disruption 0.1-2.5%.
- Direct repair failure: quadriceps 33.9% vs patellar tendon 63% — confirming patellar tendon repair is markedly less reliable.
- Allograft and mesh reconstruction failure approximately 32%; PJI present in 39-44% of failures; autograft/gastrocnemius flap had the least lag in small cohorts.
Exam Viva Scenarios
Practise clinical reasoning and management decisions out loud
“A 68-year-old man falls 3 weeks after revision TKA and cannot extend his knee. Examination shows a palpable gap below the patella and patella alta on XR. He has diabetes.”
“During revision TKA with difficult exposure, you perform a tibial tubercle osteotomy. When you flex the knee to deliver the tibia, the tubercle avulses completely from the remaining tibia. What do you do?”
“A 70-year-old woman presents 4 months after primary TKA. She has had progressive difficulty extending her knee. She now has a 40-degree extension lag and cannot climb stairs. MRI confirms chronic quadriceps tendon rupture with 4cm retraction.”
“You are about to perform MUA for stiffness at 10 weeks post-TKA. The patient has diabetes and had a previous TKA revision. How do you minimize risk of extensor mechanism rupture?”
MCQ Practice Points
Q: Which extensor mechanism component has the worst prognosis when ruptured after TKA? A: Patellar tendon - Has poorest blood supply (depends on fat pad) and worst healing potential. Primary repair often fails, requiring allograft reconstruction with guarded outcomes.
Q: What patella position is expected with patellar tendon rupture? A: Patella alta (high-riding patella) - The patella migrates proximally when patellar tendon is disrupted. Insall-Salvati ratio greater than 1.2 indicates patella alta.
Q: What is the most commonly used allograft for extensor mechanism reconstruction? A: Achilles tendon allograft with calcaneal bone block - The bone block is fixed to the patella and the tendon portion is sutured to the quadriceps, bridging the defect.
Q: How long should the knee be protected in extension after extensor mechanism repair/reconstruction? A: 6-8 weeks - This period allows healing of repair or incorporation of allograft. Active flexion is avoided during this time. Premature mobilization risks re-rupture.
Q: What residual extension lag is commonly seen after extensor mechanism reconstruction? A: 10-30 degrees - Most patients have permanent extension lag even with successful reconstruction. Full active extension is rarely achieved after allograft reconstruction.
Guidelines, Registries & Global Practice
Extensor mechanism disruption after TKA has an incidence of 0.1-2.5%, rising several-fold in the revision setting. No single society publishes a dedicated guideline; practice is shaped by registry data, expert consensus and the systematic reviews above.
| Body / Source | Region | Relevant Position |
|---|---|---|
| AAOS / AJRR | USA | Tracks revision TKA and complications; emphasises infection workup before reoperation; no graft-specific mandate |
| BOA / NICE / NJR | UK | NJR captures revision TKA volume and indications; BOA stresses MDT management of failed extensor mechanism at high-volume revision units |
| AOANJRR | Australia | Registry data on revision burden and patella-related revisions informs implant and technique choice |
| EFORT / European consensus | Europe | Supports reconstruction (allograft or mesh) tensioned in full extension; favours staged management when infection present |
| AO Foundation | Global | Tibial tubercle osteotomy principles: long osteotomy, secure multi-point fixation to prevent iatrogenic disruption |
- Tissue-bank allograft (Achilles, whole mechanism) readily available
- Synthetic mesh used increasingly for cost and availability
- Two-stage protocols when PJI present
- MRI/USS and metal-artefact-reduction imaging accessible
- Local autograft (semitendinosus, gastrocnemius flap) when allograft/mesh unavailable
- Greater reliance on clinical exam and plain radiographs
- Bracing/KAFO and non-operative pathways more commonly definitive
- Tissue banking and revision expertise concentrated in referral centres
Examiners worldwide expect: recognition of risk factors (revision, diabetes, TTO, steroids), the patellar-tendon blood-supply problem, exclusion of infection first, knowledge of the reconstruction ladder (repair to autograft to allograft/mesh) tensioned in full extension, and honest counselling about residual extension lag and approximately 25-32% failure.
Key Facts
- Patellar tendon rupture = WORST prognosis
- Quadriceps tendon = better tissue quality, better outcomes
- Primary repair often fails in TKA setting
- Allograft reconstruction is treatment of choice for chronic
Risk Factors (RUPTURE)
- R = Revision surgery (3-4x higher risk)
- U = Unusual approaches (TTO)
- P = Poor vascularity (diabetes, smoking)
- T = Tension (MUA, forceful manipulation)
Clinical Signs
- Patellar tendon rupture = patella ALTA
- Quadriceps rupture = patella BAJA
- Inability to actively extend = complete rupture
- Extension LAG = partial or reconstructed
Management
- Acute: Primary repair + AUGMENTATION
- Chronic: ALLOGRAFT reconstruction (Achilles or whole mechanism)
- Protection: 6-8 weeks extension splint
- Non-op if unfit for surgery
Outcomes
- 50-70% 5-year allograft survival
- 10-30 degree extension lag EXPECTED
- Full extension rarely achieved
- PREVENTION is the best treatment
