Osteolysis | Polyethylene Wear | Particle Disease
Causes of Aseptic Loosening
Critical Must-Knows
- Polyethylene wear debris triggers osteolysis (particle disease)
- Tibial component most commonly affected
- Rule out infection in ALL cases before proceeding to revision
- Revision requires addressing bone loss, component stability, and alignment
- Stems and augments often needed for revision
Clinical Pearls
- "Progressive radiolucent lines greater than 2mm = loosening
- "Component migration on serial XR is diagnostic
- "CRP/ESR + aspiration mandatory to exclude infection
- "AORI classification for bone loss
Critical TKA Aseptic Loosening Exam Points
Pathophysiology
Polyethylene wear particles trigger macrophage activation and release of osteoclast-stimulating cytokines (IL-1, IL-6, TNF-α). This causes periprosthetic osteolysis and component loosening. The biologic response is dose-dependent on particle load.
Diagnosis
Exclude infection FIRST - aspiration with cell count, CRP, ESR mandatory. Progressive radiolucent lines, component migration, and osteolysis on XR. Consider CT/MRI MARS for metal components.
Most Common Site
Tibial component is most commonly affected due to higher wear at tibial polyethylene surface and varus malalignment forces. Femoral component loosening less common but may indicate rotational malalignment.
Revision Strategy
Address all factors: Remove components, debride membrane, manage bone loss (AORI classification), restore alignment, and use appropriate constraint. Stems and augments typically required.
Quick Decision Guide
| Presentation | Investigation Findings | Key Consideration | Management |
|---|---|---|---|
| Pain, well-fixed appearance | Normal XR, elevated markers | Exclude infection | Aspirate before revision |
| Progressive pain, RLL | Greater than 2mm RLL, no migration | Early loosening | Close monitoring vs revision |
| Pain, component migration | Serial XR shows subsidence | Definitive loosening | Plan revision with bone defect strategy |
| Massive osteolysis | Large cavitary defects | Bone loss classification | Cones, sleeves, augments |
WEARCauses of Aseptic Loosening
| W | Wear particles Polyethylene wear debris = osteolysis |
| E | Edge loading Malposition increases wear |
| A | Alignment issues Varus/valgus increases tibial stress |
| R | Rotation problems Internal rotation = patellofemoral issues |
| W | Wear particles Polyethylene wear debris = osteolysis | A | Alignment issues Varus/valgus increases tibial stress |
| E | Edge loading Malposition increases wear | R | Rotation problems Internal rotation = patellofemoral issues |
Hook:Components WEAR out due to these factors!
SPACEWorkup Before Revision
| S | Serial radiographs Compare to post-op films |
| P | PET or nuclear medicine If diagnosis unclear |
| A | Aspiration Mandatory - cell count, culture |
| C | CRP and ESR Inflammatory markers |
| E | Evaluate bone loss CT for defect planning |
| S | Serial radiographs Compare to post-op films | C | CRP and ESR Inflammatory markers |
| P | PET or nuclear medicine If diagnosis unclear | E | Evaluate bone loss CT for defect planning |
| A | Aspiration Mandatory - cell count, culture |
Hook:Give yourself SPACE to rule out infection!
SAFERevision Principles
| S | Stability with stems Offset stems for fixation |
| A | Augments for bone loss Metal augments or graft |
| F | Fixation at metaphysis/diaphysis Zone fixation concept |
| E | Exposure adequate Extensile approach if needed |
| S | Stability with stems Offset stems for fixation | F | Fixation at metaphysis/diaphysis Zone fixation concept |
| A | Augments for bone loss Metal augments or graft | E | Exposure adequate Extensile approach if needed |
Hook:Keep revision SAFE with proper planning!
Overview and Epidemiology
Aseptic loosening is the mechanical failure of the bone-implant interface without infection. It remains a leading cause of TKA revision, second only to infection in many series. Modern implant designs and improved polyethylene have reduced but not eliminated this problem.
Historical Trends
Aseptic loosening rates have decreased with: cross-linked polyethylene, improved cementing technique, better alignment targets, and modern implant designs. However, with increasing TKA volume and younger patients, absolute numbers requiring revision continue to rise.
Risk Factors - Patient
- High BMI: Increased wear and loosening
- Young age: Higher activity, longer exposure
- Poor bone quality: Osteoporosis, RA
- High activity level: Increased wear
- Smoking: Impaired bone healing
Risk Factors - Technical
- Malalignment: Varus/valgus increases tibial stress
- Malrotation: Component rotation errors
- Poor cementing: Cement mantle defects
- Undersizing: Stress concentration
- Polyethylene type: Conventional vs XLPE
Pathophysiology and Mechanisms
Key Biomechanical Concepts
The tibial component experiences highest polyethylene contact stress at the medial compartment in varus knees. Malalignment increases edge loading and accelerates wear. Tibial baseplate loading is transmitted through polyethylene to bone - any gap or poor support leads to micromotion and loosening.
Component-Specific Biomechanics
| Component | Loading Pattern | Common Failure Mode | Revision Consideration |
|---|---|---|---|
| Tibial baseplate | Axial compression, shear | Medial subsidence, varus collapse | Stems, metal augments, cones |
| Polyethylene insert | Contact stress, wear | Delamination, oxidative degradation | XLPE, adequate thickness |
| Femoral component | Flexion/extension loading | Posterior condylar loosening | Stems, augments if needed |
| Patellar component | Shear, eccentric loading | Loosening, fracture | Address alignment/rotation |
Particle Disease Pathophysiology
Polyethylene wear debris (particles 0.3-10μm) is phagocytosed by macrophages → release of cytokines (IL-1, IL-6, TNF-α, RANKL) → osteoclast activation → periprosthetic bone resorption → loosening. This is a dose-dependent biological response.
Tibial Fixation
- Cement mantle critical for fixation
- Proximal tibial bone supports load
- Varus malalignment concentrates medial stress
- Stems bypass compromised metaphysis
Femoral Fixation
- Posterior condyles bear flexion load
- Anterior flange for extension
- Rotation affects patellofemoral tracking
- Generally more tolerant of slight malalignment
Classification Systems
Anderson Orthopaedic Research Institute (AORI) Classification
AORI Bone Defect Classification
| Type | Description | Reconstruction Options |
|---|---|---|
| Type 1 | Intact metaphyseal bone, minor defects | Standard revision, cement alone |
| Type 2A | Damaged metaphyseal bone, one condyle/plateau | Metal augments, particulate graft |
| Type 2B | Damaged bone, both condyles/plateaus | Larger augments, structural graft |
| Type 3 | Deficient metaphyseal bone | Cones, sleeves, structural allograft, megaprosthesis |
AORI Application
AORI classification is applied separately to tibia and femur. Type 1 = minor defects amenable to cement. Type 2 = metaphyseal damage requiring augments. Type 3 = significant metaphyseal loss requiring reconstruction with cones/sleeves or structural graft.
Assess at surgery - imaging underestimates defect size in 50% of cases.
Clinical Assessment
History
- Pain characteristics: Start-up, activity-related, rest pain
- Pain location: Anterior (patella), medial/lateral (component)
- Timeline: Symptom-free interval then gradual onset
- Previous surgery: Index TKA details, any revision
- Function decline: Walking distance, stairs, ADLs
Physical Examination
- Gait: Antalgic, varus/valgus thrust
- Alignment: Obvious deformity
- ROM: Compare to previous
- Stability: Varus/valgus stress, AP drawer
- Patella tracking: J-sign, subluxation
Rule Out Infection
NEVER proceed to revision for presumed aseptic loosening without ruling out infection. Minimum workup: CRP, ESR, and aspiration with synovial WCC, differential, and culture. Apply MSIS criteria. Missed infection is a disaster.
Clinical Features by Component
| Component | Typical Presentation | Examination Findings |
|---|---|---|
| Tibial loosening | Medial pain, start-up pain | Tenderness over tibial component, varus thrust |
| Femoral loosening | Global knee pain, posterior pain | Less localizable, may have flexion instability |
| Patellar loosening | Anterior knee pain | Patellar crepitus, tenderness, tracking issues |
| Global loosening | Severe pain, instability | Obvious deformity, gross instability |
Symptom-Free Interval
A symptom-free interval after primary TKA followed by gradual pain onset is classic for aseptic loosening. Pain from the start suggests initial fixation problem, infection, or component malposition.
Differential Diagnosis of the Painful TKA
| Diagnosis | Discriminating Features | Key Investigation |
|---|---|---|
| Aseptic loosening | Symptom-free interval then start-up pain; RLL/migration; normal markers | Serial radiographs; aspiration to exclude PJI |
| Periprosthetic joint infection | No pain-free interval, rest pain, warmth/effusion; raised CRP/ESR | Aspiration (synovial WCC, PMN%, culture, alpha-defensin) |
| Instability | Giving way, recurrent effusions, often well-fixed components | Stress views, examination, fluoroscopy |
| Component malrotation | Anterior knee/patellofemoral pain, maltracking | CT rotational profile |
| Extra-articular / referred | Hip OA, lumbar radiculopathy, vascular, CRPS | Hip/spine exam and imaging; vascular assessment |
| Soft-tissue (patellar clunk, tendinopathy) | Mechanical catching, focal tenderness | Clinical exam; ultrasound if needed |
Always Exclude Infection First
A painful TKA is periprosthetic joint infection until proven otherwise. Aseptic loosening can only be diagnosed after a negative infection workup (CRP, ESR, aspiration with synovial WCC/PMN%/culture).
Controversies & Areas of Uncertainty
Cones vs Sleeves
Both tantalum cones and titanium sleeves provide durable metaphyseal fixation for AORI Type 2B/3 defects, but no high-quality randomised data establish superiority of one over the other. Choice is driven by defect geometry, system availability and surgeon familiarity.
Cemented vs Cementless Stems
The hybrid (cemented metaphysis, press-fit diaphyseal stem) versus fully cemented stem debate persists. Registry and cohort data show comparable survivorship; end-of-stem pain is more associated with long press-fit stems.
Isolated Poly Exchange
Isolated polyethylene exchange for wear/osteolysis with well-fixed components is tempting but carries high re-revision rates; most authors reserve it for highly selected cases with secure fixation and accurate component position.
Alignment Philosophy
Whether kinematic or functional alignment reduces long-term loosening compared with mechanical alignment remains unresolved; current evidence shows equivalent short- to mid-term survivorship.
Honest Uncertainty
There is no validated threshold that perfectly separates a painful-but-well-fixed knee from early loosening on a single radiograph. Serial imaging, component migration and a rigorous infection workup - not any one test - drive the decision to revise.
Investigations
Diagnostic Workup
CRP and ESR: Must be done. Elevated suggests infection. If elevated, proceed with aspiration before any surgical planning.
Synovial fluid: WCC (greater than 1100/μL chronic, greater than 3000 acute), PMN% (greater than 64%), culture (hold 14 days). Alpha-defensin if available.
Weight-bearing AP, lateral, skyline: Compare to immediate post-op films. Look for RLL, migration, osteolysis, component position. Serial films critical.
CT: Bone loss quantification, rotational assessment. MRI MARS: Soft tissue, occult osteolysis. Nuclear medicine: Differentiating loose from well-fixed (limited utility).
Radiolucent Line Interpretation
RLL greater than 2mm or progressive RLL = loosening. Complete RLL around component = definitely loose. Compare to immediate post-op films - new or enlarging lines are significant. Lucency at bone-cement interface is more concerning than cement-implant interface.
Radiographic Signs of Loosening
- RLL greater than 2mm at bone-cement interface
- Progressive RLL on serial films
- Component migration/subsidence
- Periprosthetic osteolysis
- Cement mantle fracture
CT Applications
- Bone defect quantification (AORI)
- Component rotation assessment
- Occult osteolysis detection
- Preoperative planning for augments
- Metal artifact reduction protocols (MARS)

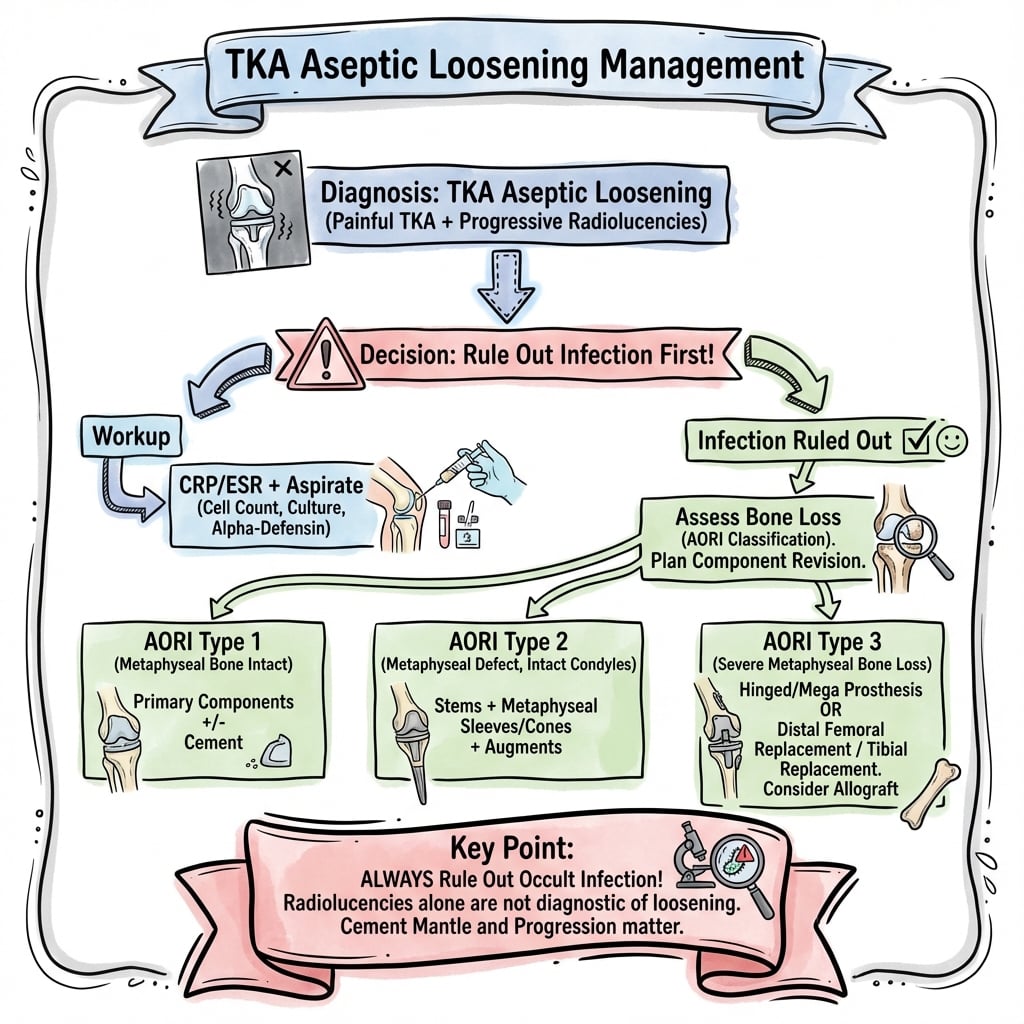

Management Algorithm
Treatment Algorithm
| Clinical Scenario | Investigation Findings | Management |
|---|---|---|
| Symptomatic, possible loosening | Normal markers, equivocal XR | Repeat XR at 3-6 months, trial conservative |
| Symptomatic, definite loosening | Negative infection workup | Plan revision TKA |
| Symptomatic loosening + elevated markers | Awaiting aspiration | Do NOT proceed until infection ruled out |
| Asymptomatic osteolysis | Progressive on serial XR | Consider early revision to preserve bone |
Conservative Management
Limited role for conservative treatment in true loosening - activity modification, analgesia, and bracing may temporize but cannot reverse the problem. Consider in patients unfit for surgery or those with limited symptoms.
Timing of revision: Balance bone loss progression against patient factors and symptoms.
Surgical Technique
Approach and Exposure
Surgical Steps
Use previous incision (lateral-most if multiple). Develop medial parapatellar arthrotomy typically. Be prepared for extensile exposure if needed (quad snip, VY turndown, tibial tubercle osteotomy).
Carefully mobilize patella. In stiff knee, may need quad snip. Tibial tubercle osteotomy for severe stiffness or difficult exposure. Protect patellar tendon throughout.
Debride hypertrophic synovium and particle-laden membrane (pseudomembrane). This tissue contains wear particles and osteolytic cytokines - remove thoroughly.
Extensile Approaches
Quad snip: 45-degree proximal extension of arthrotomy. Rectus snip: Cut rectus tendon. VY turndown: V-shaped turndown of quad tendon. Tibial tubercle osteotomy (TTO): Best for severe stiffness - allows direct proximal retraction.
Adequate exposure is critical - rushing leads to complications.
Complications
Revision TKA Complications
| Complication | Risk Factors | Prevention | Management |
|---|---|---|---|
| Infection | Longer surgery, revision setting | Antibiotics, laminar flow, technique | DAIR vs 2-stage revision |
| Stiffness | Poor exposure, inadequate rehab | Adequate exposure, early ROM | MUA, possible re-revision |
| Instability | Inadequate constraint, ligament damage | Proper constraint selection | Poly exchange vs revision |
| Extensor mechanism failure | TTO, aggressive mobilization | Careful technique, protect tendon | Repair, reconstruction, allograft |
| Periprosthetic fracture | Osteoporosis, cortical windows | Careful cement removal, stems | ORIF, revision with long stems |
Extensor Mechanism
Protect the extensor mechanism throughout surgery. Patellar tendon avulsion is a devastating complication. If TTO performed, secure fixation and protect postoperatively.
Re-Revision Rates
Revision TKA has higher failure rates than primary TKA. 10-year survival approximately 80-85% for aseptic revision. Re-revision is more complex with progressive bone loss - consider referral to high-volume revision center.
Postoperative Care
Rehabilitation Protocol
Ward care: Pain management, DVT prophylaxis, wound monitoring. CPM if available. Begin ROM exercises. Weight bearing as tolerated typically (unless bone graft).
ROM focus: Progressive ROM, quadriceps strengthening. Gait training with aids. Wound care. If TTO, may limit active extension initially.
Strengthening: Progressive resistance, functional exercises. Wean walking aids. Monitor for stiffness requiring MUA (typically by 6-8 weeks if needed).
Return to function: Full activities as tolerated. Final ROM assessment. Serial XR to confirm stability.
Weight Bearing Protocol
- Standard revision: WBAT with aids
- Bone graft: May restrict WB 6 weeks
- TTO: Partial WB, limit active extension 6-8 weeks
- Megaprosthesis: Per surgeon protocol
Follow-Up Schedule
- 2 weeks: Wound check, staple removal
- 6 weeks: XR, ROM assessment
- 3 months: Progress check, consider MUA if stiff
- Annual: Long-term surveillance
Outcomes and Prognosis
Outcomes Summary
| Measure | Revision for Aseptic Loosening | Primary TKA (Comparison) |
|---|---|---|
| 10-year survival | 80-85% | 95%+ |
| Knee Society Score | 70-80 | 85-95 |
| Patient satisfaction | 75-85% | 90% |
| Complication rate | 10-15% | 2-5% |
| Deep infection | 5-10% | 1-2% |
Prognostic Factors
Better outcomes with: Single component loosening, adequate bone stock, younger age, good soft tissue envelope. Worse outcomes with: Global loosening, massive bone loss, multiple previous revisions, extensor mechanism compromise.
Evidence Base
- Retrospective review of 212 revision TKAs at one institution. Leading causes ranked by prevalence: polyethylene wear, aseptic loosening, instability, infection, arthrofibrosis. Notably, over half were revised within 2 years of the index operation, with early failures driven by instability, malalignment and failure of fixation.
- Defined the standardized AORI classification of femoral and tibial bone defects (Types 1-3) based on metaphyseal bone integrity, and described reconstruction options - cement, augments, allograft - matched to defect severity. Emphasised selecting the least constraint compatible with stability and using long stems when major structural allografts are needed.
- Describes three anatomical fixation zones in both femur and tibia - epiphysis (Zone 1), metaphysis (Zone 2) and diaphysis (Zone 3). Recommends obtaining solid fixation in at least two of the three zones, since the metaphysis is typically compromised in loosening.
- Multicentre retrospective series of 820 consecutive revision TKAs (2000-2012). Aseptic loosening was the single most common reason for revision (23.1%), ahead of infection (18.4%), polyethylene wear (18.1%) and instability (17.7%). Compared with earlier eras there were fewer revisions for poly wear, osteolysis, instability and malalignment, attributed to improved implants and technique.
- Single-institution review of 228 revision TKAs using porous tantalum tibial metaphyseal cones with stemmed components. Ten-year survivorship free of aseptic loosening leading to cone removal was 97%, and free of any cone removal was 88%. Periprosthetic joint infection - not aseptic loosening - accounted for 80% of cone removals. Knee Society scores improved from 38 to 69.
- National registry analysis of 482,373 primary TKAs. The lowest-risk combination across five design categories (minimally stabilised, fixed bearing, cross-linked polyethylene, patella resurfaced) had a 10-year cumulative percent revision of 2.4% versus 5.5% for alternative combinations - a 60% reduction. Loosening/lysis was the most common cause of revision in the higher-risk cohort (1.1%) but only the second most common, and far less frequent, with the optimum combination (0.3%).
- Evidence-based recommendations for surgical management of knee osteoarthritis and TKA. Reinforces accurate alignment, validated implant/bearing selection and systematic exclusion of periprosthetic joint infection before revision for presumed aseptic loosening.
Exam Viva Scenarios
Use these scenarios to practise clinical reasoning and management decisions
Scenario 1: Progressive Loosening
"A 72-year-old woman presents 8 years after primary TKA with increasing medial knee pain. She had been pain-free for 6 years. Radiographs show 3mm radiolucent line around the tibial component with medial tibial subsidence. CRP and ESR are normal."
Scenario 2: Massive Osteolysis
"A 65-year-old man has a 15-year-old TKA with massive osteolysis. CT shows AORI Type 3 defects in both tibia and femur. He is moderately symptomatic but mobile. What are your options?"
Scenario 3: Elevated Inflammatory Markers
"You are planning revision TKA for apparent aseptic loosening. Preoperative CRP is 15 mg/L (normal less than 5). The surgeon wants to proceed. What do you do?"
Scenario 4: Intraoperative Bone Loss
"During revision TKA for tibial loosening, you remove the component and find the medial tibial plateau is completely absent with a large cavitary defect extending into the diaphysis. You had planned for AORI Type 2 but this is Type 3. What do you do?"
MCQ Practice Points
Most Common Component
Q: Which component is most commonly affected by aseptic loosening in TKA? A: Tibial component - Due to higher contact stress at the polyethylene surface, varus malalignment forces, and the smaller fixation surface compared to femoral component.
Pathophysiology
Q: What is the primary biological mechanism of osteolysis in TKA? A: Macrophage activation by polyethylene wear debris - Wear particles (0.3-10μm) are phagocytosed by macrophages, which release cytokines (IL-1, IL-6, TNF-α, RANKL) that stimulate osteoclast-mediated bone resorption.
Radiolucent Line Threshold
Q: What radiolucent line width at the bone-cement interface indicates probable loosening? A: Greater than 2mm - RLL greater than 2mm or any progressive radiolucent line on serial radiographs indicates loosening. Complete radiolucency around a component is definitive.
AORI Classification
Q: What does AORI Type 2B bone defect signify? A: Damaged metaphyseal bone involving both condyles/plateaus - Type 2A involves one condyle/plateau, Type 2B involves both. Type 2 defects require metal augments or graft for reconstruction.
Zone Fixation
Q: In revision TKA, which zone provides the most reliable fixation? A: Zone 3 (diaphysis) - The metaphysis (Zone 2) is typically damaged in loosening. Stems that engage the healthy diaphyseal bone (Zone 3) provide reliable fixation for revision components.
Guidelines, Registries & Global Practice
Aseptic loosening is a leading cause of revision worldwide. Across major national registries (NJR England/Wales, AJRR USA, AOANJRR Australia, SHAR Sweden, NZJR New Zealand), loosening and infection consistently top the list of indications for TKA revision, while polyethylene wear and osteolysis have declined in the cross-linked-polyethylene era. Cumulative percent revision at 10 years for primary TKA is broadly 3-6% across registries, with implant- and bearing-specific differences (see below).
Registry & Society Perspectives (Side by Side)
| Source | Region | Key Message for Loosening |
|---|---|---|
| AOANJRR / SHAR / NJR / AJRR | Australia, Sweden, UK, USA | Loosening and infection are the dominant revision indications; cross-linked polyethylene reduces wear/osteolysis-driven revision |
| AAOS | USA | Validated implant/bearing selection, accurate alignment, exclude PJI before revising for presumed aseptic loosening |
| BOA / NICE | UK | Routine post-op surveillance radiographs; refer complex revision to higher-volume centres |
| AO / EFORT | Europe (global) | Zonal-fixation principle and metaphyseal cones/sleeves for AORI Type 2B/3 defects; least constraint compatible with stability |
High-Resource Settings
- Modular revision systems: cones, sleeves, augments, offset stems
- Cross-linked polyethylene and validated bearings as standard
- Two-stage PJI pathways and arthroplasty MDT for bone loss
- Registry-linked surveillance and outcome benchmarking
Limited-Resource Settings
- Restricted access to cones/sleeves and megaprostheses
- Greater reliance on cement, bone graft and basic stems/augments
- Conventional polyethylene still in use, raising wear/osteolysis risk
- Earlier referral and selective revision where implant inventory is constrained
Global Exam Focus
Examiners worldwide (FRCS, FRACS, EBOT, ABOS, DNB/MS) expect: particle-disease pathophysiology, a systematic infection-exclusion algorithm before revision, AORI classification, the zonal-fixation concept, and reconstruction options (augments, cones, sleeves, megaprosthesis) calibrated to bone loss and resource setting.
TKA ASEPTIC LOOSENING
Clinical summary
Pathophysiology
- •Polyethylene wear → macrophage activation → cytokines → osteolysis
- •TIBIAL component most commonly affected
- •Varus malalignment increases medial stress
- •Dose-dependent biological response to particles
Diagnosis
- •RLL greater than 2mm = probable loosening
- •Progressive RLL or migration = definitive
- •ALWAYS rule out infection: CRP, ESR, ASPIRATION
- •CT for bone loss quantification
Classification (AORI)
- •Type 1: Intact metaphysis, minor defects → cement alone
- •Type 2A: One condyle/plateau → augments
- •Type 2B: Both condyles/plateaus → larger augments, stems
- •Type 3: Metaphyseal deficient → cones, sleeves, megaprosthesis
Revision Principles
- •Zone 3 (diaphysis) fixation with STEMS
- •Metal AUGMENTS for bone defects
- •CONES and SLEEVES for metaphyseal fixation
- •Higher CONSTRAINT if ligaments compromised
Exam Pearls
- •Never revise without ruling out infection
- •Imaging underestimates bone loss in 50%
- •Symptom-free interval then pain = classic presentation
- •10-year survival 80-85% (vs 95% primary)
